COMPATIBLE: (HONDA B/K-SERIES)
B20B B20Z B16A B18C1 B18A B18B B18C5
K20 K24 K20A K20Z

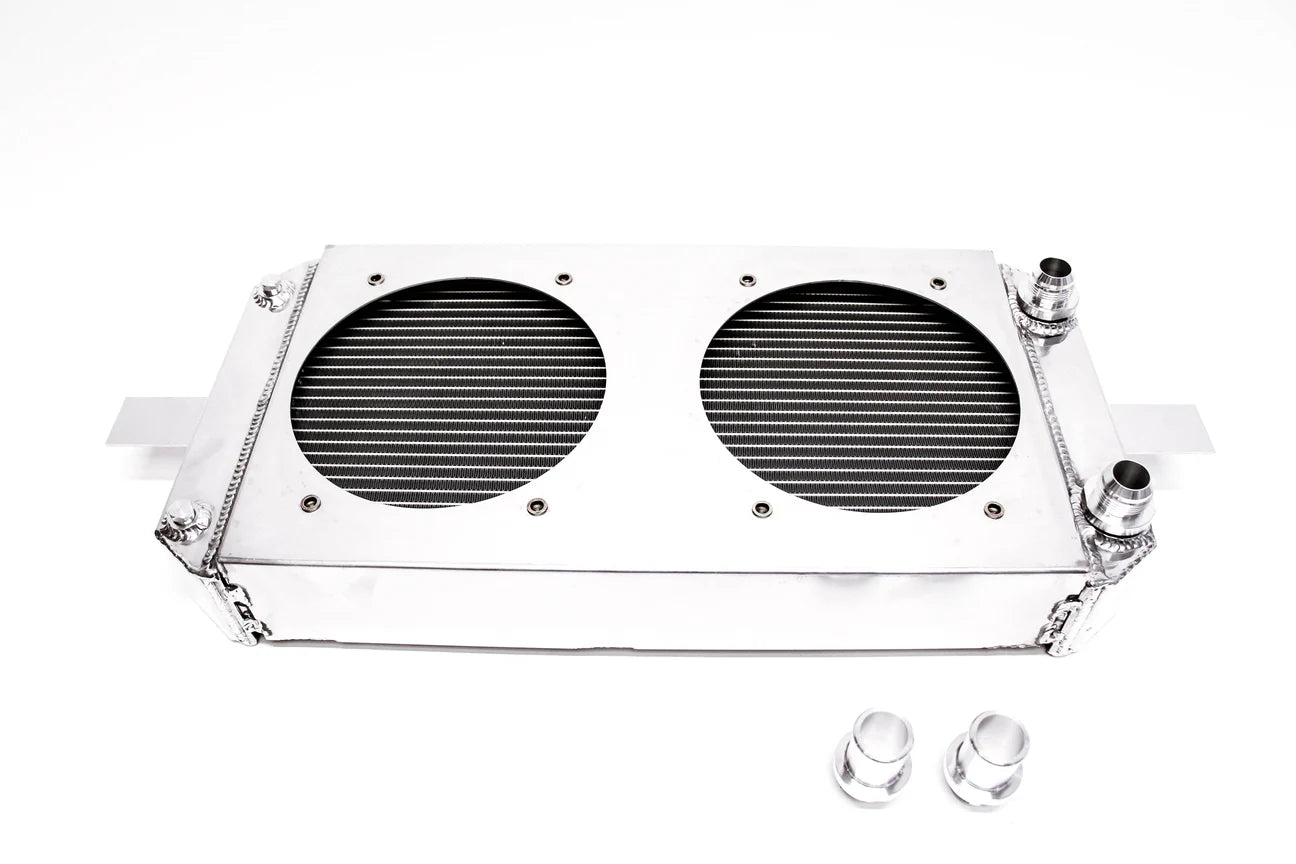

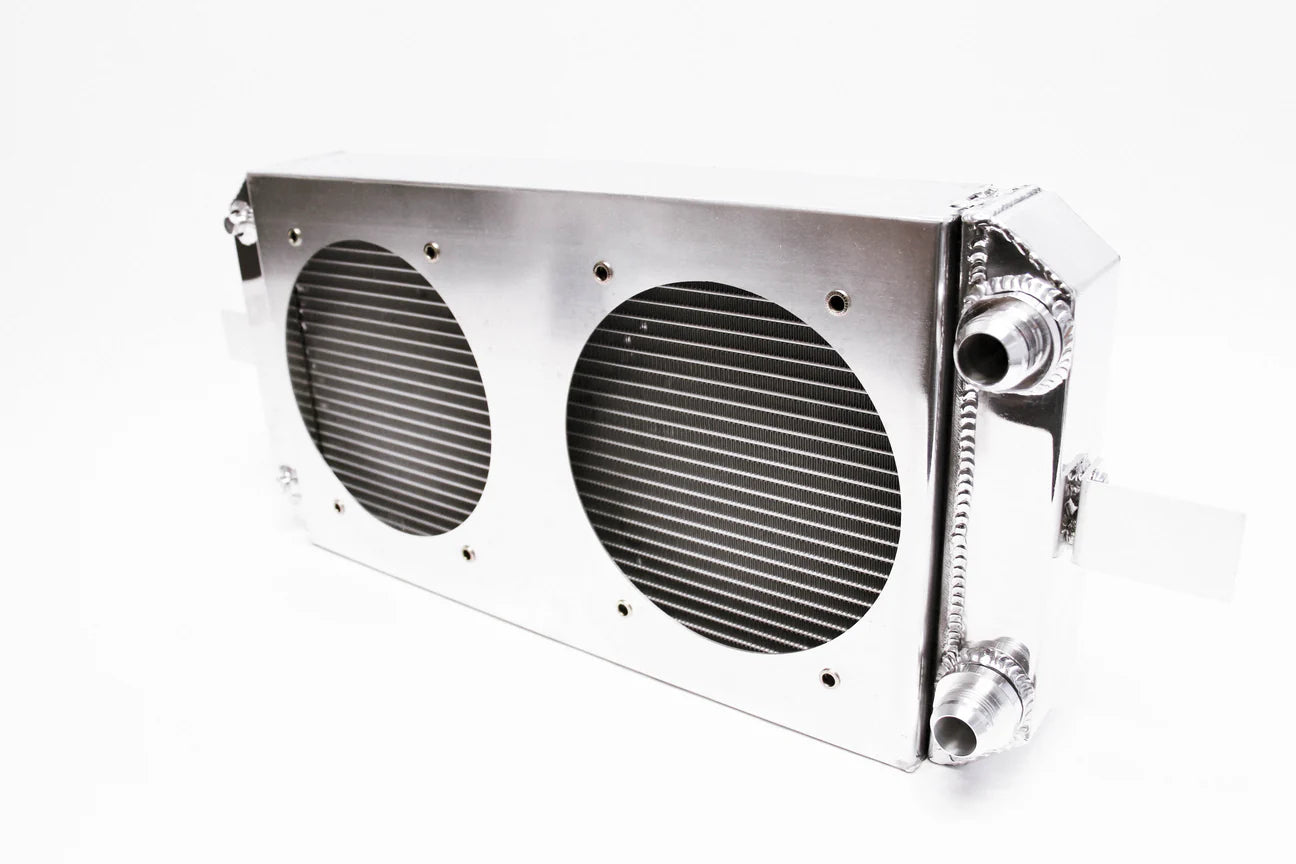

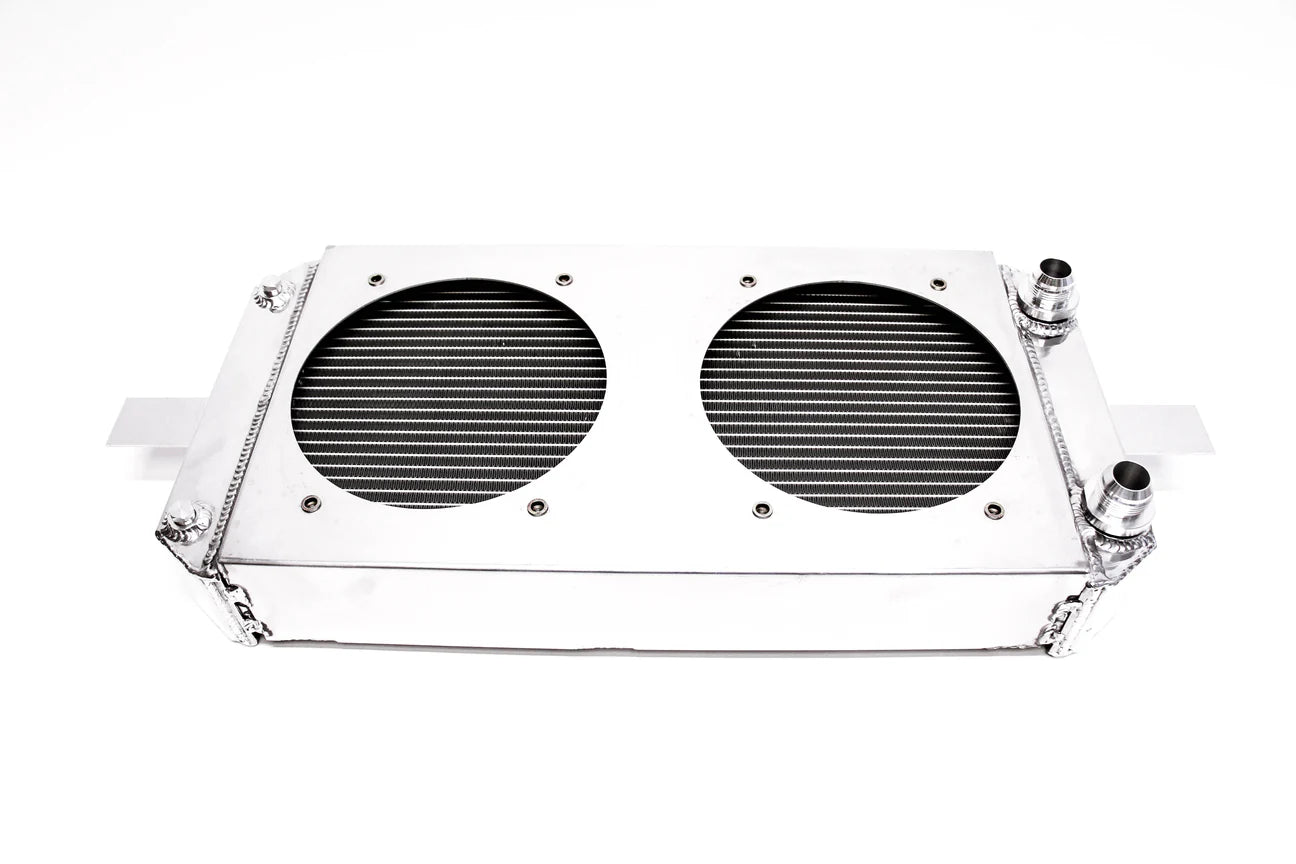

Introducing the PLM Power Driven Tucked Radiator XL for Honda and Acura vehicles. From the successful introduction of our tucked radiator, we are pleased to offer the XL (extra large) version of this radiator for those in need of increased cooling capacity.
Designed to be a direct replacement for your factory radiator, our Tucked Radiator XL is the perfect upgrade for those looking to maximize engine cooling efficiency. The radiator features a slim design that allows for additional clearance in tight engine bays, while the high-quality aluminum construction ensures durability and longevity.
We take pride in providing the best value for our customers, and the PLM Power Driven Tucked Radiator XL is no exception. This radiator offers superior performance at an unbeatable price point, and is compatible with both manual and automatic transmissions.
Why is ours better? Our design uses threaded inlet and outlet fittings, that means you can use AN sized or clamp-on style hoses. You can even use other adapter sizes such as 16AN to 20AN fitting. Our mounting brackets are not welded to the core so you can flip the brackets around or adjust it for more universal fitment.
A must have if you want to utilize all the engine space and tuck the radiator underneath the radiator support.
Includes:
-
2 x 16AN fittings.
-
2 x slip on fittings.
-
Mounting brackets
-
Brackets hardware
-
Size: 24" x 11.5" x 4.0" (without fans)
-
Size: 24" x 11.5" x 5.5" (with fans)
-

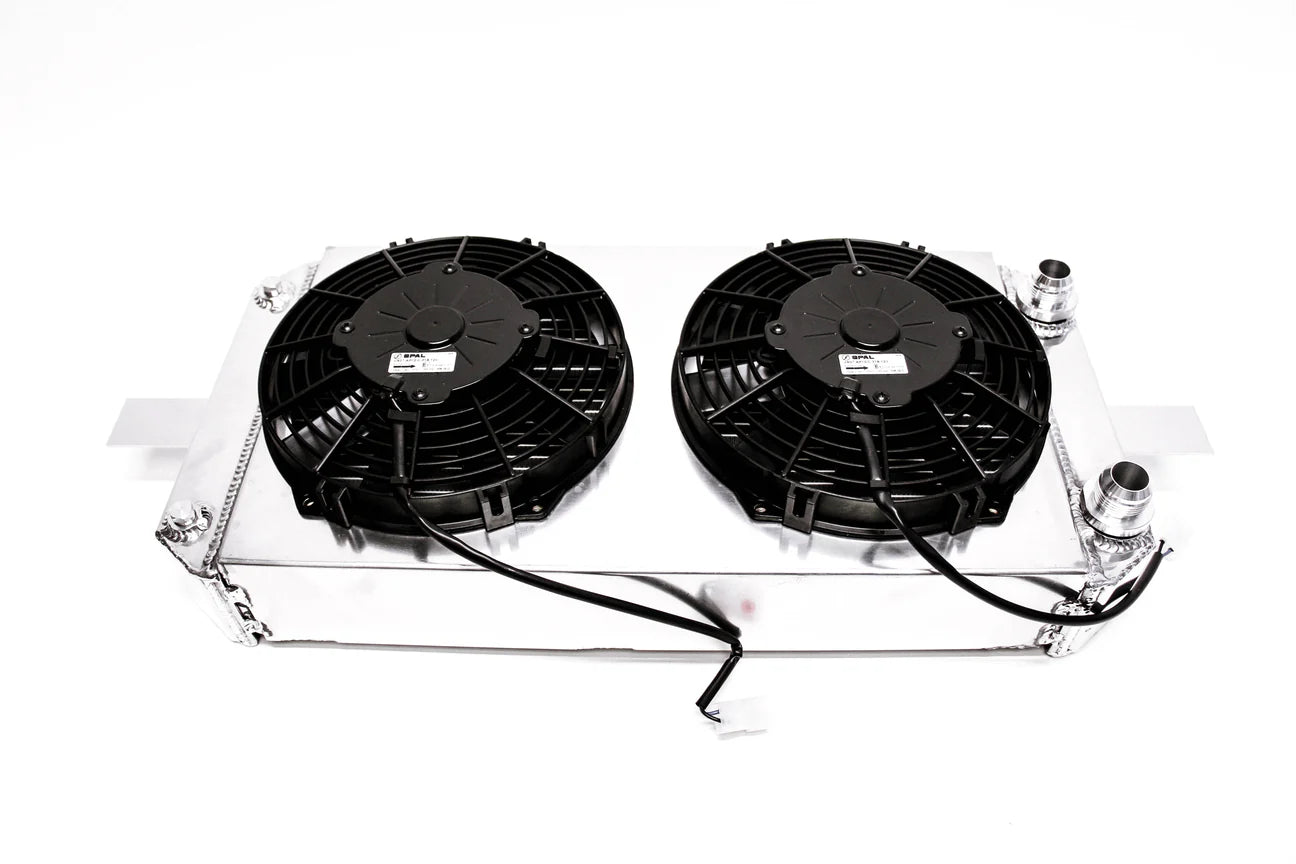

SPAL fans on this XL version uses the 9" inch size so it is much larger and flows more cfm!
-
Overall length: 30.5" with end brackets.
-
Core thickness is 2.25" and the end tanks are 3" thick.
-
Mounting brackets are removable & bolted on, so it can be used for other applications.
-
Drain plug size is 1/4NPT.
-
Honda Acura B-Series B20B B20Z B16A B18C1 B18A B18B B18C5
-
Honda Acura K-Series K20 K24 K20A K20Z
-
May also fit other cars (refer to size dimension above)
ABOUT PRIVATE LABEL MANUFACTURING
PLM's mission is to provide car enthusiasts with the best value, the best performance-per-dollar when it comes to aftermarket performance car parts.
Founded in 2005, Private Label MFG is a leading automotive parts design, engineering, manufacturing, e-commerce company. We believe that top quality parts and extremely high price tags don't necessarily have to go hand-in-hand.
Everyone involved in PLM can be described as passionate, die-hard car enthusiasts. If a product is not good enough to go on one of our own cars, it will never be good enough to go on one of yours. We take pride in every product that we manufacture so we ensure that no product is released until we are satisfied with our high quality control standards.
