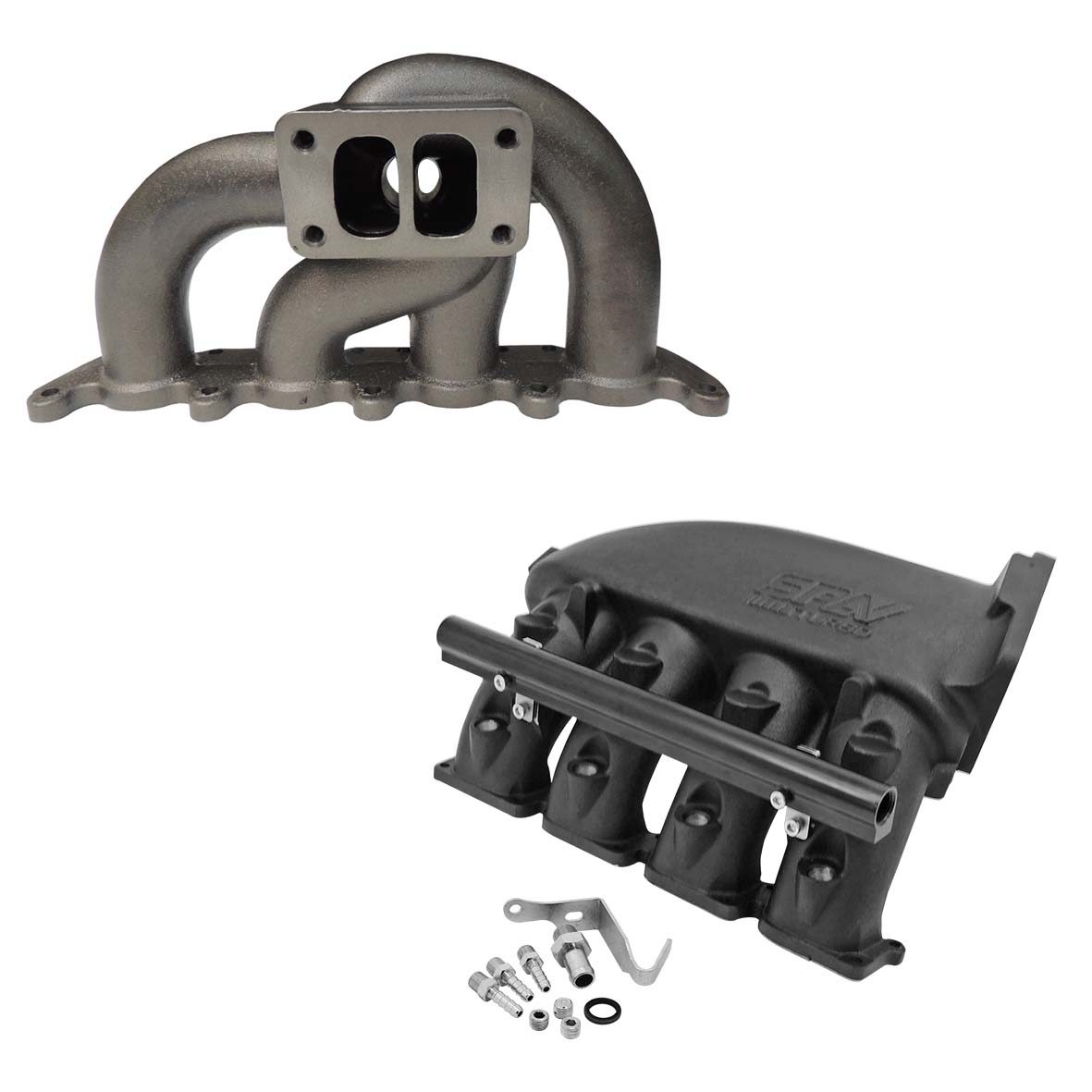

VW MKIV GTI T3 twin scroll turbo manifold + Cast Aluminum Intake Manifold

£479.38 £471.77
/
Shipping calculated at checkout.
  • Question? Call us at (888) 257-1077 🏁
  • info@10SecondRacing.com
  • Free Shipping to Lower 48 US States ($100+)
  • Worldwide Shipping via UPS (Check Rates at Checkout)

    • This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

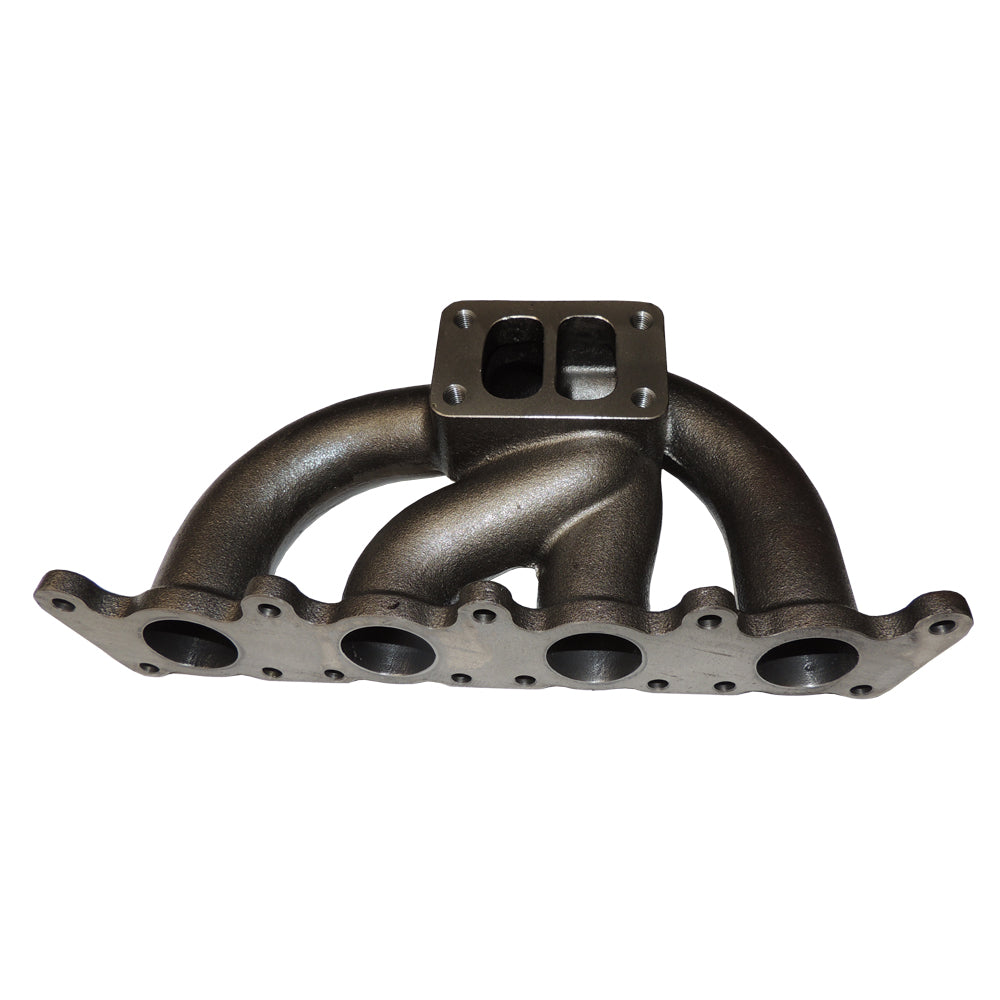

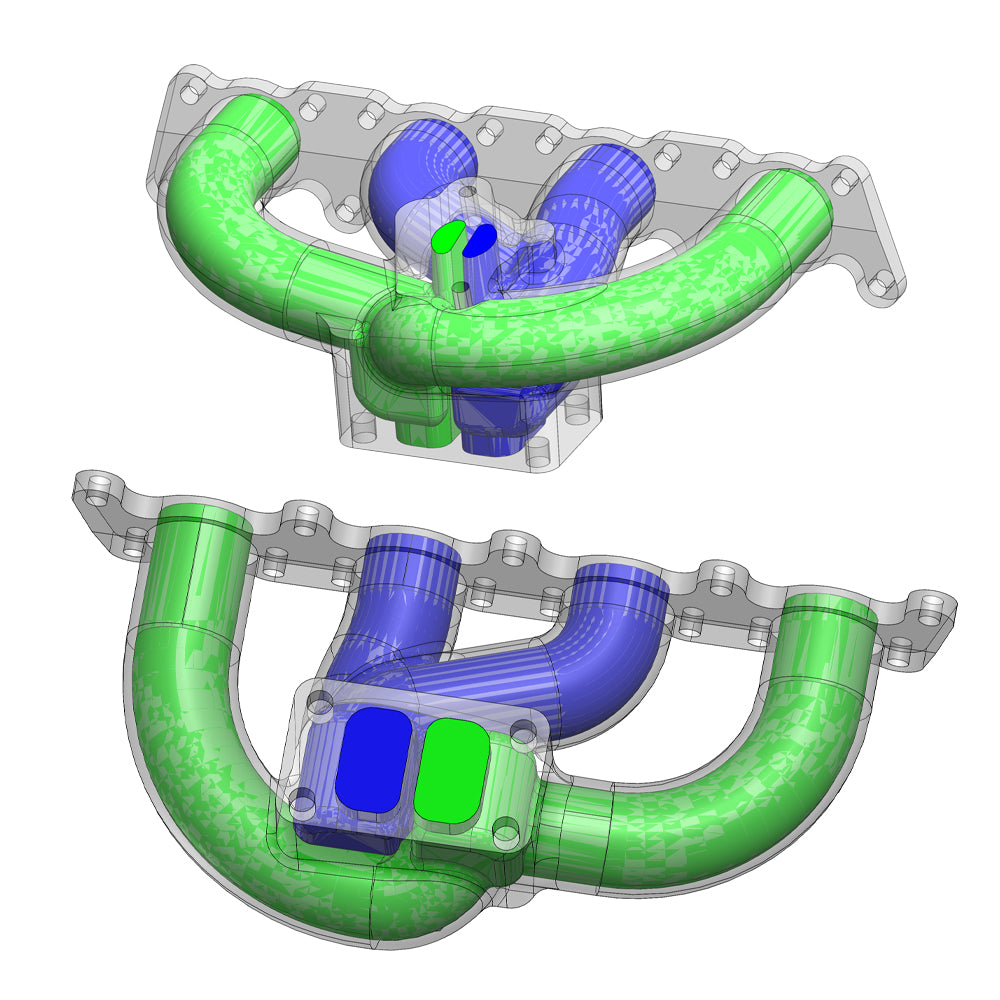

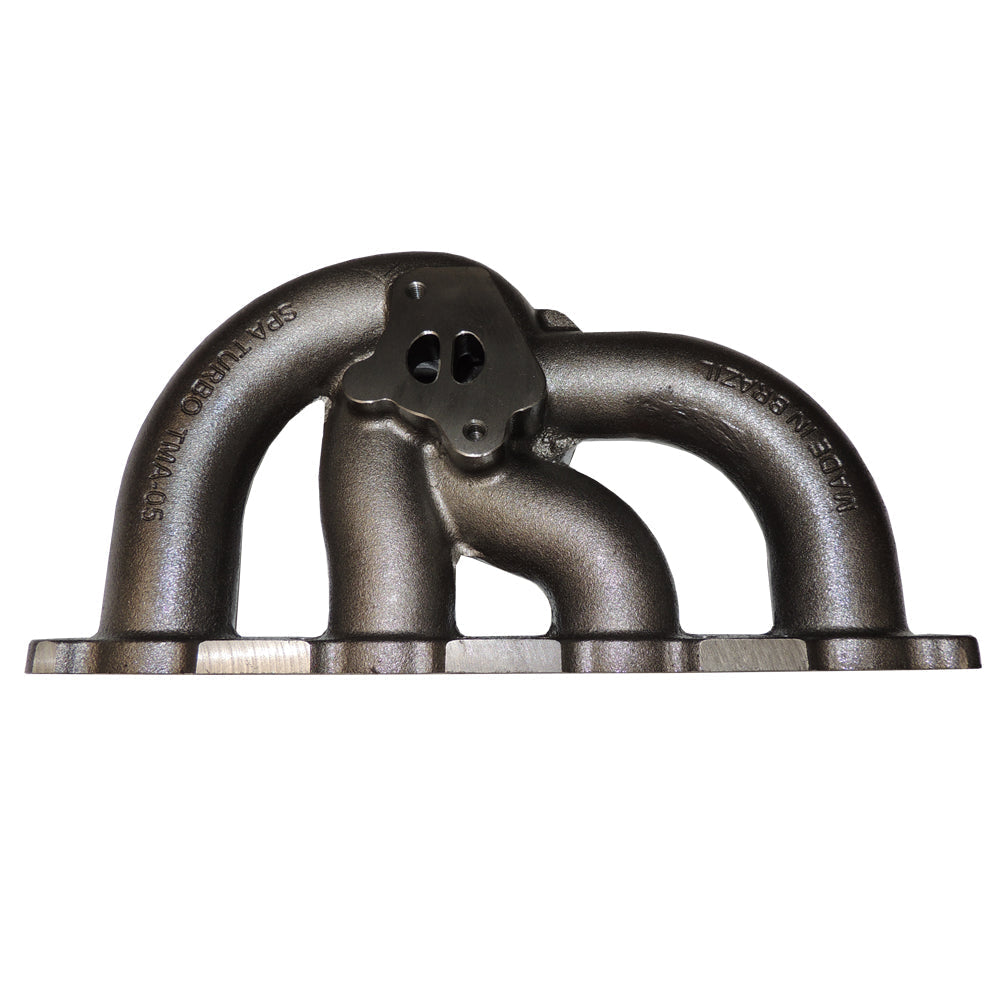

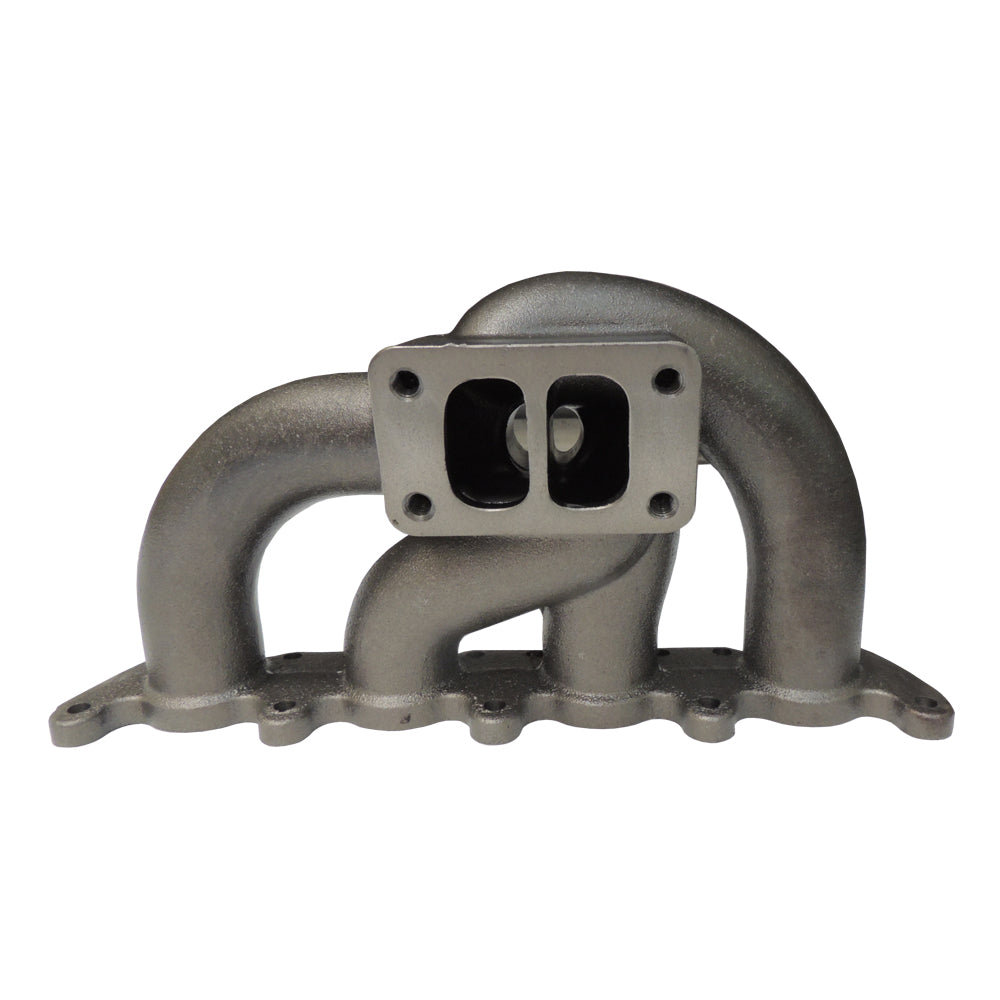

    VW MKIV GTI T3 twin scroll turbo manifold

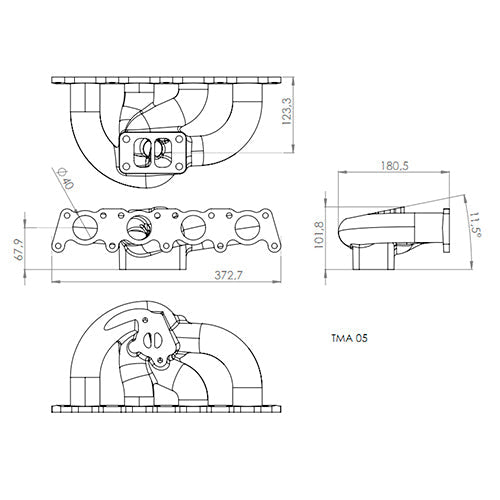

    • The TMA05 manifold is a GGG40 cast manifold, with a T3 turbocharger Flange; manifold accepts 2-bolt 38mm wastegates.

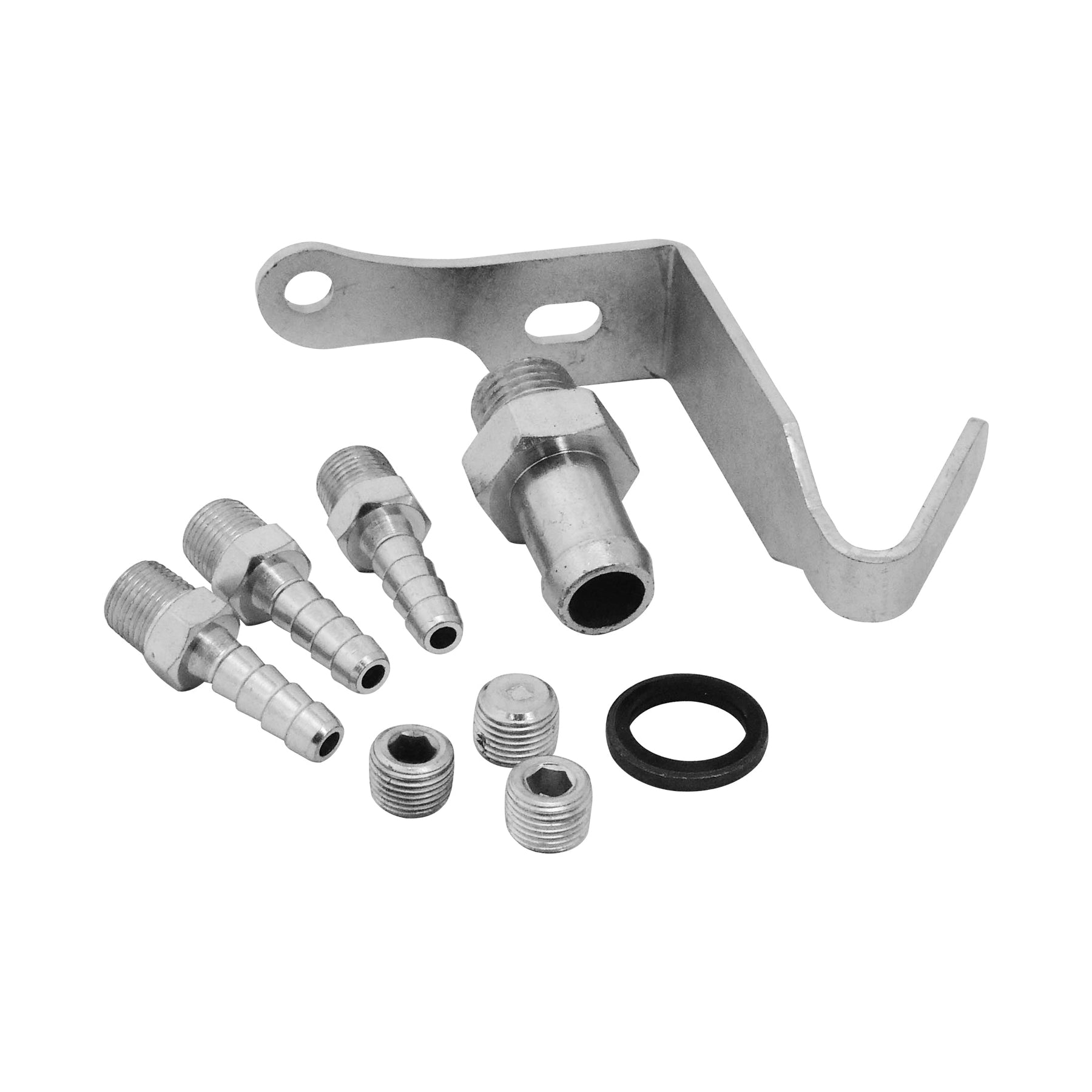

    • 8 spacer washers are included for easier assembly of the top nuts.
    • The application is VW / Audi 1.8 20V transverse engines. (Golf, A3)
    • Will not fit AWD applications.
    •  Internal diameter ducts: 40mm.

    SPA Turbo has one of the widest selections of turbo manifolds in the world, including hard to find applications. From log style to top mount equal runners manifolds, we stock them. We have been providing quality performance components since 1990.



    Cast Aluminum Intake Manifold for transverse VW/AUDI 1.8T with 4 injectors Fuel Rail Kit (right side OEM throttle) - Black


    SPA Turbo’s intake manifold was designed for upgrades builds, having a bigger plenum volume and allowing higher airflow, it is the perfect solution for those who wants high performance and durability, guaranteed by the cast aluminum construction. Available in 4 or 8 injectors with anodized aluminum fuel rails and in two throttle body position models, right side (Golf and A3 standard) and left (S3 standard or custom applications). In addition, you can choose between an OEM throttle body bolt holes pattern or without holes, for those who wants to use a different throttle body (up to 90mm).

    Application: VW Golf GTI 1.8 20V Turbo / Audi A3 1.8 20V Turbo / Audi S3 1.8 20V Turbo (Large Port head)

    Number of injectors: 4

    Fuel rail: anodized aluminum, -8AN inlet/outlet

    Injectors compatible: Bosch style, 14mm o-ring, compact / standard / long

    Throttle body position (TBI): right side (Golf and A3 standard)

    Throttle body bolt holes pattern: OEM

    Material: cast aluminum

    ATTENTION: this is not a bolt-on replacement manifold, it needs modifications to fit OEM charge pipes.
