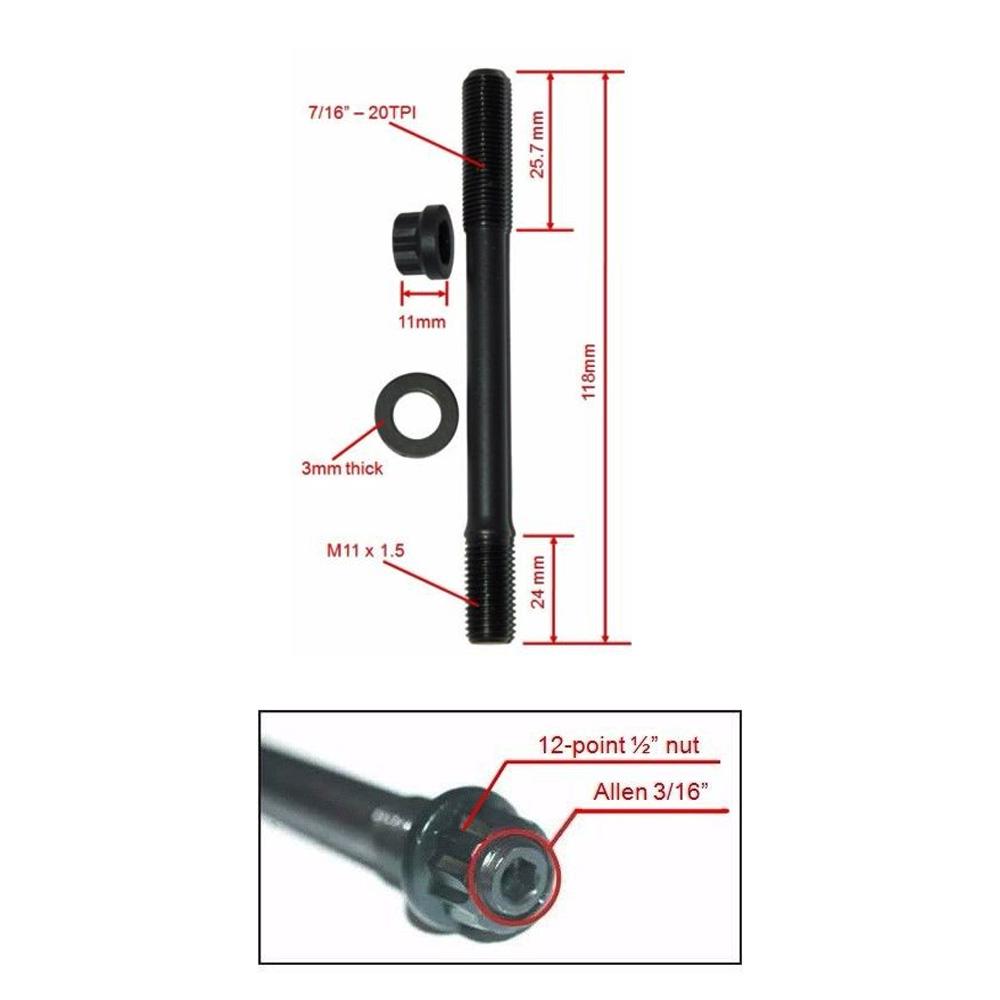

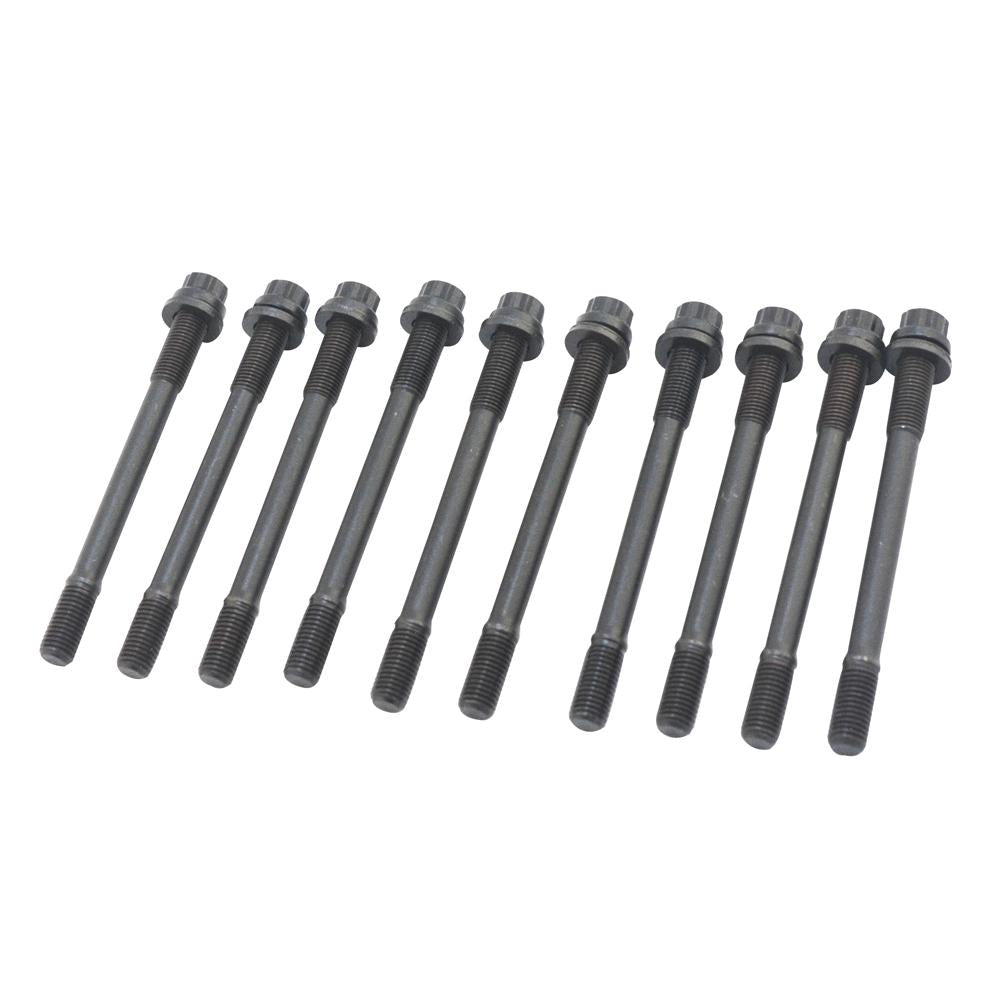

- VW cylinder head stud set, available in either 118mm (this item) or 136mm length for taller blocks.
- They will fit earlier and old style VW 8V cylinder heads.

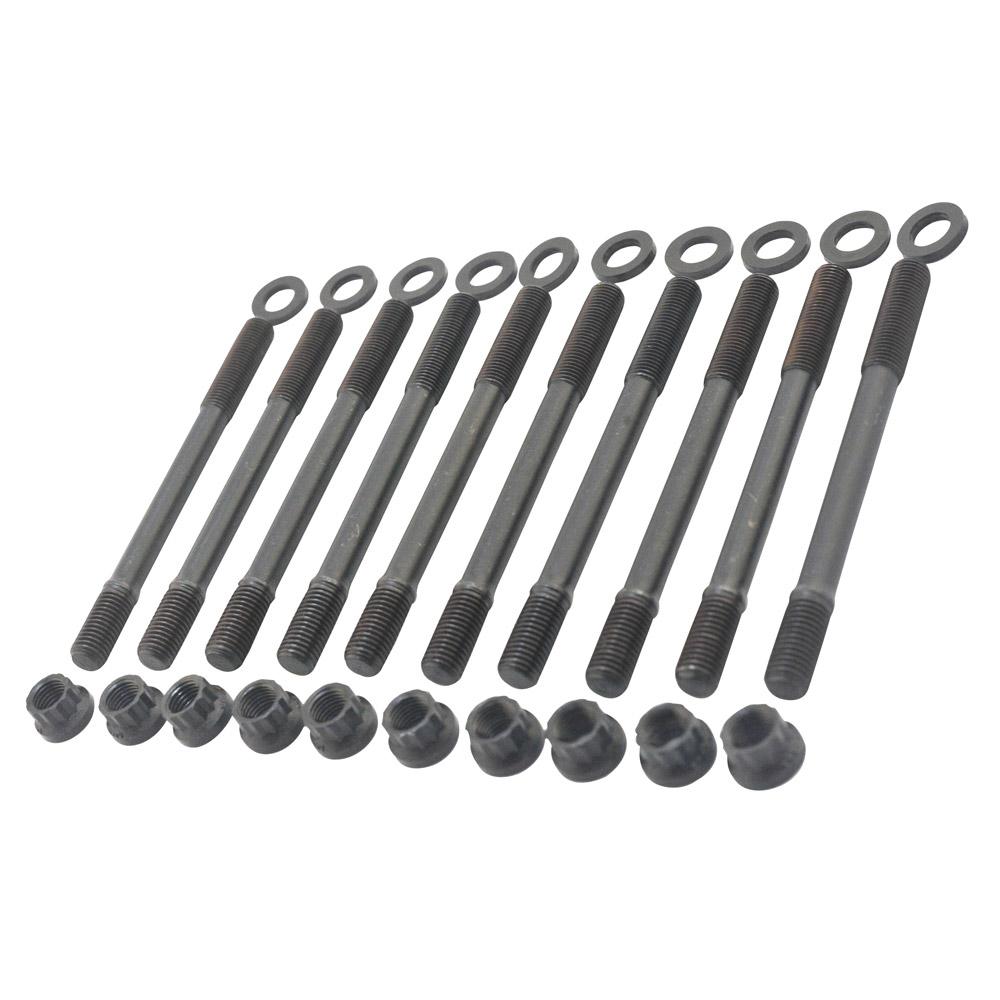

- The set contains 10 Studs, 10 washers and 12 point nuts, (you will need a 1/2 or 13mm 12 point socket).
- The studs are for M11 threads, please confirm with your OEM bolts before purchase.
- These will replace 93mm OEM bolts.
- Maximum Torque - 72 ft/lb

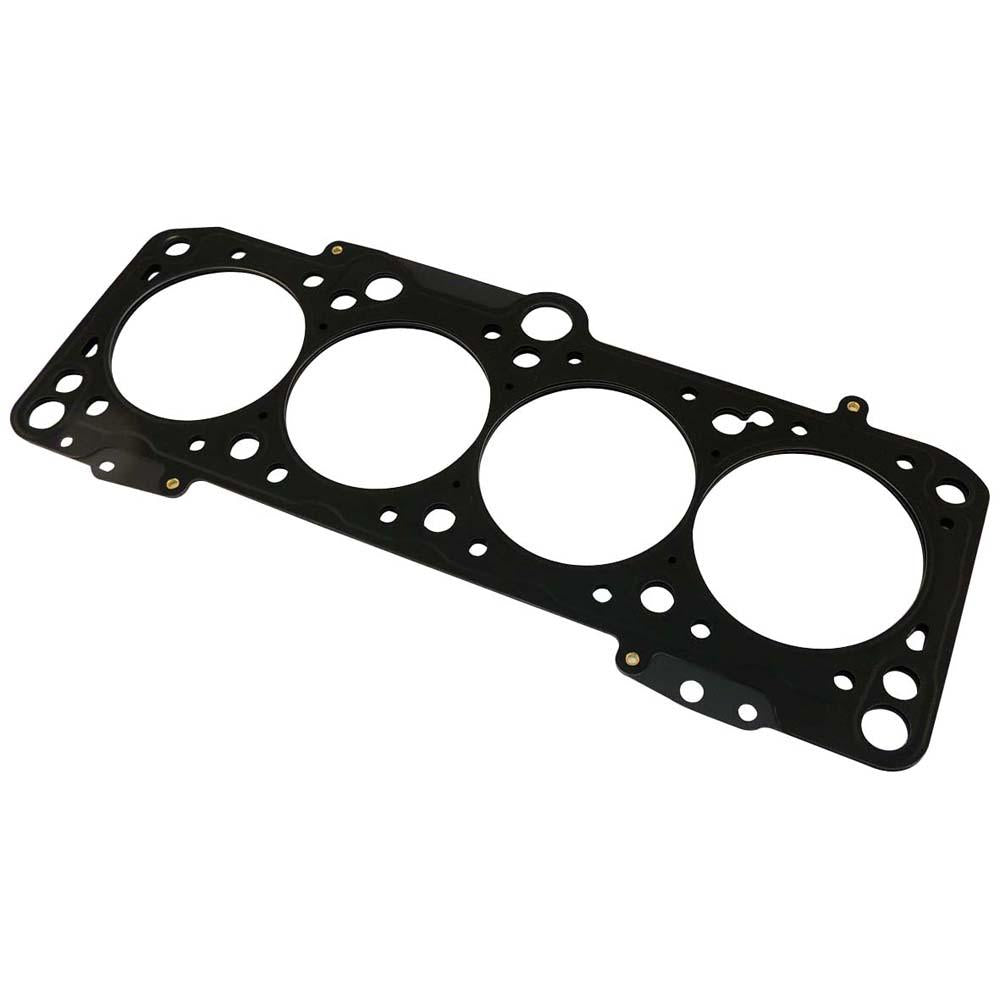

- Special cylinder head gasket for turbo conversion
- With this special Turbo multilayer metal cylinder head gasket
- The compression reduction is already integrated in the seal.
- (Ground and coated)
- Will accept pistons up to 84.00mm overbored sized, can be used with smaller bores with no problem too.
- Compression ratio NEW will depend on the engine used
- Manufacturer: SPA TURBO
- Engine Code: All 2 liters Blocks of VW 8V and 16V (some small modifications may be necessary in some cases)
- 9A, 6A, ACE, 2E, ADY, ACX ABF, AGG, AKR, ABA, ABBOT, ADW, AAD, AAE, CAST OFF, 3A, SD.
- Similar to OE numbers/Comparable numbers of manufacturers
VW: 048103383B
VW: 053103383
VW: 053103383A
VW: 053103383B
VW: 53103383
ELWIS ROYAL: 0056010
PAYEN : BT810
MEGA CAR: 101030383048B
CORTECO: 414604P
ELRING: 915.590
ELRING: 915.599
FEBI BILSTEIN: 15558
GLAZIER: 50151
GOETZE: 30-027257-20
REINZ: 61-28290-00
SPESSO: 21194/7620
SWAG: 32 91 5558
REINZ: 61-29305-00
- Available in 1.5mm, 2.0mm and 3.4mm thickness
- We're the VW Turbo experts!
