COMPATIBLE: (1.5L)

2016 - 2021 HONDA CIVIC

Fits all 2016-2021 Honda Civic 1.5T
Fits all variant models including Si, CVT, 6MT, RHD, International Models, Etc.
50 State Legal CARB Approved: EO D-878

INSTALLATION:
PDF - 2016-2021 Honda Civic 1.5T Intercooler Install Instructions

Important Notes:

• NO ECU CALIBRATION REQUIRED
• THERE ARE (2) TOTAL O-RINGS IN THE FACTORY CHARGE PIPE SYSTEM. O-RINGS MAY BE SUBJECT TO REPLACEMENT IF TORN, DRY-ROTTED, DISFORMED OR HIGH MILEAGE
• REMOVAL OF LOWER FACTORY INTAKE AIR BOX DAMPER IS RECOMMENDED FOR OPTIMAL FITMENT
• FITS FACTORY CHARGE PIPING OR PAIR WITH OUR CHARGE PIPE UPGRADE KIT FOR OPTIMAL PERFORMANCE
• PLEASE CALL OR EMAIL IF PAIRING WTH V1 CHARGE PIPING
• OEM Honda Part Number 19710-5AA-A01

Technical Notes:

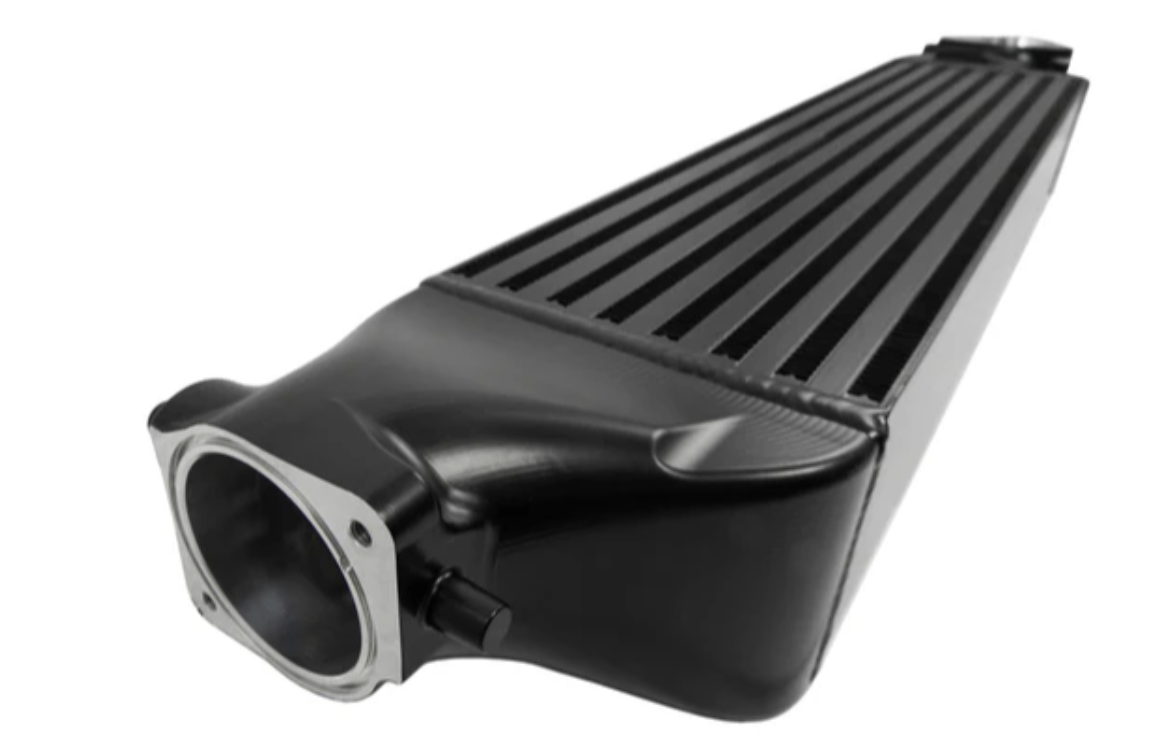

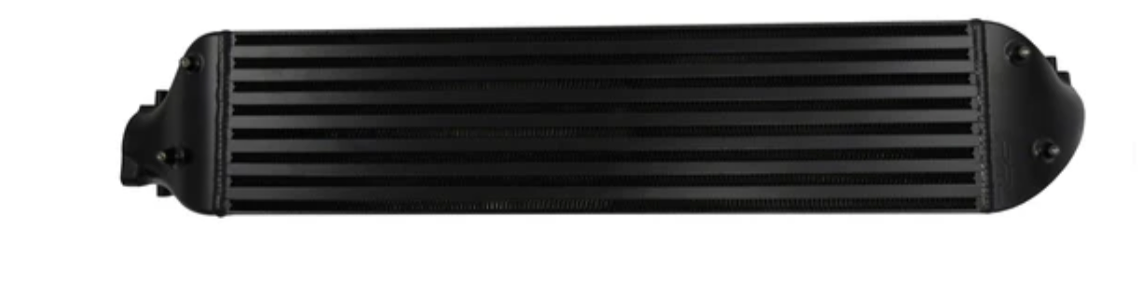

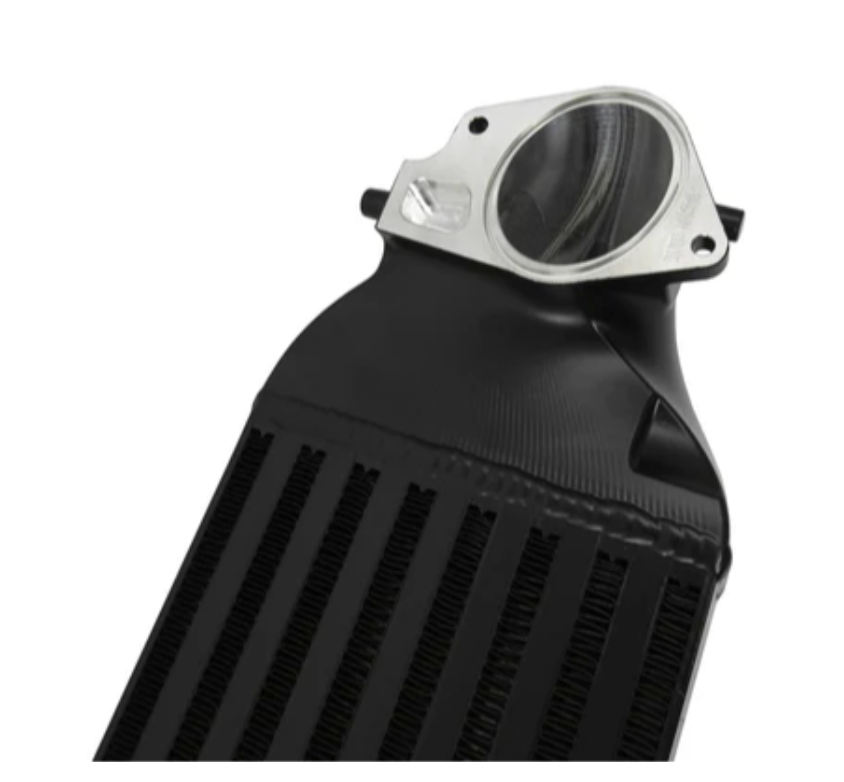

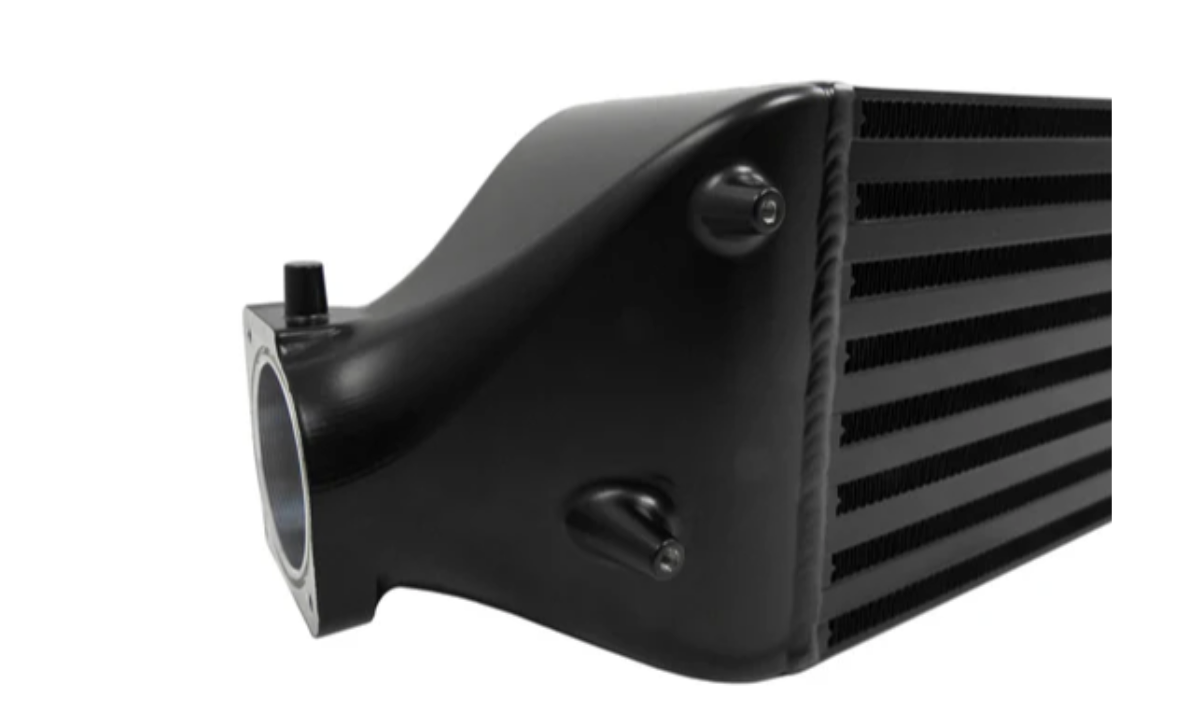

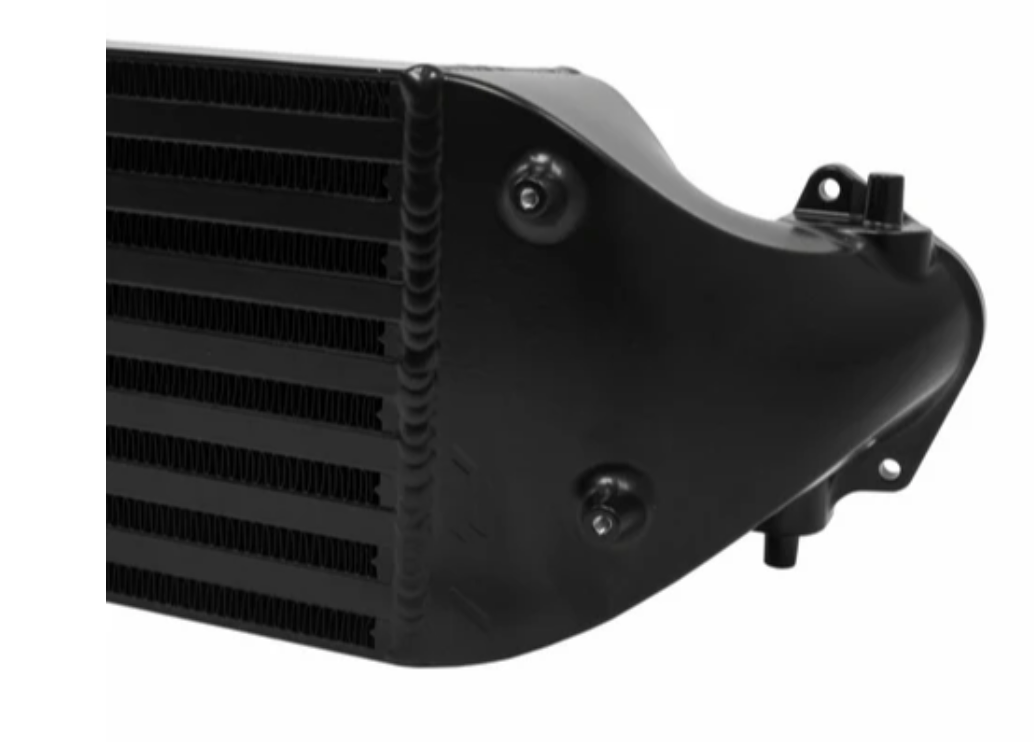

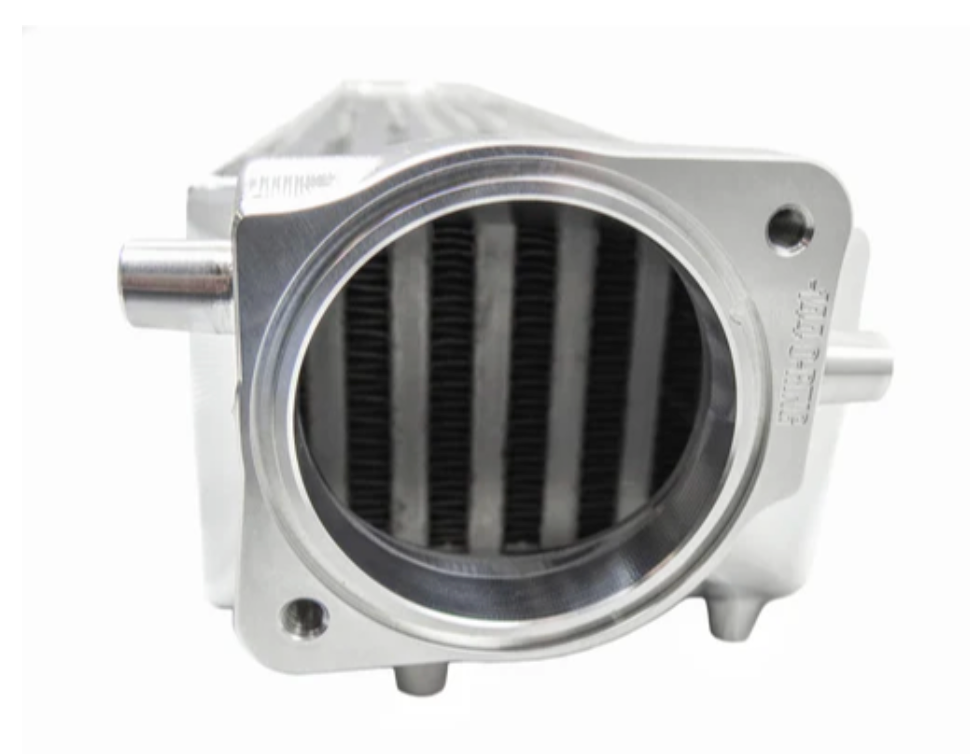

It’s no secret that Honda’s 1.5L turbo Civic is extremely susceptible to heat-soak, especially when retaining the factory intercooler. Excessive heat-soak increases the risk of detonation and causes major power-loss due to high charge air and cylinder temperatures. These issues become even more prevalent with spirited driving and/or increased power outputs. The PRL Motorsports intercooler upgrade decreases charge air temperatures while increasing potential airflow with its dense 550+ horsepower rated (though we have pushed 600+) 25.5x4x6.3” bar-and-plate bar-and-plate core and machined billet aluminum end tanks! This intercooler utilizes factory mounting spots with our embossed end tanks. Kits will come with all hardware needed for a seamless install.

Performance Gains:

• 9 horsepower & 3 ft/lb torque gains by simply bolting on

• 50+ F degree drop in post charge air temperature at peak

• Average of 36 F degree drop in post charge air temperature

• Increased efficiency & consistency in power delivery

• Increased engine safety

Kit Includes:

• (1) Intercooler Assembly w/ Billet End Tanks
• (2) Air Guides w/ Stainless Hardware

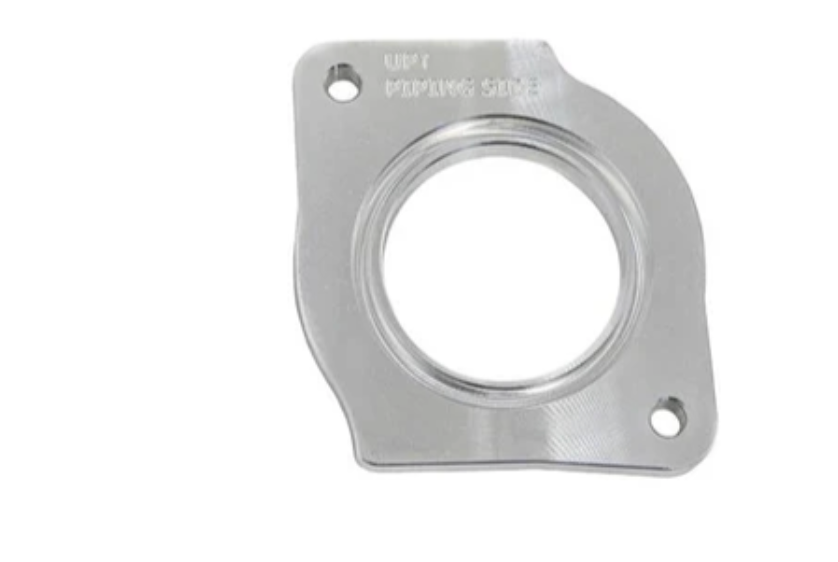

• (2) Billet Aluminum Factory Charge Pipe Adapters
• (1) Cardboard Stencil w/ “PRL” Logo
• (2) PRL Factory Style Replacement O-Rings

Data:

TESTING DATA BLOG POST

DESIGN BLOG POST
INTERCOOLER CORE DESIGN BLOG POST

Engineering the Future

With years of dedication and countless hours of development, PRL Motorsports has grown from a small team of three enthusiasts to a thriving company with over 25 highly skilled professionals. In 2021, we moved into our current 25,000 sq/ft facility in Export, Pennsylvania, designed to house state-of-the-art manufacturing and engineering capabilities.

Our facility includes:

• Full fabrication and welding shop

• CNC machining department equipped with:

• Automated cutting stations

• Dual-spindle CNC lathe

• 3-axis and 5-axis milling centers

• High-production horizontal milling with pallet changers

• Automated robotic loading systems

• Pallet-changing machines and robotic arms for increased efficiency

• 24-hour production capacity to meet growing market demand

This advanced manufacturing setup allows us to create high-quality performance parts with precision and efficiency, maintaining the highest standards for fitment, reliability, and ease of installation.
