PLM®  |  SKU: PLM-SUB-UP-PIPE-EWG-38MM-3B
3% off

PLM® Subaru EJ20T/EJ25T 3-Bolt Catted Up Pipe with 38mm Dump Tube

PLEASE CONTACT SUPPORT TO CONFIRM INVENTORY

£255.63 £263.17
Shipping calculated at checkout.

Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)

Email: info@10SecondRacing.com (24/7)

Free Shipping to Lower 48 US States ($100+)

Worldwide Shipping via UPS (Check Rates at Checkout)

Description

COMPATIBLE: (2.0L/2.5L | EJ20T/EJ25T)

2002 - 2014 SUBARU IMPREZA WRX

2004 - 2014 SUBARU IMPREZA WRX STI

2015 - 2021 SUBARU WRX

2015 - 2021 SUBARU WRX STI

2004 - 2006 SUBARU BAJA TURBO

2004 - 2013 SUBARU FORESTER XT

2005 - 2009 SUBARU LEGACY GT

1991 - 1994 SUBARU LEGACY TURBO

2005 - 2009 SUBARU OUTBACK XT

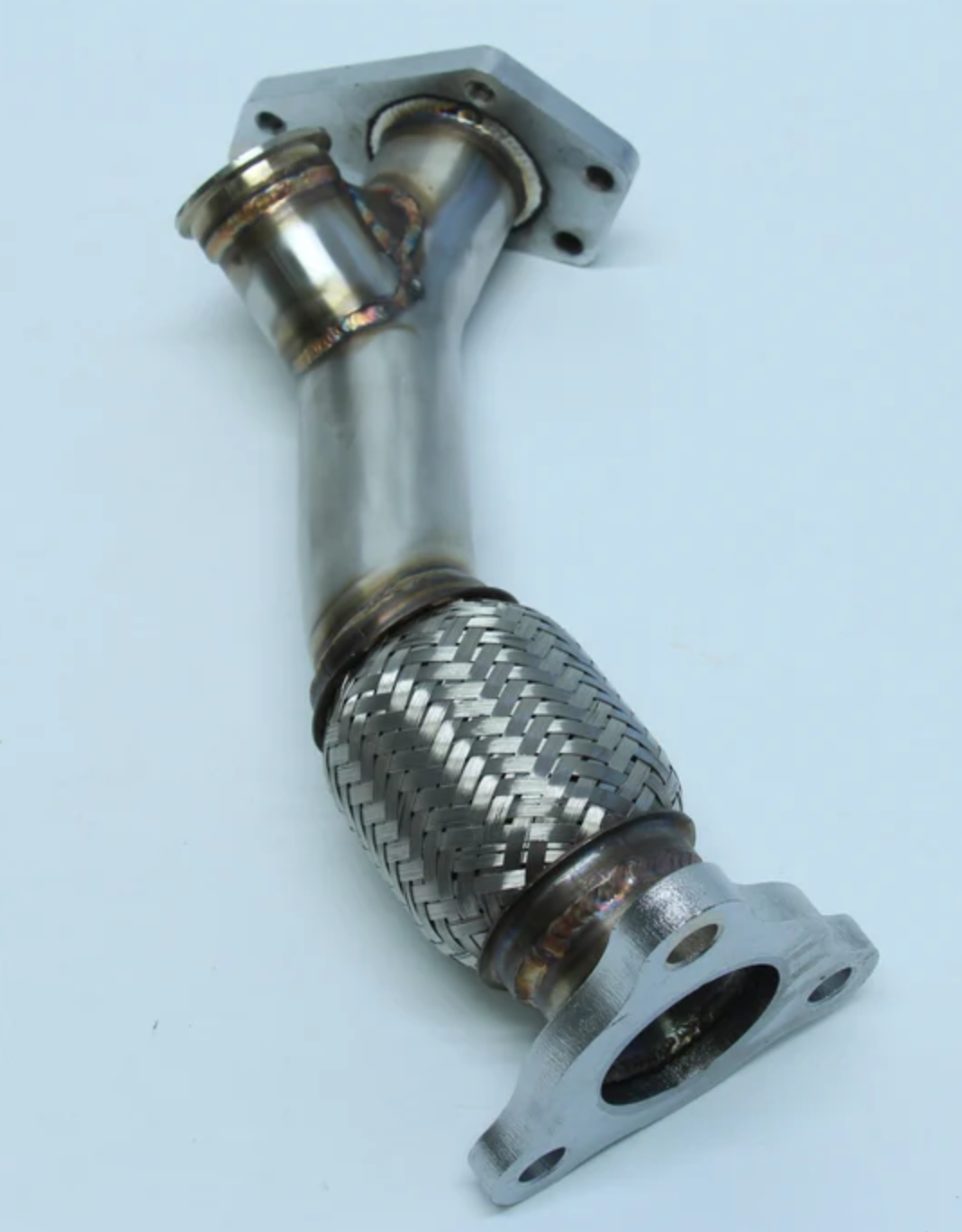

PLM Private Label Mfg. Power Driven Subaru EWG 3-Bolt Up-Pipe with Dump Tube 38mm features a unique designed up pipe which gives you the option to install a 38mm or 40mm EWG external wastegate.


  • 3-bolt flange so it bolts directly to your 3-bolt aftermarket header!
  • For EJ-Series turbo engines with aftermarket headers such as Tomei, and other aftermarket headers with 3-bolt inlet flange.


Vehicle Application:

  • 2002-2014 WRX
  • 2004-2020 STI
  • 2004-2006 Baja Turbo
  • 2004-2013 Forester XT
  • 2005-2009 Legacy GT
  • 1991-1994 Legacy Turbo
  • 2005-2009 Outback XT
  • Does not work for RHD (Right Hand Drive)
  • Only fit headers with 3-bolt flange


Features:

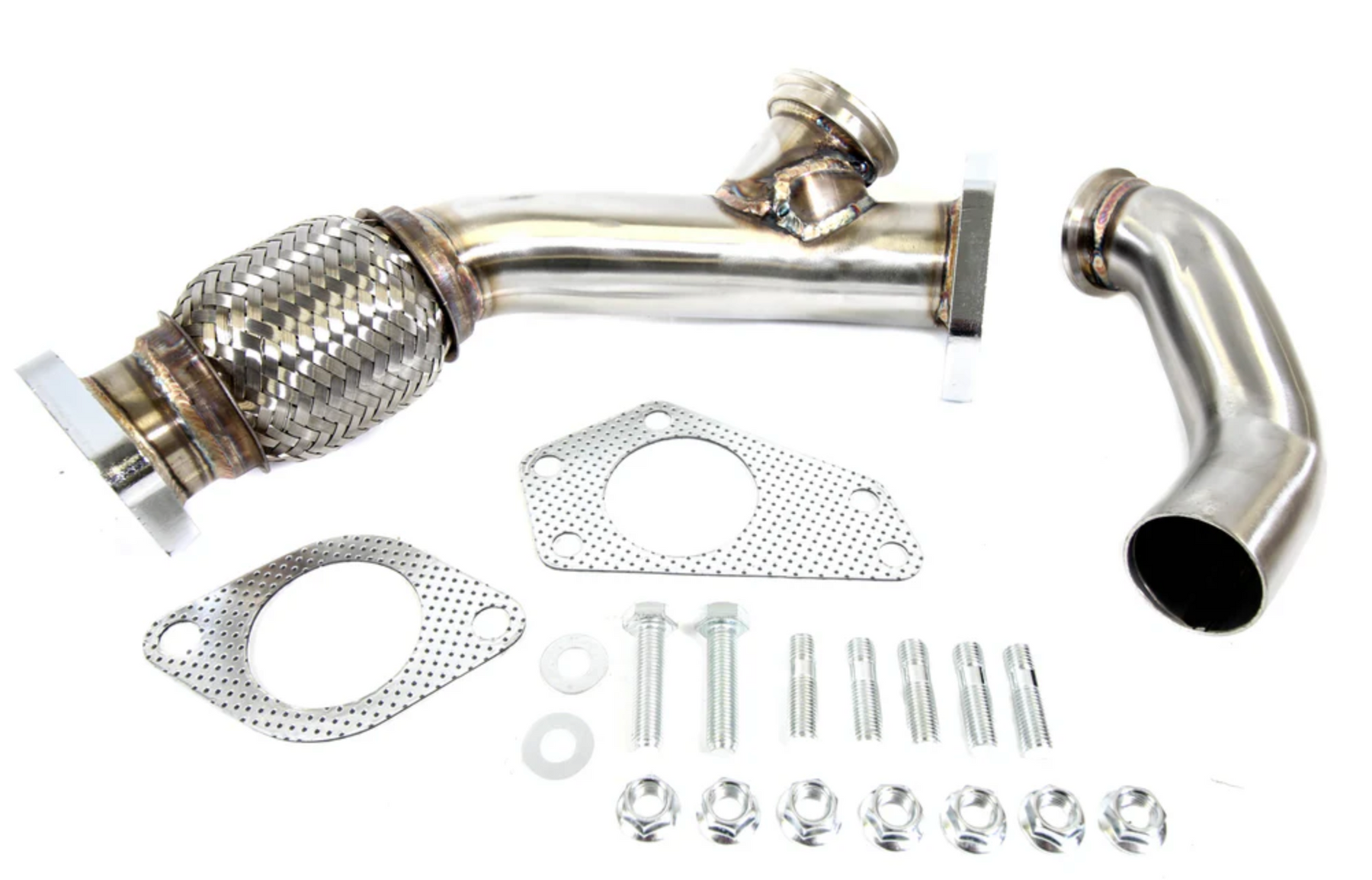

  • Includes gaskets & all necessary hardware

  • 38mm or 40mm EWG V band with dump tube

  • Made of 304 Stainless steel

  • One year warranty

  • High quality Flex Joint

  • 2.0mm piping thickness (vs. 1.5mm other brands)

  • Flange is 0.5" thick

  • 14 gauge , 304 stainless steel

  • Hand TIG welded

  • Minimal internal steps for maximum flow

  • 1.95" Inlet and 1.95 outlet

  • Precision CNC mandrel bend

  • 10-40+whp gain

  • Reduce turbo lag

  • Direct bolt-on unit to the aftermarket 3-bolt flanged header

  • Flex joint that is not located at the bend which adds life expectancy to the flex section

  • Note: Block off plate is no longer offered as it is not needed with wastegate
