NOS® | SKU:
15620NOS

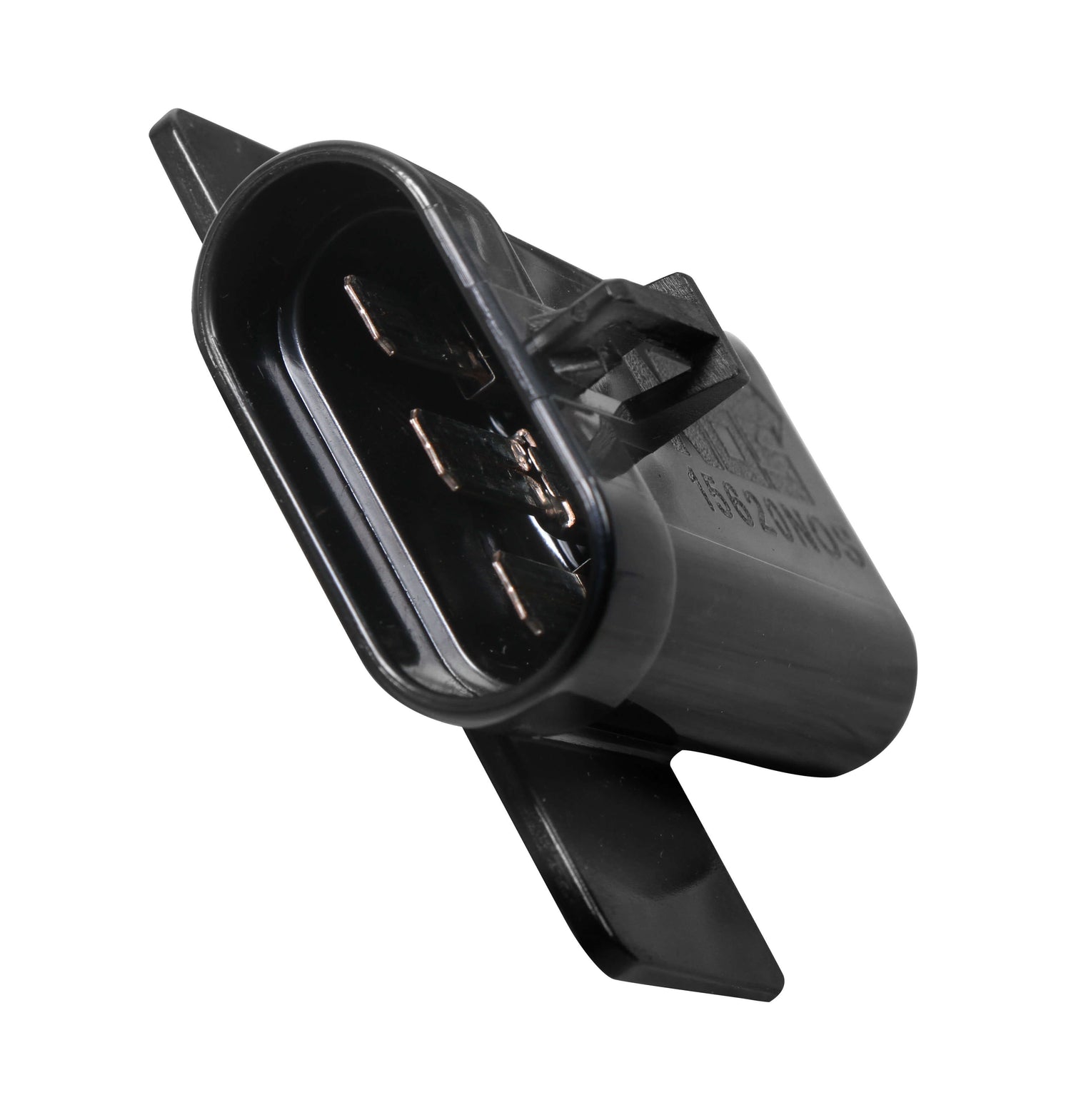

NOS® Solid State Relay
PLEASE CONTACT SUPPORT TO CONFIRM INVENTORY
Regular price
£90.80
Unit price
Shipping calculated at checkout.
NOS® Solid State Relay is backordered and will ship as soon as it is back in stock.
Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)
Email: info@10SecondRacing.com (24/7)
Free Shipping to Lower 48 US States ($100+)
Worldwide Shipping via UPS (Check Rates at Checkout)
NOS® Solid State Relay
Regular price
£90.80
Unit price
Description
Description
This part is legal for sale or use on Racing Use Only Vehicles
The following vehicles are considered Racing Use Only Vehicles:
- Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street
WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
NOS have addressed the need for a reliable, rugged and affordable relay for controlling various electrical equipment on a race car. Originally designed to control the high current switching loads of nitrous solenoids, this solid state relay can also be used to control other high current devices such as electric water pumps, trans brakes & line locks. It has an ultra-low activation/release time of less than 16 microseconds to ensure no delays in reaction times. This relay can also be Pulse Width Modulated (PWM) with no minimum duty cycle at frequencies up to 1000hz.
- 5-20 volt DC Operation
- Rugged Solid State Circuitry
- Easy 3-Wire Connection

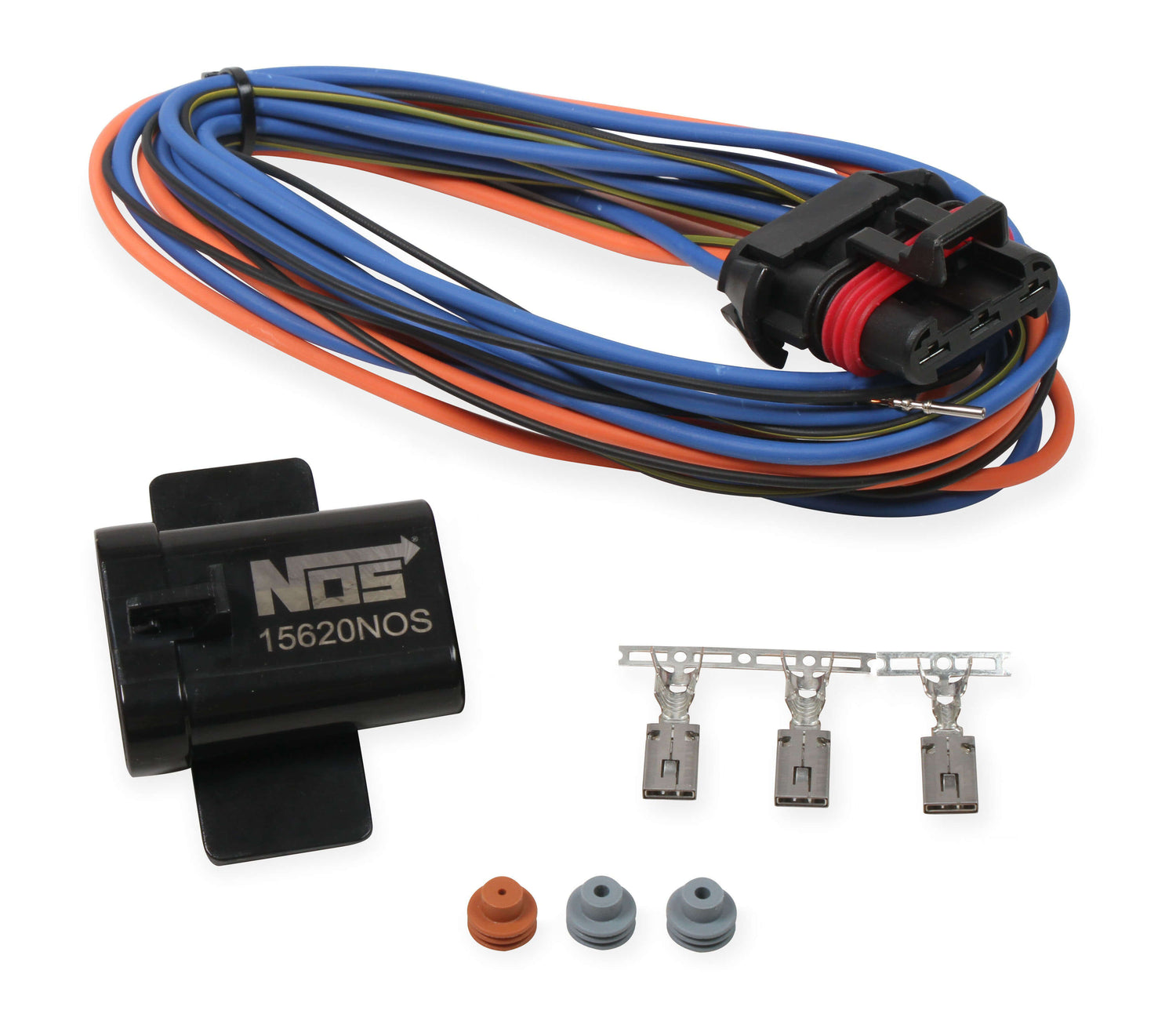

- Included Terminated Pigtail
- Included Extra Contacts for "Build-Your-Own“ Wiring
- Ultra-fast activation <16 microseconds
- Pulse Width Modulation (PWM) Compatible
- PWM 0-100%
- Up to 1000hz frequency
- Vibration Resistant
- Maximum Continuous Current = 40amps
- Maximum Switching Current = 20amps
Specs:
| Brand | NOS |
|---|---|
| Emission Code | 4 |
| Max Amp Load | 40 |
| Pack Qty | 1 |
| Pig Tail Length | 24" |
| Product Type | Relay |
| Part Number | 15620NOS |
