NOS®  |  SKU: 16204ANOS

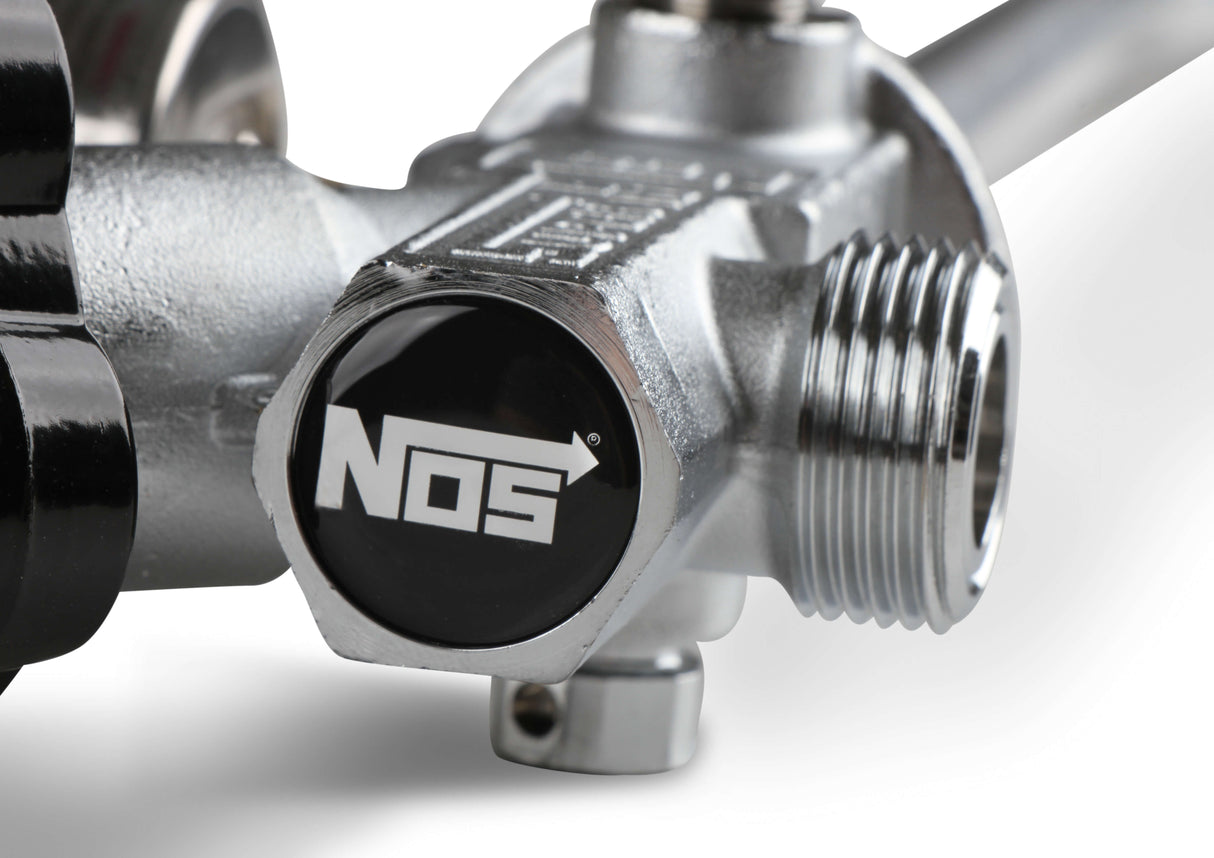

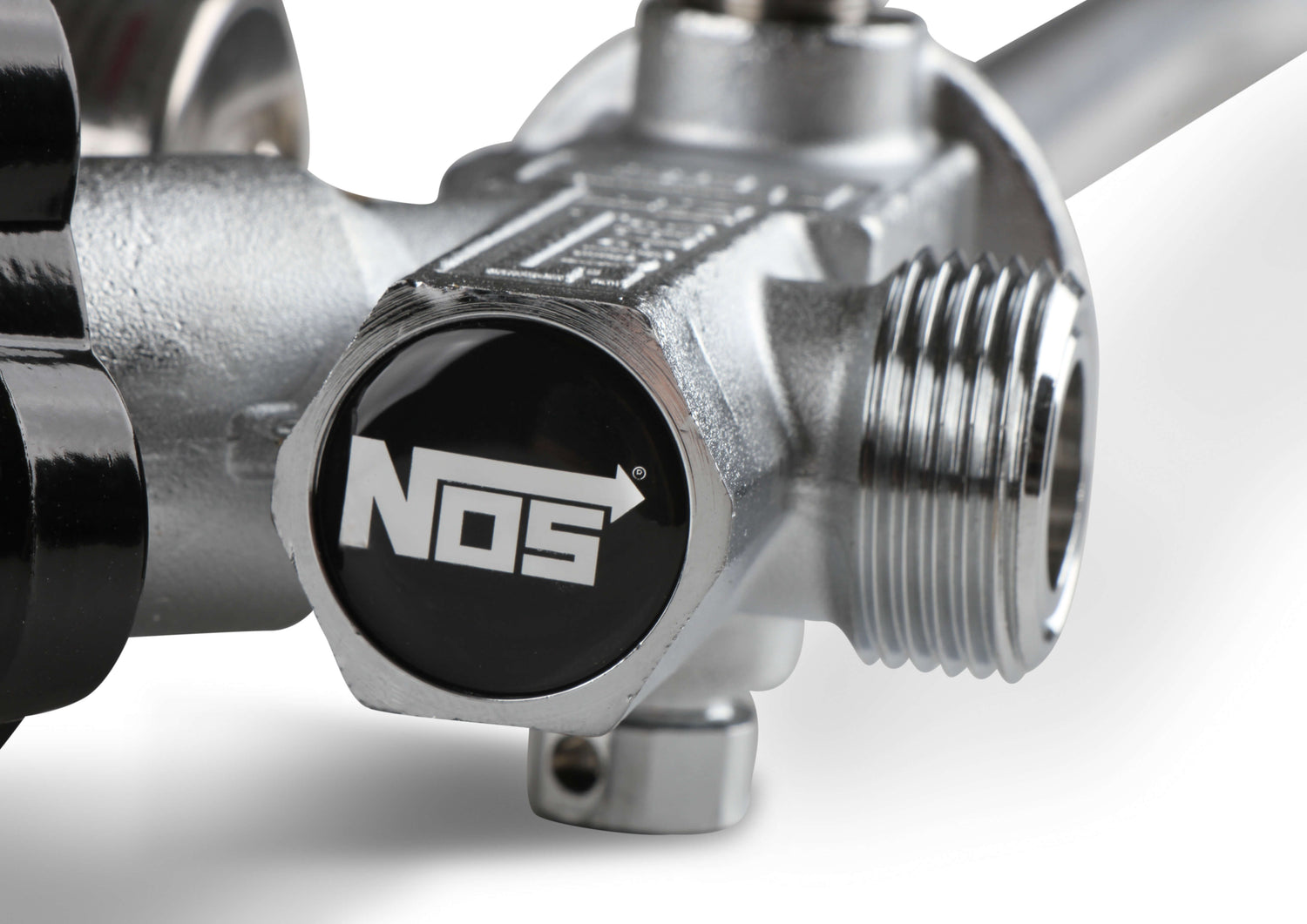

NOS® 5 LB. BOTTLE SUPER HI-FLOW VALVE ASSEMBLY WITH SIPHON TUBE & GAUGE

£68.09
Shipping calculated at checkout.
Gauge Color

Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)

THIS PRODUCT HAS BEEN DISCONTINUED. THIS ITEM IS NO LONGER AVAILABLE TO PURCHASE. THIS LISTING IS OFFERED AS A LEGACY REFERENCE.

Description

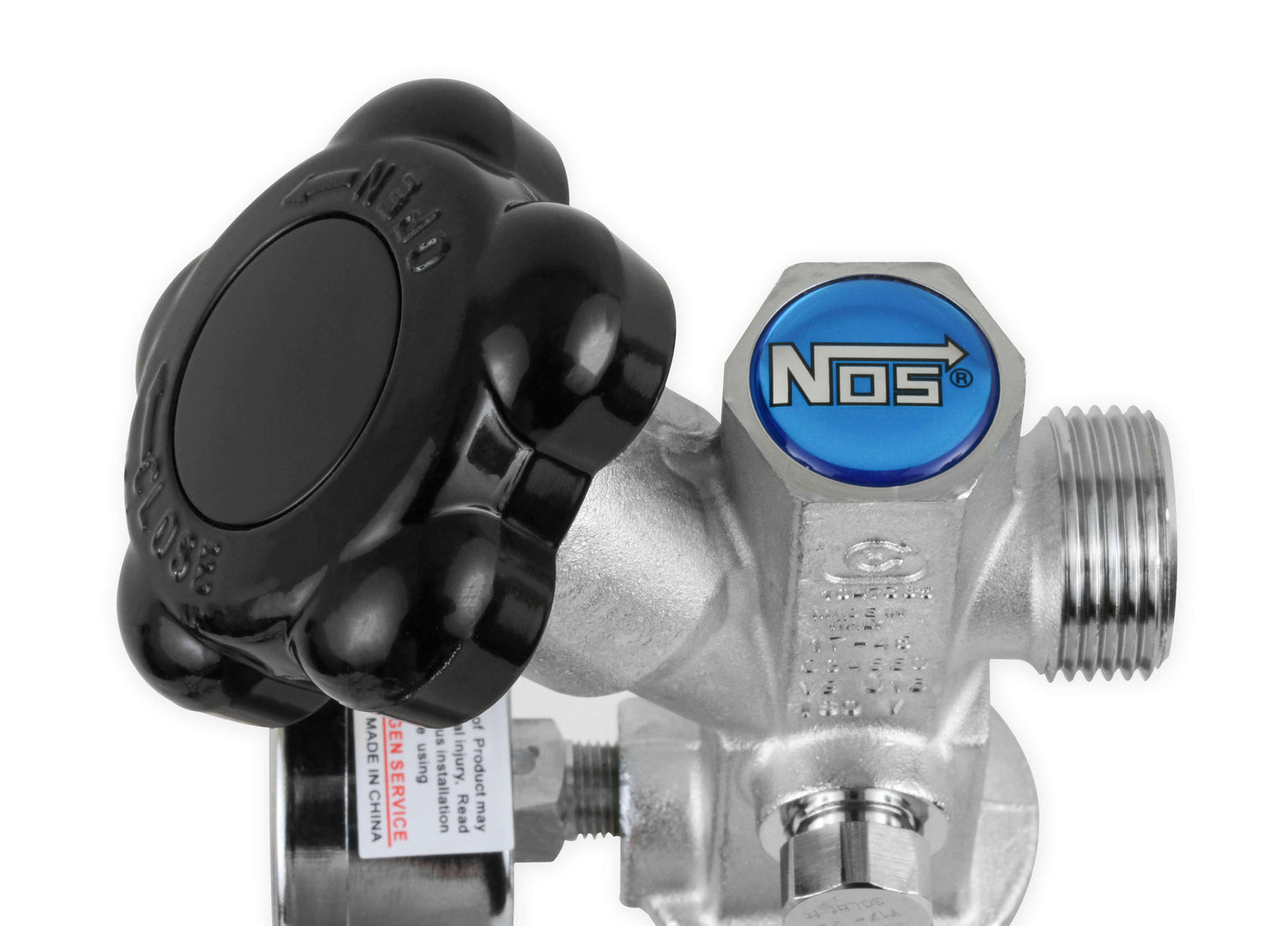

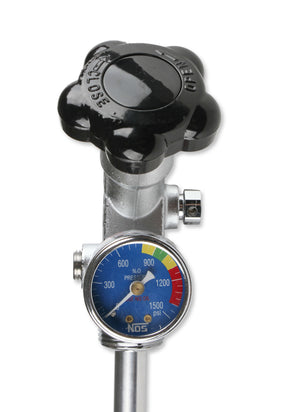

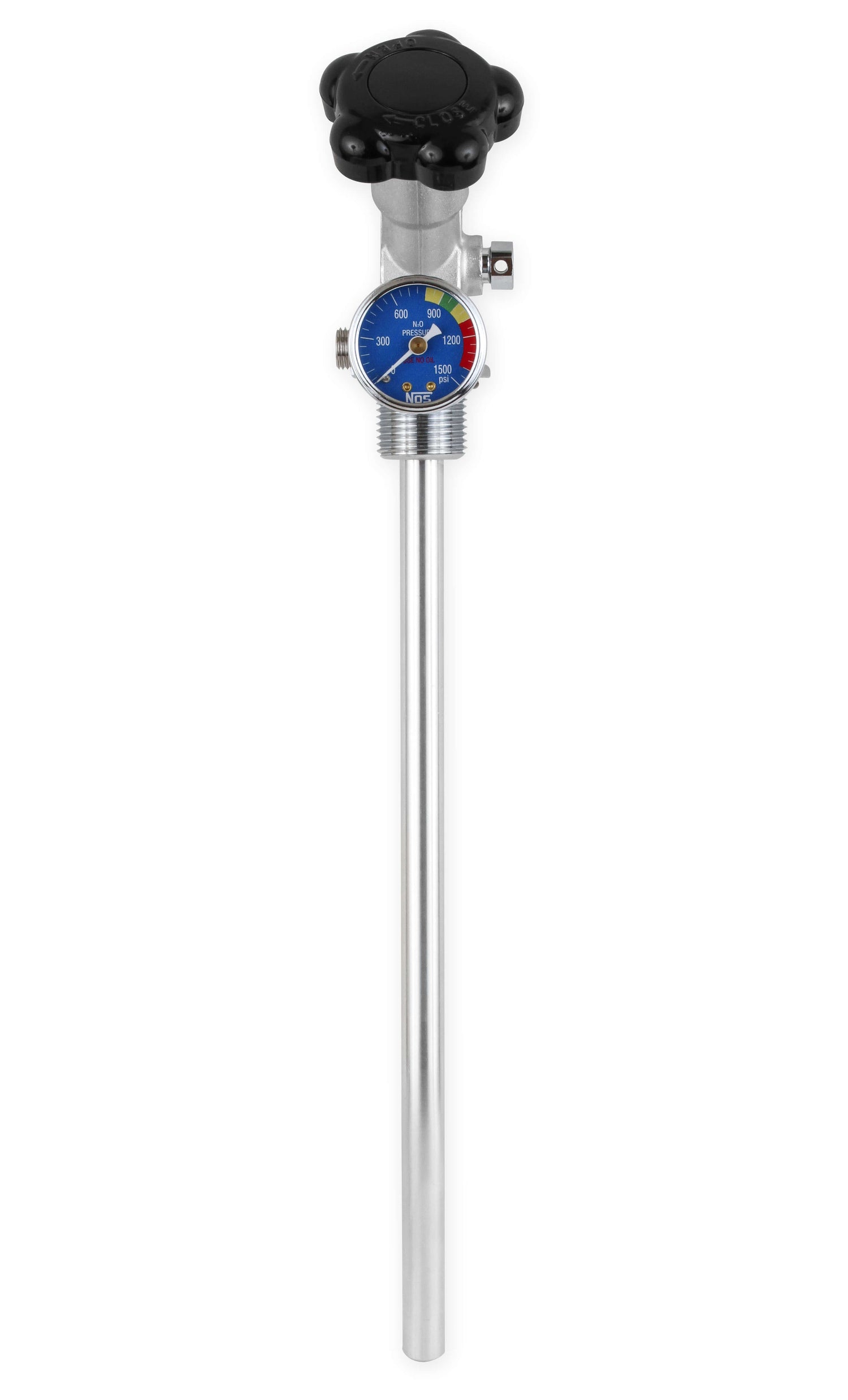

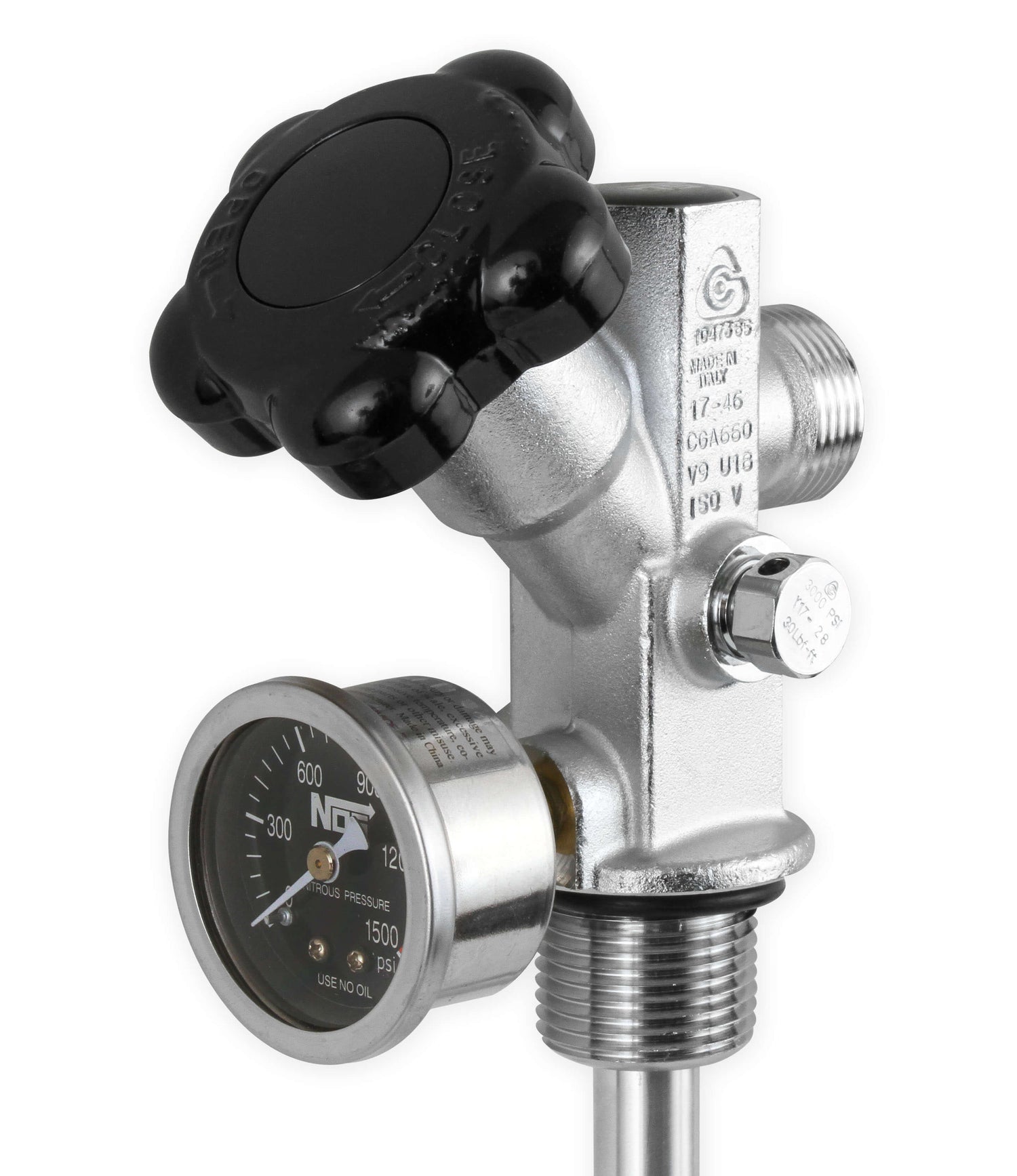

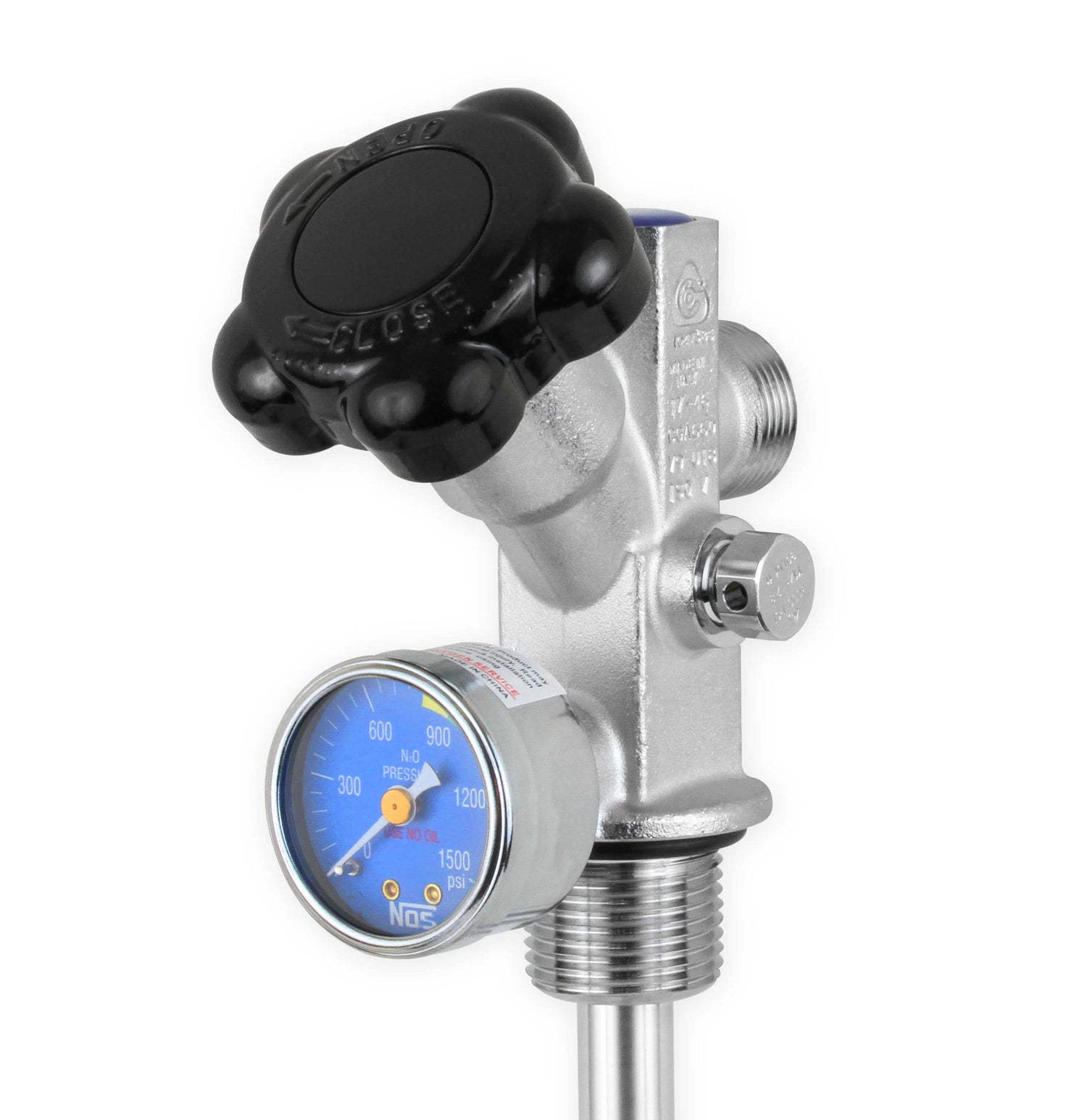

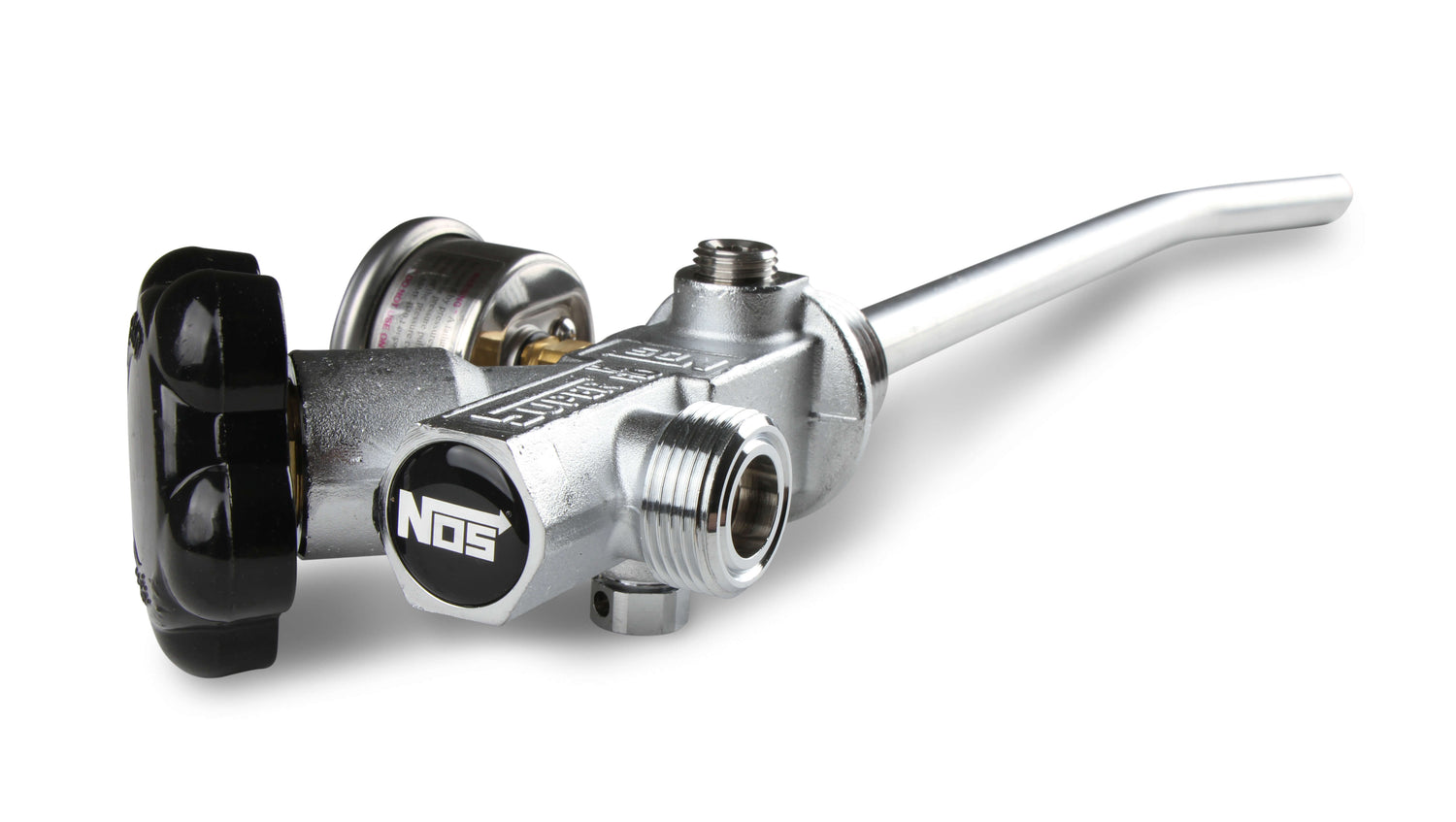

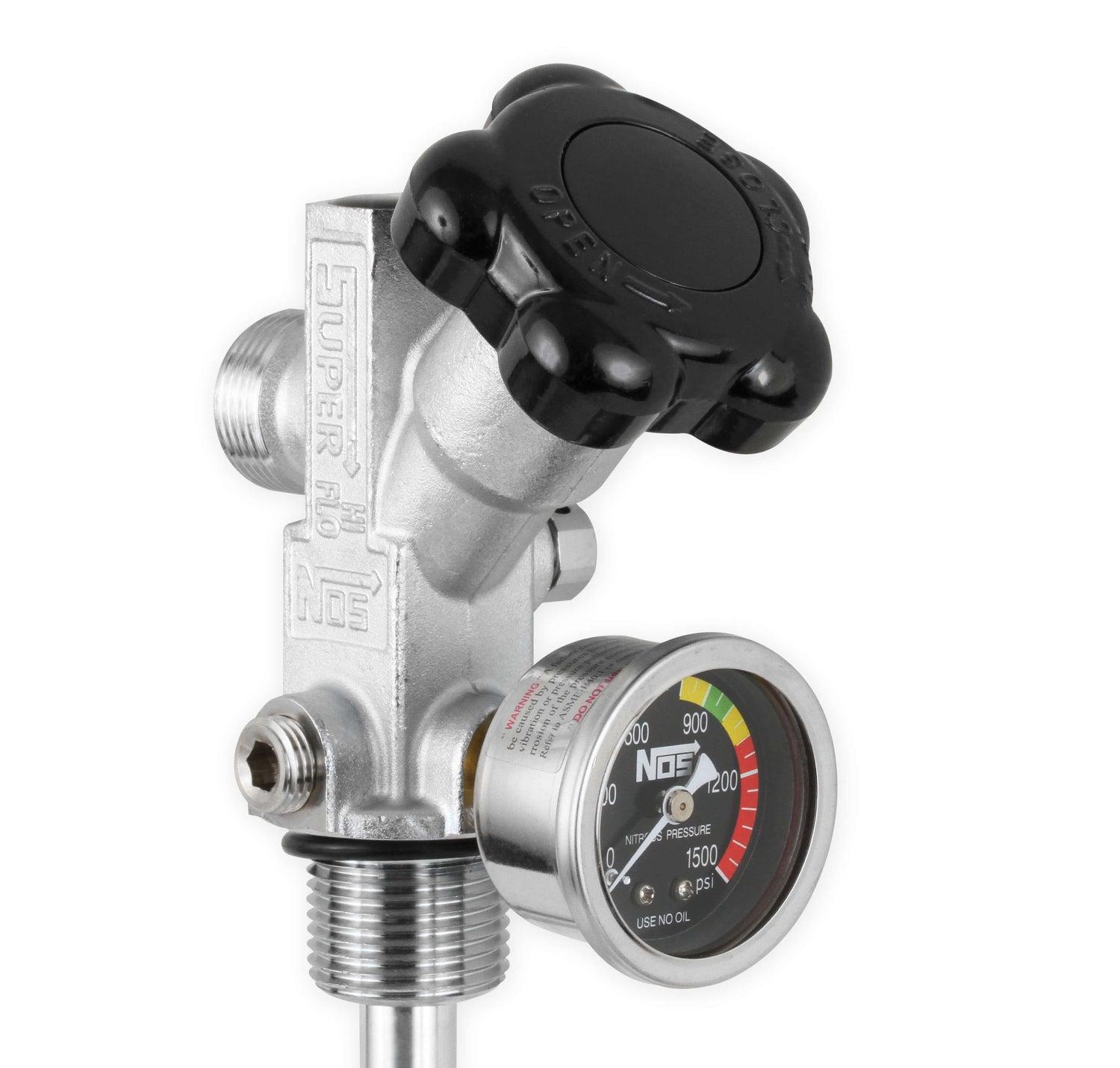

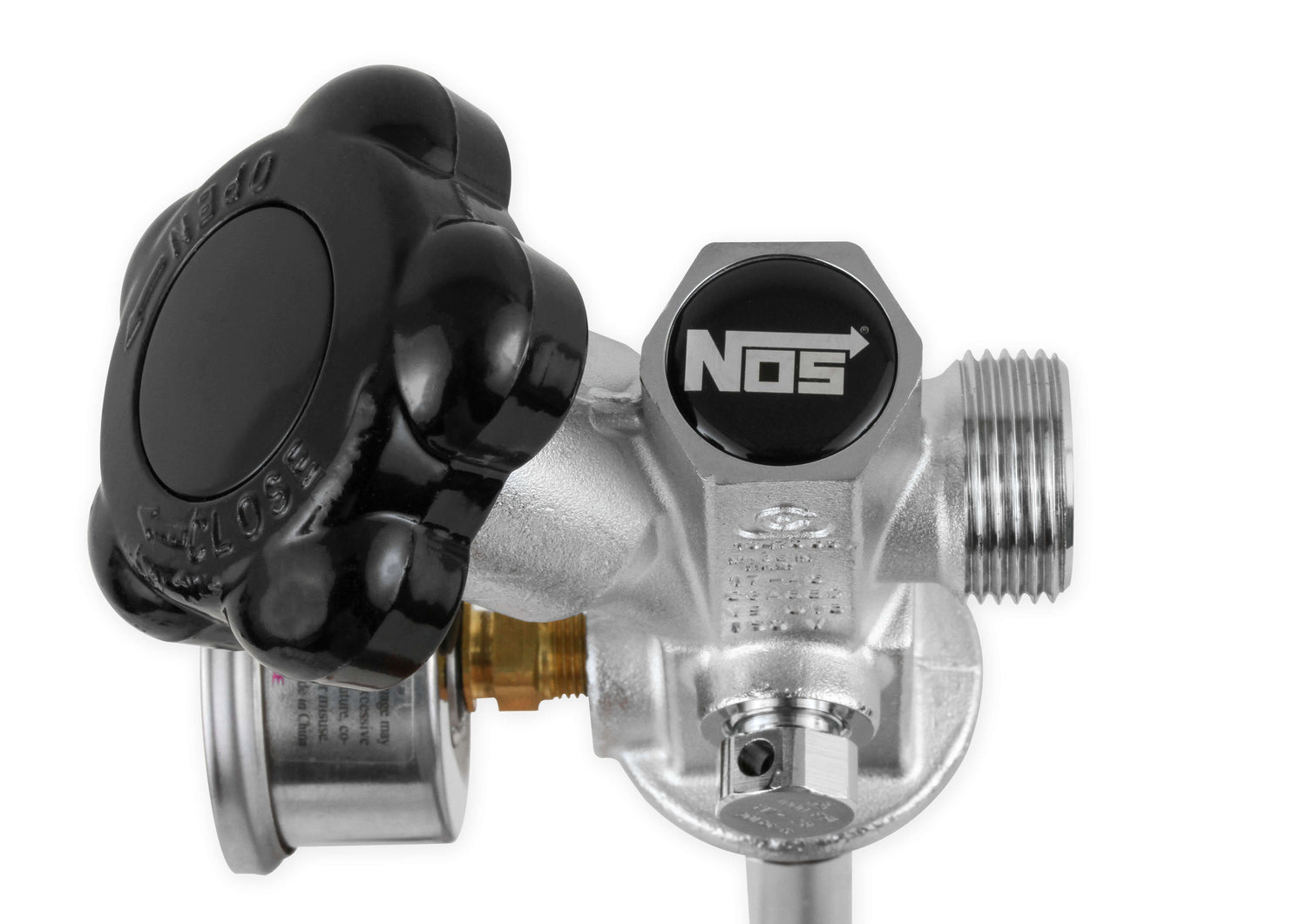

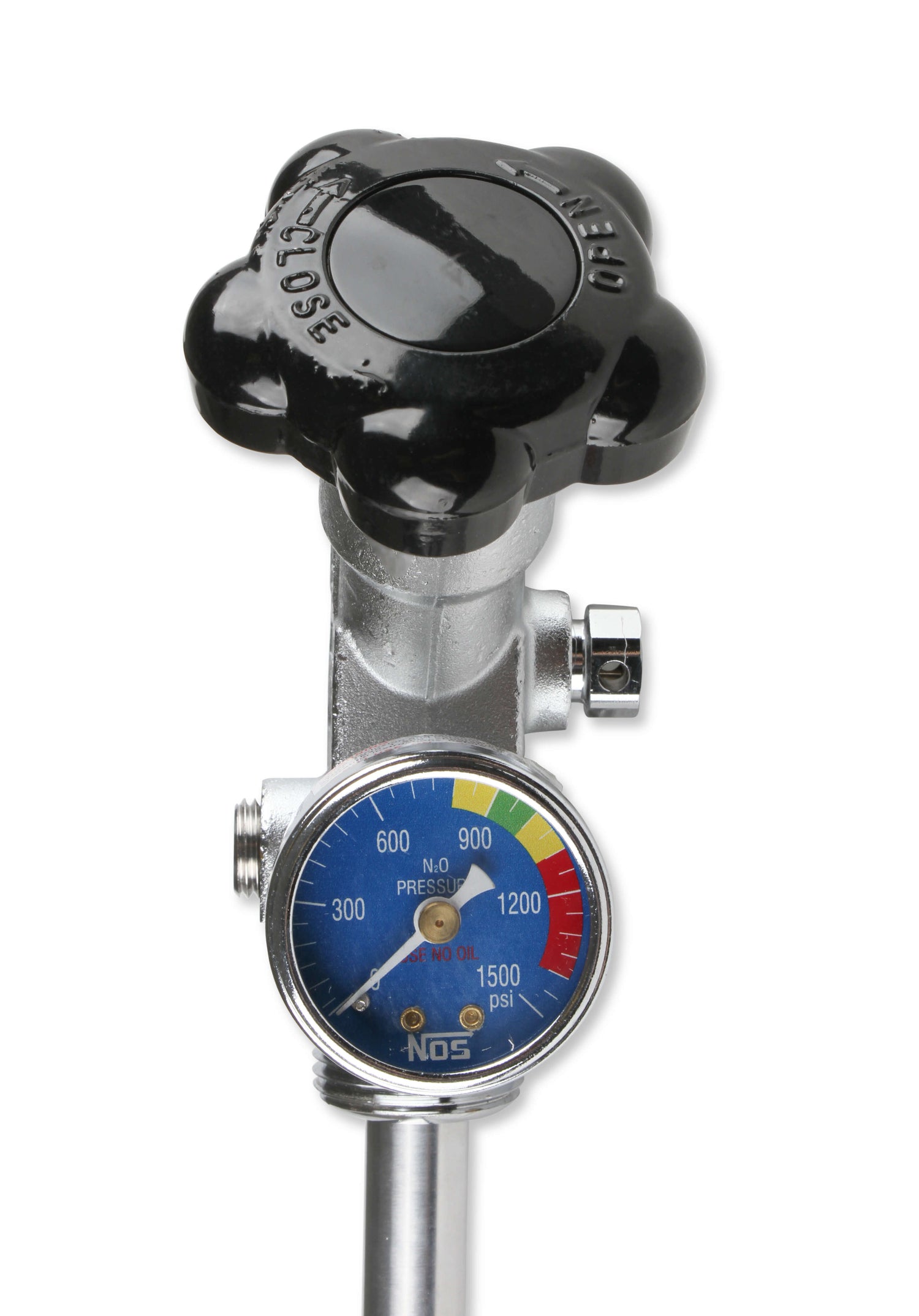

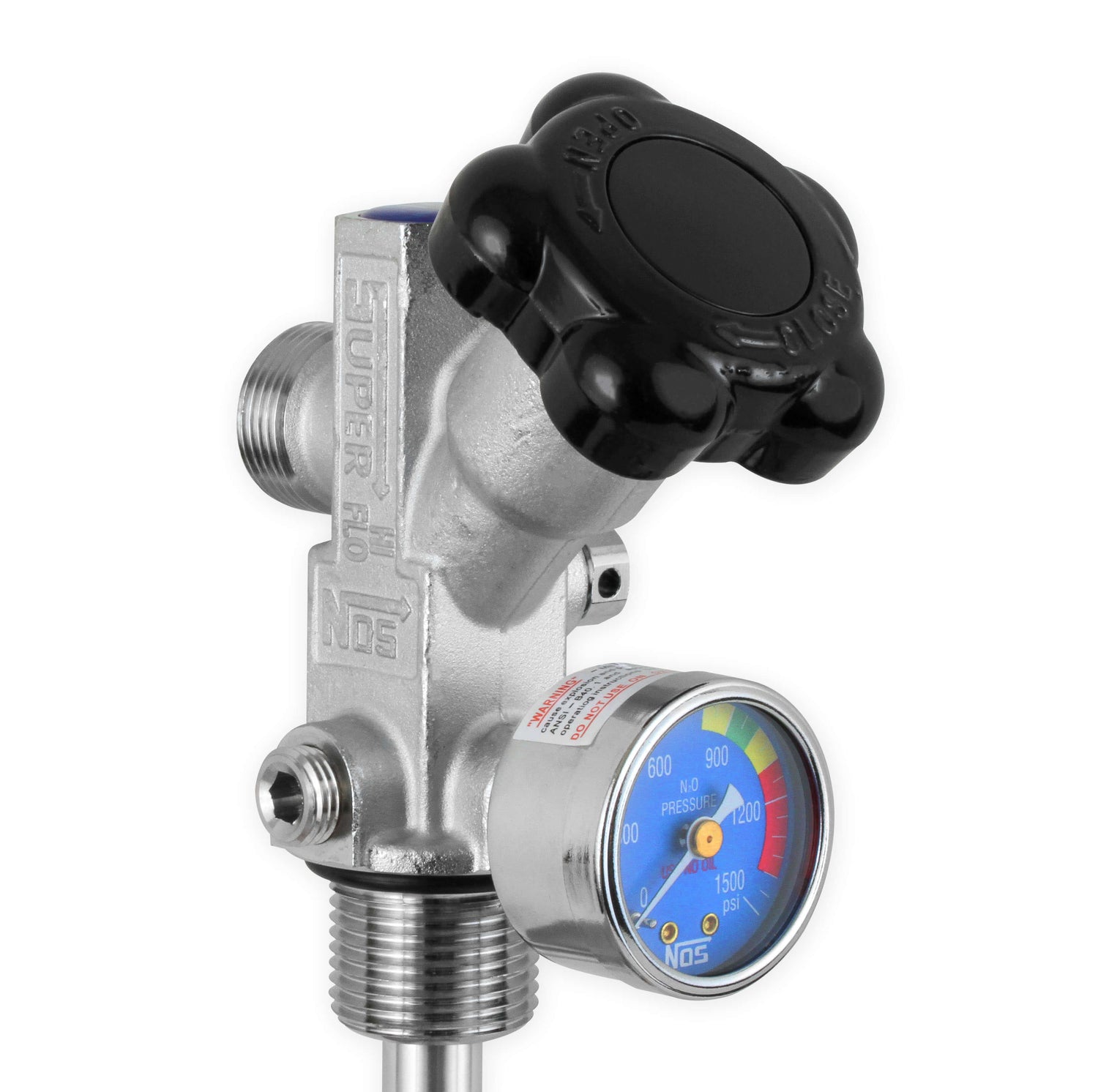

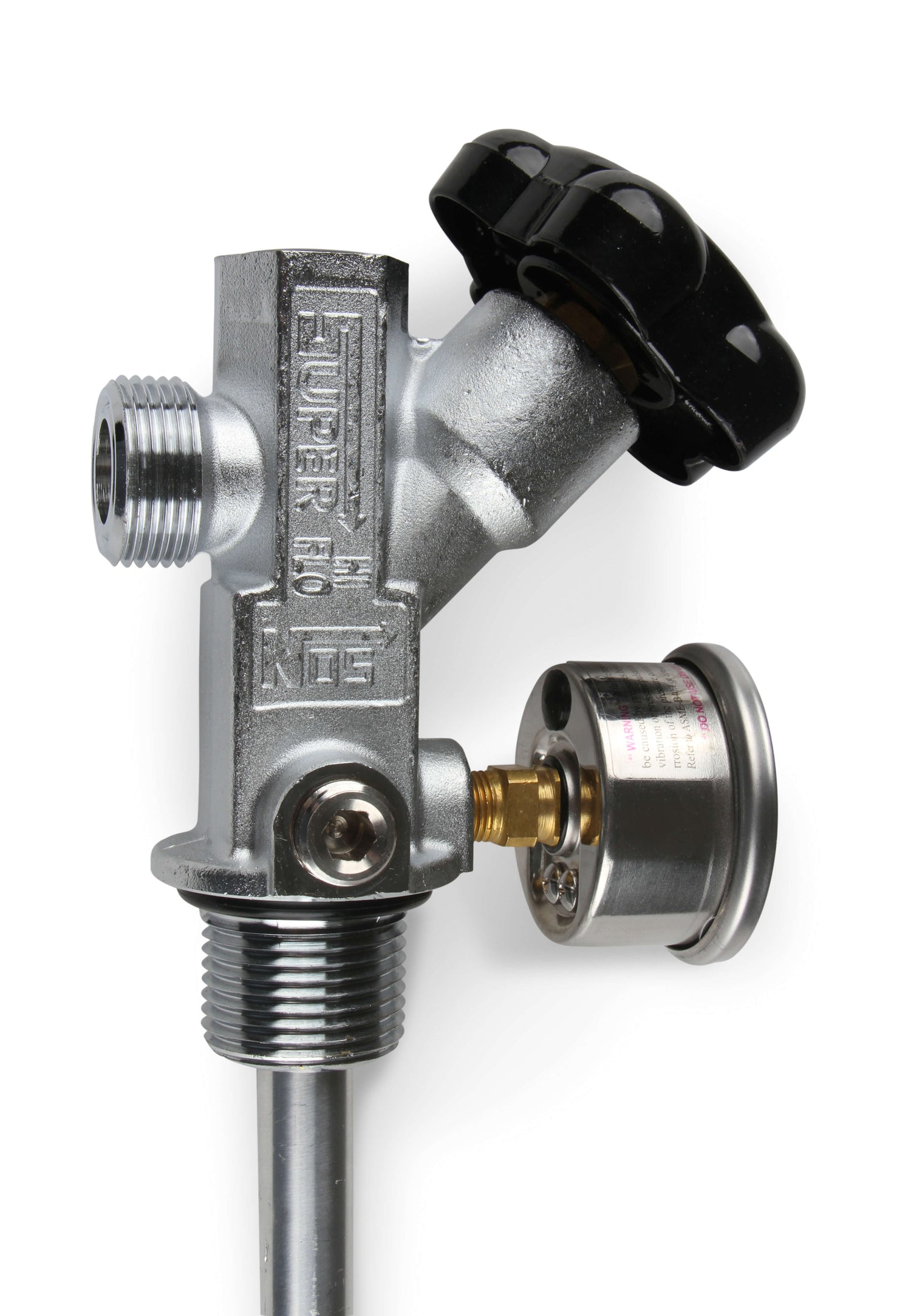

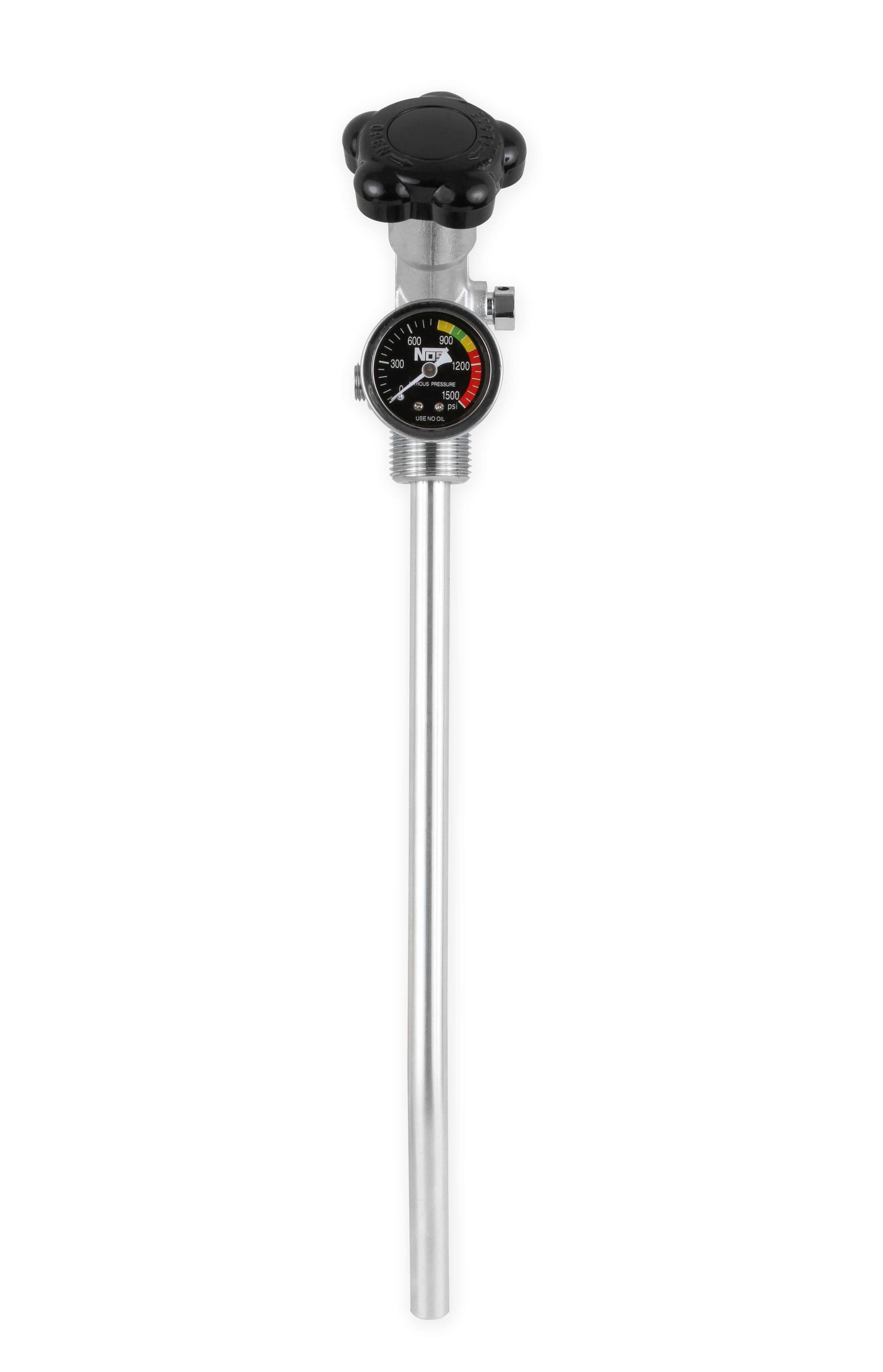

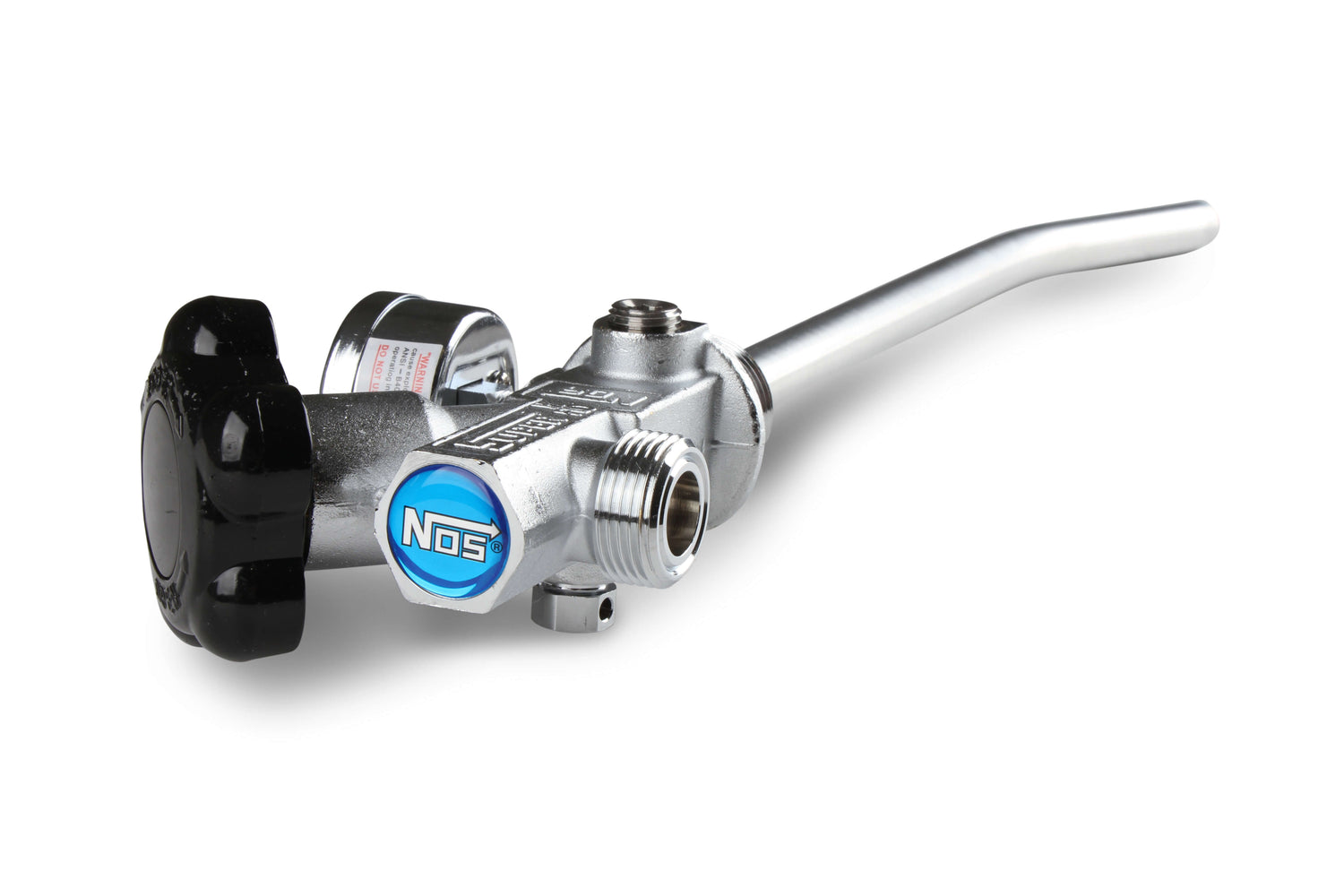

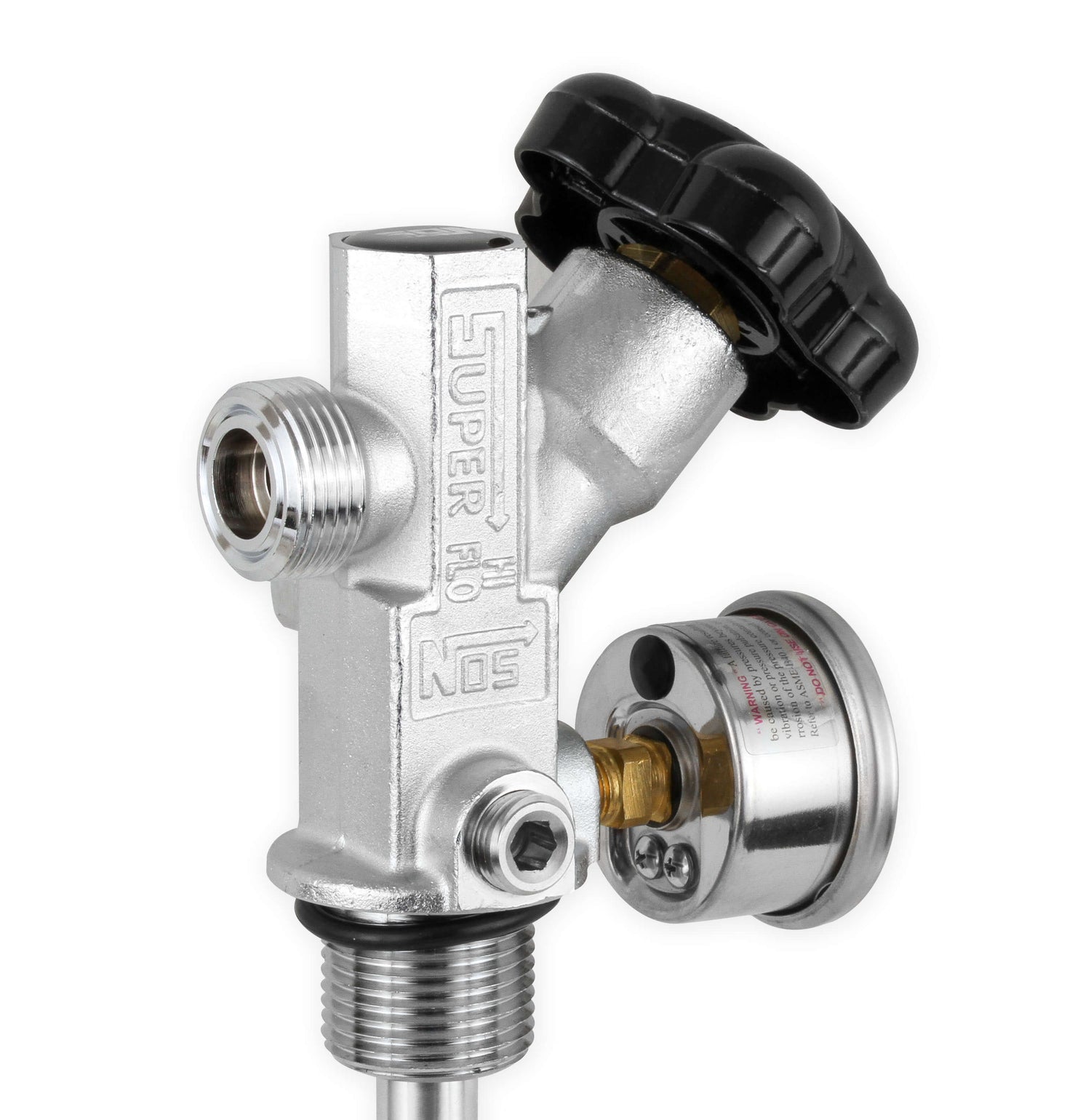

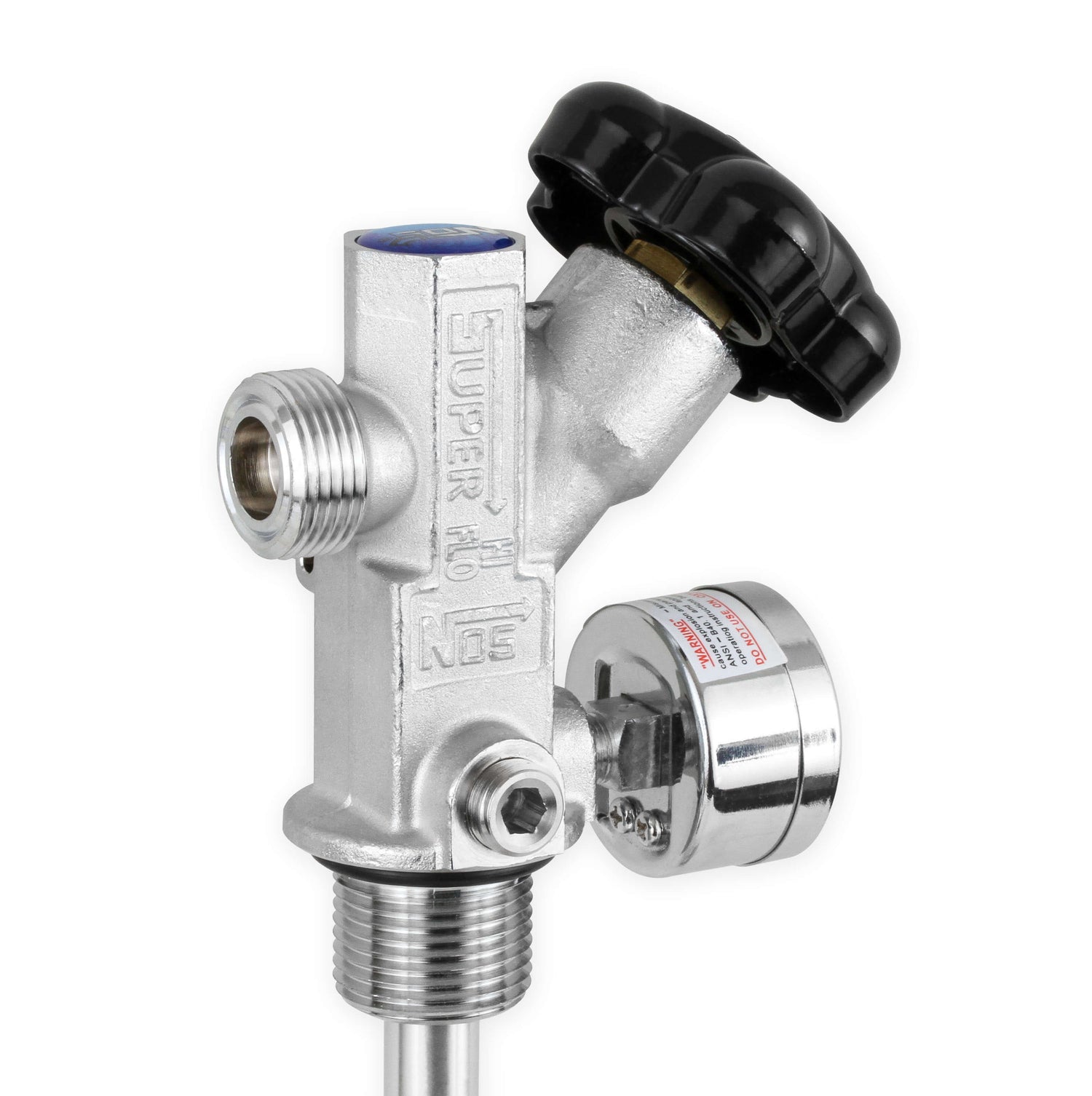

NOS now offers Super Hi-Flo bottle valve assemblies with siphon tube and nitrous pressure gauge already installed. This gives you a great way to upgrade to the highest flowing valve and tube NOS has to offer. Key bottle valve features include a 1/8"NPT gauge port, 1/4"NPT accessory port, large internal and outlet ports, along with an O-ring seal. Our 3/8" id screw-on siphon tube is made from 6061 aluminum can be used as an upgrade for an older style compression fitting tube. Lastly, included with our assemblies is either blue or black face 1-1/2" nitrous gauge with easy-to-see color graduations and a white pointer. These gauges have a stainless steel case with brass internals.
  • Super Hi-Flow assembly features siphon tube and nitrous pressure gauge already installed
  • Great way to update a bottle to the best flowing valve NOS offers

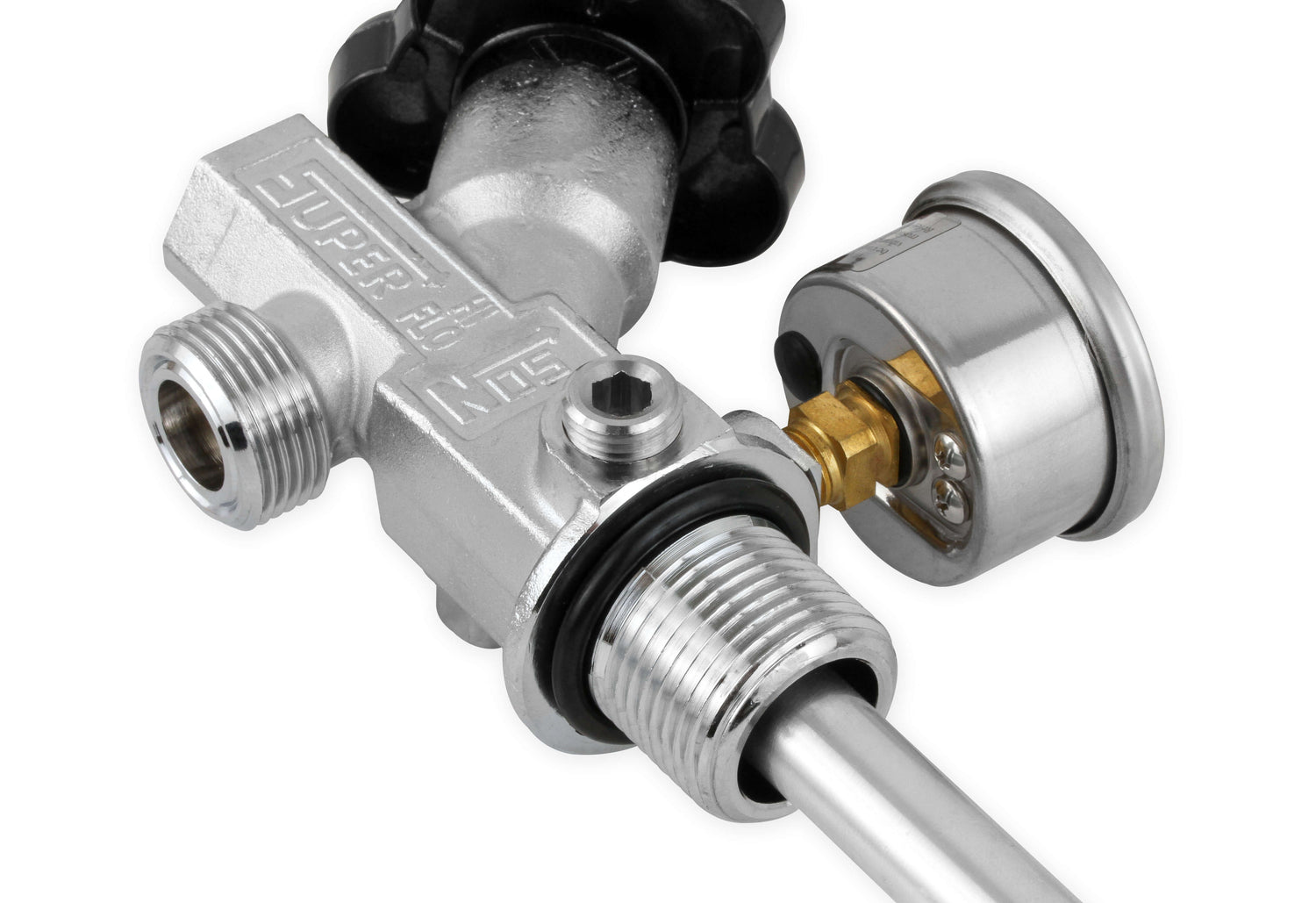

  • Valve has large internal ports for superior flow and an O-ring bottle seal

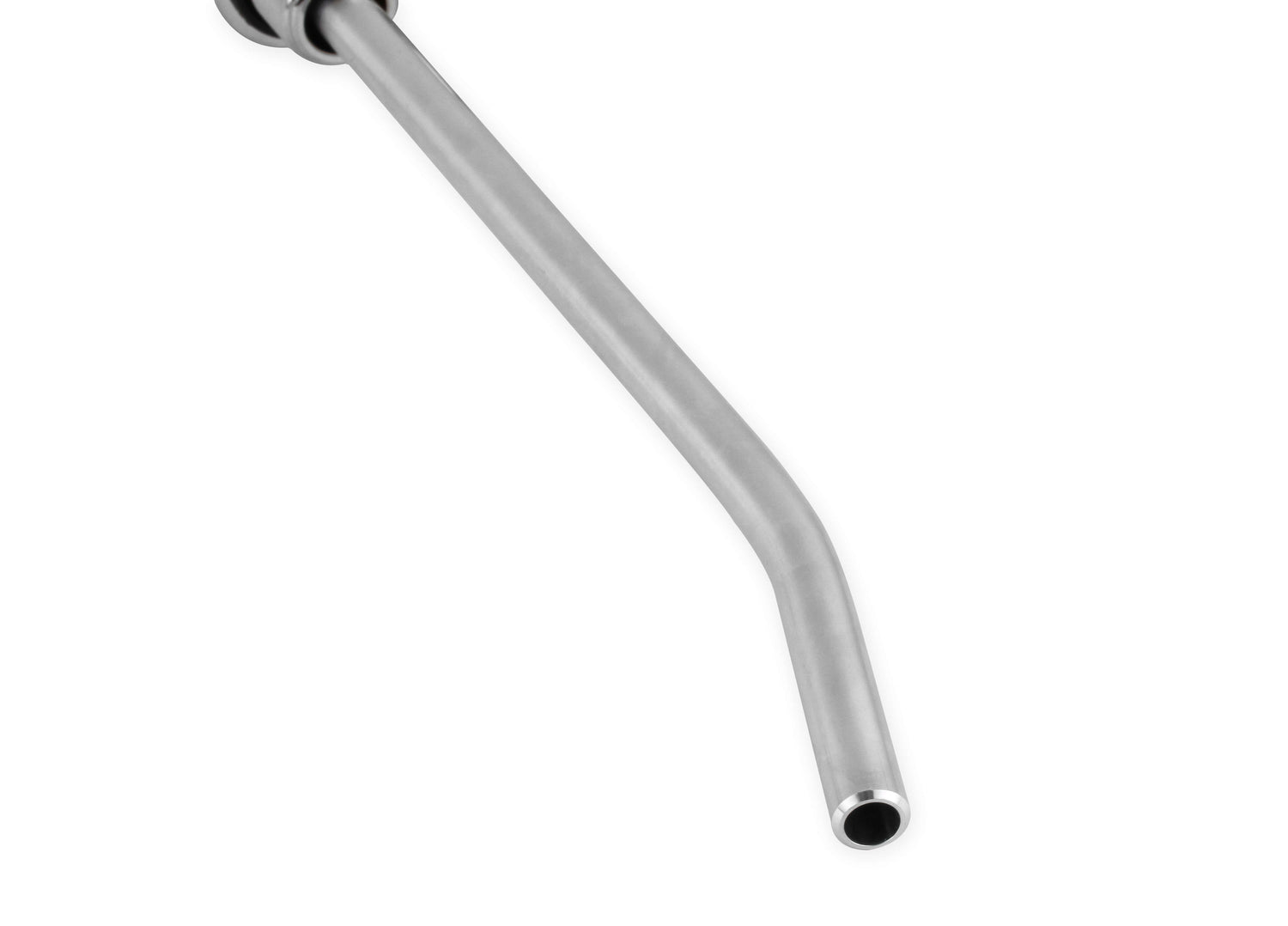

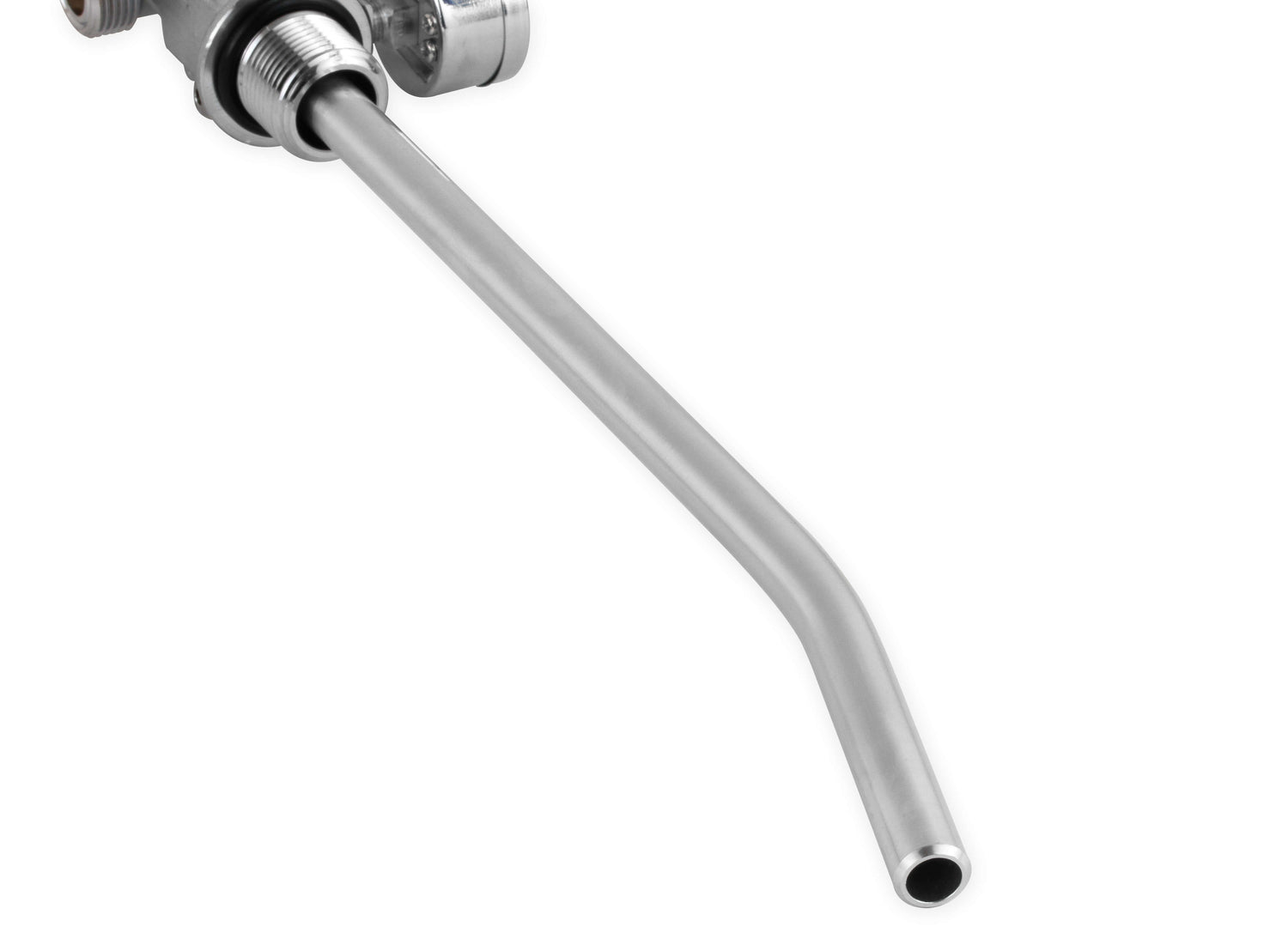

  • Siphon tube is made from 6061 aluminum and 3/8” I.D. for maximum flow

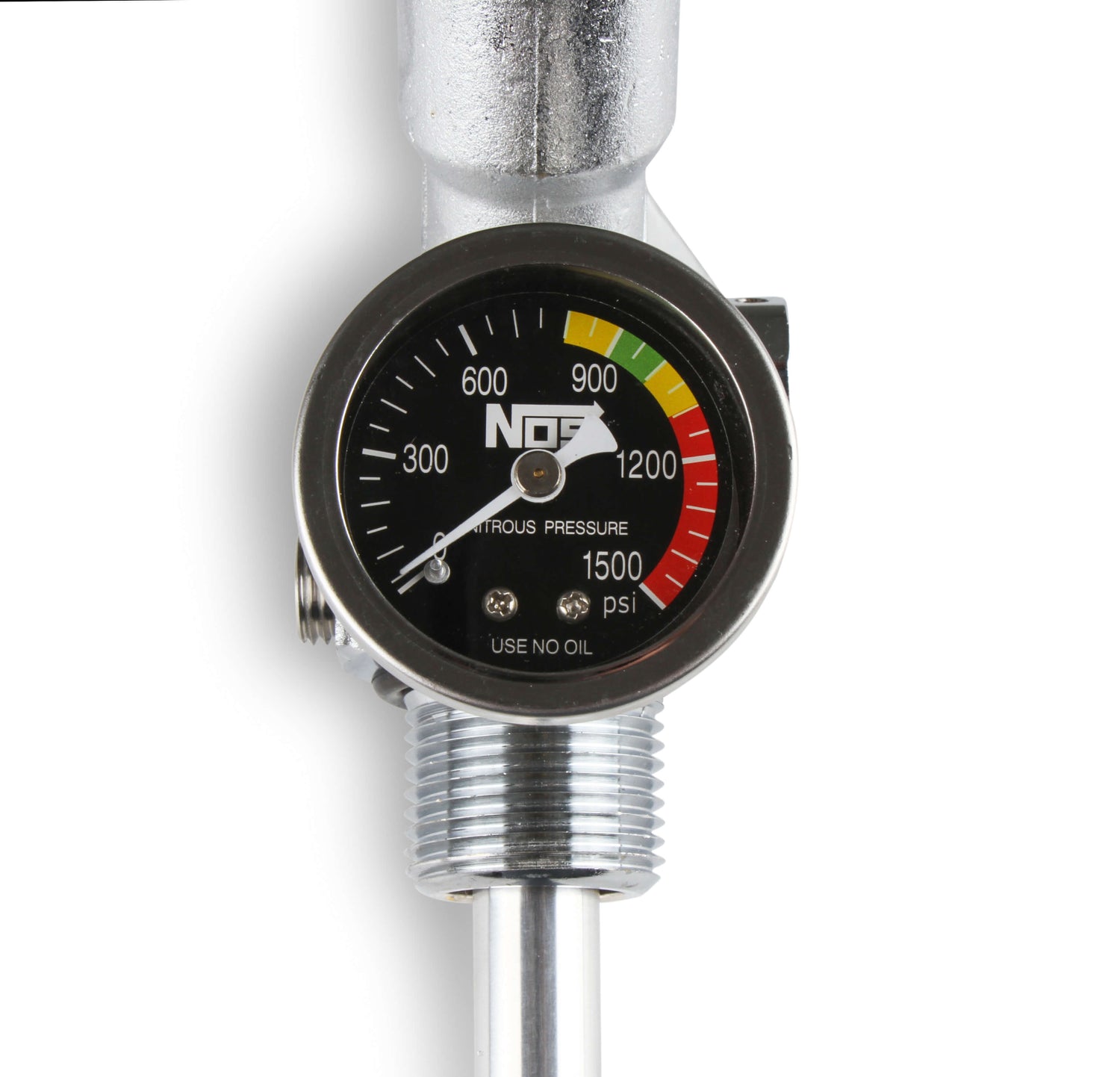

  • 1-1/2” diameter nitrous pressure gauge features stainless steel and brass construction providing accurate pressure measurement
  • Assembly is designed to Support 500+ Horsepower



Valve to Bottle Torque = 100 ft-lb



Bottle Size 5 lb
Bottle Valve Super Hi-Flo
Brand NOS
Diameter 3/8 inch
Emission Code 4
Face Color Black
Gauge Included Yes
Gauge Type Nitrous Pressure
Outlet Thread CGA #660
Product Type Bottle Valve Assembly
Siphon Tube Included Yes
Supported Horsepower 500+
Torque Value 100 ft-lb
Tube Length 13-3/8 inch
Tube Material Aluminum
Part Number 16204ABNOS


NEEDED FOR INSTALLATION:


1. 1" Socket
2. In-lb torque wrench
3. Ft-lb torque wrench
4. Vice with aluminum jaws such as 1004ERL, found on the Holley website, or another method capable of holding the siphon tube without deformation.
5. Medium strength thread locker such as Loctite 242® or equivalent.
6. Tube/pipe/conduit bending tool with minimum 3" radius
