07163NOS

NOS® (04-15) GM LS2/LS3/LS7 90mm/92mm 4-Bolt Throttle Plate

Regular price£490.37
/
Shipping calculated at checkout.
  • THIS PRODUCT IS NOT CARB CERTIFIED
  • MANUFACTURED ITEM! 6-8 WEEK BUILD TIME (NON-RETURNABLE)
  • Question? Call us at (888) 257-1077 🏁
  • This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Compatible: (6.0L/6.2L/7.0L)

    2009 - 2014 Cadillac CTS-V

    2010 - 2015 Chevy Camaro

    2005 - 2013 Chevy Corvette C6

    2007 - 2013 Chevy Silverado

    2007 - 2013 GMC Sierra

    2004 - 2006 Pontiac GTO

    2008 - 2010 Pontiac G8



    Recommend 1 - 2 steps colder spark plugs. No projected tip, fine wire or iridium spark plugs. Power levels in excess of 75 hp should use a racing/high octane rated fuel.

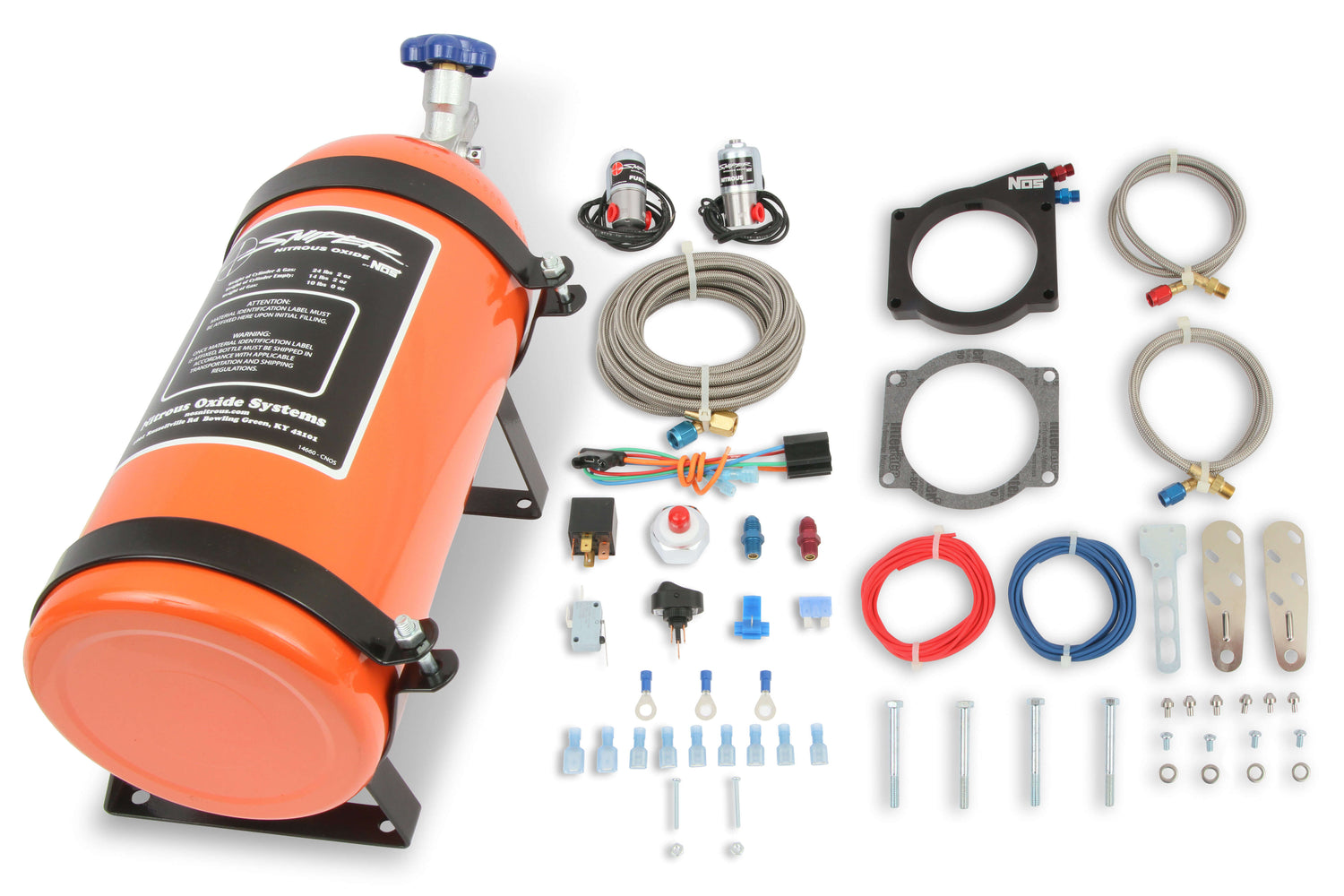

    Sniper Wet EFI Nitrous Plate Kits give one of the most powerful bang-for-the-buck power adding solutions. Sniper nitrous kits are great for the budget minded builder that wants the power nitrous is famous for. These are wet plate kits, meaning the additional fuel is added though the nitrous system, so there are no requirements for an injector upgrade. All of the needed items are included in the kit for a complete, no hassle installation.
    • Offers a low cost EFI nitrous kit solution
    • Fits 90mm or 92mm throttle body

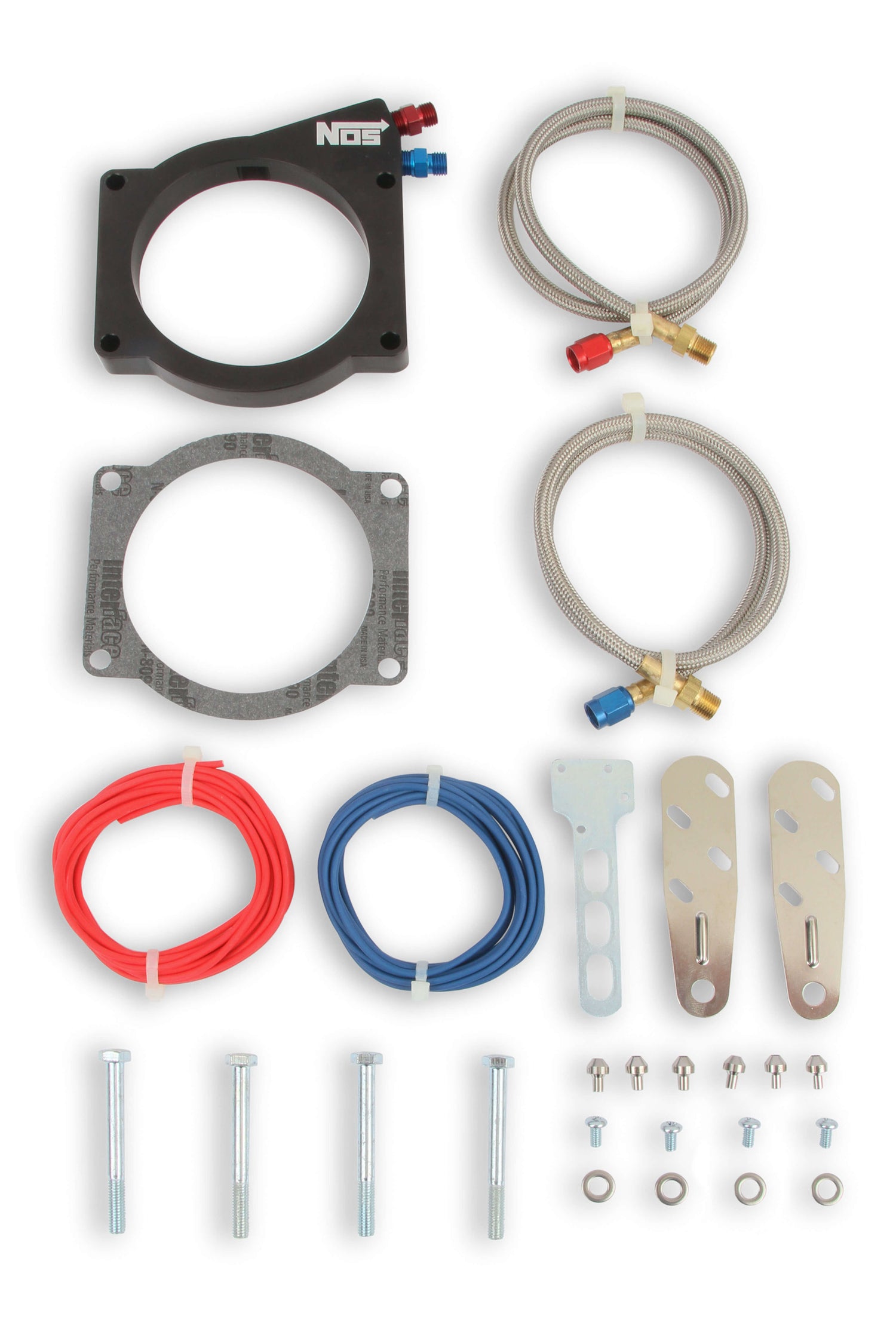

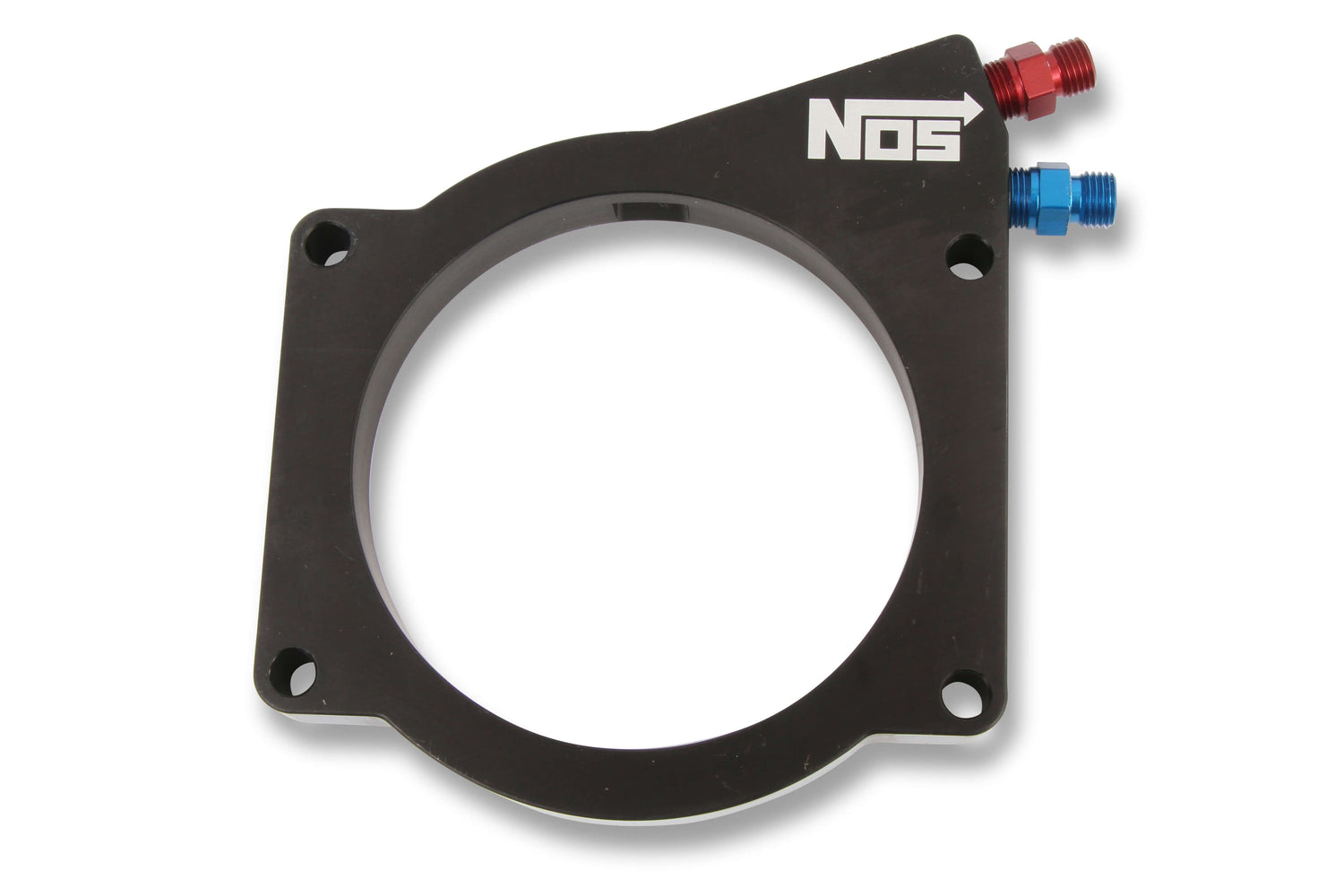

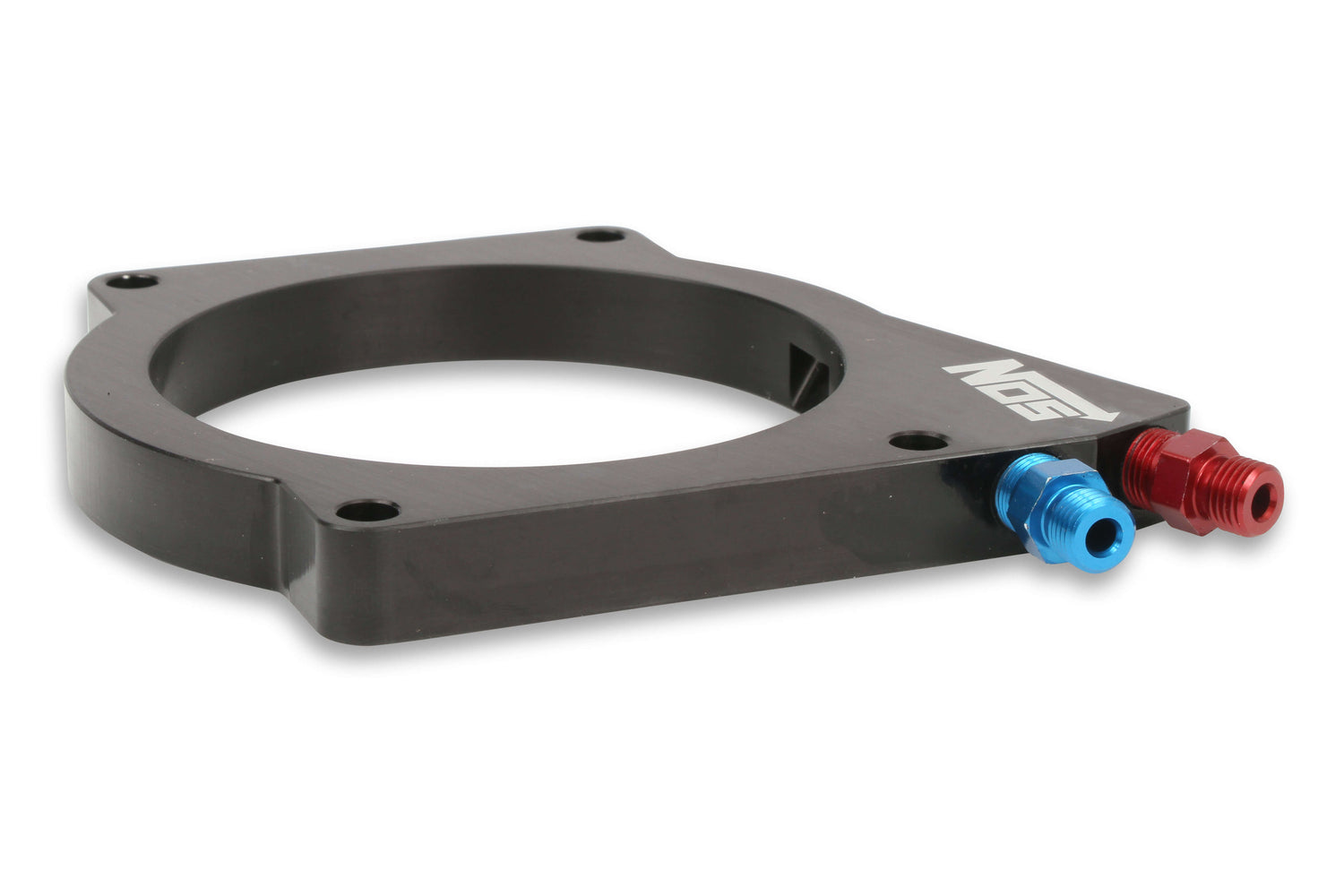

    • Direct bolt-on ½” black billet aluminum plate fits between throttle body and intake manifold
    • Supports up to 175 HP
    • Included jetting for 100, 125 & 150 HP

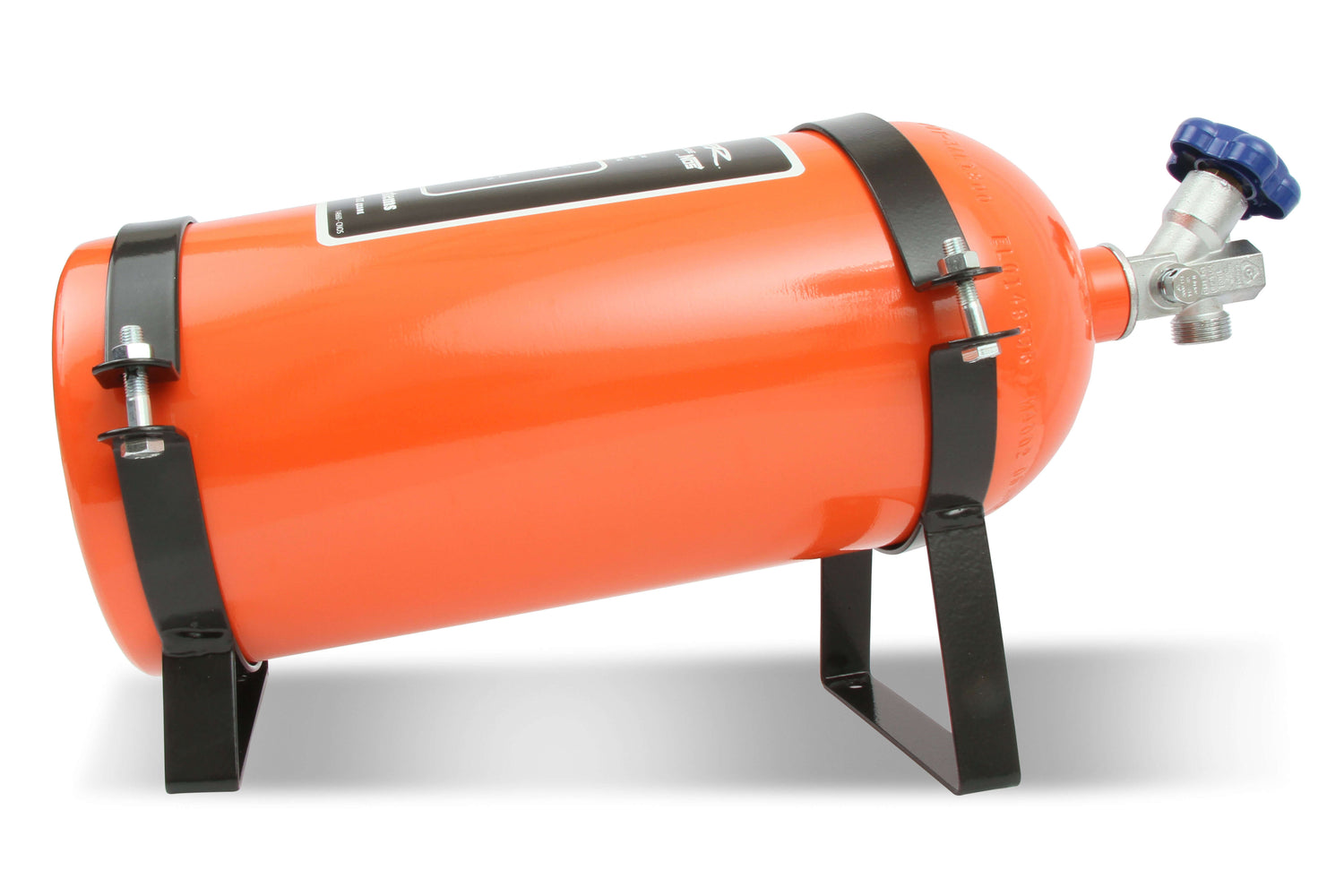

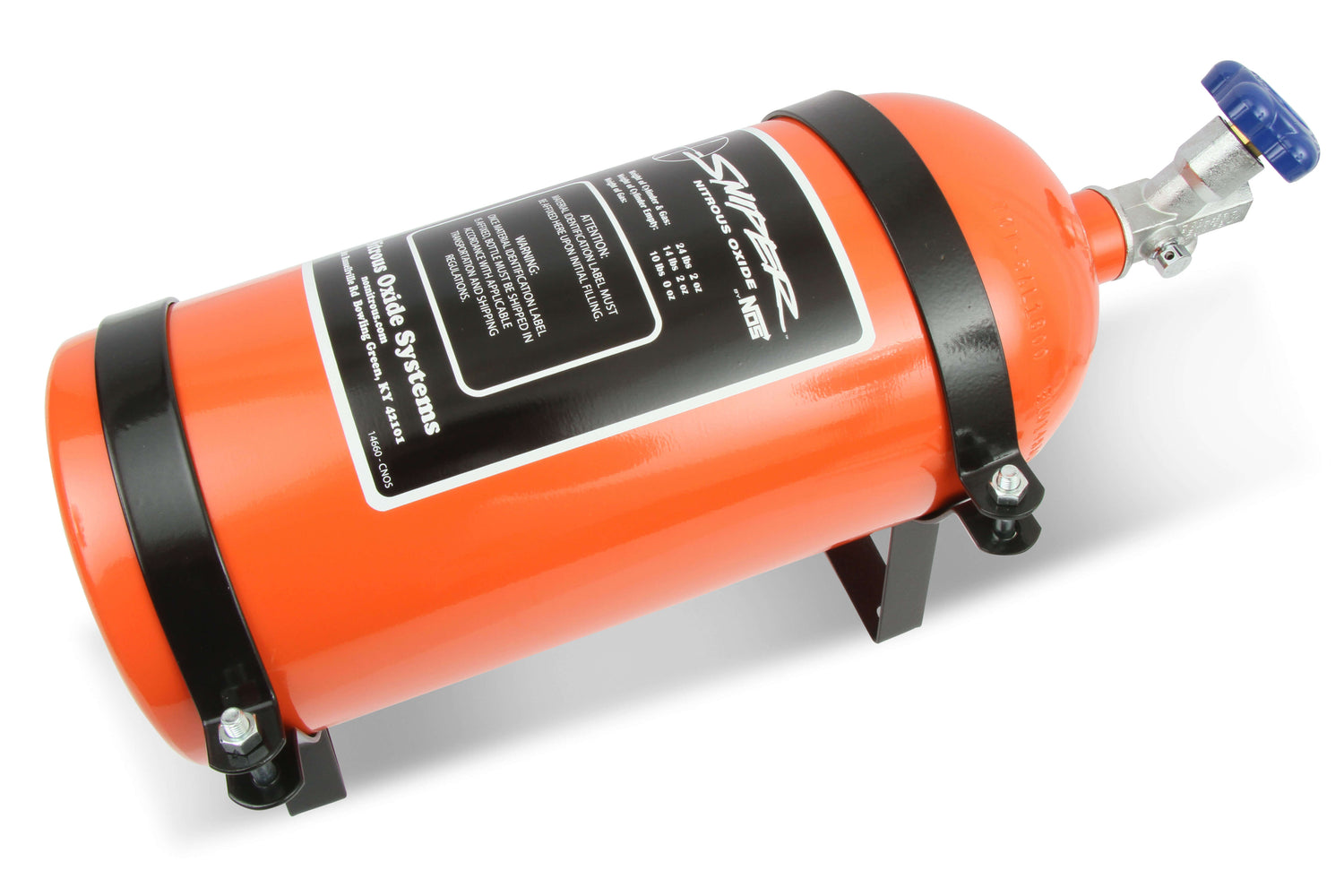

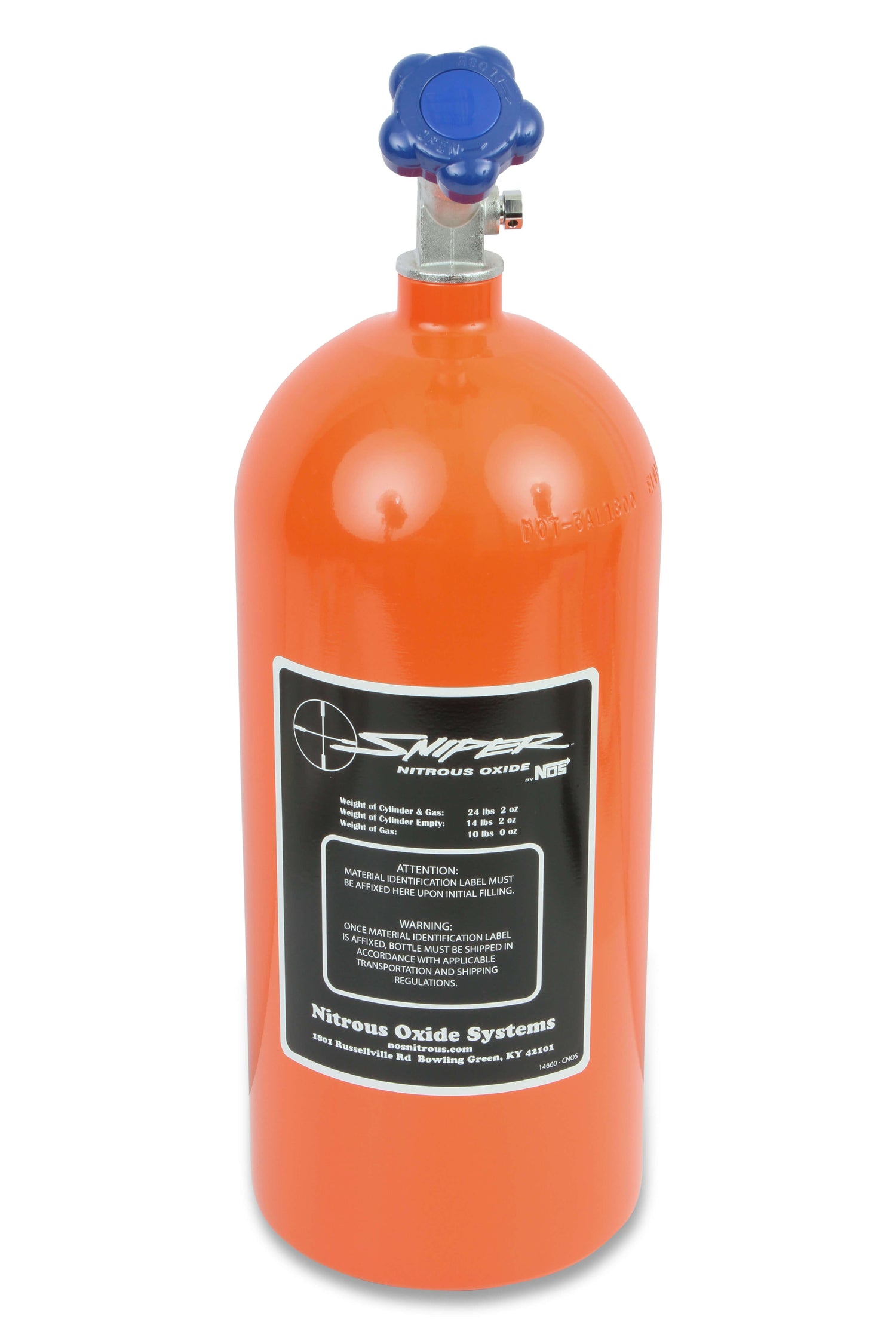

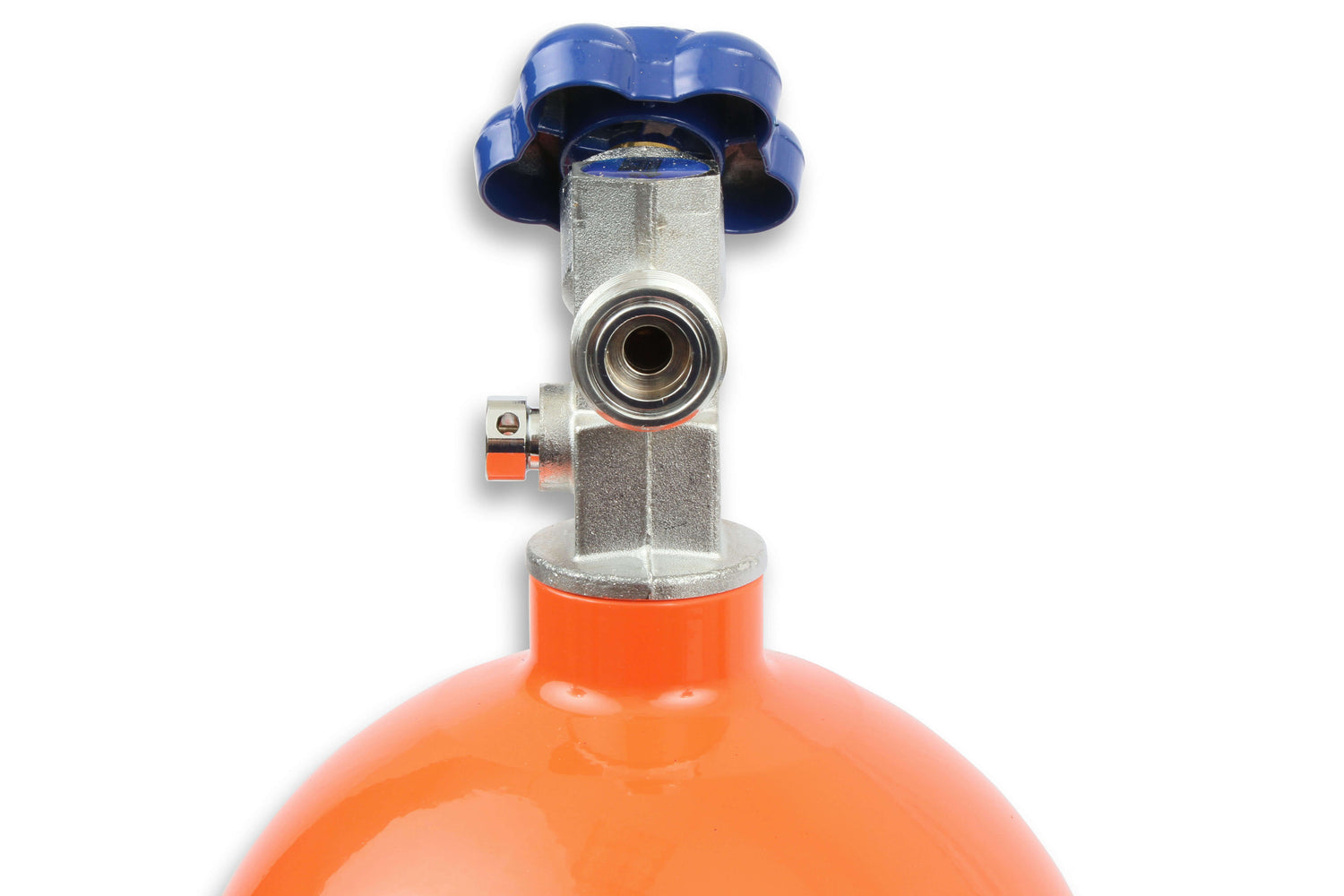

    • Includes orange Sniper 10 lb. nitrous bottle with brackets

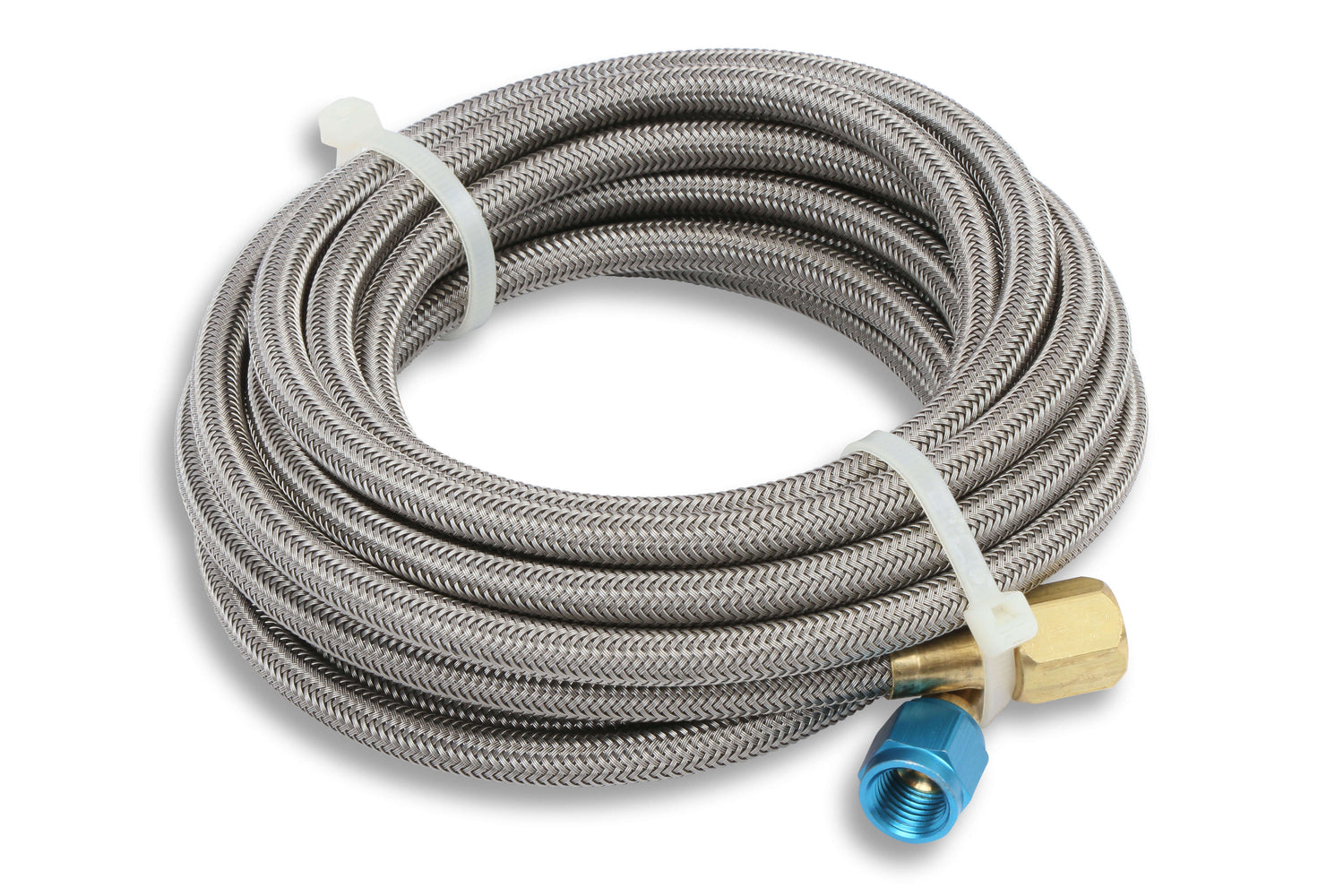

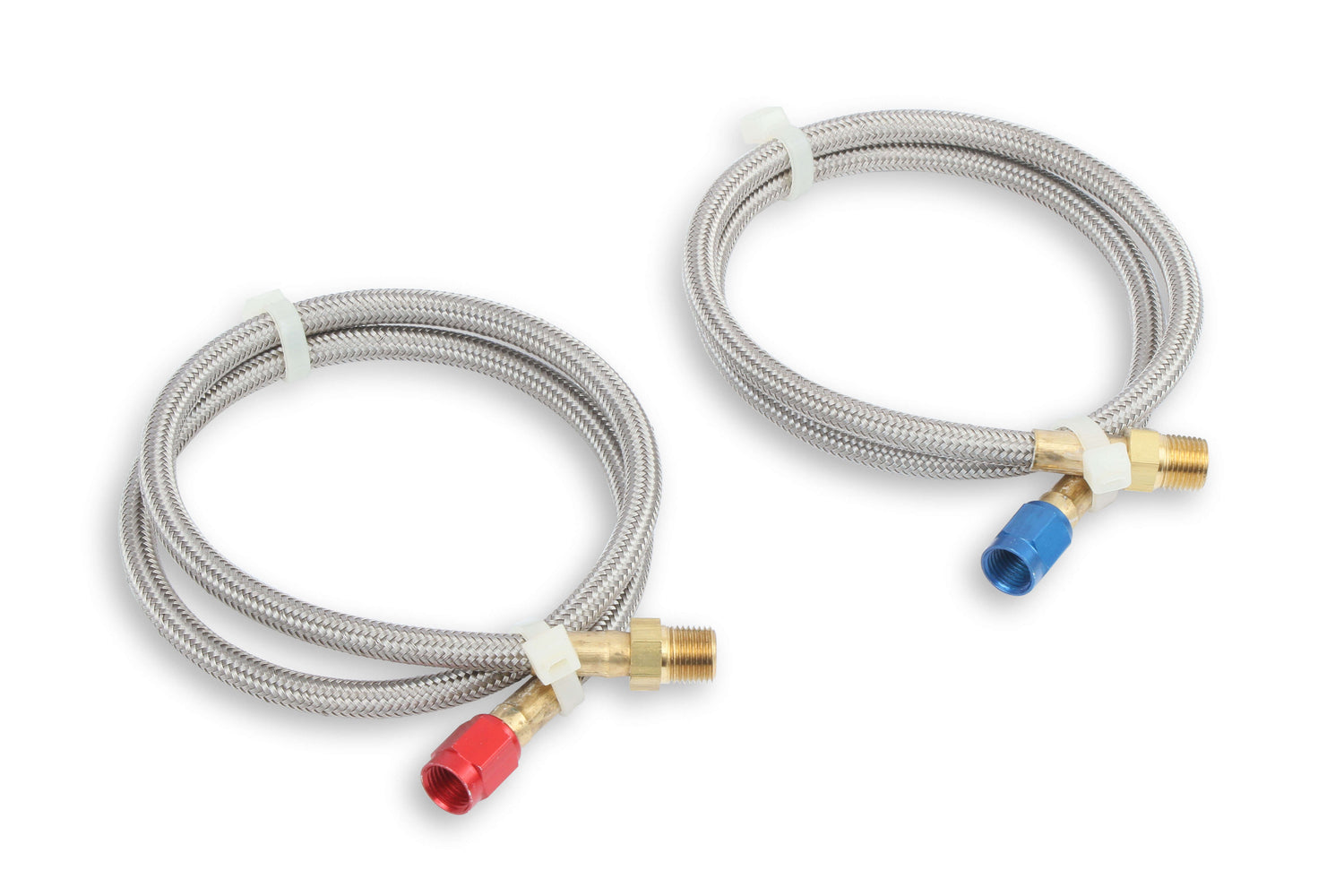

    • Stainless steel braided lines

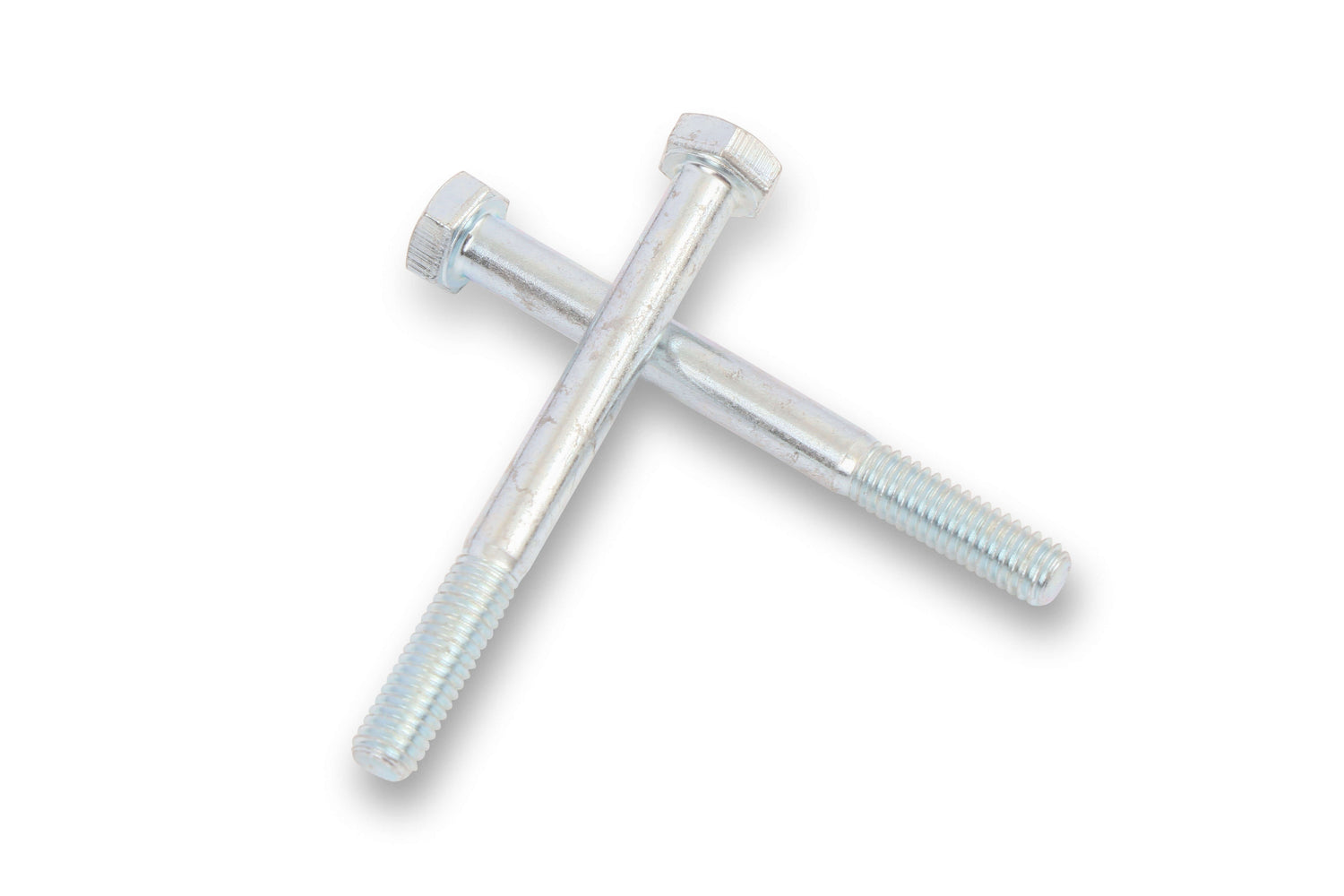

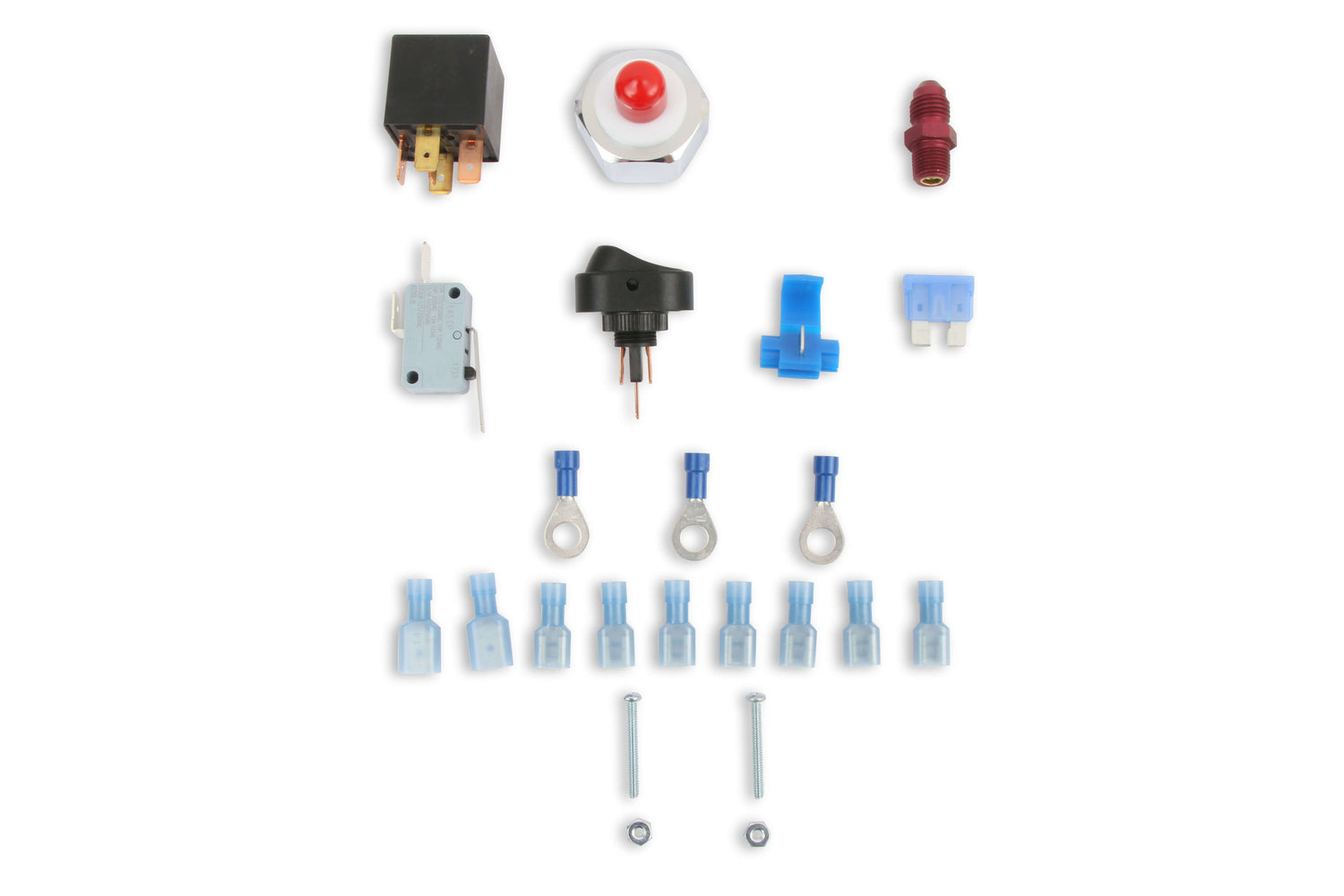

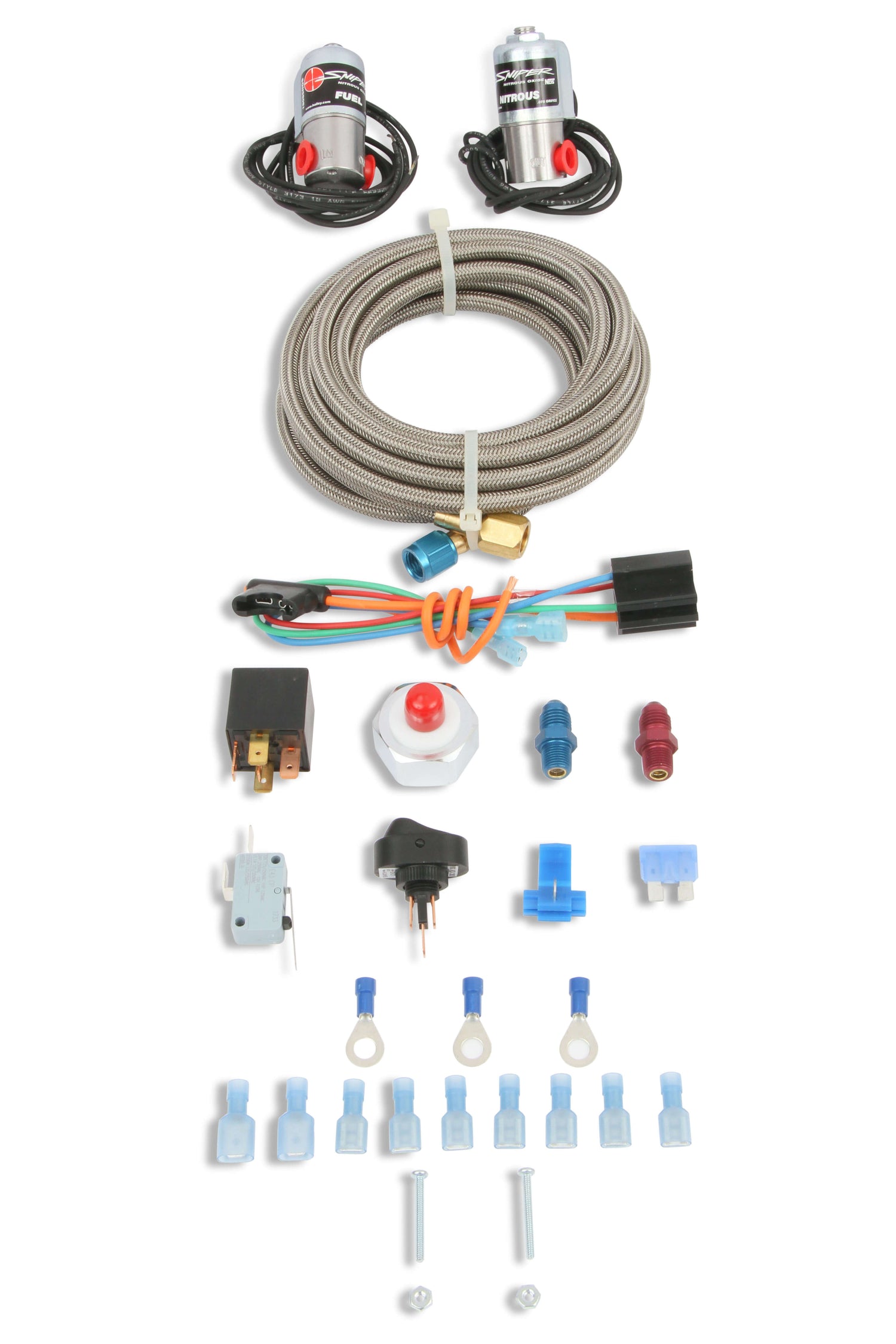

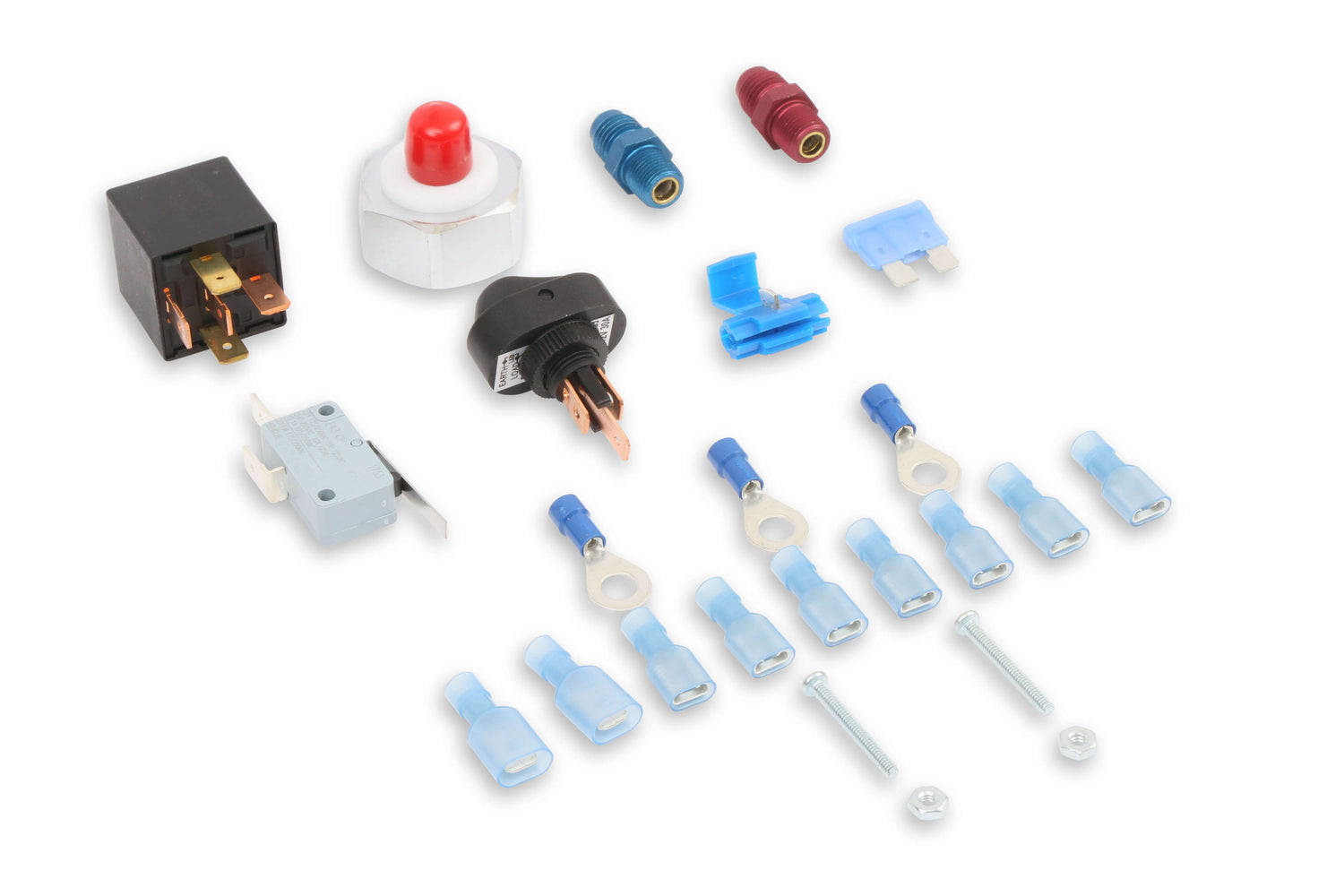

    • Simple installation and hardware included
    • Ideal for Use w/ Terminator X - for Nitrous Control



    Specs:

    Adjustable Yes
    Bottle Color Orange
    Bottle Included Yes
    Bottle Material 6061 T-6 Aluminum
    Bottle Size 10 lb

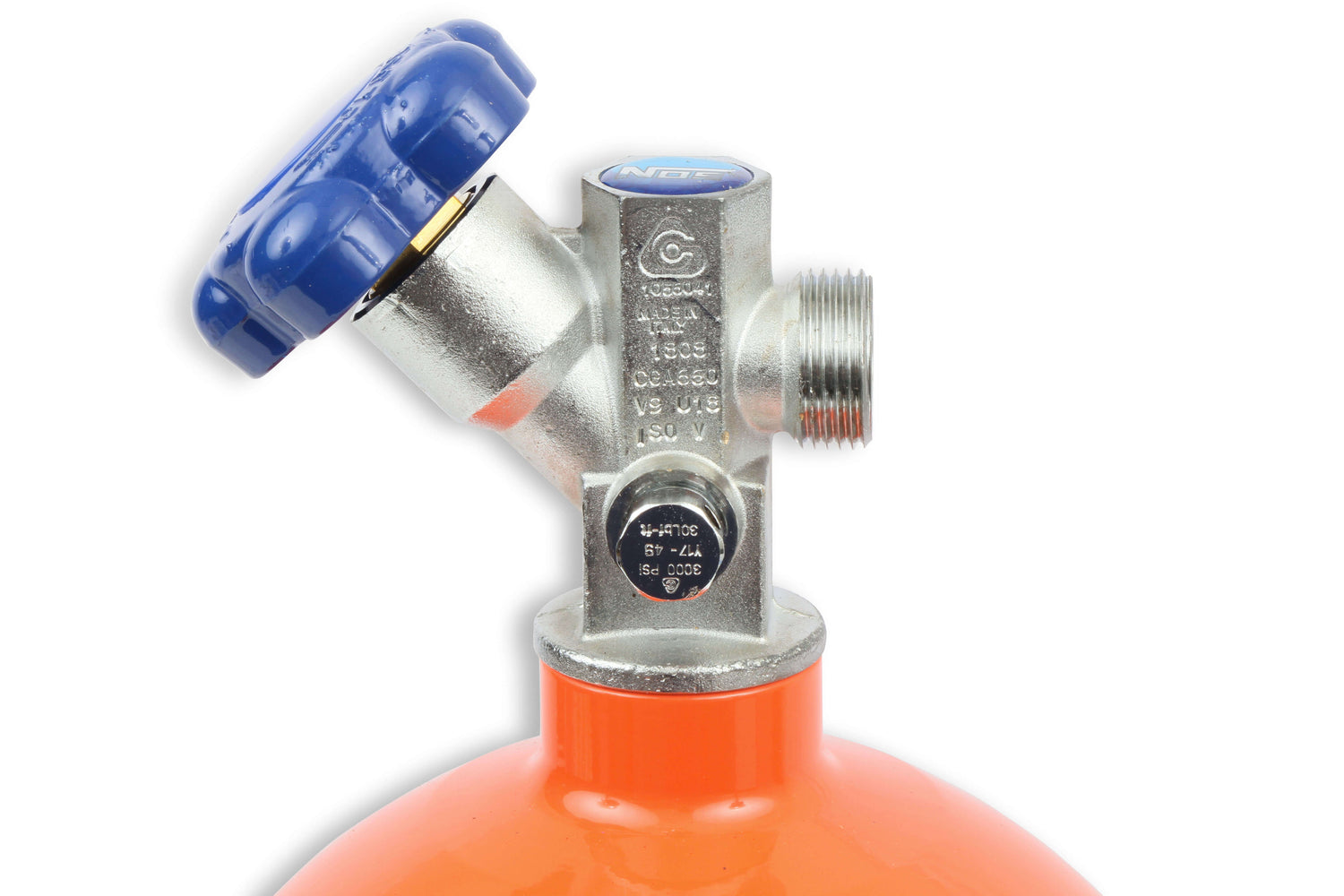

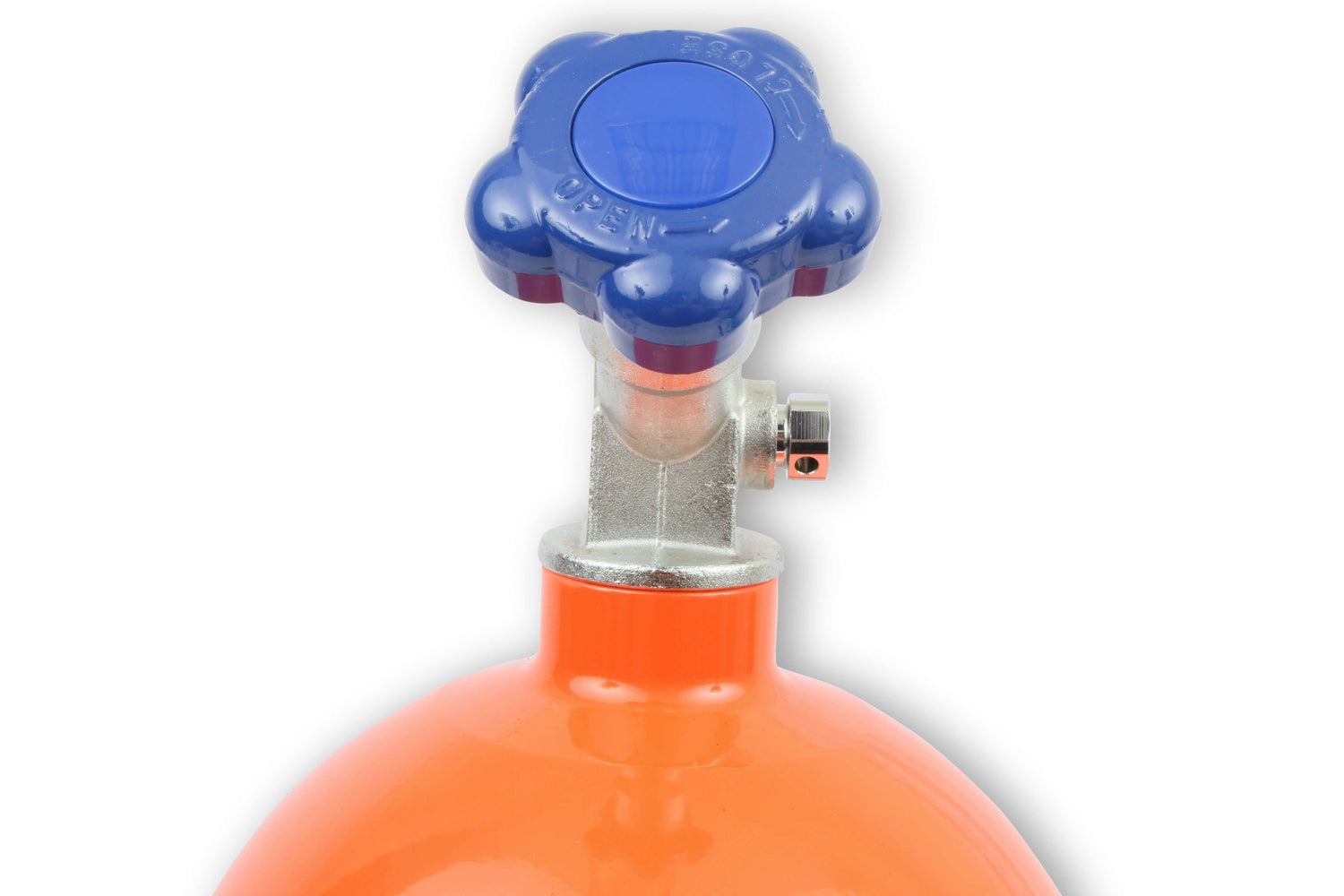

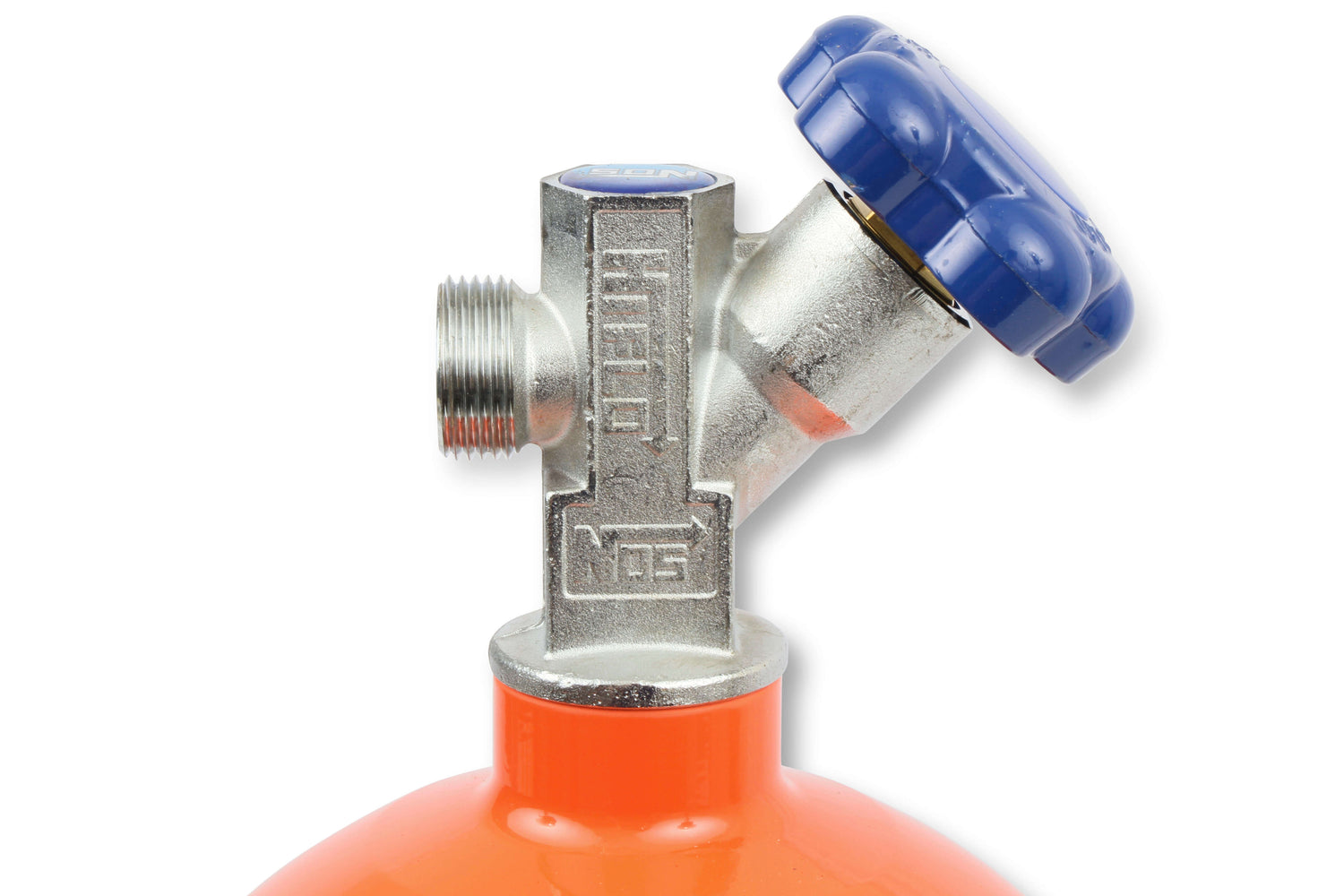

    Bottle Valve Hi-Flo

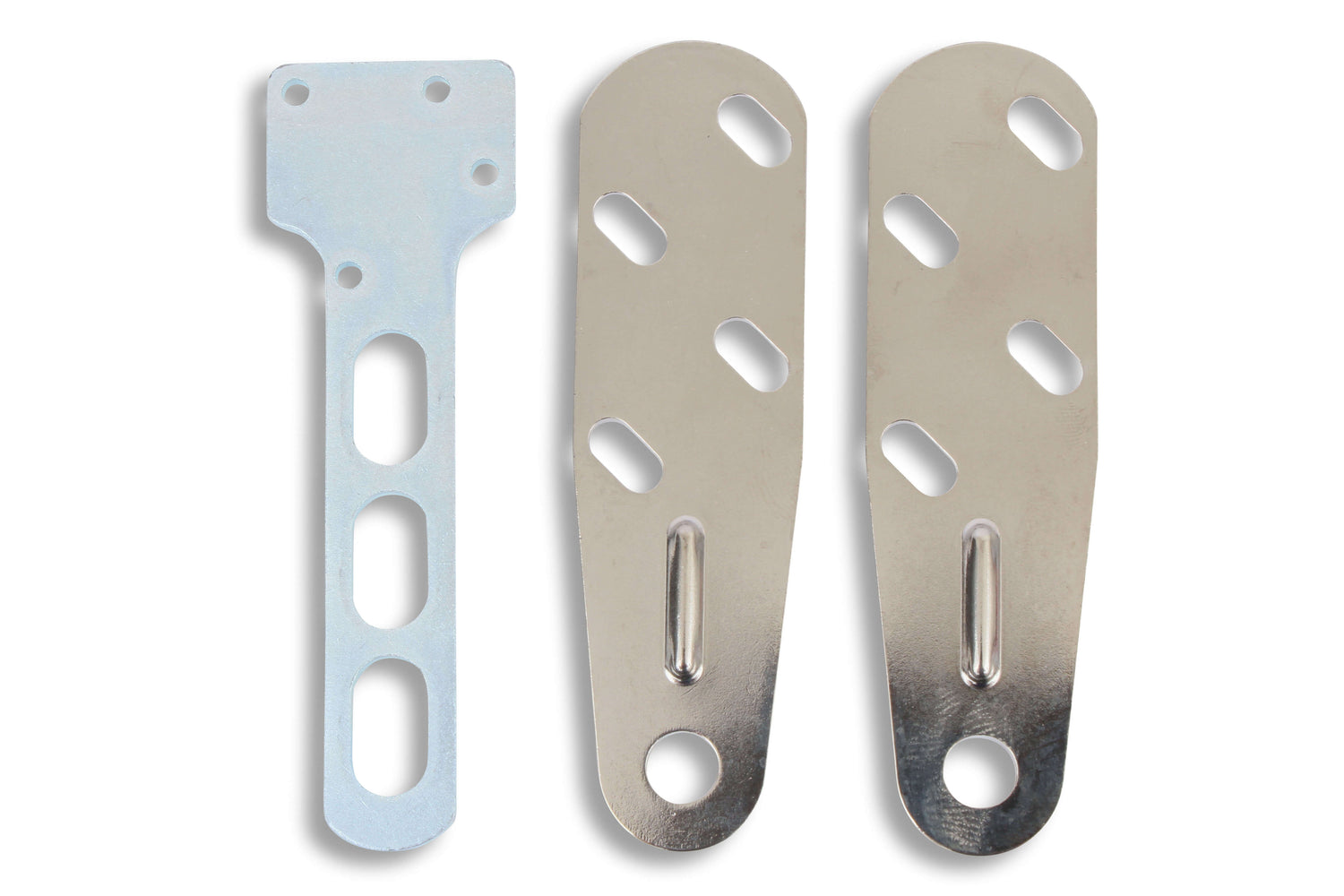

    Bracket Material Steel
    Brackets Included Yes
    Brand NOS
    Color Orange
    Delivery Style EFI Spacer Plate
    Emission Code 4
    Feed Line Size 4AN

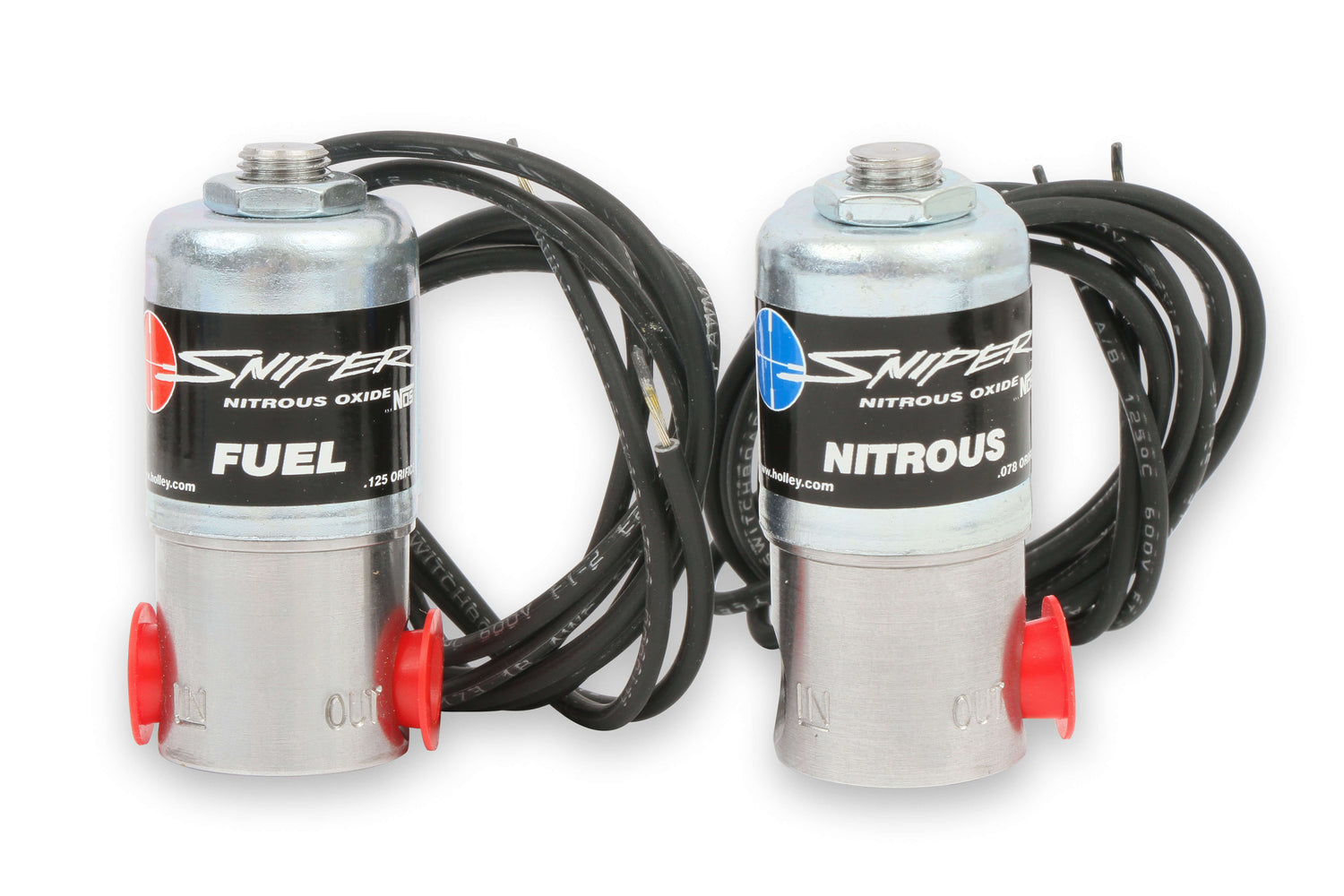

    Fuel Solenoid Sniper Fuel
    Included Jetting Horsepower 100, 125, 150
    Jet Sizes Included 100, 125, 150 hp
    Jet Style Flare
    Material 6061 T-6 Aluminum
    Max Horsepower 175
    Nitrous Bottle Capacity 10 lbs

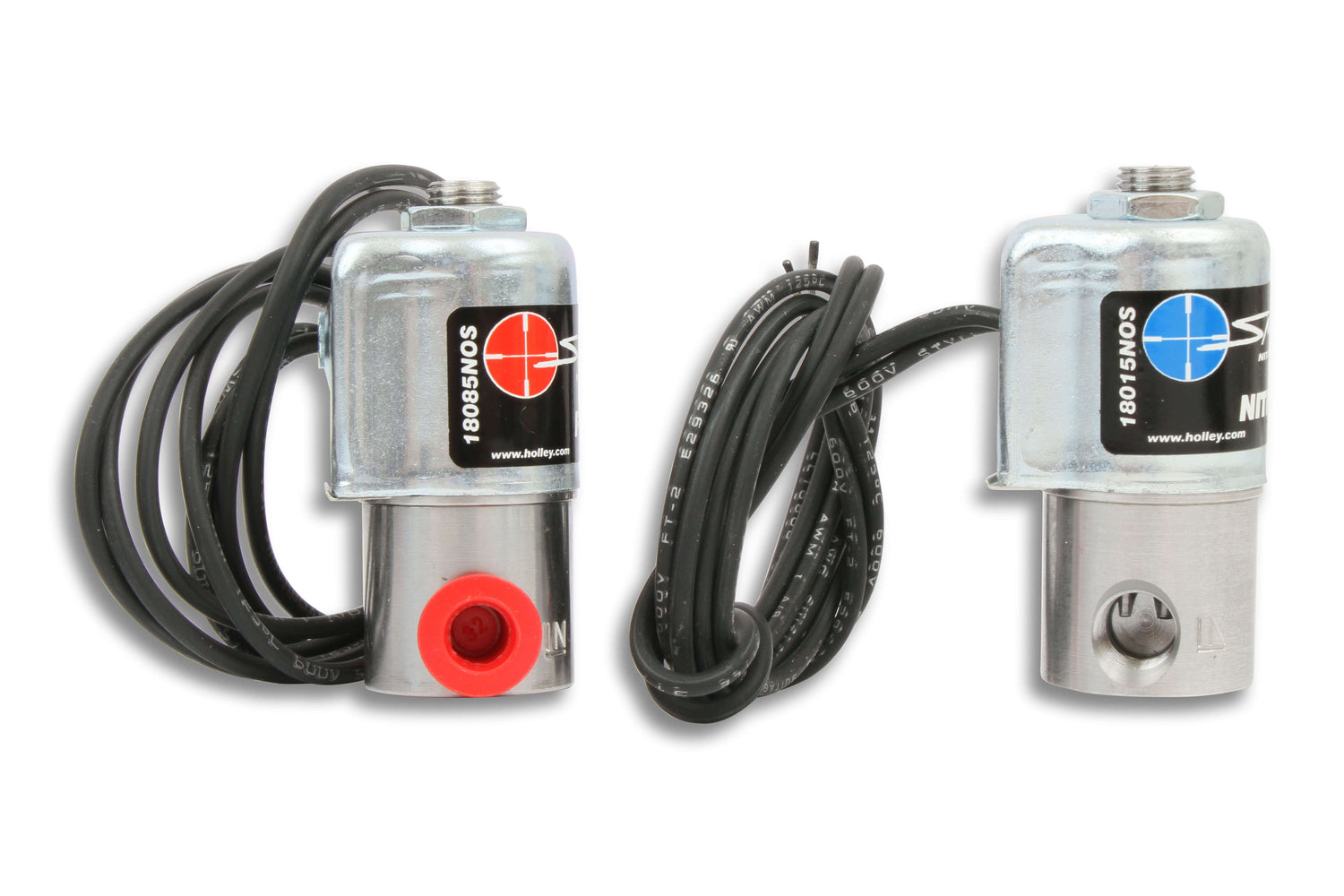

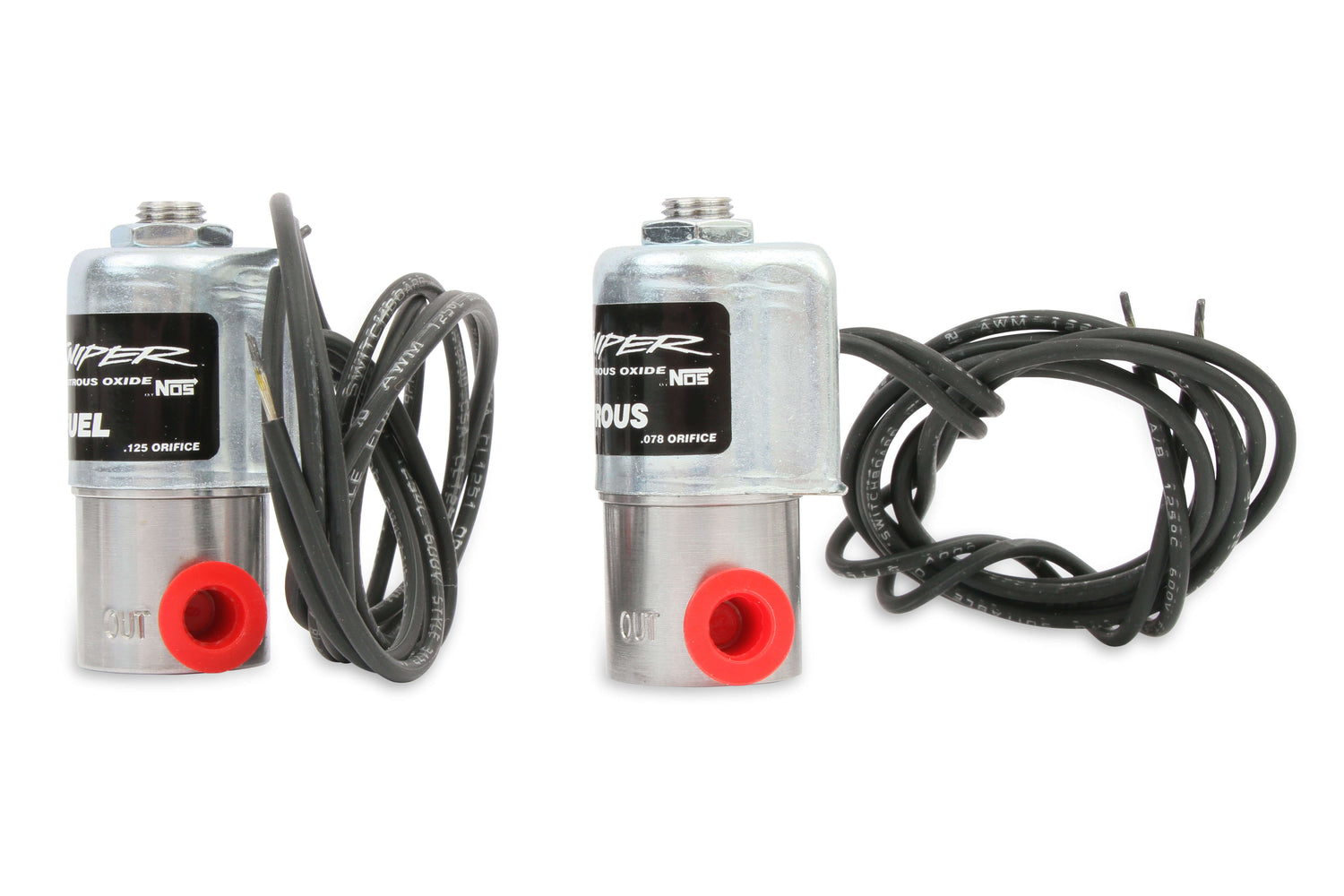

    Nitrous Solenoid Sniper Nitrous
    Number of Solenoids 2
    Plate Bolt Pattern 4 bolt
    Plate Diameter 90 mm
    Plate Flange GM 4-Bolt LS
    Plate Height 1/2 inch
    Plate Included Yes
    Plate Thickness 1/2 inch
    Product Type Nitrous System
    Solenoid Top Cover Color Silver
    Style Wet
    System Style Wet
    Part Number 07163NOS
