Compatible: (5.7L/6.0L/6.2L/7.0L)
2004 - 2014 Cadillac CTS-V
2010 - 2015 Chevy Camaro
2005 - 2013 Chevy Corvette
2007 - 2013 Chevy Silverado
2007 - 2013 GMC Sierra
2004 - 2006 Pontiac GTO
2008 - 2010 Pontiac G8
Our unique Multi-Layered steel head gasket embossment formation process optimizes the embossment radius, reduces stress points, enhances gasket conformability, and provides uniform clamp load distribution. This all results in superior surface contact between block and cylinder head. All head gasket layers/spacers go through an additional process to significantly reduce forming induced stress. Advantages are reduced brittleness in material, increased flexibility and deformation retention. This stabilizes the gasket, resulting in reduced cylinder bore distortion and improved combustion seal fro the extreme cylinder pressures found in high compression, supercharged and turbocharged applications. A proprietary polymer coating ensures the micro-seal of engine coolant and oil fluids.
A typical MLS head gasket requires a smoother (30Ra) surface finish than composite head gaskets. Mr. Gasket's proprietary polymer coating will seal a surface finish twice as rough (60Ra) as a typical MLS head gasket. For high performance street, drag race and oval track use. Mr. Gasket provides a Limited Lifetime Warranty for MLS cylinder head gaskets.
A typical MLS head gasket requires a smoother (30Ra) surface finish than composite head gaskets. Mr. Gasket's proprietary polymer coating will seal a surface finish twice as rough (60Ra) as a typical MLS head gasket. For high performance street, drag race and oval track use. Mr. Gasket provides a Limited Lifetime Warranty for MLS cylinder head gaskets.
Features:

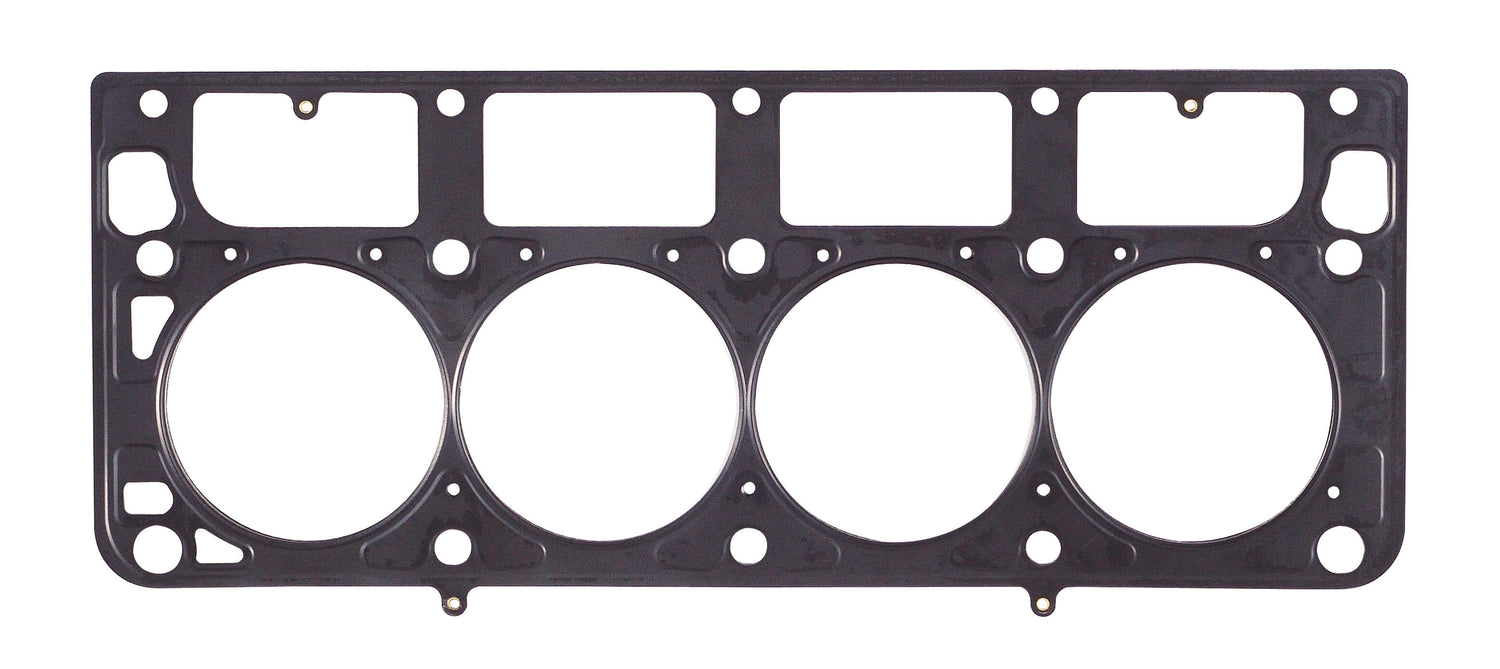

- Gasket bore - 4.130 inch; Compressed thickness - .051 inch
- Manufactured from 3-layer premium grade stainless steel and state of the art laser cutting
- Optimized sealing embossments seals extreme cylinder pressure
- Provides excellent stability and reduces cylinder bore distortion.
- Proprietary polymer coating ensures the micro seal of engine coolant and oil fluids.
- Ideal for supercharged, turbocharged, nitrous oxide and extreme compression ratio engines
- For high-performance street, drag race and oval track use
| Application | GM LS |
|---|---|
| Brand | Mr. Gasket |
| Compressed Thickness | .051 inch |
| Compression Ratio | Up to 16:1 |
| Emission Code | 5 |
| Engine | GM Small Block Gen III/IV (LS Based) |
| Gasket Bore | 4.130 inch |
| Gasket Line | MLS |
| Material | Multi-Layered Steel |
| Packaging | Retail |
| Product Type | Head Gasket |
| Quantity Per Pkg. | 1 |
| Warranty | Limited Lifetime Warranty |
| Weight | 1.2500 |
| Part Number | 3143G |
