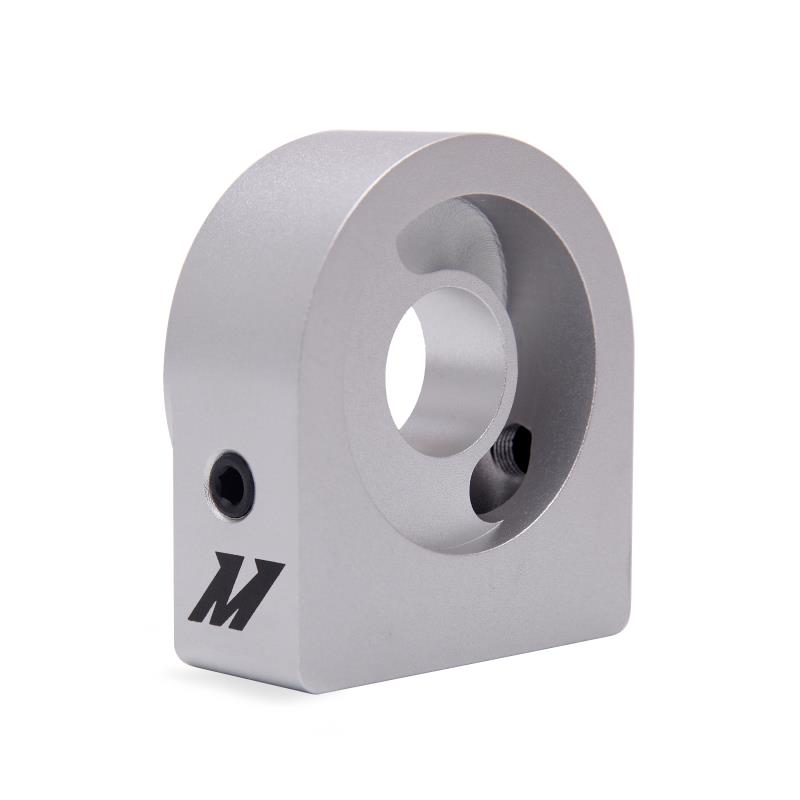

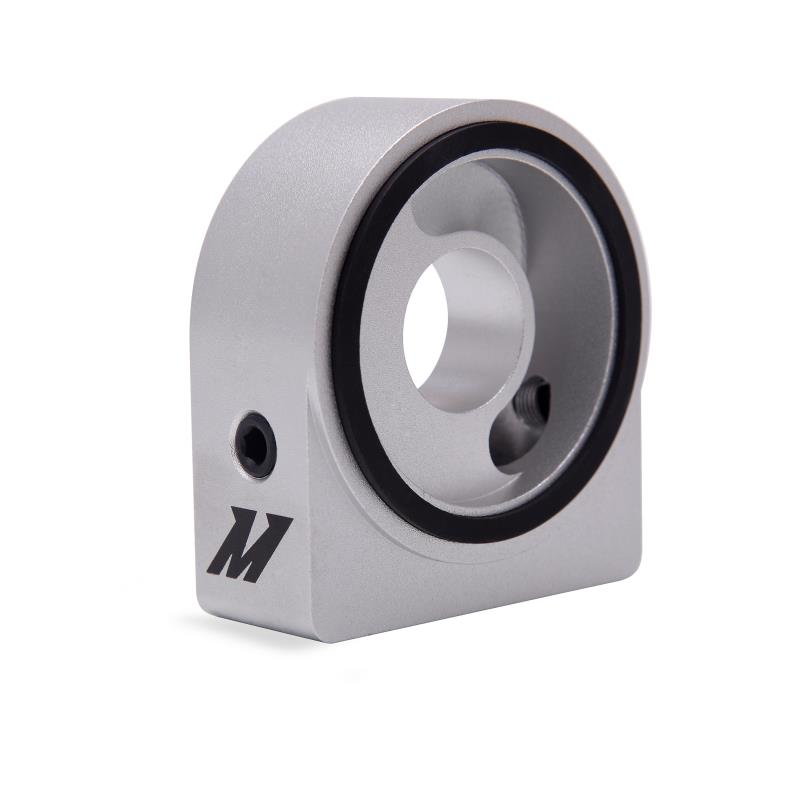

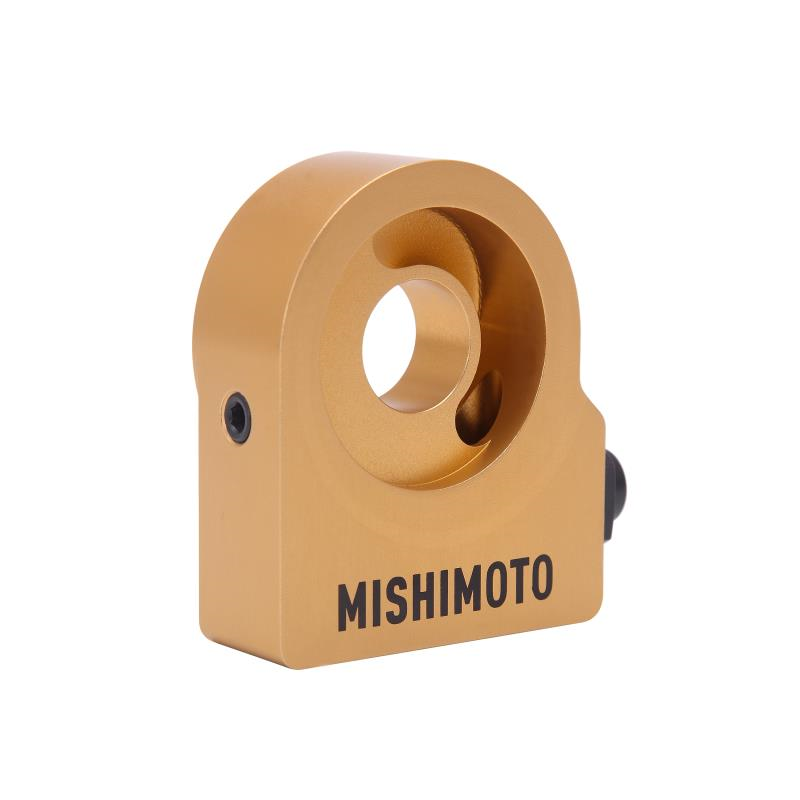

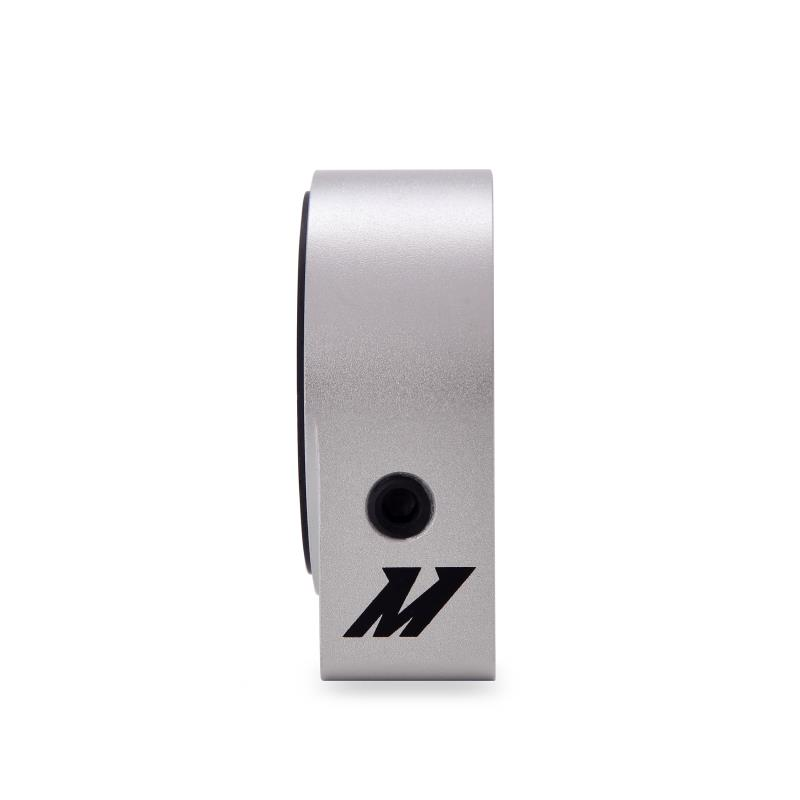

The Mishimoto Oil Sandwich Plate is a lightweight, high-flow sandwich plate built from 6061 aluminum. It’s used to add an external cooler to your vehicles oil system. The built-in thermostat prevents oil flow to the cooler until the engine oil reaches activating temperature, allowing for both a faster warmup at startup and extra oil system protection in cold climates. The included 185°F (85°C) thermostat can be replaced with a 160°F (71°C) or 200°F (93°C) unit, adding unparalleled control over your desired engine oil operating temperature. This Oil Sandwich Plate is designed specifically for M22 Stainless Steel Center Bolts and includes a 1/8" NPT plugged port on the side for an optional sensor or gauge as well as our Mishimoto Lifetime Warranty.
- 6061 aluminum, CNC-Machined
- 1/8" NPT port (with plug) for sensors/oil feed/etc
- Built-in thermostat (185°F / 85°C)
- Square O-ring design
- Easily replaceable thermostat allows you to customize your fluid temperature
PRODUCT SPECS
| MATERIAL | 6061 Aluminum |
| CAUTION | It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact sales@mishimoto.com. |
| OVERALL HEIGHT | 3.67" |
| OVERALL LENGTH | 3.58" |
| OVERALL WIDTH | 1.24" |

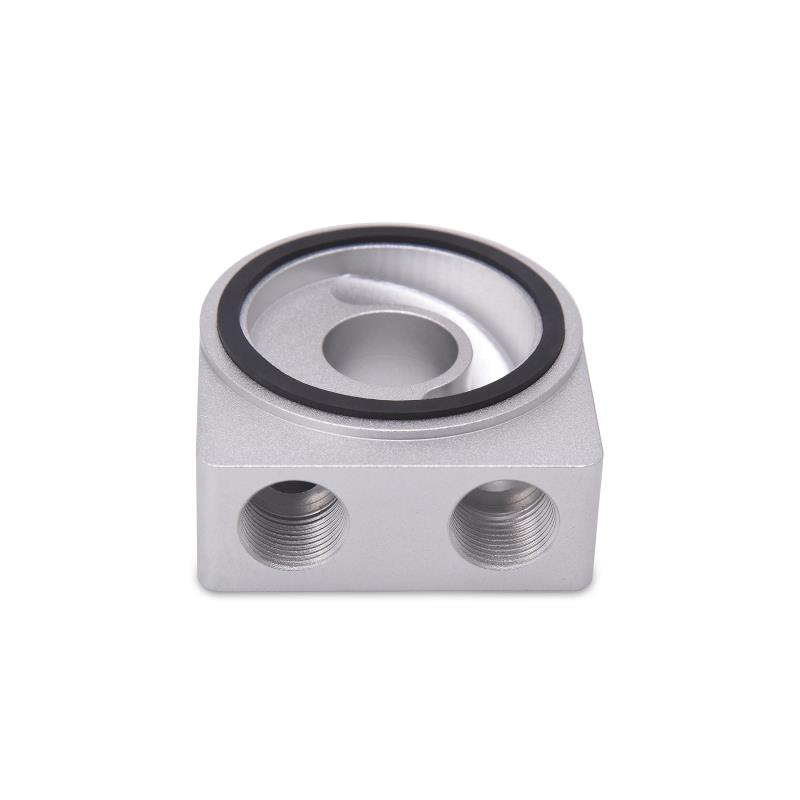

| PORT SIZES | (2) M20 x 1.5 Ports (1) 1/8" NPT Port |
PURCHASE INCLUDES
(1) Oil Sandwich Plate
(1) Rubber O-ring
(1) Black 1/8" NPT Plug
Mishimoto Lifetime Warranty
