Compatible: (2.3L)
2015 - 2023 Ford Mustang EcoBoost

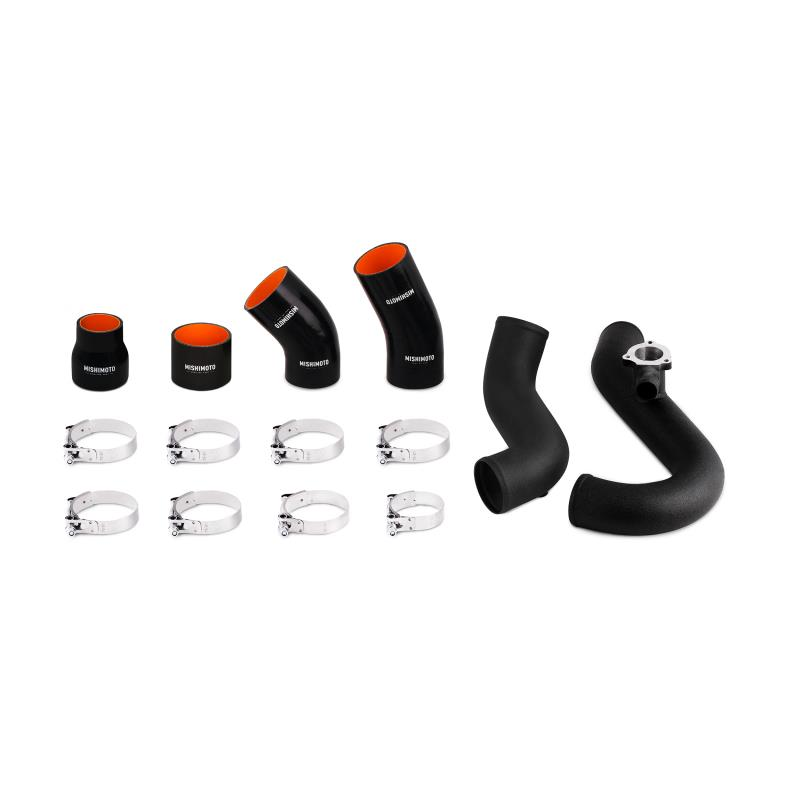

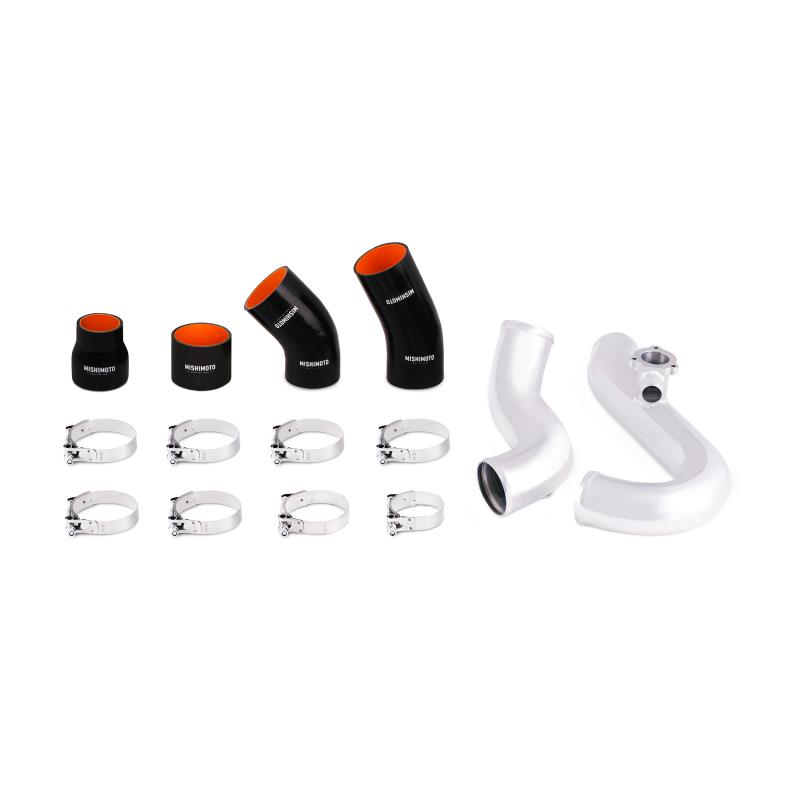

Looking for a way to improve spool-up, increase power potential, and improve engine bay aesthetics on your EcoBoost Mustang? Mishimoto has you covered with a new intercooler pipe kit designed specifically for the 2015+ Ford Mustang EcoBoost. This EcoBoost Mustang kit features 2.5" hot-side and 2.75” cold-side mandrel-bent aluminum piping for smooth airflow, and four-layer silicone couplers with heat-resistant embedded fibers for improved tolerance against heat and pressure. This 2015 Mustang kit also includes high-quality stainless steel T-bolt clamps for consistent and reliable holding power. Installation is simple, requires no modification to any parts in the engine bay, and can be completed in under one hour. The precision CNC-machined BPV flange allows you to retain the stock EcoBoost Mustang BPV. The Mishimoto Mustang EcoBoost Intercooler Pipe Kit is available in either polished or wrinkle black finish and lilke our entire line of Mustang parts, includes the Mishimoto Lifetime Warranty.
- Direct fit for the 2015+ Ford Mustang EcoBoost
- Replaces hot-side and cold-side intercooler pipes and couplers
- Installs in under 1 hour
- 2.5" hot-side and 2.75" cold-side mandrel-bent aluminum pipes eliminate restrictive bends
- CNC-machined BPV flange on hot-side pipe allows for quick install of stock or stock-style BPVs
- Pre-marked CNC-machined area on cold-side pipe allows for quick install of meth injection or a boost gauge
- Available with a polished or wrinkle black finish
- Fits both stock and the Mishimoto performance intercoolers
- Includes Mishimoto silicone couplers and Mishimoto T-bolt clamps
- Mishimoto Lifetime Warranty
- CARB EO #: D-759
Specs:
Installation Torque Specs
27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).
Purchase Includes
(1) Aluminum Pipe w/ CNC-Machined NPT Bung
(1) Aluminum Pipe w/ CNC-Machined BPV Flange
(4) Silicone Couplers
(1) 2.0" T-Bolt Clamp
(4) 2.75" T-Bolt Clamps
(3) 3.0" T-Bolt Clamps
Mishimoto Lifetime Warranty
Pipe Diameter
2.5" (hot side)
2.75" (cold side)
Constant Tension T-Bolt Clamps Specs
(1) 2.0" T-Bolt Clamp
(4) 2.75" T-Bolt Clamps
(3) 3.0" T-Bolt Clamps
Engine Codes
2.3L EcoBoost
Chassis Codes
S550
Fits
2015+ EcoBoost Mustang
Make
Ford
