Compatible: (3.0L)
1995 - 1999 Nissan Maxima GLE
1995 - 1999 Nissan Maxima GXE
1995 - 1999 Nissan Maxima SE
1996 - 1999 Infiniti I30
INTENDED FOR USE WITH MANUAL TRANSMISSION MODELS
IF YOU HAVE AN AUTOMATIC TRANSMISSION, PLEASE ADD THE MISHIMOTO UNIVERSAL TRANSMISSION & POWER STEERING COOLER TO COMPLETE INSTALL

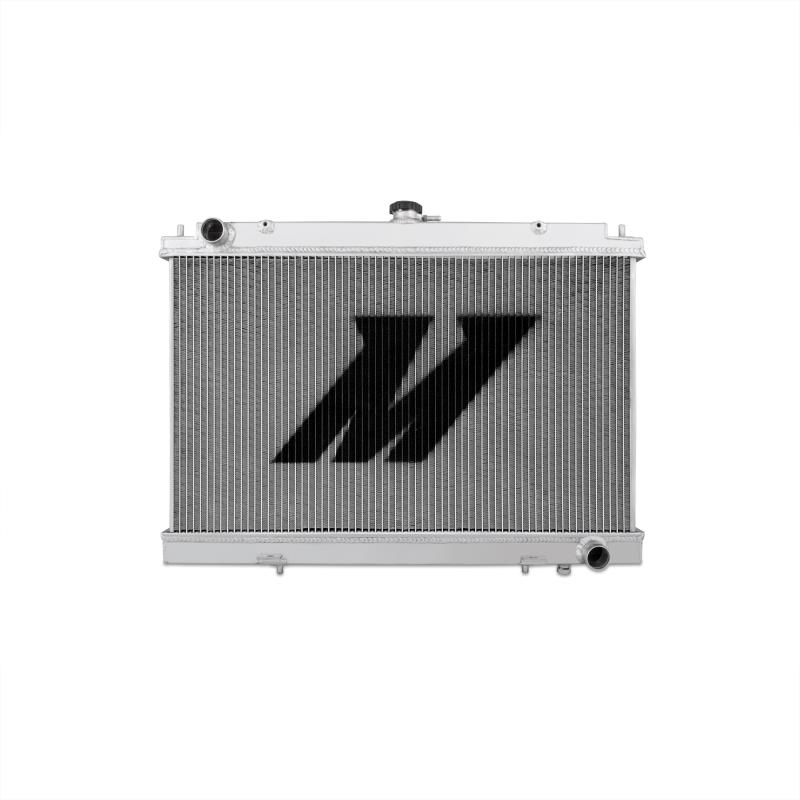

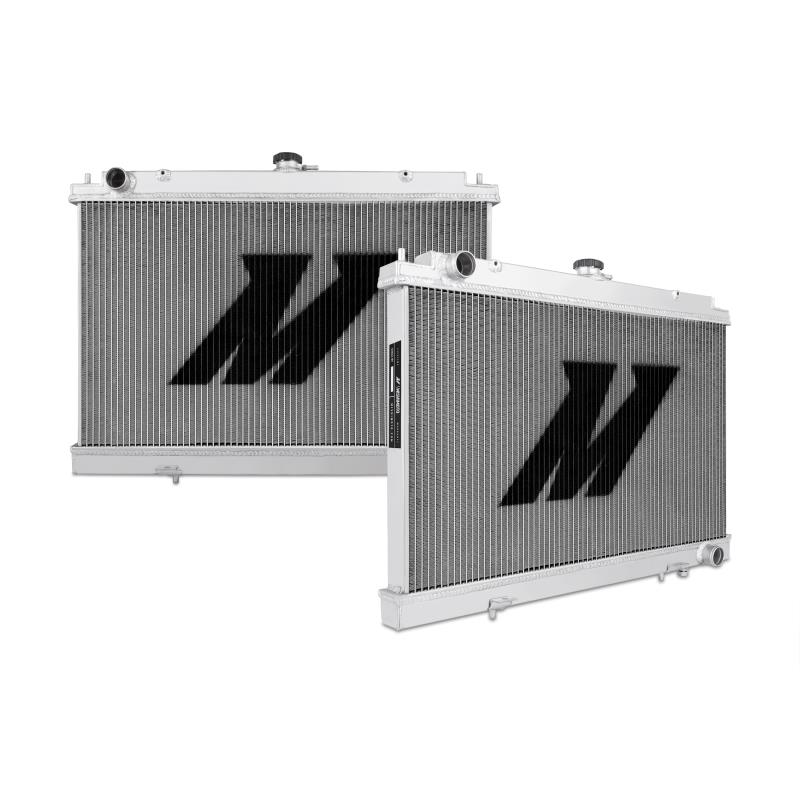

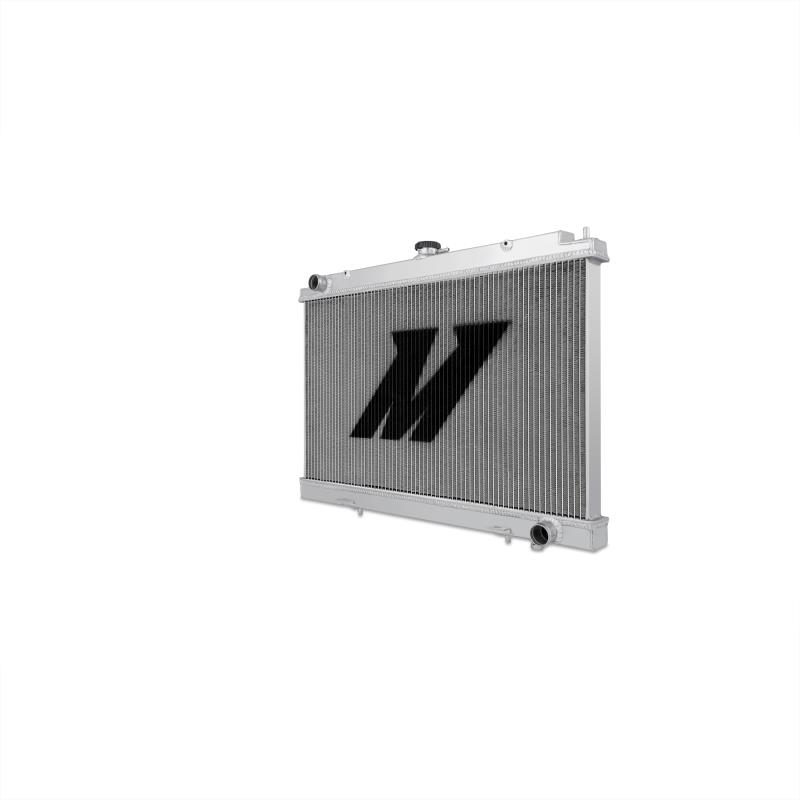

The Mishimoto performance aluminum radiator for the Nissan Maxima is designed and engineered to maximize cooling efficiency by up to 30%, boost engine functions, and most importantly protect your car from overheating. The Mishimoto aluminum Nissan Maxima radiator features a lightweight dual core, 100% brazed aluminum, and polished end tanks, enhancing the overall performance of your engine. Every Mishimoto aluminum radiator is a direct OEM fit, making installation effortless with no cutting or modification required. This is the ideal upgrade to the stock Nissan Maxima radiator. This Mishimoto radiator comes with a High Pressure 1.3 Bar Radiator Cap and, as with every aluminum radiator, includes the Mishimoto Lifetime Warranty.
- Direct fit for the 1995–1999 Nissan Maxima 3.0L
- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 1.57" thick, efficient brazed aluminum core
- Increased fluid capacity and optimal heat dissipation
- Ideal replacement for the failure-prone stock radiator

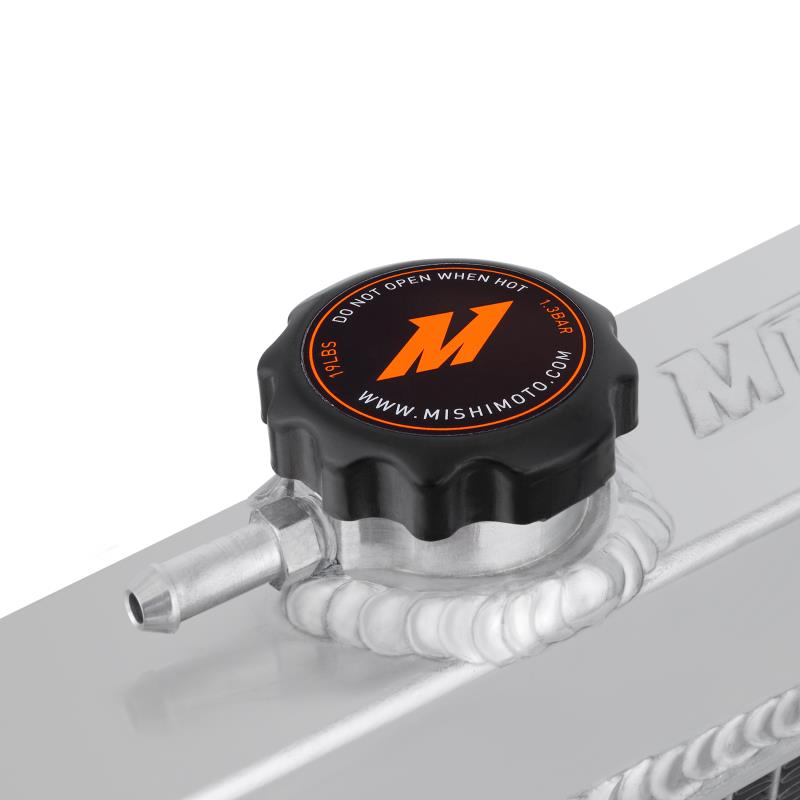

- Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- Mishimoto Lifetime Warranty
VEHICLE SPECS
| ENGINE CODES | VQ30DE |
| CHASSIS CODES | A32 |
| FITS | 1995-1999 Nissan Maxima GLE 1995-1999 Nissan Maxima GXE 1995-1999 Nissan Maxima SE 1996-1999 Infiniti I30 |
PRODUCT SPECS
| MATERIAL | Aluminum |
| OVERALL HEIGHT | 28.2" |
| DPI | 1752 |
| DRAIN PLUG LENGTH | 0.047" |
| DRAIN PLUG THREAD SIZE | (M12) x 1.5 |
| OVERALL LENGTH | 21.3" |
| TANK WALL THICKNESS | 0.08" |
| OUTLET | 1.4" |
| ROWS | 2 |
| INLET | 1.4" |
| COOLANT CAPACITY | 2.54 |
| DUAL PASS | False |
| OVERALL WIDTH | 2.07" |
| CORE LENGTH | 15.71" |
| CORE HEIGHT | 27.08" |
| CORE THICKNESS | 1.57" |
| FILL NECK | 1.25" |
| OVERALL LENGTH (IN) | 21.30 |
| OVERALL HEIGHT (IN) | 28.20 |
| OVERALL WIDTH (IN) | 2.07 |
| ROWS | 2 |
PURCHASE INCLUDES
Mishimoto Radiator
Magnetic Drain Plug
Mishimoto Radiator Cap
Mishimoto Lifetime Warranty
