Mishimoto® (12-14) 300/Charger SRT Direct-Fit Oil Catch Can Kit

Compatible: (6.4L)

2012 - 2014 Chrysler 300 SRT

2012 - 2014 Dodge Charger SRT

This product will not fit on vehicles that come equipped with a sound resonator on the stock intake.

Give your 6.4L Hemi the protection it deserves with the Mishimoto direct-fit catch can specifically designed for the 2012-2014 Dodge Charger. This monstrous V8 packs a serious punch, meaning that it also produces a significant amount of blow-by, which over time will build carbon on the intake components and throttle your muscle car’s power and efficiency as a result.

Our catch can kit installs in line with the PCV system using an application-specific bracket and chemical resistant, OEM-styled hoses to intercept the contaminated crankcase pressure before it hits the intake tract. Our tried and true compact catch can features an internal baffle designed to aid in the condensation of oil droplets and fuel vapors, sending only clean air back through the Hemi. As an added line of protection, our cans include a 50-micron bronze filter to capture any rogue blow-by droplets without sacrificing flow. Finally, our 3 oz. cans and CNC-machined aluminum fittings are sealed with Viton O-rings to ensure that all collected blow-by stays in the can. Our Mopar 6.4L catch can kit is available with the option of a black or polished can, and includes the Mishimoto Lifetime Warranty.

Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you’ve seen what we’ve seen in the bottom of our catch cans, you won’t want that draining back into your oil either.

• Direct fit for 2012-2014 Dodge Charger and Chrysler 300C 6.4L
• Mounts in line with the PCV system to separate oil from air using a 50 micron bronze filter
• Installs in under 30min

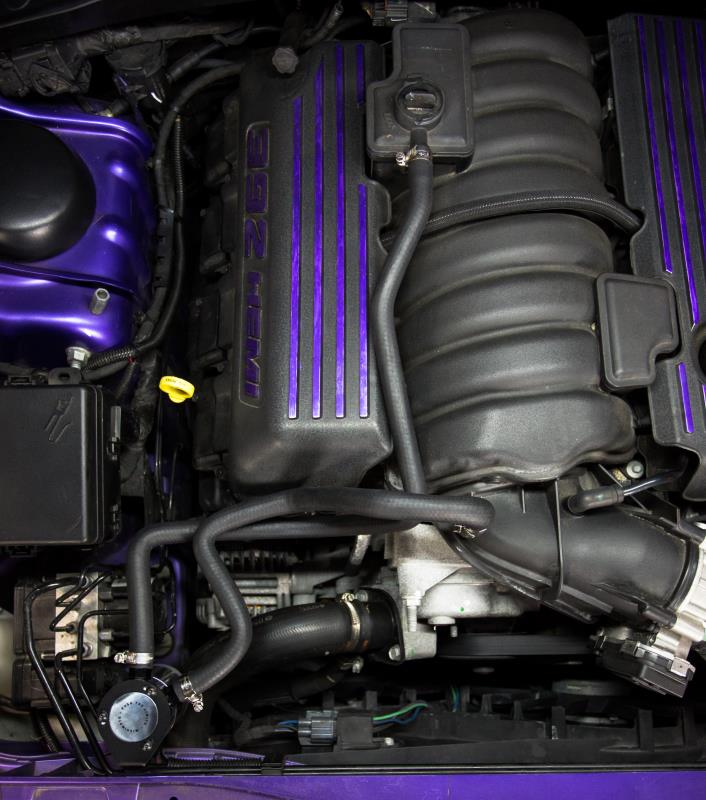

• Application specific bracket mounts the can in an easily maintained location inside the engine bay
• Includes pre-molded, stock-style hoses for simplified install
• Defends intake system, and essential engine components from oil blow-by
• Patented (US D884,760 S) billet 6061 aluminum can sealed with Viton™ O-rings
• CNC-machined aluminum barbed fittings ensure a sturdy connection between lines and can
• Helps reduce carbon build-up on intake valves
• Catch can has a 3 oz. capacity for longer servicing intervals

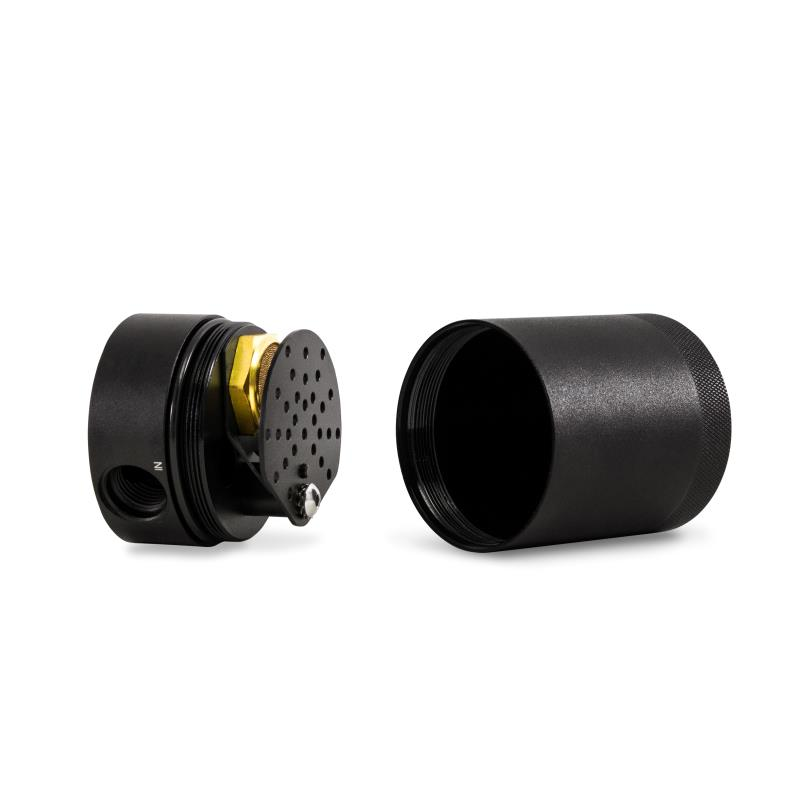

• Internal air diverter increases air turbulence to improve oil separation
• Helps maintain proper octane levels to reduce potential detonation
• Filter and can are fully serviceable
• Available in anodized black or polished finishes
• Mishimoto Lifetime Warranty

VEHICLE SPECS

PRODUCT SPECS

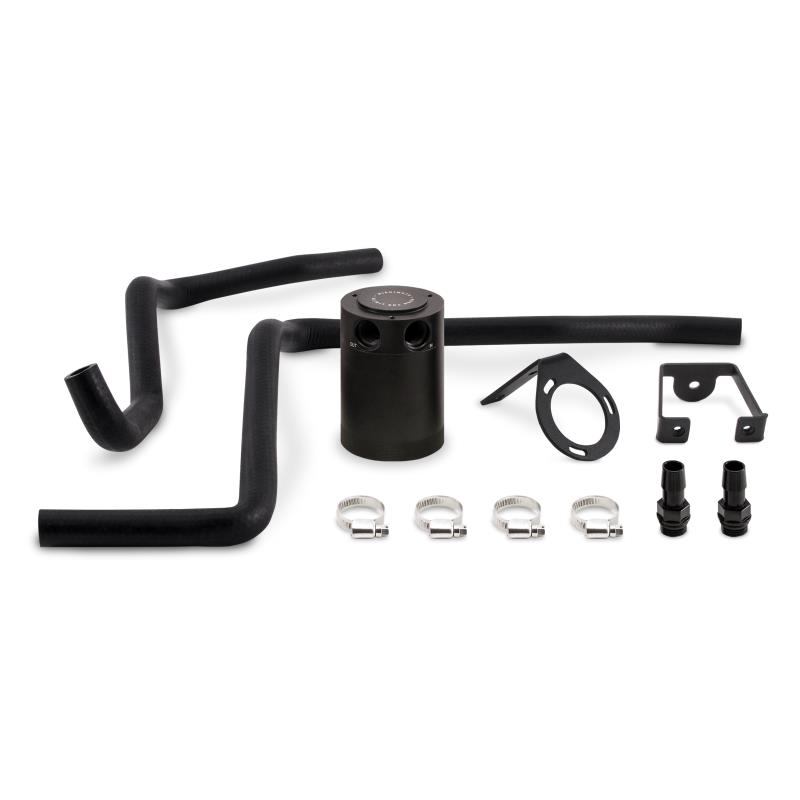

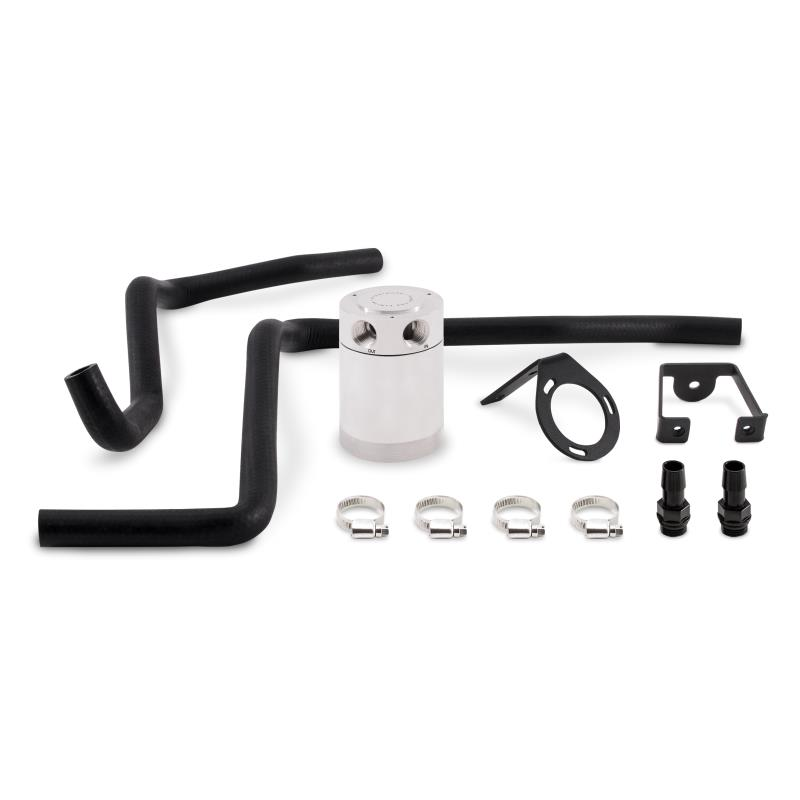

PURCHASE INCLUDES

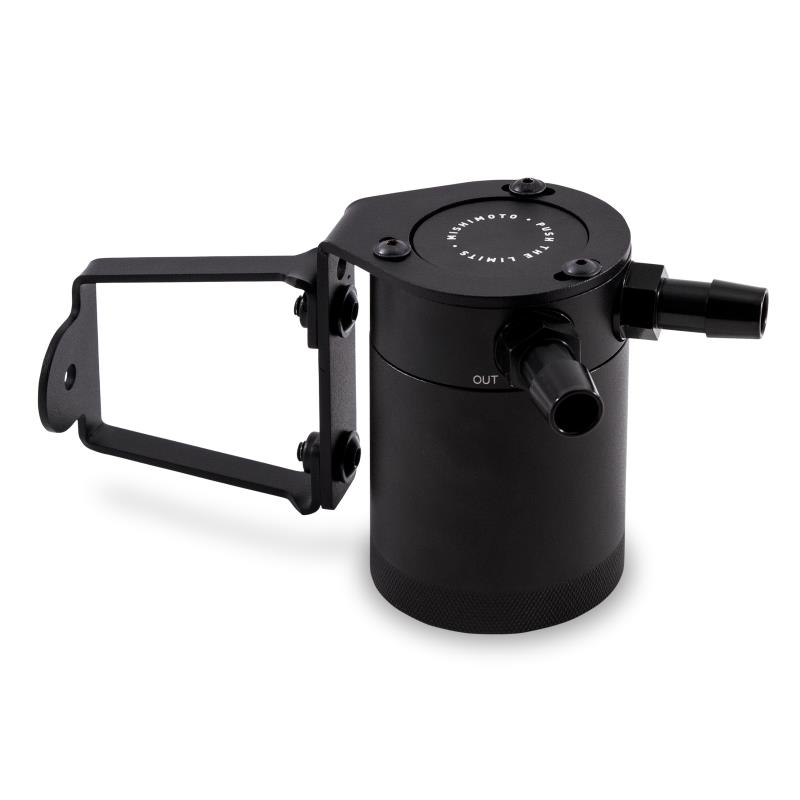

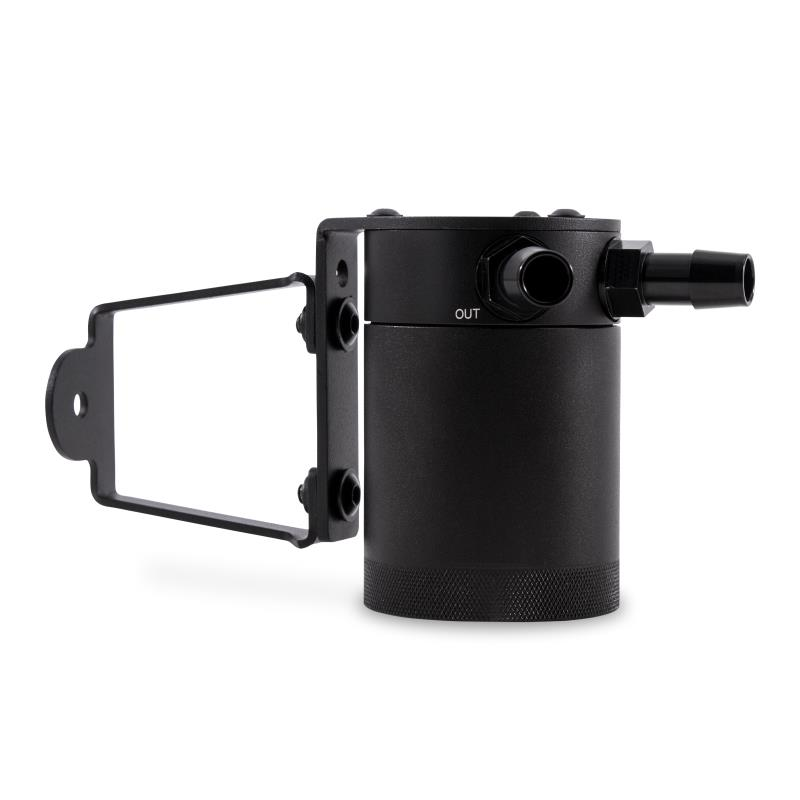

(1) Compact Baffled Oil Catch Can
(1) Application-Specific Mounting Bracket
(2) Direct-Fit Hoses, Black
(4) High-Quality Worm Gear Clamps
(2) CNC-machined Aluminum Barbed Fittings
Mishimoto Lifetime Warranty

Install Guide:
