Compatible: (3.8L)
2010 - 2012 Hyundai Genesis Coupe
INTENDED FOR USE WITH MANUAL TRANSMISSION MODELS
IF YOU HAVE AN AUTOMATIC TRANSMISSION, PLEASE ADD THE MISHIMOTO UNIVERSAL TRANSMISSION & POWER STEERING COOLER TO COMPLETE INSTALL
Mishimoto has developed a performance aluminum radiator available for the 2010–2014 Hyundai Genesis Coupe. This is the ideal upgrade to your stock Genesis Coupe radiator. Having a high-strung V6 set up produces a great amount of heat; by replacing your current Hyundai Genesis radiator with a top of the line Mishimoto performance aluminum radiator you will undoubtedly notice a cooler, more efficient running engine. The new application is specifically designed and engineered as a direct OEM fit with no modification required for easy installation. As with all of our products this aluminum radiator is protected by the Mishimoto Lifetime Warranty.
- Direct fit for the 2010–2012 Hyundai Genesis Coupe 3.8
- Full aluminum construction with durable, TIG-welded end tanks
- Features a two-row, 1.34" thick, efficient brazed aluminum core
- Increased fluid capacity and superior heat dissipation
- Proven 50% increase in radiator efficiency compared to the stock unit
- Provides optimal heat exchange for both stock and forced induction vehicles

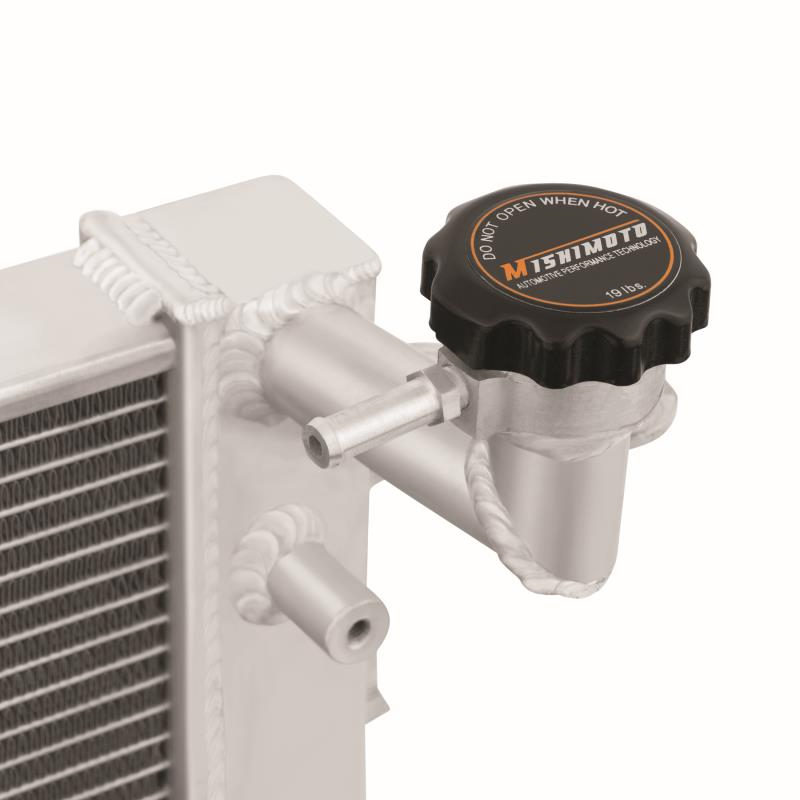

- Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- Mishimoto Lifetime Warranty
VEHICLE SPECS
| ENGINE CODES | 3.8L Lambda V6 |
| CHASSIS CODES | BK |
| FITS | 2010-2012 Hyundai Genesis 3.8L V6 |
PRODUCT SPECS
| MATERIAL | Aluminum |
| OVERALL HEIGHT | 33.1" |
| DPI | 13059 |
| DRAIN PLUG THREAD SIZE | (M12) x 1.5 |
| OVERALL LENGTH | 20.9" |
| TANK WALL THICKNESS | 0.08" |
| OUTLET | 1.46" |
| ROWS | 2 |
| INLET | 1.46" |
| COOLANT CAPACITY | 2.87 |
| DUAL PASS | False |
| OVERALL WIDTH | 5.4" |
| CORE LENGTH | 25.12" |
| CORE HEIGHT | 19.21" |
| CORE THICKNESS | 1.34" |
| FILL NECK | 1.61" |
| OVERALL LENGTH (IN) | 20.90 |
| OVERALL HEIGHT (IN) | 33.10 |
| OVERALL WIDTH (IN) | 5.40 |
| ROWS | 2 |
PURCHASE INCLUDES
Mishimoto Radiator
Mishimoto Radiator Cap
Magnetic Drain Plug
Bleeder Plug
Mishimoto Lifetime Warranty
