Includes:

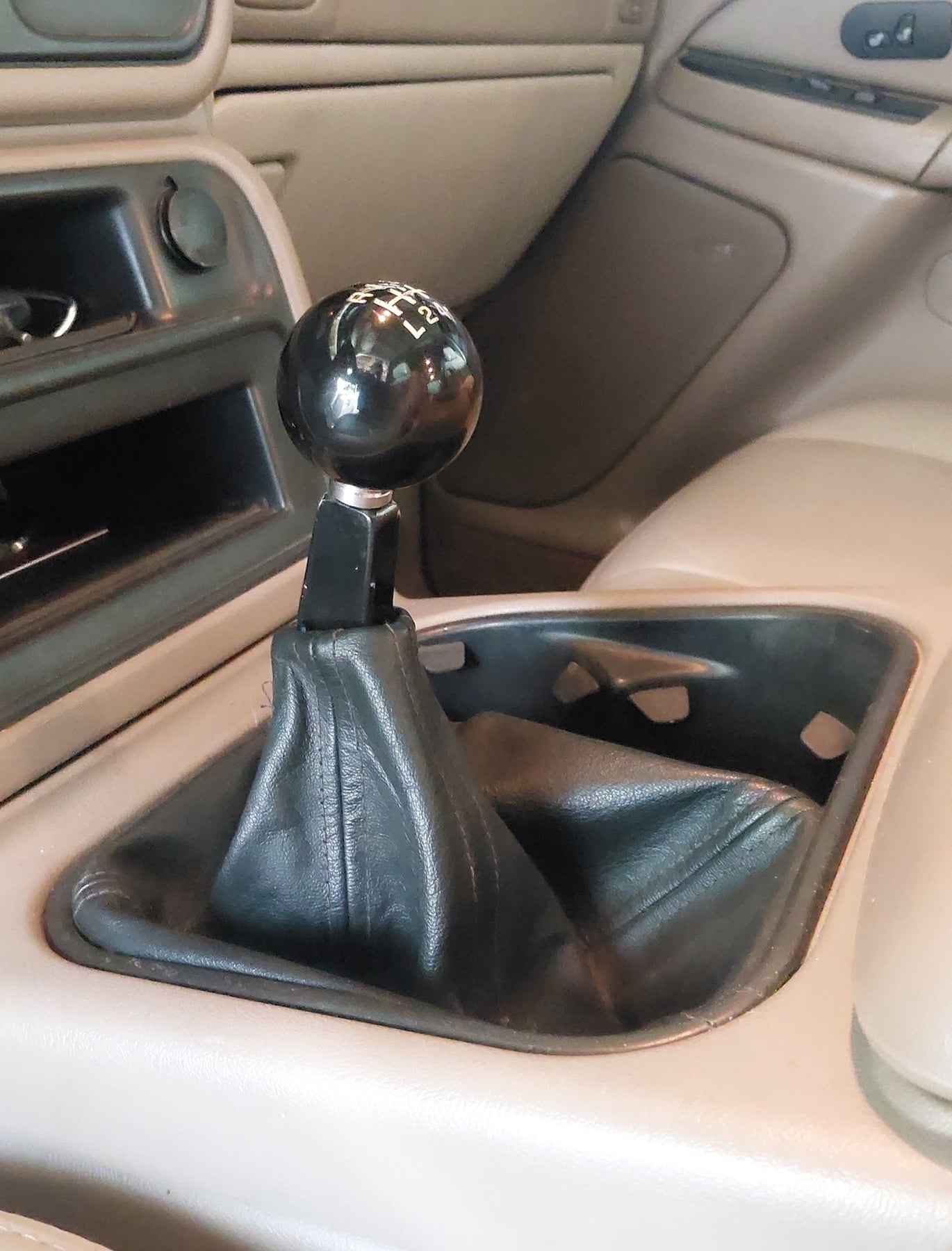

- Leather Shifter Boot Only
Fits: 1999-2006 Chevy GMC 6.6l Duramax LB7 LLY LBZ or 8.1l or any gas truck with ZF6 or NV3500/NV4500 Manual Transmission. *Note will only work with the 03-04 center console that has the cubby on the LH side and cup holders on the RH side.
Assembly Instructions:
- Install the shifter boot by trimming the tray. Any type of ~1/8" thick plastic (not included) can be used to sandwich the shifter boot to the plastic on the inside of the cup holder. The layers go, plastic cup holder, shift boot, plastic. Fasten with short self tapping screws of a large diameter from the inside out. Now cut or grind the excess length of the screws sticking out where the cup holder tray slides into the console.
- The top of the shift boot can be tucked into itself for a better finished look. A few threads may need to be pulled depending where you want the boot to sit. Electrical tape can be used on the inside of the shifter to prevent the boot from sliding down too far. Or if you prefer the boot can be taped to the shifter on the underside after folding the top in.
