Holley®  |  SKU: 820051

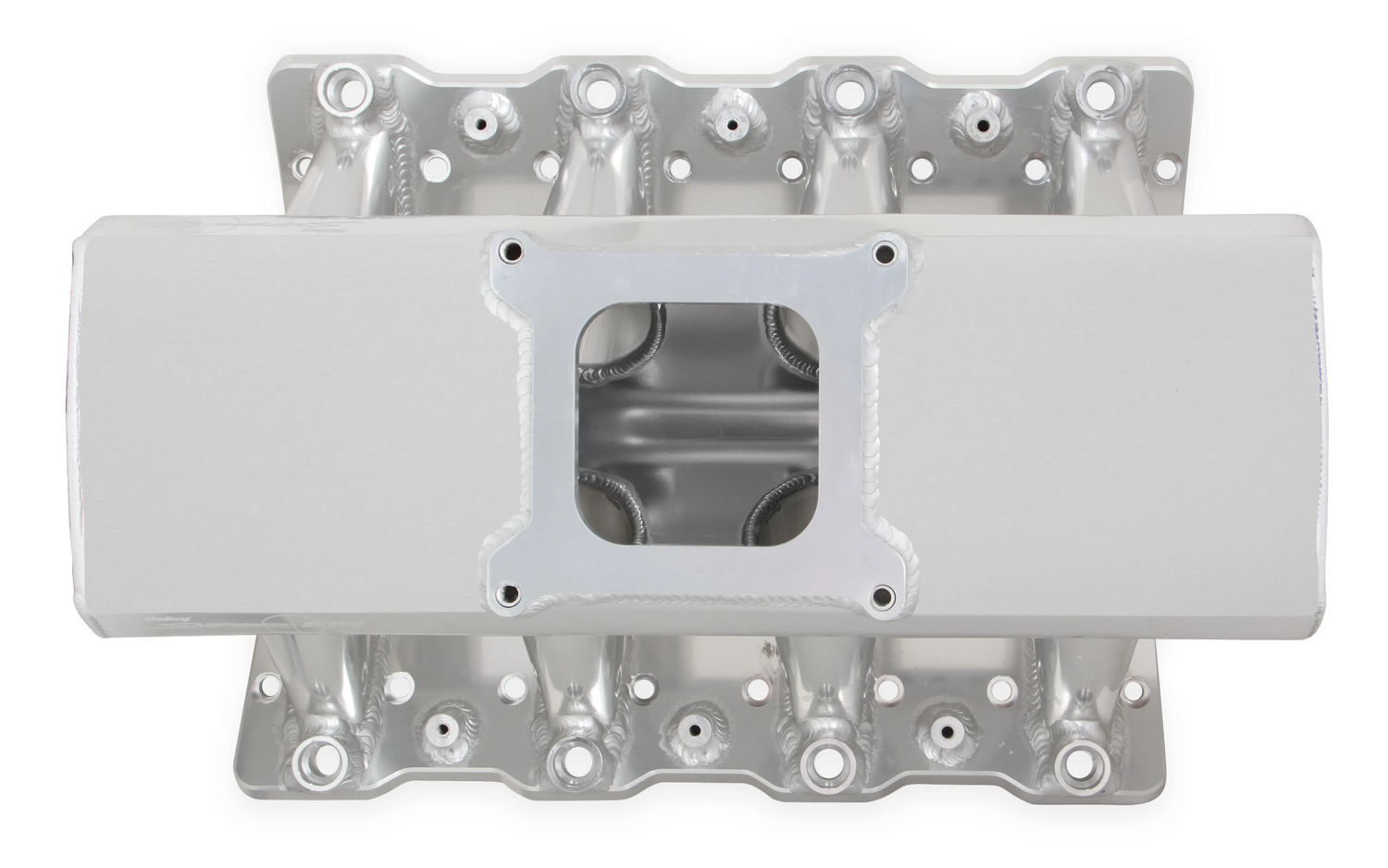

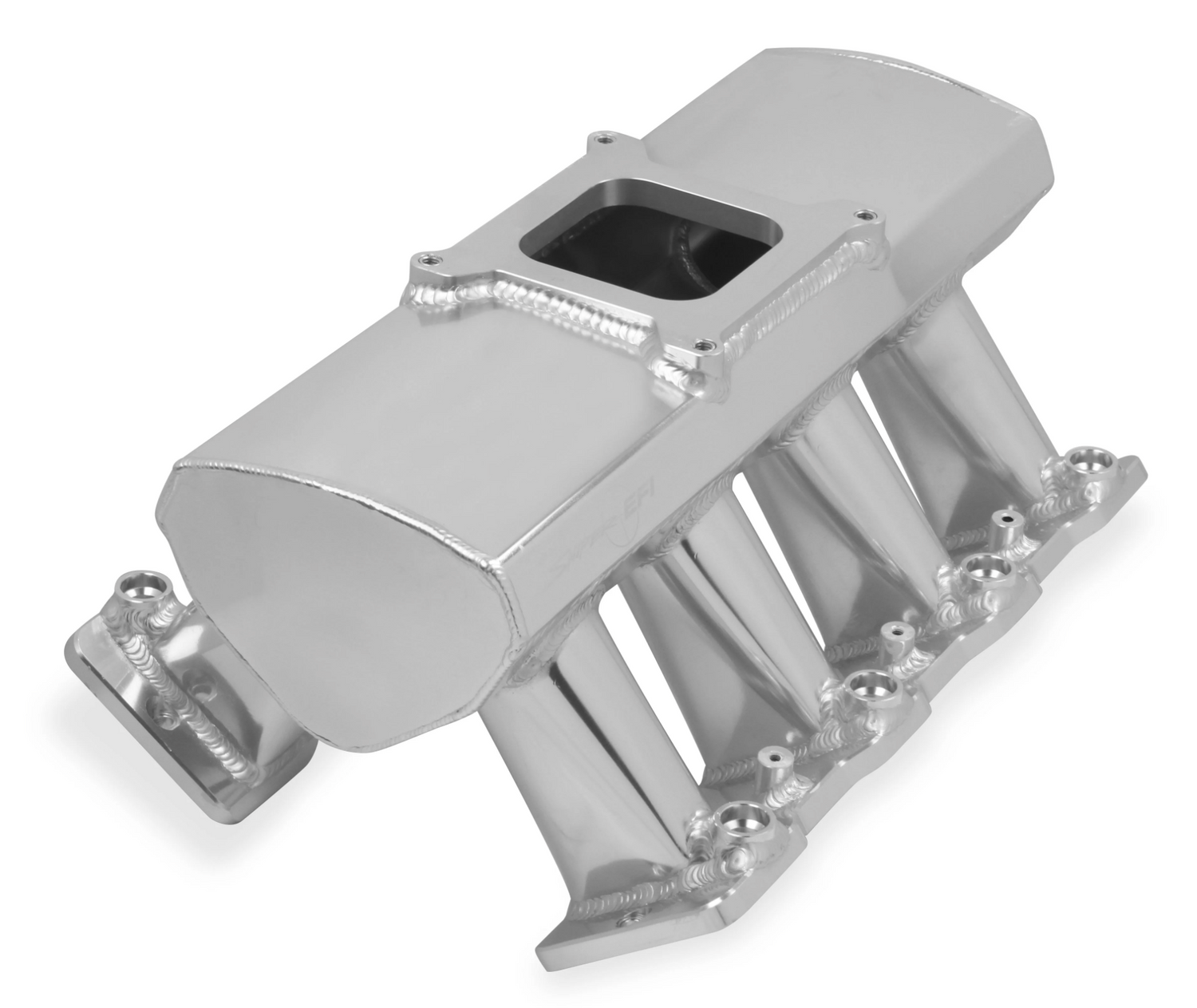

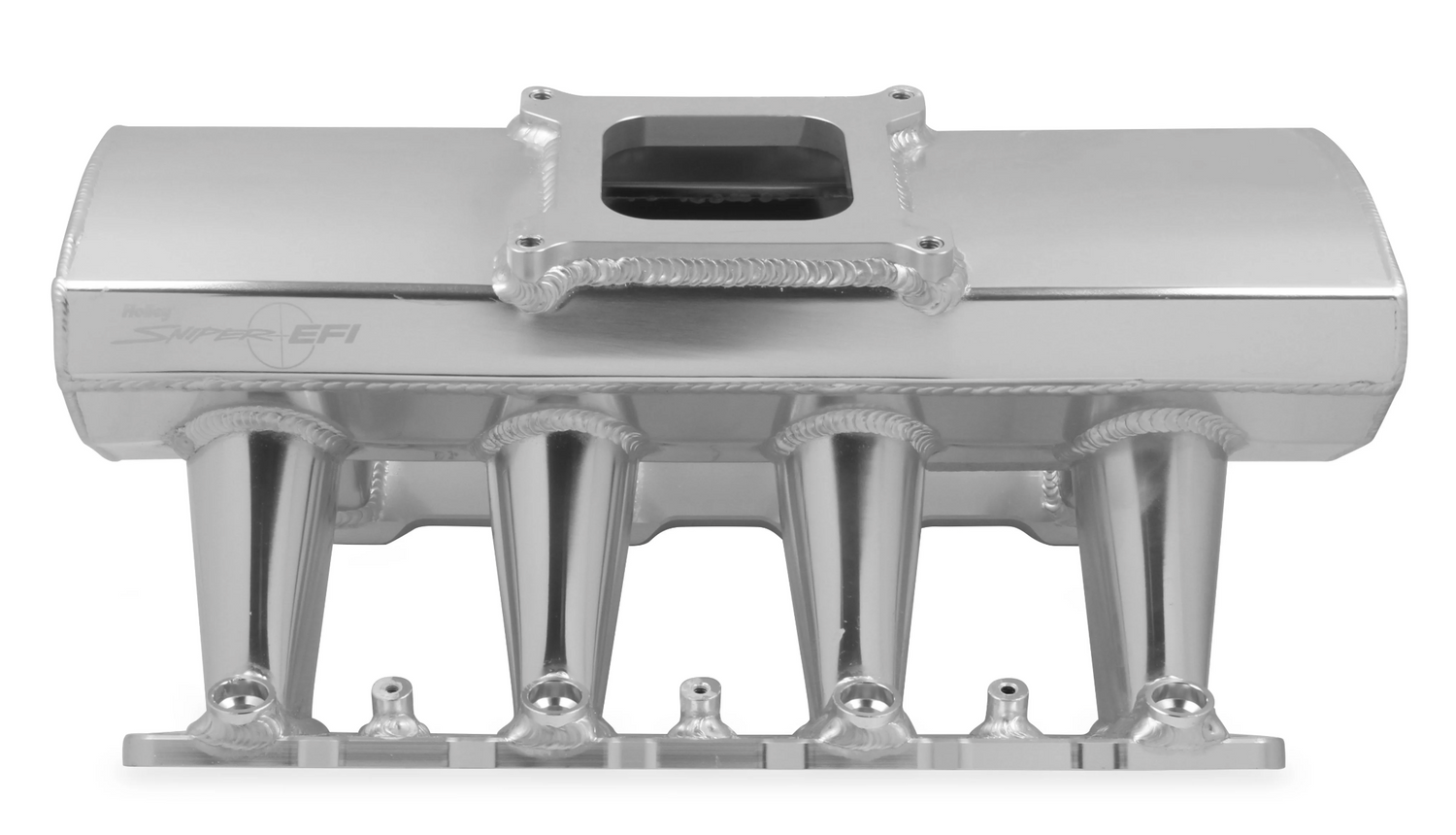

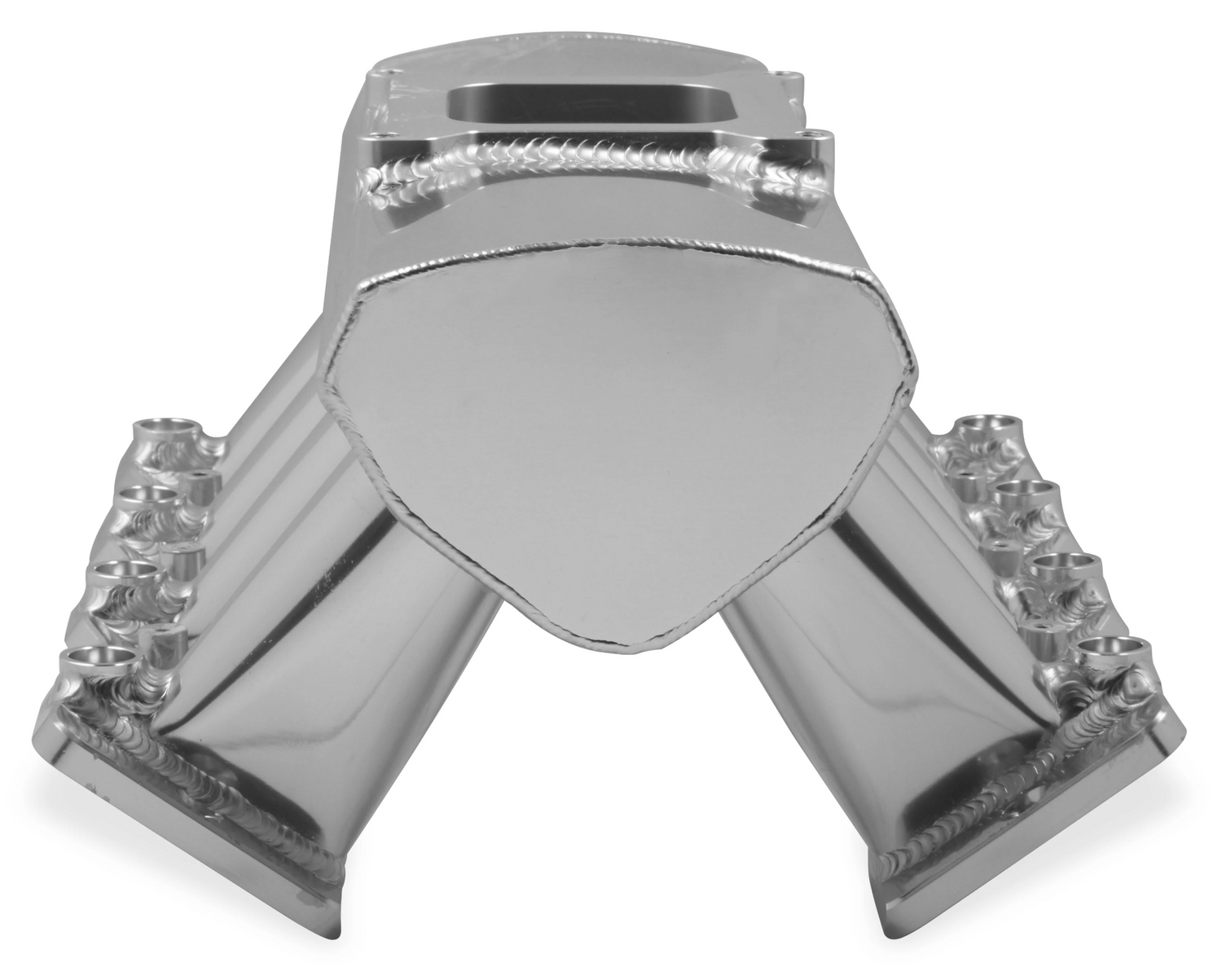

Holley® #820051 GM LS1/LS2/LS6 Sniper EFI Sheet Metal Fabricated Intake Manifold with Fuel Rail Kit

PLEASE CONTACT SUPPORT TO CONFIRM INVENTORY

£614.14
Shipping calculated at checkout.

Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)

Email: info@10SecondRacing.com (24/7)

Free Shipping to Lower 48 US States ($100+)

Worldwide Shipping via UPS (Check Rates at Checkout)

This is a Sample Product Title
Was $200.00 Now $100.00

Description

COMPATIBLE:

2004 - 2005 CADILLAC CTS-V (5.7L-LS6)

1998 - 2002 CHEVROLET CAMARO (5.7L-LS1)

1997 - 2004 CHEVROLET CORVETTE (5.7L-LS1)

2001 - 2004 CHEVROLET CORVETTE Z06 (5.7L-LS6)

2005 - 2008 CHEVROLET CORVETTE (6.0L-LS2)

1998 - 2002 PONTIAC FIREBIRD (5.7L-LS1)

This intake is designed to work with stock LS heads. The use of some aftermarket cylinder heads may result in port misalignment

Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions!

  • Silver finish creates high impact under-hood styling

  • 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability

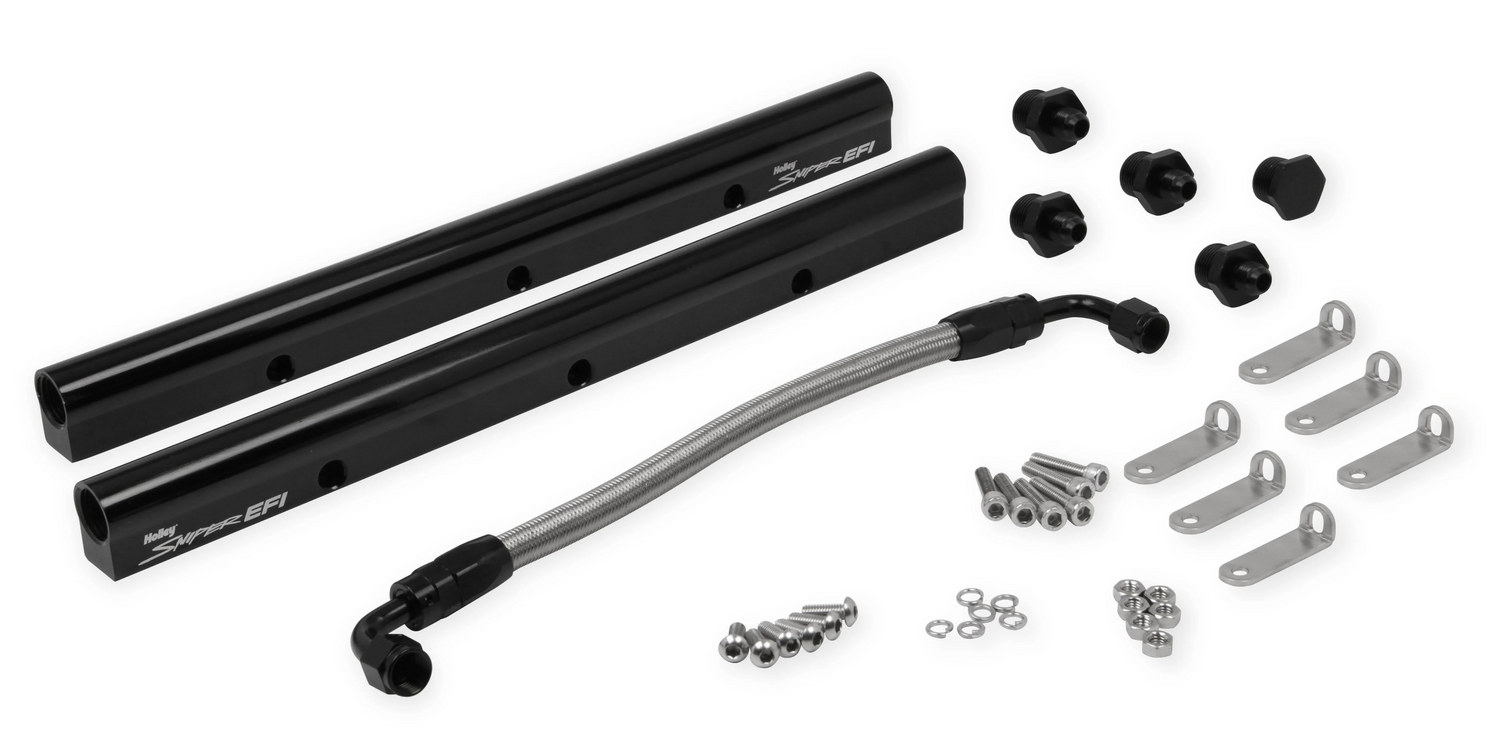

  • Includes 3/8" Fuel rail kits (Sniper logo laser engraved)

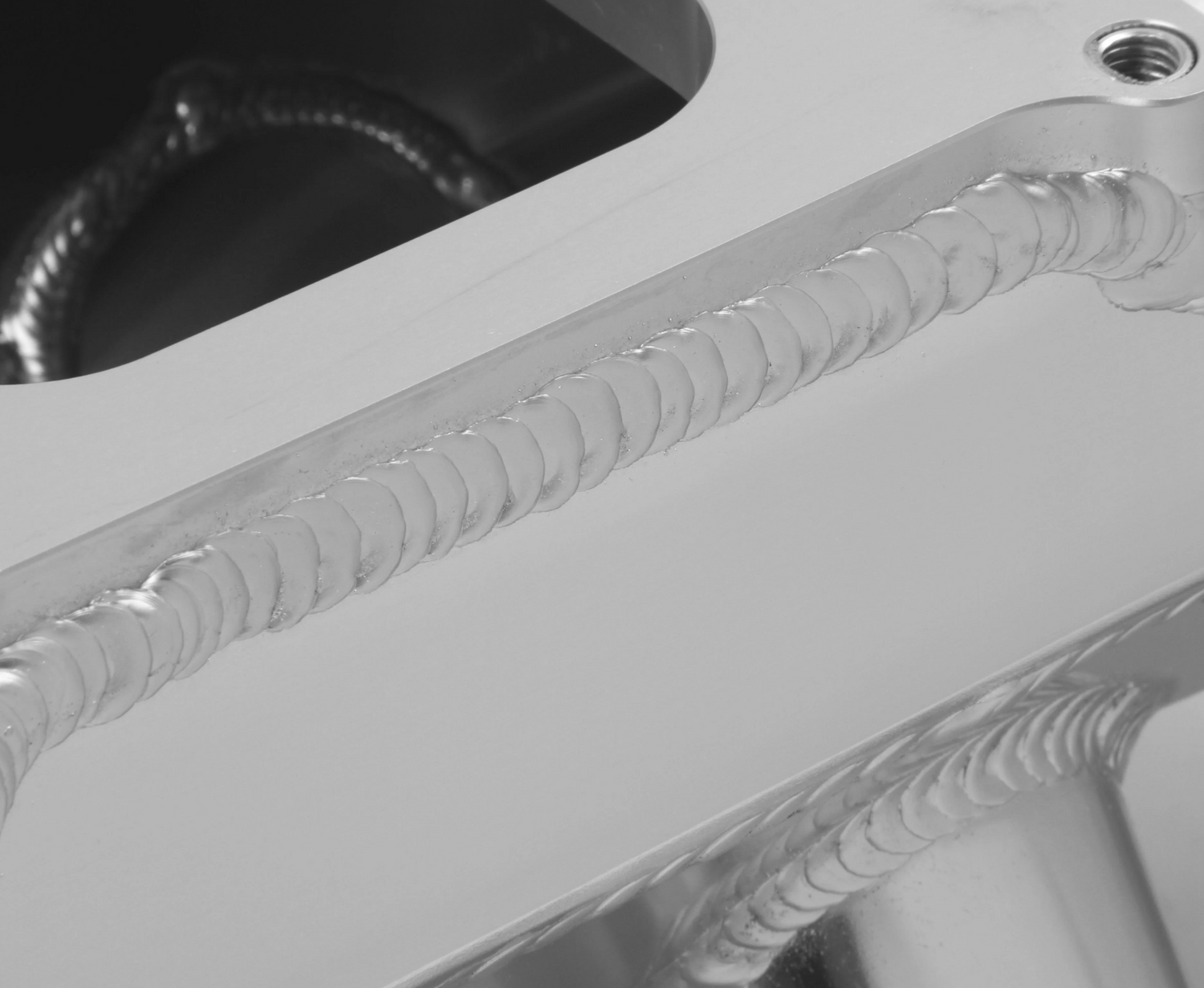

  • 100% TIG welded for strength and durability

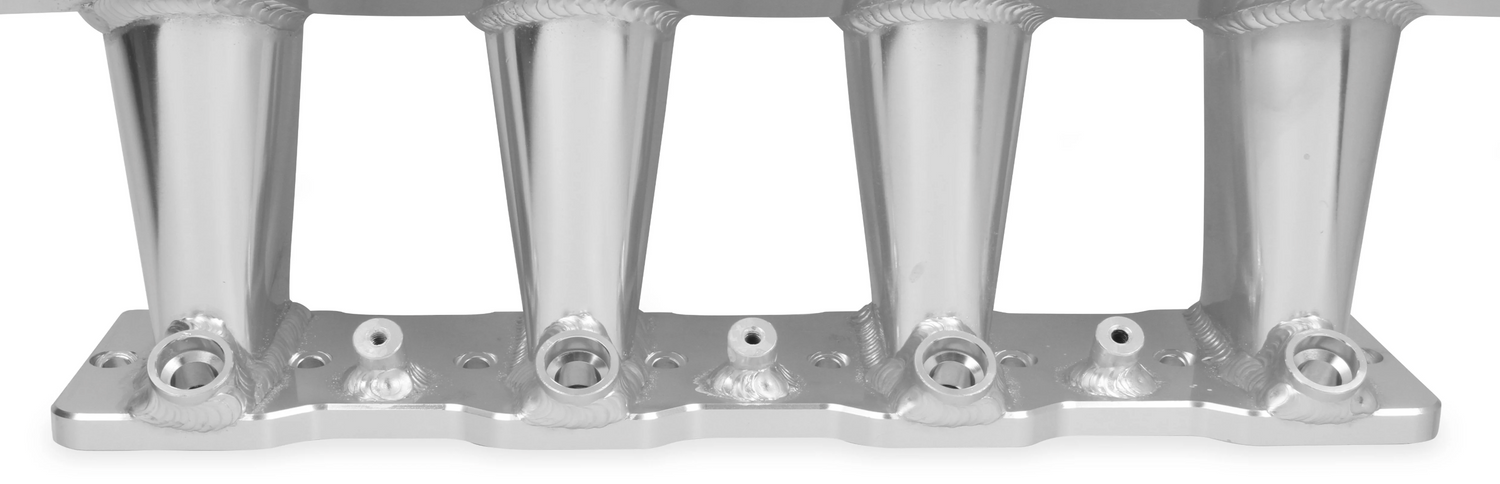

  • Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response

  • Product includes all gaskets and hardware for a hassle-free installation

  • 1 x 4150 flange option for increased air flow

  • The Sniper intake will only accept EV1 style injectors.

Basic Operating RPM Range

2500-7000 RPM

Brand

Holley Sniper EFI

Carburetor Flange

Square/4150

Category Filter

Intake Manifolds

Clearance Category

Air and Fuel Delivery

Color

Silver

Construction

Fabricated

Discount Percentage

26-50%

EGR Port

No

Emission Code

4

Engine

GM LS1/LS2/LS6

Finish

Silver

Flange Size

4150

Front Height

8.858 inch

Front Maximum Height

8.858 IN

Fuel Injectors Included

No

Fuel Rail(s) Included

No

Fuel System Type

EFI

Injector Style Provision

EV1

Manifold Type

Fabricated

Material

Aluminum

Nitrous Bung(s) Included

No

Plenum Finish

Polished

Product Type

Intake Manifold

Rear Height

8.858 inch

Rear Maximum Height

8.858 IN

Recommended Use

Forced Induction

Removable Runners

No

Removable Top/Lid

No

RPM Power Band

2500-7000 RPM

Runner Length

4.921" (125mm)

Sale Category

Air and Fuel Delivery

Single Or Dual Plane Type

Single Plane

Style

EFI

Throttle Body Included

No

Throttle Bore

4150 flange

Vacuum Ports

(3) 1/8"-28BSPT & (1) 1/4"-19BSPT

Warranty

Limited 90 Day

UPC

847875006399

Part Number

820051
