When installing sending units, please remember to rotate the unit until the mounting holes align with the flange holes in the tank.

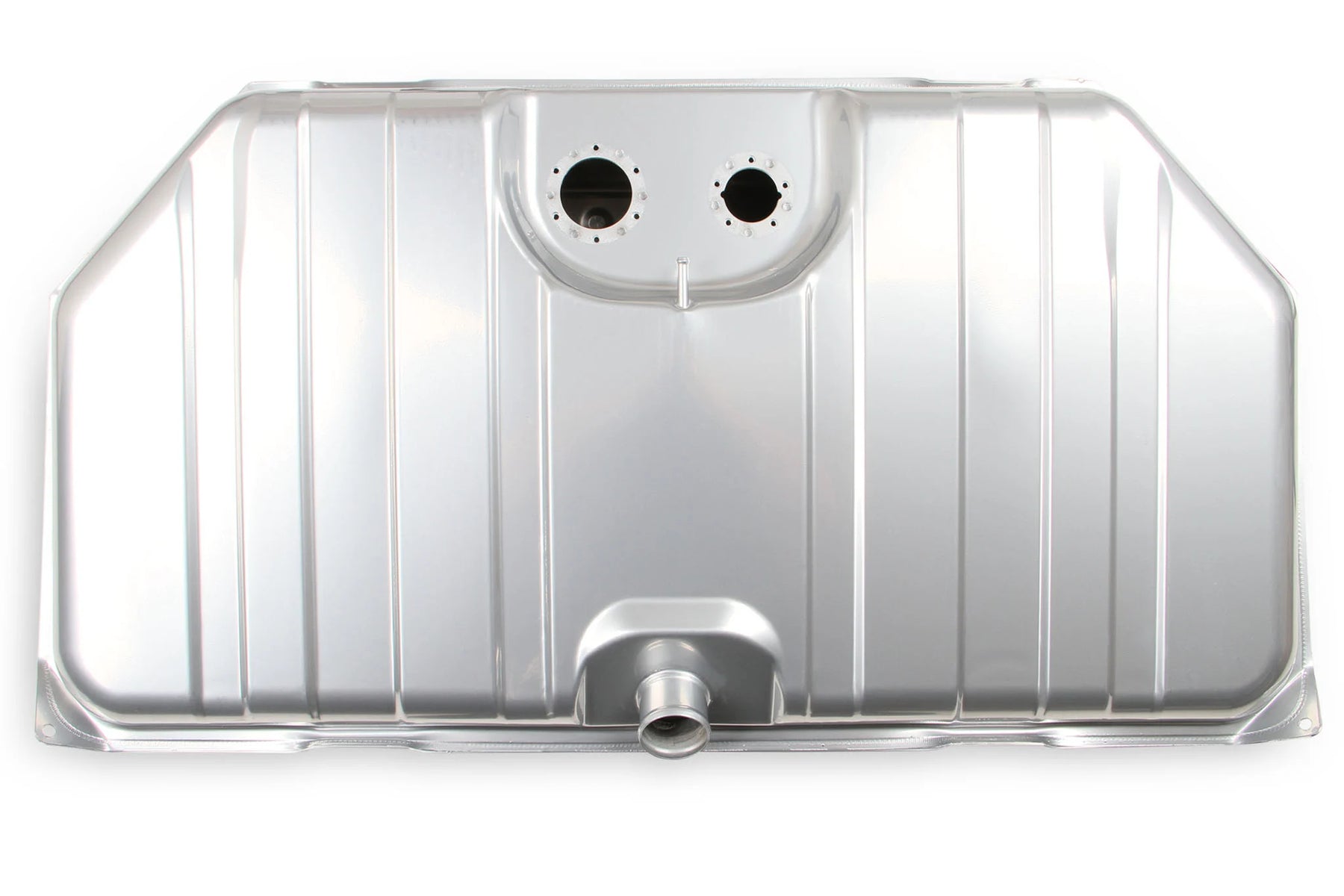

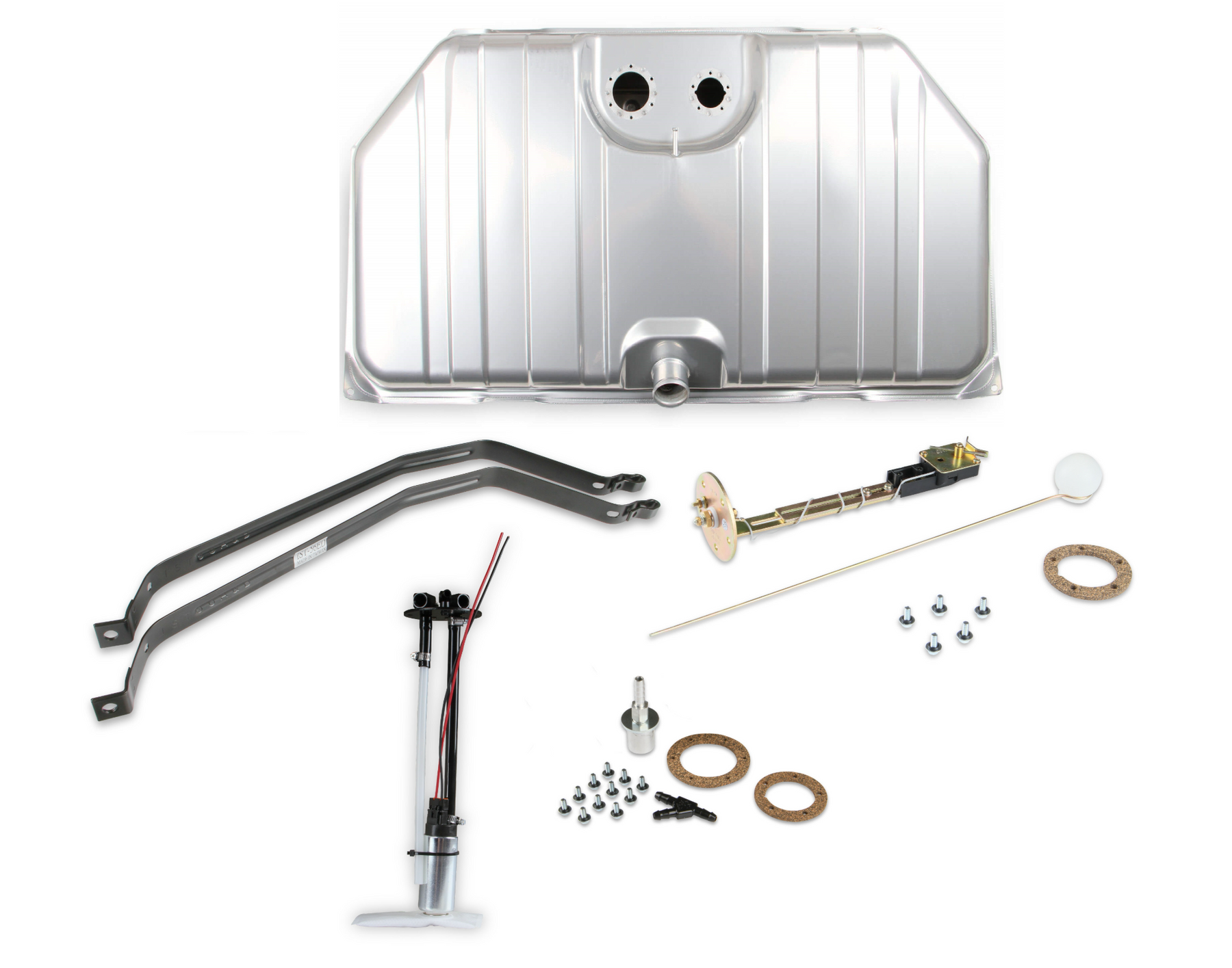

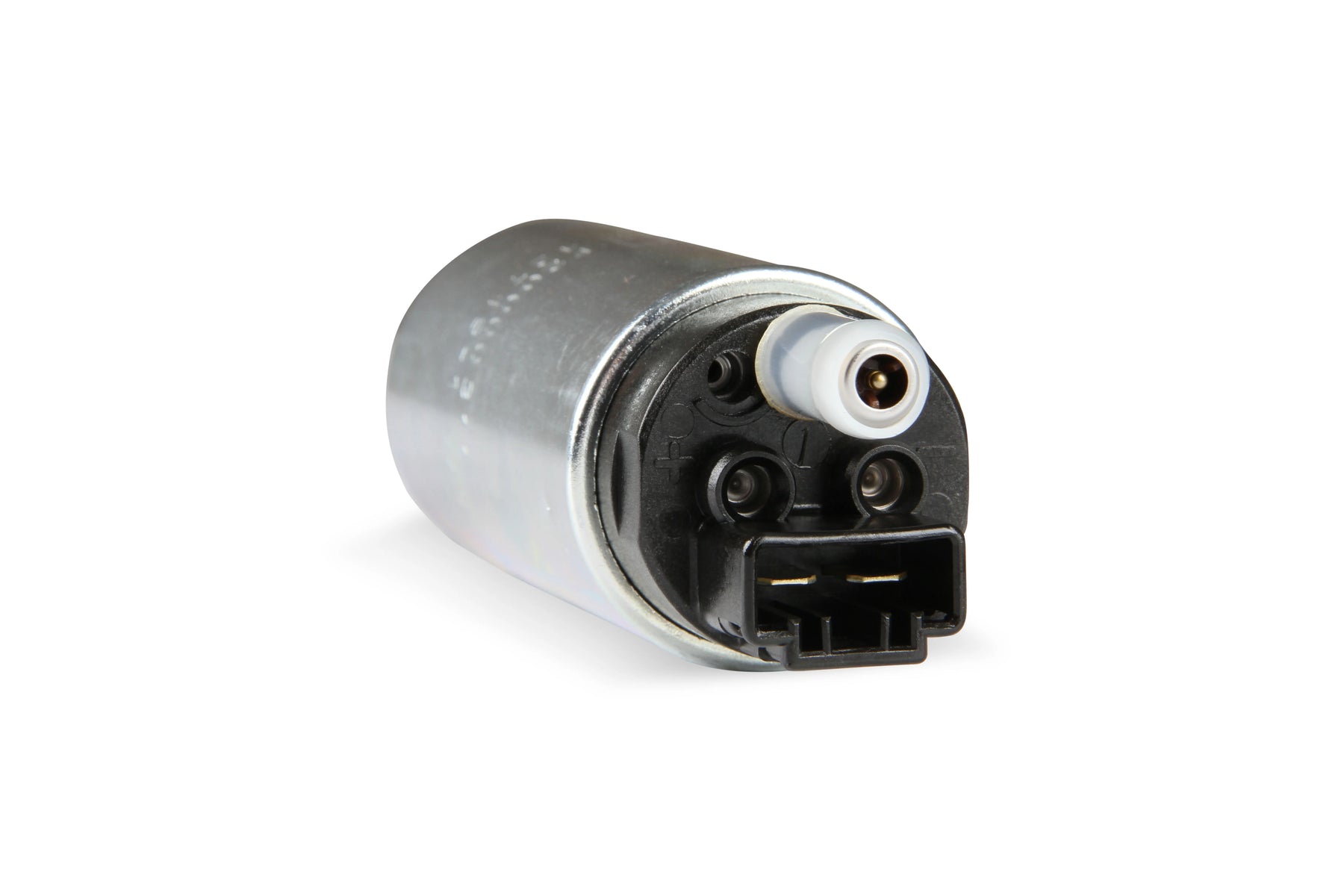

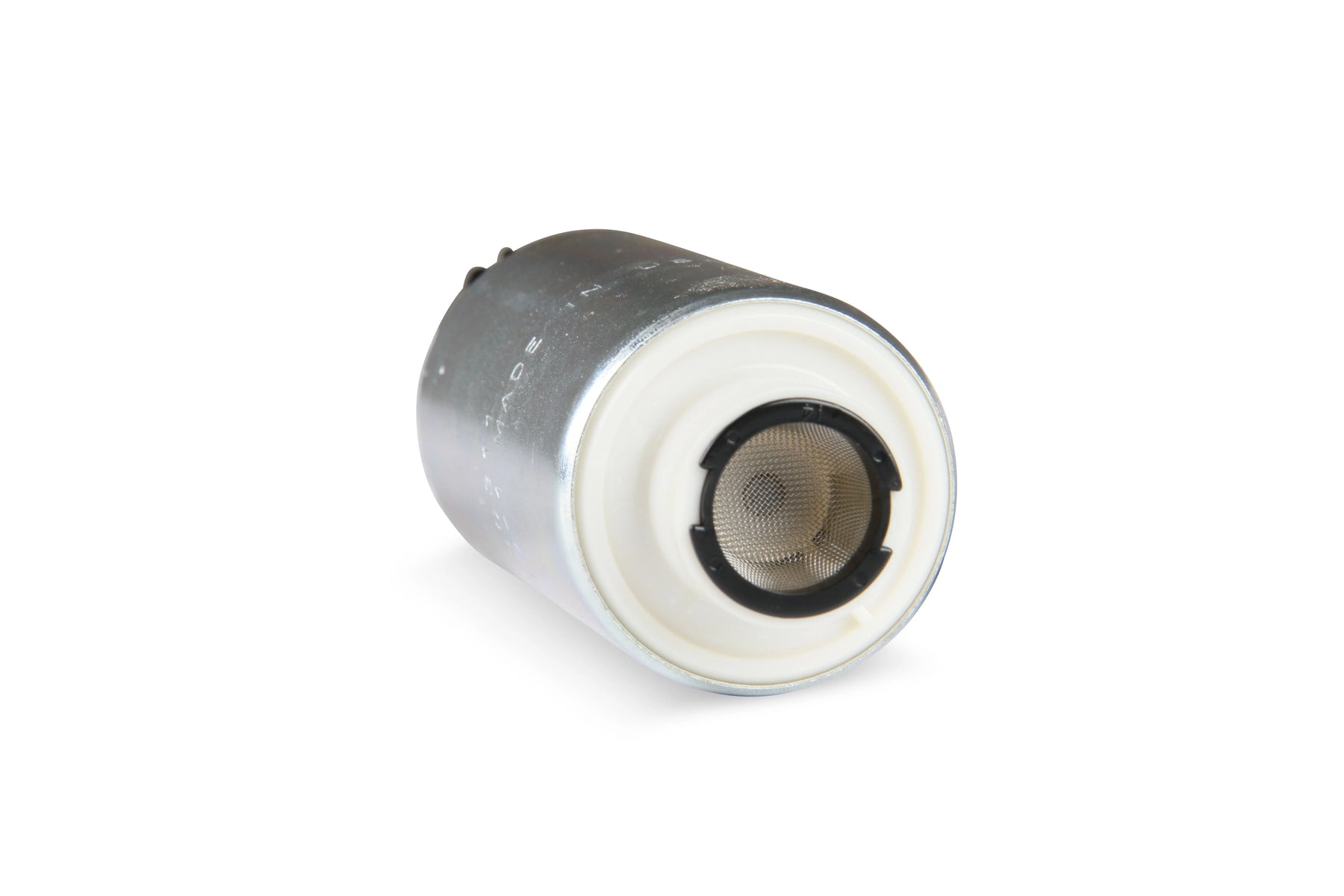

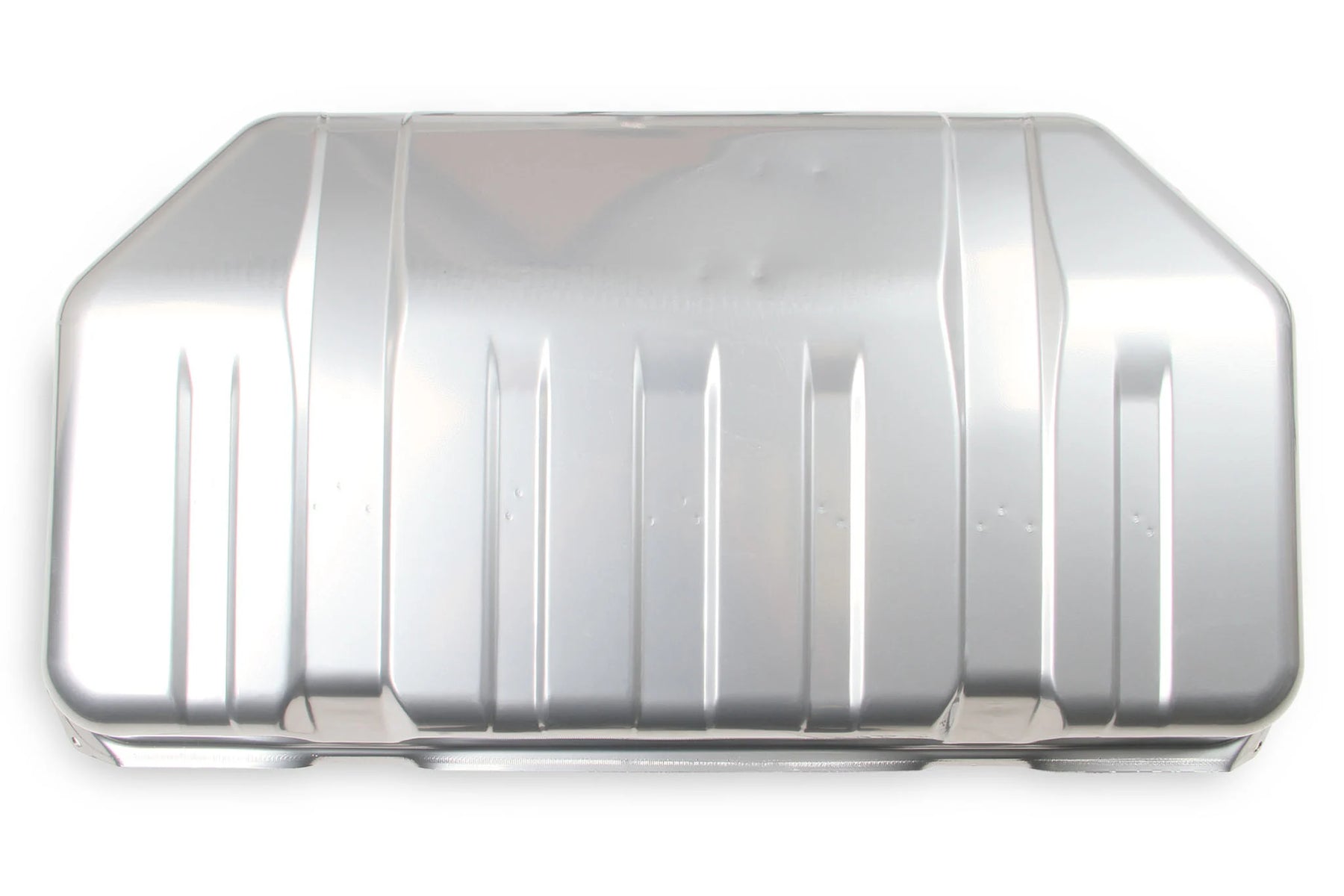

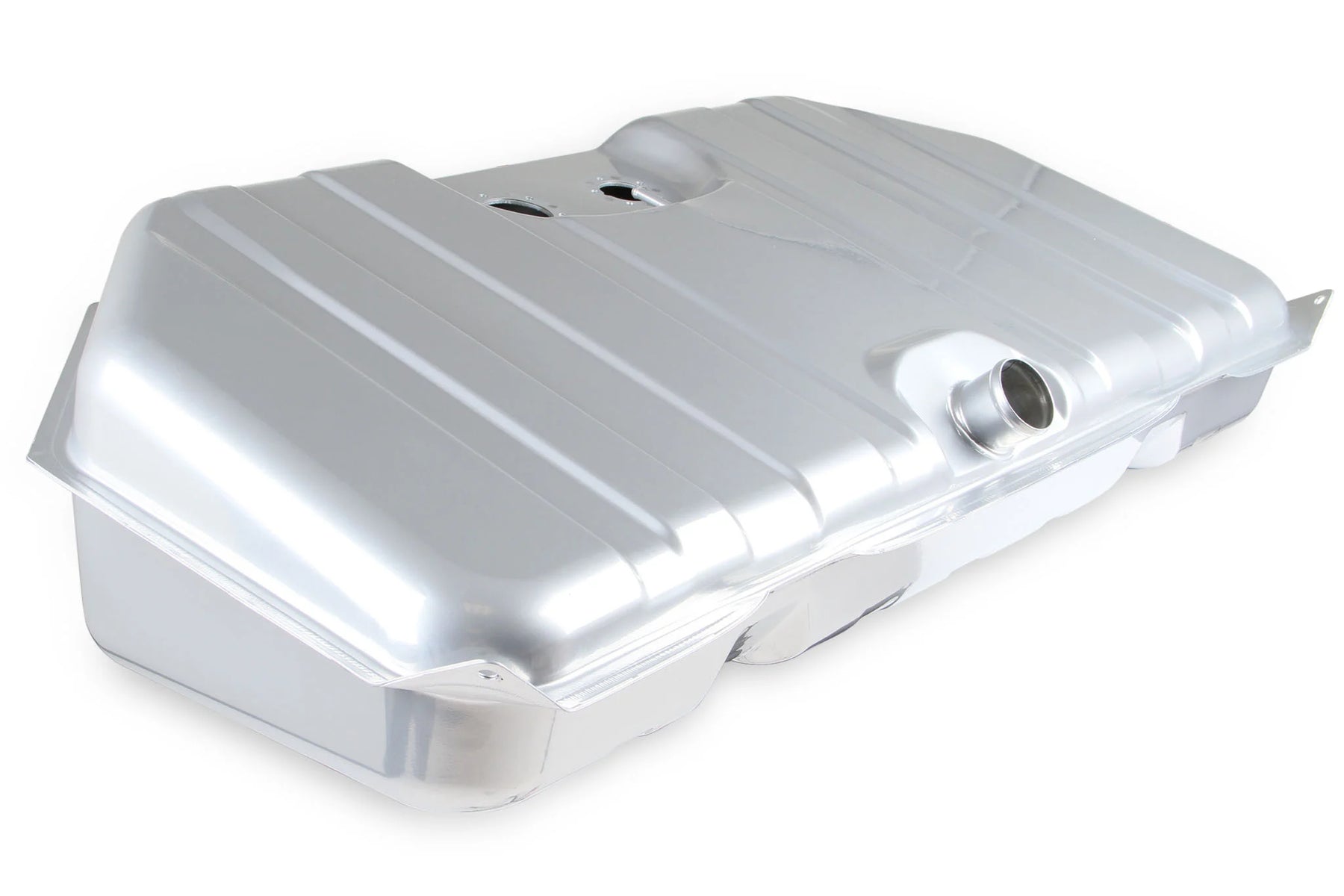

Each tank is a direct fit for your application with no body modifications necessary. The kit includes the tank, a 255 lph fuel pump, a fuel level sender, new tank straps, and the filler neck. The tank is powder coated for corrosion resistance and great looks. This model has notched front corners for additional tire and exhaust clearance. The 255 lph fuel pump supports up to 550 hp (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw)

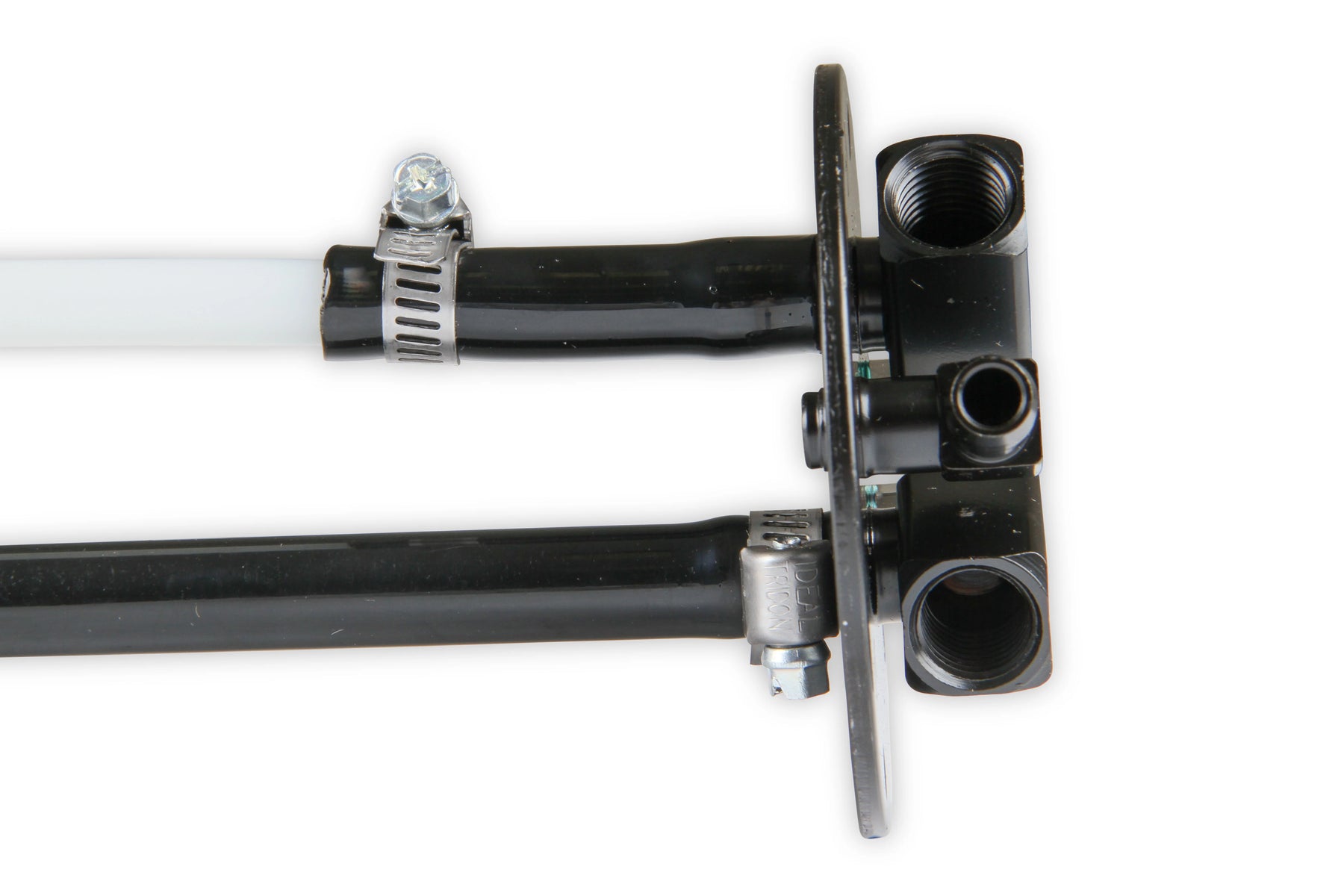

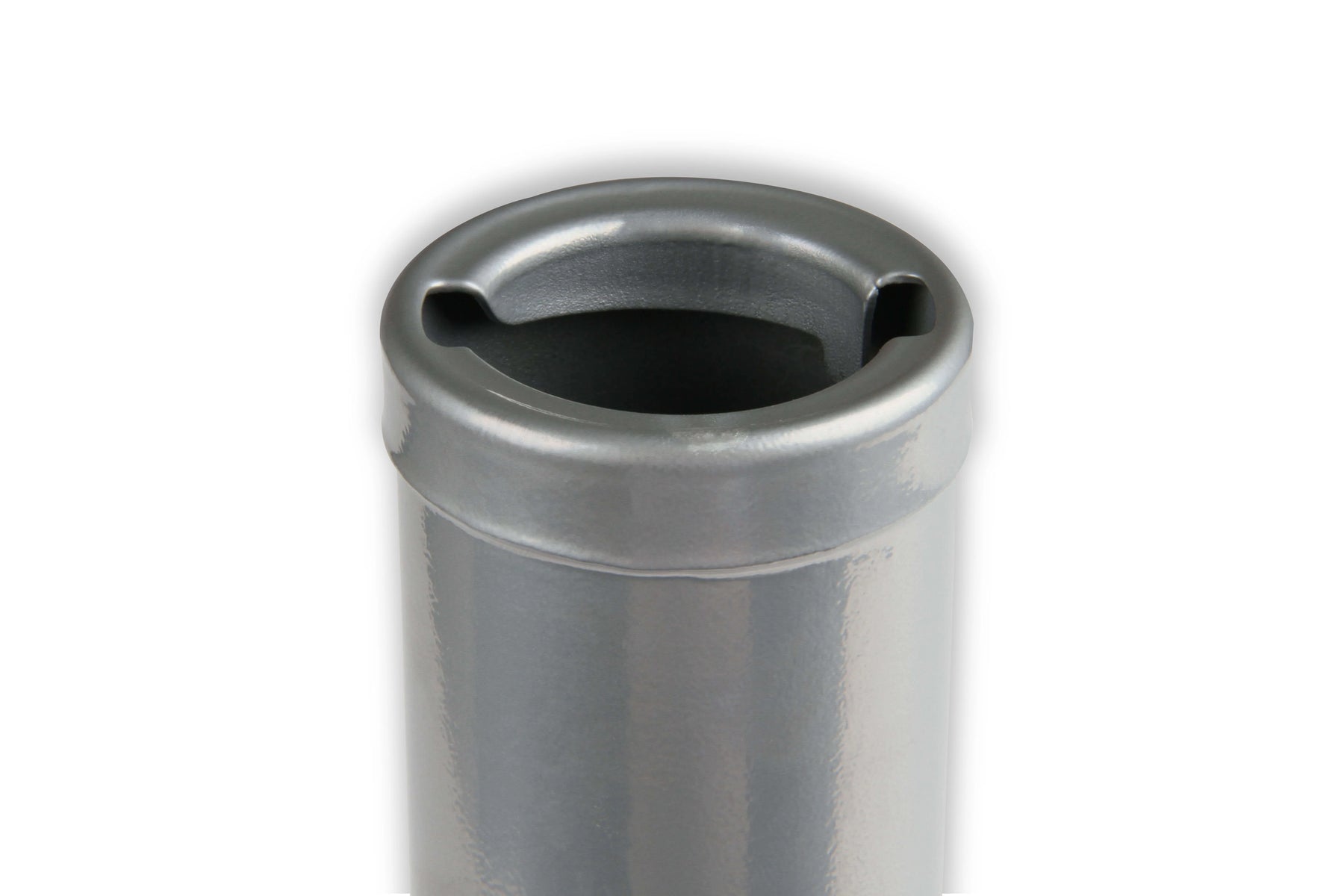

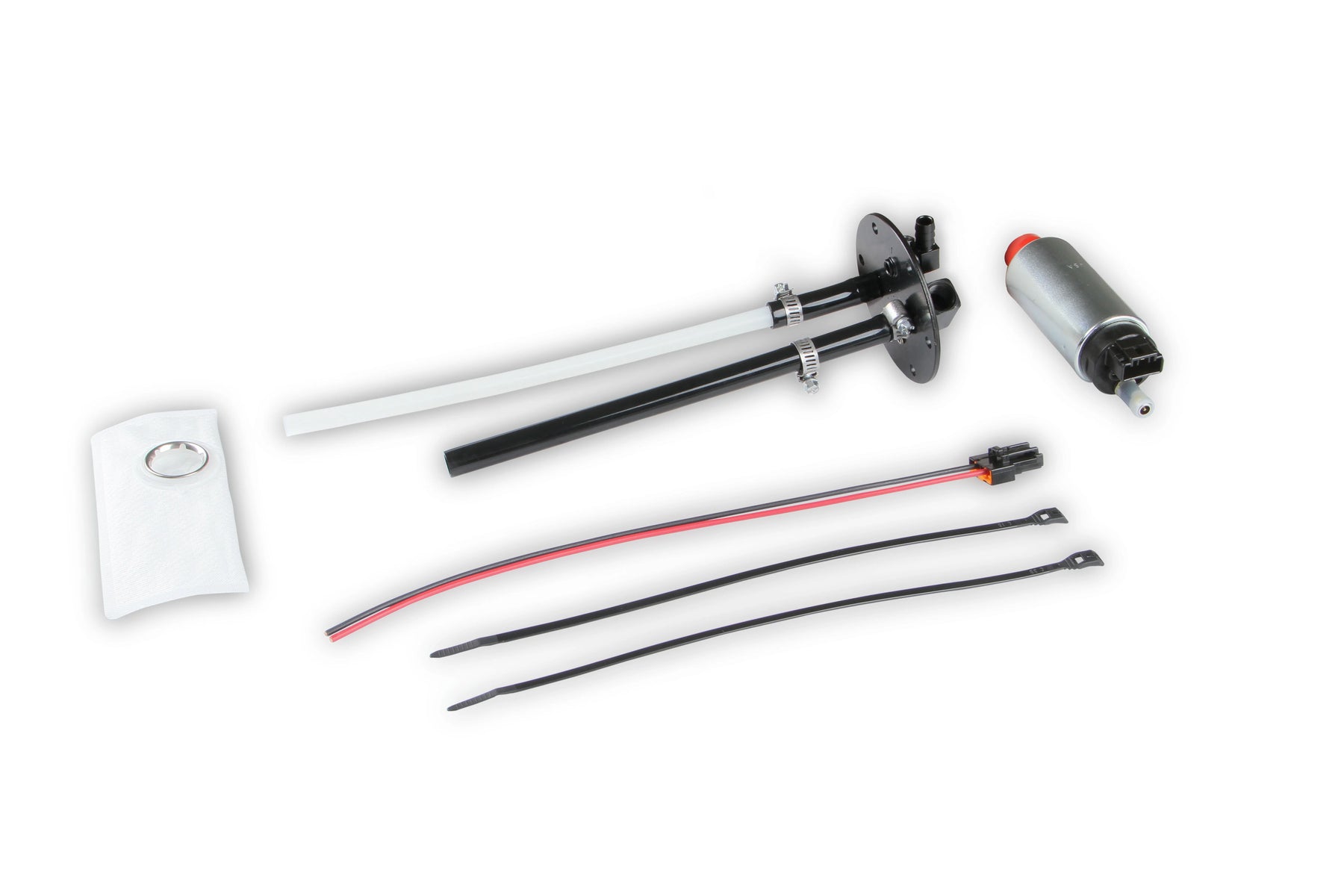

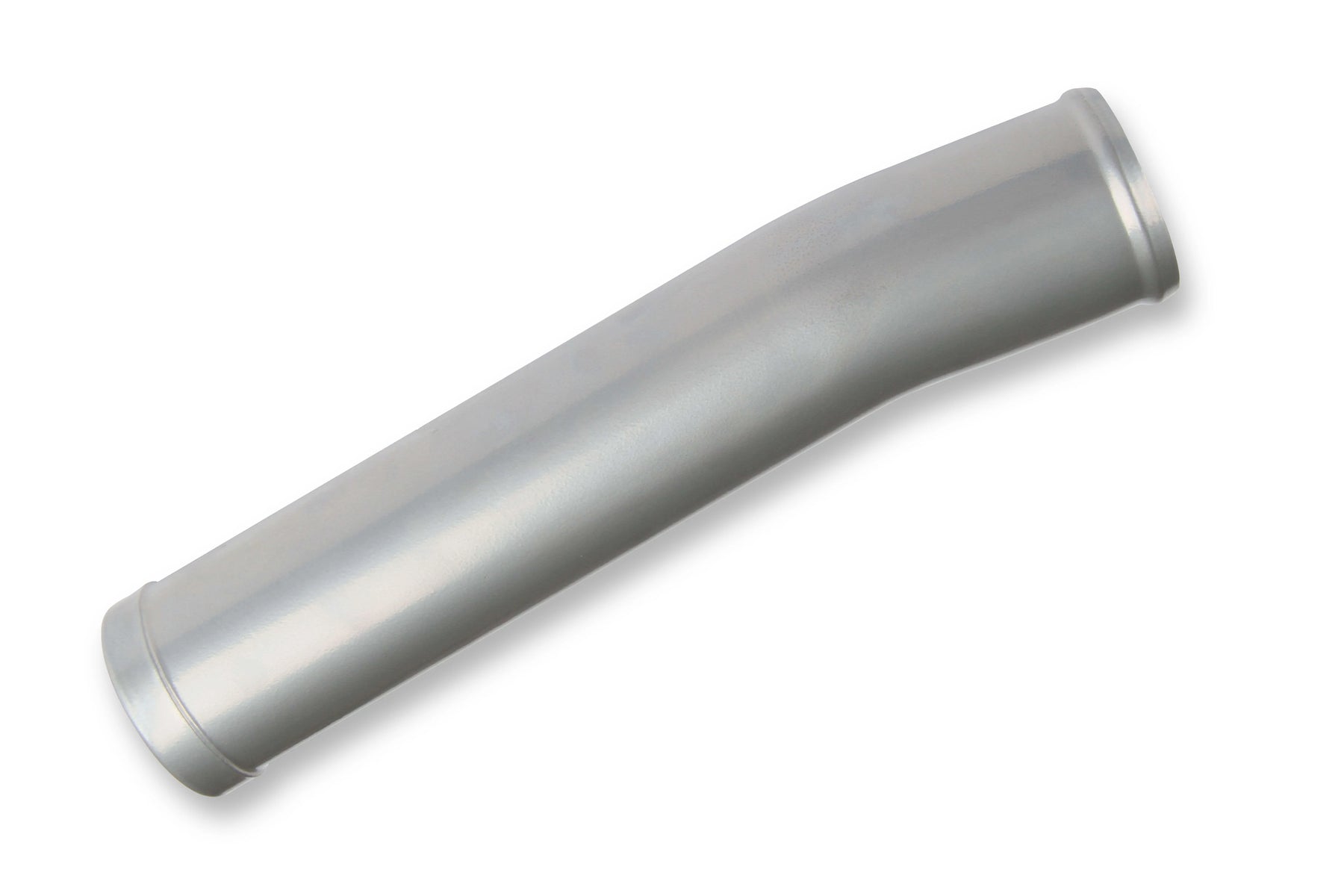

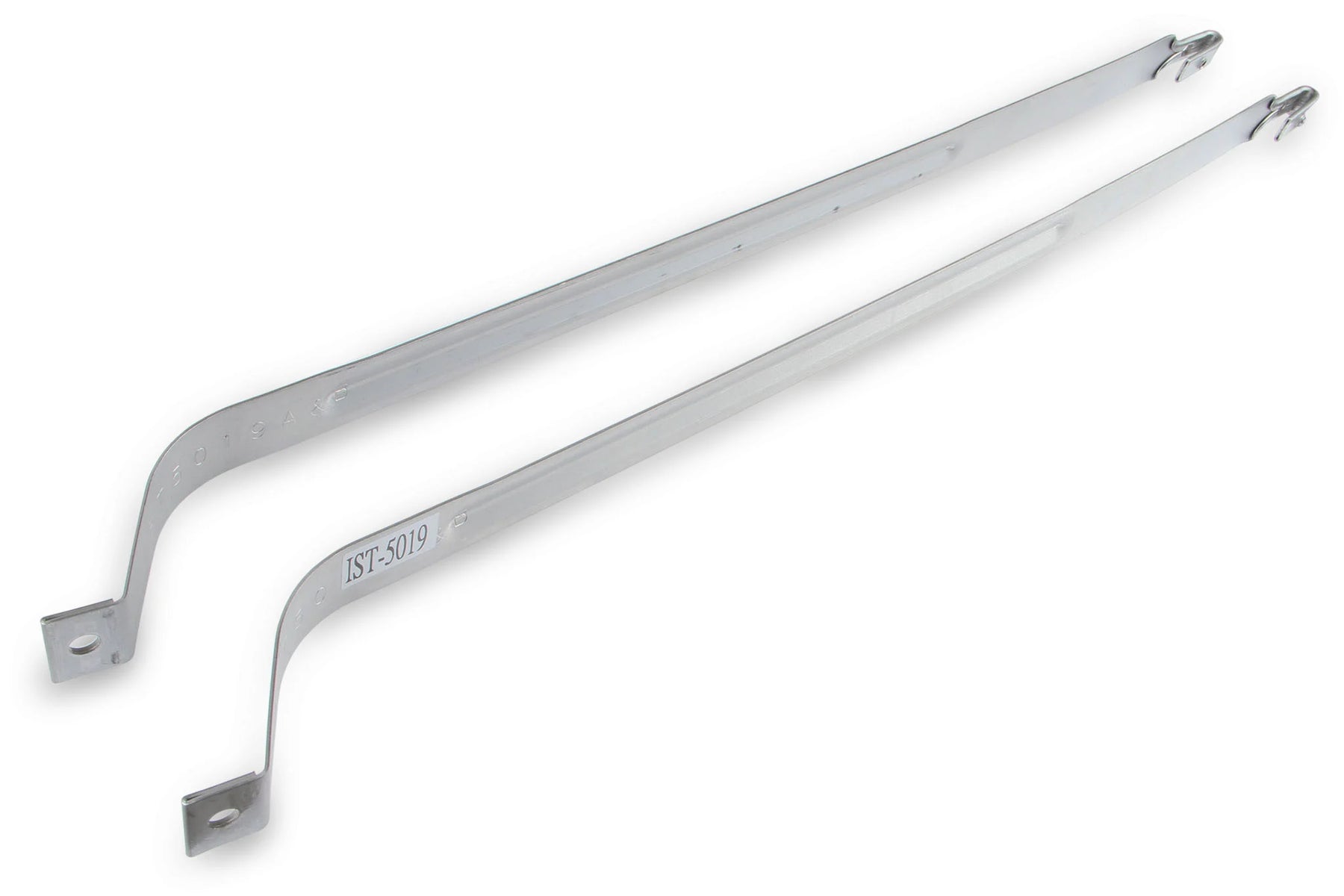

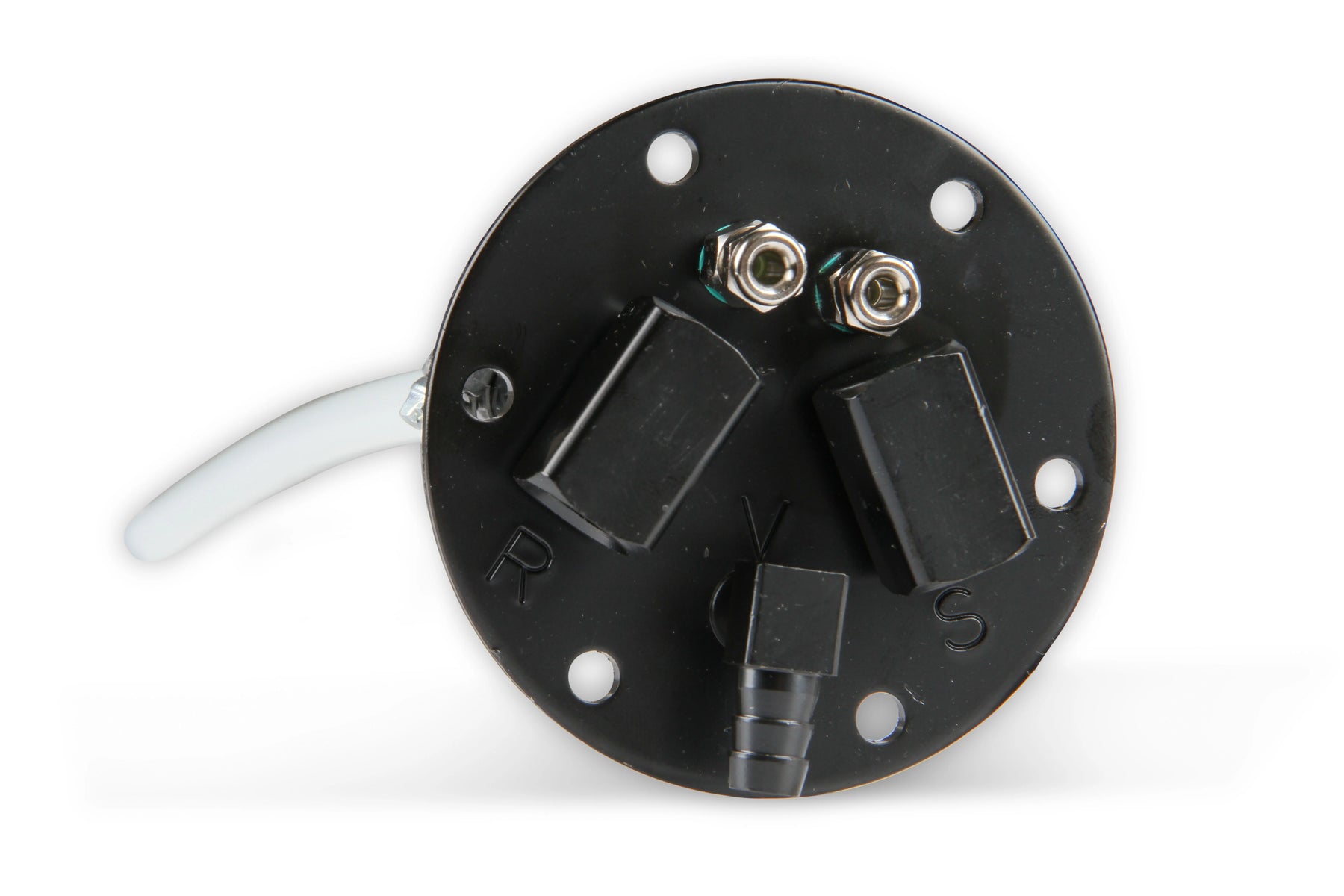

• Fuel Tank is coated galvanized steel then powder coated silver for total corrosion protection • Tank includes a 2 piece filler neck design that connects with supplied 2" ID (inside diameter) rubber hose • 255 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness • Sender features 1/4" NPT (National Pipe Tapered) threaded Supply and Return line ports for easy fuel line connection and a barbed vent fitting • Fuel level sender included with the correct Ohm range for your factory gauges • Fuel pump and sender are recessed in the tank to provide an easy installation and no modification to vehicle • Internal tank baffling includes a large 4.3 liter internal fuel tray to prevent fuel pump starvation • Fits and looks like an OE tank when installed. • New tank straps included. • Notched front corners for installing mini-tubs to gain wider tire and exhaust clearance
| Application | 1970-1973 Chevrolet Camaro/Pontiac Firebird |
|---|---|
| Attached Sump | Yes |
| Baffled Sump | Yes |
| Brand | Holley Sniper EFI |
| Color | Silver |
| Drain Plug | No |
| Emission Code | 4 |
| Finish | Powdercoated |
| Free Flow LPH | 255 |
| Fuel Sending Unit Ohms | 0-90 Ohms |
| Fuel System Compatibility | Electronic Fuel Injection |
| Fuel System Type | Gasoline |
| Fuel Tank Coating | Powder Coated |
| Gallon Capacity | 18 |
| Grade Type | Performance |
| Lock Ring Included | Yes |
| Material | Steel |
| Maximum Flow Rating | 255 LPH |
| Mounting Straps Included | Yes |
| New Straps Included | Yes |
| O-Ring Included | Yes |
| Product Type | Fuel Tank |
| Resistance Ohms Empty | 0 82 |
| Resistance Ohms Full | 90 82 |
| Sale Category | Air and Fuel Delivery |
| Tank Capacity | 18 GA |
| Tank Color | Gray |
| Tank Material | Steel |
| Warranty | Limited 90 Day |
| UPC | 090127074220 |
| Part Number | 19-158 |
