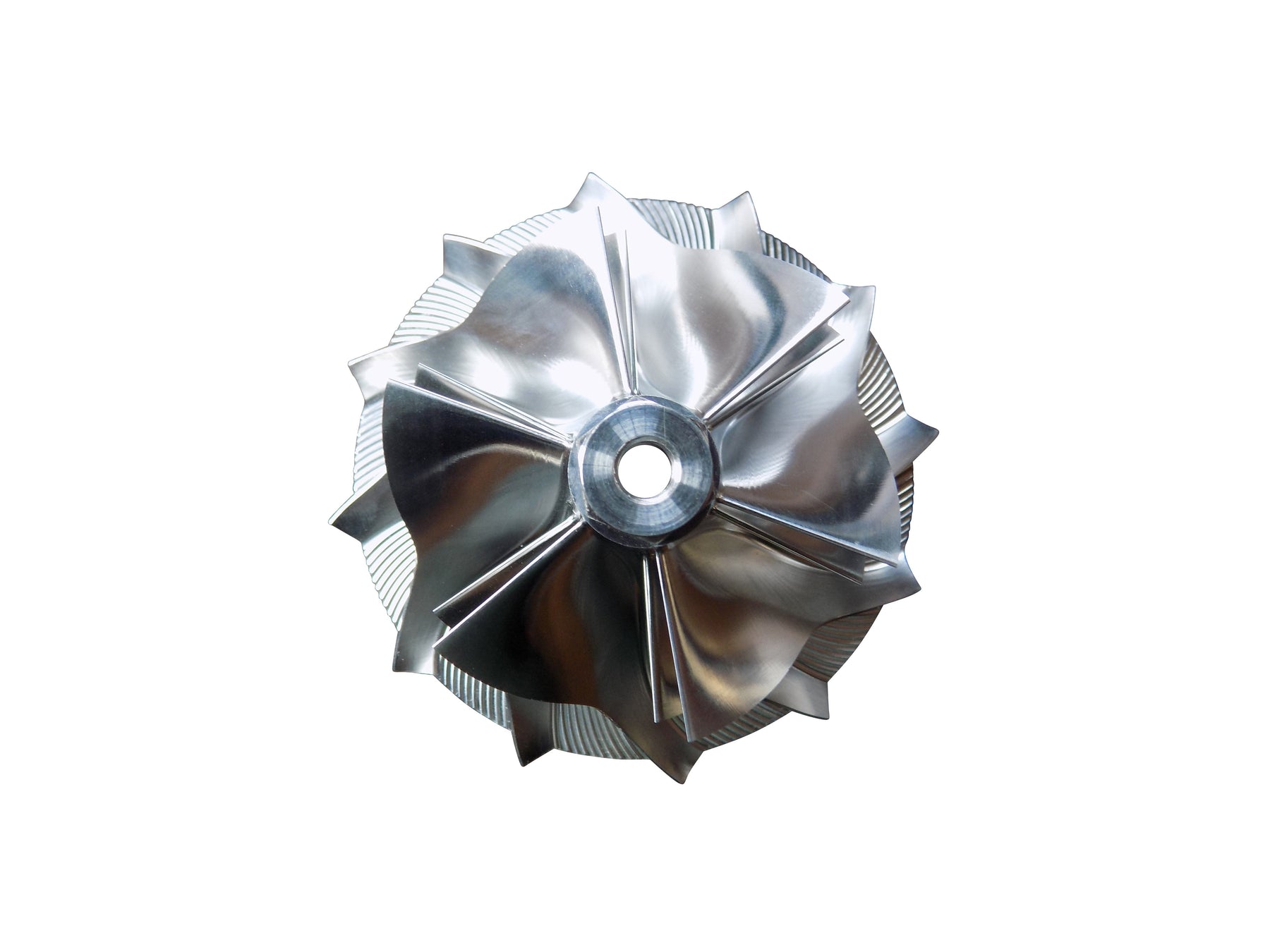

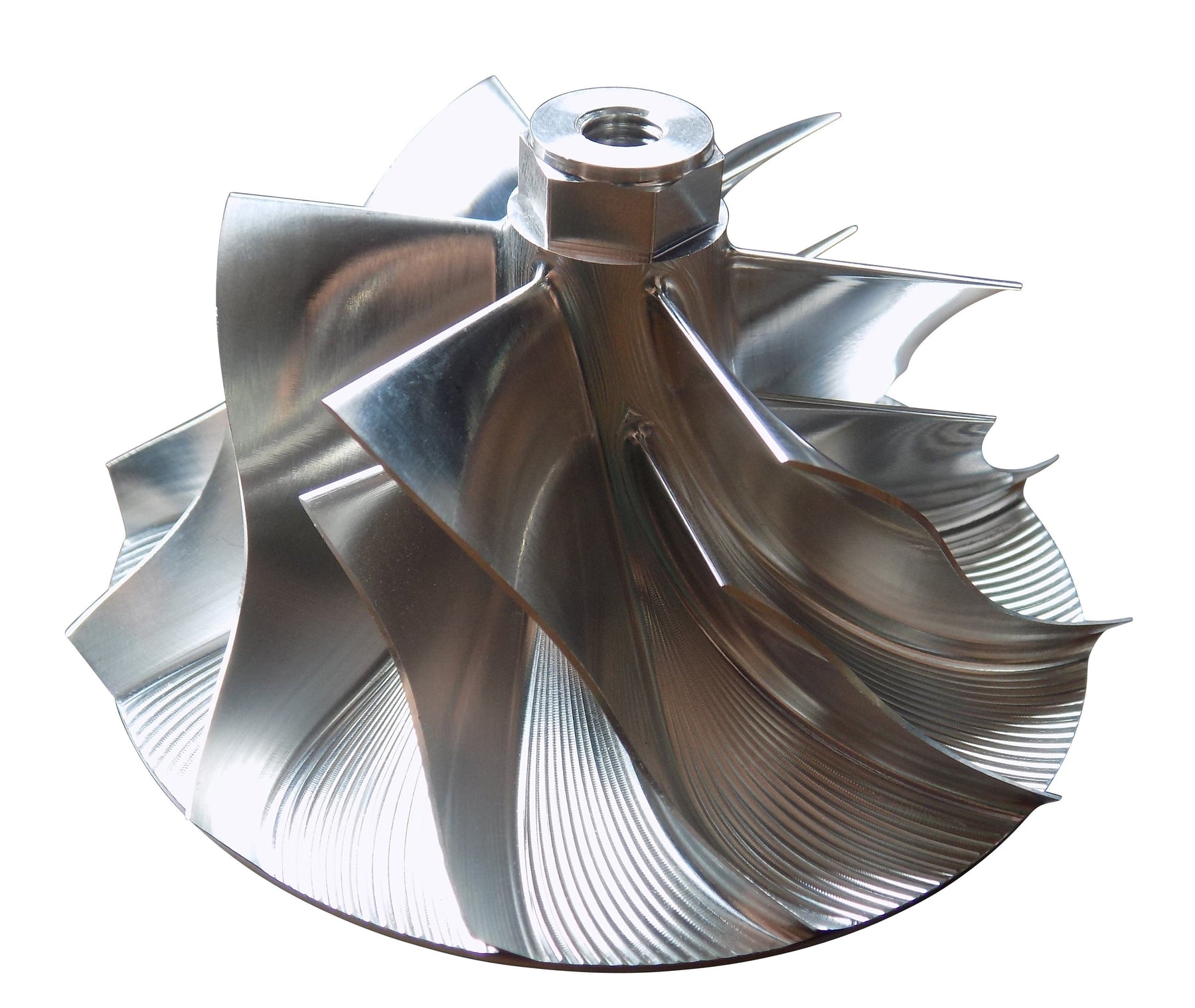

KBDP 6.6l Duramax LLY/LBZ 66mm Billet Compressor Wheel
Notice: This Wheel Requires Custom Compressor Housing Machine Work. This is to be done by your local machine shop.
If you are looking for a stock replacement LLY or LBZ wheel please check out our other items!
Billet Compressor Specs
Inducer: 66 mm
Exducer Base: 88.25 mm
Extended Tip: 94 mm
Primary Tip Height: 35 mm
Secondary Tip Height: 23 mm
Nose Width: 14 mm Hex
Blades: 7/7
Extended Tip
Pre-balanced
Reinforced Blade Base
Slim Nose Increases Blade Size
Larger Blades for Increased Flow
Increased Throttle Response
Note: The threads on the compressor wheel are left hand. Turn left to tighten and right to loosen. Torque specification: 10 Ft-Lbs with blue thread locker.
Fits: 2004.5-2007 Chevy & GMC 2500 & 3500 applications with the 6.6l LLY or LBZ Duramax engine. Notice: This Wheel Requires Custom Compressor Housing Machine Work. This is to be done by your local machine shop.
