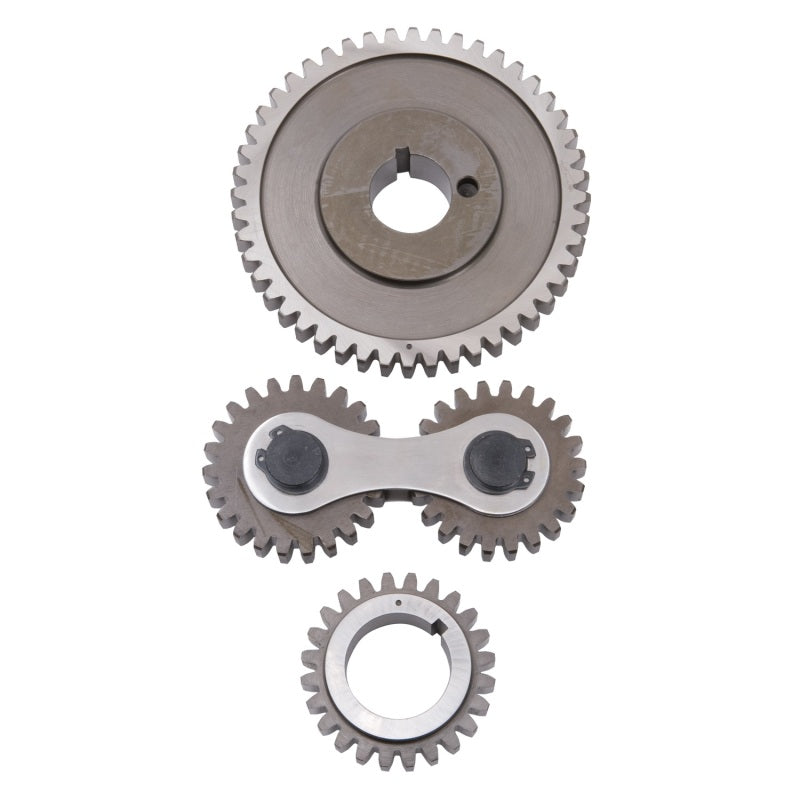

Edelbrock part #7895 Accu-Drive camshaft gear drive kit for Pontiac 326-455 V8 engines replaces a stock timing chain with a precision gear drive system utilizing a compound gear drive train. The gear drive can be easily installed. Just replace the stock crank and camshaft sprockets with Accu-Drive gears and slip in the idler assembly. Most Accu-Drives require no modifications to the engine block, although some fitting of the axles and front cover may be required. This Accu-Drive camshaft gear drive kit for Pontiac engines transmits power from the crankshaft gear to a full floating main idler which drives the camshaft gear. A unique feature of the Edelbrock Accu-Drive system is the ability of the main idler gear to float to an optimum position between the crankshaft and camshaft gears, assuring absolutely equal load sharing between the crankshaft and the camshaft gears. The gears are made from billet SAE-1144 steel with induction hardened teeth. Gear teeth are shaved for precision operation. The set features hardened and ground idler pins from billet steel and are compatible with all standard camshafts. Features Include: - Accurate timing control..No chain to stretch - Provides multiple cam timing adjustments for optimum performance - Smooth cam rotation for precise valve timing
Warranty
Installation Instructions
This Part Fits:
Warranty
Installation Instructions
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1965-1978 | Pontiac | Bonneville | Base |
| 1976-1978 | Pontiac | Bonneville | Brougham |
| 1965-1970,1978 | Pontiac | Bonneville | Safari |
| 1967 | Pontiac | Catalina | 2+2 |
| 1965-1978 | Pontiac | Catalina | Base |
| 1971-1972 | Pontiac | Catalina | Brougham |
| 1965-1978 | Pontiac | Catalina | Safari |
| 1965-1970 | Pontiac | Catalina | Ventura |
| 1967-1970 | Pontiac | Executive | Base |
| 1967-1970 | Pontiac | Executive | Safari |
| 1967 | Pontiac | Firebird | 326 |
| 1968-1969 | Pontiac | Firebird | 350 |
| 1969 | Pontiac | Firebird | 350 HO |
| 1968-1969 | Pontiac | Firebird | 400 |
| 1967-1977 | Pontiac | Firebird | Base |
| 1970-1977 | Pontiac | Firebird | Esprit |
| 1970-1979 | Pontiac | Firebird | Formula |
| 1967-1968 | Pontiac | Firebird | HO |
| 1969-1979 | Pontiac | Firebird | Trans Am |
| 1973-1975 | Pontiac | Grand Am | Base |
| 1975-1977 | Pontiac | Grand LeMans | Base |
| 1975,1977 | Pontiac | Grand LeMans | Safari |
| 1965-1974,1976-1977 | Pontiac | Grand Prix | Base |
| 1975,1977 | Pontiac | Grand Prix | LJ |
| 1975-1977 | Pontiac | Grand Prix | SJ |
| 1971-1978 | Pontiac | Grand Safari | Base |
| 1971-1974 | Pontiac | Grandville | Base |
| 1975 | Pontiac | Grandville | Brougham |
| 1965-1966,1968-1973 | Pontiac | GTO | Base |
| 1970-1971 | Pontiac | GTO | The Judge |
| 1965-1977 | Pontiac | LeMans | Base |
| 1972-1974 | Pontiac | LeMans | Luxury |
| 1969-1970,1973-1975,1977 | Pontiac | LeMans | Safari |
| 1974 | Pontiac | LeMans | Safari Luxury |
| 1970-1977 | Pontiac | LeMans | Sport |
| 1971 | Pontiac | LeMans | T37 |
| 1965-1966 | Pontiac | Star Chief | Base |
| 1966 | Pontiac | Star Chief | Executive |
| 1965-1970 | Pontiac | Tempest | Base |
| 1965,1967-1969 | Pontiac | Tempest | Custom |
| 1970 | Pontiac | Tempest | GT |
| 1965-1969 | Pontiac | Tempest | Safari |
| 1972-1976 | Pontiac | Ventura | Base |
| 1973-1975 | Pontiac | Ventura | Custom |
| 1974 | Pontiac | Ventura | GTO |
| 1975 | Pontiac | Ventura | S |
| 1975-1976 | Pontiac | Ventura | SJ |
