COMPATIBLE: (3.0L-N55B30)

2010 - 2013 BMW 135i E82/E88

2010 - 2013 BMW 135is E82/E88

2010 - 2012 BMW 335i E90/E92/E93

2010 - 2012 BMW 335xi E90/E92/E93

• Gain up to 11whp
• Precision Machined Turbo Inlet
• Faster Turbo Spool
• Increased Turbo Sound


PROFILE

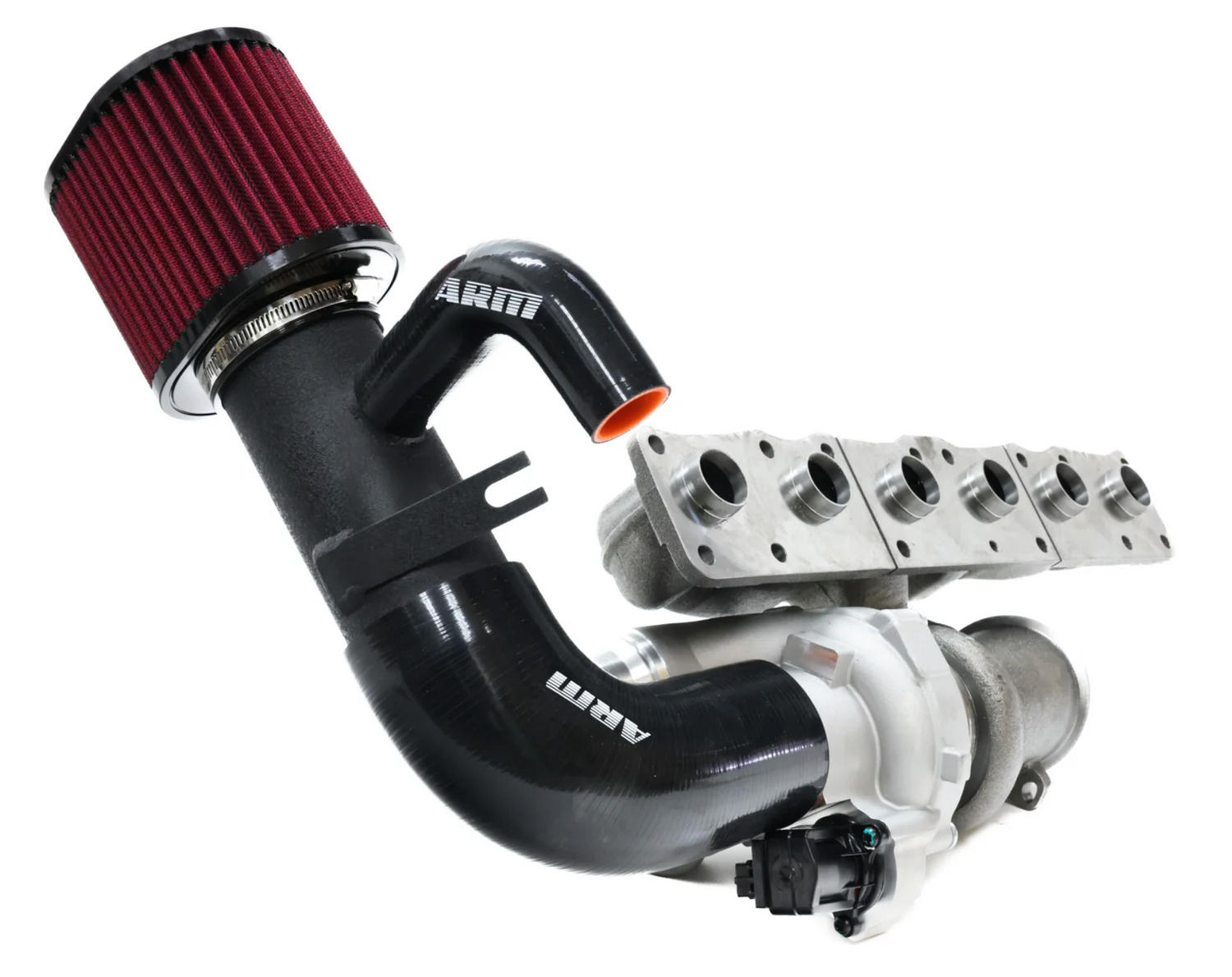

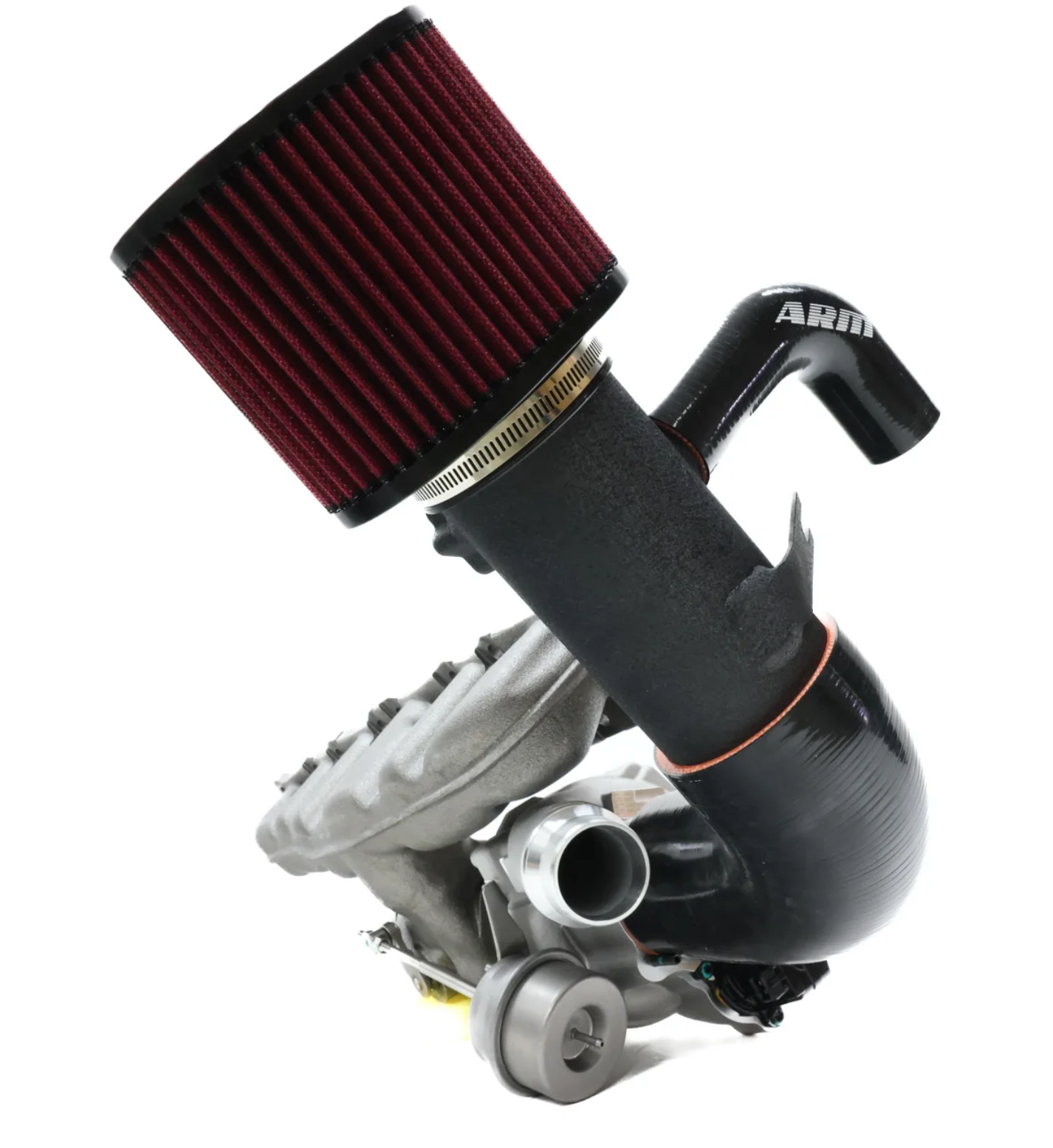

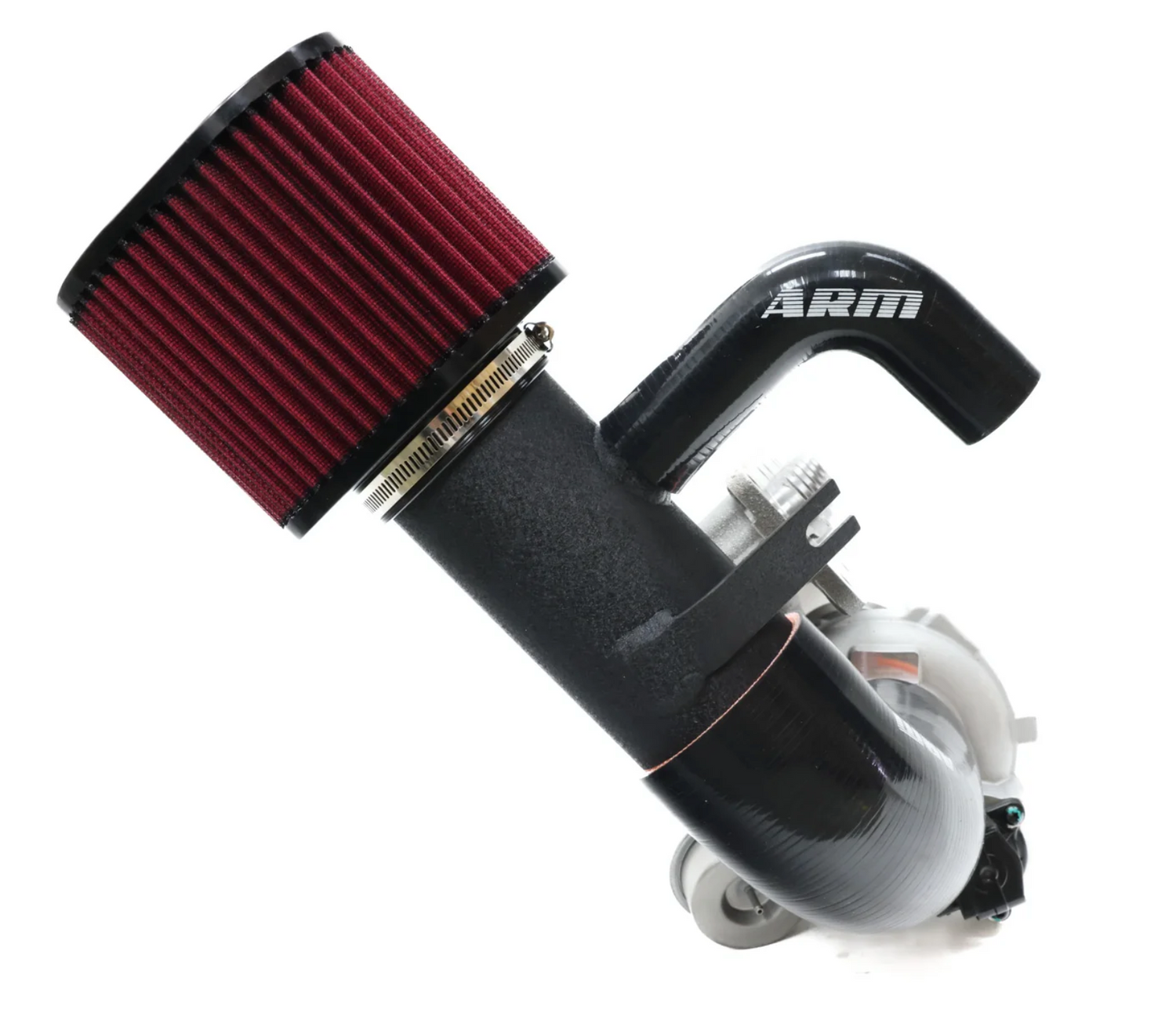

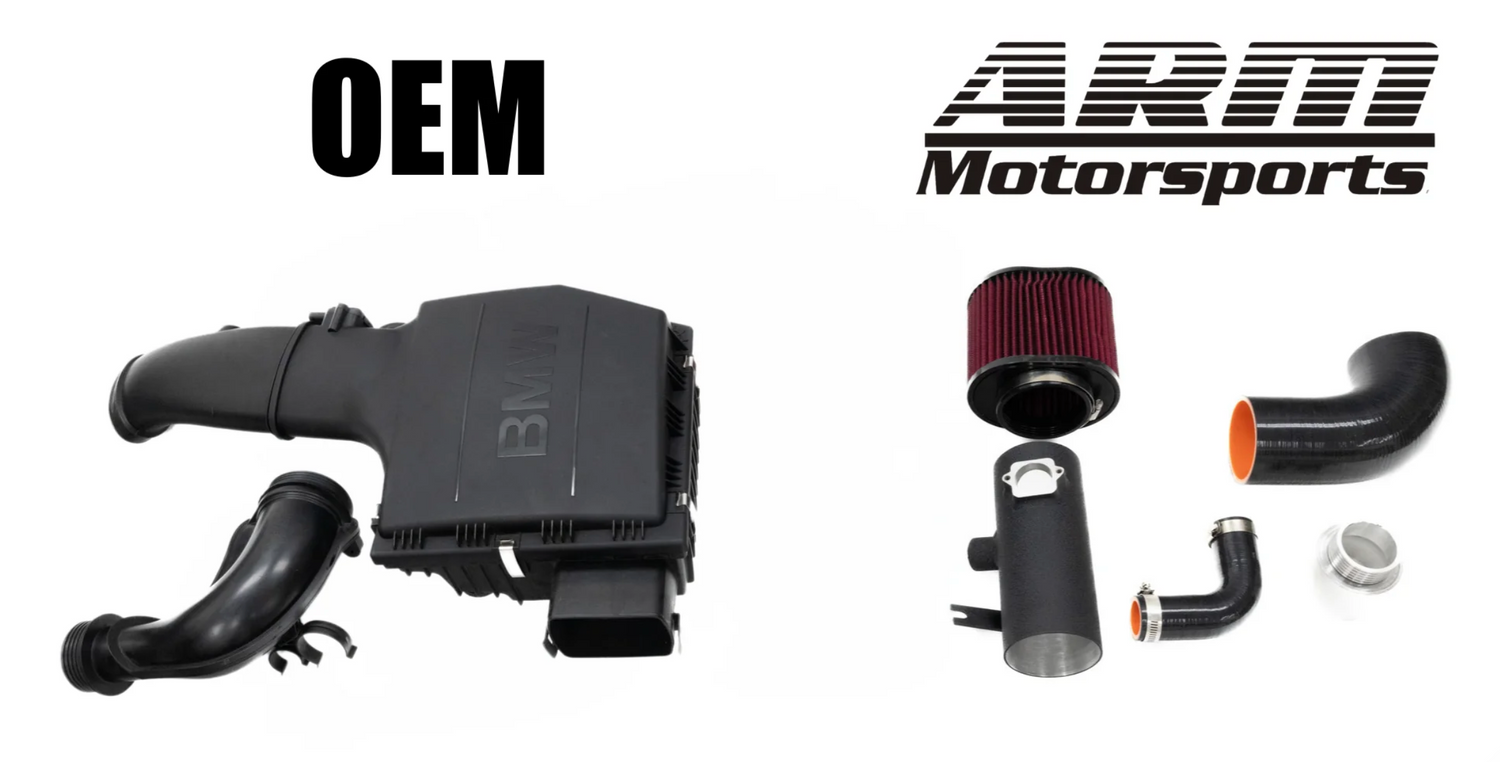

The ARM N55 Intake is a complete induction solution for the N55 found in the E9X chassis!  From the turbo to the air filter the entire system has be redesigned to improve airflow and turbo spool, resulting in more power and better throttle response for your N55 powered BMW.  The ARM N55 Intake shortens the induction pathway from the OEM setup by 68%.  By moving the air filter to behind the headlight area, the path of airflow from the high-flow performance filter to the turbo is greatly improved.

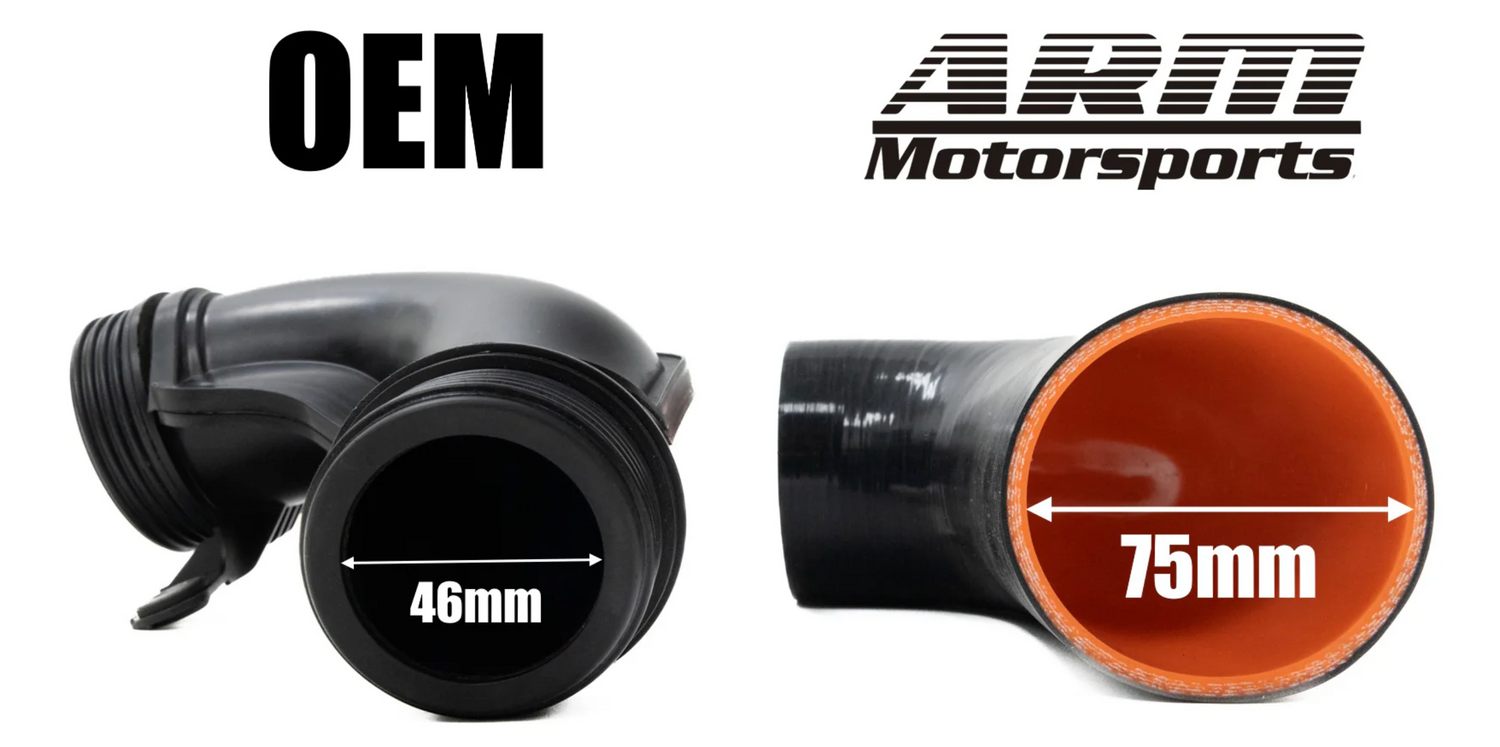

To make this happen we completely redesigned the N55 turbo inlet.  The ARM N55 Inlet inserts into the OEM turbo with factory-like precision.  It then rapidly expands to 3" and this size is maintained throughout the rest of the intake all the way to the high-flow air filter.  While the OEM N55 inlet reduces to 46mm before the turbo inlet, the ARM N55 Inlet measures in at 75mm, a 63% increase over OEM.

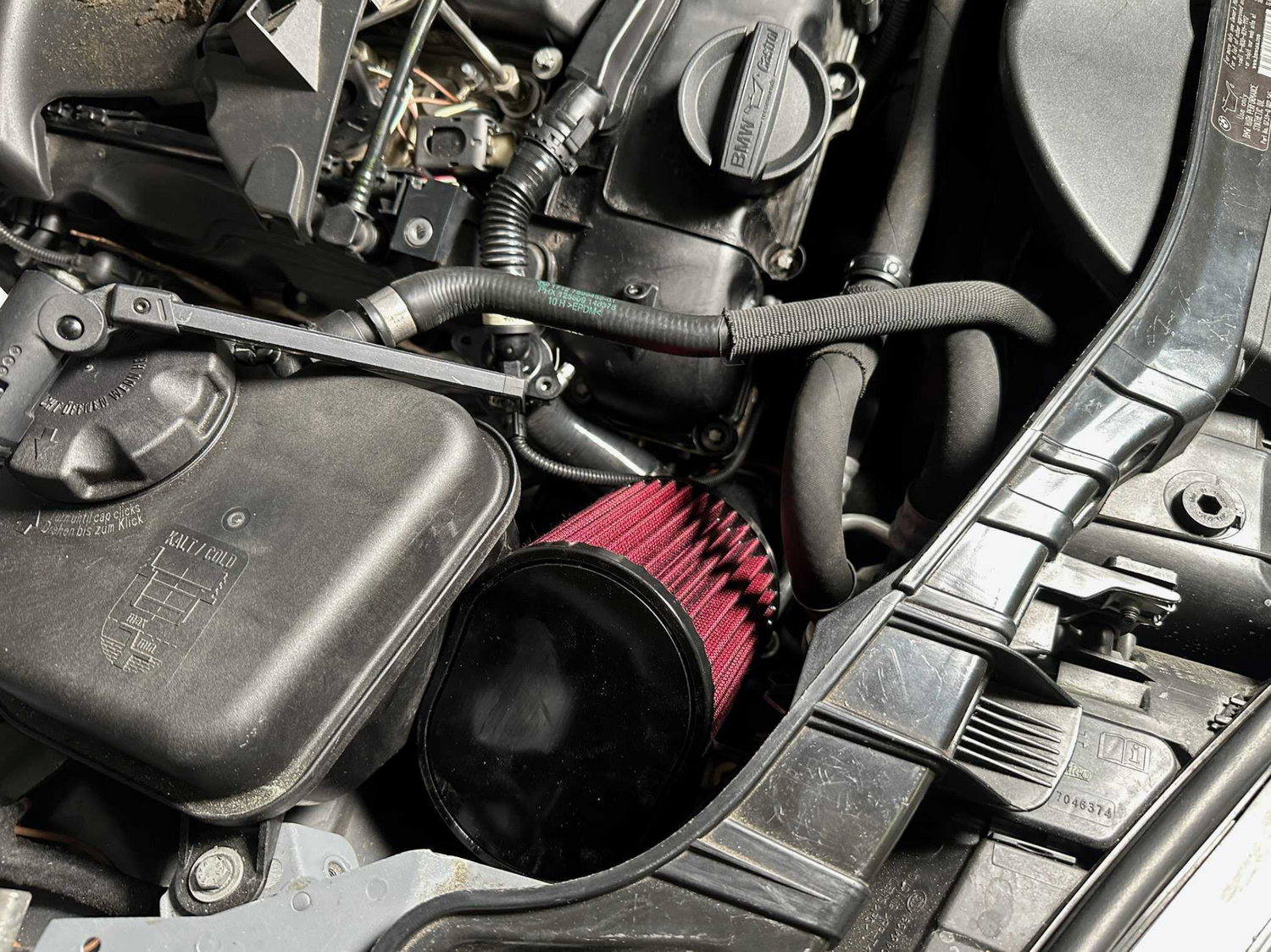

The ARM N55 Intake utilizes the largest possible air filter for the location behind the passenger side headlight.  This air filter measures a full 124 cubic inches of filter surface area, in an oval design to allow it to fit in-between the headlight housing and coolant expansion tank.

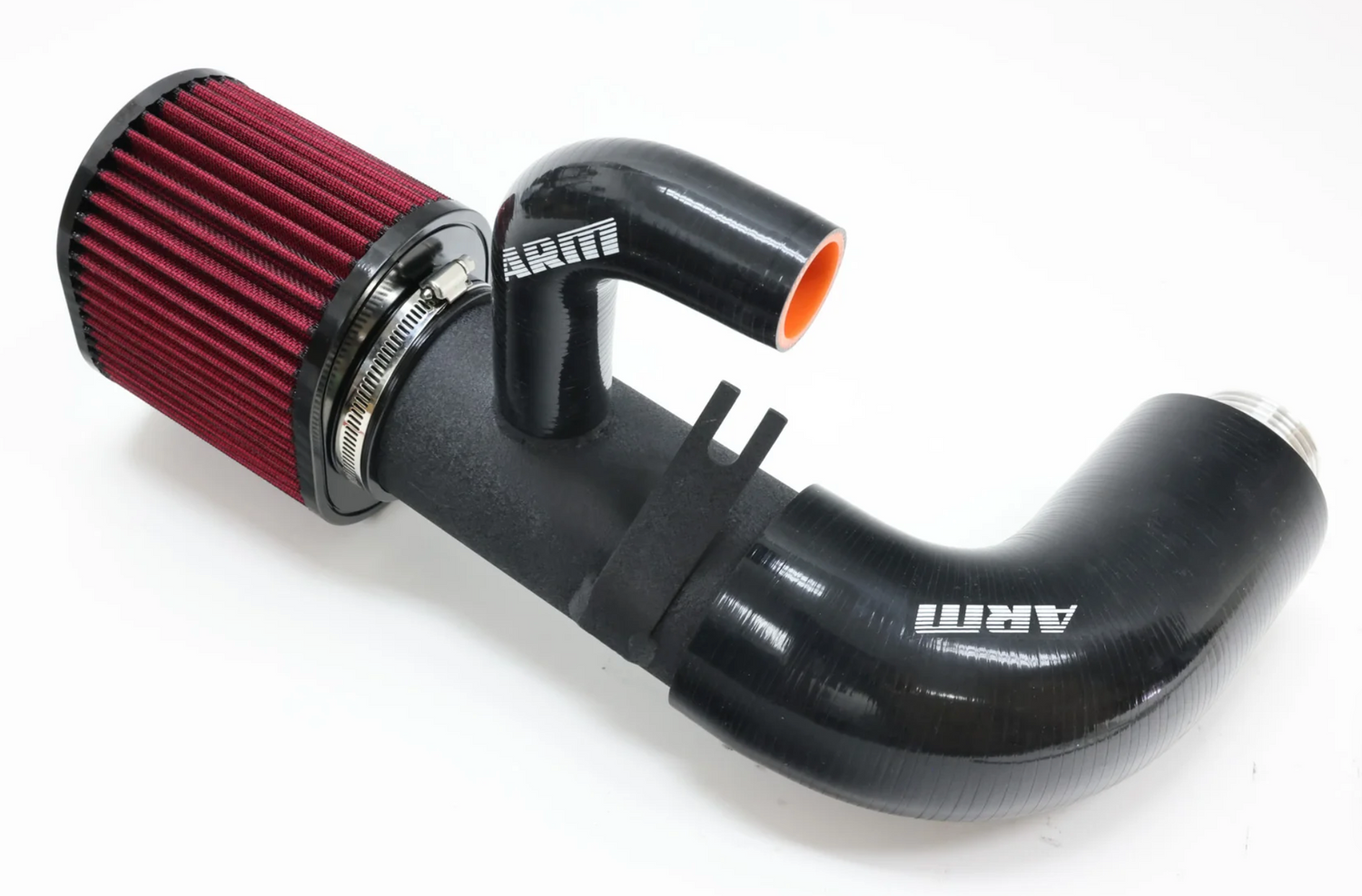

At the center of the ARM N55 Intake is the primary intake runner pipe which has several important design features.  Firstly, it is where the MAF sensor is relocated, utilizing a CNC machined MAF flange which provides a secure seal between the two components.  Secondly, the ARM N55 Intake includes a PCV port on the intake tube to reconnect the PCV line.  This allows for proper function of the OEM PCV system.   Lastly, the ARM N55 Intake is designed with an open-ended bracket to keep the filter stable and secure during aggressive driving.

In order to relocate the filter to the front of the headlight we have included a MAF extension harness so there is no cutting or splicing of wires.  This harness simply clips into the original harness near the back of the engine and extends all the way to the new position for the MAF sensor on the precision machined ARM N55 MAF housing on the intake pipe.

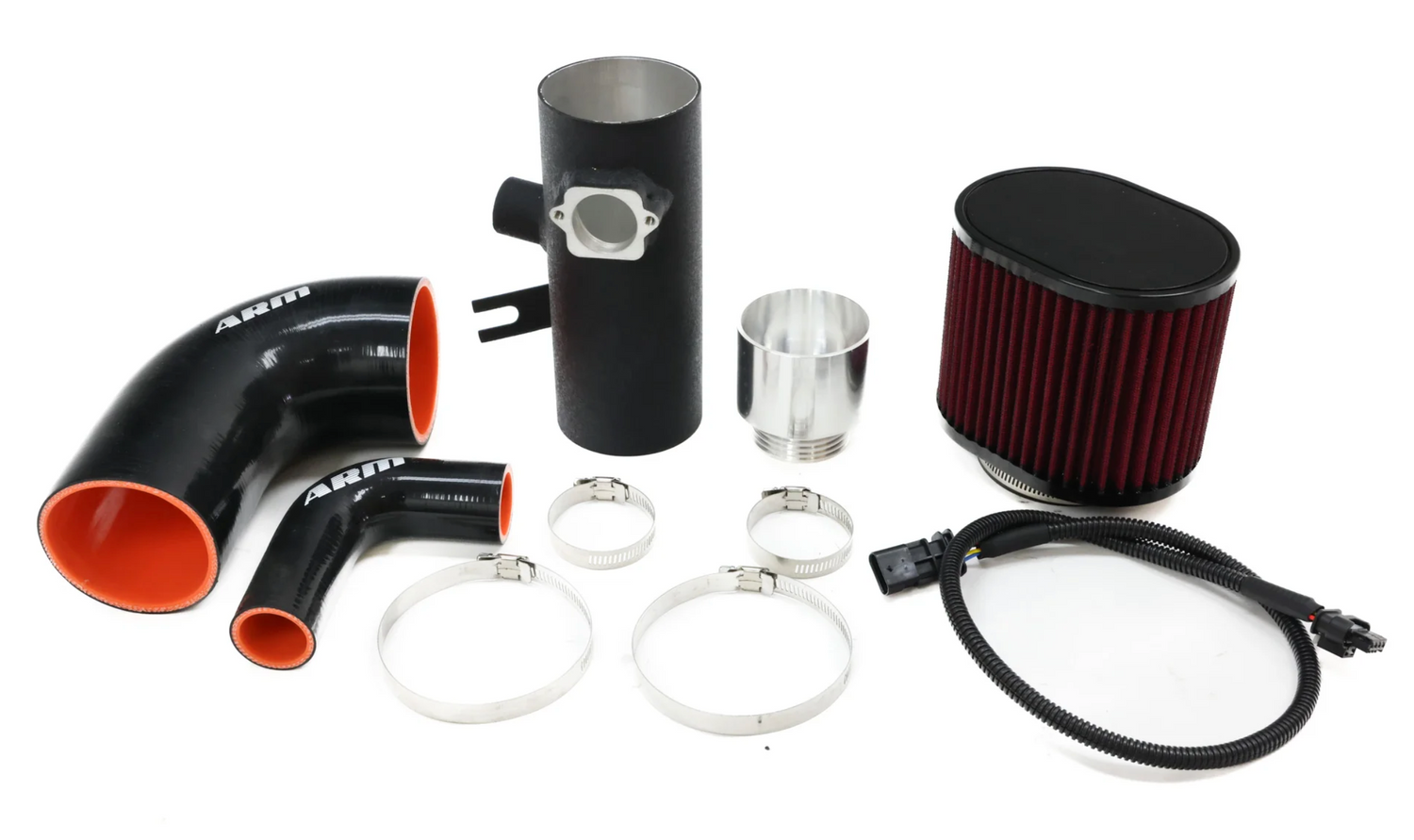

IN THE BOX

• ARM N55 Turbo Inlet Adapter
• ARM Intake Silicone Coupler
• ARM Intake Runner Pipe
• ARM High-Flow Air Filter
• ARM PCV Hose
• MAF Extension Harness
• Clamps
