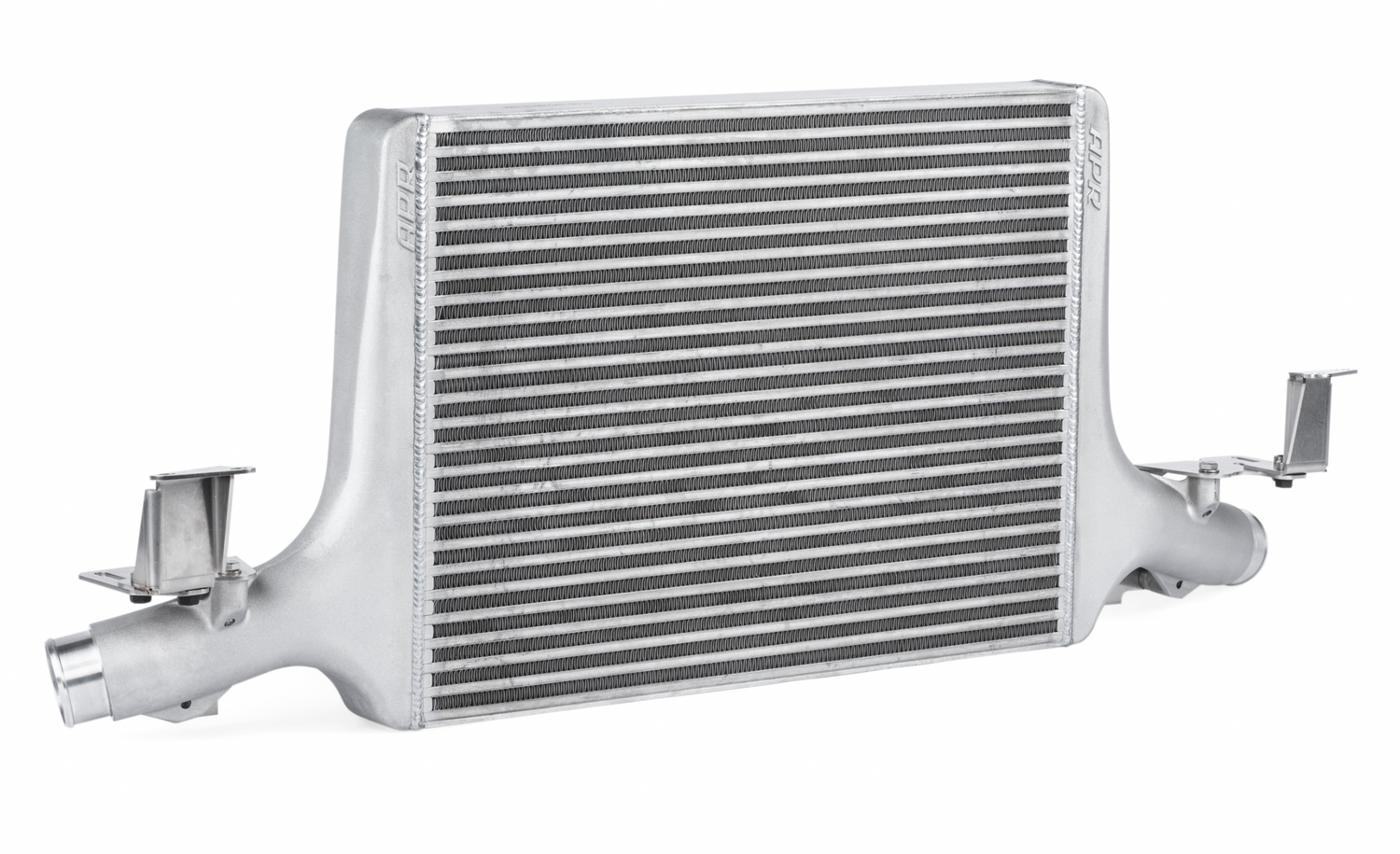

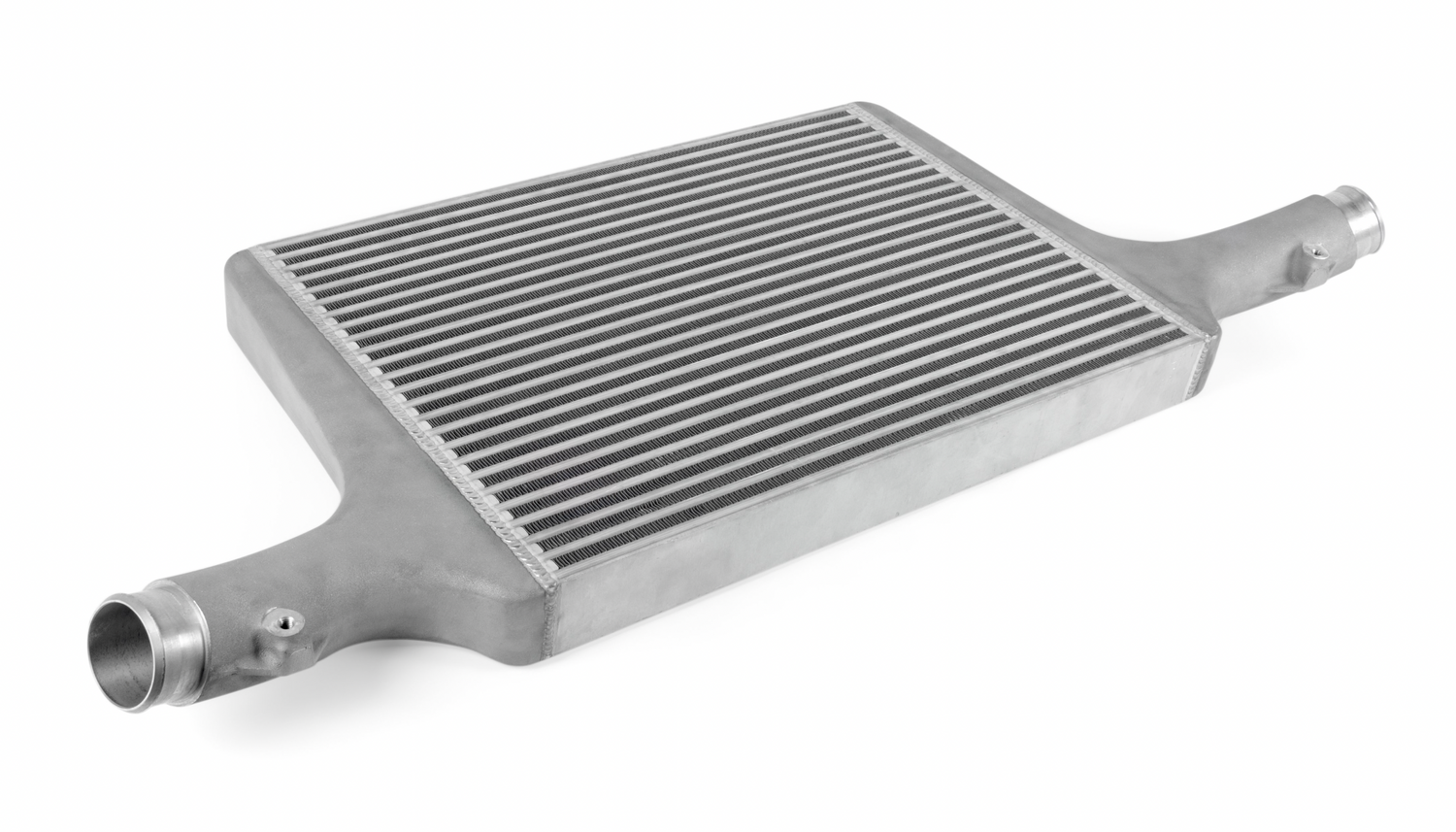

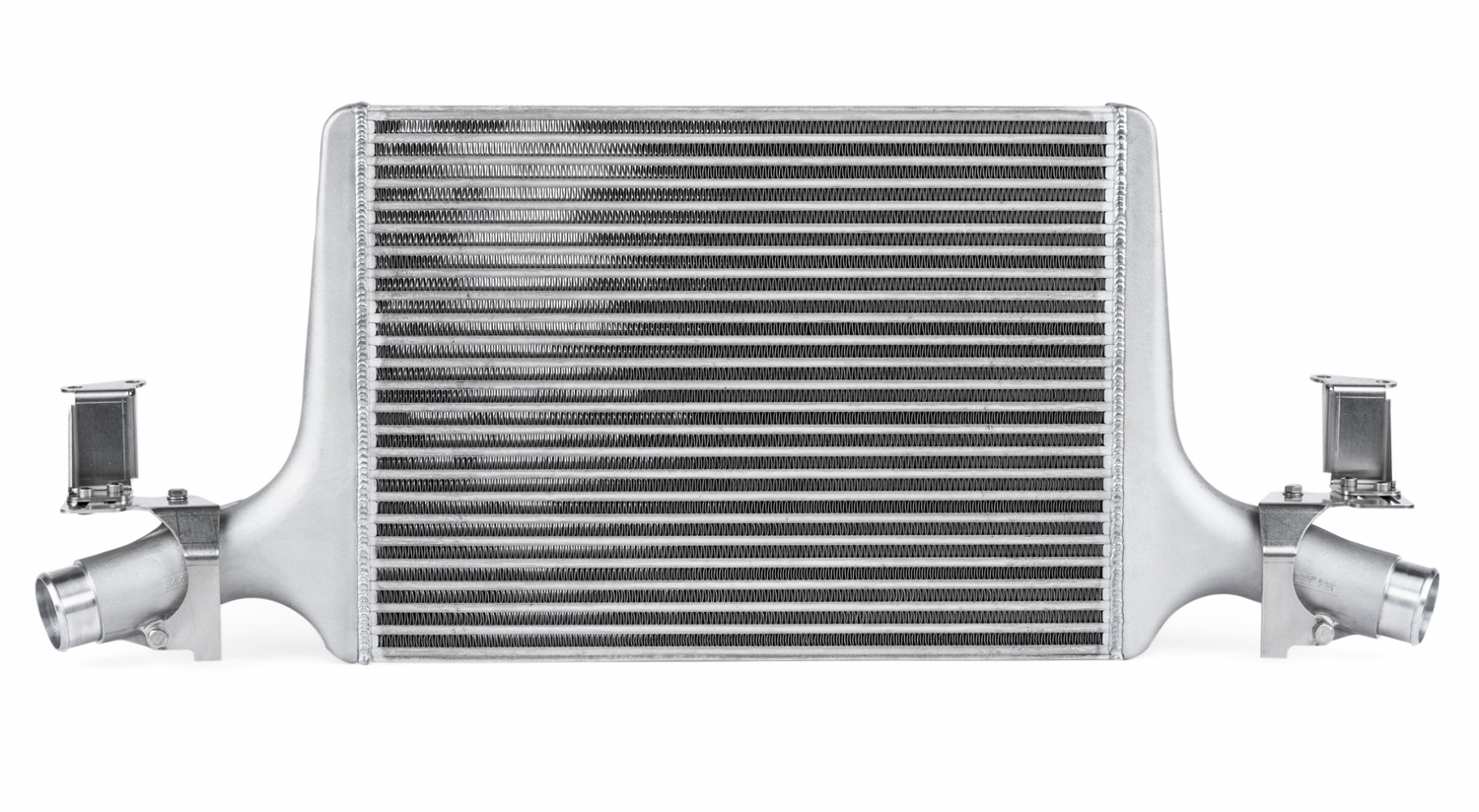

APR® (18-24) Audi SQ5 801.90 in³ Core Intercooler System
PLEASE CONTACT SUPPORT TO CONFIRM INVENTORY
APR® (18-24) Audi SQ5 801.90 in³ Core Intercooler System is backordered and will ship as soon as it is back in stock.
Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)
Email: info@10SecondRacing.com (24/7)
Free Shipping to Lower 48 US States ($100+)
Worldwide Shipping via UPS (Check Rates at Checkout)

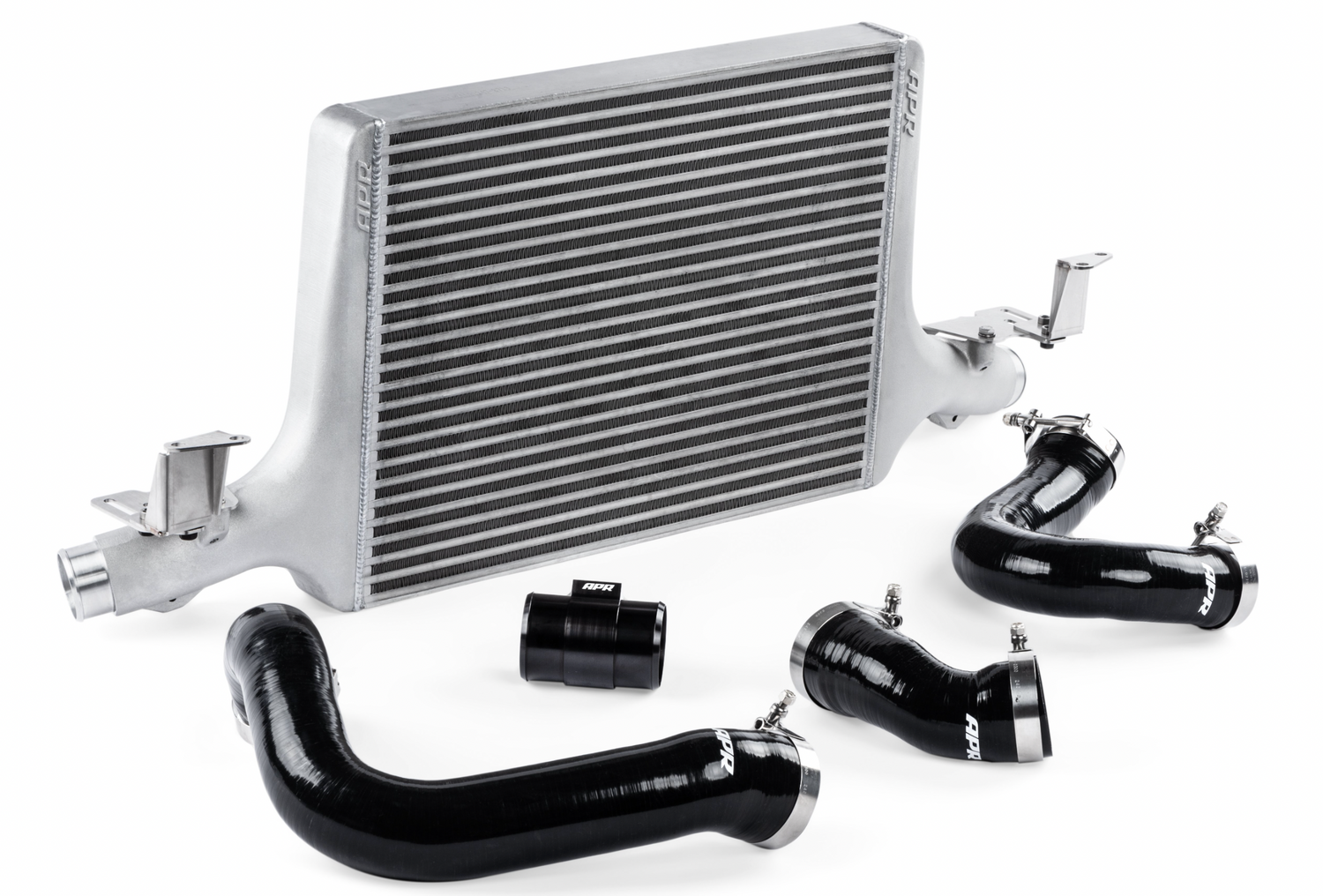

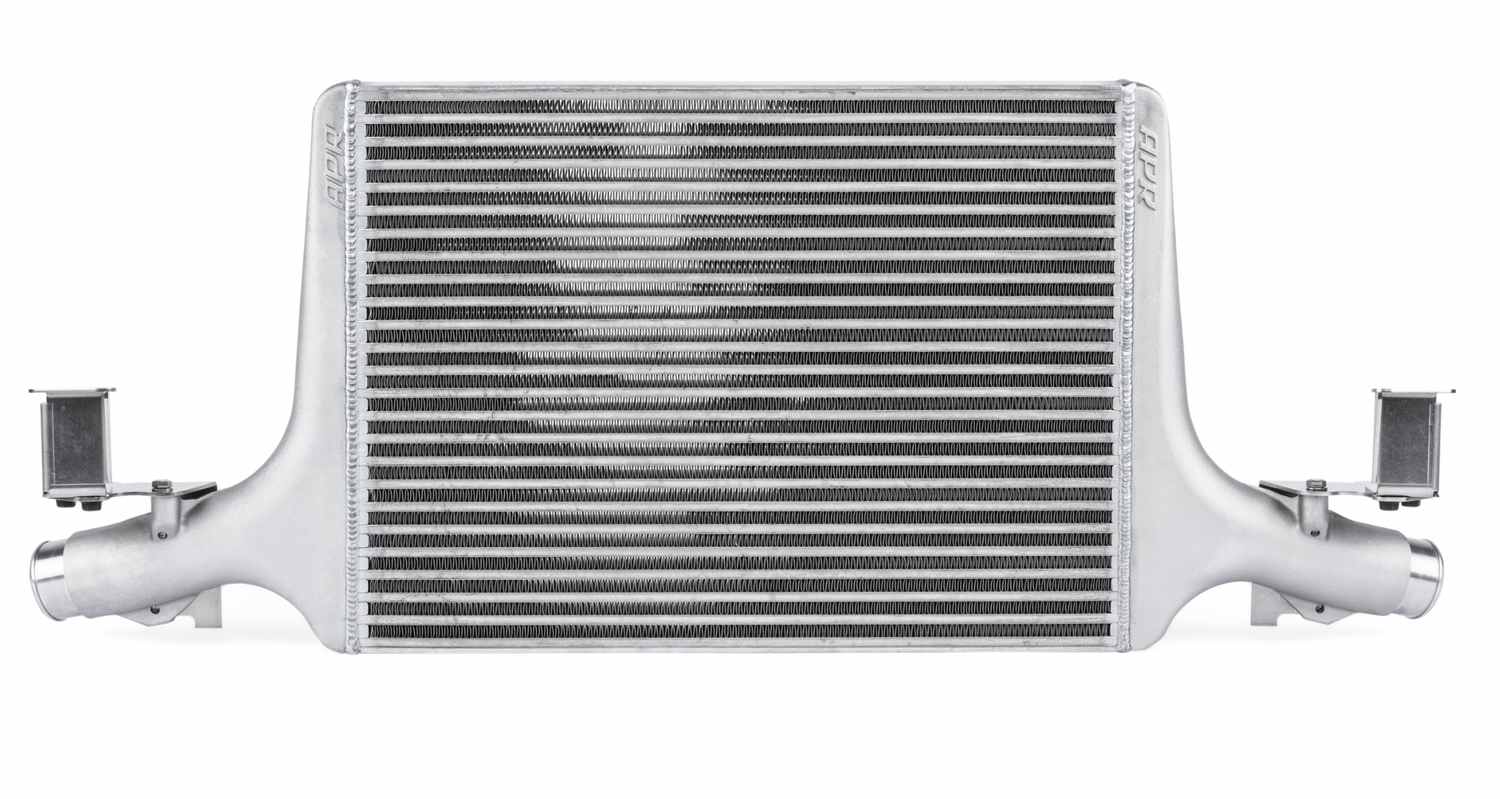

APR® (18-24) Audi SQ5 801.90 in³ Core Intercooler System
Description
Description
Compatible: (3.0L)
2018 - 2022 Audi SQ5
2021 - 2022 Audi SQ5 Sportback
THIS PRODUCT CANNOT BE SHIPPED TO CALIFORNIA
- Dramatically lowers intake air temp (IAT)
- The factory intercooler reaches dangerously high IAT levels, even on the stock ECU!
- Massive frontal surface area and core volume
- 3.125" x 5.75" x 28.25" - 162.4 in² front. & 507.62 in³ volume - OEM
- 2.250" x 16.2" x 22.00" - 356.4 in² front. & 801.90 in³ volume - APR
- Highly effective core design

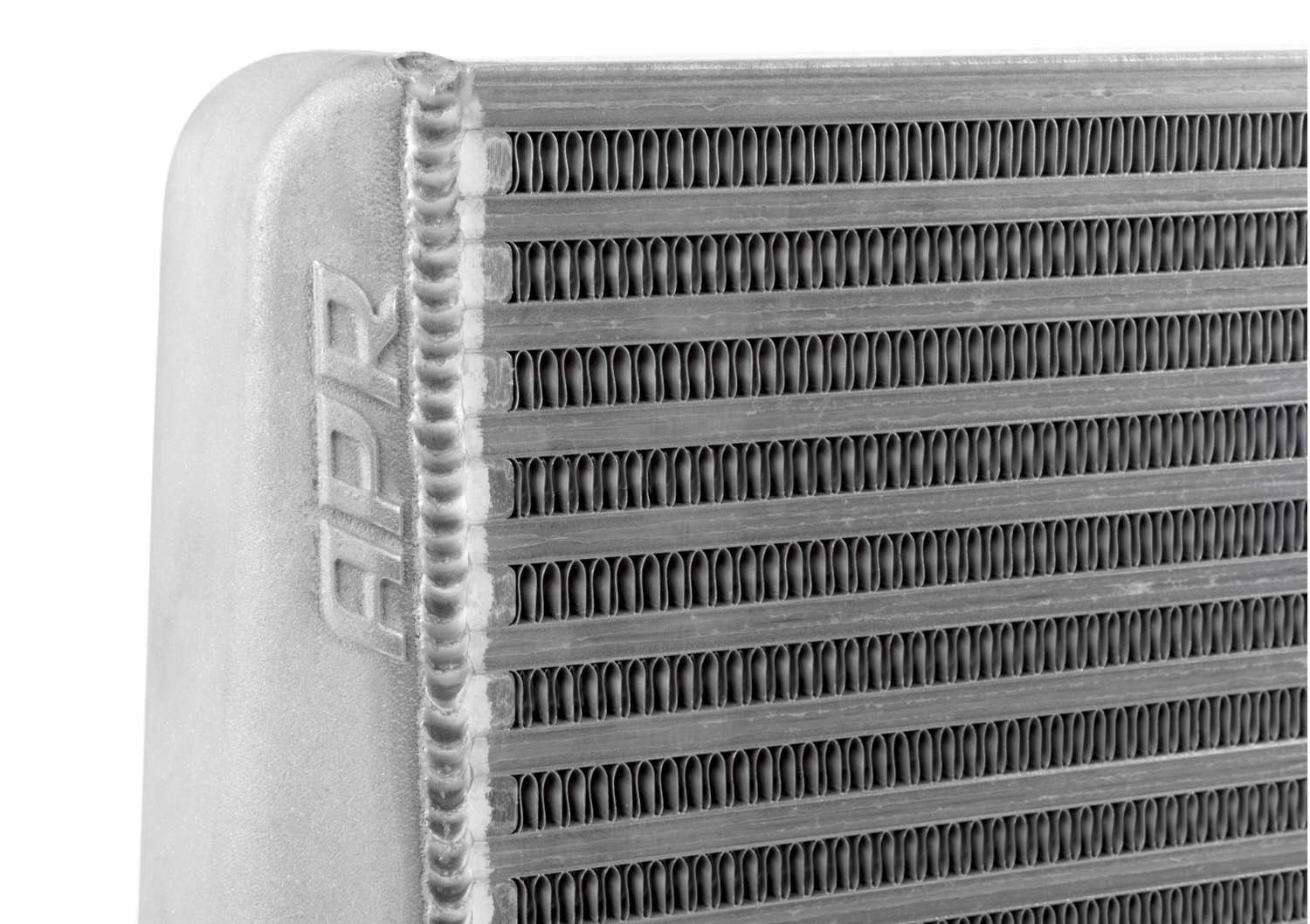

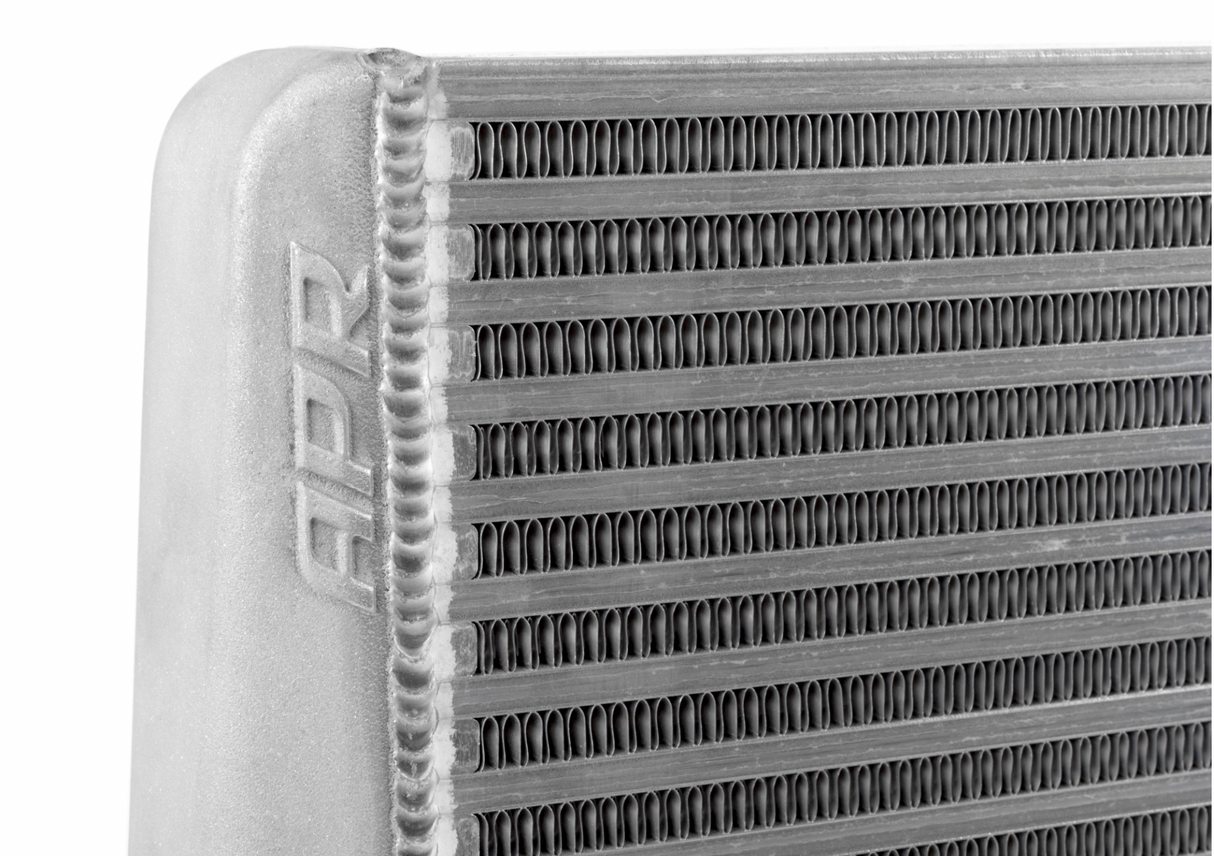

- Bar-and-plate core with staggered and louvered fins.
- Rigorous testing determined core style, fin density, and size.
- Low pressure drop + highly effective cooling = high performance!

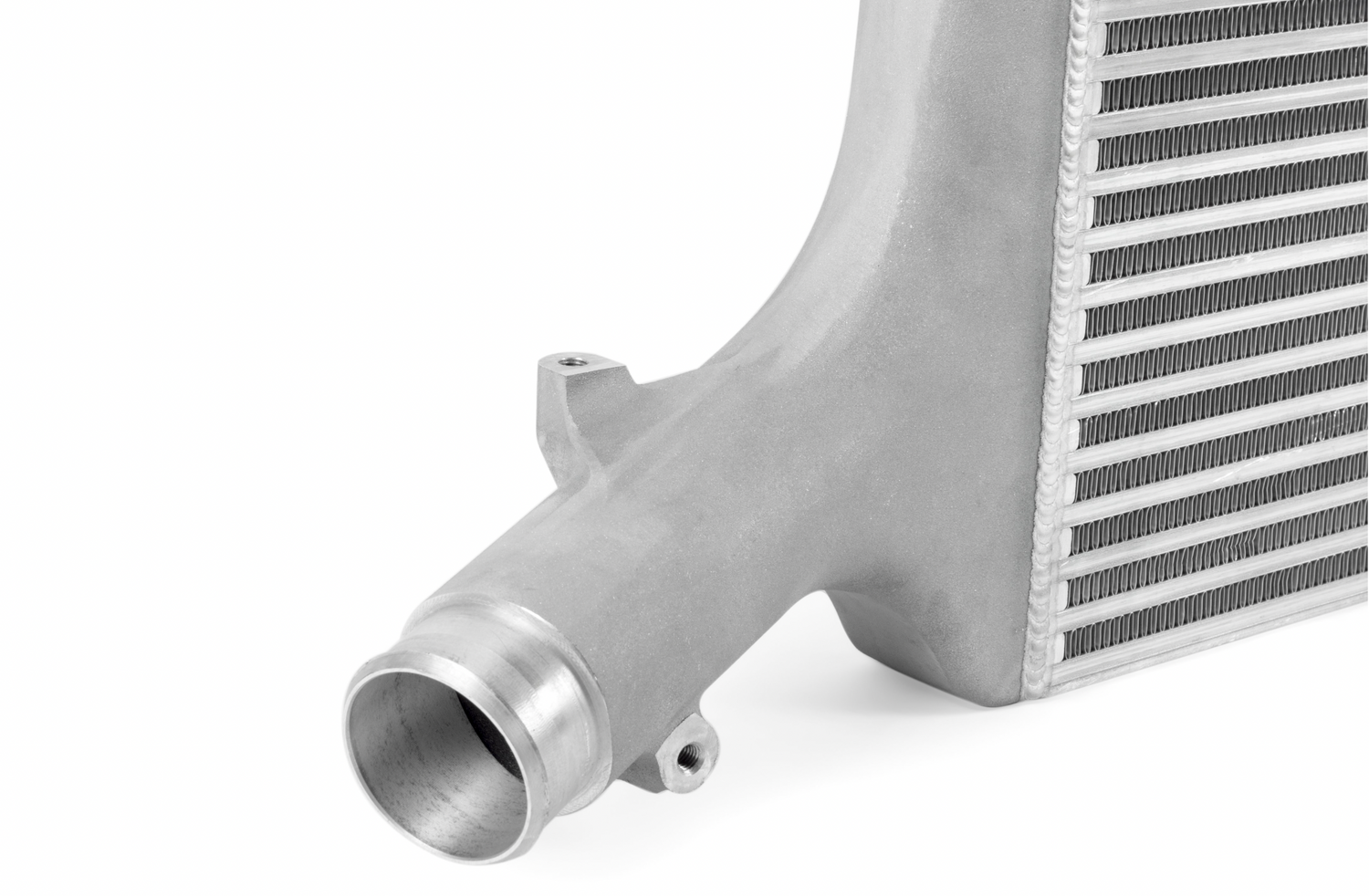

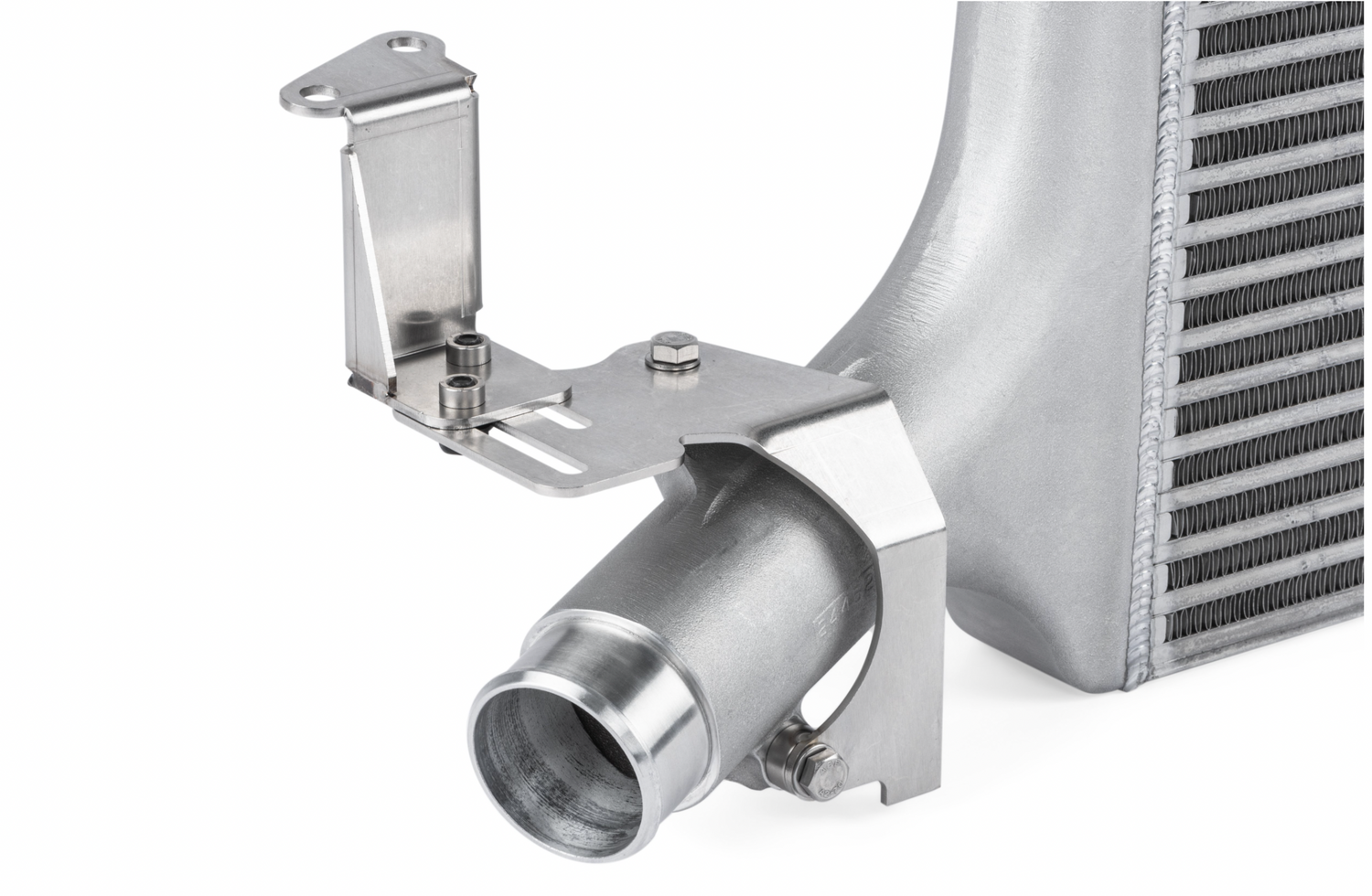

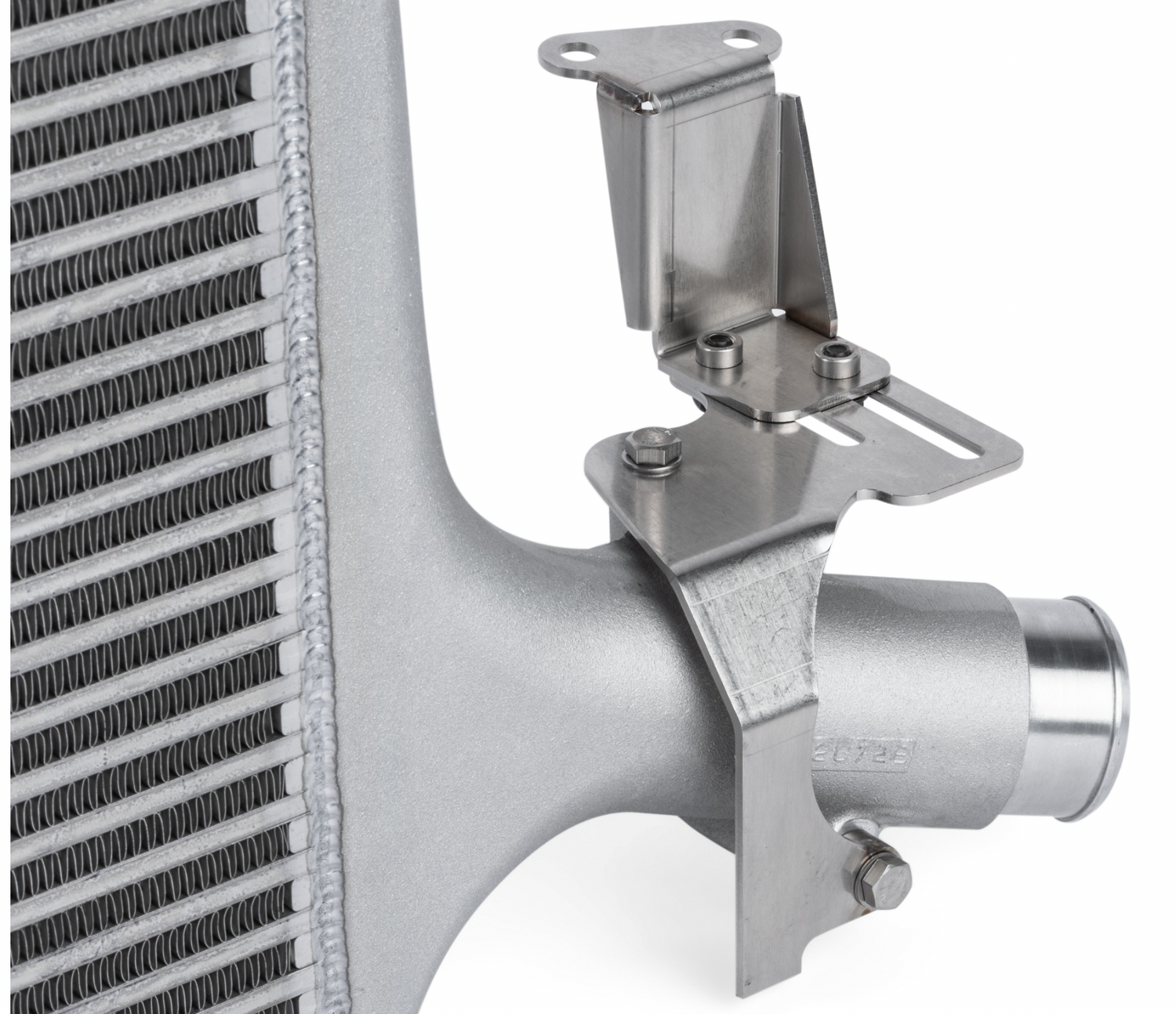

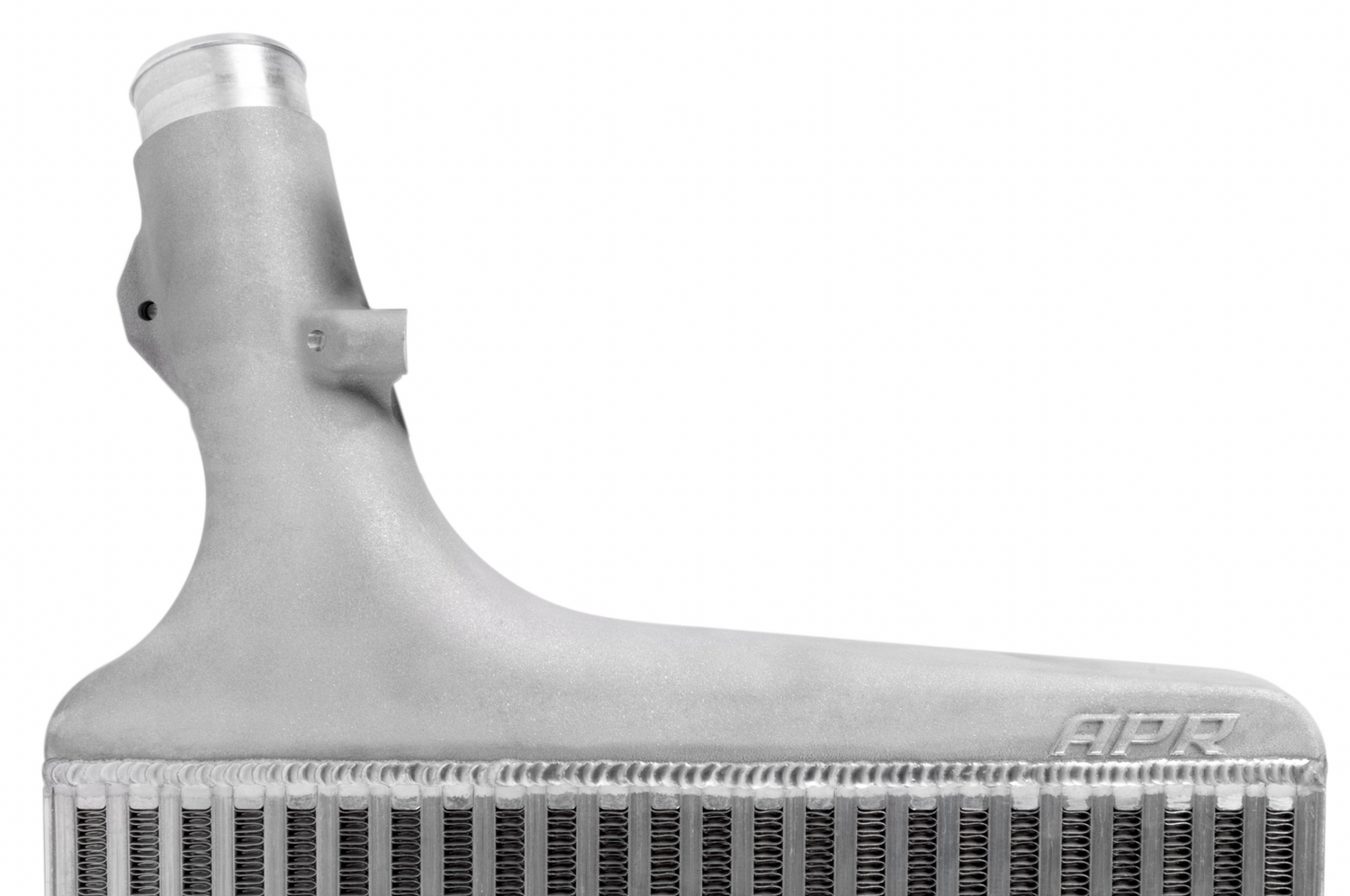

- Smooth cast end tanks Engineered for low turbulence/restriction and maximum flow.
- Organically shaped to promote airflow across entire core.
- Pressure tested to prevent power robbing boost leaks.

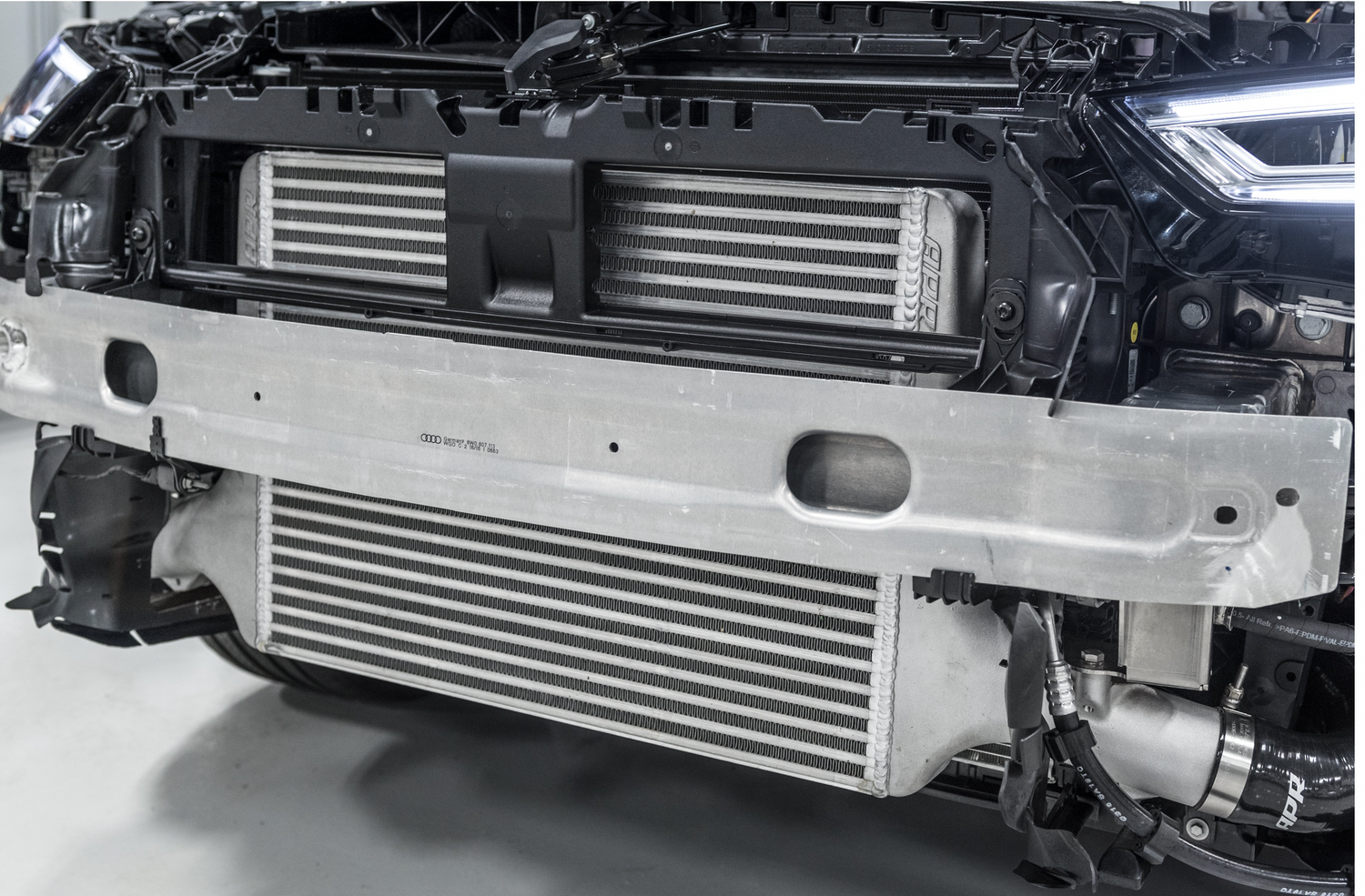

- Easy to install
- Simple plug-and-play design with no trimming or drilling necessary!
- Designed by engineers with lasers
- With the best equipment and smartest engineers, it just works!
| Brand | APR |
|---|---|
| Color | Silver / Natural |
| Cooler Type | Air to Air |
| Core Frontal Area (in^2) | 357.50 |
| Core Height (in) | 16.25 |
| Core Type | Bar and Plate |
| Core Volume (in^3) | 804.38 |
| Core Width (in) | 2.25 |
| 22 | |
| Direct Fit | Yes |
| Emission Code | 7 |
| End tank Construction | Cast |
| End tank Material | 356-F Aluminum |
| Hose Clamp Type | T-Bolt |

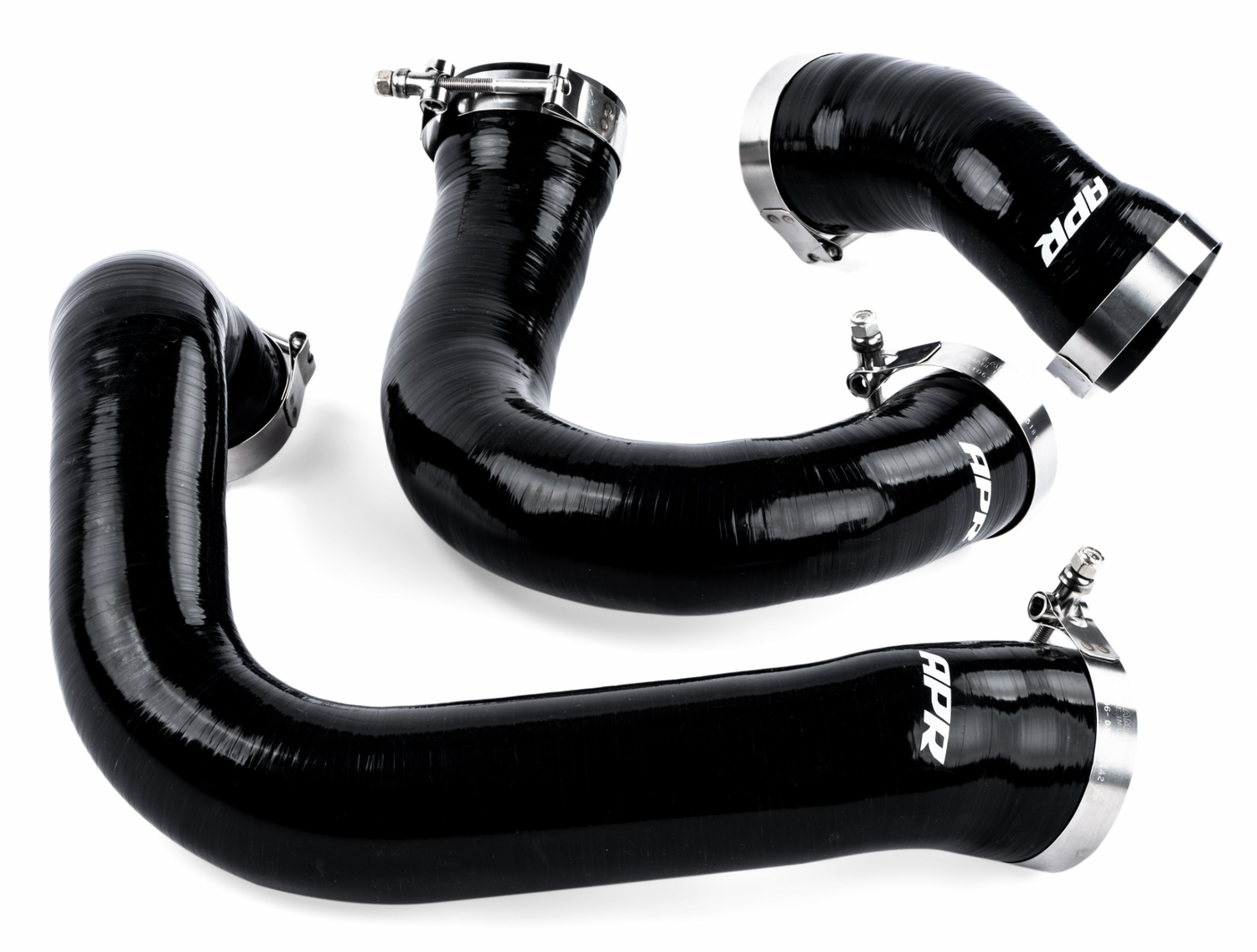

| Hose Type | Silicon |
| Product Type | Charge Air Cooler |
| Welding Type | TIG |
| UPC | 810009933083 |

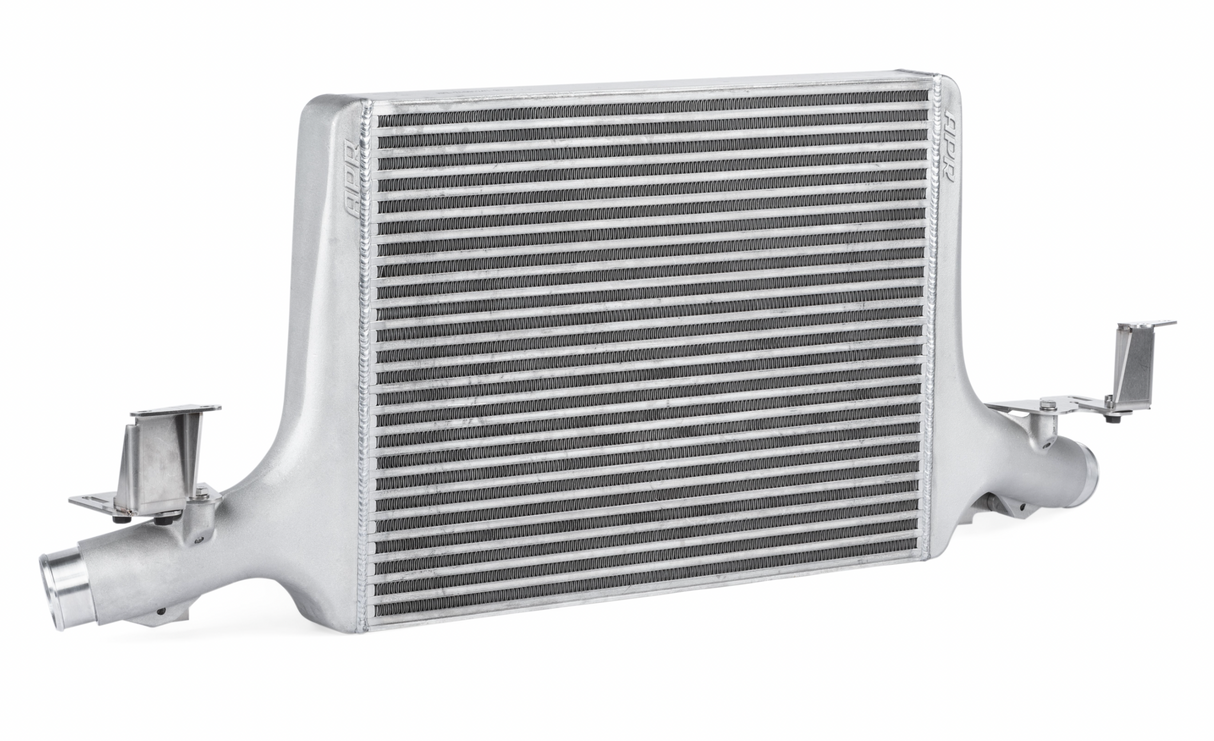

| Part Number | IC100026 |
Founded in 1997, APR is the global leader in performance aftermarket products for Volkswagen, Audi, Seat, Skoda, Porsche, and other vehicles. APR develops and manufactures hardware, software, calibration & data-logging tools for engine and transmission controllers, including intakes, exhaust systems, intercoolers, turbocharger systems, suspension, brake systems, wheels, and more. APR delivers software via a 24-hour automated global delivery system from its 80,000 square foot state of the art facility in Opelika, Alabama.
Install Guide:
Warranty:
