APR®  |  SKU: MS100195

APR® (17-22) Audi RS3/TT RS 980cc Multi-Port Injection Kit

PLEASE CONTACT SUPPORT TO CONFIRM INVENTORY

£98.40
Shipping calculated at checkout.

Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)

Email: info@10SecondRacing.com (24/7)

Free Shipping to Lower 48 US States ($100+)

Worldwide Shipping via UPS (Check Rates at Checkout)

This is a Sample Product Title
Was $200.00 Now $100.00

Description

Compatible: (2.5L)

2017 - 2022 Audi RS3

2018 - 2021 Audi TT RS Quattro




THIS PRODUCT CANNOT BE SHIPPED TO CALIFORNIA



On the 2.5 TFSI EA855 EVO the injector is plug-and-play with software. On the EA888 Gen 3, the injector is plug-and-play, with software, on models that include factory MPI injection. On models without factory MPI injection, more components are required. If used for methanol injection, the valves must be flushed with standard gasoline after use.

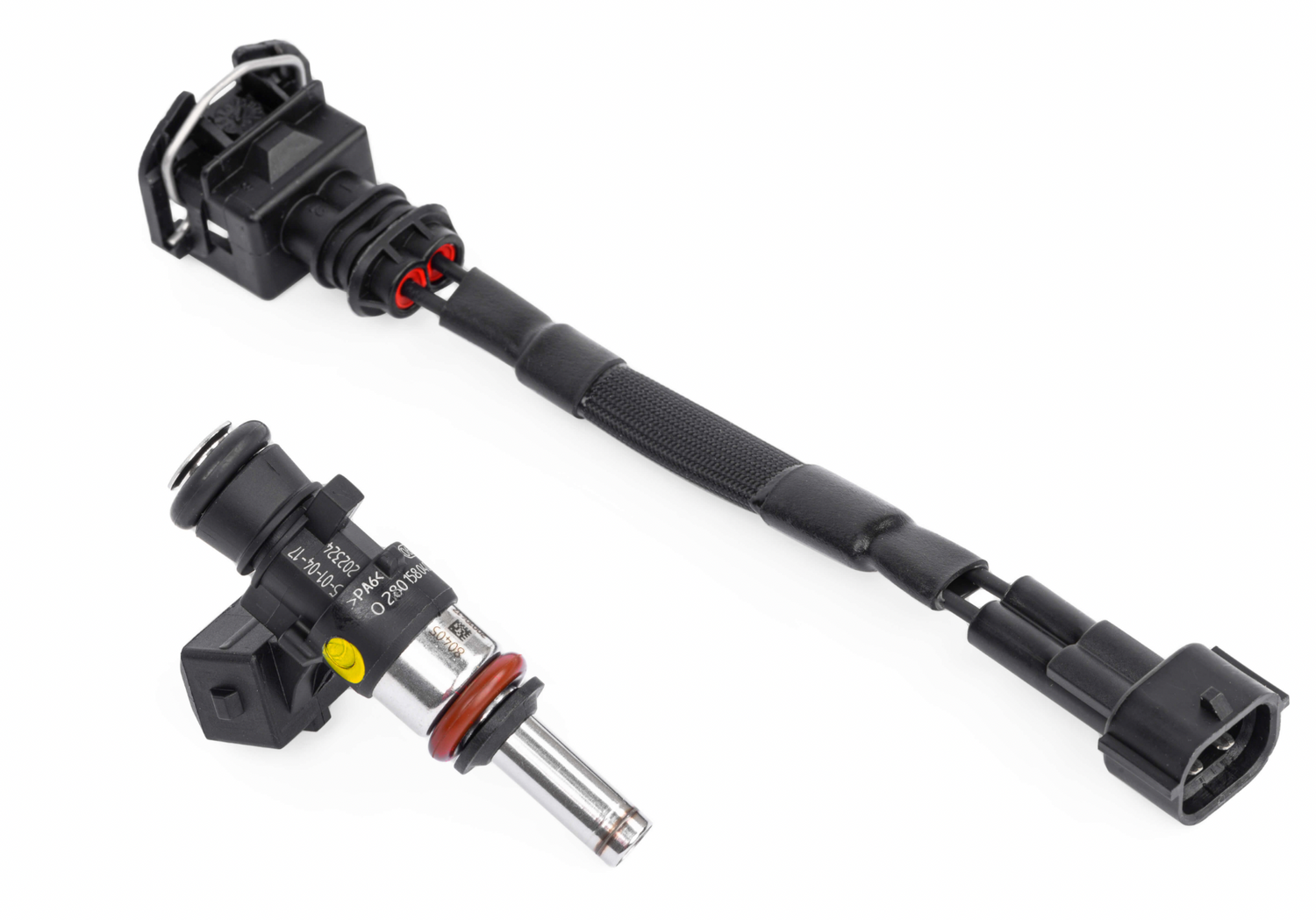

High horsepower configurations often require more fuel, especially on applications where ethanol is used. The APR 980cc MPI Injector Upgrade Kit includes an upgraded high-flow multiport injection (MPI) injector and harness necessary to satisfy high horsepower builds. The kit uses a compact and extended tip Bosch EV 14 injector that supports Ethanol and Methanol and flows 980cc/min at 3 bar. A high quality 2 wire harness with braided wire sheathing converts the Bosch Jetronic connector to the necessary factory style connector making this upgrade plug-and-play with an associated ECU upgrade.

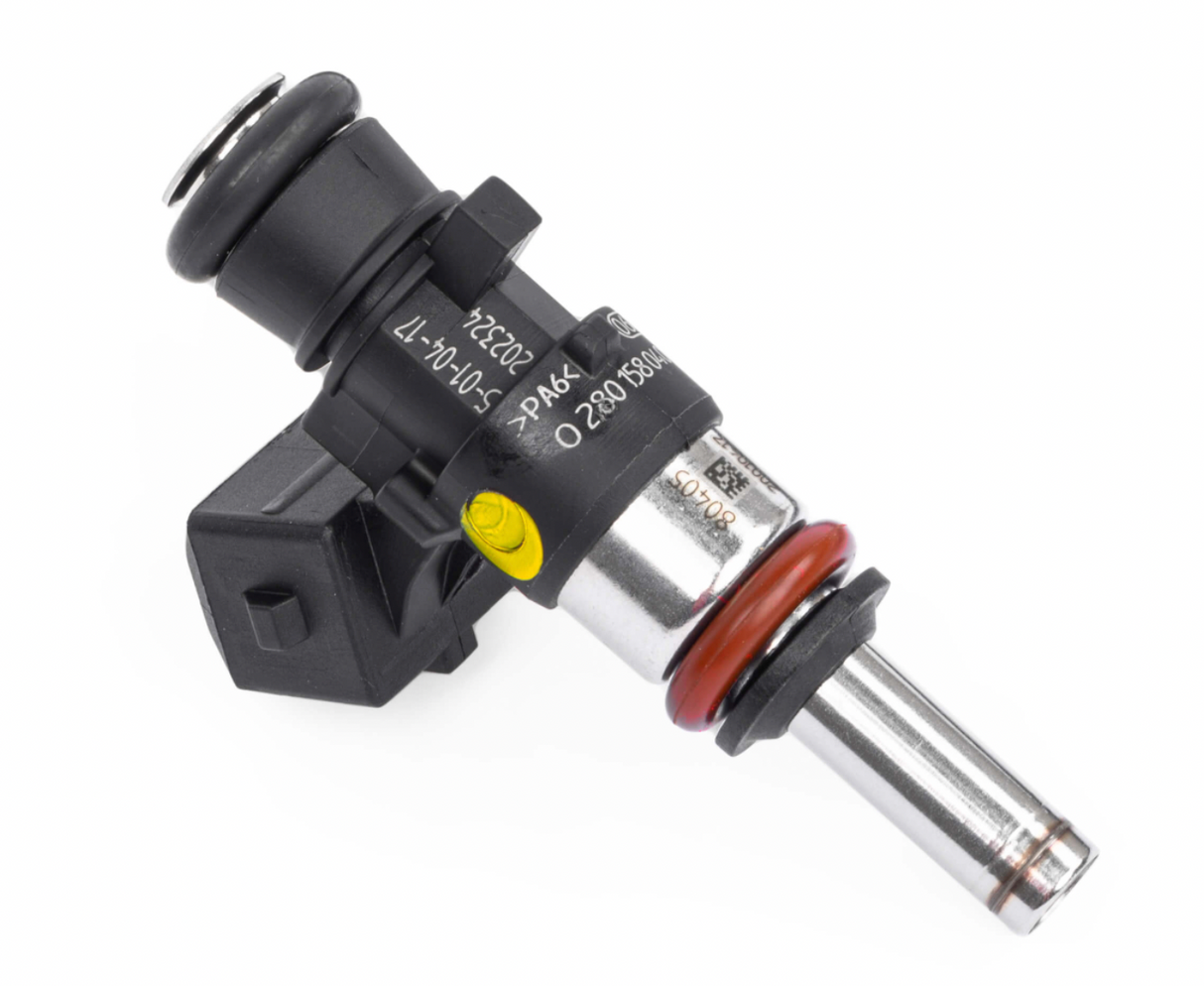

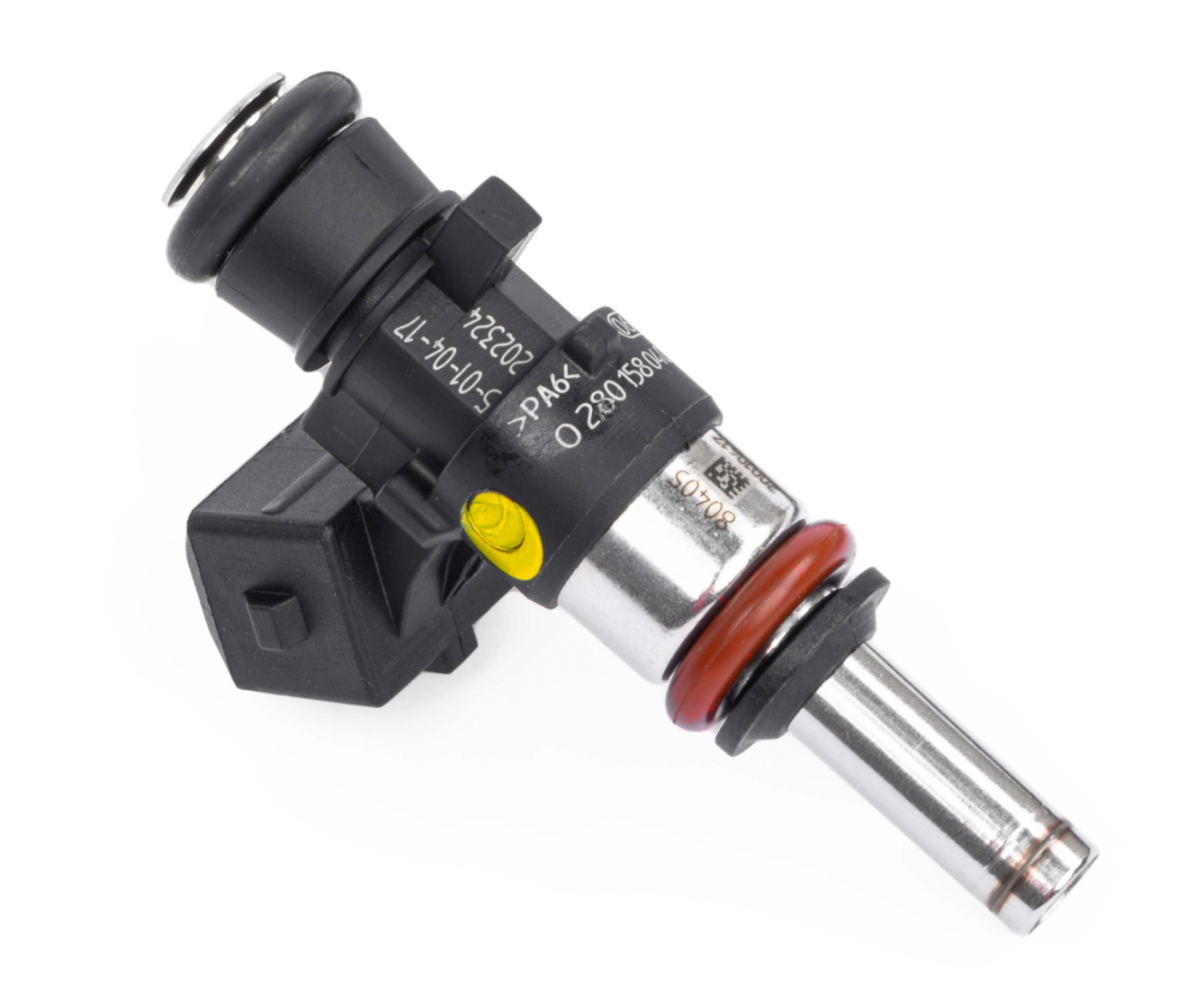

  • Bosch EV 14 CKxT MPI injector (0280 158 040)

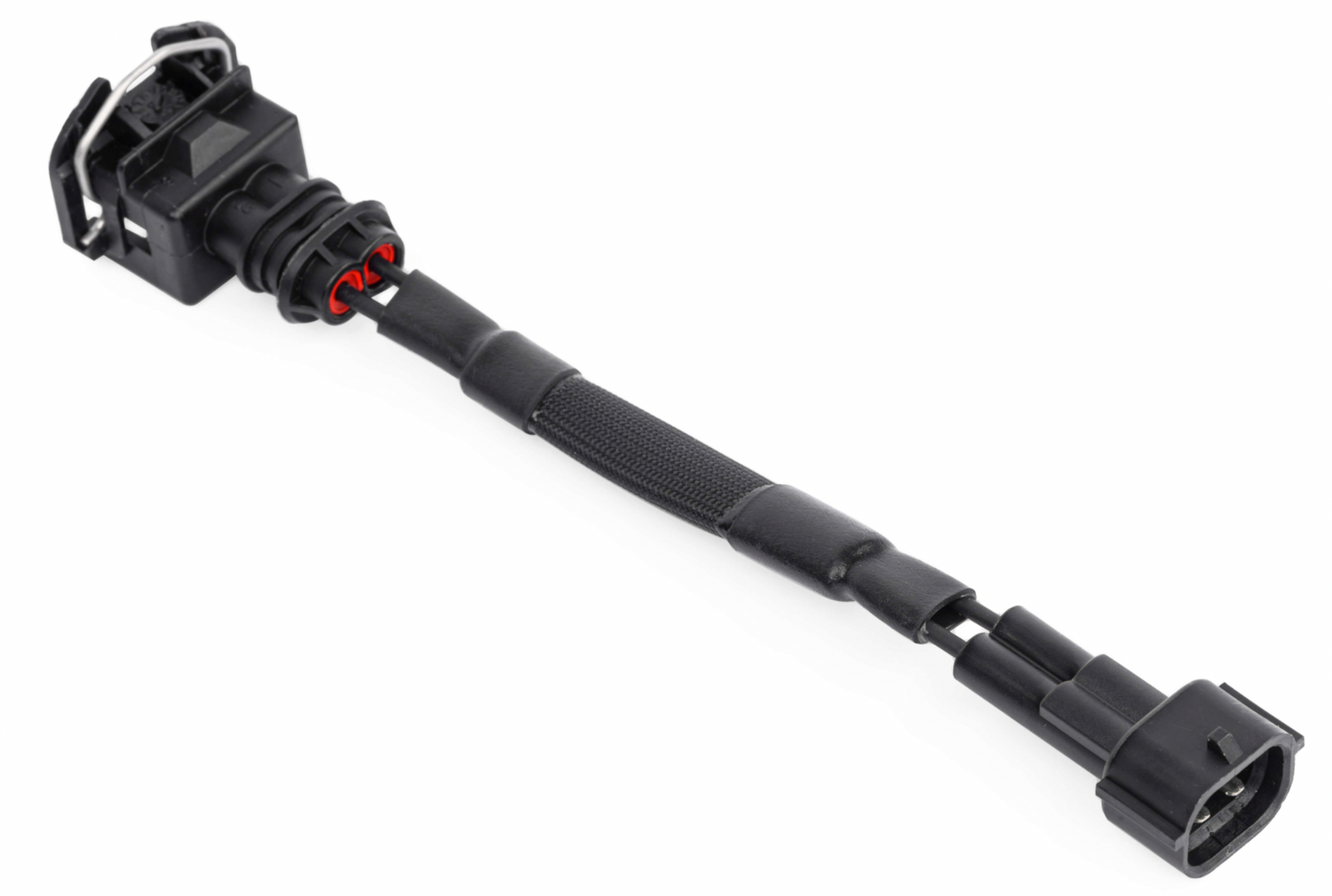

  • APR Bosch Jetronic to OEM 2 pin harness
  • 980cc/min, 670g/min, or 89lb/hr @ 3 bar (n-heptane)
  • Supports up to 8 bar of use in motorsport configurations
  • E85 and M100 compatible
  • 30° single cone spray angle with 0° bent angle and 0° gamma angle
  • 33.6mm compact body

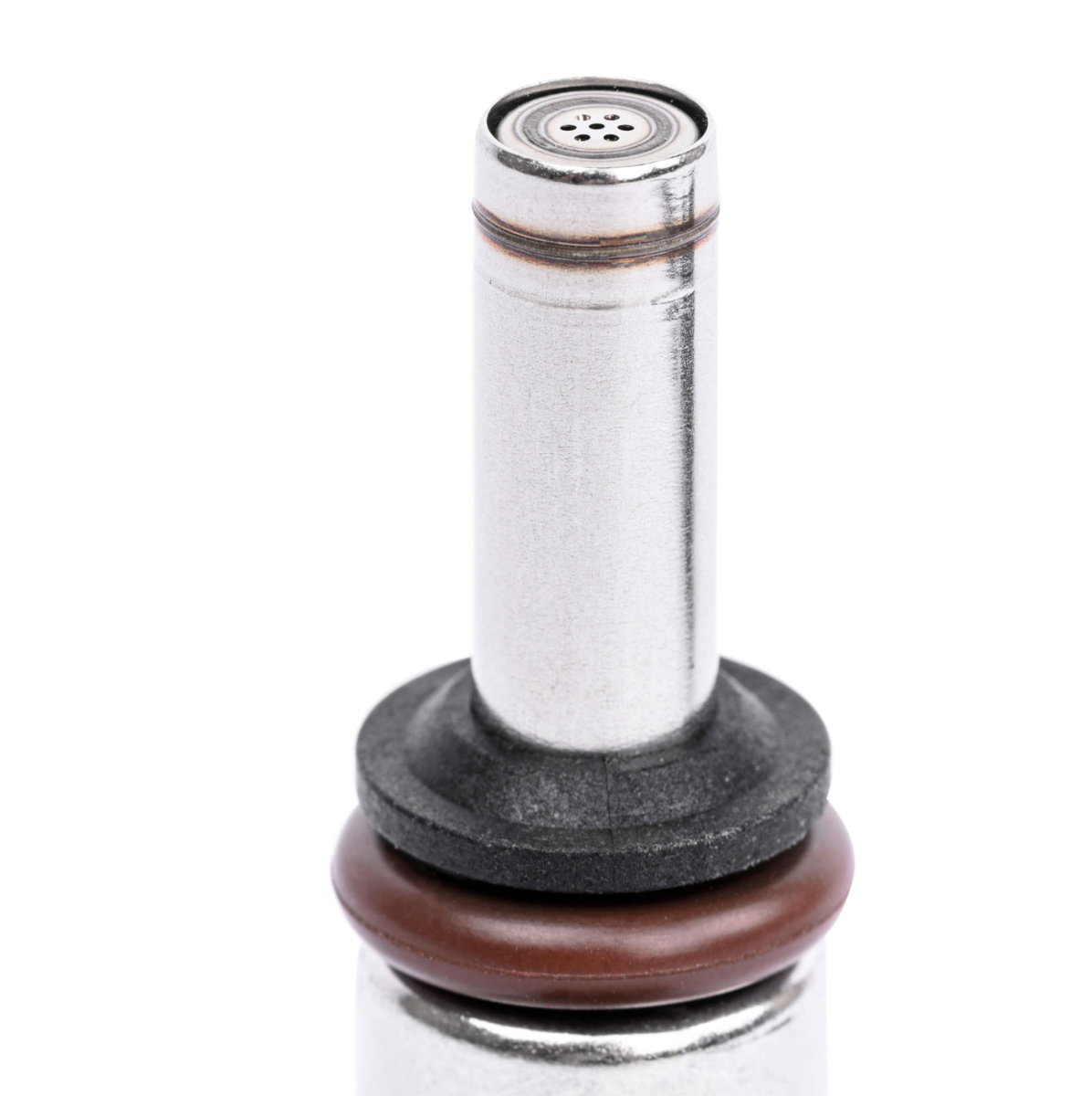

  • 24mm extended tip nozzle
  • Top-feed injector
  • 12 ohm coil resistance
  • 150 mm long harness with braided wire sheathing
  • ECU software required for use
  • Plug-and-play on 2.5 EA855 EVO & 2.0T EA888 Gen 3, where supported



Brand APR
Connector Bosch Jetronic to OEM
Direct Fit Yes
Emission Code 7
Max Pressure (Bar) 8
MPI Injector CC 980cc/min @ 3 bar
MPI Injector Count 1
Product Type Fueling
UPC 810009932765
Part Number MS100195
