Compatible: (2.0L)
2017 - 2019 Audi A3
2015 - 2020 Audi A3 Quattro
2019 - 2021 Volkswagen Arteon
2015 - 2019 Volkswagen Golf R
2015 - 2021 Volkswagen Golf GTI
2019 - 2022 Volkswagen Jetta
2021 - 2022 Audi Q3
2015 - 2020 Audi S3
2015 - 2022 Audi TT Quattro
2016 - 2022 Audi TTS Quattro
THIS PRODUCT CANNOT BE SHIPPED TO CALIFORNIA

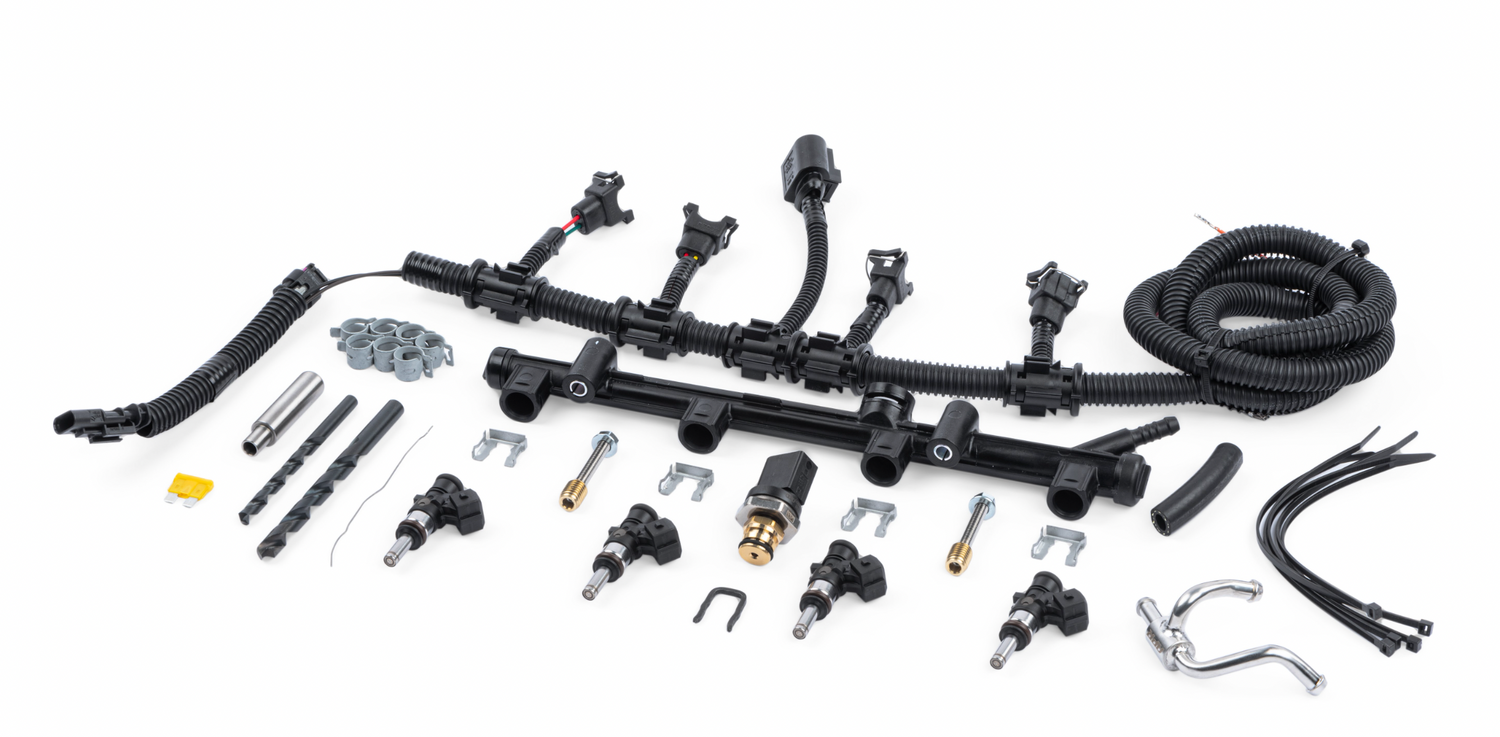

The APR Multi Port Injection (MPI) System includes four 980cc ethanol-compatible Bosch Motorsport MPI injectors, harness, fuel rail, rail sensors, distribution block, and everything needed install the system to the factory intake manifold. This system is designed for use only where required by an APR turbocharger system upgrade with matching software.

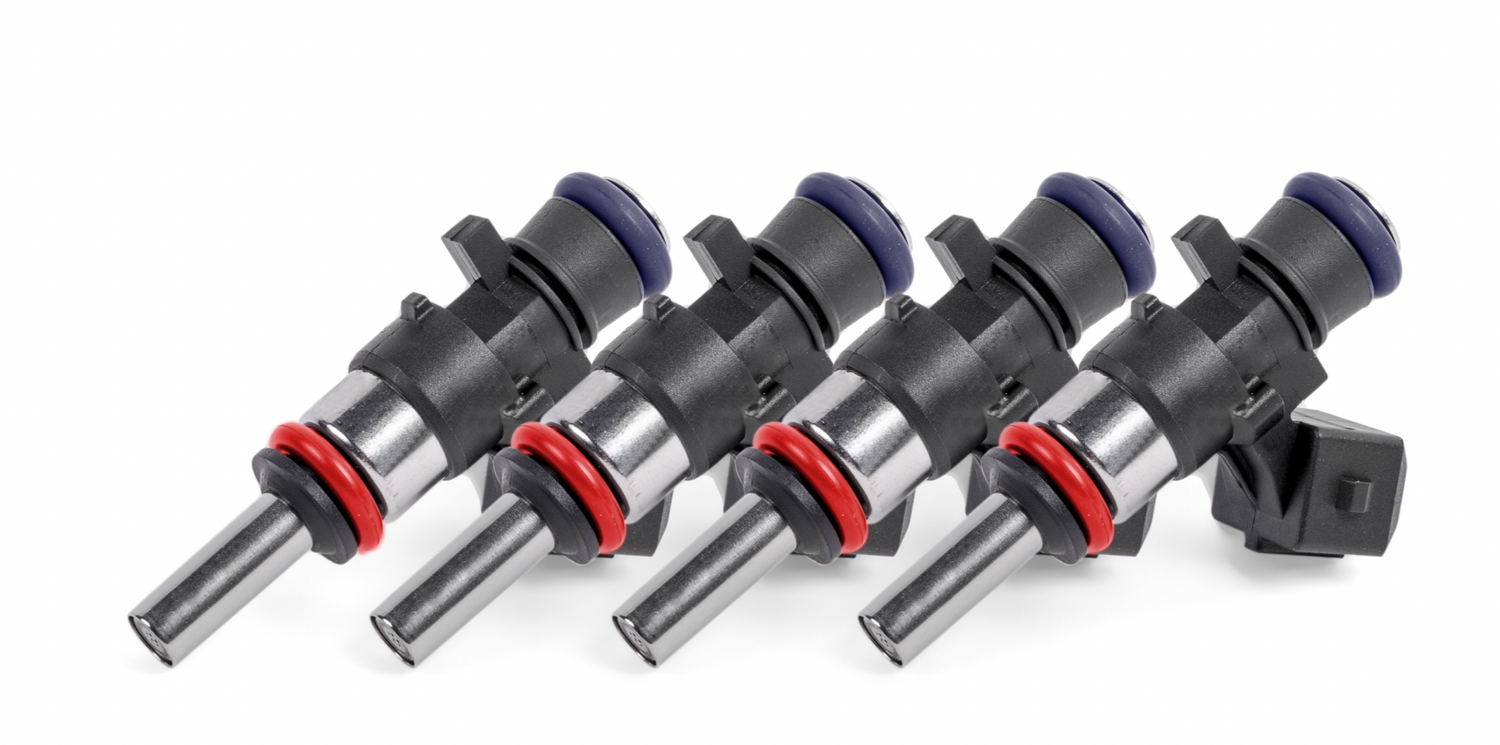

- Bosch EV 14 CKxT MPI injector (0280 158 040)
- APR Bosch Jetronic to OEM harness
- Supports up to 8 bar of use in motorsport configurations
- E85 and M100 compatible
- 30° single cone spray angle with 0° bent angle and 0° gamma angle
- 33.6mm compact body
- 24mm extended tip nozzle
- Top-feed injector
- 12 ohm coil resistance

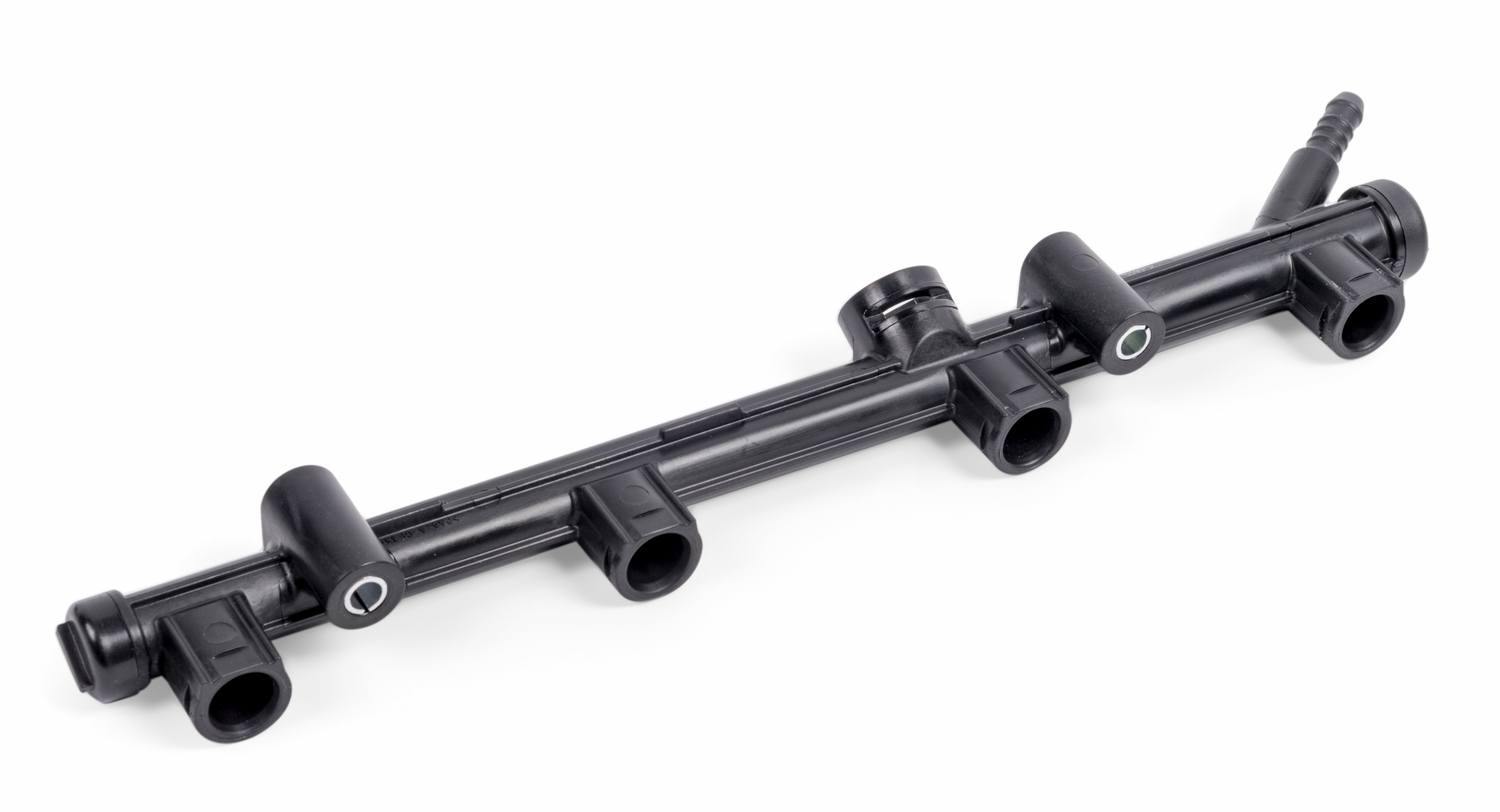

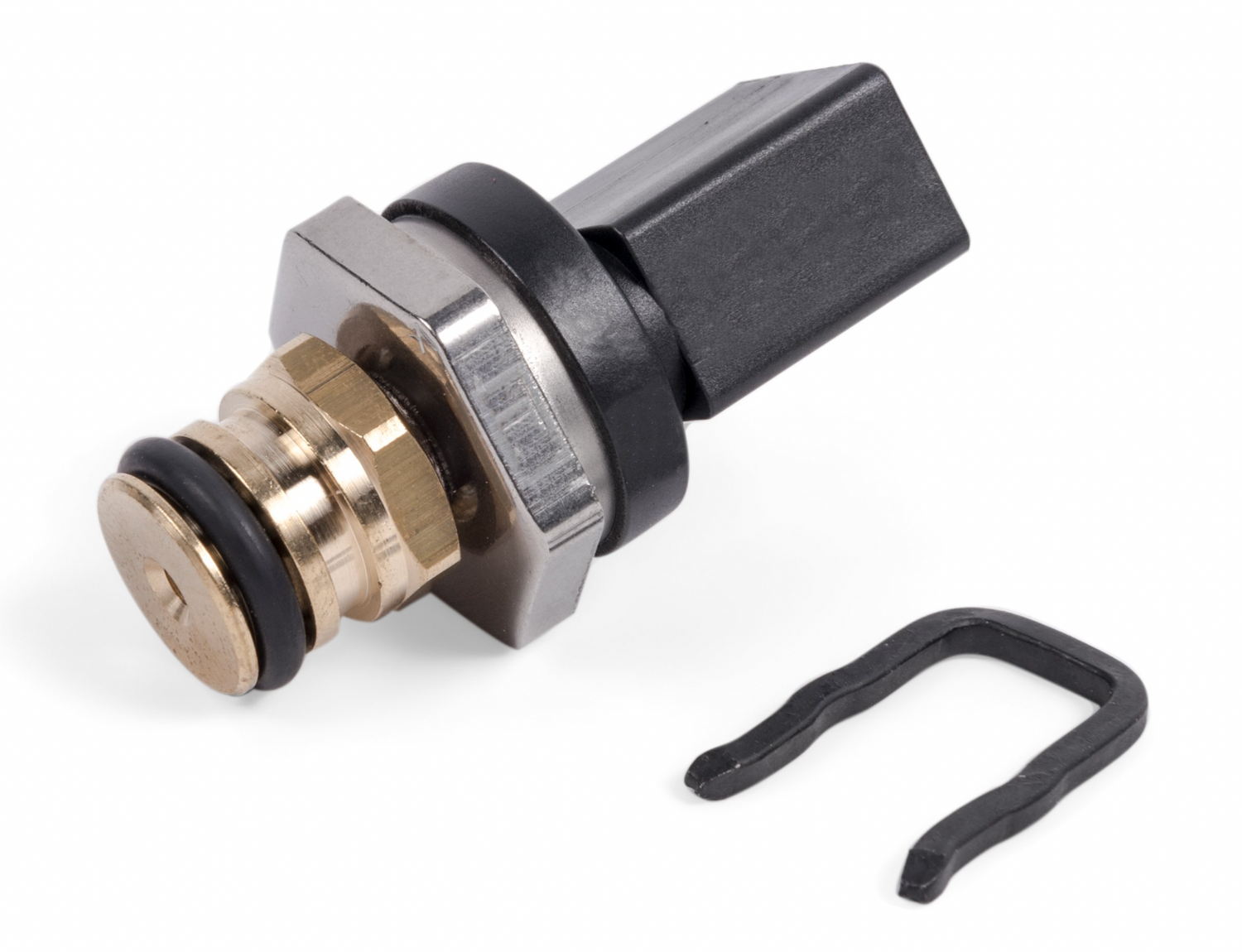

- OEM Fuel Rail, Rail Sensor, and mounting kit included

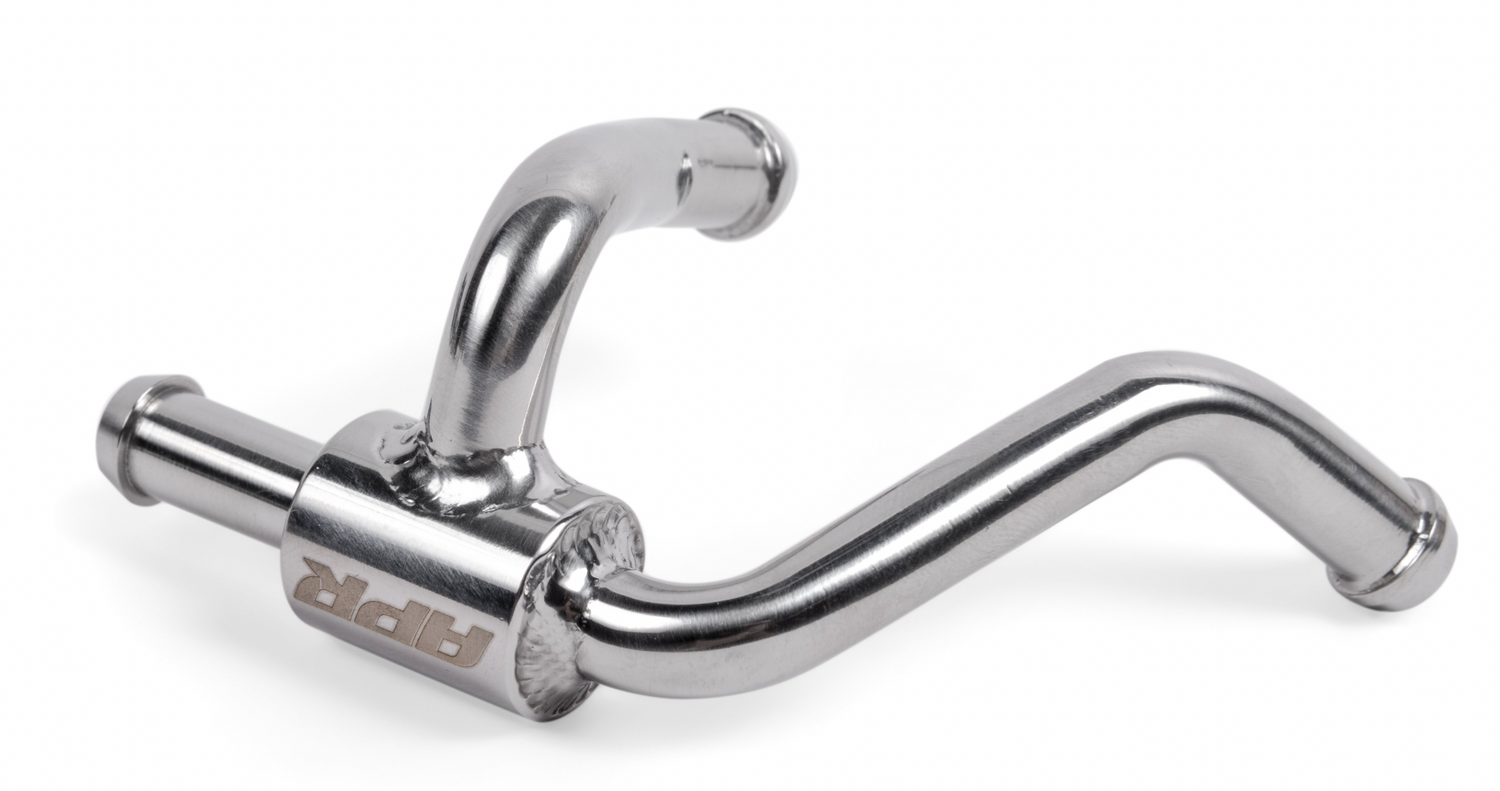

- APR fuel distribution block included
- ECU software required for use
| Brand | APR |
|---|---|
| Emission Code | 7 |
| Max Pressure (Bar) | 8 |
| MPI Injector CC | 980cc/min @ 3 bar |
| MPI Injector Count | 4 |
| Product Type | Fueling |
| UPC | 810009933861 |
| Part Number | MS100229 |
Founded in 1997, APR is the global leader in performance aftermarket products for Volkswagen, Audi, Seat, Skoda, Porsche, and other vehicles. APR develops and manufactures hardware, software, calibration & data-logging tools for engine and transmission controllers, including intakes, exhaust systems, intercoolers, turbocharger systems, suspension, brake systems, wheels, and more. APR delivers software via a 24-hour automated global delivery system from its 80,000 square foot state of the art facility in Opelika, Alabama
