Accel®  |  SKU: 140024ACC

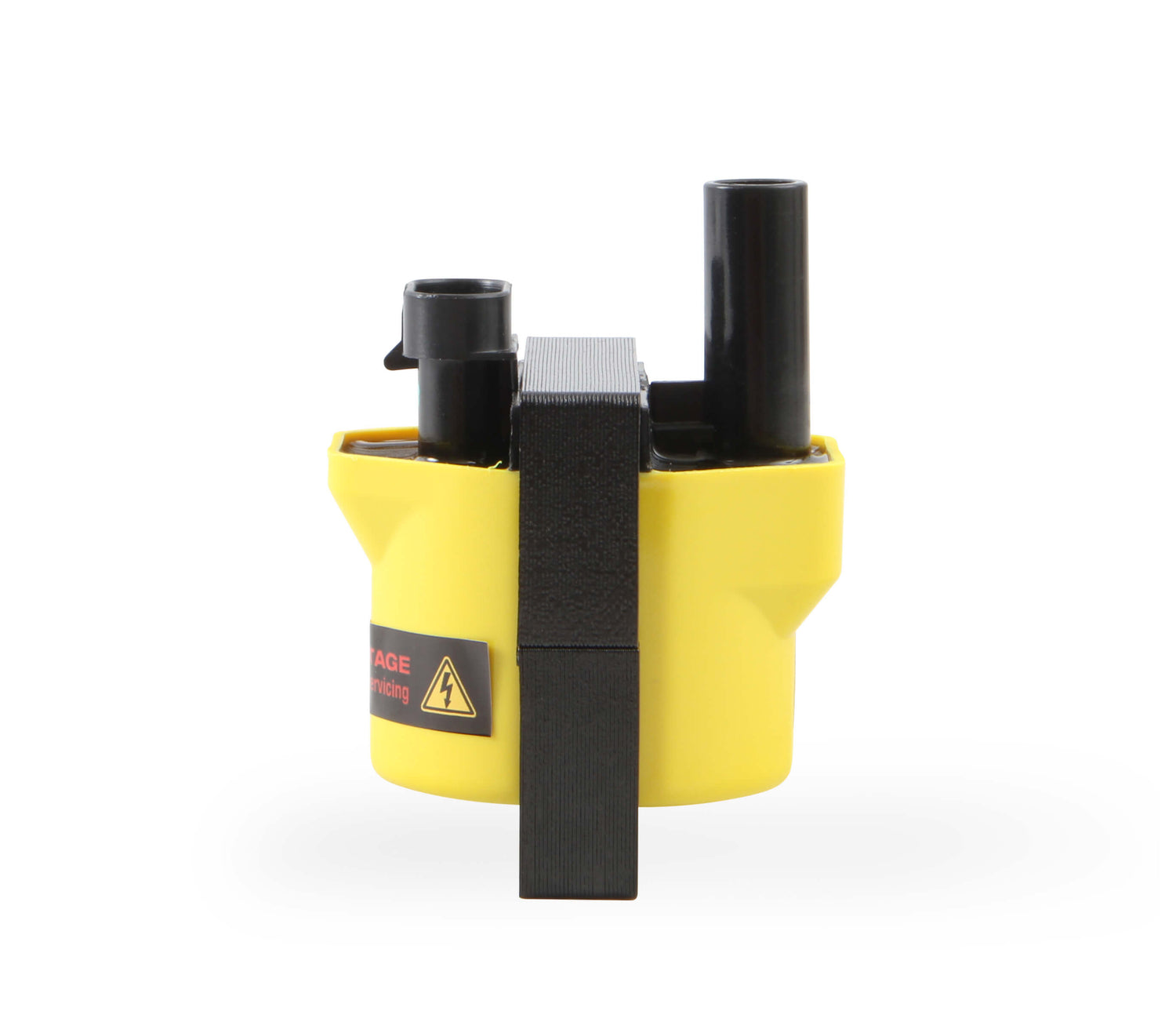

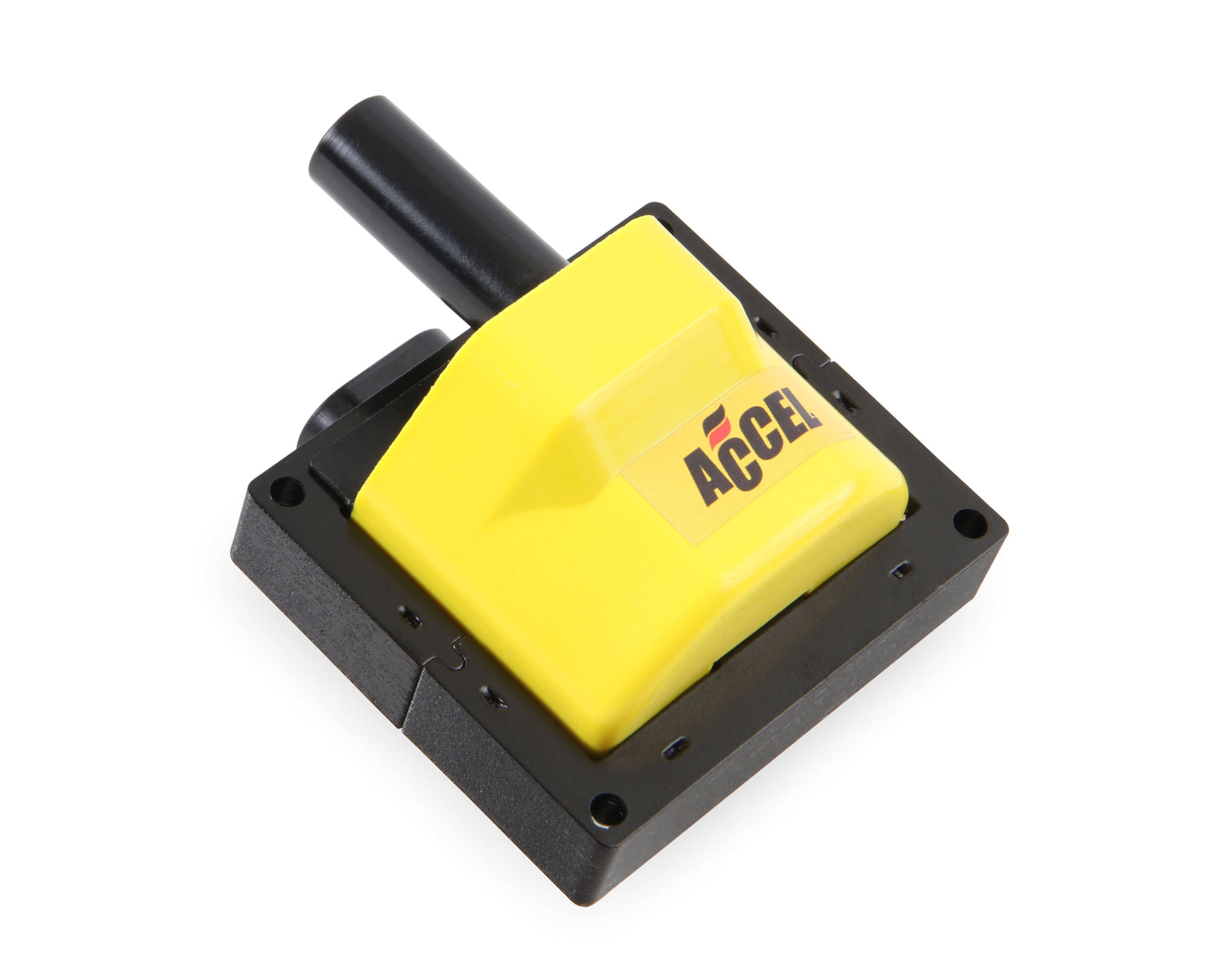

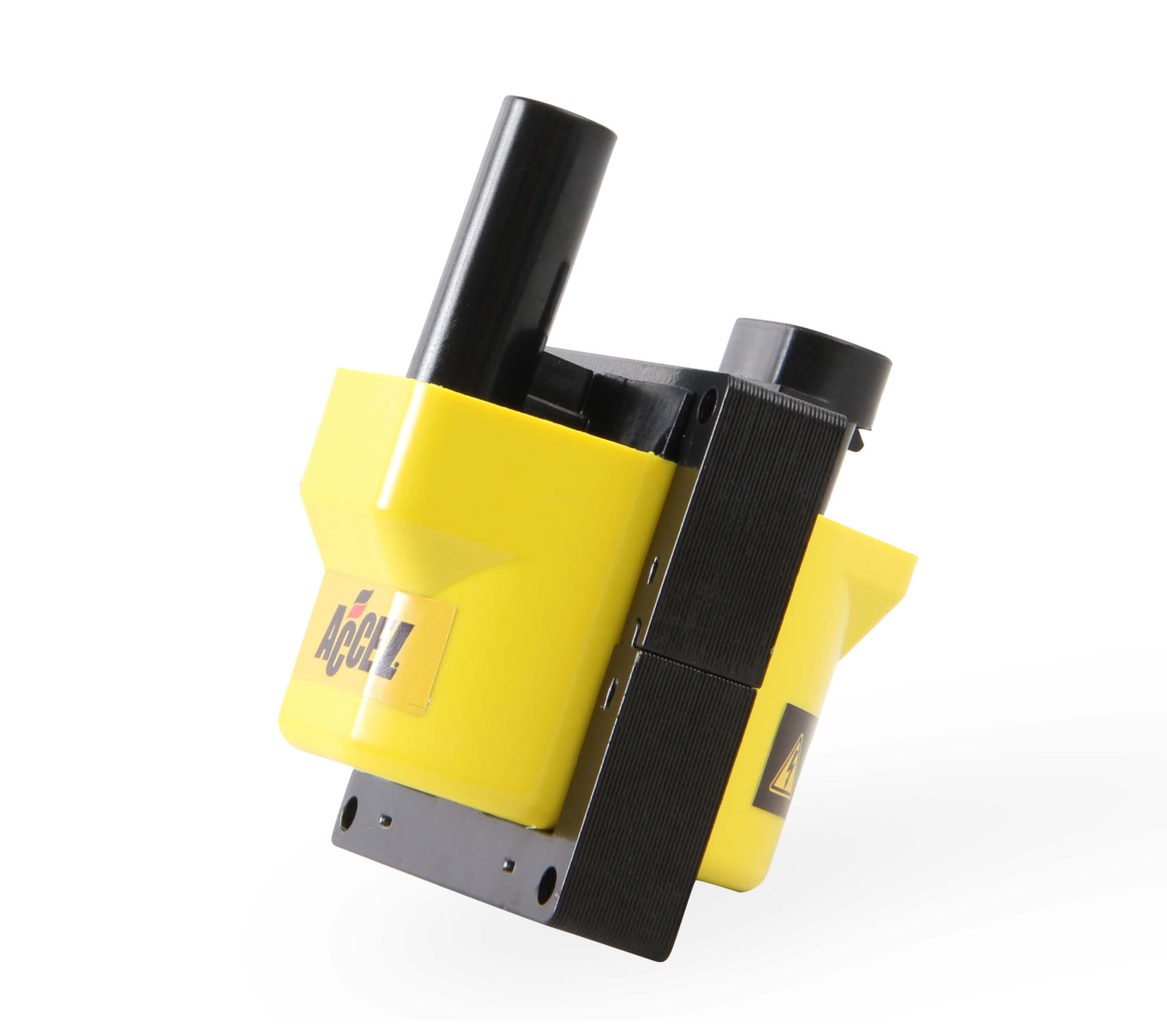

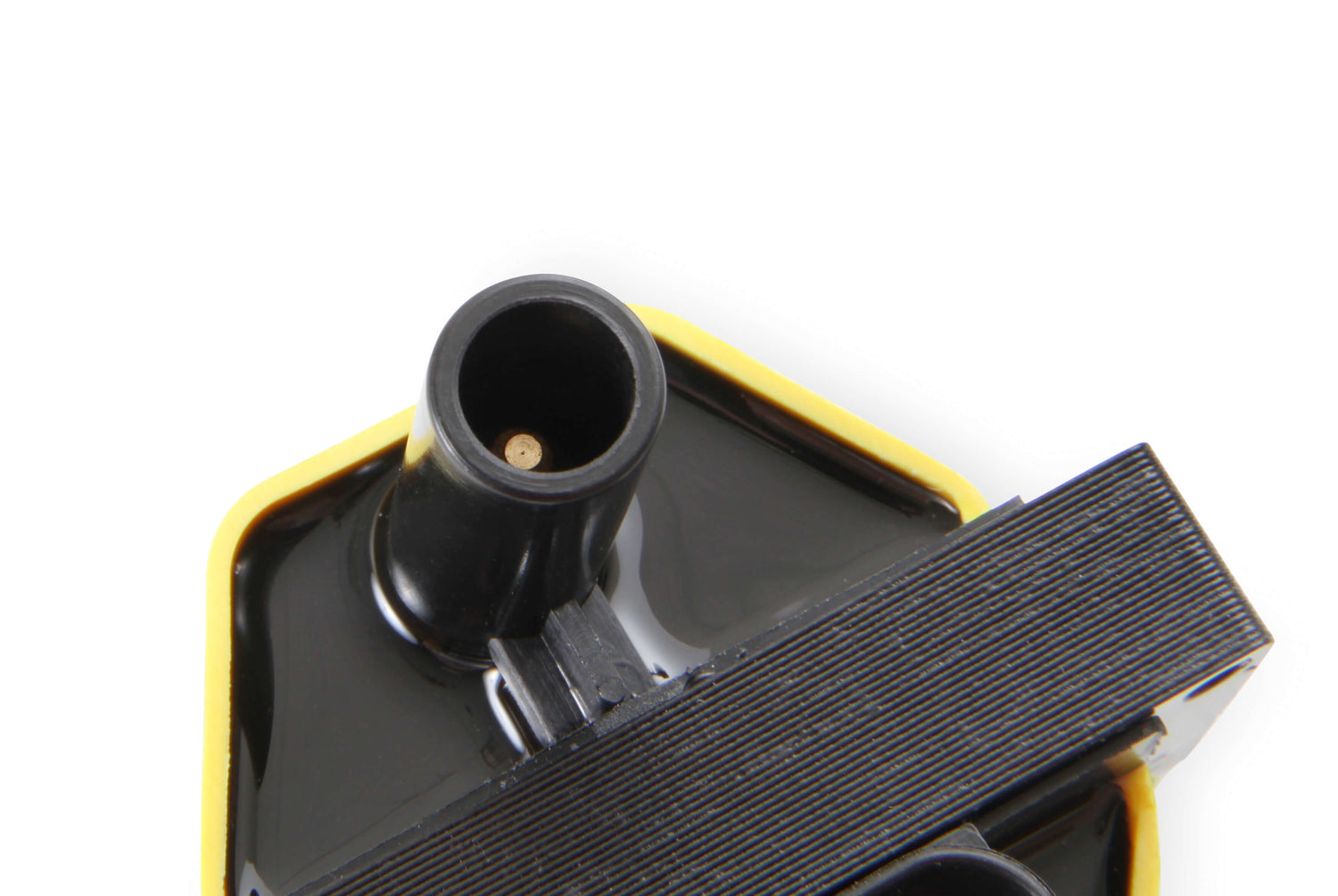

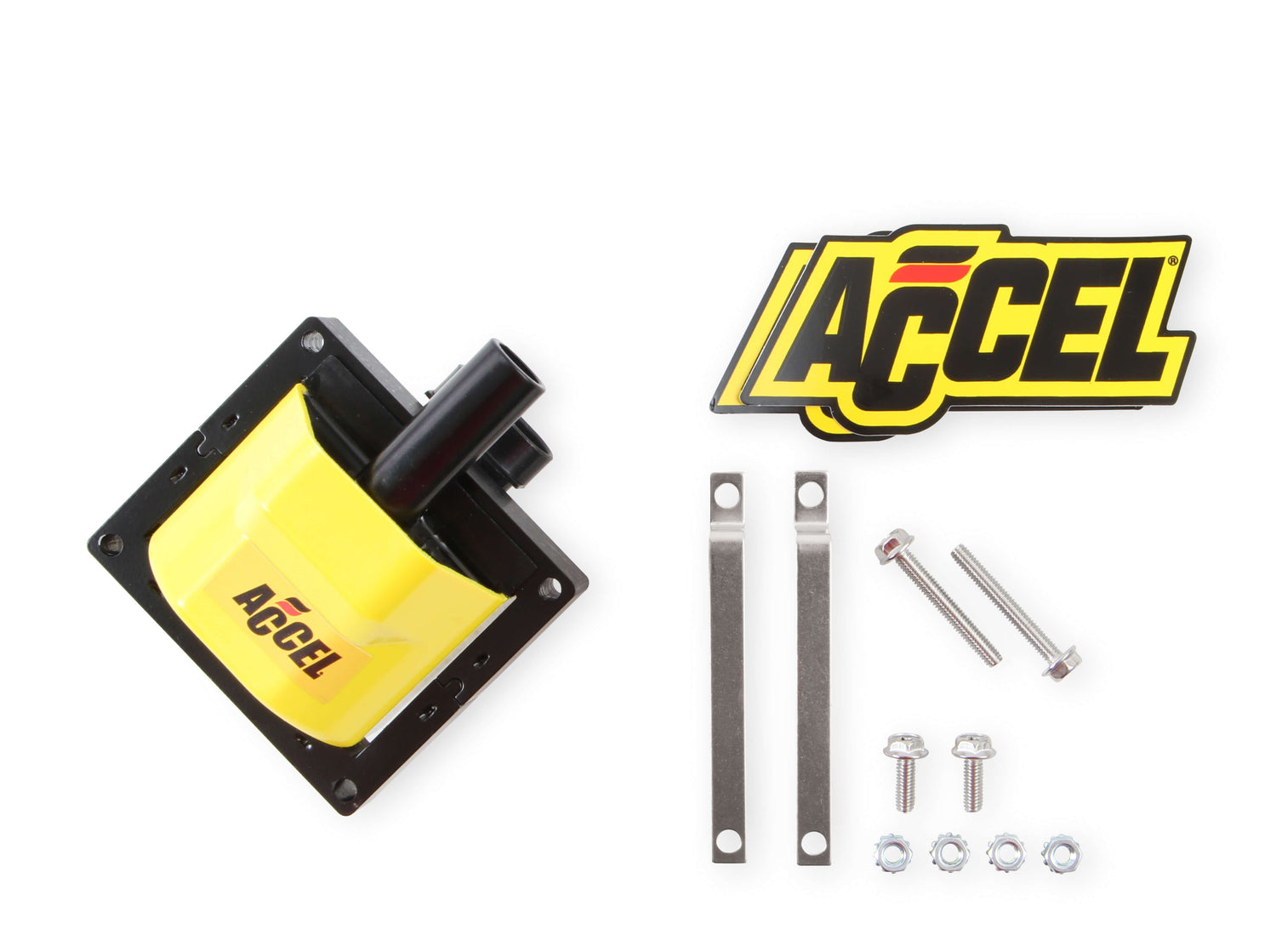

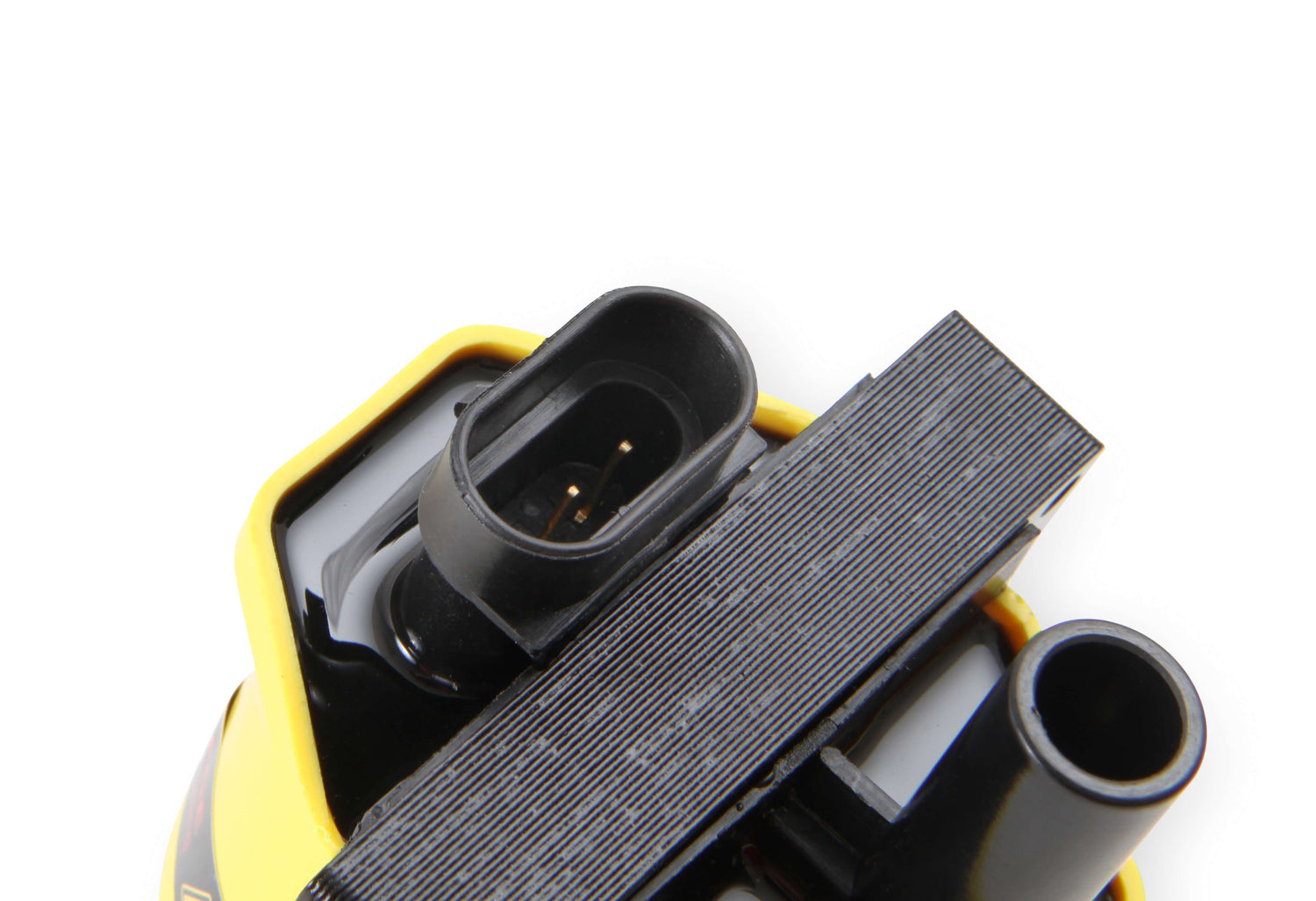

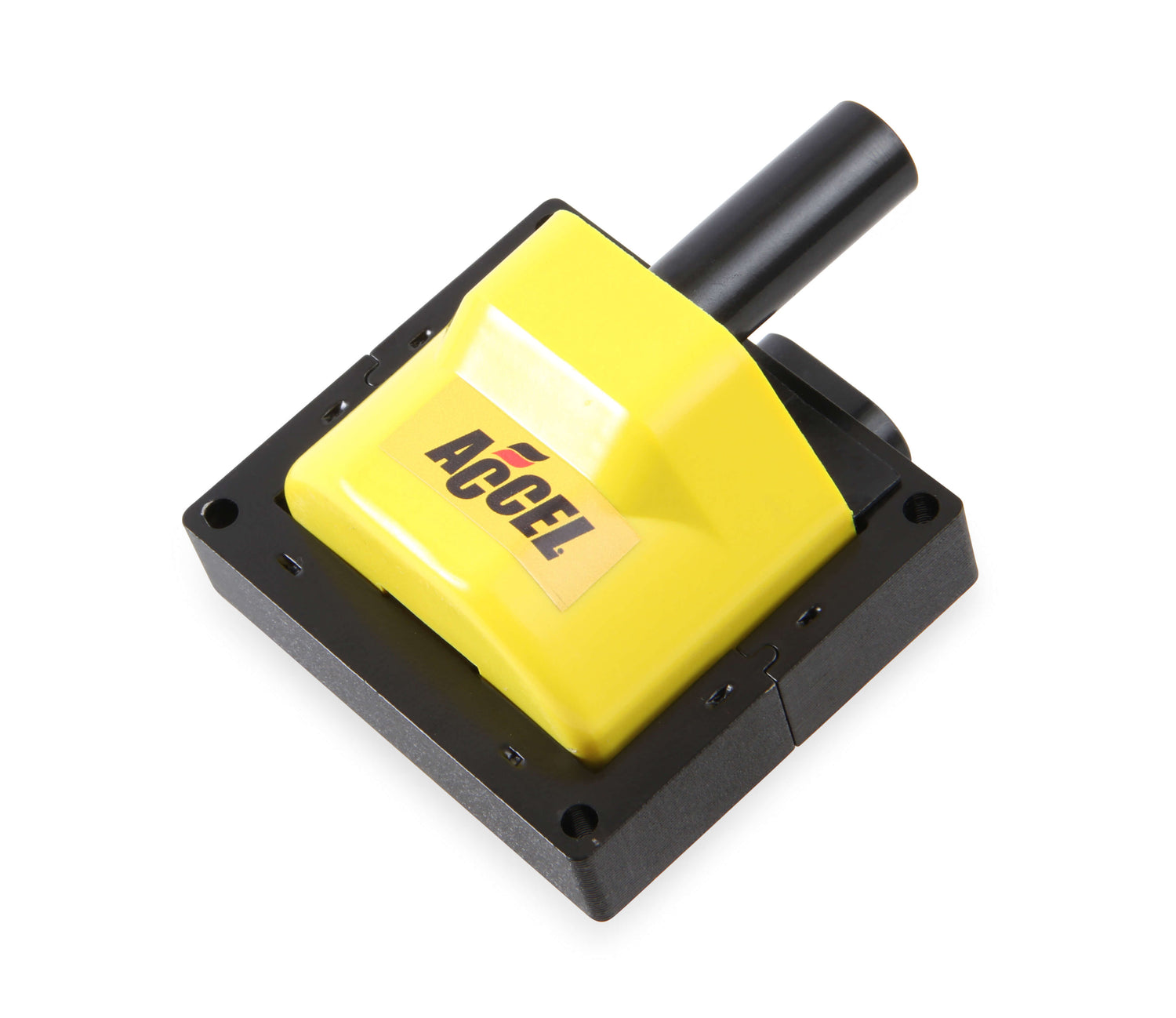

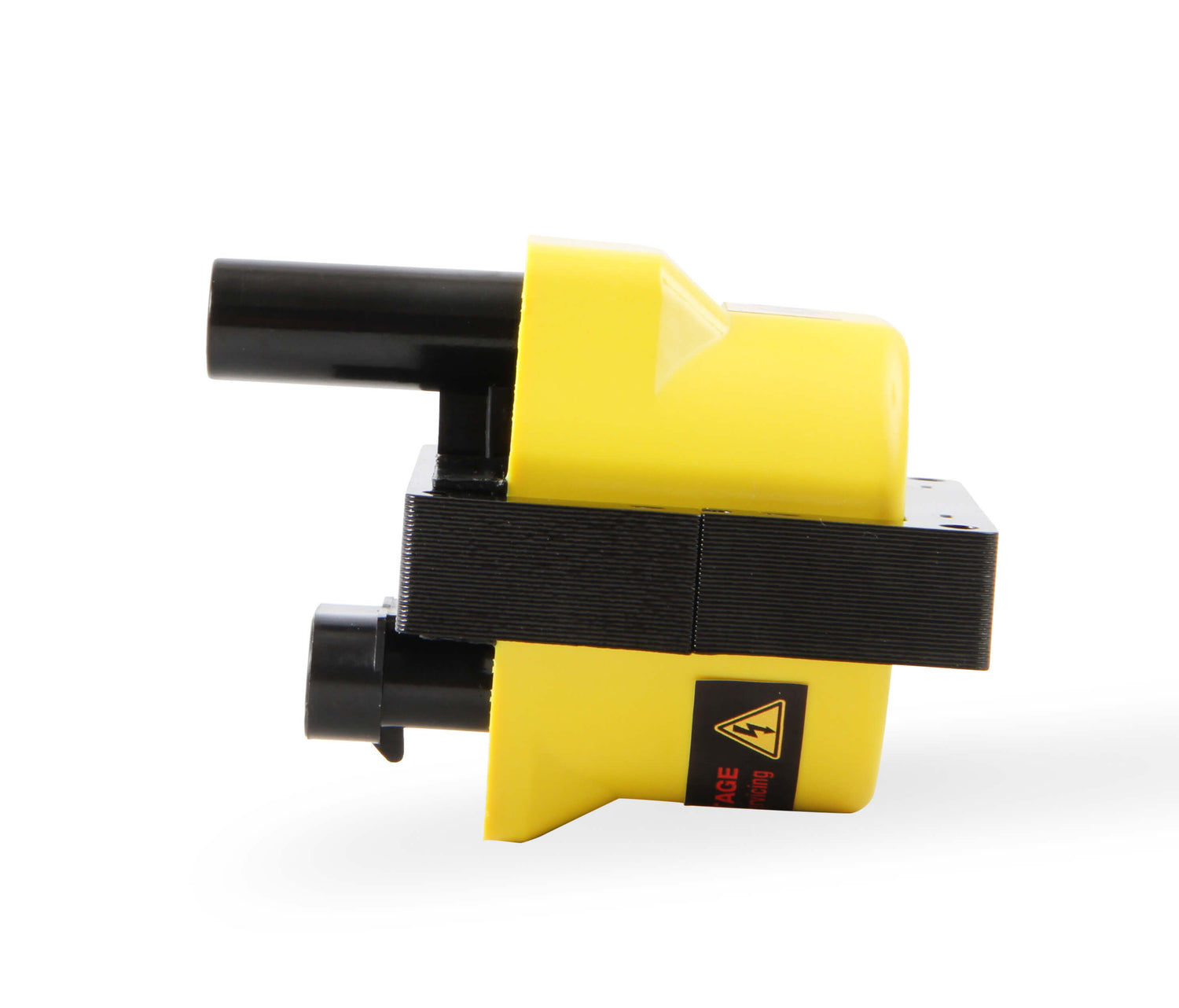

Accel® (96-06) GM HEI Remote Mount Ignition Coil

PLEASE CONTACT SUPPORT TO CONFIRM INVENTORY

£65.83
Shipping calculated at checkout.

Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)

Email: info@10SecondRacing.com (24/7)

Free Shipping to Lower 48 US States ($100+)

Worldwide Shipping via UPS (Check Rates at Checkout)

This is a Sample Product Title
Was $200.00 Now $100.00

Description

Compatible:

1999 - 2000 Cadillac Escalade (5.7L)

1996 - 1997 Chevy Camaro (5.7L)

1996 Chevy Corvette (5.7L)

1996 - 1999 Chevy Suburban (5.7L)

1996 - 2000 Chevy Tahoe (5.7L)

1999 - 2006 GMC Sierra (4.3L)

1999 - 2006 Chevy Silverado (4.3L)

1996 - 1997 Pontiac Firebird (5.7L)

1996 - 2000 GMC Yukon (5.7L)



This part is legal for sale and use on Emissions Controlled Vehicles when used in accordance with the manufacturers application guide because it is a direct or consolidated replacement part.

The following vehicles are considered Emissions Controlled Vehicles:

  • 1966 and newer U.S. manufactured California Certified vehicles
  • 1968 and newer U.S. manufactured Federally Certified vehicles
  • 1968 and newer Foreign manufactured vehicle



Engineered with optimized low resistance, high turns ratio windings around an M36 high silicone magnetic steel E-core for higher energy and voltage outputs. Results in quicker starts, improved idle quality, crisper throttle response and more high RPM power. Compatible with late model GM computer controlled remote mount HEI systems. Direct bolt-in, plug-in replacement. Can also work with CD ignition systems. Special high temperature epoxy resists shock and vibration, while increasing thermal conductivity. Brass coil wire contact increases energy transfer and resists corrosion better than aluminum. Comes complete with new mounting hardware. High dielectric strength ACCEL Yellow over molded housing. Output is 48,000 volts with 0.2 ohms resistance.

Features:

  • Direct Plug In Replacement Direct OE Fit
  • Advanced Bobbin Technology
  • Highly Specialized Silicone Magnetic Steel Cores
  • Standard Motor Products SMP Dr-49
  • MSD 8231
Application GM
Brand ACCEL
Color Yellow
Emission Code 2
Maximum Voltage 48,000 volts
Peak Increase in Energy vs. OE 11%
Primary Resistance 0.2 Ohms
Product Type Ignition Coils
Quantity 1
Quantity Per Pkg. 1
Secondary Resistance 6.7 k Ohms
Turns Ratio 92:1
Warranty Limited 90 Day Warranty
Weight 1.2000
Part Number 140024ACC
