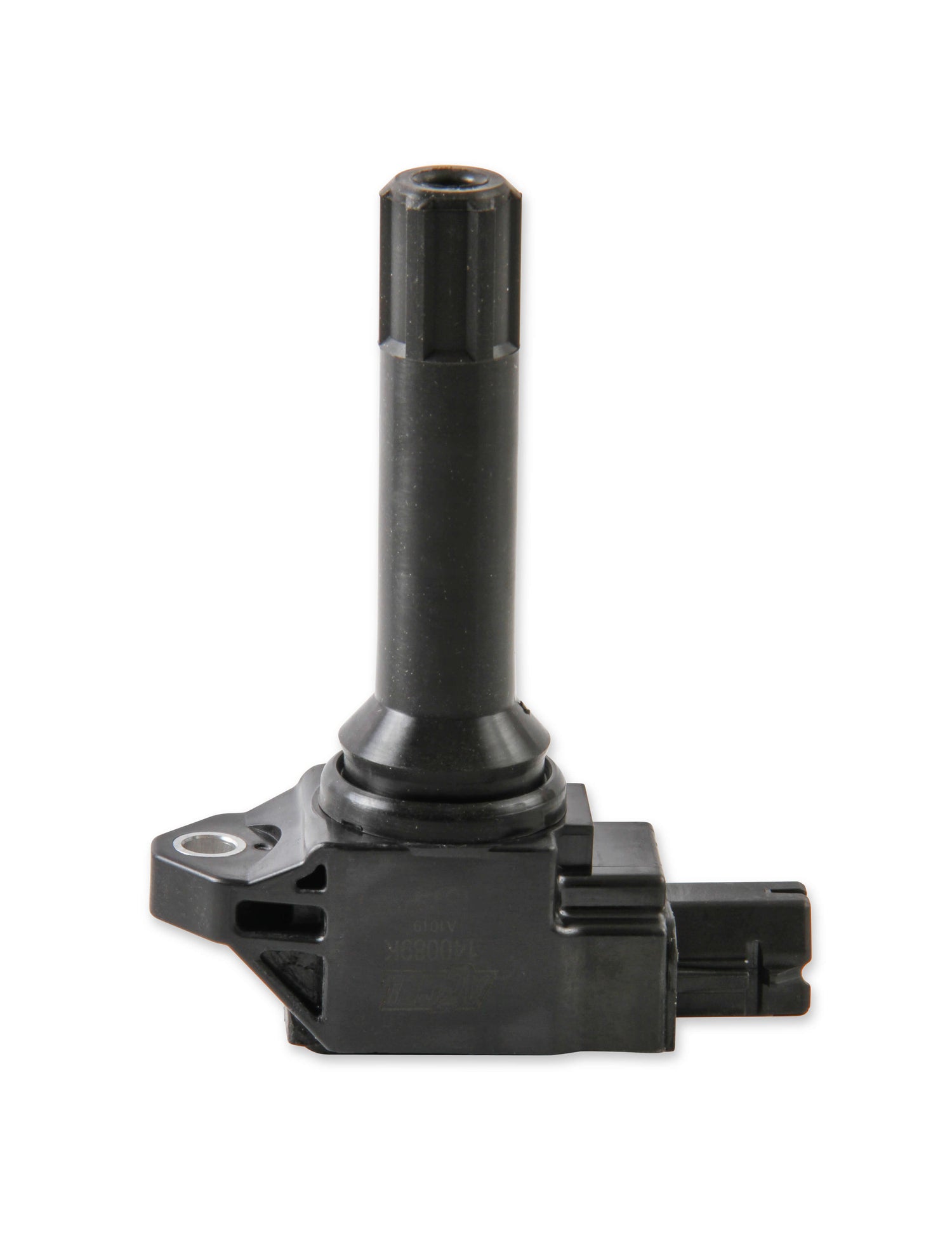

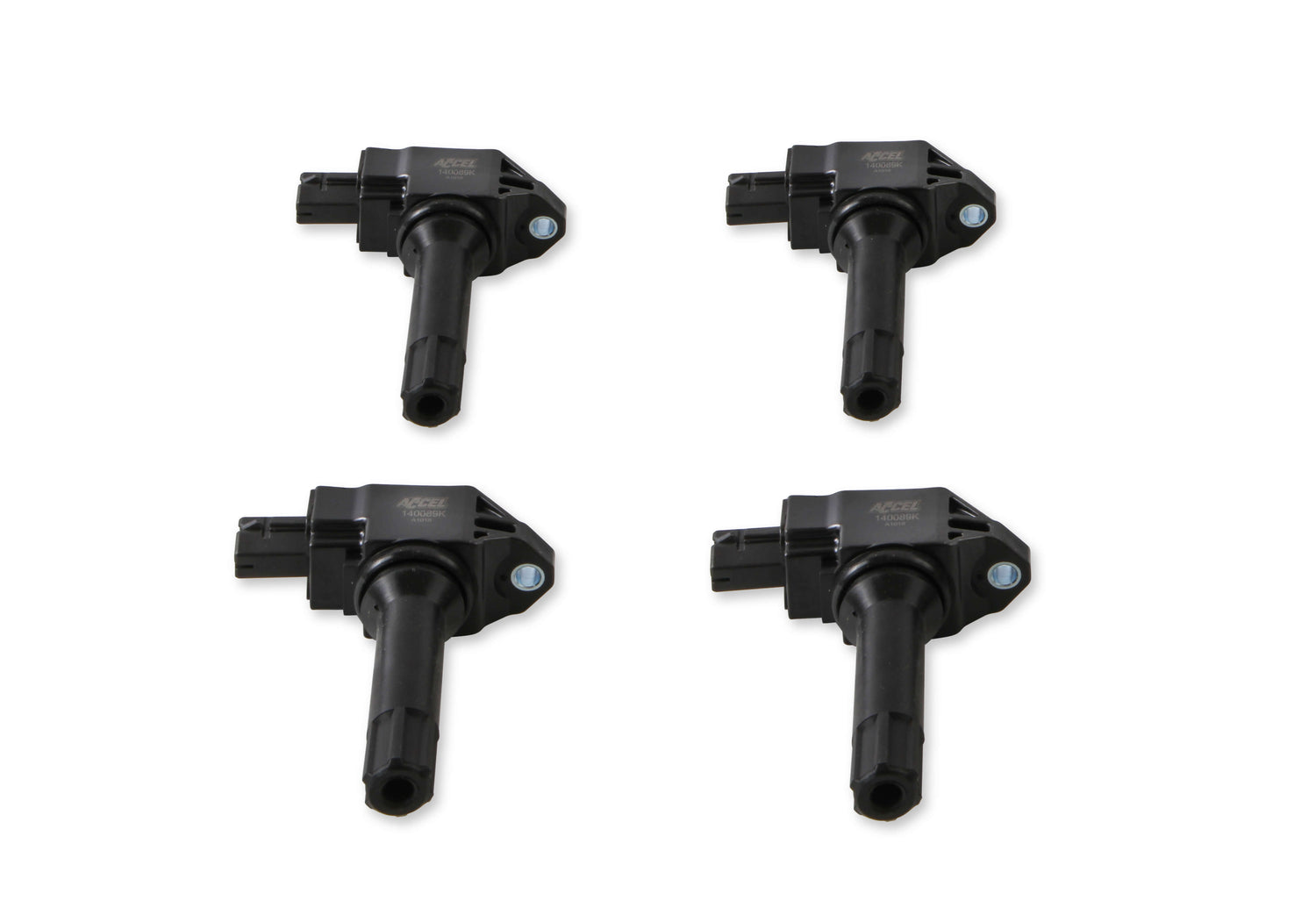

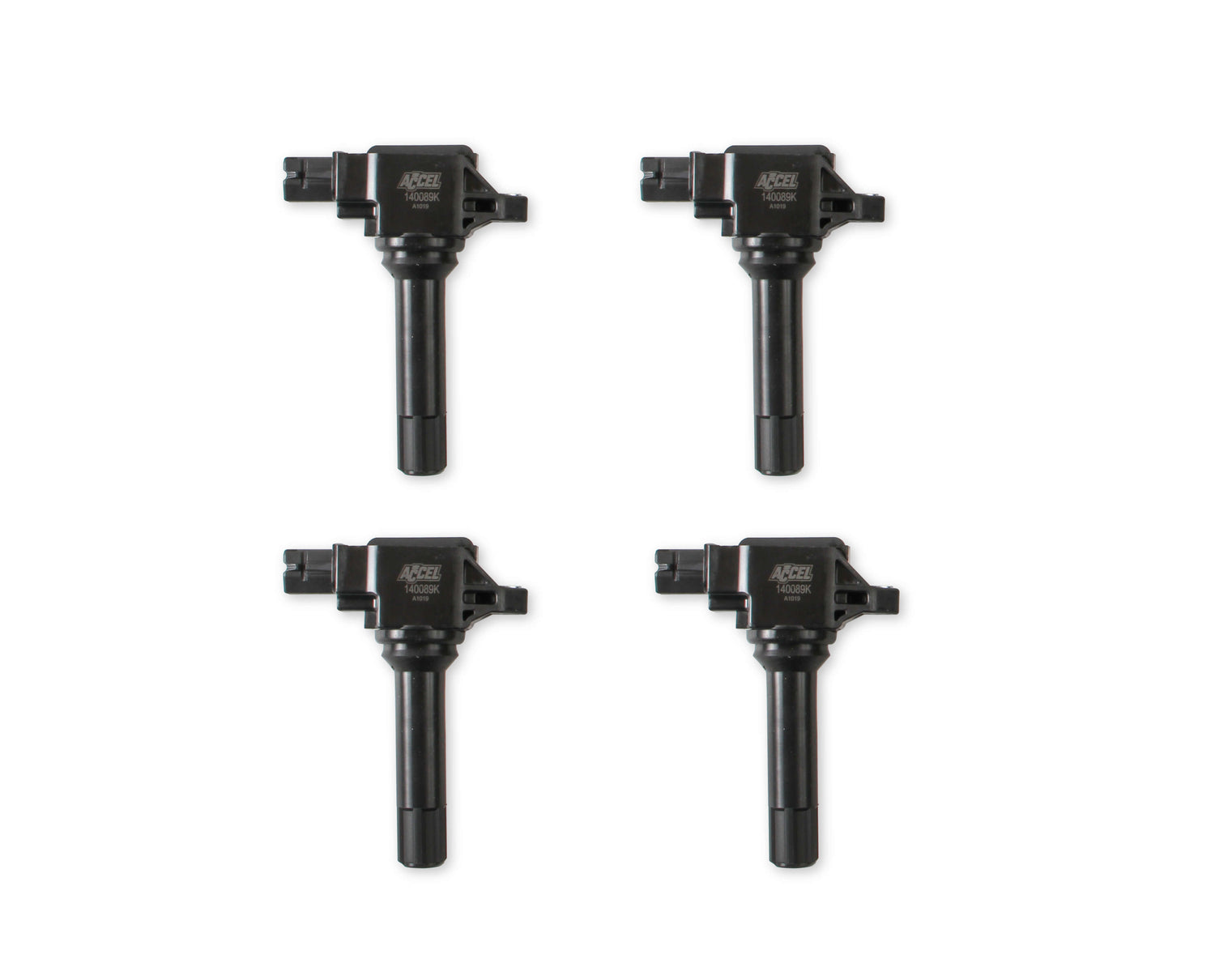

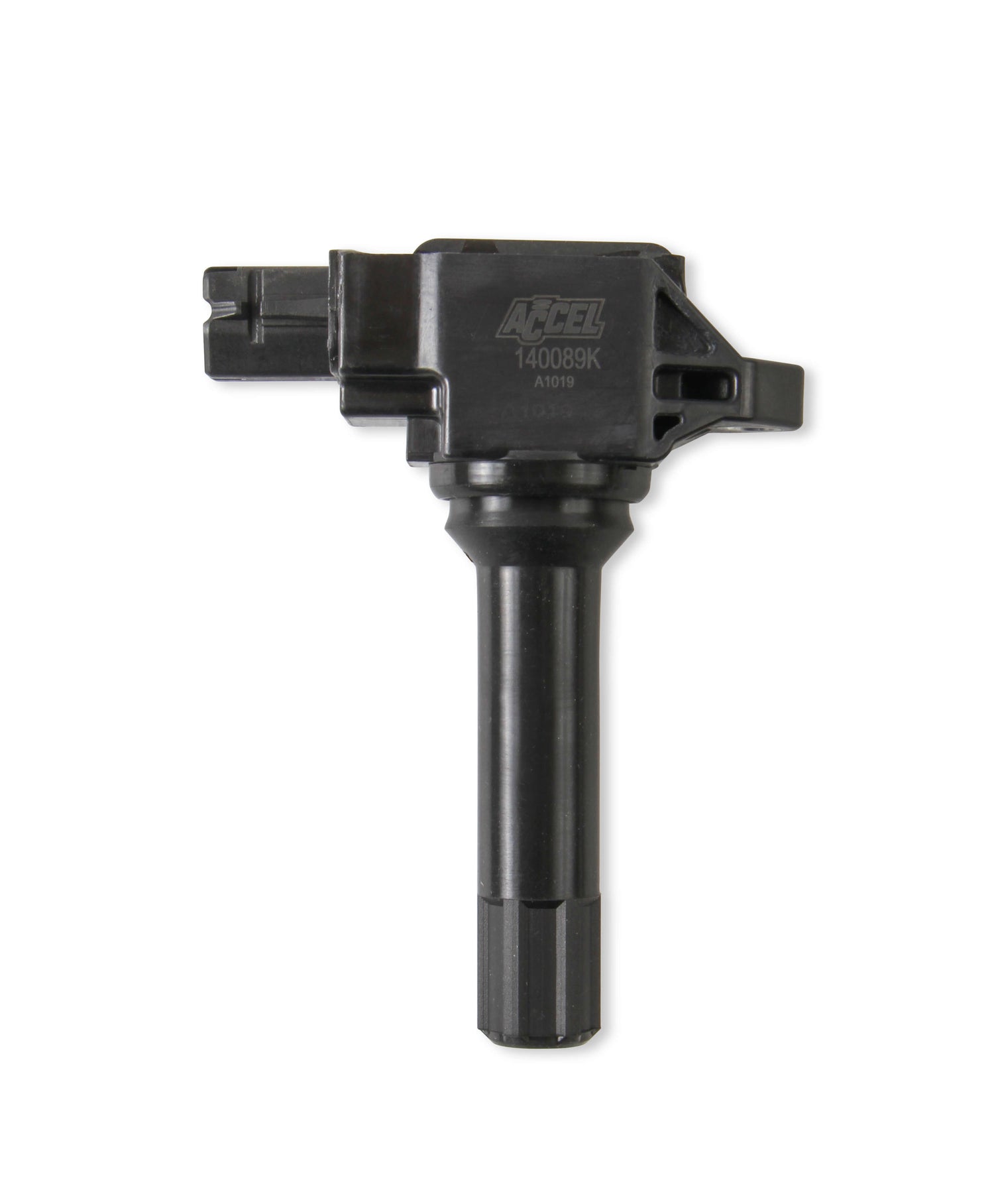

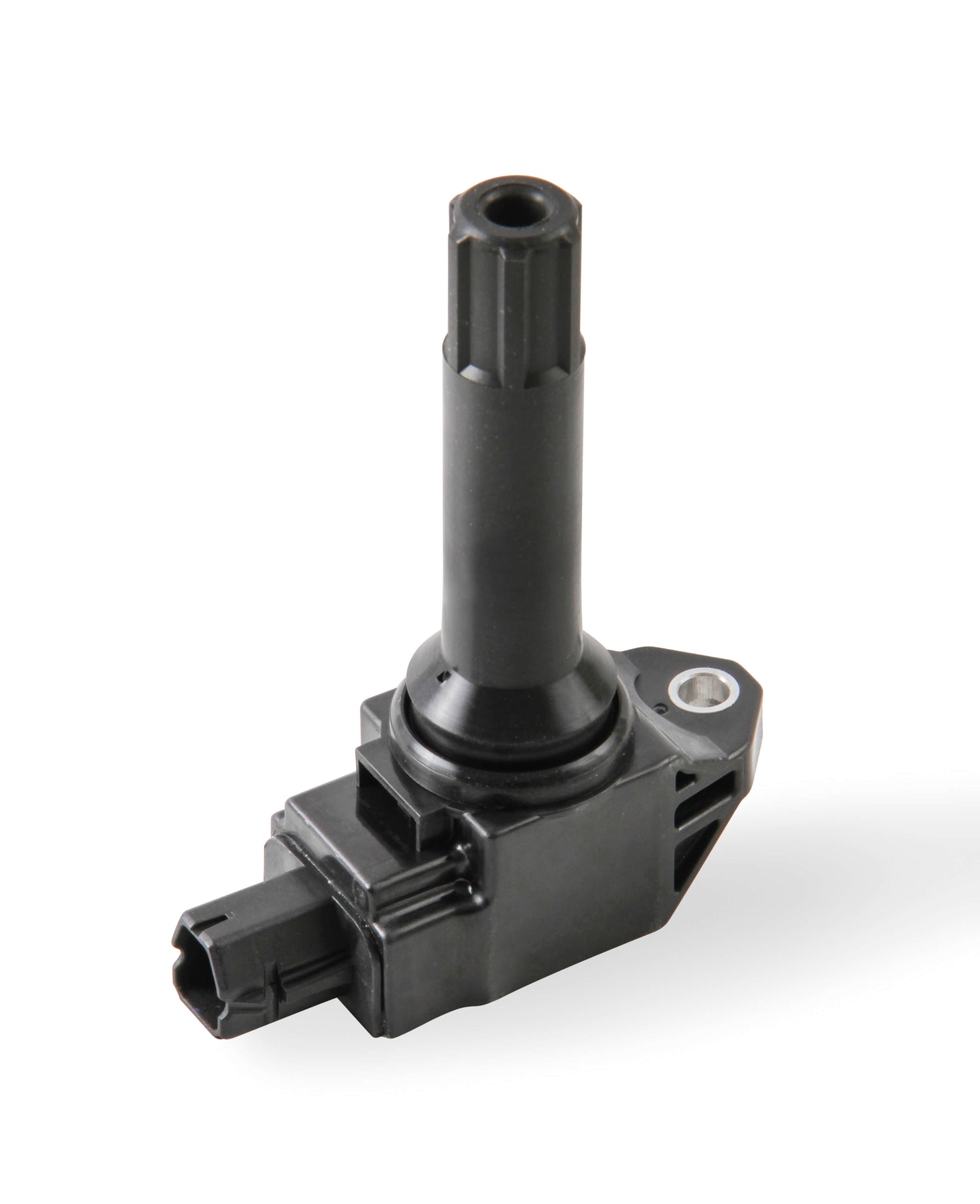

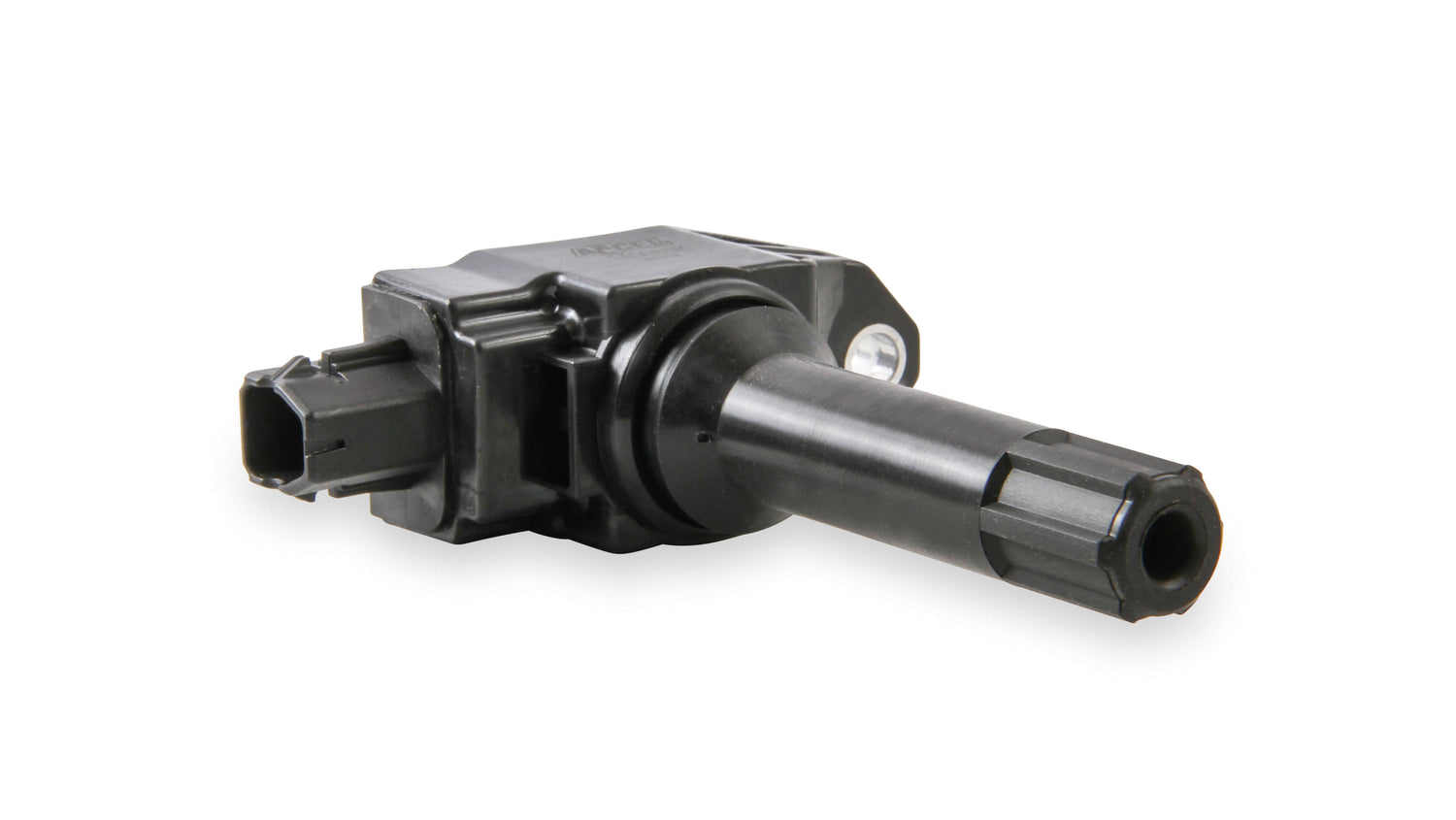

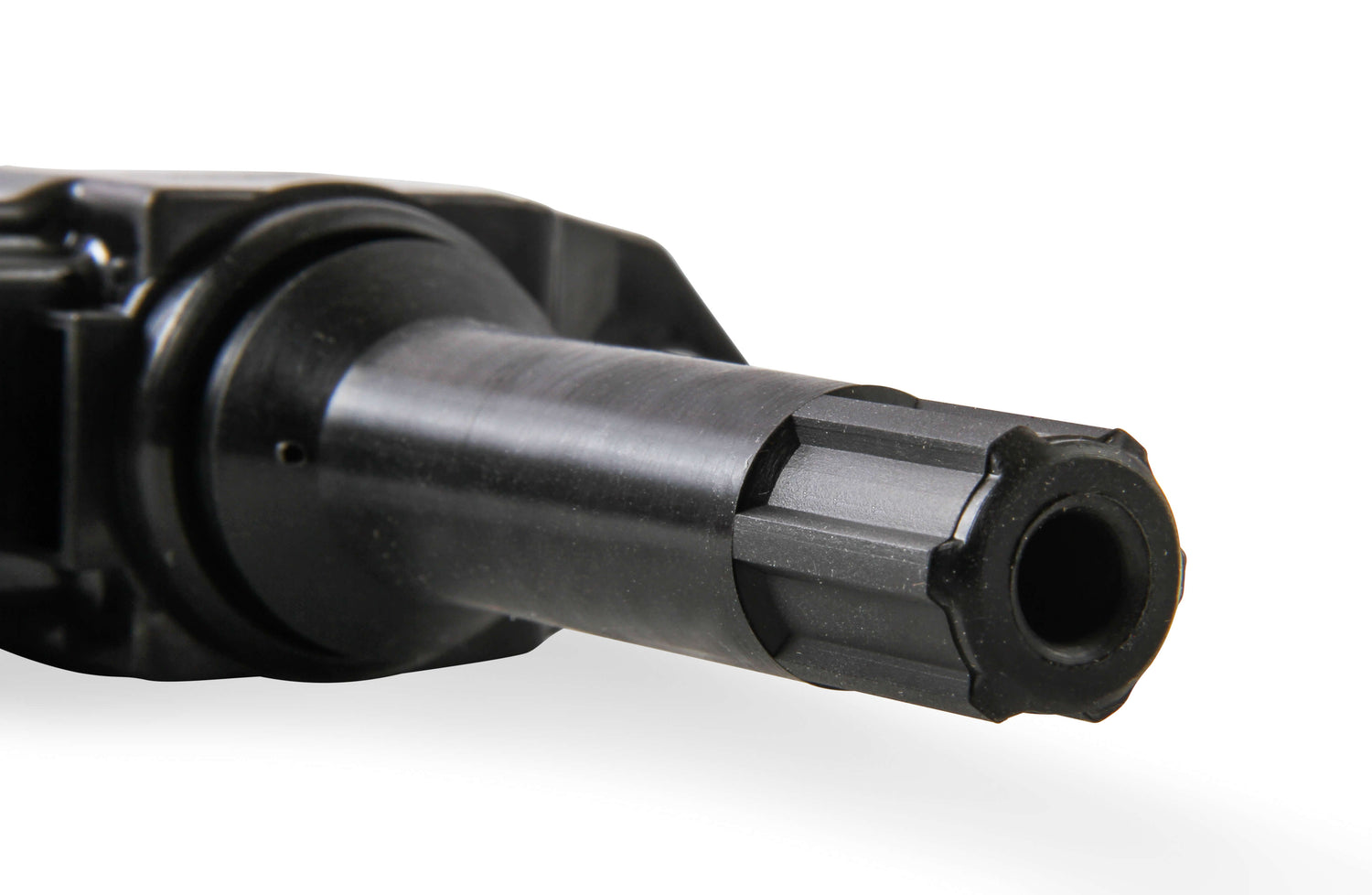

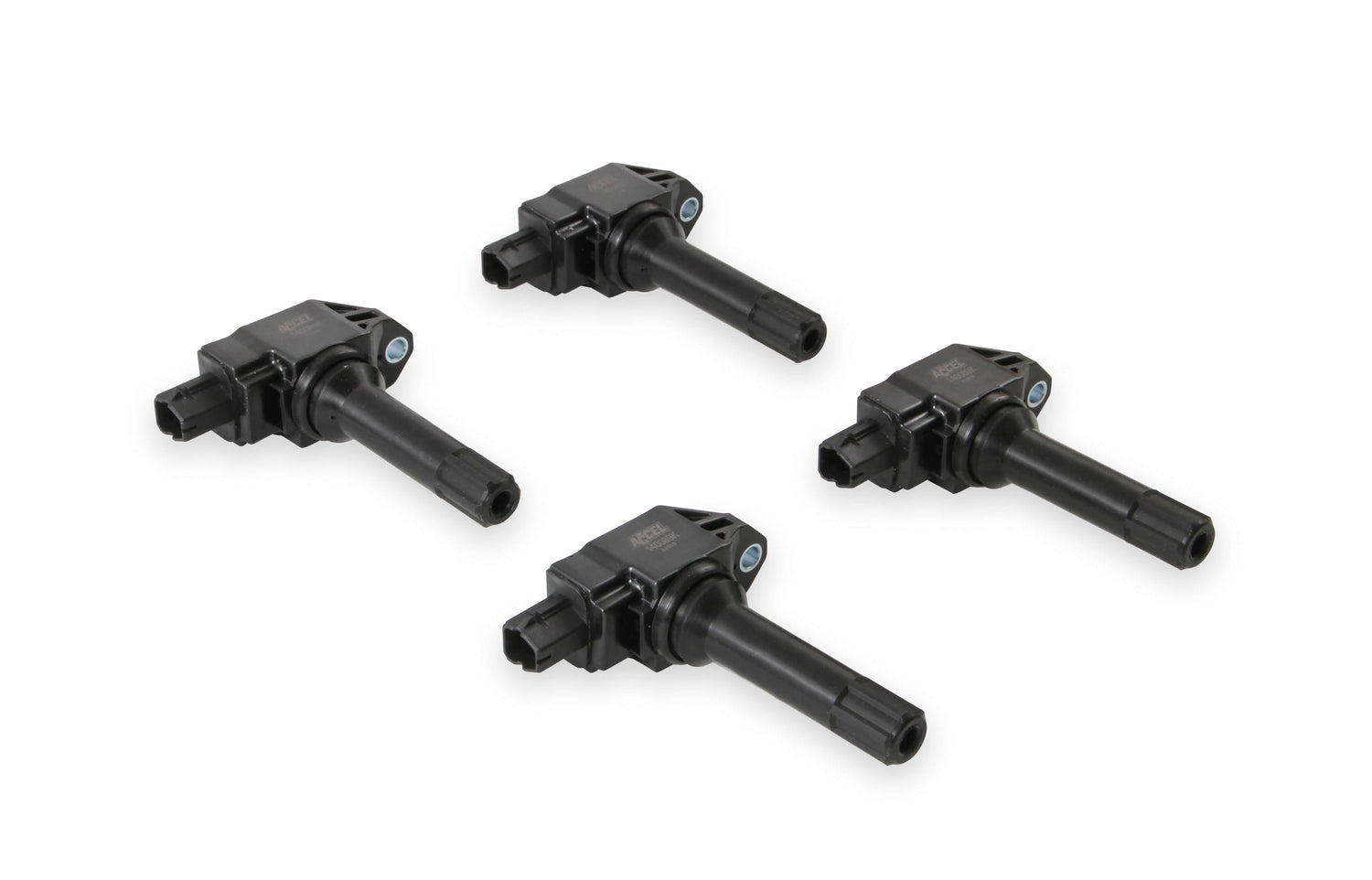

Accel® (12-20) BRZ/FR-S/86 Black Ignition Coils
Description
Description
Compatible: (2.0L)
2012 - 2020 Subaru BRZ
2012 - 2016 Scion FR-S
2017 - 2020 Toyota 86
This part is legal for sale and use on Emissions Controlled Vehicles when used in accordance with the manufacturers application guide because it is a direct or consolidated replacement part.
The following vehicles are considered Emissions Controlled Vehicles:
- 1966 and newer U.S. manufactured California Certified vehicles
- 1968 and newer U.S. manufactured Federally Certified vehicles
- 1968 and newer Foreign manufactured vehicle
ACCEL Coils are available for the 2.0L Boxer Engine found in the Subaru BRZ, Scion FR-S, and the Toyota 86. ACCEL Super Coils feature advanced bobbin technology, highly specialized silicon magnetic steel cores, optimized windings, proper resistance and engineered turn ratios that deliver a high performance, quality coil. Specialized high temperature epoxy resists shock and vibration, while increasing thermal conductivity. These are direct high performance replacements for OEM (Original Equipment Manufacturer) coils.
Features:
- Direct bolt-on replacement coil for 2015-2019 Subaru, Scion, Toyota OEM Part # (22433AA730)
- Meets or exceeds Original Equipment (O.E.) specifications
- High temp epoxy resists shock and vibration
- Advanced bobbin technology for maximum output and performance
- OBD II compatible - will not trip a code
- Compatible for the following models equipped with 2.0L engines: BRZ, Crosstrek (Electric/Gas only), FR-S,86 model
| Brand | ACCEL |
|---|---|
| Color | Black |
| Emission Code | 2 |
| Inductance | 1.2 mH |
| Maximum Voltage | 46,000 Volts |
| Peak Current | 134 mA |
| Primary Resistance | 0.5 Ohms |
| Product Type | Ignition Coil |
| Quantity | Single |
| Secondary Resistance | 6.0 K OHMs |
| Spark duration | 1,700 uS |
| Turns Ratio | 90:1 |

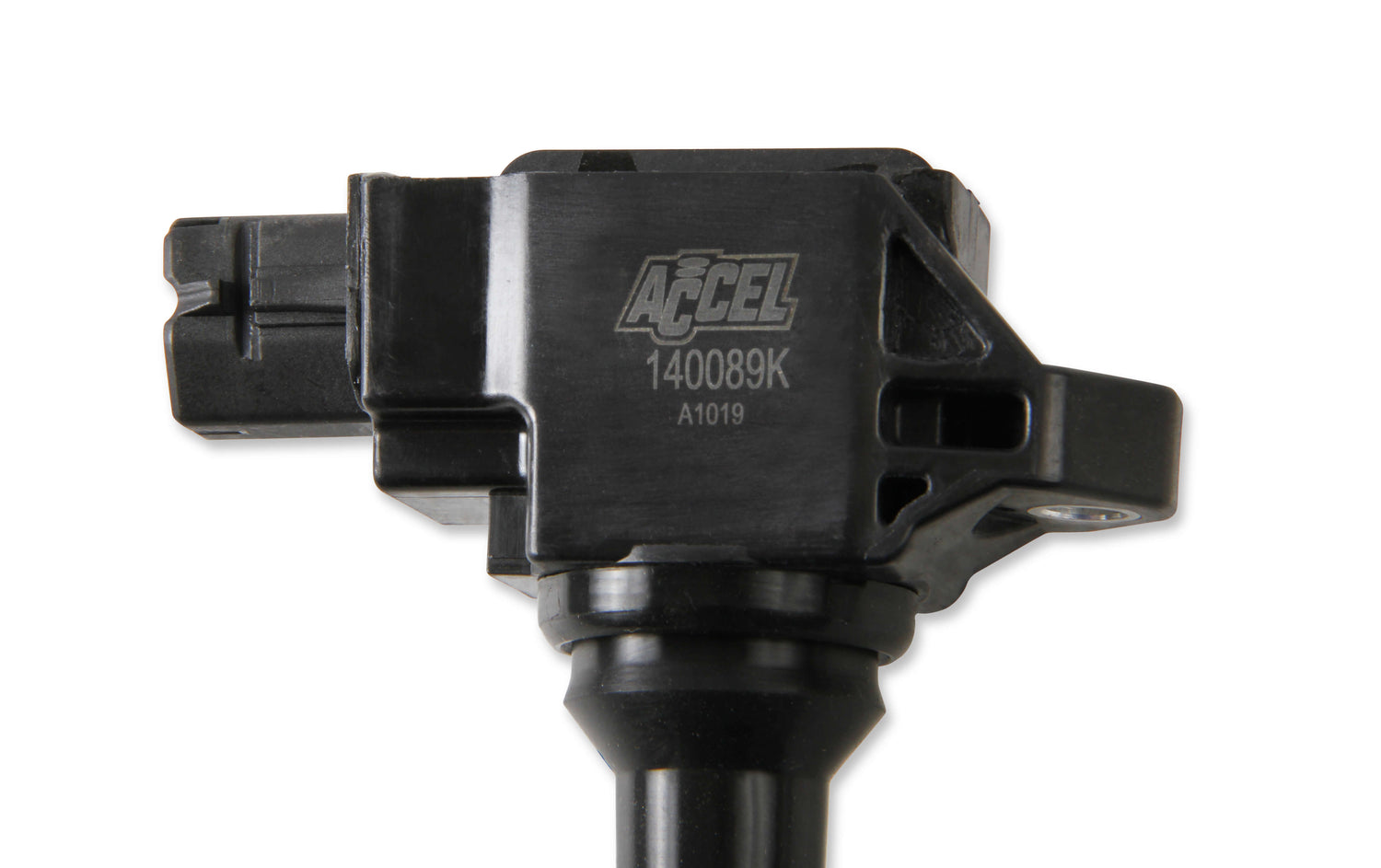

| Part Number | 140089K |
