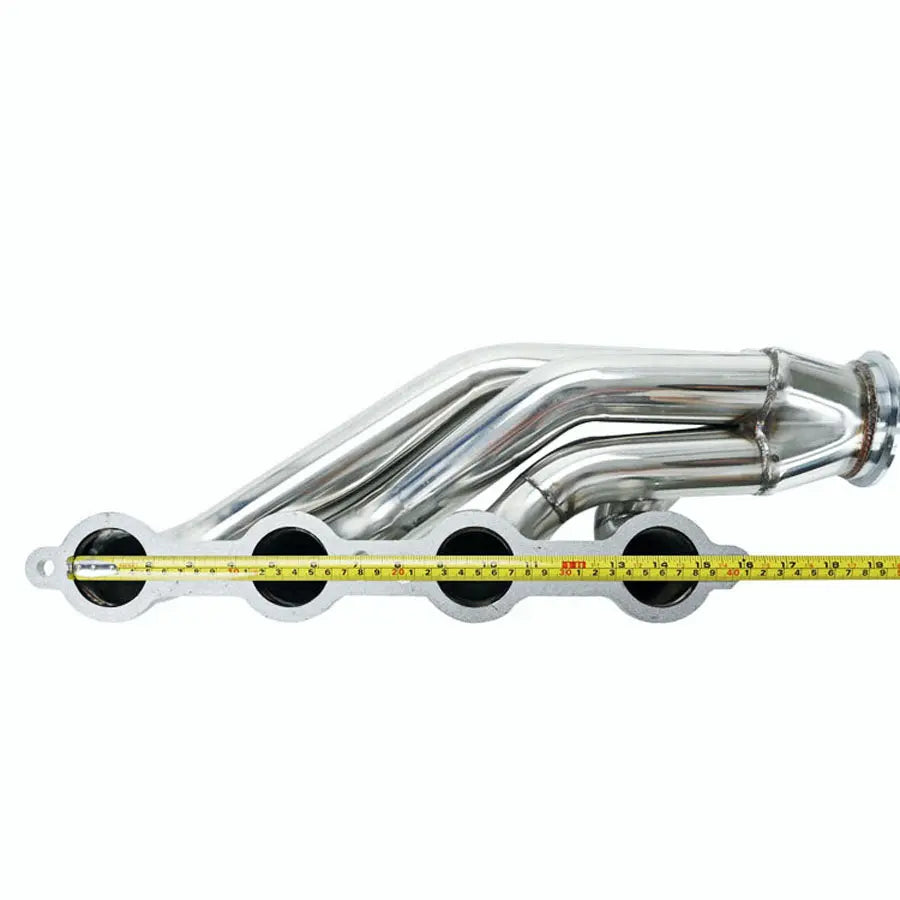

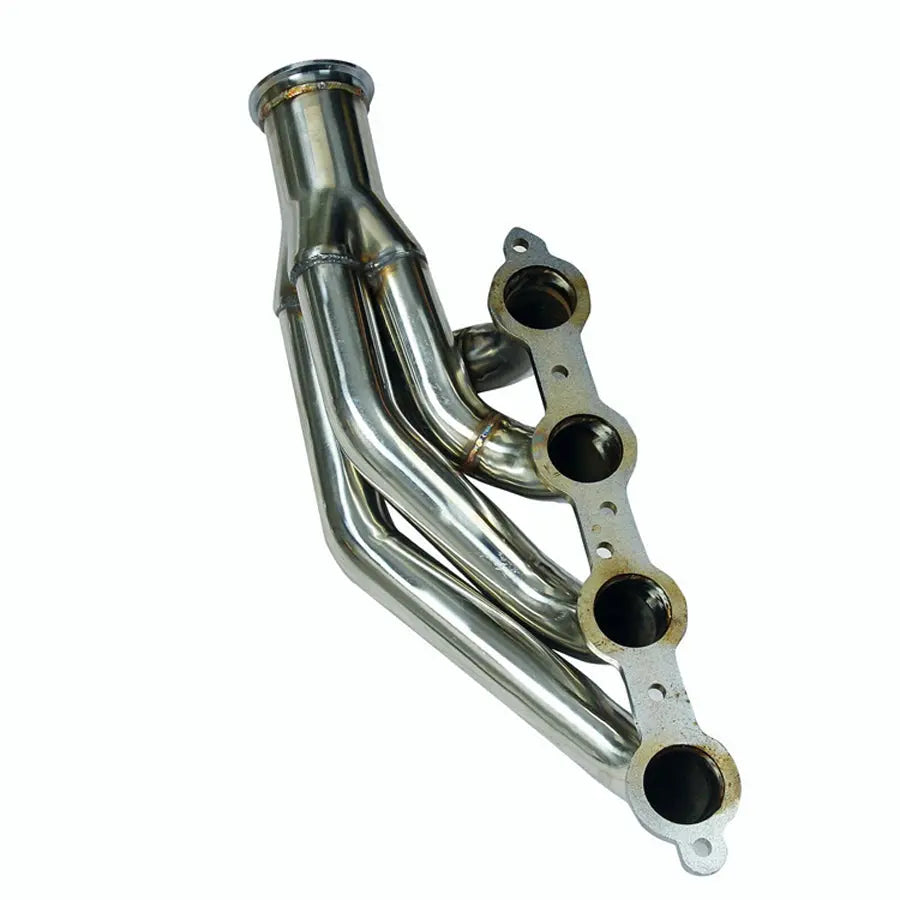

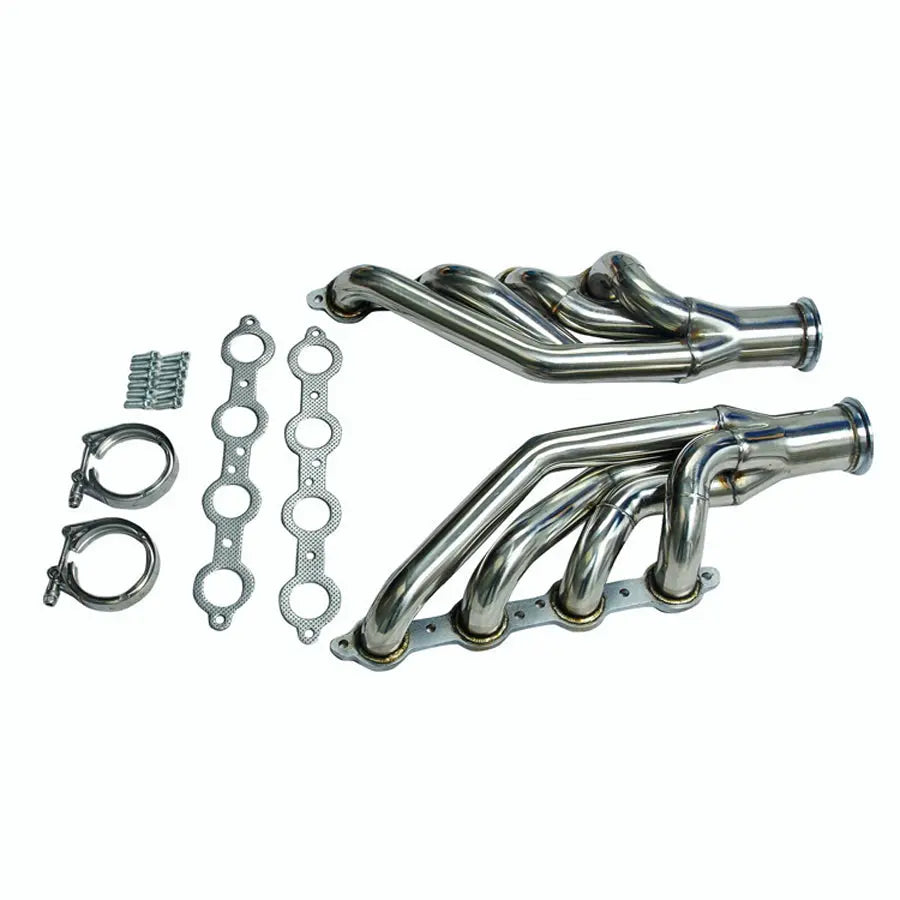

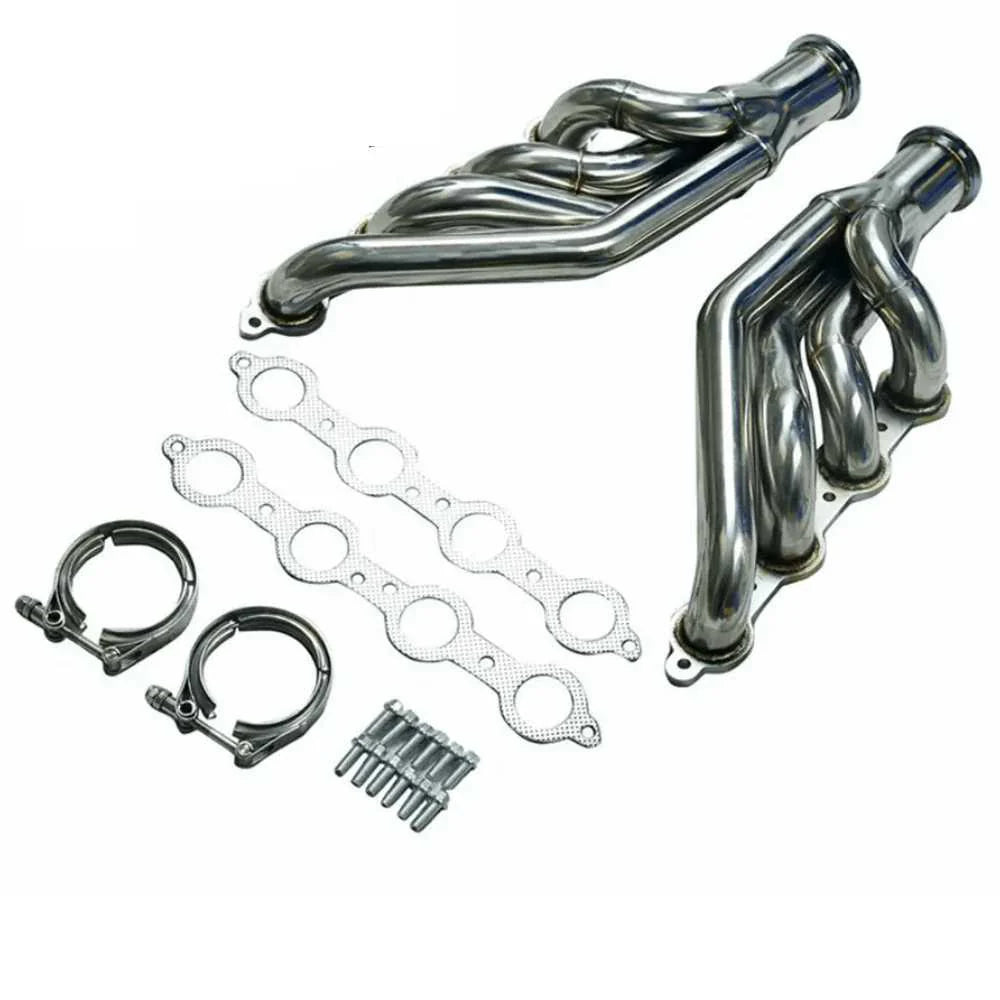

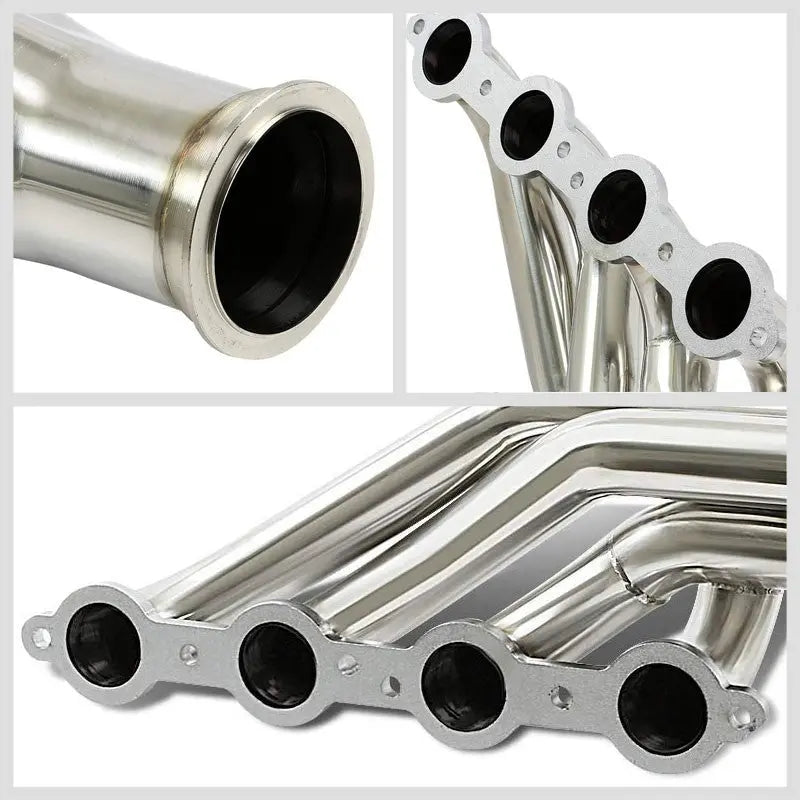

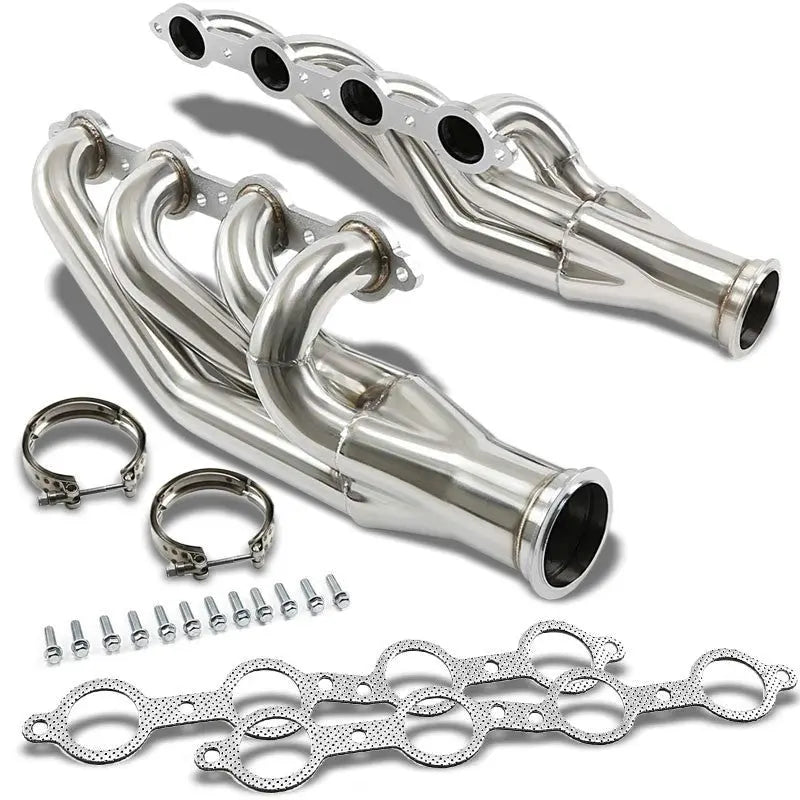

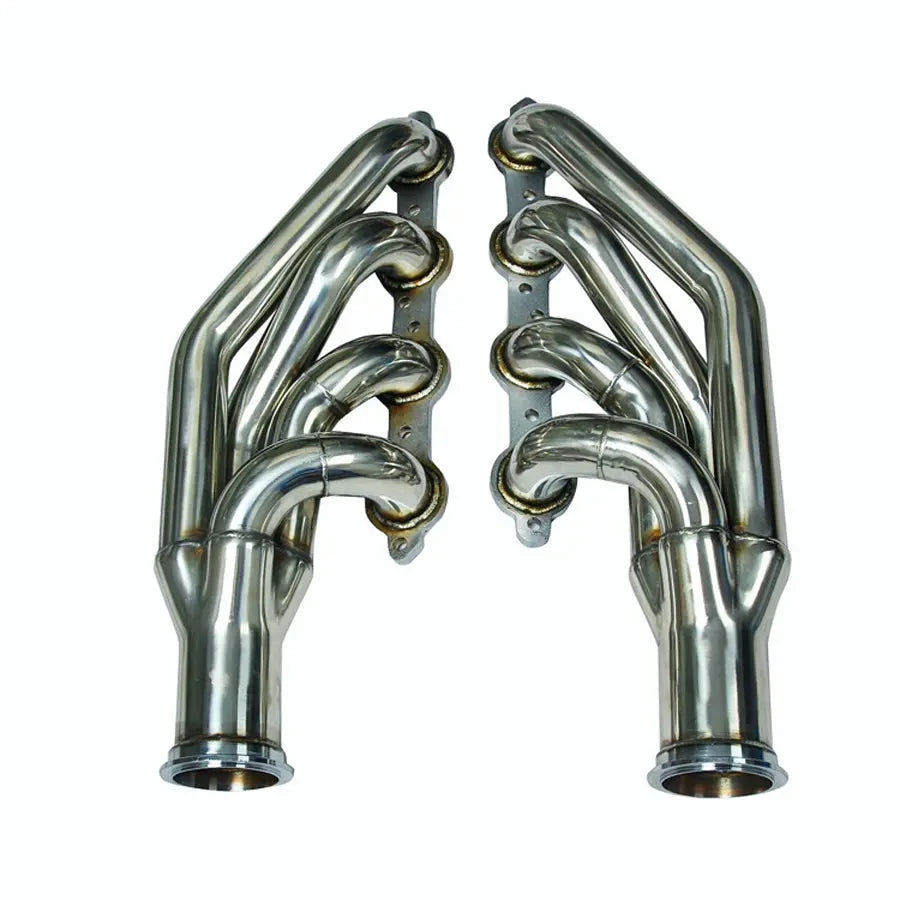

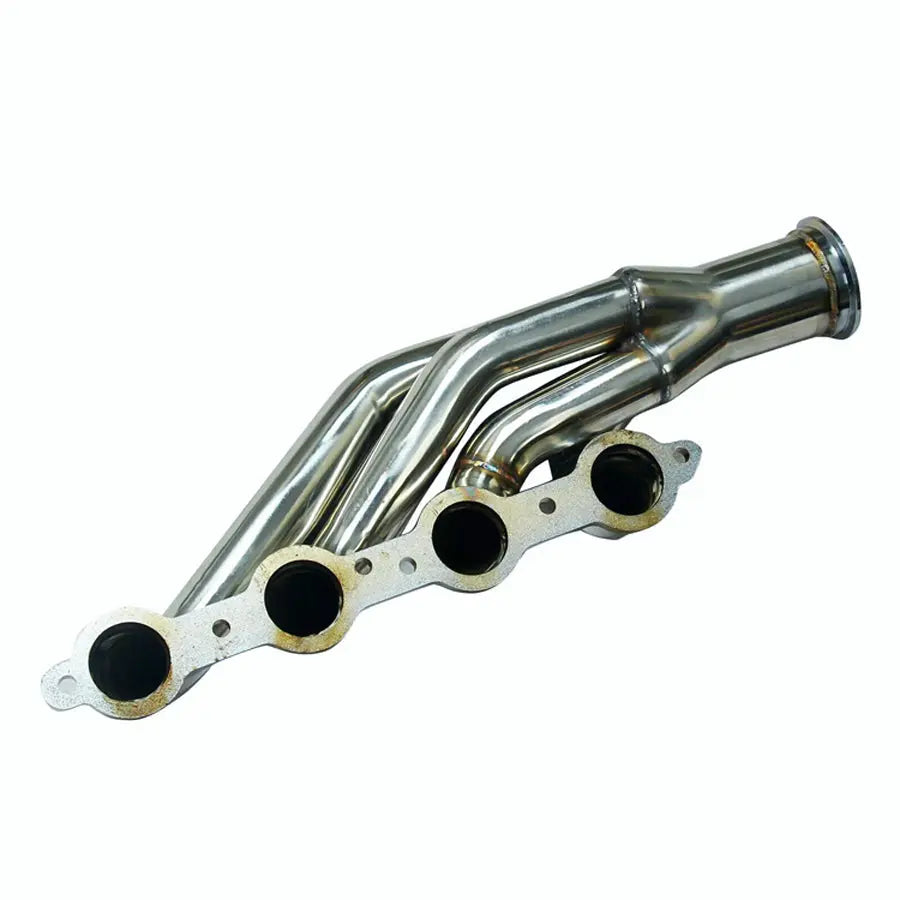

(97-13) CTS/Camaro/Corvette/Firebird/GTO LSx Turbo Exhaust Headers

COMPATIBLE: (5.7L/6.0L/6.2L - LS1/LS2/LS3/LS6)

1997 - 2013 CHEVROLET CORVETTE

1998 - 2002 CHEVROLET CAMARO

2010 - 2015 CHEVROLET CAMARO

2004 - 2013 CADILLAC CTS

1998 - 2002 PONTIAC FIREBIRD

2004 - 2006 PONTIAC GTO

*Designed for LS based small block V8 engines(LS1, LS2, LS3, LS6, LSX) *Can be used for single or twin turbo builds *Up and forward facing 5.7L 6.0L 6.2L

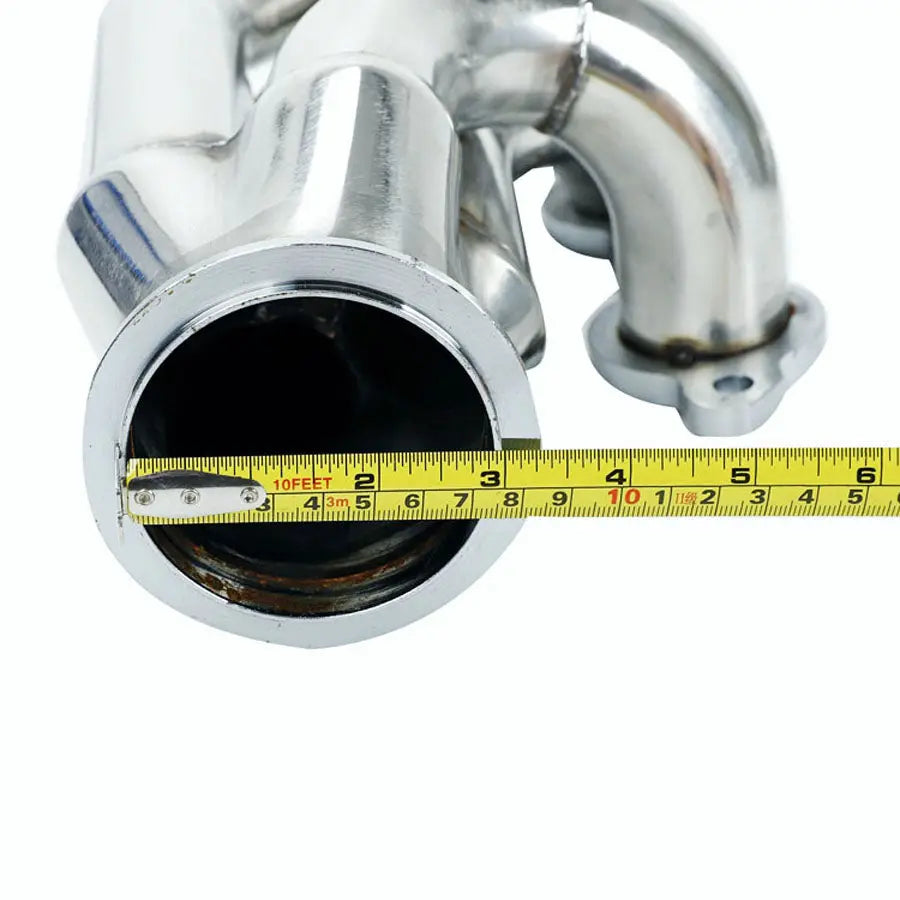

Surface: Mirror Polish Model: EH28273 Inlet / Outlet: 1.76" / 2.89" V-band Clamp size:3.0" (Allowable Error range:0.1-0.2inch) Header Type: Turbo Primary Diameter: 1-7/8 in. (48mm) Collector Diameter: 3 in. (76mm) Head Flange Thickness：3/8 in. (9.5mm) Pipe Thickness: 16 gauge (1.5mm)

The structural differences between exhaust headers and manifolds are the material and size. From the material, exhaust headers are made of lighter, thinner steel, while exhaust manifolds are made of thick iron. Exhaust headers are also longer than exhaust manifolds. When in use, exhaust manifolds create back pressure, which lowers performance. Because each cylinder of the engine is given its own tube, however, headers eliminate this problem; thus, allowing the gases to exit without the creation of back pressure. Therefore, exhaust headers are a BETTER choice than an exhaust manifold.
