CMBVLR04T040170

6AN 10-100 PSI Fuel management unit

£71.90
/
Shipping calculated at checkout.
  • Question? Call us at (888) 257-1077 🏁
  • info@10SecondRacing.com
  • Free Shipping to Lower 48 US States ($100+)
  • Worldwide Shipping via UPS (Check Rates at Checkout)

    • This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

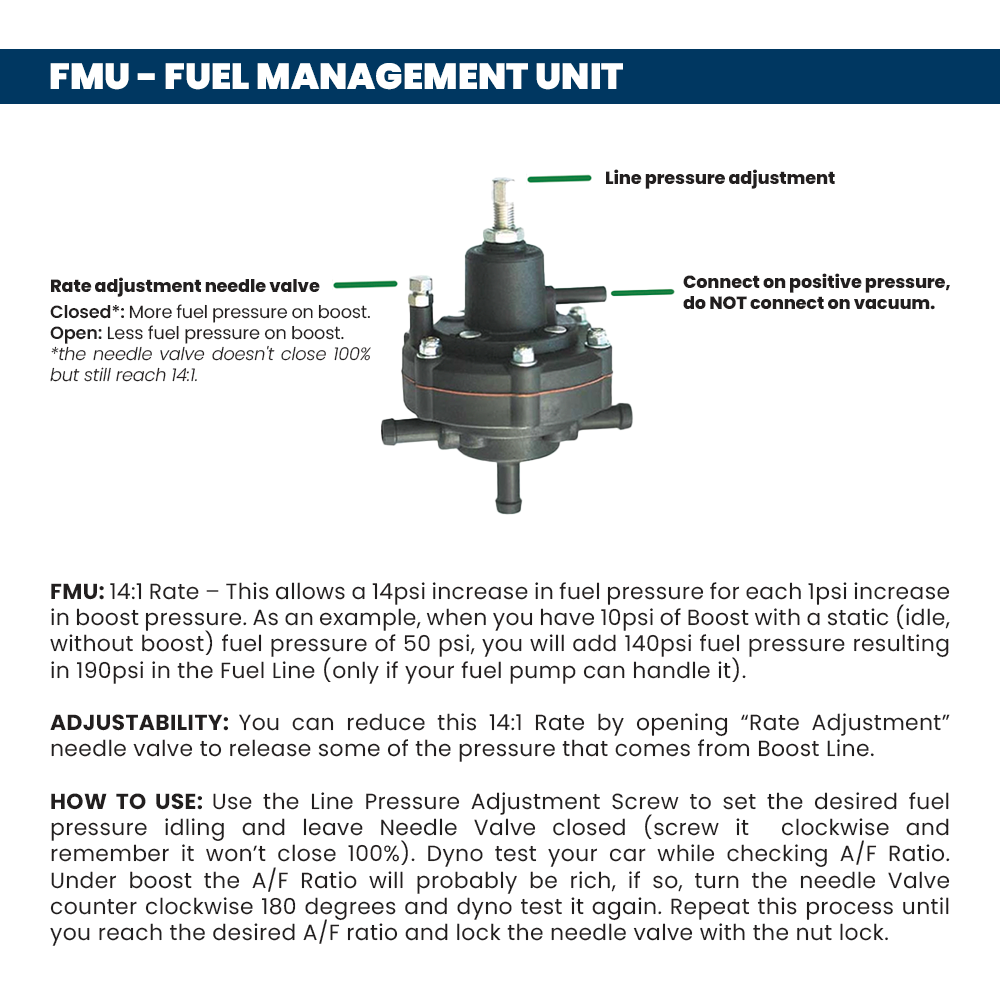

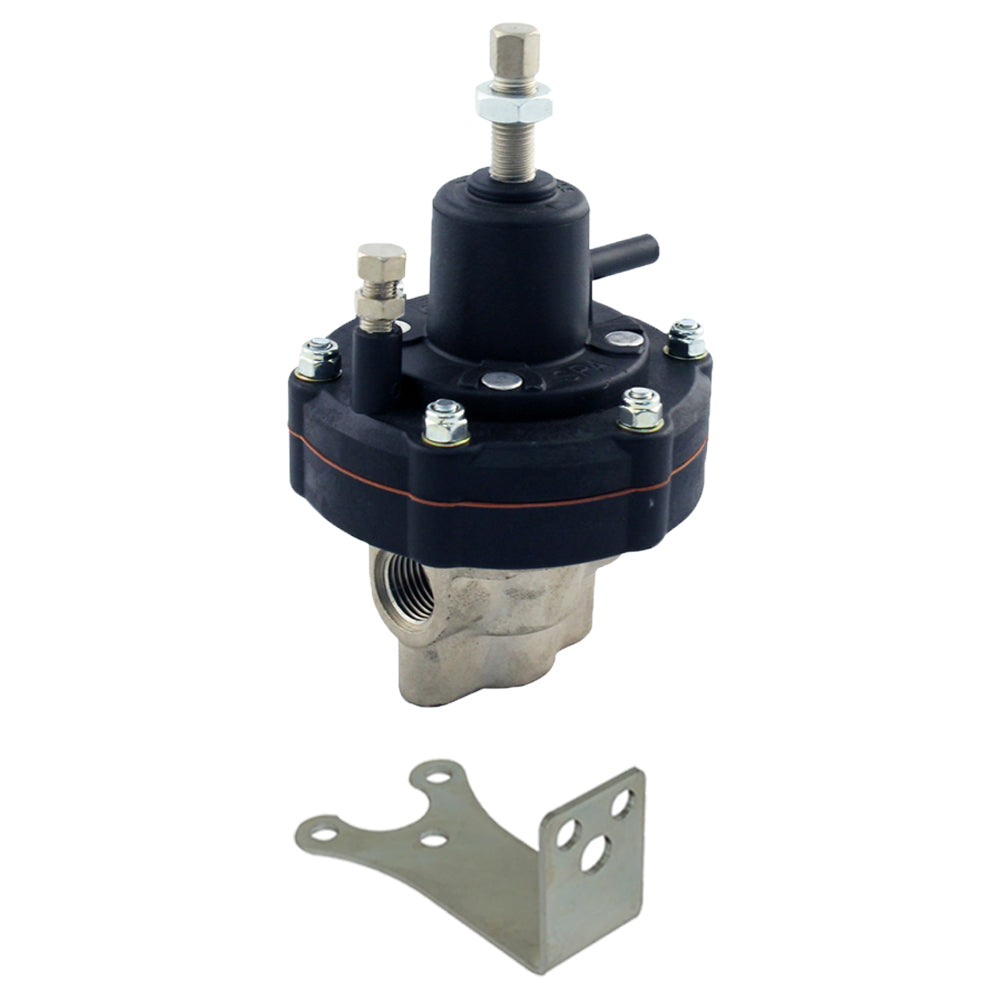

    • SPA Turbo Composite High Flow Fuel management unit 10 to 100 PSI.
    • The composite FMU line are designed to easily adapt to any fuel system.
    • Internally, the regulators use a special diaphragm seal that guarantees safety and quality.
    • This is the high volume, high pressure unit.
    • Adjustable from 10 to 100 psi.
    • This  FMU can be adjusted to meet the needs of most of systems.
    • FMU has a built-in FPR, so you can adjust the line pressure and adjust the raising rate.
    • All SPA Turbo Fuel Pressure Regulators are E85, 100% Ethanol and methanol safe.
    • 2x 6AN (9/16" x 18TPI thread) inlet and 1x 6AN (9/16" x 18 TPI thread) outlet fuel ports and 1/4” vacuum/boost port.
    • Adjustable 10 to 100 psi fuel pressure.
    • 14:1 adjustable rising rate.

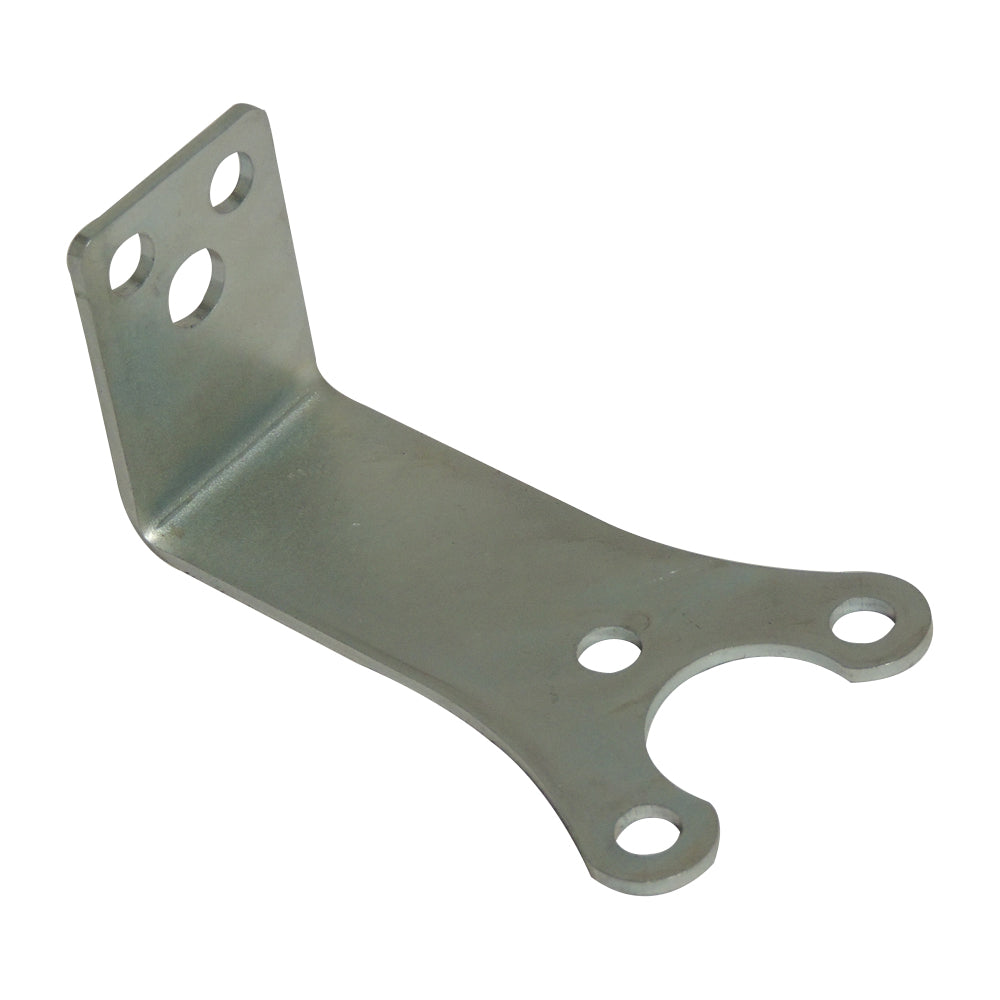

    Fuel pressure regulator bracket

    • Allows perfect fixation of the fuel pressure regulator in the desired location.
    • Fits all SPA Turbo fuel pressure regulator.

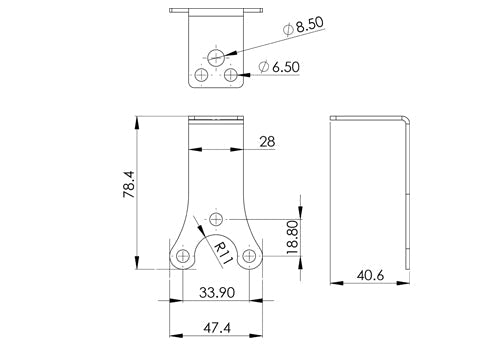

    • Can also be used on other fuel pressure regulator with fixing holes as described in the "Technical Drawings" tab.
    • Made of high quality galvanized steel.
