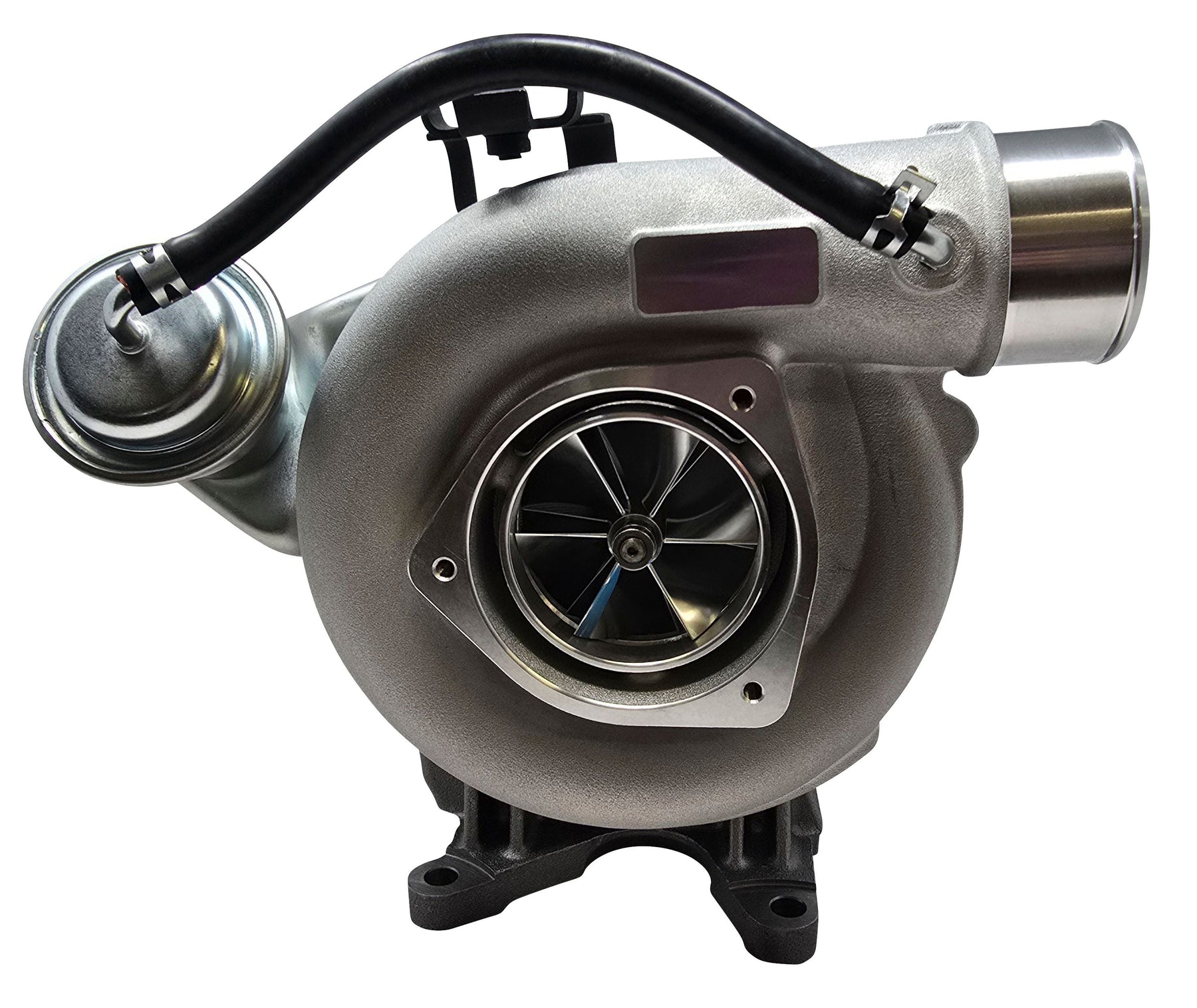

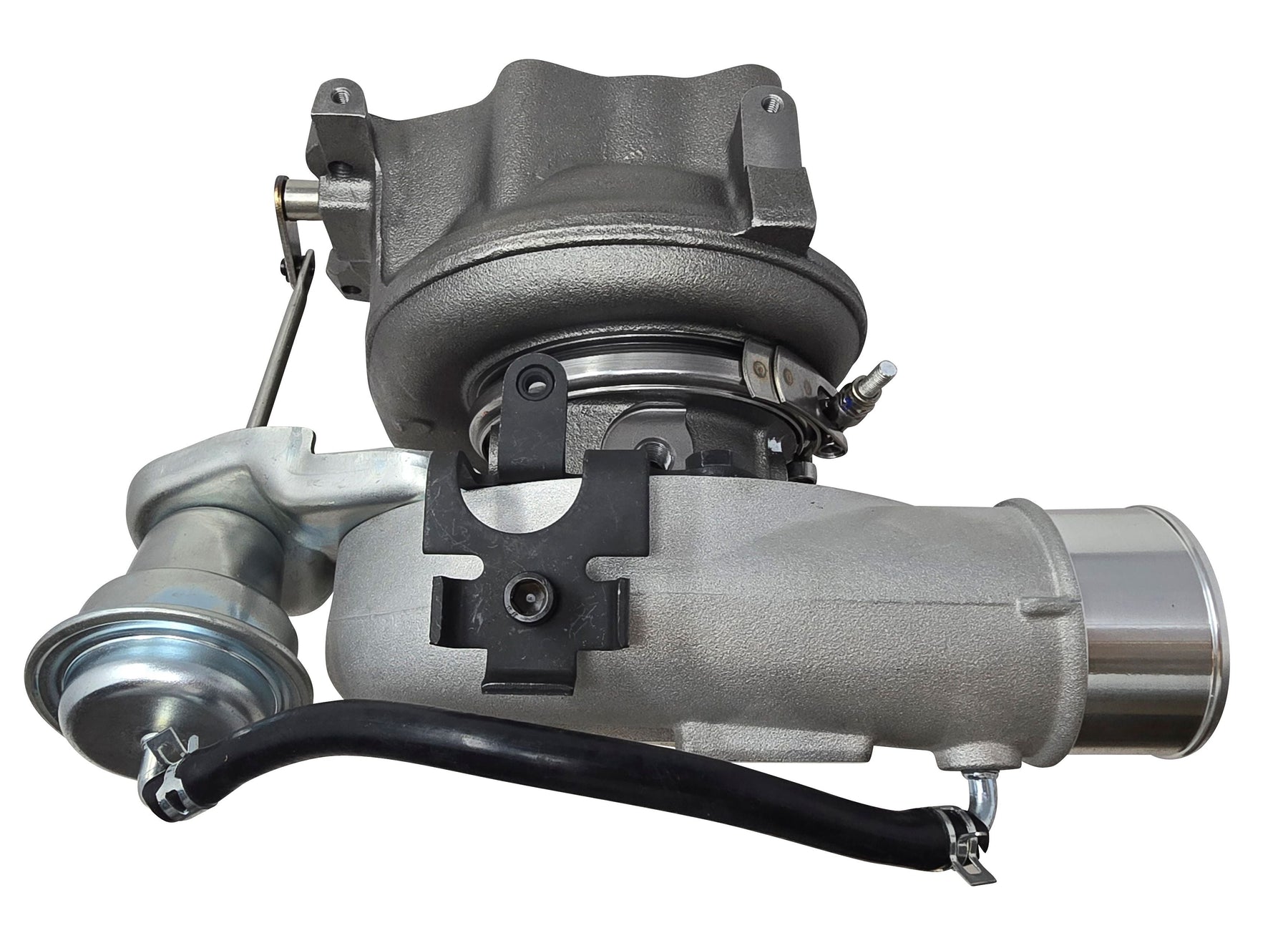

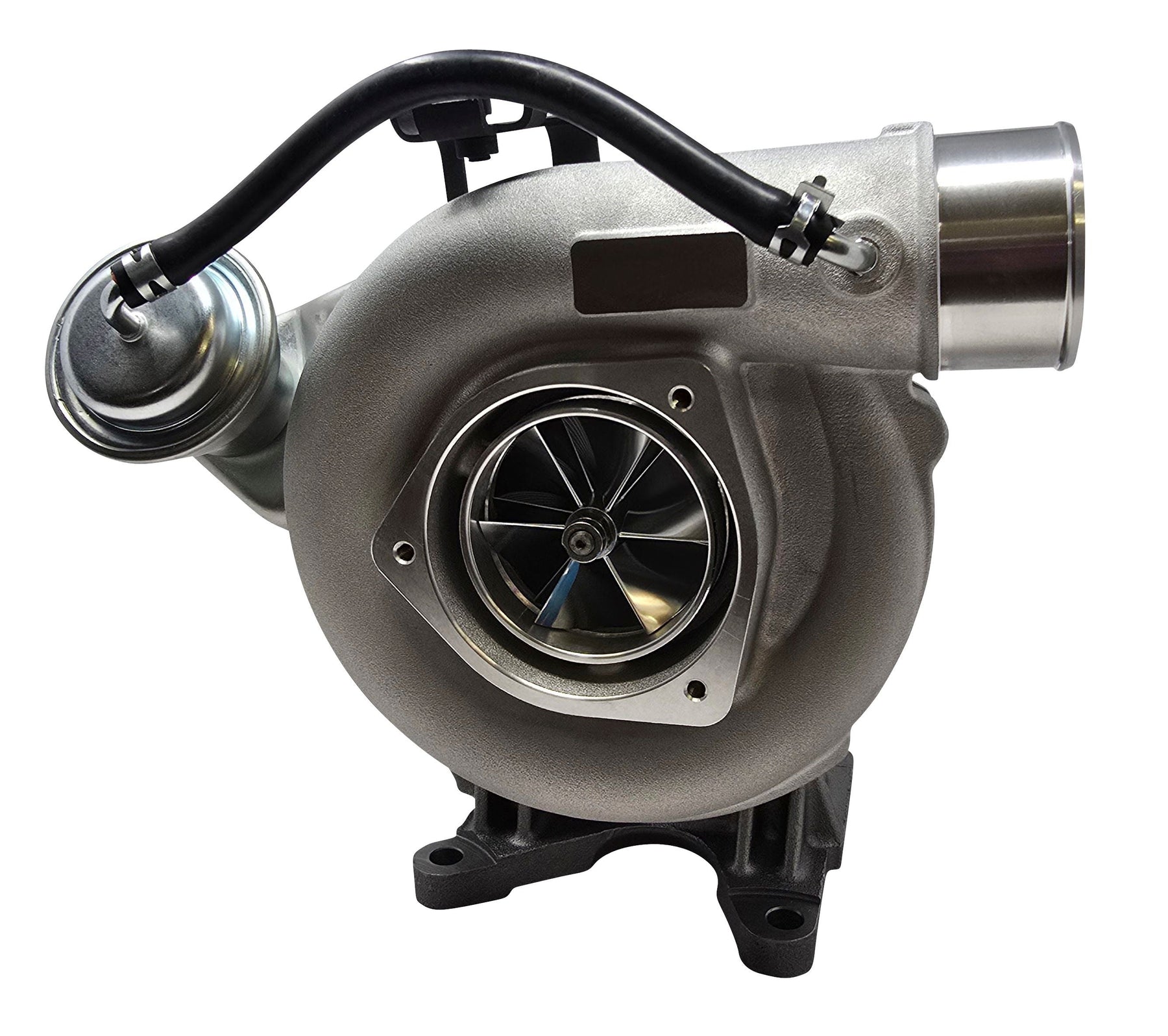

67mm Complete Turbo for 6.6l Duramax LB7 2001-2004 Chevy GMC
Features:
67mm compressor cover & billet 6+6 wheel.
Upgraded 10 Blade Turbine Wheel
Balanced assembly
Includes turbo actuator
Billet Compressor Specs
Inducer: 67 mm
Exducer Base: 89 mm
Extended Tip: 95 mm
Primary Tip Height: 41 mm
Secondary Tip Height: 30 mm
Nose Width: 15 mm
Blades: 6/6
Extended Tip
Pre-balanced
Reinforced Blade Base
Slim Nose Increases Blade Size
Larger Blades for Increased Flow
Increased Throttle Response

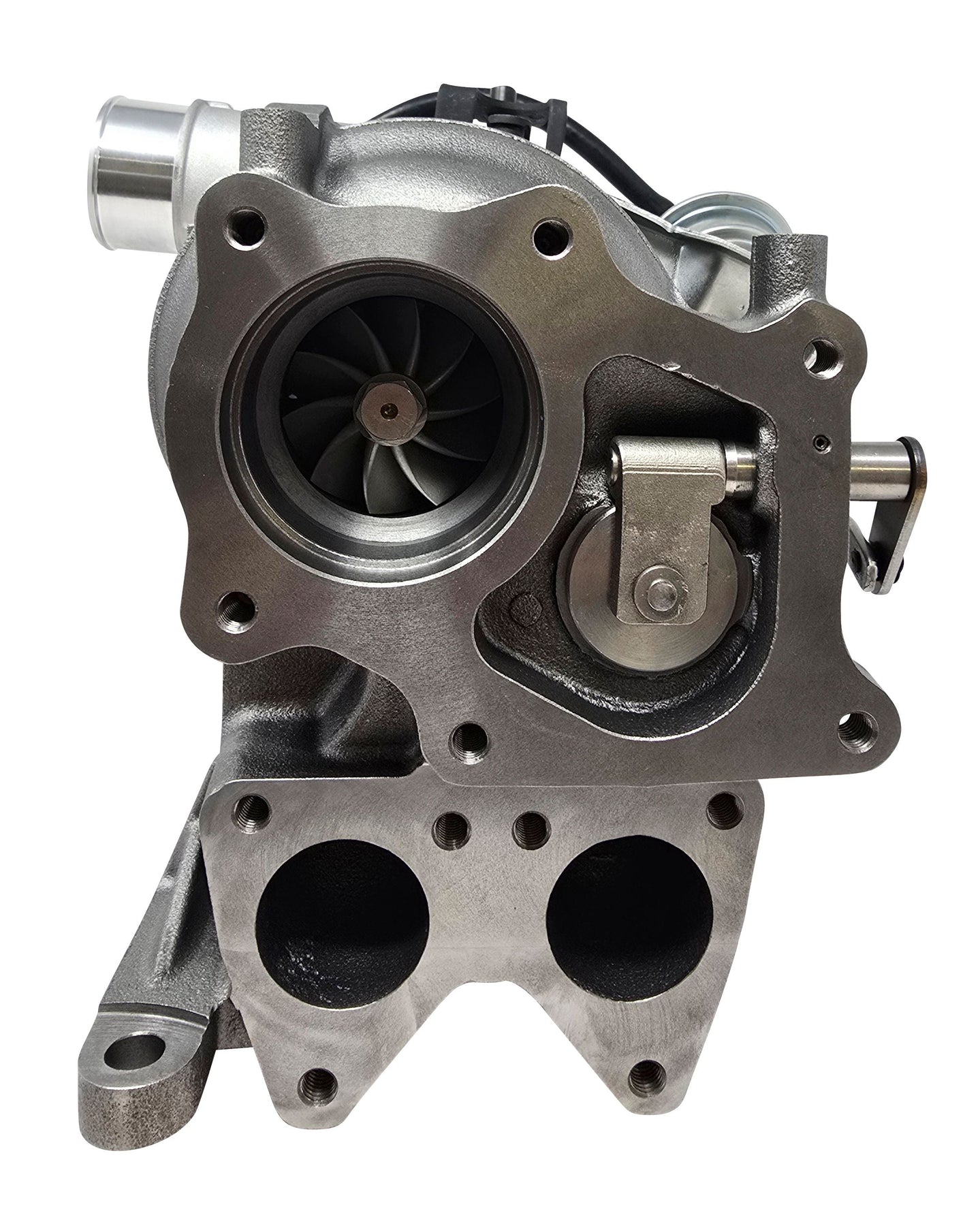

Turbine Wheel Specs
10 Blade Turbine Wheel: Measures 68.9mm x 62mm, 10 Blades
Fits: IHI RHG6 Turbos found in 2001-2004 6.6l LB7 Duramax Chevy/GMC applications
