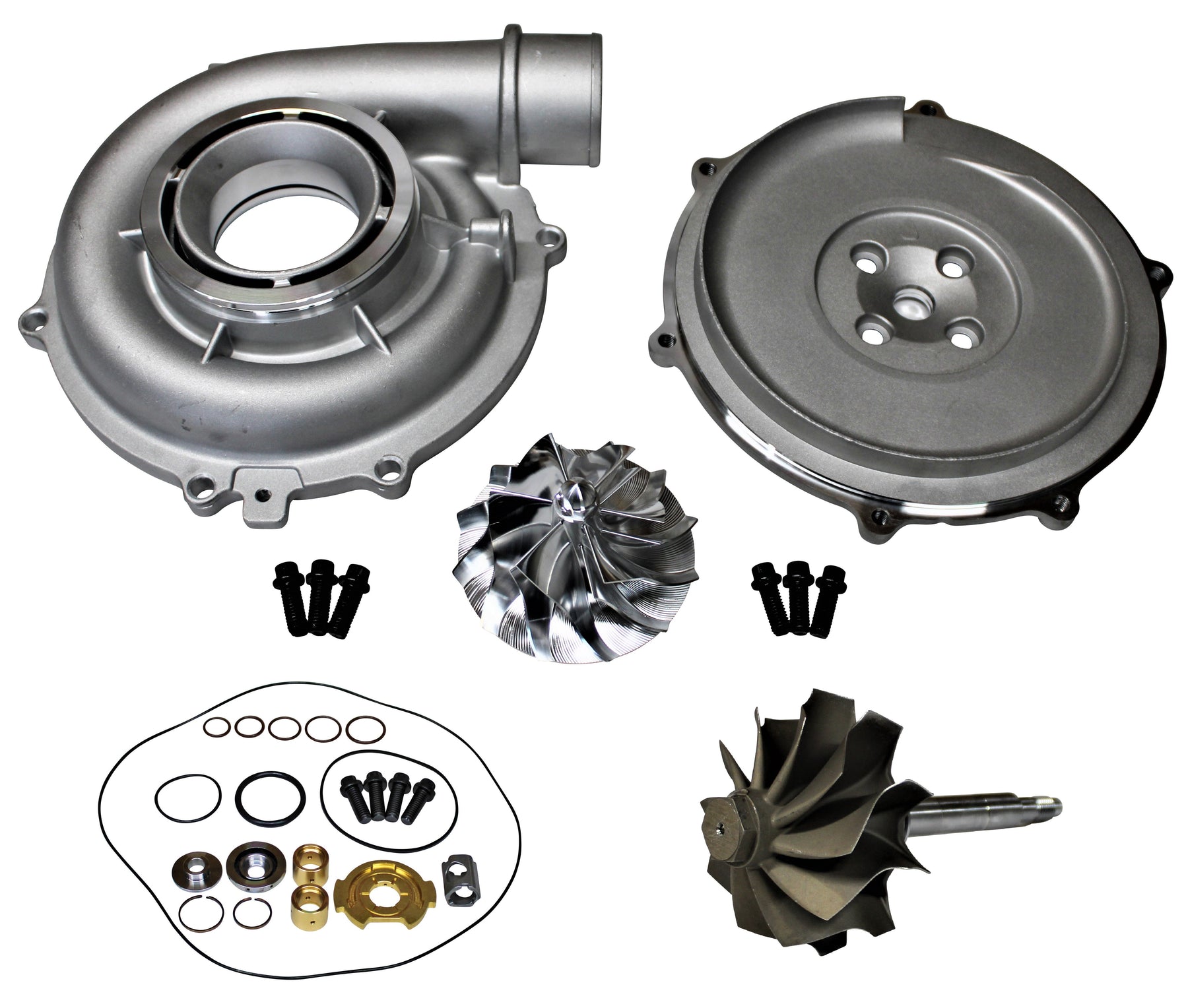

Turbocharger front cover kit for LMM-LML Garrett Turbos.
Lightweight 6/6 Billet Wheel
Increase airflow
Lower EGTs
New Mounting Hardware Included
63.5mm Inducer: Recommended for Towing & Heavy Hauling
Billet Compressor Specs
Inducer: 63.5 mm
Exducer Base: 88.4 mm
Extended Tip: 94.1 mm
Primary Tip Height: 58 mm
Secondary Tip Height: 47 mm
Nose Width: 13 mm Hex
Blades: 6/6
Extended Tip
Pre-balanced
Reinforced Blade Base
Slim Nose Increases Blade Size
Larger Blades for Increased Flow

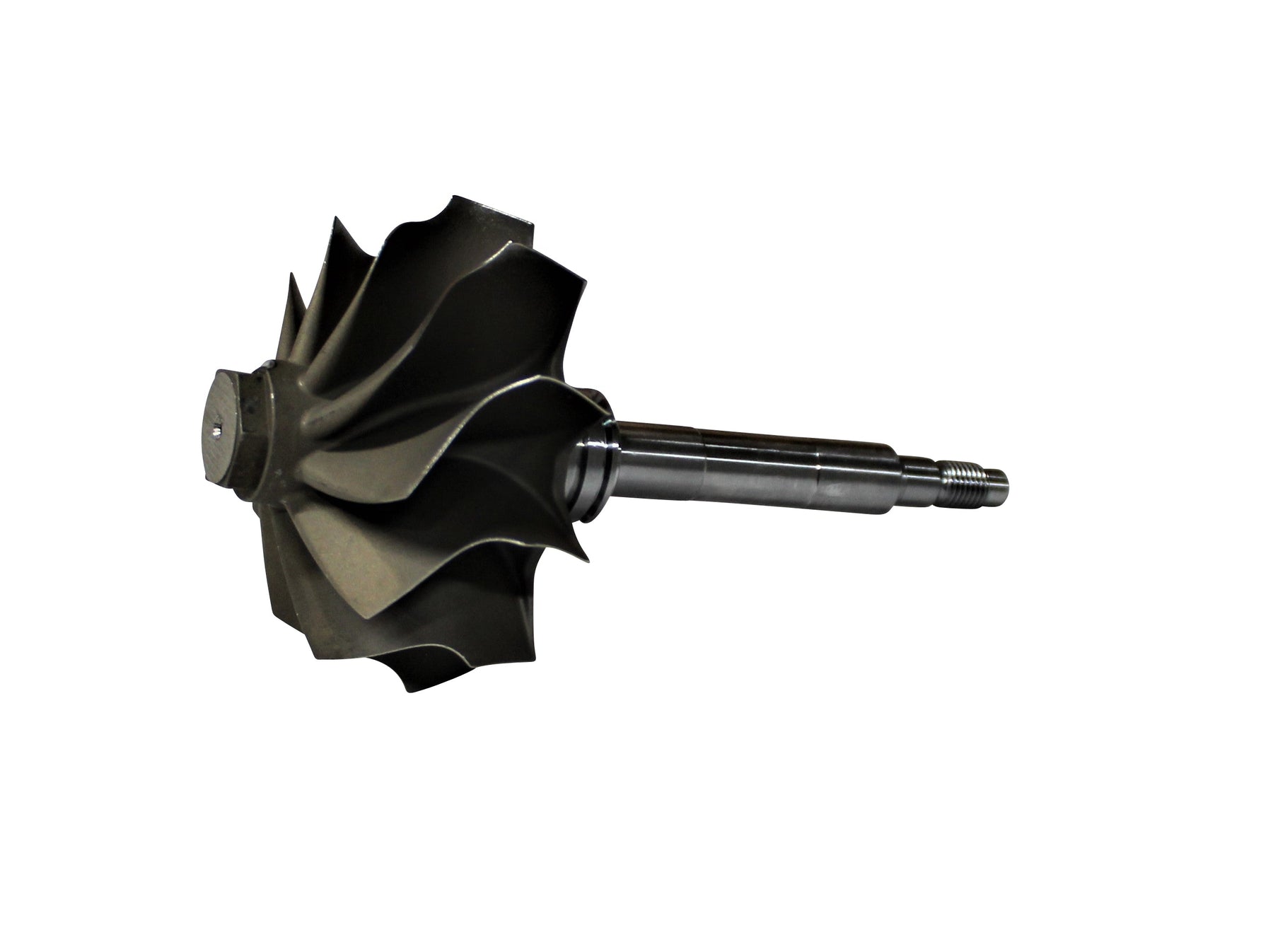

Turbine Shaft Specs:
LMM: Upgraded 10 Blade, Inducer: 72.2 mm, Exducer: 63.9 mm
LML: Upgraded 10 Blade (OE was 11 Blade), Measures 72.2mm x 62.4mm
LML: Upgraded 9 Blade (OE was 11 Blade), Measures 72.2mm x 62.4mm

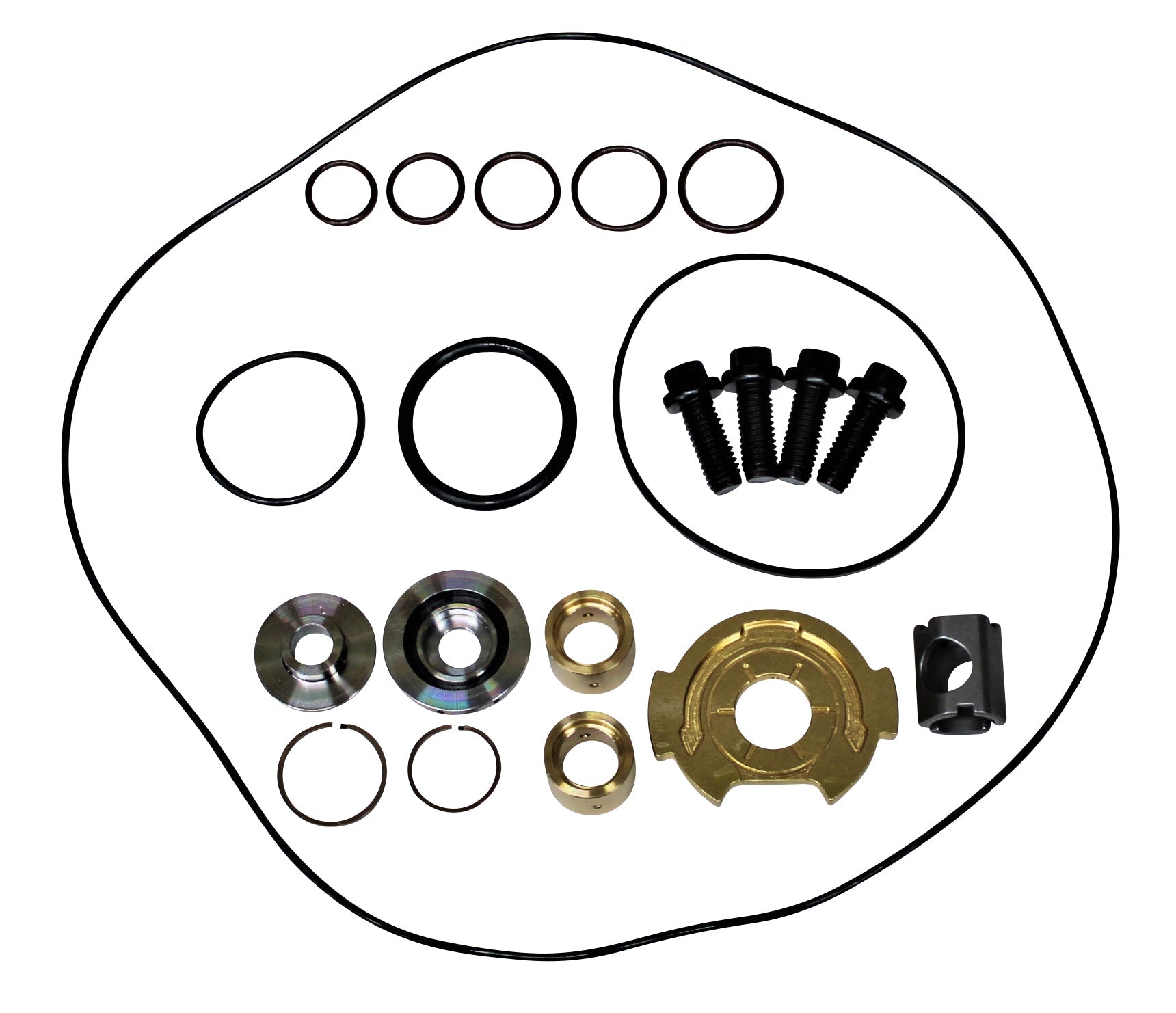

Turbo Rebuild Kit Specs:
Full O-Ring set including VGT Solenoid O-rings
1 - 360 degree Thrust Bearing
1 - Thrust Bearing Collar
1 - Thrust Bearing Spacer
4 - 12 Point Flange Bolts
2 - Journal Bearings
1 - Bearing Spacer
2 - Stepped Gab Oil Seals

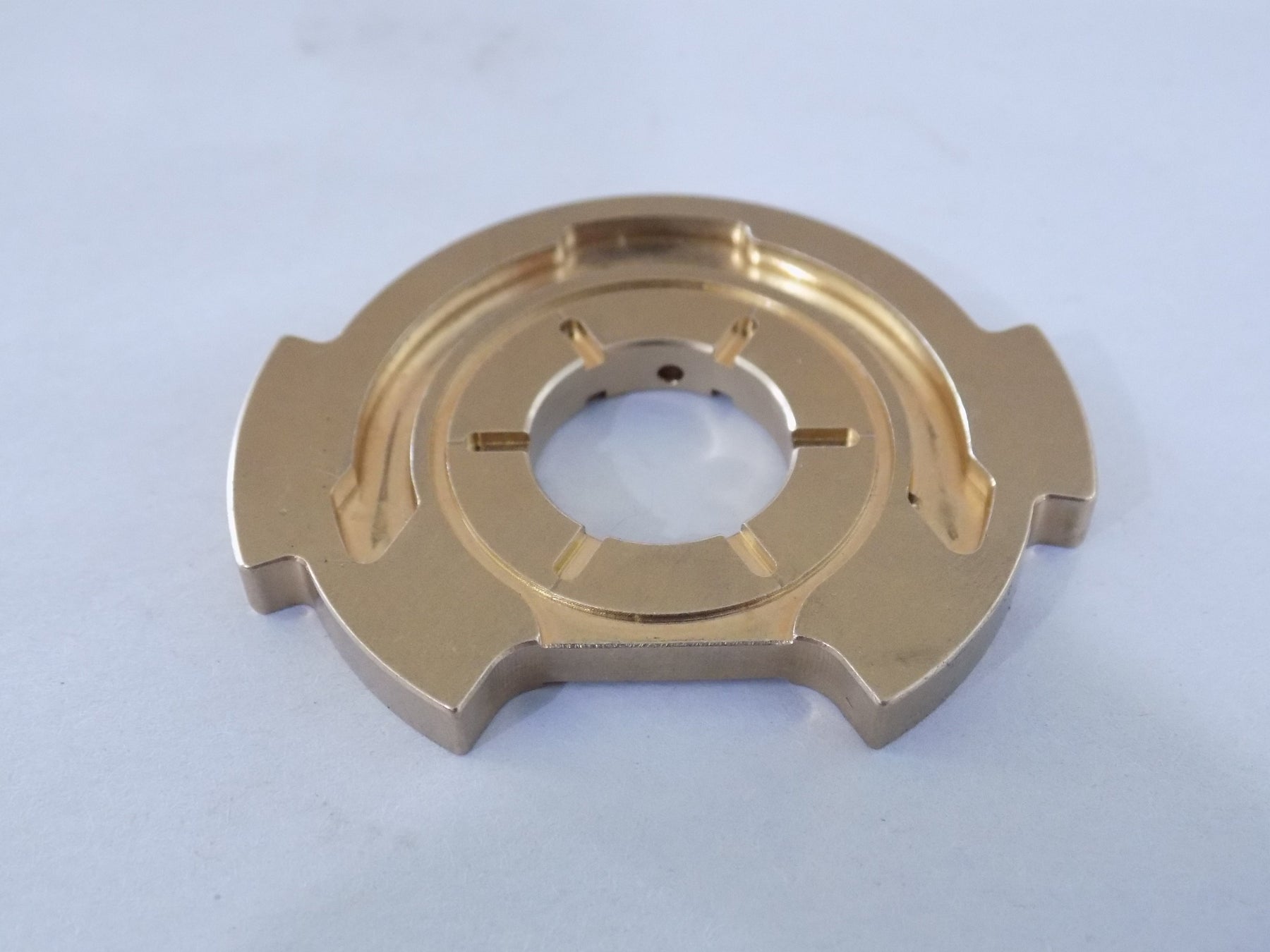

The 360 degree thrust bearing creates a larger thrust pan which increases strength and longevity of the turbo when compared to a stock 270 degree thrust bearing.
The turbine & billet compressor wheel are individually balanced. We do recommend getting the full assembly balanced for longevity. If you would like us to take care of the balancing for you, please select the option and allow an extra few days of lead time until your order ships.
Unison Ring & Vanes Specs:
Unison Ring: Made From High Temperature Tolerant 310SS
Standard Vanes: Made From High Temperature Tolerant 310SS
Billet Low Profile Vanes: Made From Heat Resistant 310SS, Helps Reduce Top-End EGTs, Lower Drive Pressure, Machined In US
Fits: 2007-2016 LMM / LML 6.6l Duramax Turbos in 2500/3500 applications.
LMM's will need a M10-1.25x10mm plug to plug the sensor port on the front cover.
One Year Warranty Available, the following items will be required:
- Receipts of oil supply & drain tubes replaced at time of rebuild
- Balanced must be selected at time of purchase
- Turbo fasteners must be torqued to specs
