CMBVLRPSH01BK

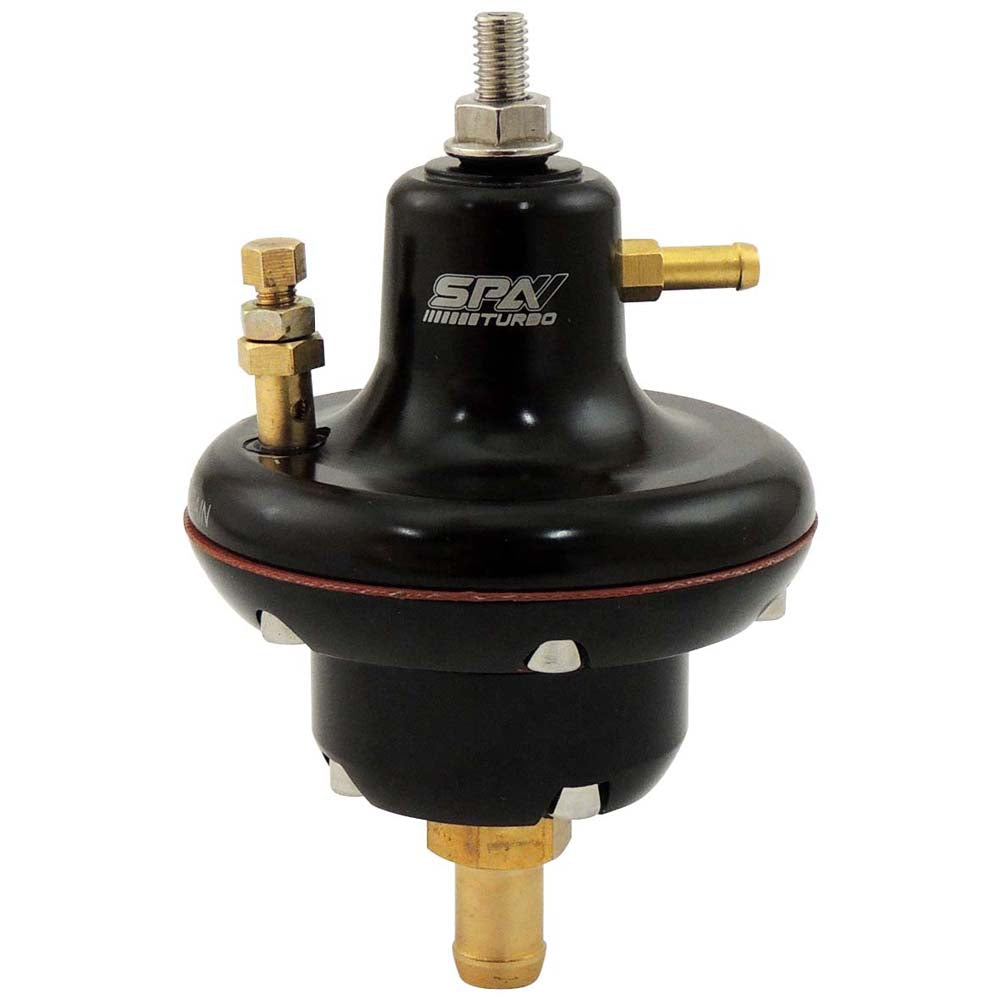

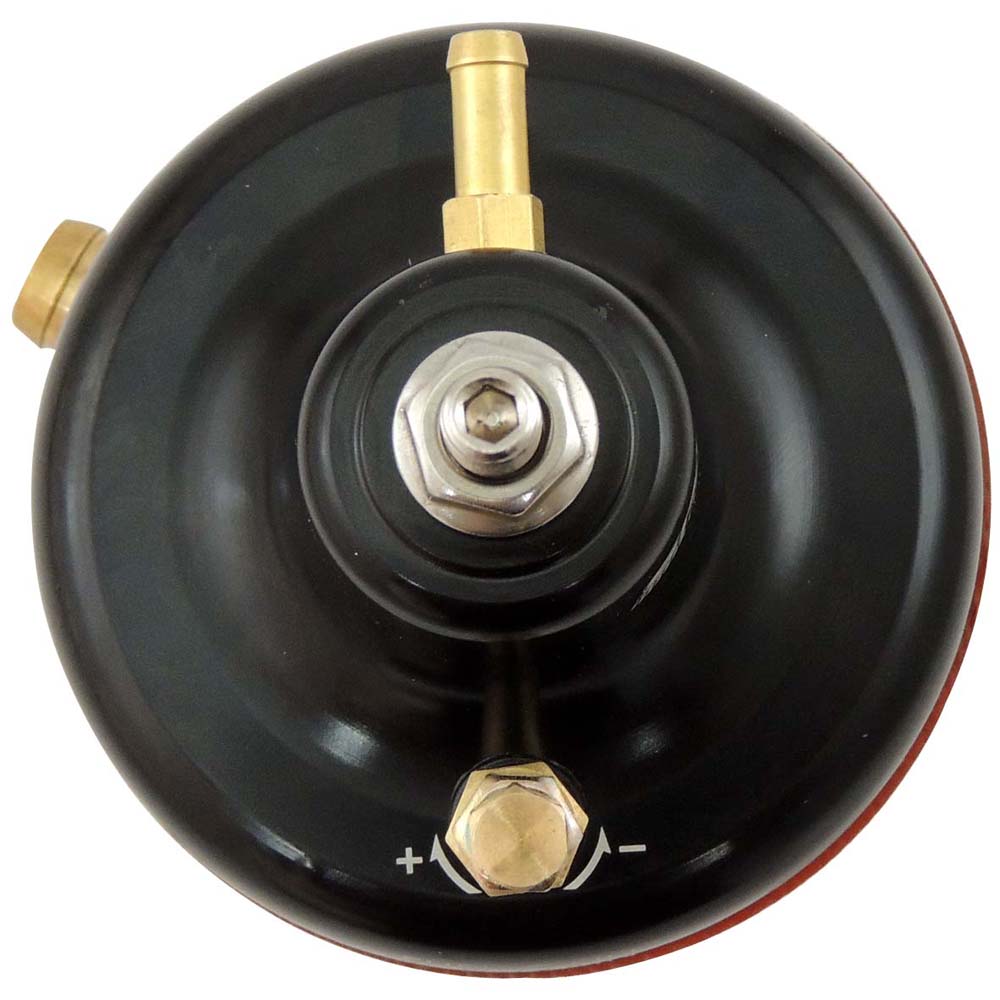

10-100 PSI Billet adjustable FMU - Black

£76.21 £72.39
/
Shipping calculated at checkout.
  • Question? Call us at (888) 257-1077 🏁
  • info@10SecondRacing.com
  • Free Shipping to Lower 48 US States ($100+)
  • Worldwide Shipping via UPS (Check Rates at Checkout)

    • This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

    • Ethanol and Methanol compatible and SAFE
    • Easy installation
    • FMU (Fuel Management Unit) has an adjustable, boost referenced 1:14 raising rate
    • Fine tune the fuel pressure your engine will need while under boost.

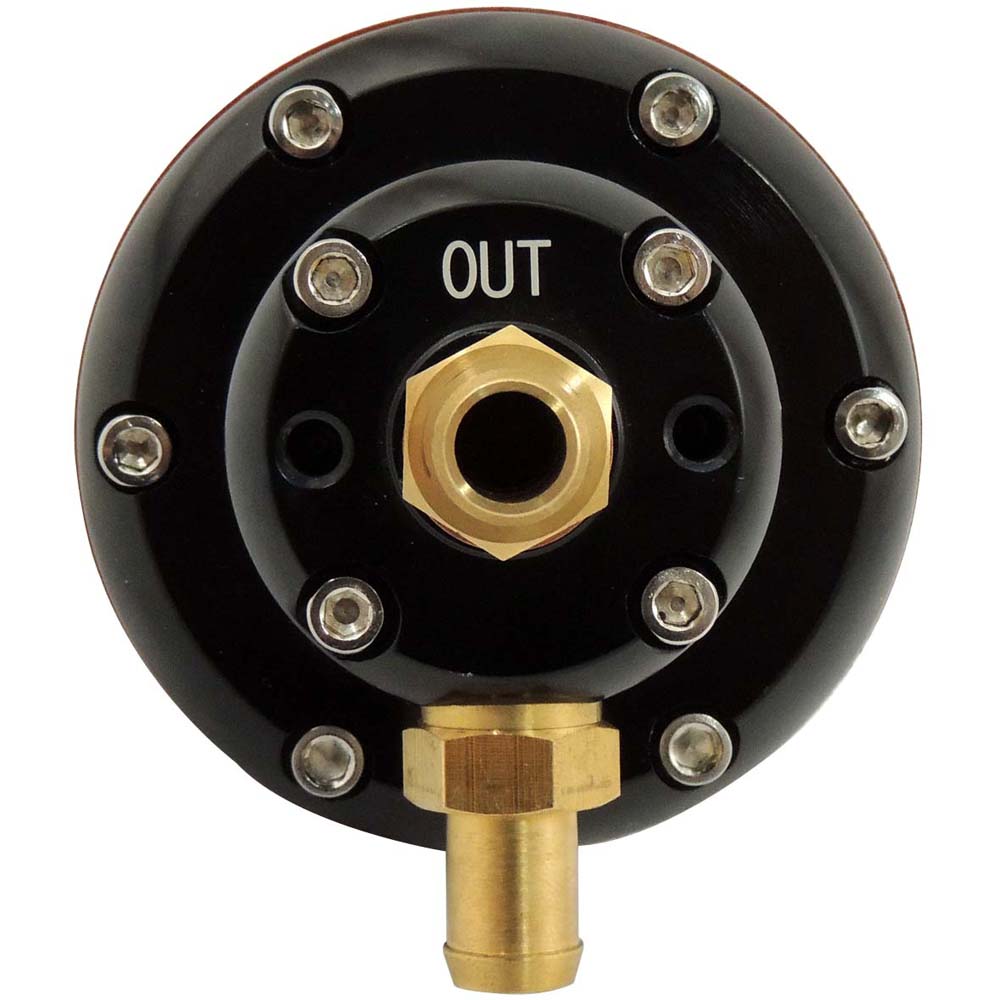

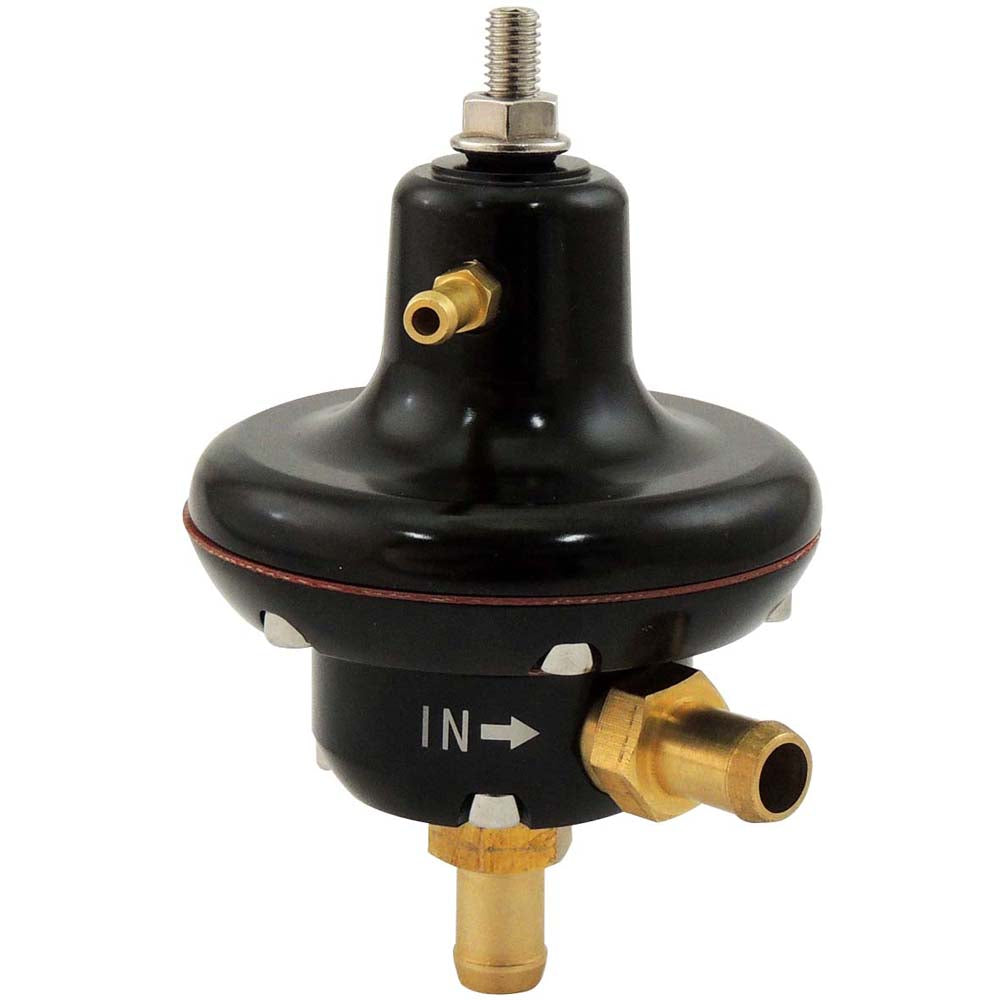

    • 2x -6AN  (9/16" – 18tpi) inlet and -6AN  (9/16" – 18tpi)outlet fuel ports
    • 1/4" boost reference port

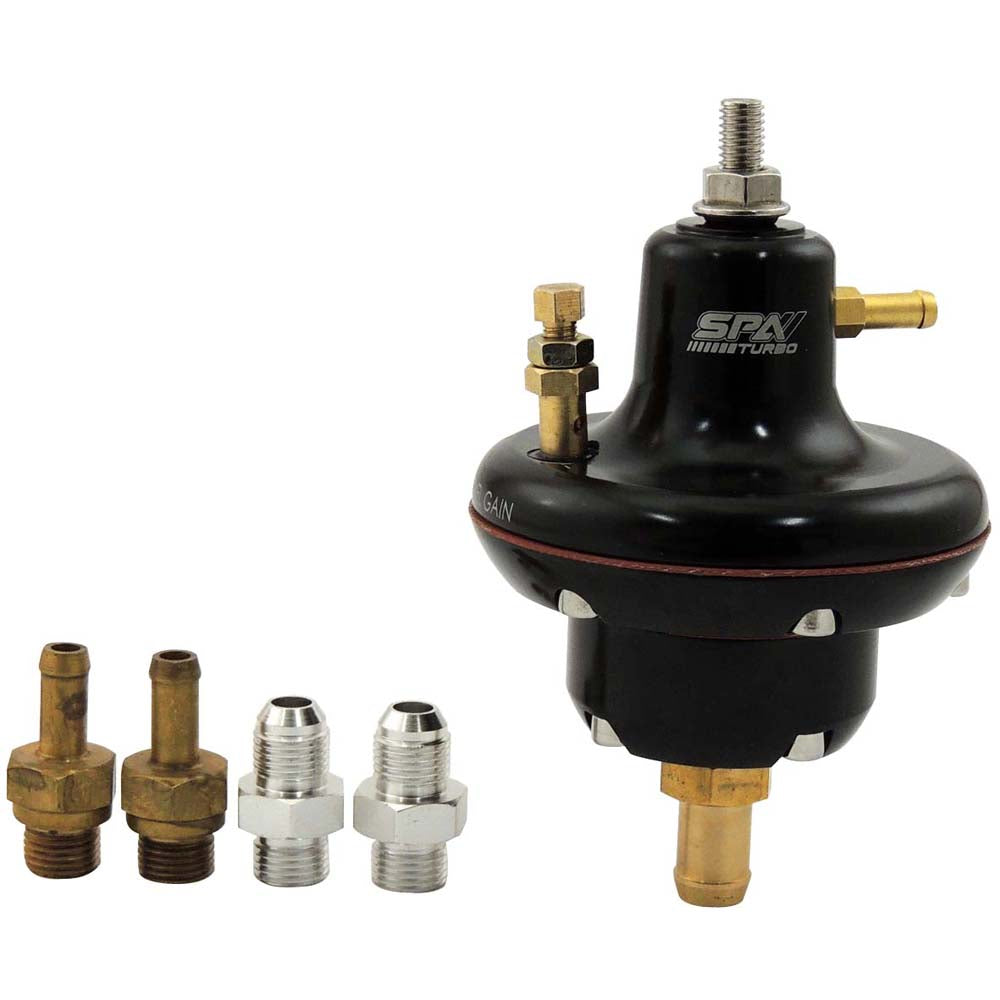

    • Includes fittings: -6AN, O.D. 8mm, O.D. ½”
    • Adjustable from 10 psi to 100 psi fuel pressure
    • All SPA Turbo FMUs can also be used as fuel pressure regulators, In other words, if you need a fuel pressure regulator, and are thinking of later upgrading to a turbo system, save money and get The FMU instead of just the FPR.

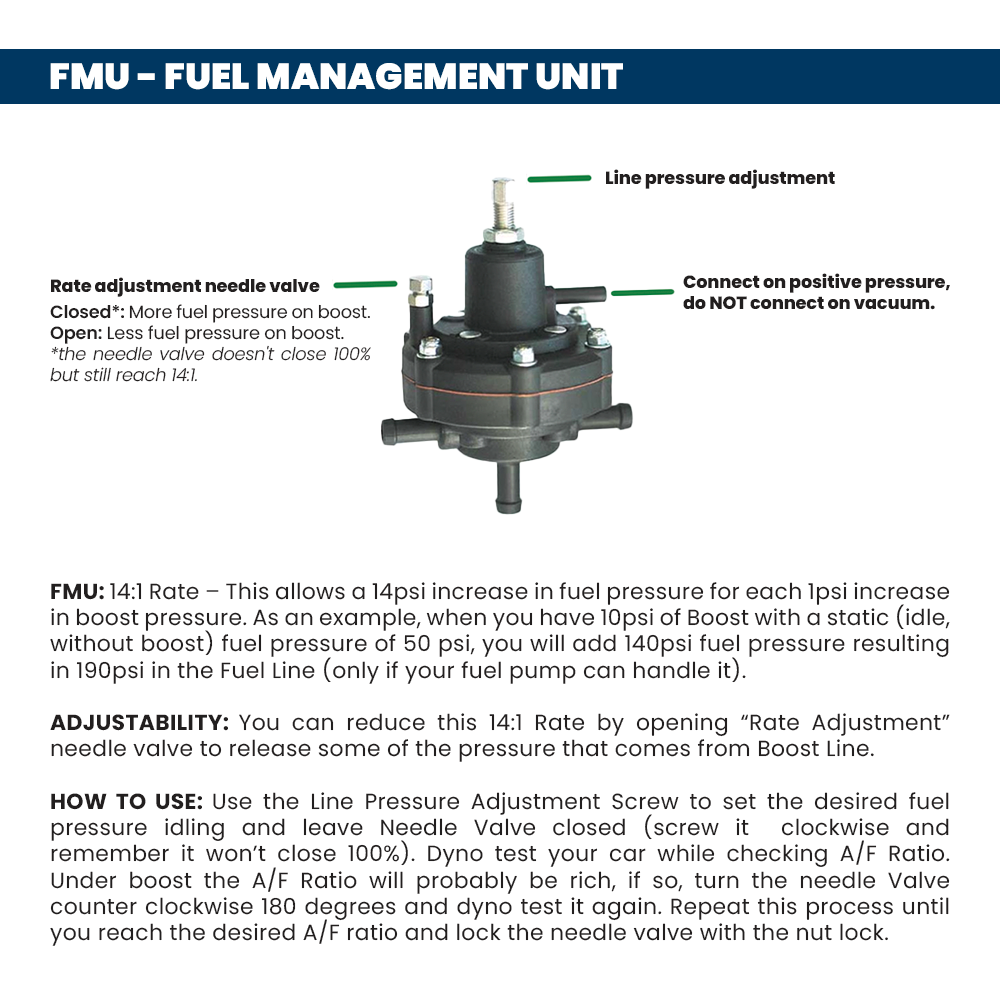

    • We've had a few questions about how these work, so here's clarification:
      • Initial line pressure is adjustable from 10 psi to 100 psi - boost referenced fuel pressure increase is also adjustable.
      • The boost referenced pressure increase is adjustable from 1:1 to 14:1 meaning that the fuel pressure will increase proportionally with an increase in boost.
    • Available in other colors

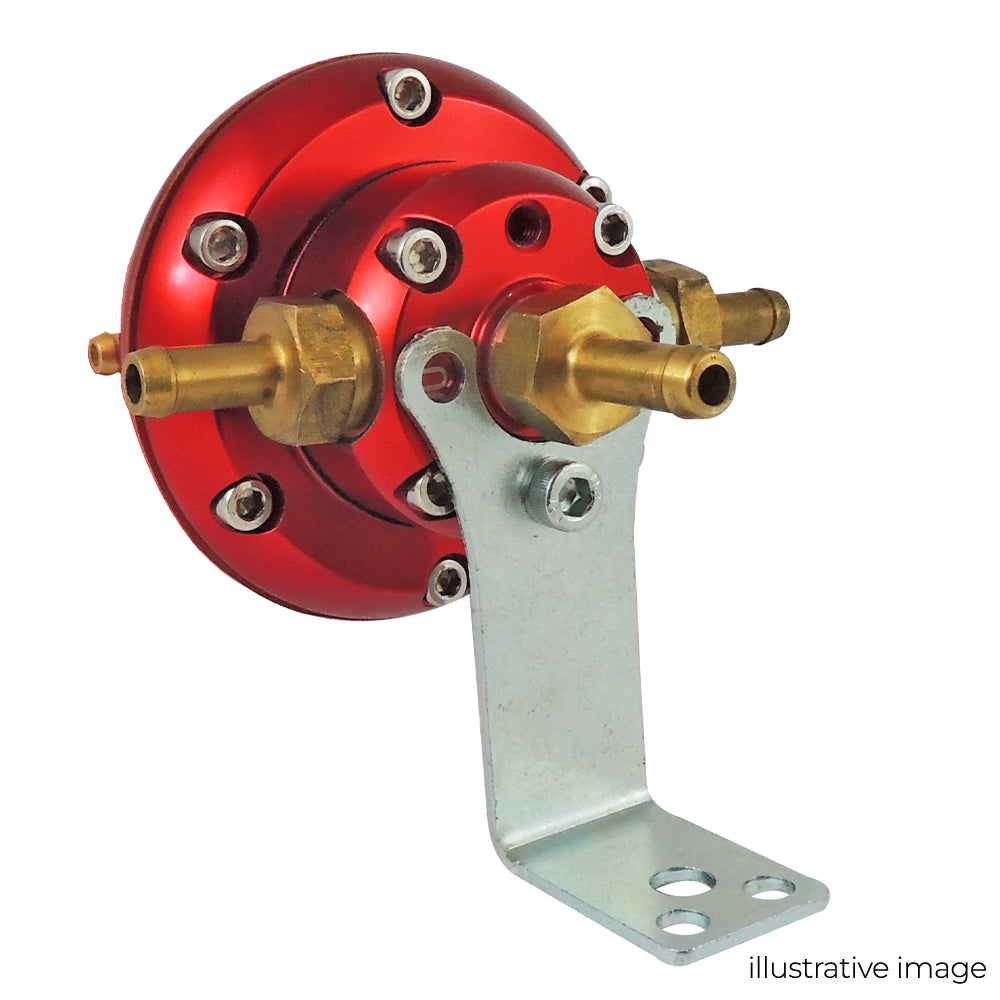

    Fuel pressure regulator bracket



    • Allows perfect fixation of the fuel pressure regulator in the desired location.
    • Fits all SPA Turbo fuel pressure regulator.
    • Can also be used on other fuel pressure regulator with fixing holes as described in the "Technical Drawings" tab.
    • Made of high quality galvanized steel.
    • Includes fixing bolt.
