NOS®  |  SKU: 05160NOS

NOS® (10-15) Camaro SS Wet Plate Nitrous Oxide System

PLEASE CONTACT SUPPORT TO CONFIRM INVENTORY

£984.08
Shipping calculated at checkout.

Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)

Email: info@10SecondRacing.com (24/7)

Free Shipping to Lower 48 US States ($100+)

Worldwide Shipping via UPS (Check Rates at Checkout)

This is a Sample Product Title
Was $200.00 Now $100.00

Description

Compatible: (6.2L)

2010 - 2015 Chevy Camaro SS

Retains stock throttle body location and orientation using a 1/4" billet 90mm aluminum plate. Power levels up to 150 RWHP do not require injector or fuel pump upgrades. Recommend 1 step colder spark plug up to 150 RWHP, 2 steps colder spark plug on 200 and up RWHP levels.


This part is legal for sale or use on Racing Use Only Vehicles

The following vehicles are considered Racing Use Only Vehicles:

  • Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

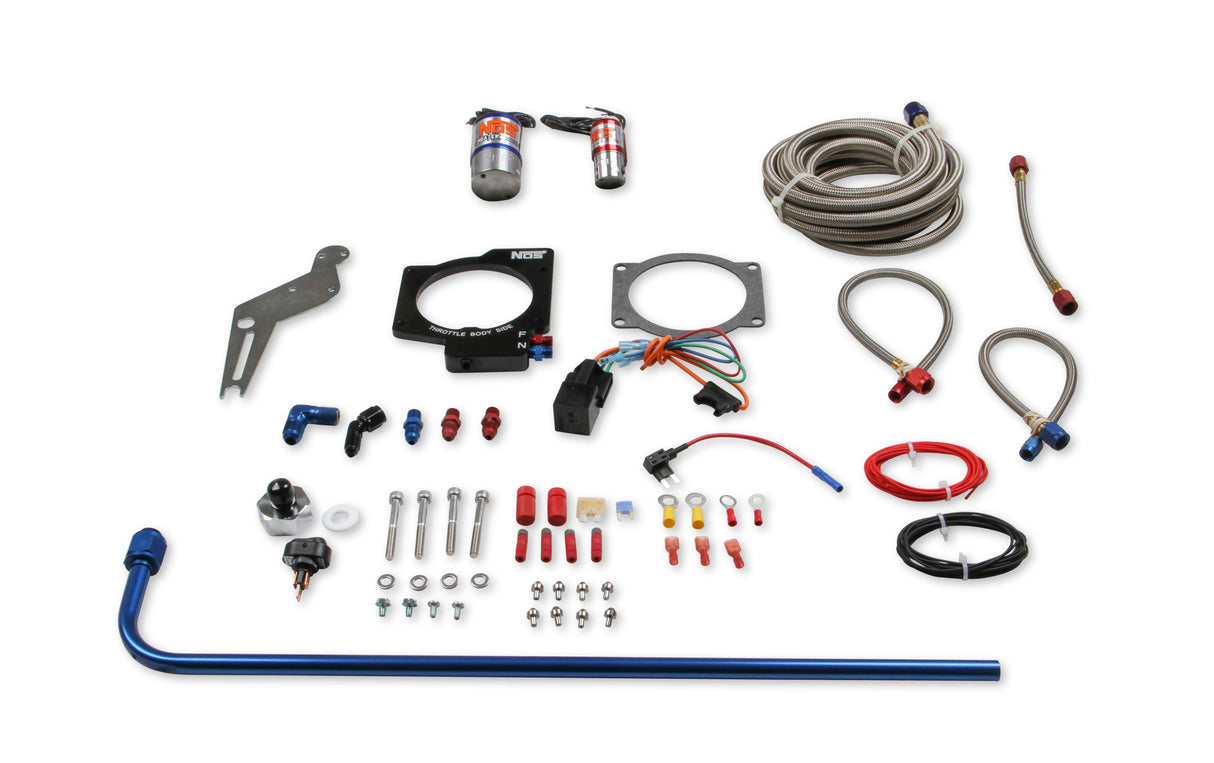

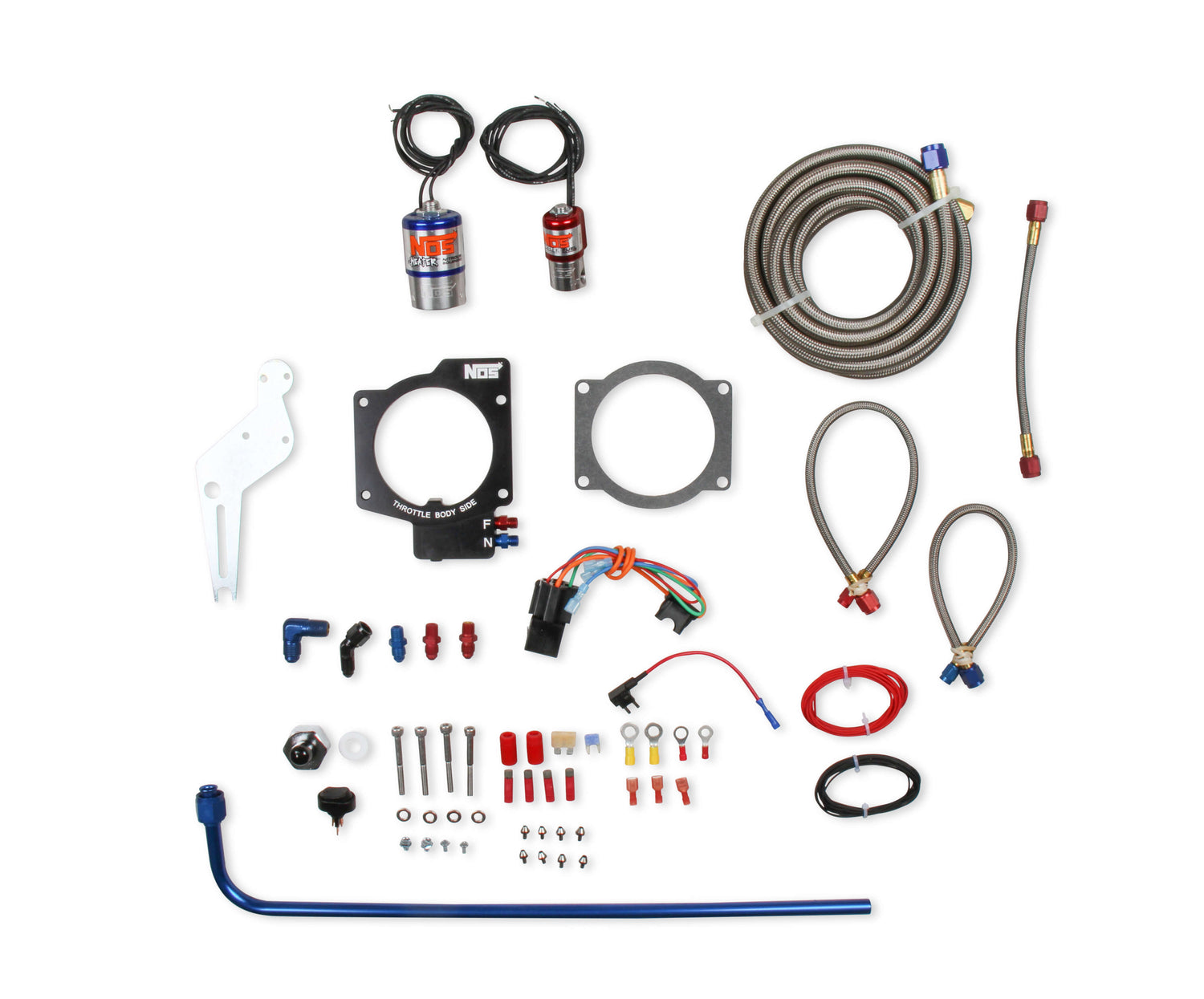

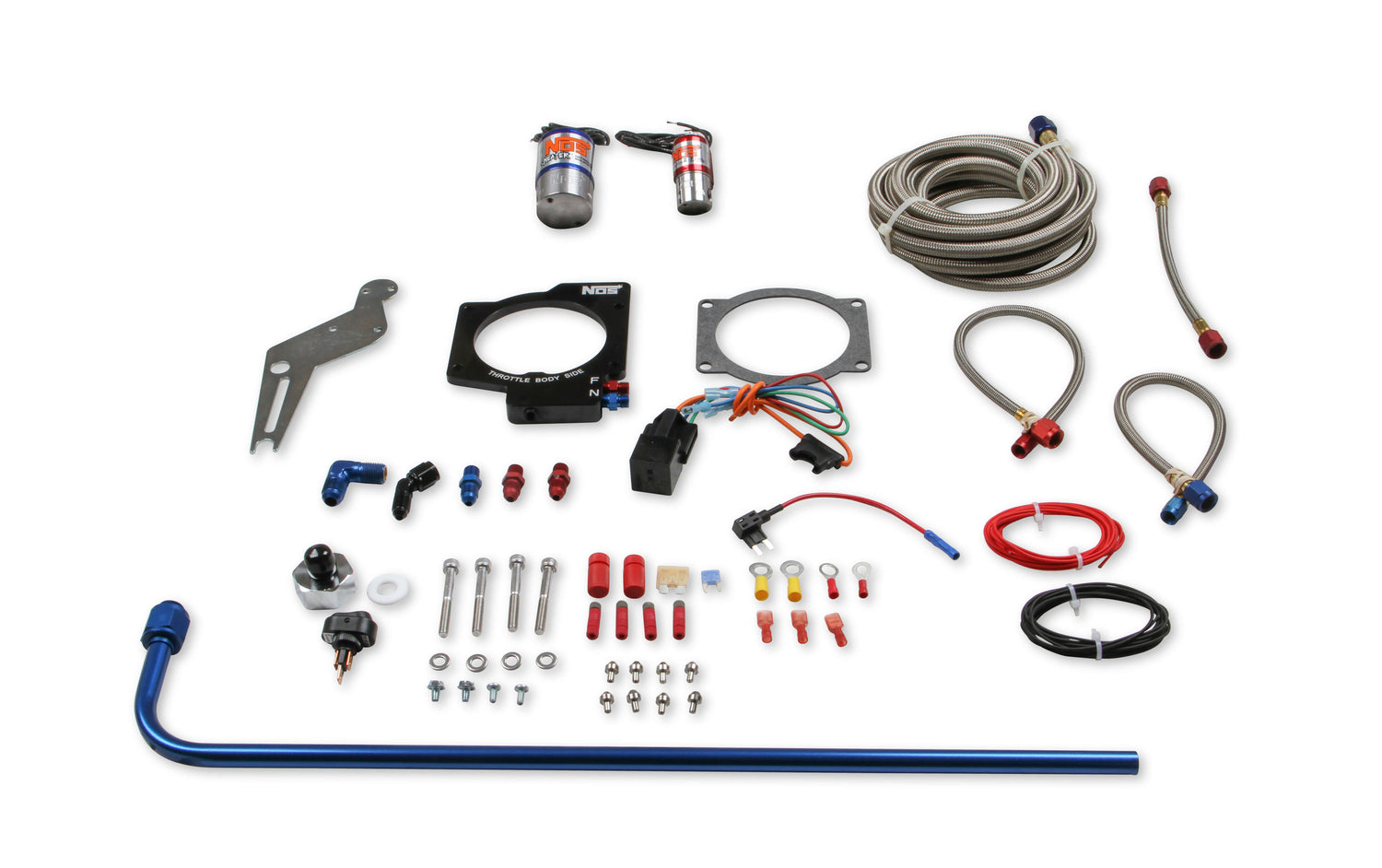

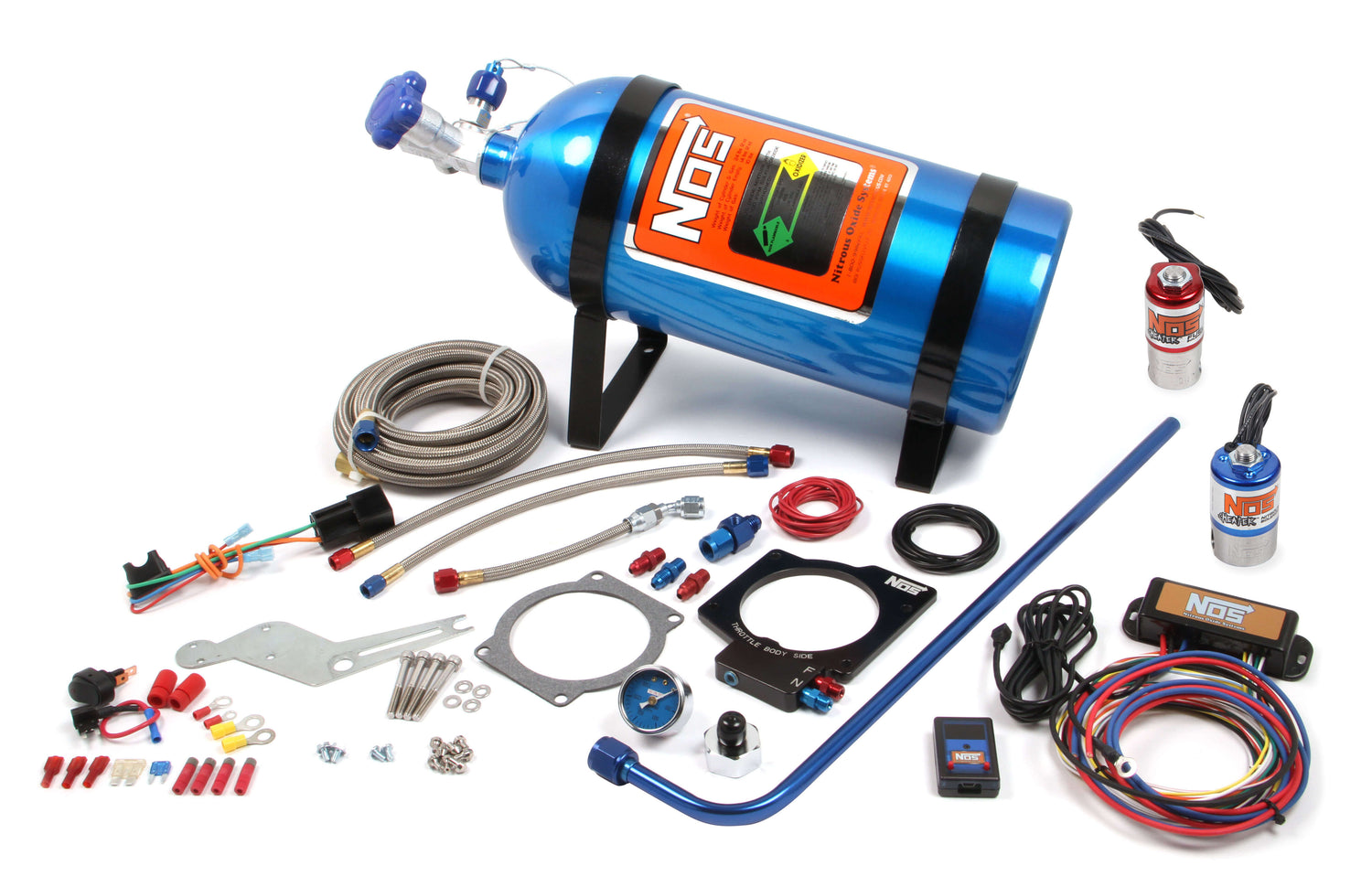

NOS have engineered a top quality, complete nitrous system which can add up to an additional 250 RWHP to the 2010 - 2015 Chevrolet Camaro, using the LS3 V8 engine. This is a "Wet" plate, meaning the additional fuel is added through the nitrous system, so there are no requirements for an injector or fuel system upgrade*. The unique feature of this kit is the inclusion of the NOS Mini 2-Stage Progressive Controller. NOS is the only manufacturer to supply a progressive controller in a kit at this price point. The progressive controller is key in supplying a smooth nitrous power delivery with factory EFI systems. *Power levels exceeding 150 RWHP may require an upgraded fuel pump. *NOTE; this kit was developed on a vehicle with electric assist power steering. For vehicles with hydraulic power steering, the solenoid bracket will require modification.
  • Includes an NOS Mini 2-Stage Progressive Controller
  • Provides exceptionally smooth power delivery
  • Single ¼” plate between the throttle body and manifold
  • Throttle body mounts in stock orientation
  • Supports up to 250 RWHP (Rear Wheel Horse Power)
  • Includes jetting for 75, 100, 125, & 150 RWHP
  • New 90mm plate outlet design maximizes distribution
  • Includes a 10 lb. “NOS Blue” nitrous bottle with brackets
  • 6061 Billet Aluminum, CNC Machined Plate
  • Also available as a “Plate Only” kit p/n 13436NOS



    Specs:

    Adjustable Yes
    Bottle Color Blue
    Bottle Included Yes
    Bottle Material 6061 T-6 Aluminum
    Bottle Size 10 lb
    Bottle Valve Super Hi-Flo
    Bracket Material Steel
    Brackets Included Yes
    Brand NOS
    Color Blue
    Delivery Style EFI Spacer Plate
    Emission Code 4
    Feed Line Size 6AN

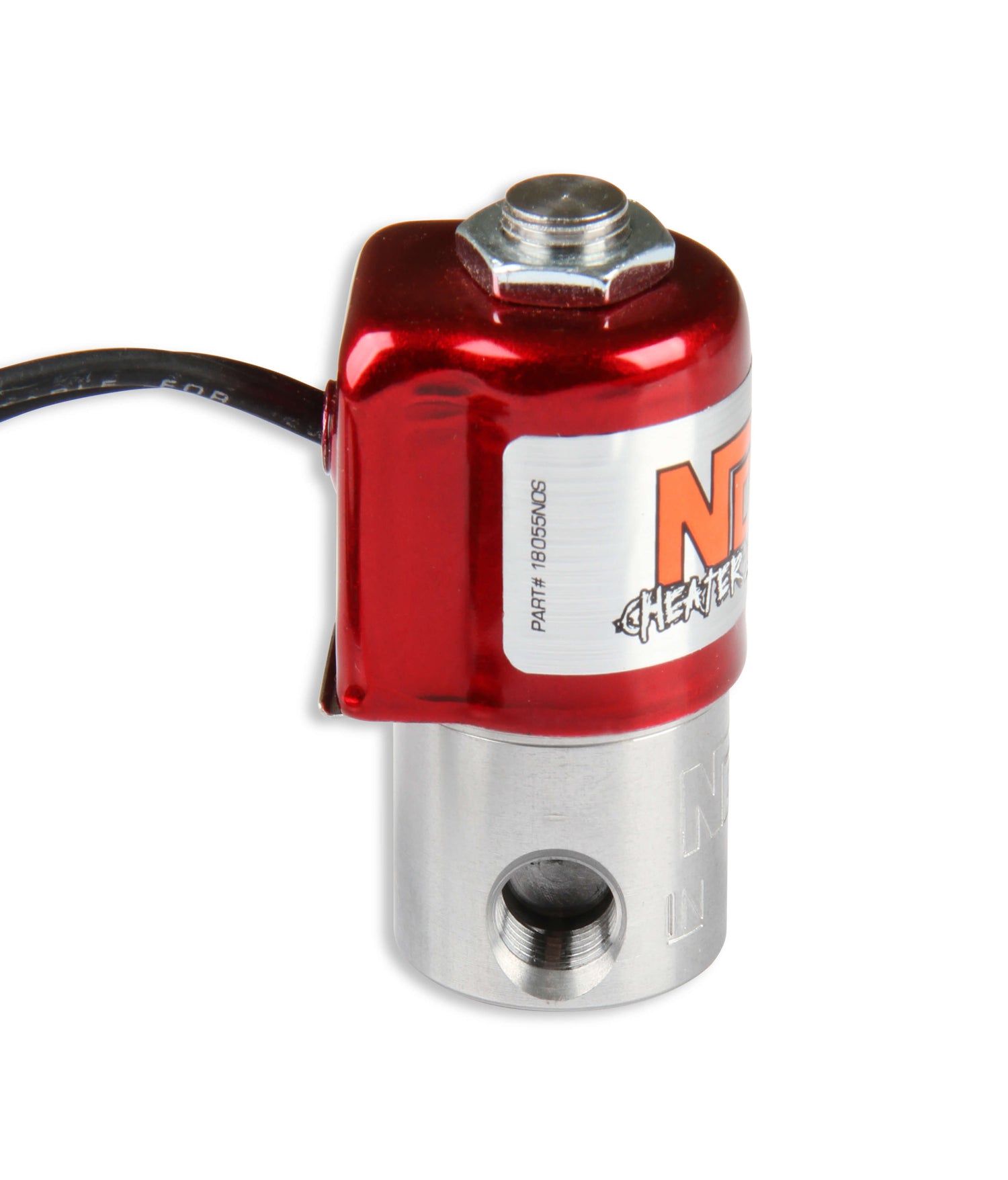

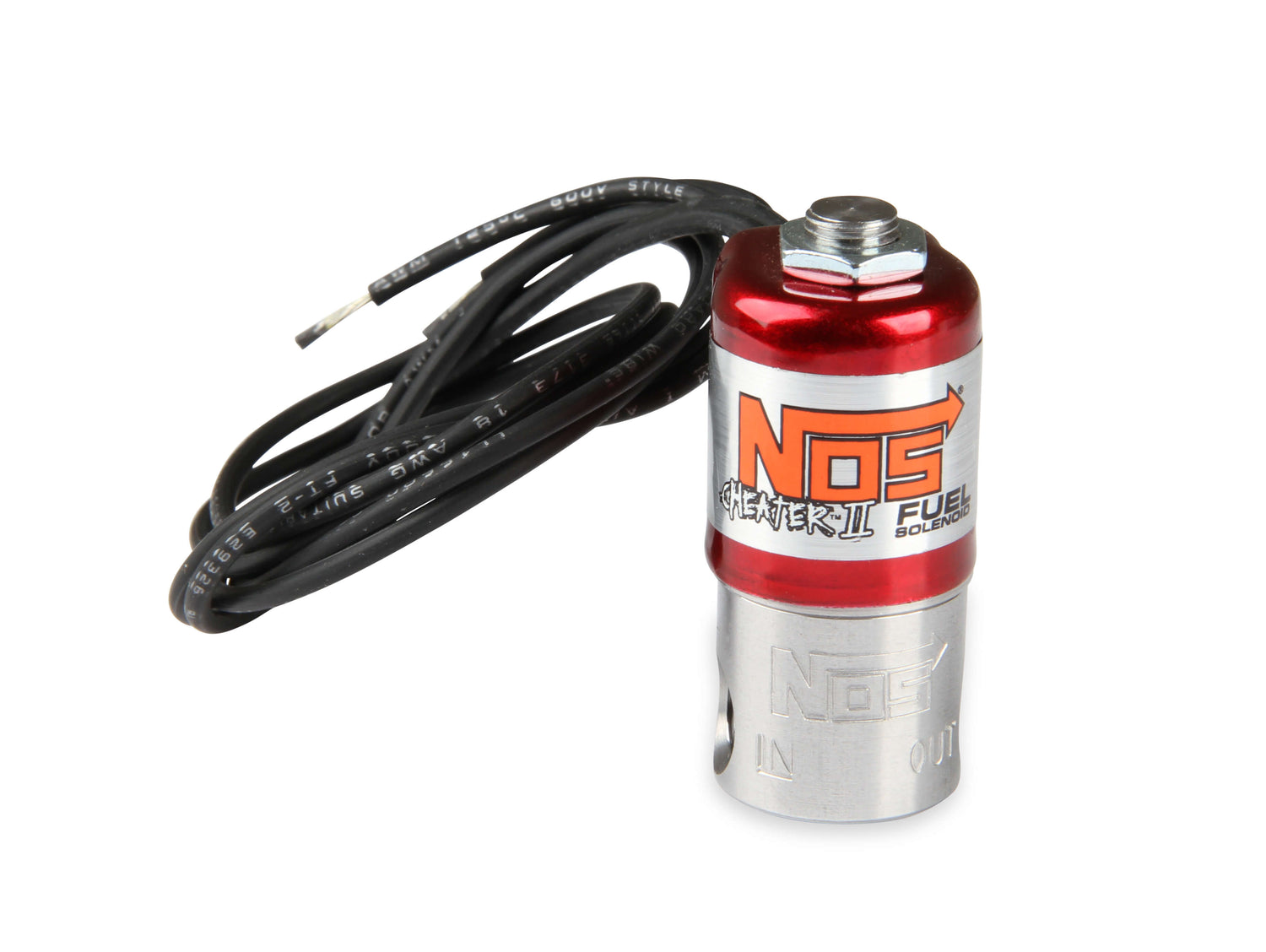

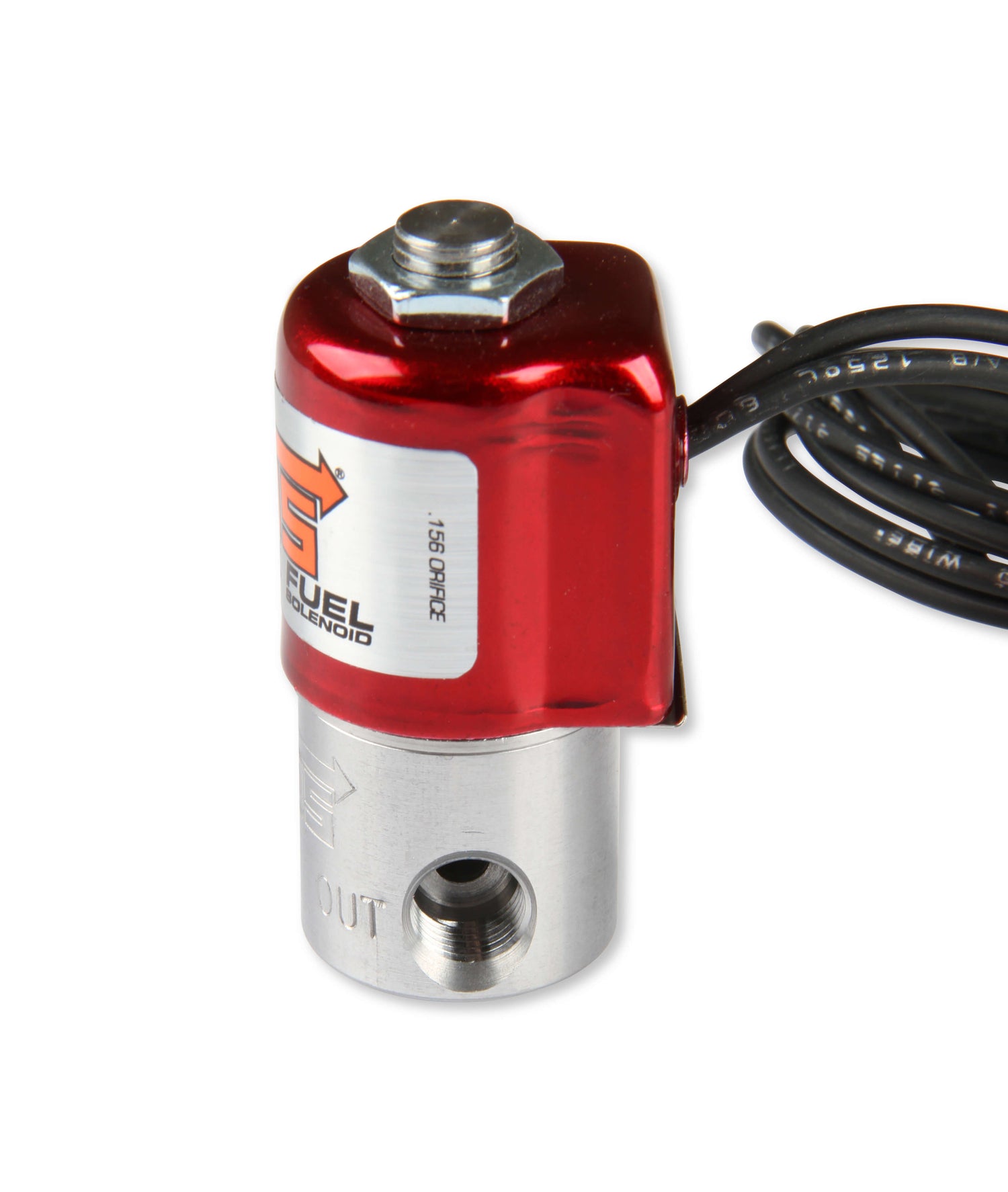

    Fuel Solenoid Cheater ll
    Included Jetting Horsepower 75, 100, 125, 150
    Jet Sizes Included 75, 100, 125, 150 hp
    Jet Style Flare
    Material 6061 T-6 Aluminum
    Max Horsepower 250
    Nitrous Bottle Capacity 10 lbs

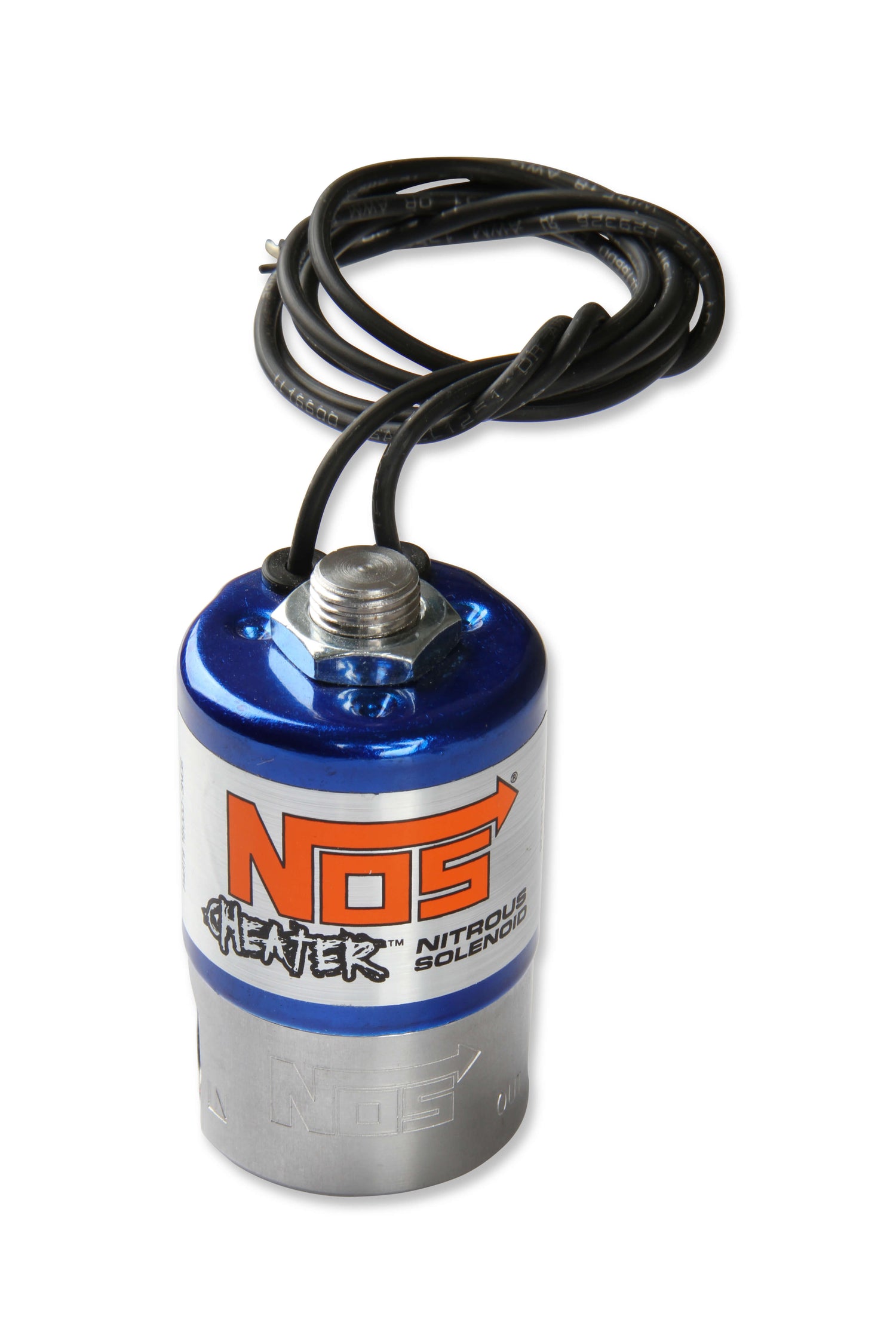

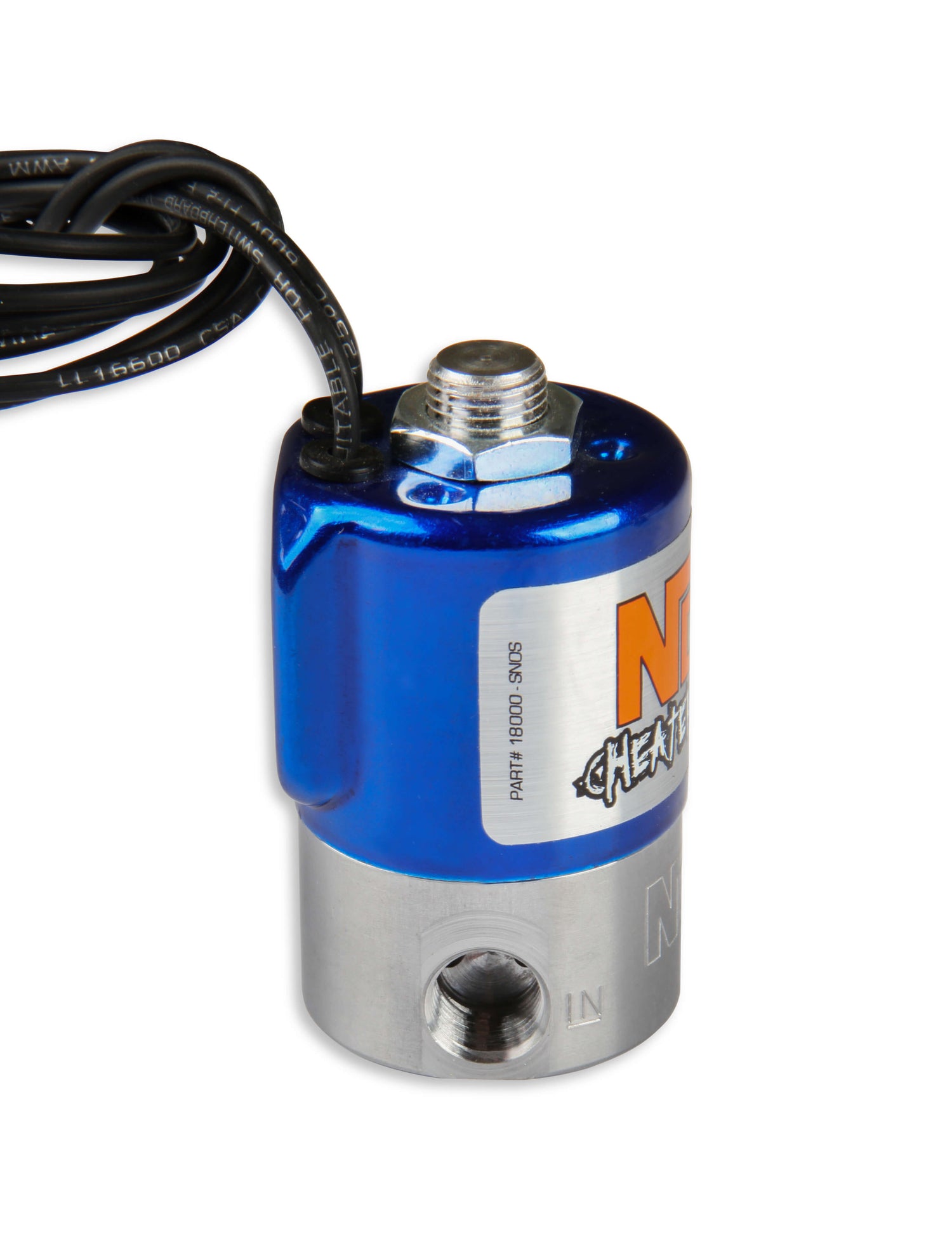

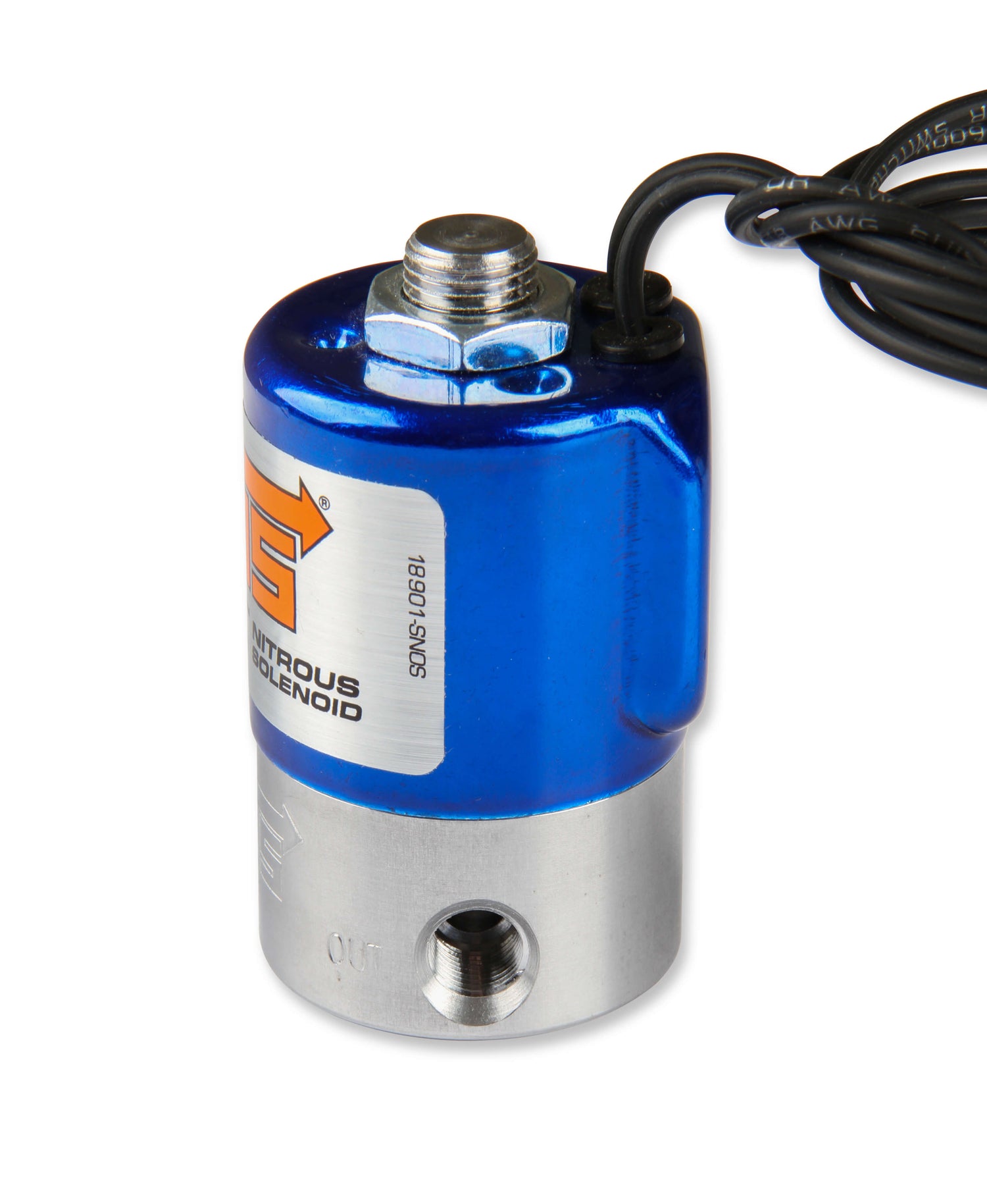

    Nitrous Solenoid Cheater
    Plate Bolt Pattern 4 bolt
    Plate Diameter 90 mm
    Plate Flange GM LS 90mm 4-Bolt
    Plate Height 1/4 inch
    Plate Included Yes
    Plate Thickness 1/4 inch
    Product Type Nitrous System
    Solenoid Top Cover Color Blue/Red
    Style Wet
    System Style Wet
    Part Number 05160NOS
