MSD  |  SKU: 85701

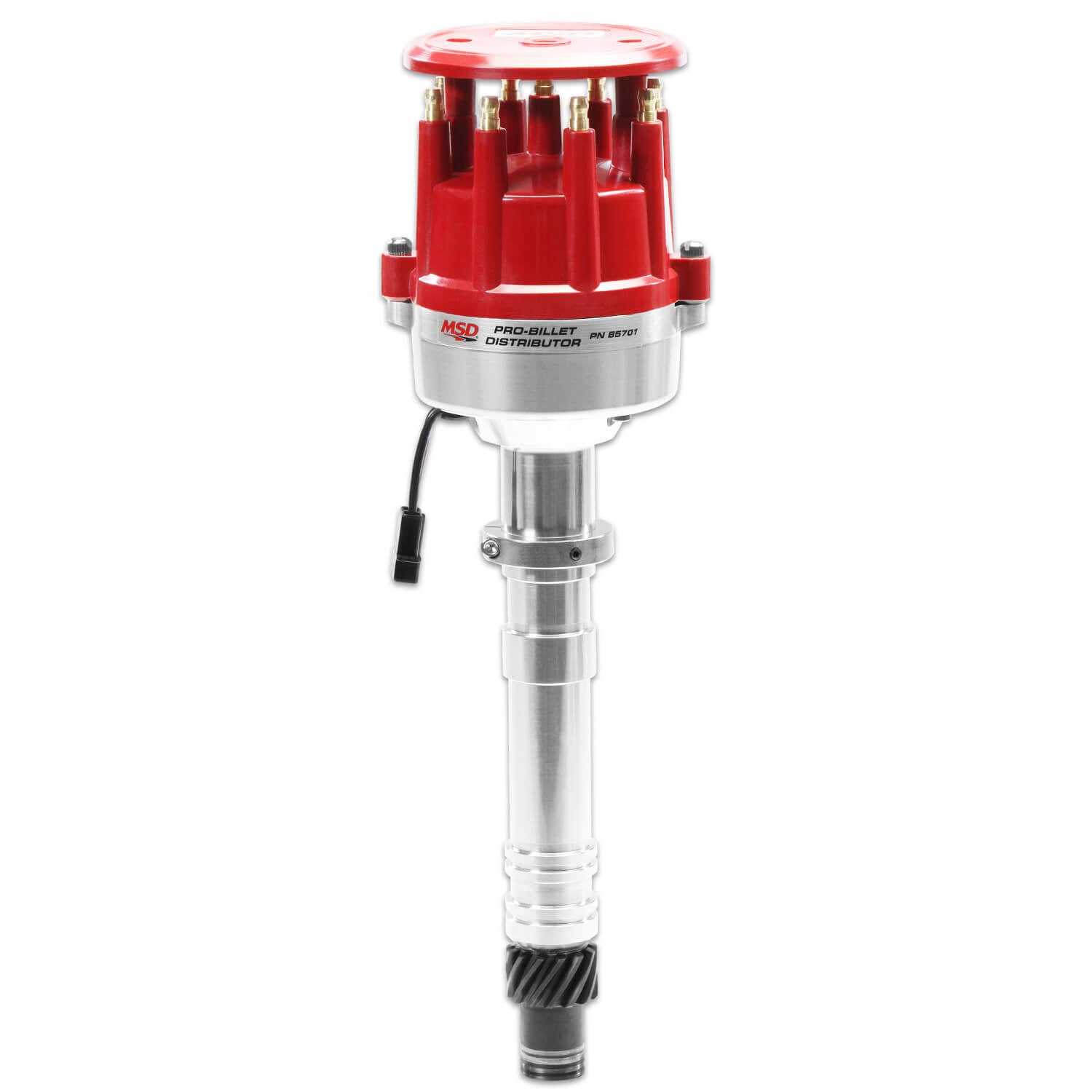

MSD® GM LS1/SL7 Pro-Billet Small Diameter Distributor

£379.98
Shipping calculated at checkout.

Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)

Email: info@10SecondRacing.com (24/7)

Free Shipping to Lower 48 US States ($100+)

Worldwide Shipping via UPS (Check Rates at Checkout)

Description

Compatible: (5.0L/5.7L/7.0L)

1984 - 2002 Chevy Camaro

2014 - 2015 Chevy Camaro

1984 - 2013 Chevy Corvette

1984 - 2002 Pontiac Firebird


The smallest diameter distributor made by MSD for tight clearances. This magnetic pickup distributor measures 1/2" smaller in diameter and over 1" shorter than standard distributors.



This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles.

The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:

  • 1965 and older U.S. manufactured California Certified vehicles
  • 1967 and older U.S. manufactured Federally Certified vehicles
  • 1967 and older Foreign manufactured vehicle

The following vehicles are considered Racing Use Only Vehicles:

  • Racing Use Only Vehicles are vehicles that are used exclusively for competition and that are not registered and that may never be used on the street

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

The following vehicles are considered Emissions Controlled Vehicles:

  • 1966 and newer U.S. manufactured California Certified vehicles
  • 1968 and newer U.S. manufactured Federally Certified vehicles
  • 1968 and newer Foreign manufactured vehicle









This Chevy distributor is the smallest ever built by MSD! It is specifically designed for racers and street rodders with space limitations due to firewall interference, blowers or oversized intake manifolds such as tunnel rams. It measures 1/2" narrower and over 1" shorter than a standard distributor. Proven performance features include a high output magnetic pick-up and precision machined reluctor for accurate ignition triggering. A fully adjustable mechanical advance allows you to tailor the advance curve to your specific application.


Features:

  • CNC machined billet aluminum housing is 1/2” smaller in diameter and over 1” shorter than conventional Chevy V-8 distributors with the “points” type cap
  • Supplied with small diameter HEI style distributor cap and rotor
  • Will not accept a vacuum advance canister
  • O-ring seals can be added to modified blocks to improve oil pressure control
  • Must be used with an MSD 6, 7, 8, or 10 Series Ignition
  • Special oil tract improves lubrication to the distributor and cam gear
  • Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
  • Easy-to-adjust mechanical advance with supplied springs and stop bushings (except locked out versions)
  • Adjustable slip collar mounting flange for engines with modified deck heights
  • Polished steel shaft is QPQ coated and guided by a sealed ball bearing and extra-long sintered bushing
  • Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
  • Advance weight pins are staked and tig welded to the plate
  • Nylon pads ensure smooth operation of the advance weights
  • Mechanical advance assembly can be locked out for crank trigger systems



Brand MSD
Distributor Type Magnetic Pickup
Emission Code 3
Engine Chevy Small Block V8
Product Type Distributor
Warranty Limited 1 Year Warranty
Part Number 85701
