Mishimoto® (98-07) Toyota Land Cruiser 2-Row Performance Aluminum Radiator
PLEASE CONTACT SUPPORT TO CONFIRM INVENTORY
Mishimoto® (98-07) Toyota Land Cruiser 2-Row Performance Aluminum Radiator is backordered and will ship as soon as it is back in stock.
Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)
Email: info@10SecondRacing.com (24/7)
Free Shipping to Lower 48 US States ($100+)
Worldwide Shipping via UPS (Check Rates at Checkout)
Mishimoto® (98-07) Toyota Land Cruiser 2-Row Performance Aluminum R...
Description
Description
Compatible: (4.7L)
1998 - 2007 Toyota Land Cruiser
Your vehicle requires 2 bottles of full strength coolant or 4 bottles of premixed coolant
If you’re looking to upgrade your Toyota J100 cooling, look no further!

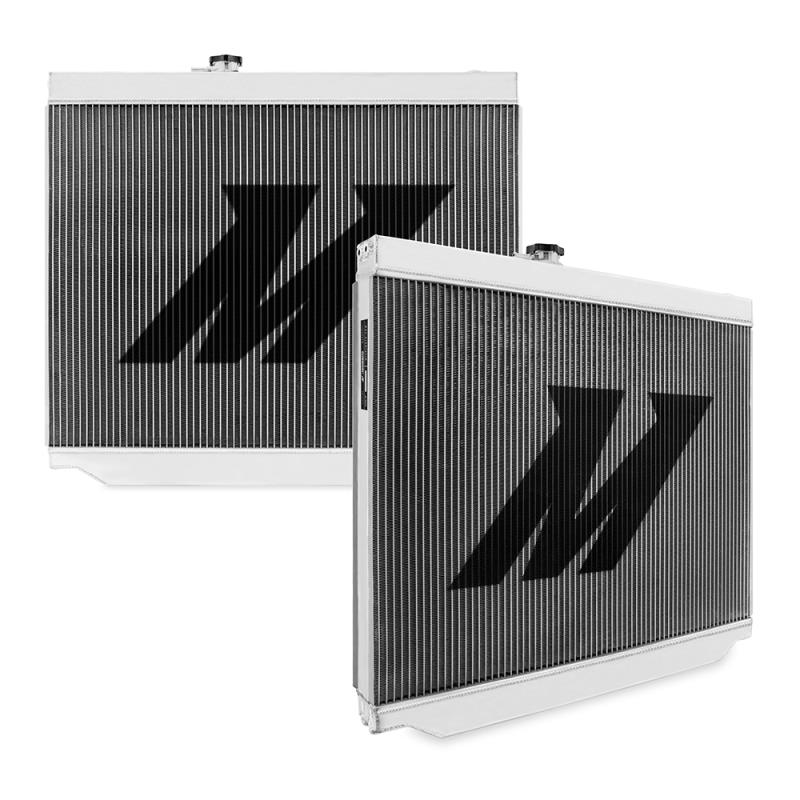

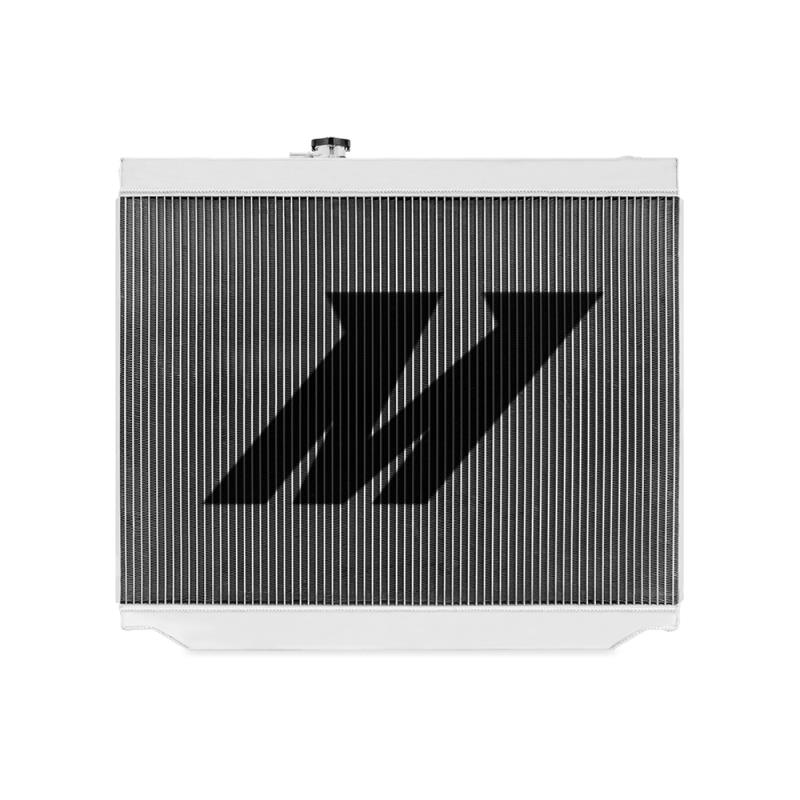

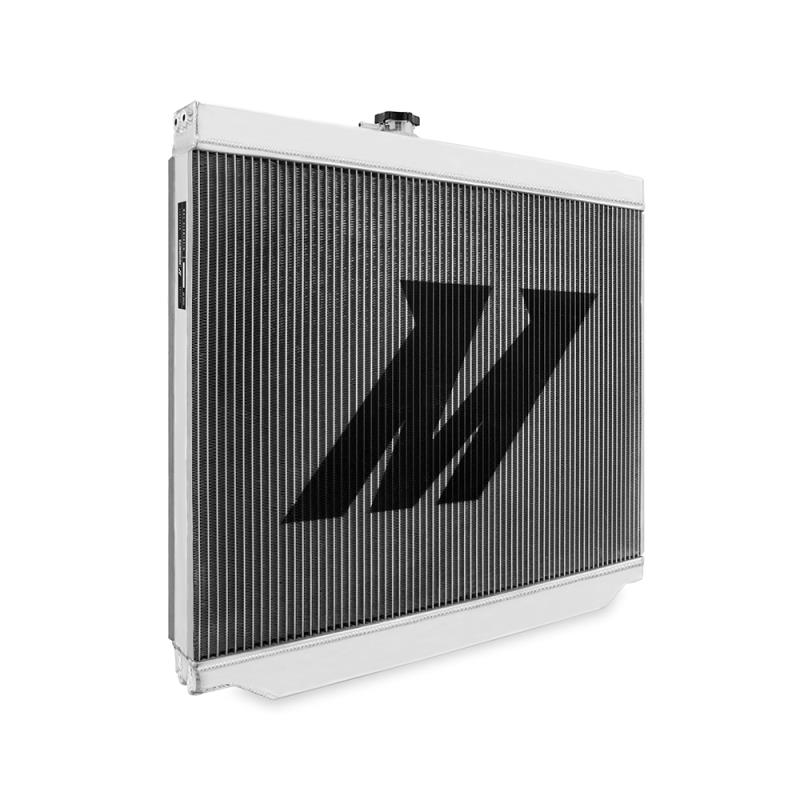

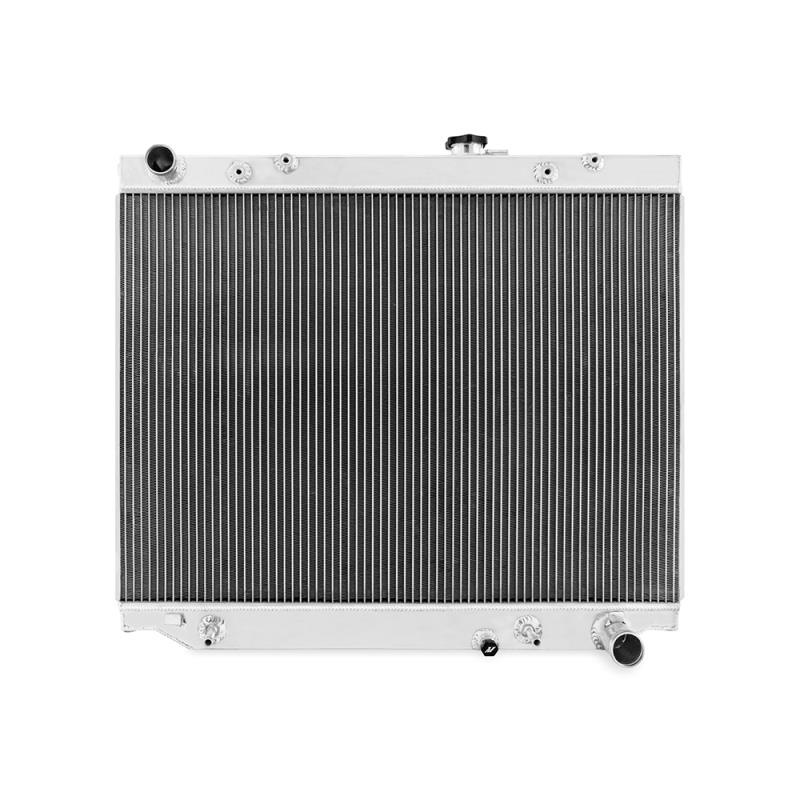

The Mishimoto 1998–2007 Toyota Land Cruiser J100 Performance Aluminum Radiator is an ideal upgrade for the brittle stock radiator. Our radiator boasts a 19% greater core volume and 26.5% greater coolant capacity to improve cooling efficiency. The Mishimoto Toyota Land Cruiser J100 radiator features durable, aircraft-quality, aluminum end tanks that are precision TIG-welded to the 56mm-thick core for superior durability.
This Land Cruiser radiator also includes a Magnetic Drain Plug to capture metal debris in the cooling system, as well as a 1.3 bar high-pressure radiator cap. As with every Mishimoto aluminum radiator, this 1998–2007 Toyota Land Cruiser J100 radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship for as long as you own the radiator.

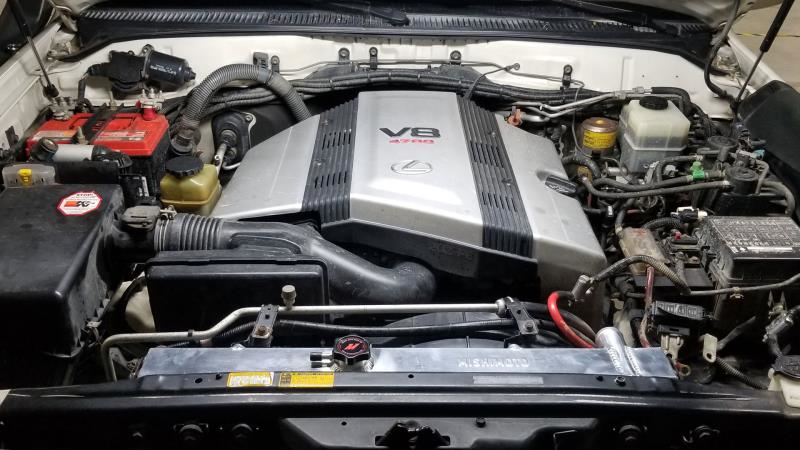

- Direct fit for 1998–2007 Toyota Land Cruiser J100 with 2UZ-FE
- Full aluminum construction including durable, TIG-welded end tanks
- 56mm thick, two-row core for powerful cooling

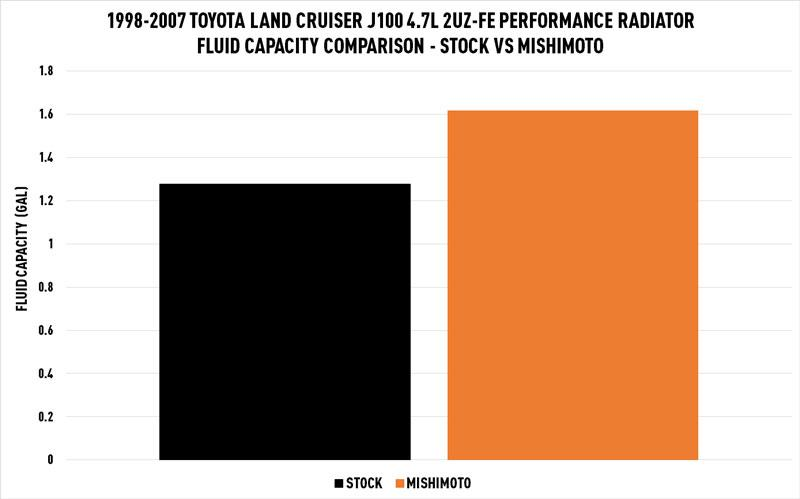

- 26.5% increase in fluid capacity over stock radiator for greater cooling efficiency

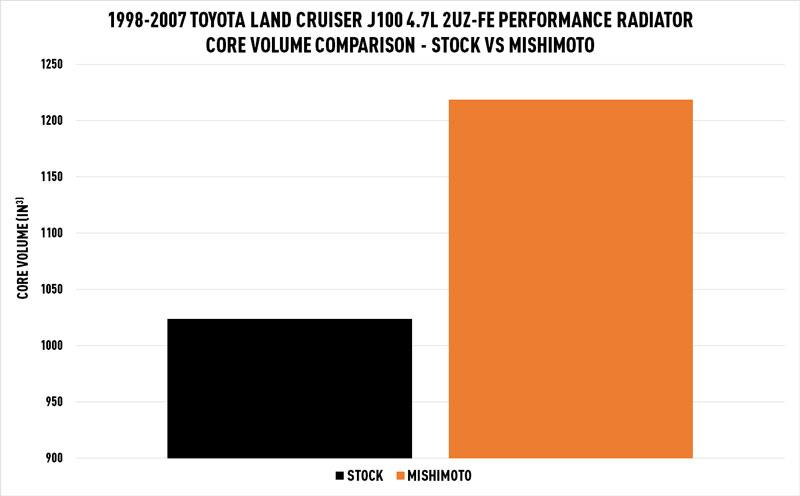

- 19% increase in core volume over stock radiator
- Includes internal transmission cooler to fit with either manual or automatic transmissions

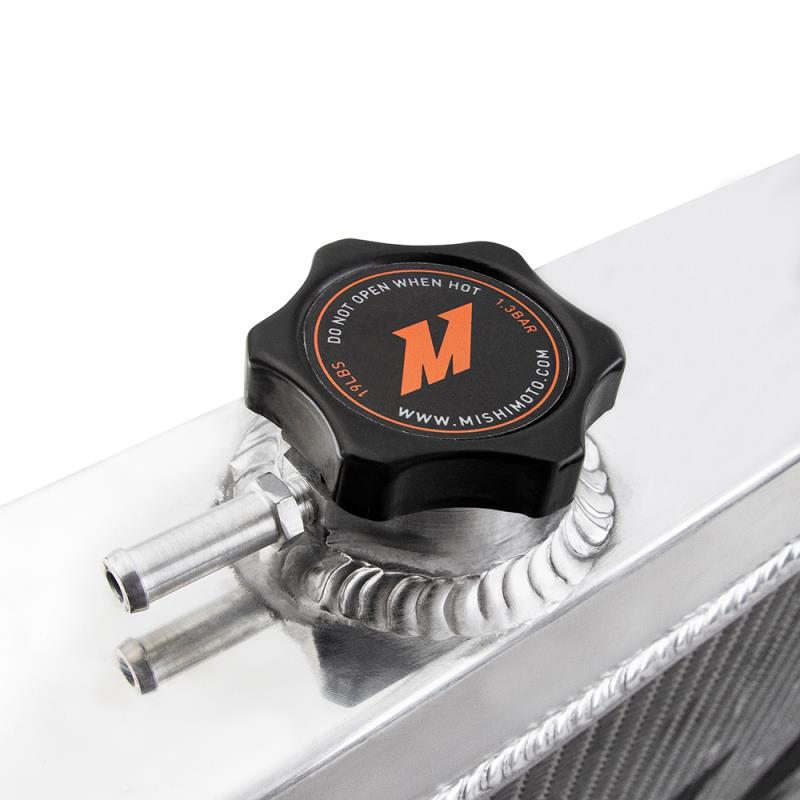

- Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system

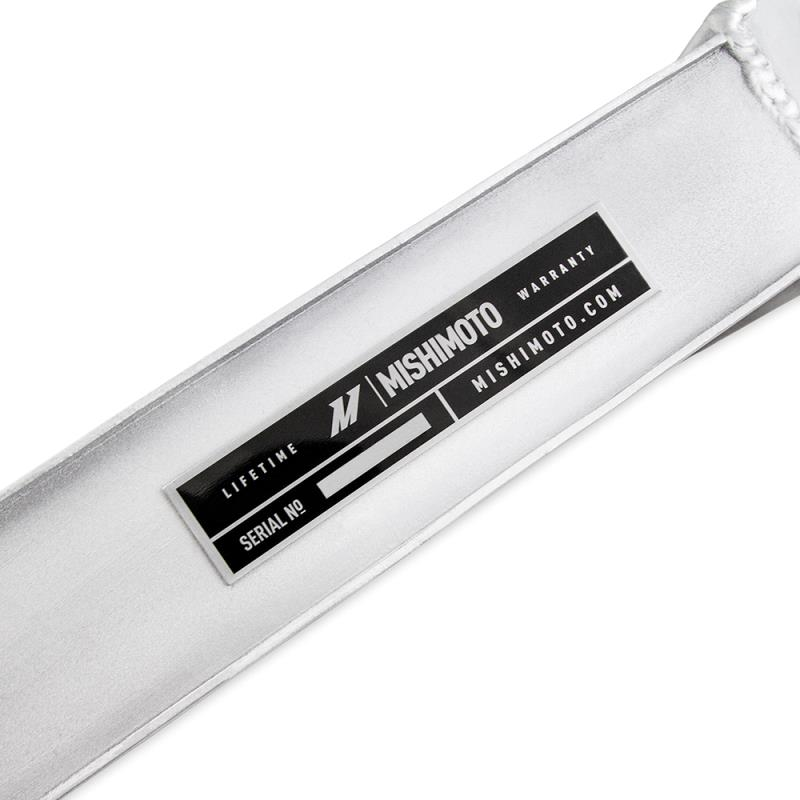

- Mishimoto Lifetime Warranty
PURCHASE INCLUDES
(1) Mishimoto Aluminum Radiator
(1) Mishimoto Radiator Cap
(1) Foam Strip
Mounting Hardware
Mishimoto Lifetime Warranty
VEHICLE SPECS
| ENGINE CODES | 2UZ-FE 4.7L V8 |
| CHASSIS CODES | J100 |
| FITS | 1998-2007 Toyota Land Cruiser J100 (UZJ100) 4.7L 2UZ-FE |
PRODUCT SPECS
| MATERIAL | Aluminum |
| OVERALL HEIGHT | 22.25" |
| DRAIN PLUG THREAD SIZE | (M12) x 1.5 |
| OVERALL LENGTH | 28" |
| ROWS | 2 |
| COOLANT CAPACITY | 3.7 gallons |
| OVERALL WIDTH | 6.1" |
| CORE LENGTH | 20" |
| CORE HEIGHT | 27.6" |
| CORE THICKNESS | 2.2" |
| OVERALL LENGTH (IN) | 28.00 |
| OVERALL HEIGHT (IN) | 22.25 |
| OVERALL WIDTH (IN) | 6.10 |
| ROWS | 2 |
| WEIGHT | 37 lbs |
