Compatible: (1.8L)
1994 - 2001 Acura Integra GSR
1995 - 1996 Acura Integra SE
1997 - 2010 Acura Integra Type-R
1994 - 1998 Acura Integra RS
1997 - 2001 Acura Integra GS
INTENDED FOR USE WITH MANUAL TRANSMISSION MODELS
IF YOU HAVE AN AUTOMATIC TRANSMISSION, PLEASE ADD THE MISHIMOTO UNIVERSAL TRANSMISSION & POWER STEERING COOLER TO COMPLETE INSTALL
This item is not directly compatible the OEM fan shroud. The Mishimoto fan shroud can be used in conjunction with the OEM exhaust manifold. If an aftermarket exhaust manifold is installed, please purchase the optional Mishimoto electric fans , and the Mishimoto fan mount kits.

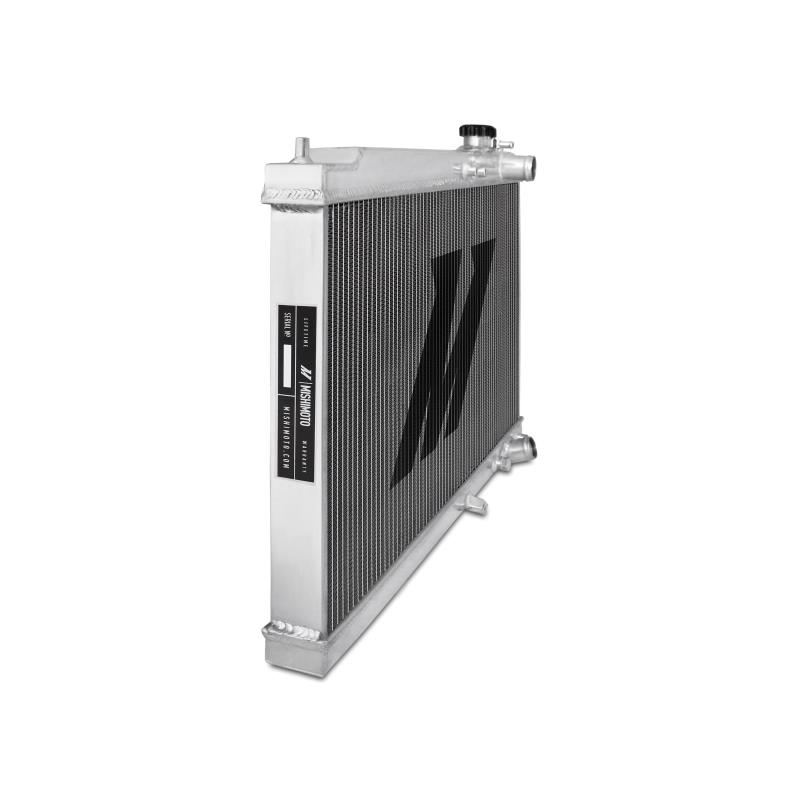

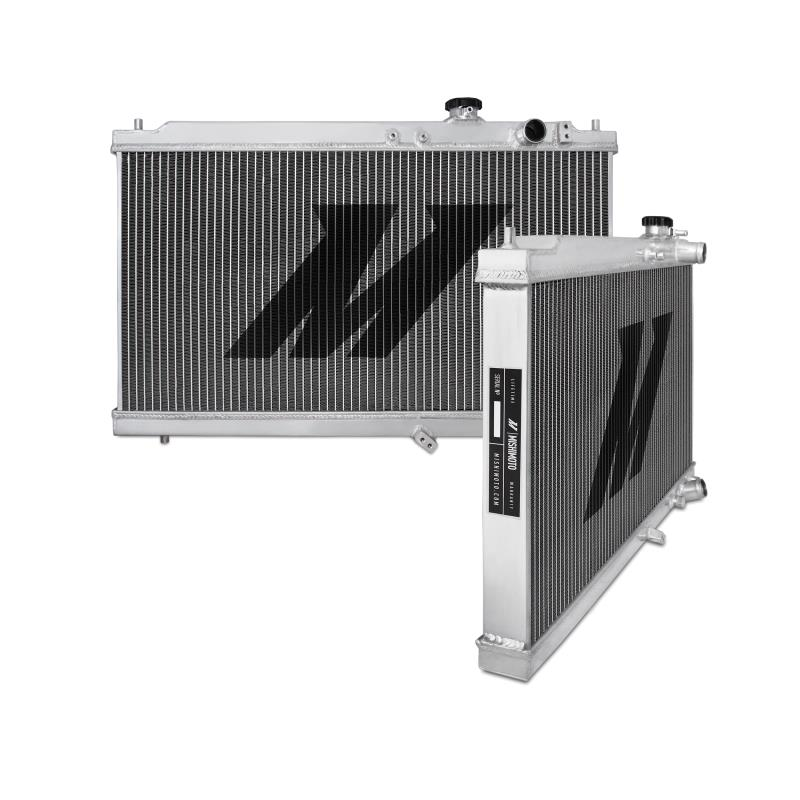

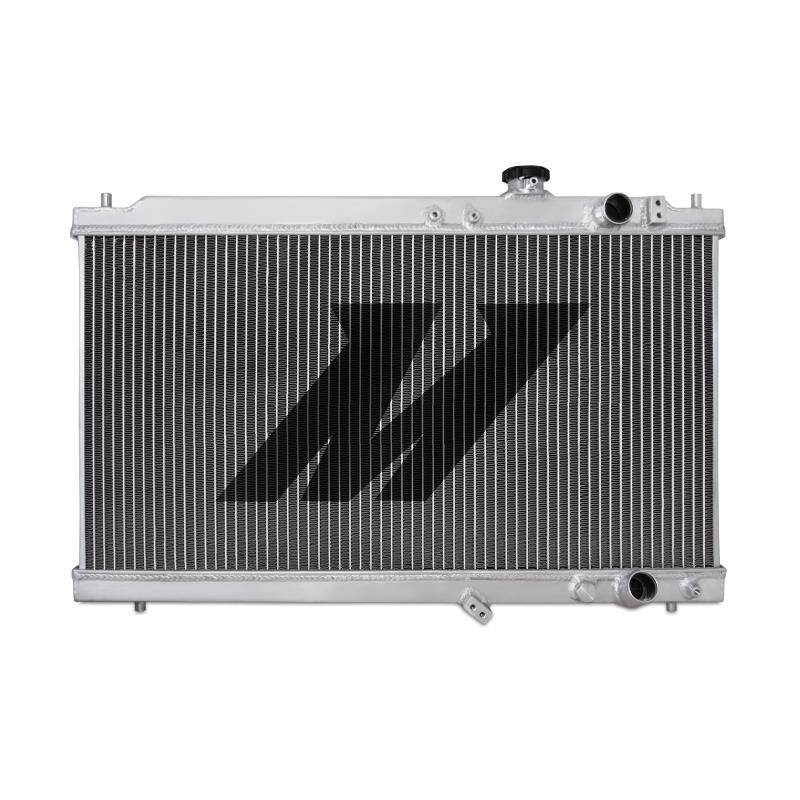

Whether you take your Integra to the track or use it as a daily driver, an upgraded cooling system is essential in maintaining a well balanced efficiently running engine.The Mishimoto performance aluminum radiator is the ideal upgrade to the stock Integra radiator especially for those looking to enhance the overall performance and lifetime of their engine. With a direct OEM fit installation is effortless, no cutting or modification is required. All Mishimoto Integra radiators are designed and engineered to maximize cooling efficiency and most importantly protect your Integra from overheating. All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty. A perfect match for the Mishimoto 1994–2001 Integra hose kit.
- Direct fit for the 1994–2001 Acura Integra 1.8L
- Full aluminum construction with durable, TIG-welded end tanks
- Features a two-row, 1.65" thick, extremely efficient brazed aluminum core
- Increased fluid capacity and superior heat dissipation
- Provides optimal heat exchange for stock and modified vehicles
- Ideal for use on the street or track

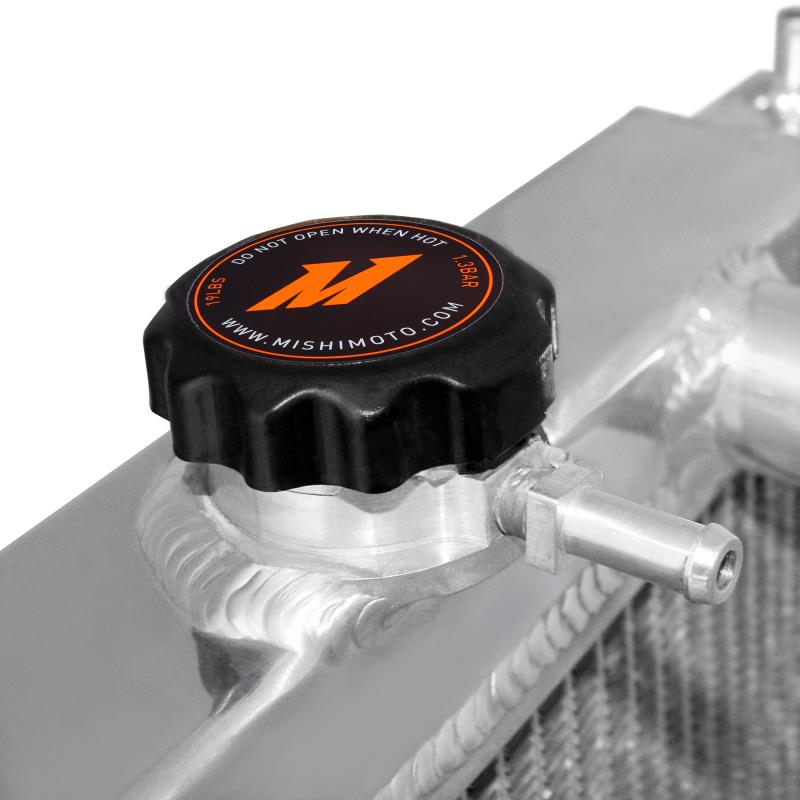

- Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- Mishimoto Lifetime Warranty
VEHICLE SPECS
| ENGINE CODES | B18b1 B18c1 B18c5 |
| CHASSIS CODES | DC2 - Integra GSR/Type R 3dr DC4 - Integra LS/SE/GS/RS 3dr DB7 - Integra LS/GS/RS 4dr DB8 - Integra GSR 4dr |
| FITS | 1994-2001 Acura Integra GSR 1995-1996 Acura Integra SE 1997-2010 Acura Integra Type-R 1994-1998 Acura Integra RS 1997-2001 Acura Integra GS |
PRODUCT SPECS
| MATERIAL | Aluminum |
| OVERALL HEIGHT | 26.5" |
| DPI | 1741/1742 |
| DRAIN PLUG LENGTH | 0.47" |
| DRAIN PLUG THREAD SIZE | (M12) x 1.5 |
| OVERALL LENGTH | 18.3" |
| TANK WALL THICKNESS | 0.08" |
| OUTLET | 1.25" |
| ROWS | 2 |
| INLET | 1.25" |
| COOLANT CAPACITY | 1.4 |
| DUAL PASS | False |
| OVERALL WIDTH | 2.15" |
| CORE LENGTH | 13.78" |
| CORE HEIGHT | 25.9" |
| CORE THICKNESS | 1.65" |
| FILL NECK | 1.22" |
| OVERALL LENGTH (IN) | 18.30 |
| OVERALL HEIGHT (IN) | 26.50 |
| OVERALL WIDTH (IN) | 2.15 |
| ROWS | 2 |
PURCHASE INCLUDES
Mishimoto Radiator
Mishimoto Radiator Cap
Magnetic Drain Plug
Mishimoto Lifetime Warranty
Warranty:
