Compatible: (2.0L)
1991 - 1994 Nissan Sentra SE-R
1995 - 1998 Nissan 200SX
INTENDED FOR USE WITH MANUAL TRANSMISSION MODELS
IF YOU HAVE AN AUTOMATIC TRANSMISSION, PLEASE ADD THE MISHIMOTO UNIVERSAL TRNASMISSION & POWER STEERING COOLER TO COMPLETE INSTALL
Your vehicle requires 1 bottles of full strength coolant or 2 bottles of premixed coolant

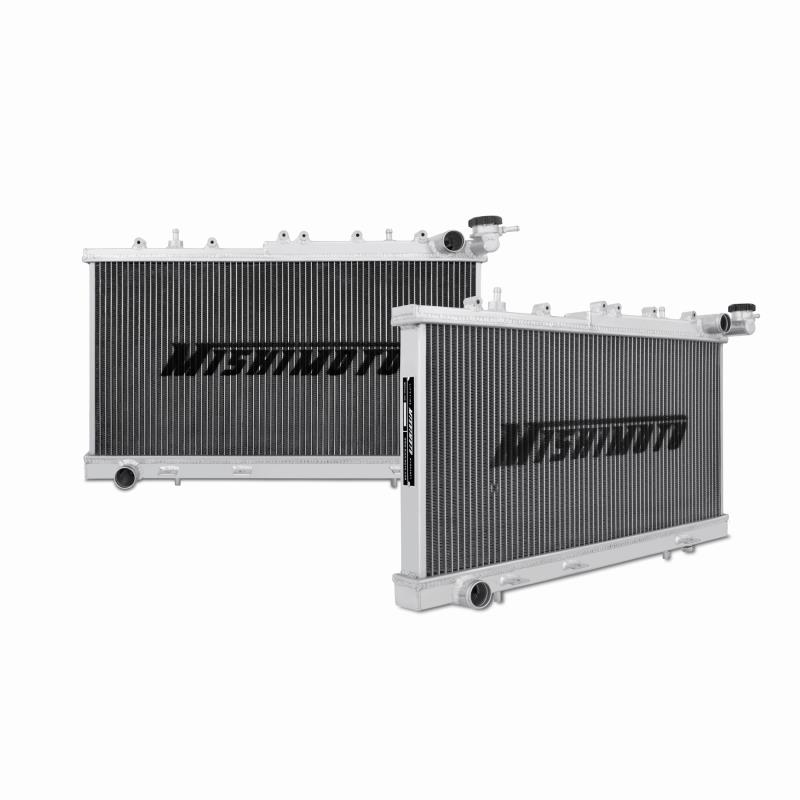

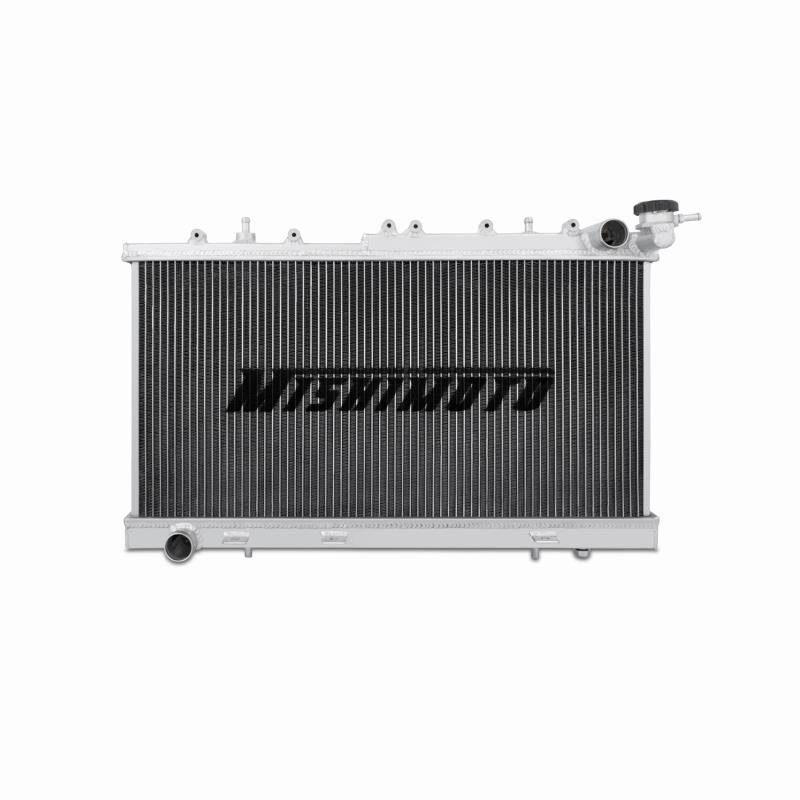

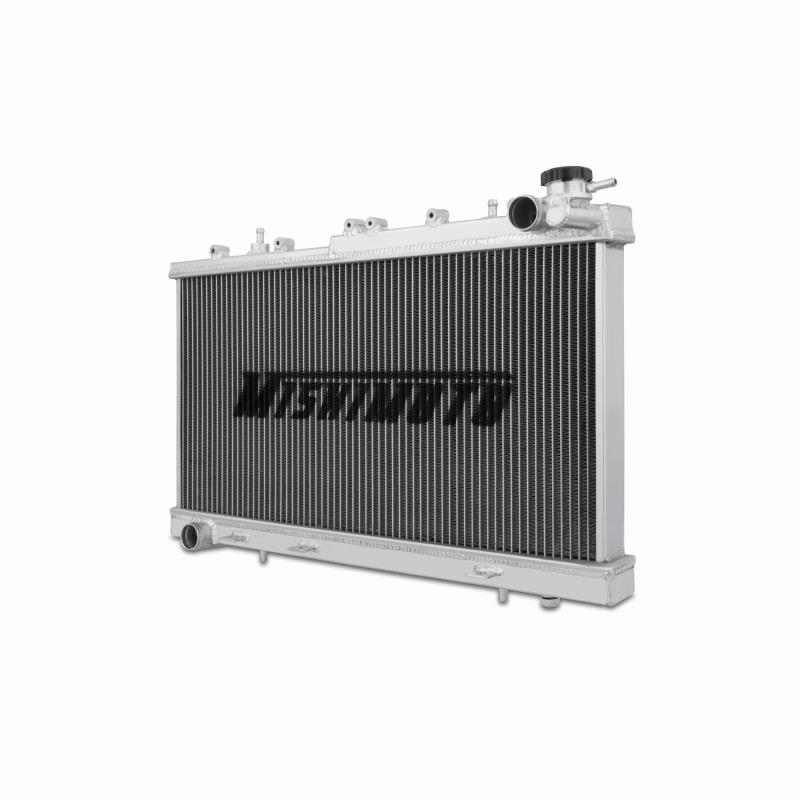

The Mishimoto performance aluminum radiator for the Nissan Sentra w/ SR20 is designed and engineered to maximize cooling efficiency by up to 30%, boost engine functions, and protect your car from overheating. The Mishimoto 1991–1999 Nissan Sentra radiator features a lightweight dual core, 100% brazed aluminum, and polished end tanks, enhancing the overall performance of your engine. Every Mishimoto aluminum radiator is a direct OEM fit, making installation effortless. This radiator comes with a high pressure 1.3 bar Mishimoto radiator cap and, as with every Mishimoto aluminum radiator, this radiator includes the Mishimoto Lifetime Warranty.
- Direct fit for the 1991–1999 Nissan Sentra SE-R

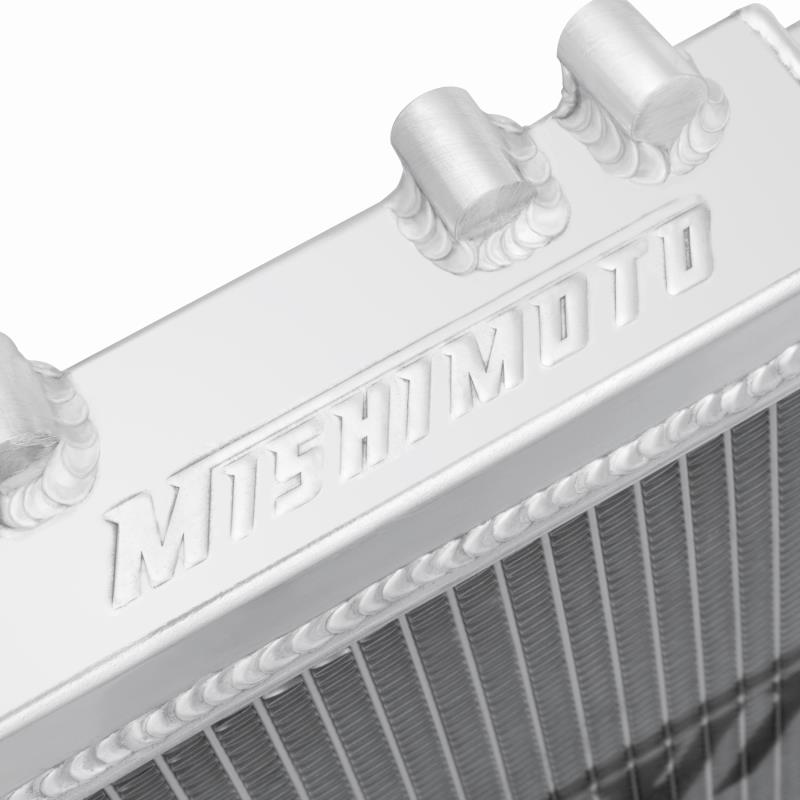

- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 1.57" thick, efficient brazed aluminum core
- Increased fluid capacity and optimal heat dissipation
- Provides efficient temperature reduction for use on the street, track, or autocross course

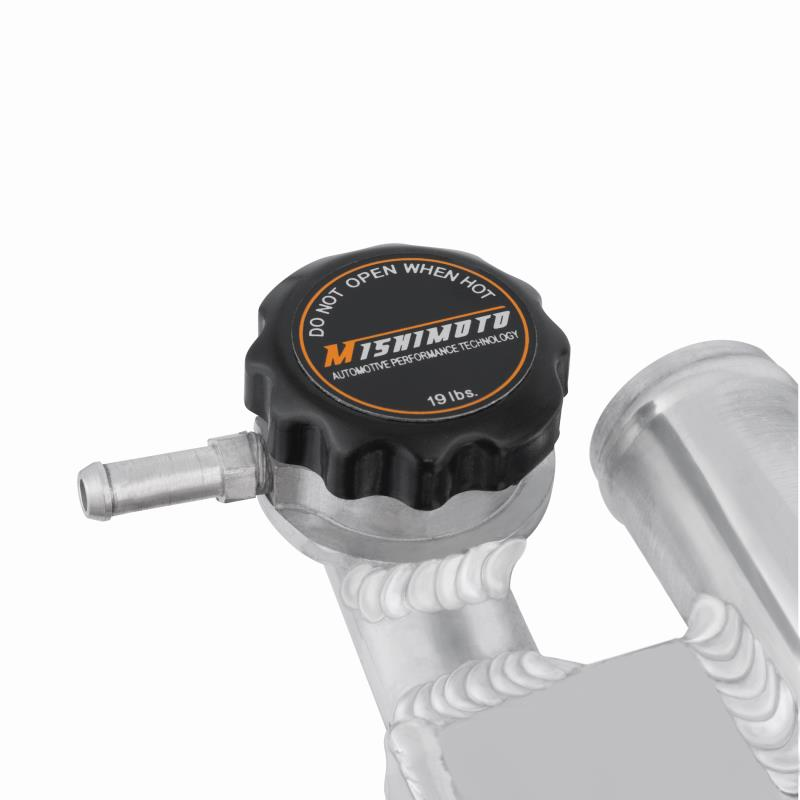

- Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system

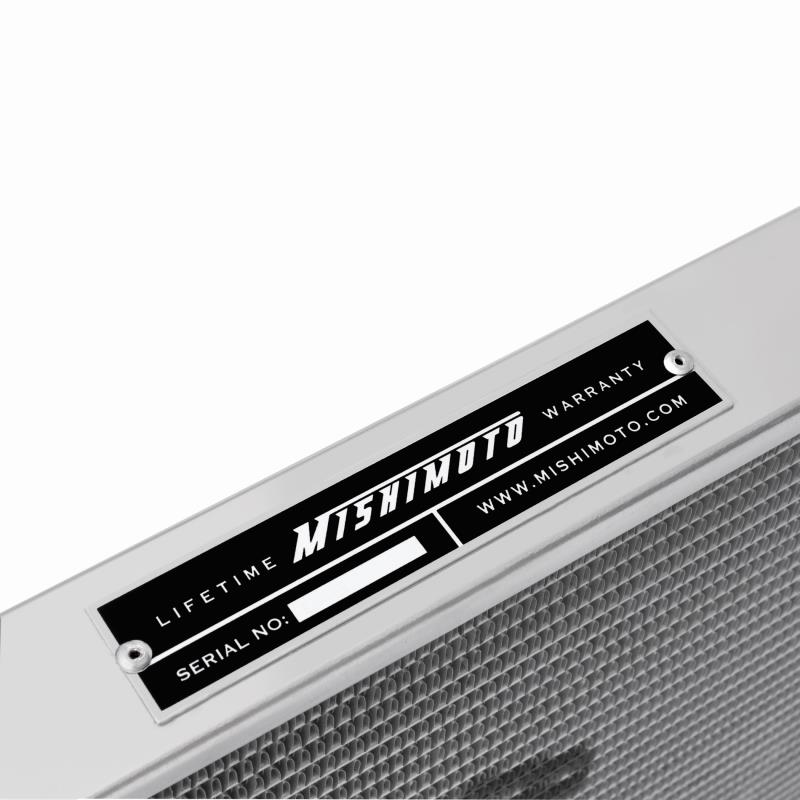

- Mishimoto Lifetime Warranty
VEHICLE SPECS
| ENGINE CODES | SR20DE SR20DET |
| CHASSIS CODES | B13 B14 |
| FITS | 1991-1994 Nissan Sentra SE-R 1995-1998 Nissan 200sx |
PRODUCT SPECS
| MATERIAL | Aluminum |
| OVERALL HEIGHT | 26.4" |
| DPI | 1152/1178/1317/1426 |
| DRAIN PLUG LENGTH | 0.047" |
| DRAIN PLUG THREAD SIZE | (M12) x 1.5 |
| OVERALL LENGTH | 17.2" |
| TANK WALL THICKNESS | 0.08" |
| OUTLET | 1.38" |
| ROWS | 2 |
| INLET | 1.38" |
| COOLANT CAPACITY | 1.85 |
| DUAL PASS | False |
| OVERALL WIDTH | 2.07" |
| CORE LENGTH | 12.44" |
| CORE HEIGHT | 25.51" |
| CORE THICKNESS | 1.57" |
| FILL NECK | 1.25" |
| OVERALL LENGTH (IN) | 17.20 |
| OVERALL HEIGHT (IN) | 26.40 |
| OVERALL WIDTH (IN) | 2.07 |
| ROWS | 2 |
PURCHASE INCLUDES
Mishimoto Radiator
Mishimoto Radiator Cap
Magnetic Drain Plug
Mishimoto Lifetime Warranty
