Compatible: (6.0L)
2005 - 2006 Pontiac GTO
This item is for manual and automatic transmission vehicles. This radiator will fit with Svede and other aftermarket OTR cold-air intakes. Due to the added thickness of the Mishimoto radiator, the clip securing the radiator cover to the electric fan shroud will need to be trimmed for proper fitment. The remaining clips securing the radiator cover to the core support will sufficiently secure it in position
Your vehicle requires 2 bottles of full strength coolant or 4 bottles of premixed coolant
Every Mishimoto race aluminum radiator is designed and engineered to maximize cooling efficiency, boost engine functions, and most importantly, protect your car from overheating on and off the track. Lightweight, made from 100% brazed aluminum, and cast end tanks TIG-welded for increased durability, Mishimoto race radiators will enhance the overall performance of your engine. Like all Mishimoto aluminum radiators, this race aluminum radiator comes with the signature Mishimoto Lifetime Warranty.
- Direct fit for the 2005–2006 Pontiac GTO

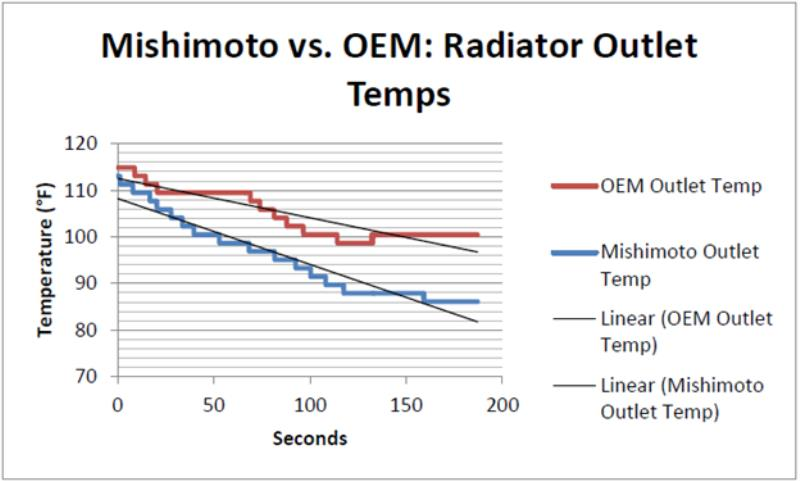

- Reduces coolant temperatures by +15°F (+6°C)
- Large two-row brazed aluminum core increases fluid capacity by 0.64 L and provides ideal coolant temperatures on and off the track
- All-aluminum construction with TIG-welded end tanks provides optimal heat dissipation and reliability
- Applicable for both manual and automatic vehicles
- Includes magnetic drain plug and 1.3 bar high-pressure radiator cap
- Mishimoto Lifetime Warranty
VEHICLE SPECS
| ENGINE CODES | LS-2 (6.0L) |
| FITS | 2005–2006 Vauxhall Monaro (5.7L/6.0L) 2005–2006 Holden Monaro (6.0L Engine Only) |
PRODUCT SPECS
| MATERIAL | Aluminum |
| OVERALL HEIGHT | 31.95" |
| DPI | 2987 |
| DRAIN PLUG LENGTH | 1.5mm |
| DRAIN PLUG THREAD SIZE | (M12) |
| OVERALL LENGTH | 19.65" |
| TANK WALL THICKNESS | 0.08" |
| OUTLET | 1.375" |
| ROWS | 2 |
| INLET | 1.375" |
| COOLANT CAPACITY | 3.58 |
| DUAL PASS | False |
| OVERALL WIDTH | 6.38" |
| CORE LENGTH | 26.55" |
| CORE HEIGHT | 17" |
| CORE THICKNESS | 1.96" |
| FILL NECK | 1.5" |
| OVERALL LENGTH (IN) | 19.65 |
| OVERALL HEIGHT (IN) | 31.95 |
| OVERALL WIDTH (IN) | 6.38 |
| ROWS | 2 |
PURCHASE INCLUDES
Mishimoto Radiator
Mishimoto Radiator Cap
Magnetic Drain Plug
Mishimoto Lifetime Warranty
