Compatible: (2.5L)
2002 - 2006 Nissan Sentra SE-R
2002 - 2006 Nissan Sentra Spec-V
2003 Nissan Sentra Limited Edition
INTENDED FOR USE WITH MANUAL TRANSMISSION MODELS
IF YOU HAVE AN AUTOMATIC TRANSMISSION, PLEASE ADD THE MISHIMOTO UNIVERSAL TRANSMISSION & POWER STEERING COOLER TO COMPLETE INSTALL

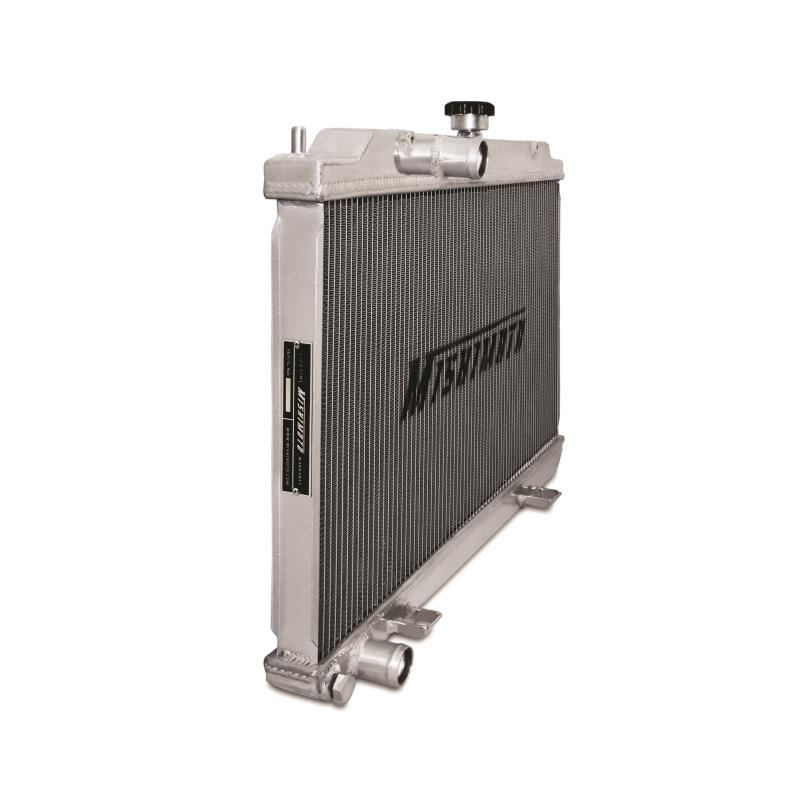

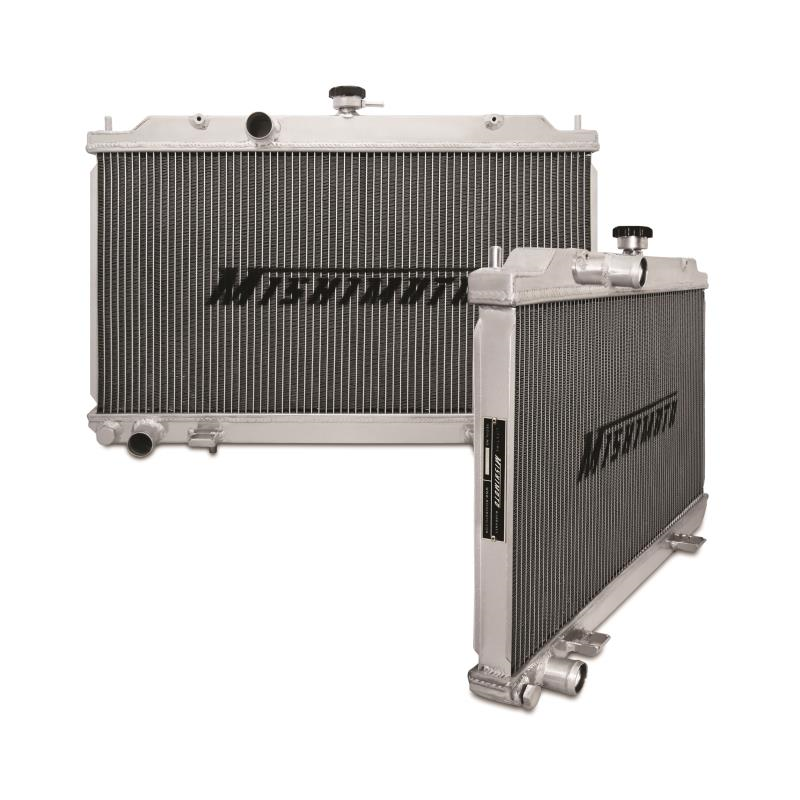

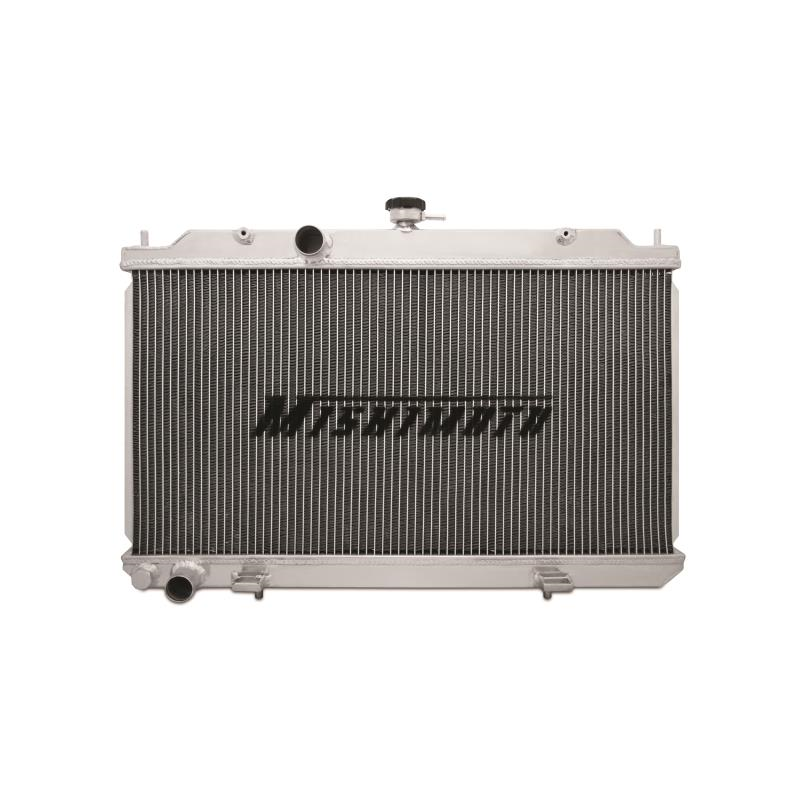

The Mishimoto performance aluminum radiator for the Nissan Sentra SE-R/Spec-V is designed and engineered to maximize cooling efficiency by up to 30%, boost engine functions, and most importantly, protect your car from overheating whether you drive your vehicle daily or take it for track runs. The Mishimoto aluminum 2002–2006 Sentra radiator features a lightweight dual core, 100% brazed aluminum, and polished end tanks, enhancing the overall performance of your engine. Every Mishimoto aluminum radiator is a direct stock fit, making installation effortless with no cutting or modification required. This is the ideal upgrade to the stock Sentra radiator. As with every Mishimoto aluminum radiator, this radiator includes the Mishimoto Lifetime Warranty.
- Direct fit for the 2002–2006 Nissan Sentra SE-R/Spec-V
- Full aluminum construction including durable, TIG-welded end tanks
- Increased fluid capacity and optimal heat dissipation
- Provides efficient temperature reduction for street and/or track use

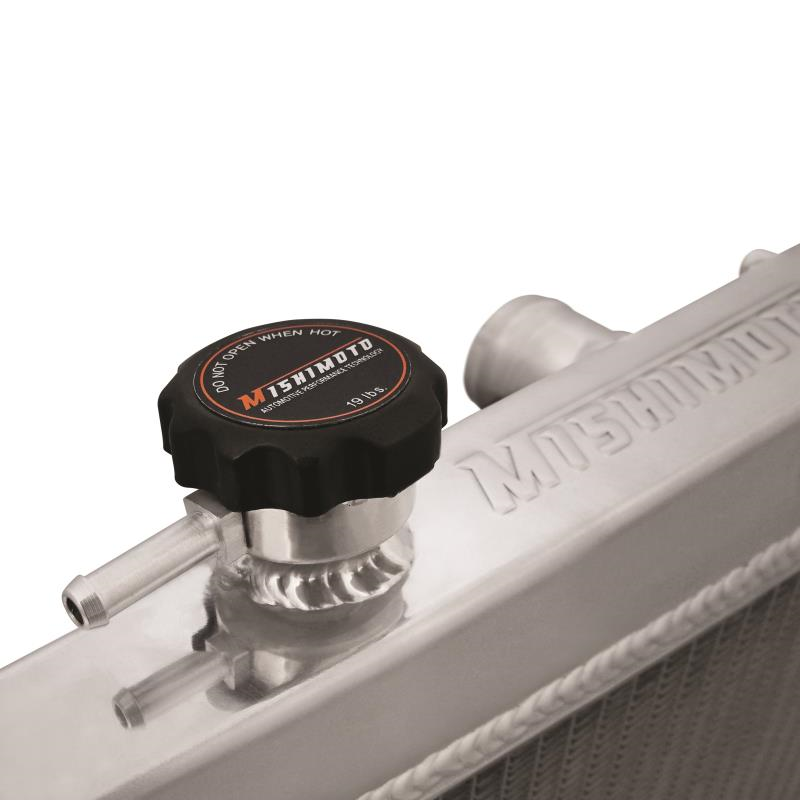

- Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
- Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
- Mishimoto Lifetime Warranty
VEHICLE SPECS
| ENGINE CODES | QR25DE |
| CHASSIS CODES | B15 |
| FITS | 2002-2006 Nissan Sentra SE-R 2002-2006 Nissan Sentra Spec-V 2003 Nissan Sentra Limited Edition |
PRODUCT SPECS
| MATERIAL | Aluminum |
| OVERALL HEIGHT | 28" |
| DPI | 2469 |
| DRAIN PLUG LENGTH | 0.047" |
| DRAIN PLUG THREAD SIZE | (M12) x 1.5 |
| OVERALL LENGTH | 19.8" |
| TANK WALL THICKNESS | 0.08" |
| OUTLET | 1.4" |
| ROWS | 2 |
| INLET | 1.4" |
| COOLANT CAPACITY | 2.03 |
| DUAL PASS | False |
| OVERALL WIDTH | 1.92" |
| CORE LENGTH | 14.37" |
| CORE HEIGHT | 27.08" |
| CORE THICKNESS | 1.42" |
| FILL NECK | 1.25" |
| OVERALL LENGTH (IN) | 19.80 |
| OVERALL HEIGHT (IN) | 28.00 |
| OVERALL WIDTH (IN) | 1.92 |
| ROWS | 2 |
PURCHASE INCLUDES
Mishimoto Radiator
Mishimoto Radiator Cap
Magnetic Drain Plug
Mishimoto Lifetime Warranty
