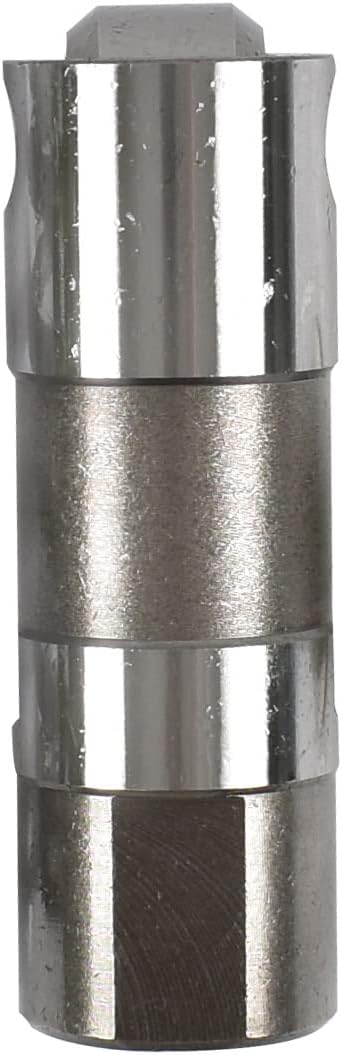

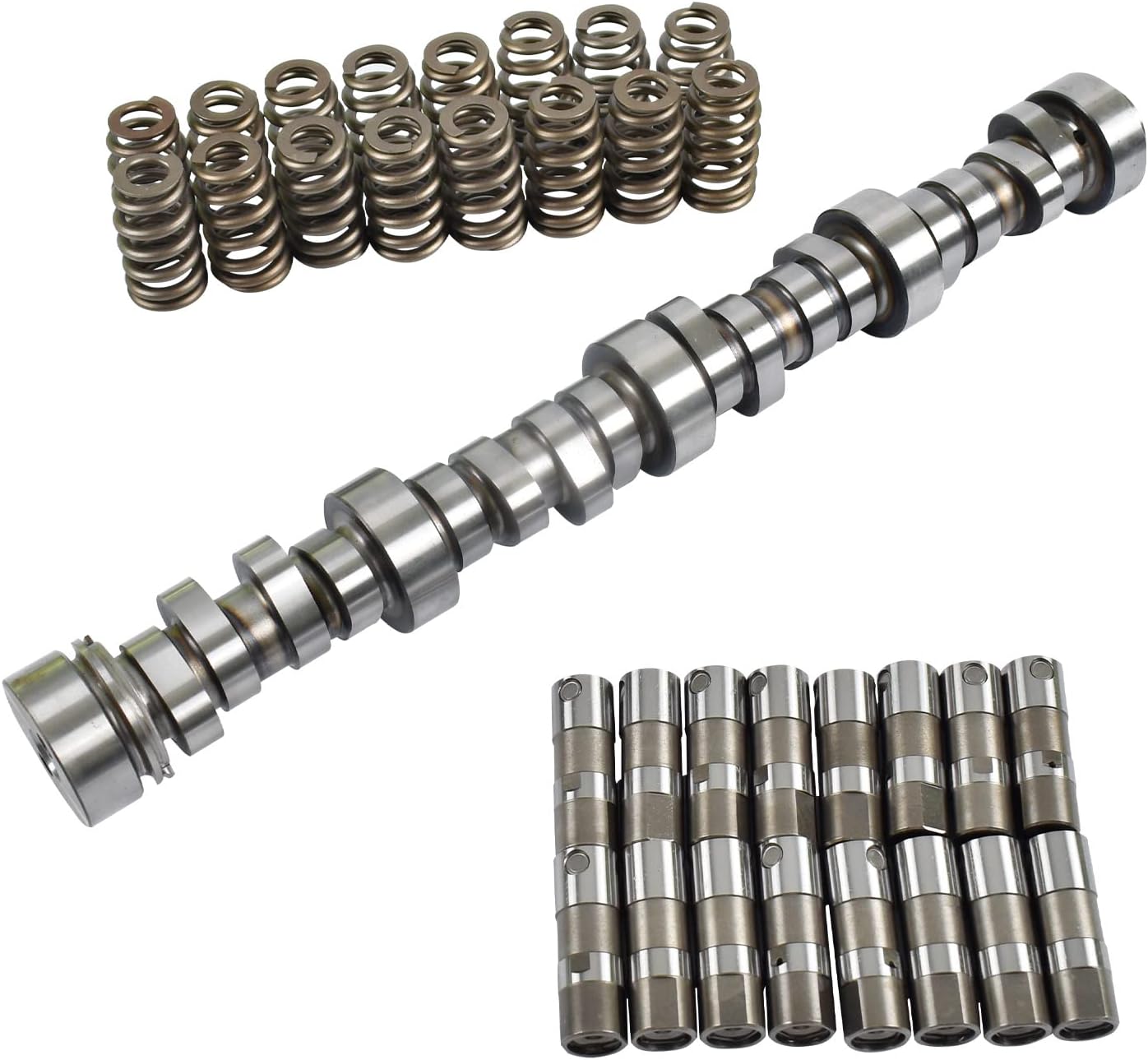

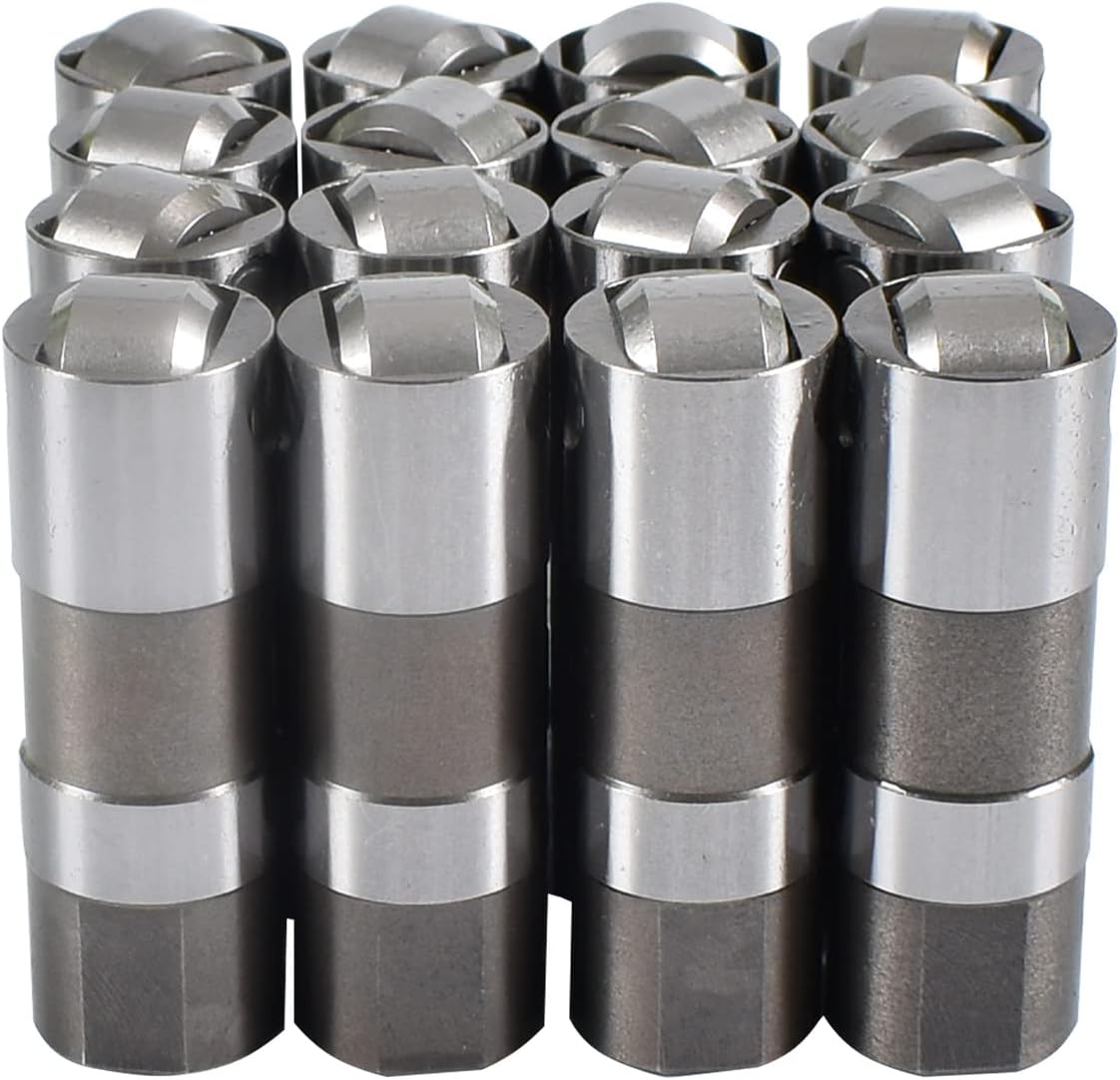

Kingman Speed® GM LS1/LS2/LS6/LM7/L59/LM4/LQ4/LQ9 .585/.585 Camshaft/Springs/Lifters Kit

Regular price £229.07
Shipping calculated at checkout.

Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)

Email: info@10SecondRacing.com (24/7)

Free Shipping to Lower 48 US States ($100+)

Worldwide Shipping via UPS (Check Rates at Checkout)

Description

COMPATIBLE: (4.8L/5.3L/5.7L/6.0L)

2004 - 2006 CADILLAC CTS-V

1998 - 2002 CHEVROLET CAMARO

1997 - 2007 CHEVROLET CORVETTE

1999 - 2007 CADILLAC ESCALADE

2001 - 2007 CHEVROLET AVALANCHE

1999 - 2007 CHEVROLET SILVERADO 1500

2003 - 2006 CHEVROLET SSR

1999 - 2007 GMC SIERRA 1500

2001 - 2007 CHEVROLET TRAILBLAZER

2003 - 2009 CHEVROLET EXPRESS

1999 - 2007 CHEVROLET SUBURBAN

1999 - 2007 CHEVROLET TAHOE

2003 - 2009 HUMMER H2

2006 - 2010 HUMMER H3

1999 - 2007 GMC YUKON

1999 - 2007 GMC YUKON XL

2005 - 2006 PONTIAC GTO

2006 - 2007 PONTIAC G8

1998 - 2002 PONTIAC FIREBIRD

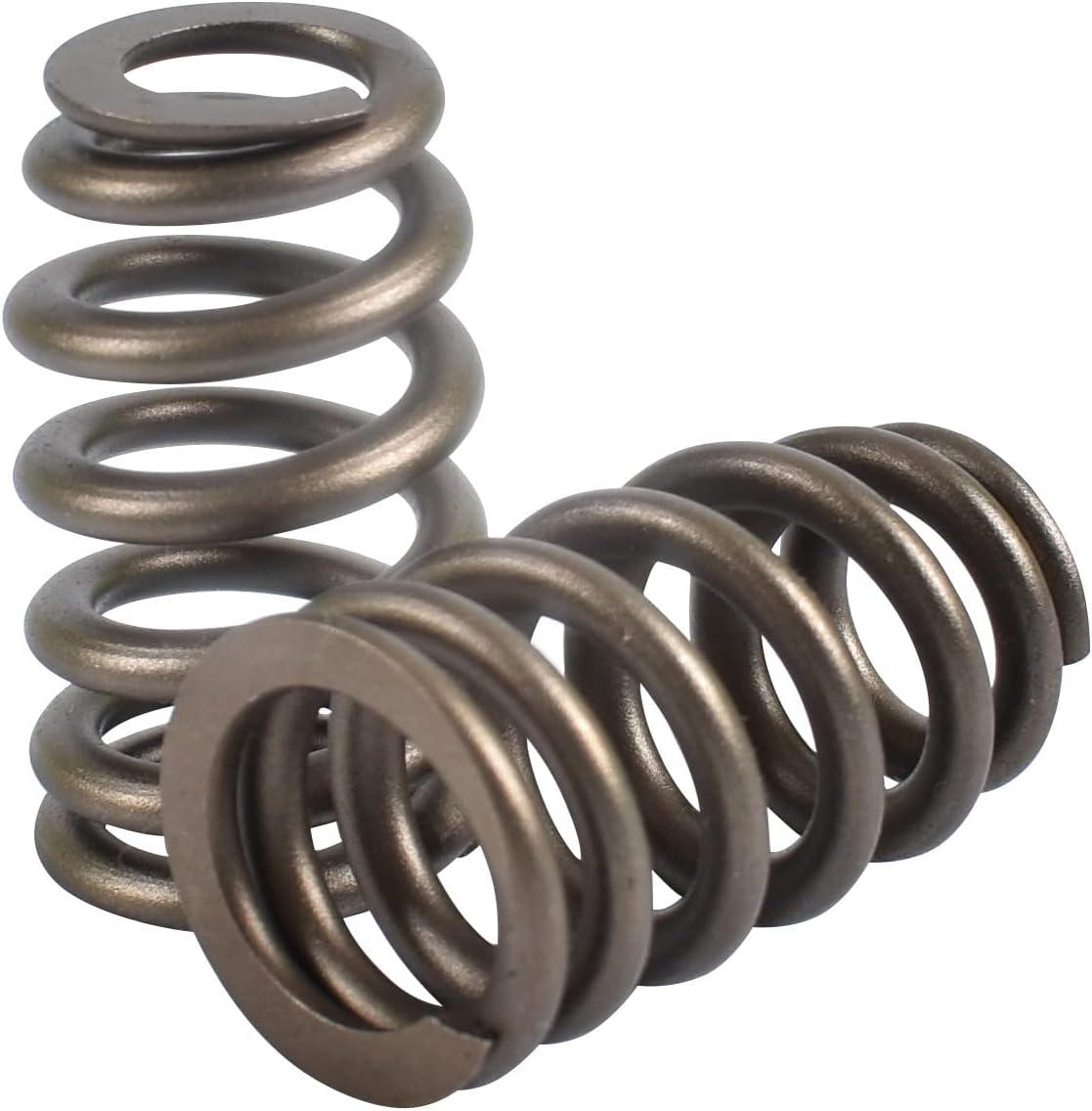

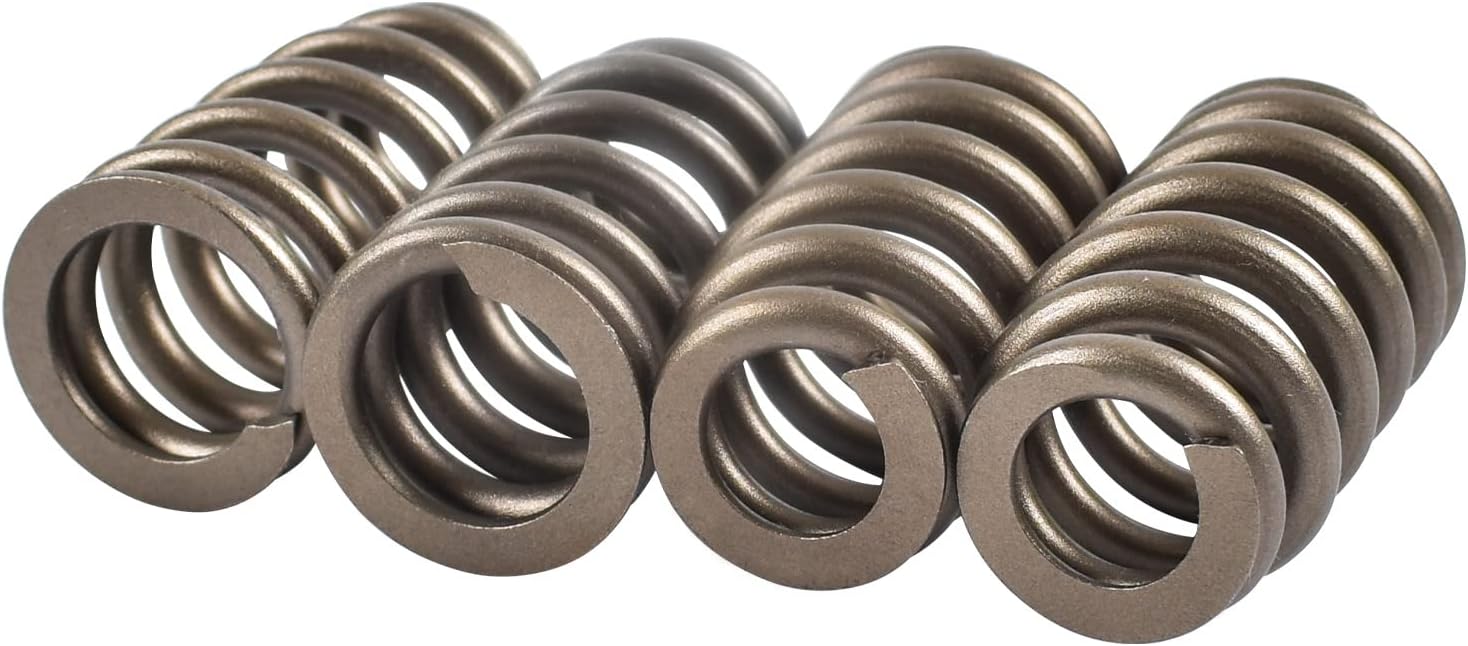

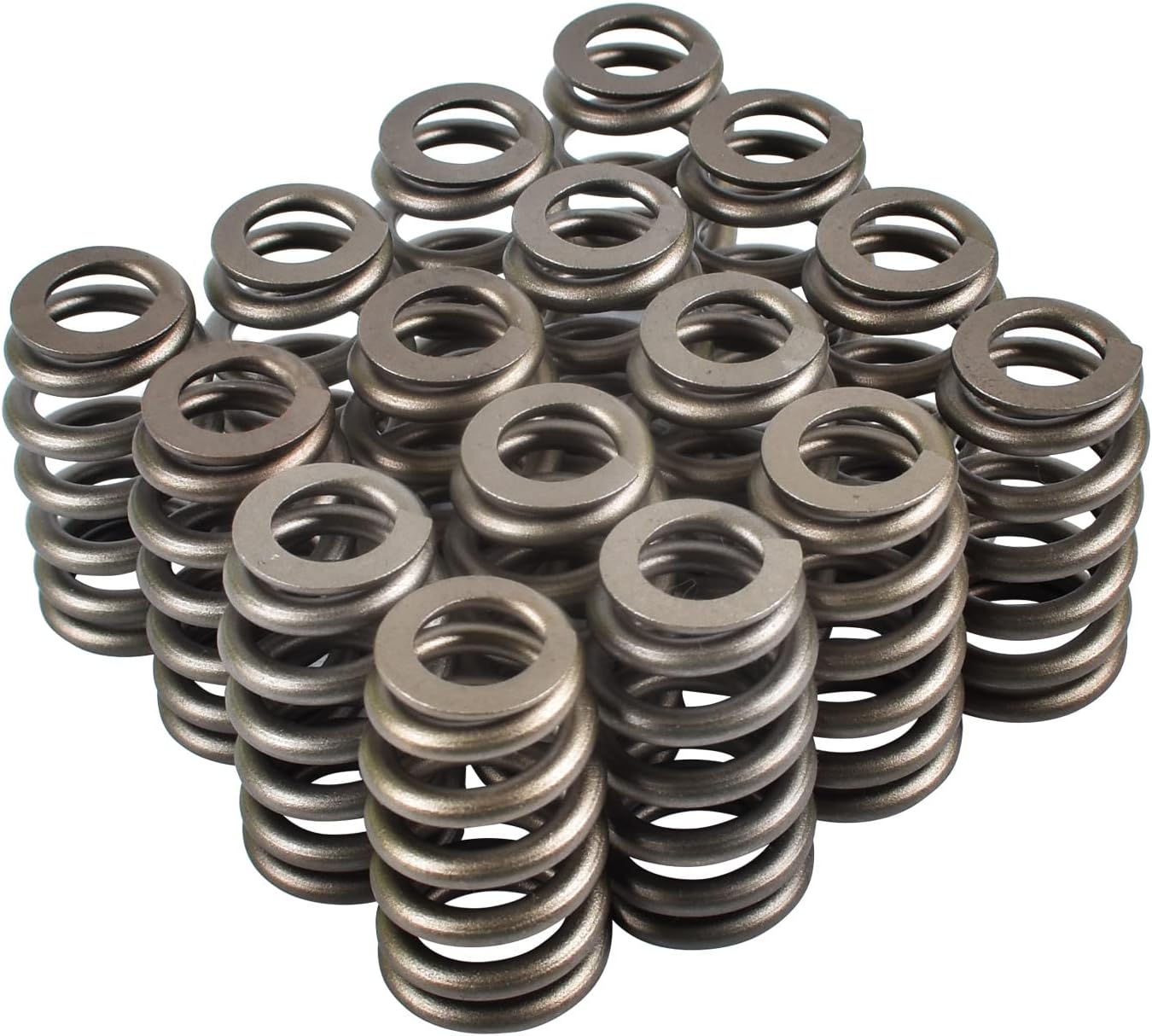

Supporting Parts: Stock valve springs cannot handle the .585" lift and must be upgraded (such as beehive or dual springs). A higher stall torque converter or manual transmission is recommended.

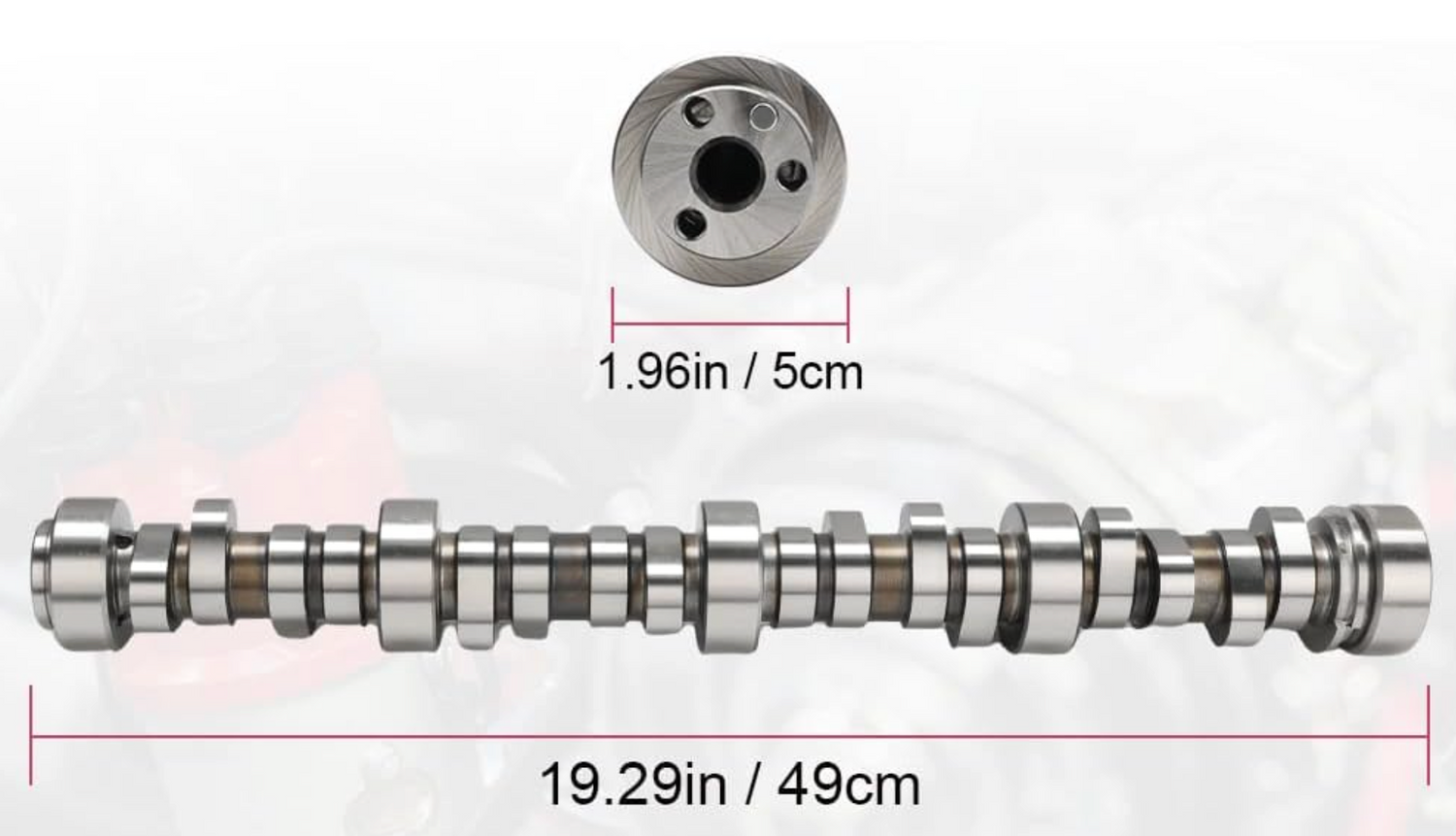

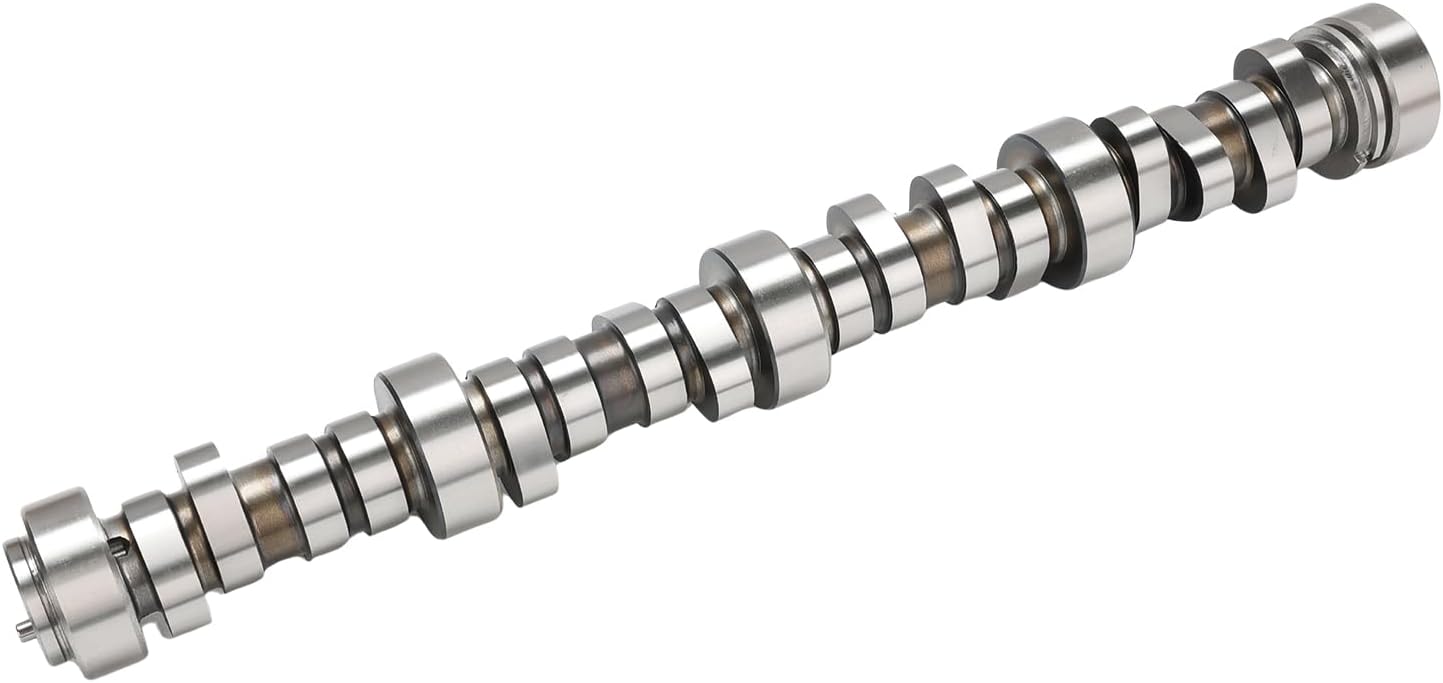

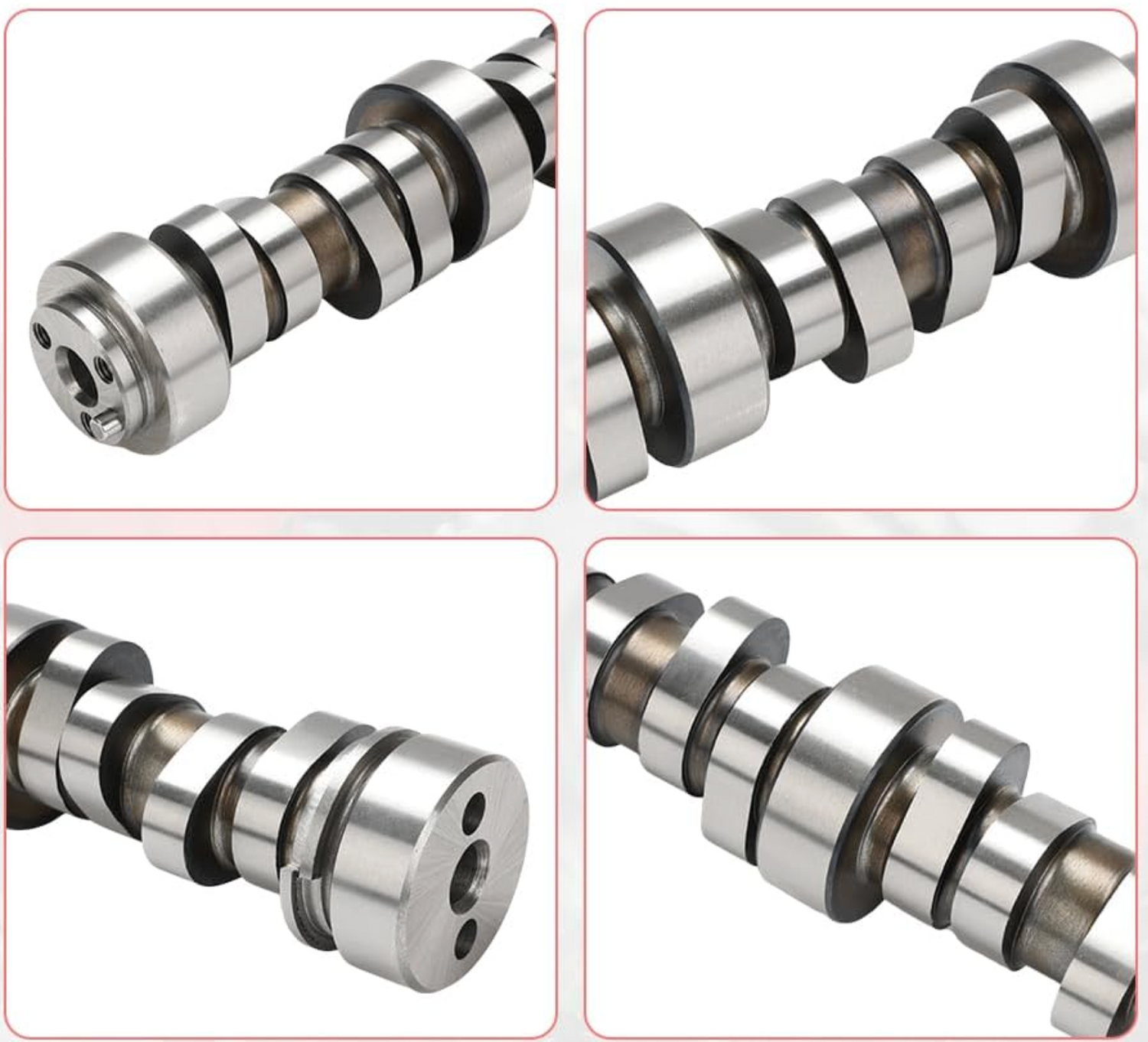

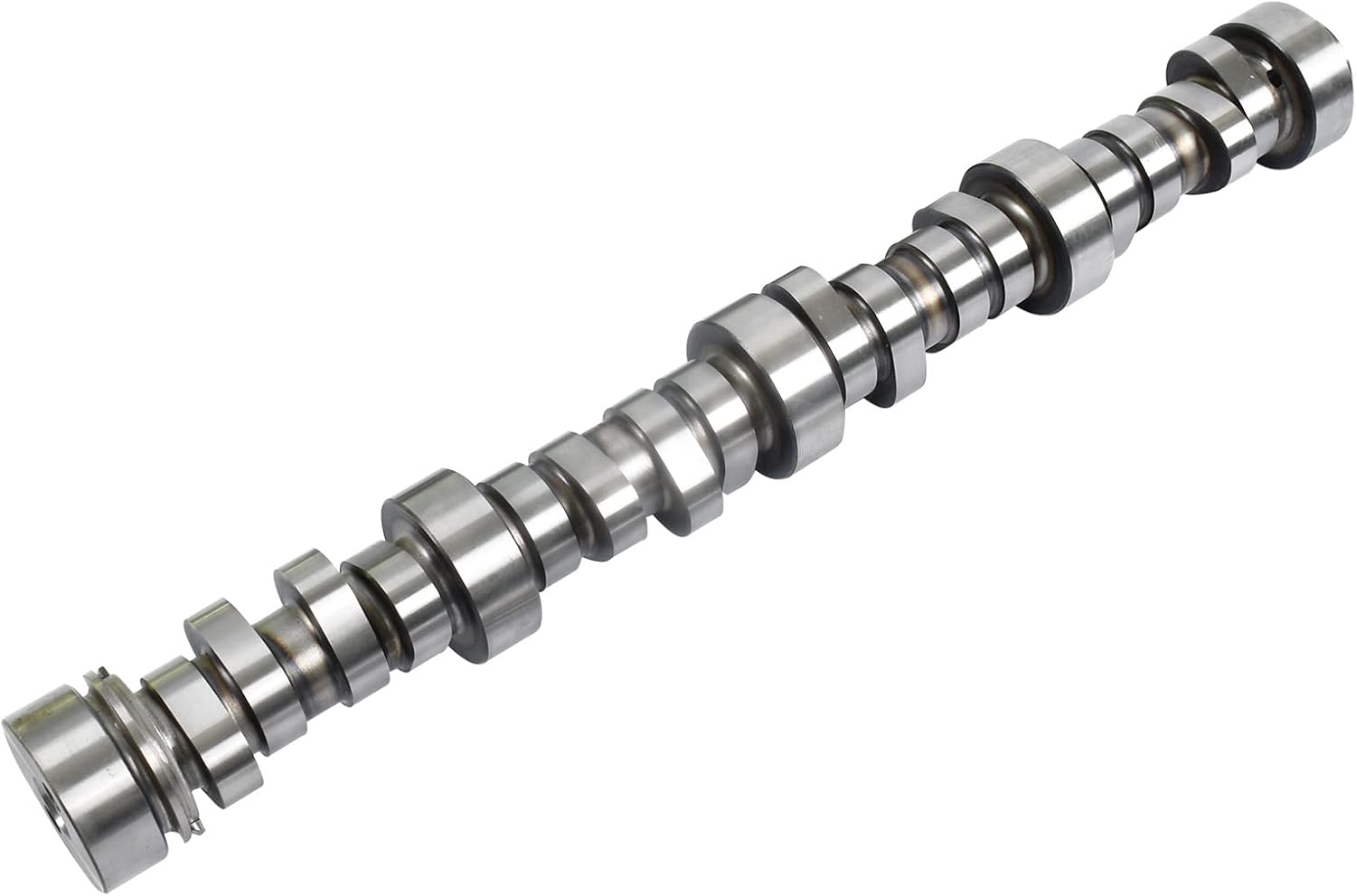

This Engine Camshaft is an aftermarket hydraulic roller performance camshaft for GM LS-series V8 engines. It features a popular "Sloppy Mechanics" grind designed to deliver a rough idle, strong mid-range torque, and improved horsepower.

Technical Specifications

Valve Lift: .585" intake / .585" exhaust (with 1.7 rocker ratio)

RPM Operating Range: 2,200 to 5,400 RPM

Duration at .050" Lift: 228° intake / 230° exhaust

Advertised Duration: 283° intake / 286° exhaust

Lobe Separation Angle (LSA): 112°

Intake Centerline: 108°

Cam Gear Attachment: 3-bolt
