COMPATIBLE:
2007 - 2009 CADILLAC ESCALADE (6.2L-L92)
2008 - 2009 CHEVROLET TAHOE LTZ (6.2L-L92)
2010 - 2015 CHEVROLET CAMARO SS (6.2L-LS3)
2014 - 2017 CHEVY SS (6.2L-LS3)
2008 - 2013 CHEVROLET CORVETTE (6.2L-LS3)
2009 - 2013 CHEVROLET SILVERADO 1500 (6.2L-L92)
2008 - 2009 HUMMER H2 (6.2L-L92)
2007 - 2013 GMC SIERRA 1500 (6.2L-L92)
2007 - 2013 GMC YUKON DENALI (6.2L-L92)
2007 - 2013 GMC YUKON XL DENALI (6.2L-L92)
2009 - 2010 PONTIAC G8 GXP (6.2L-LS3)

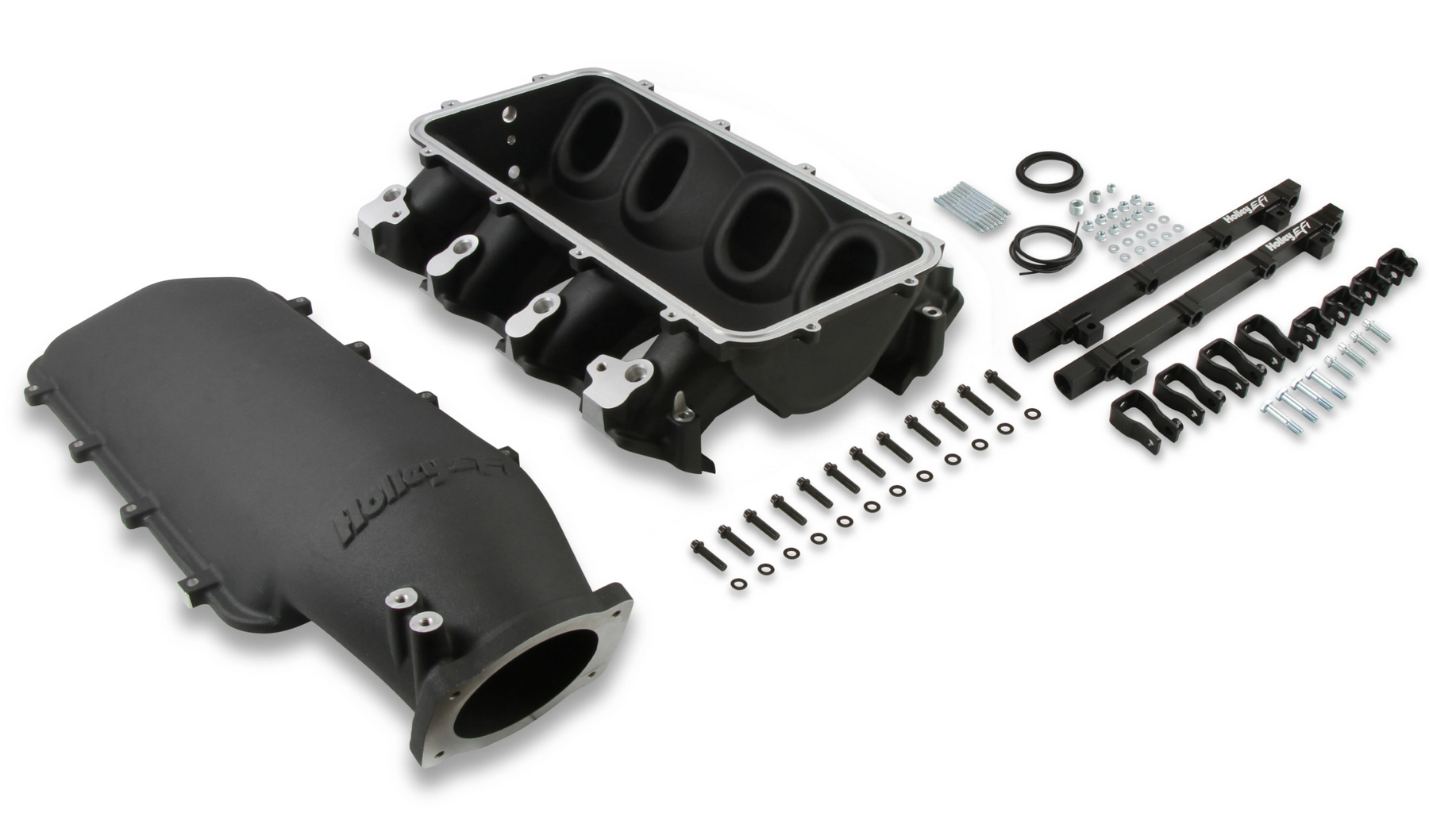

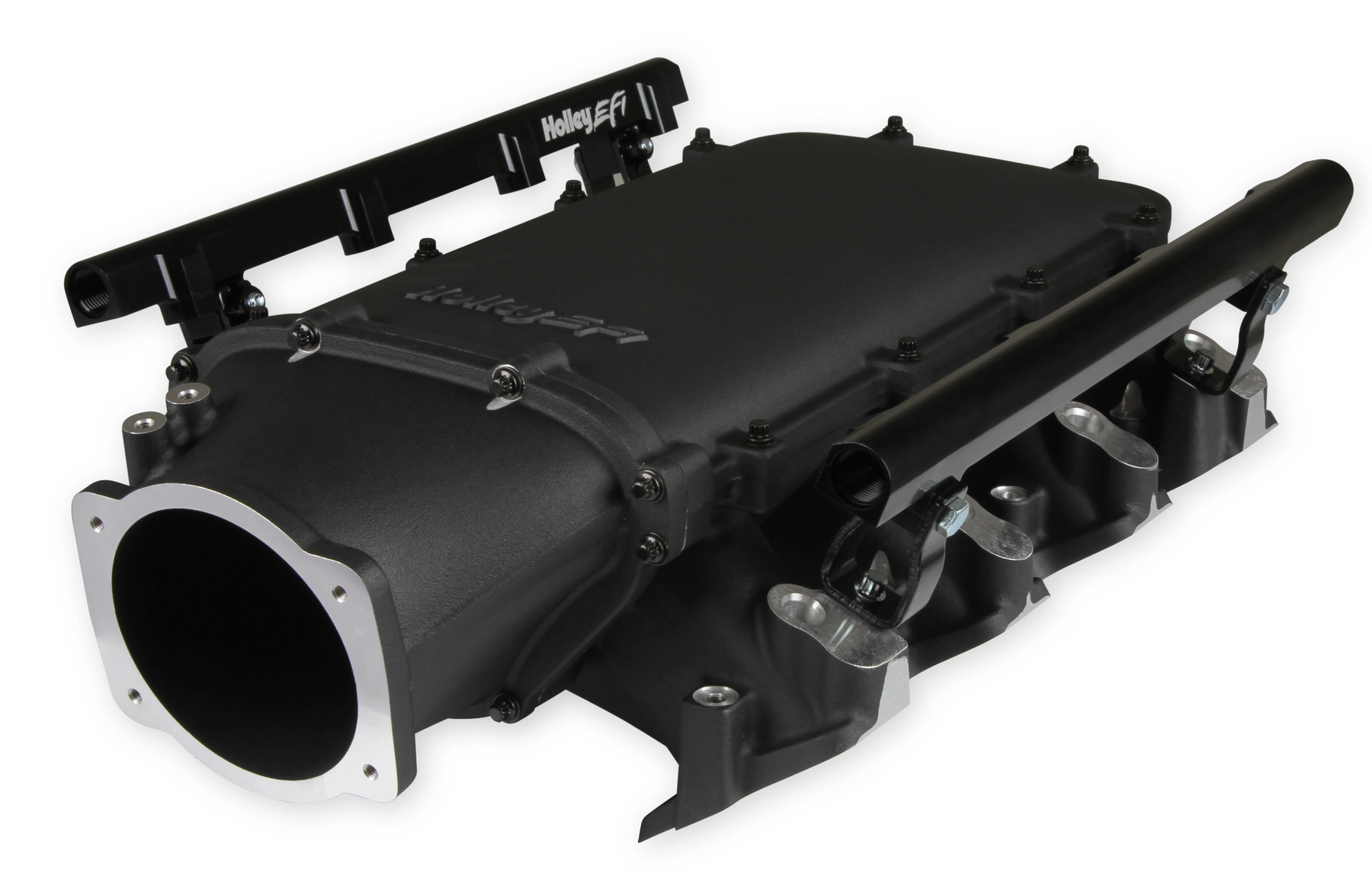

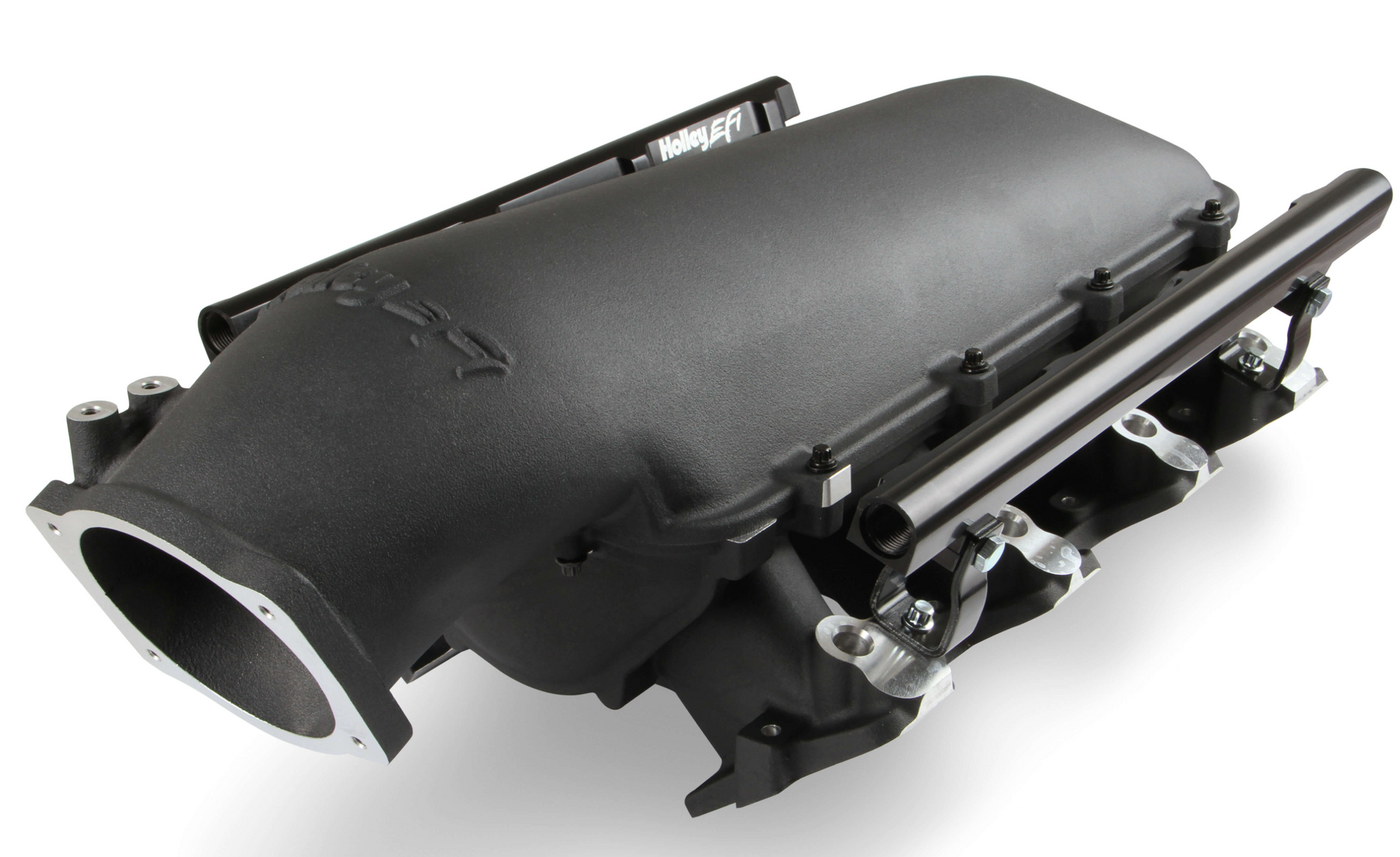

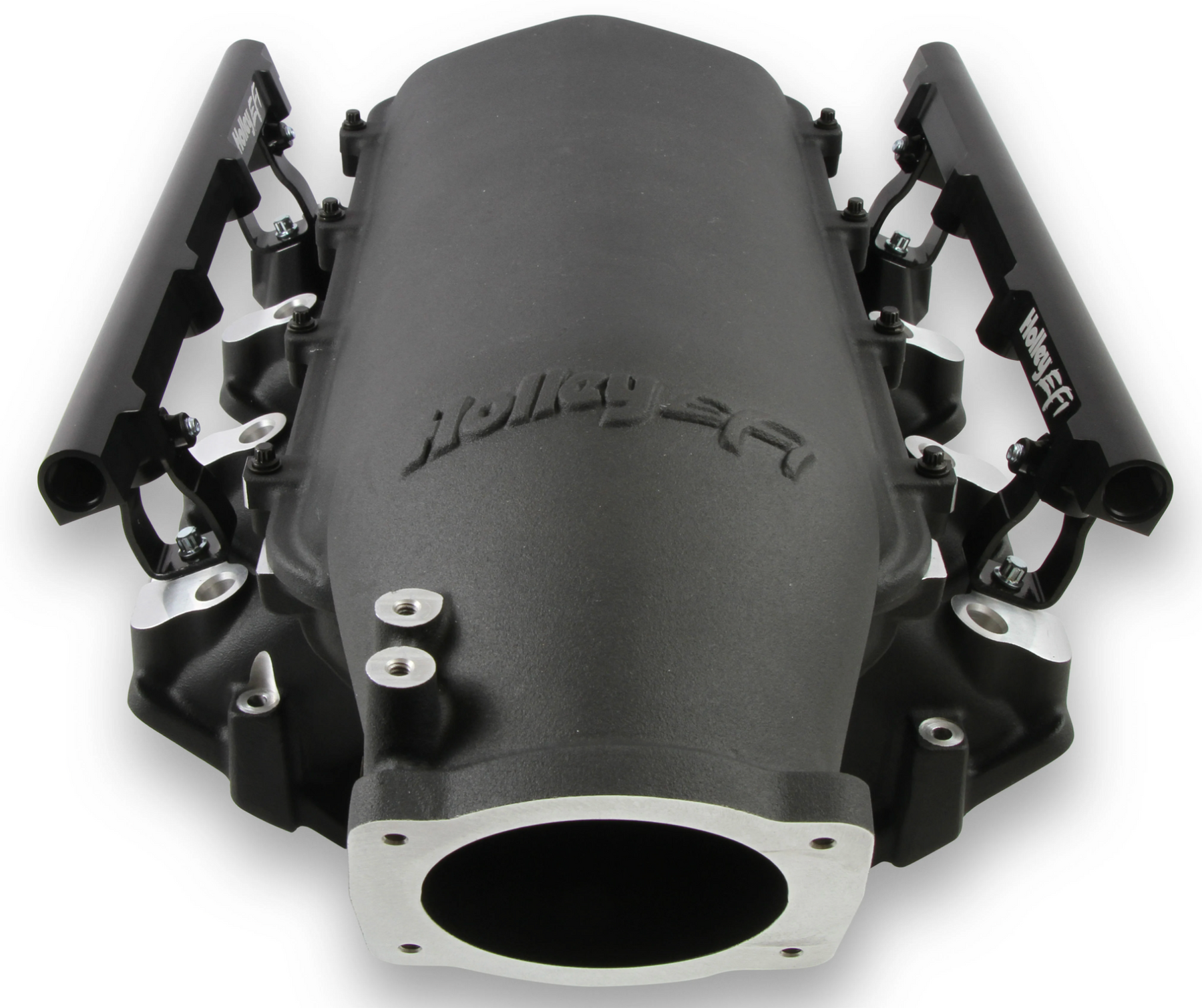

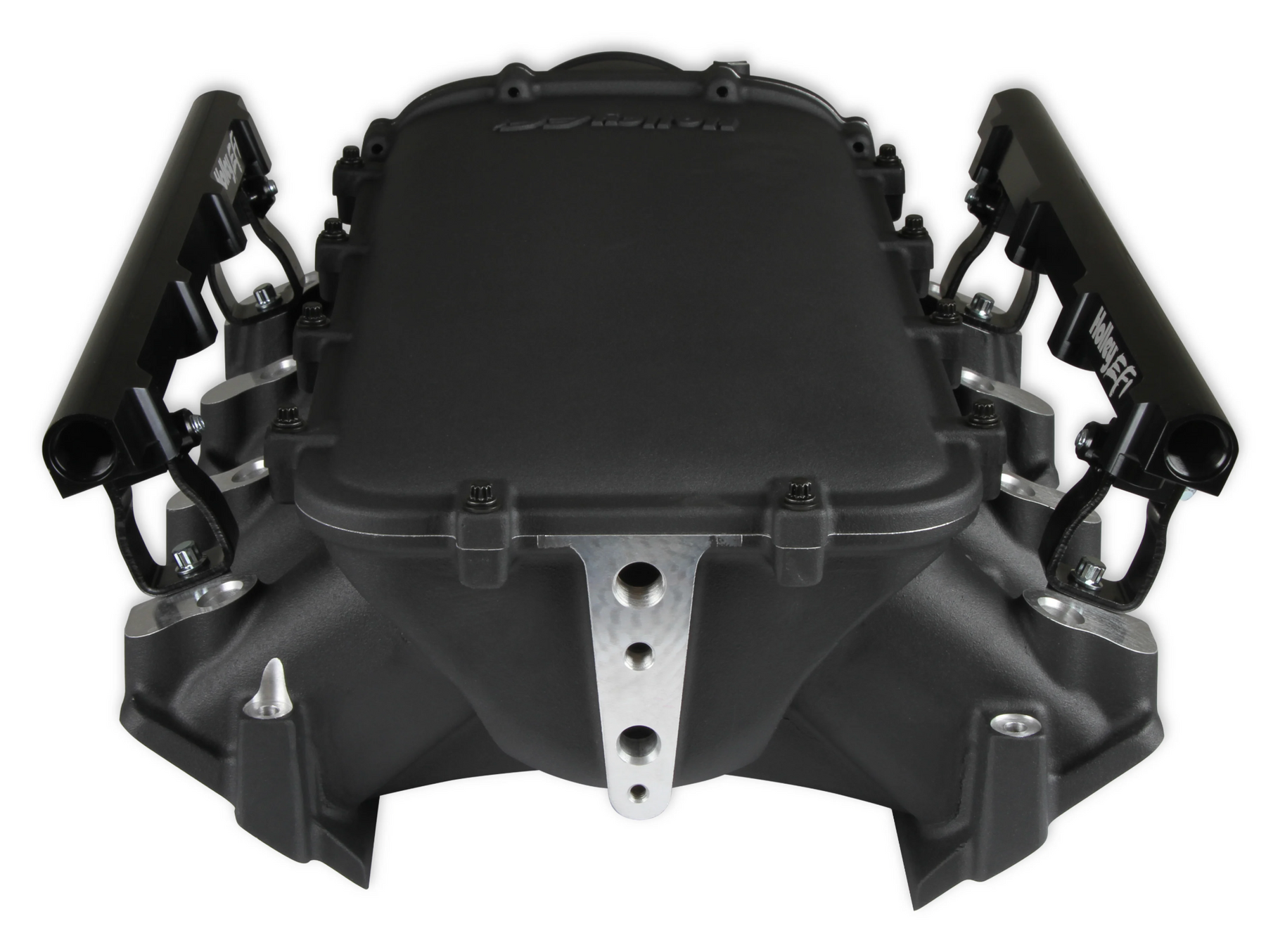

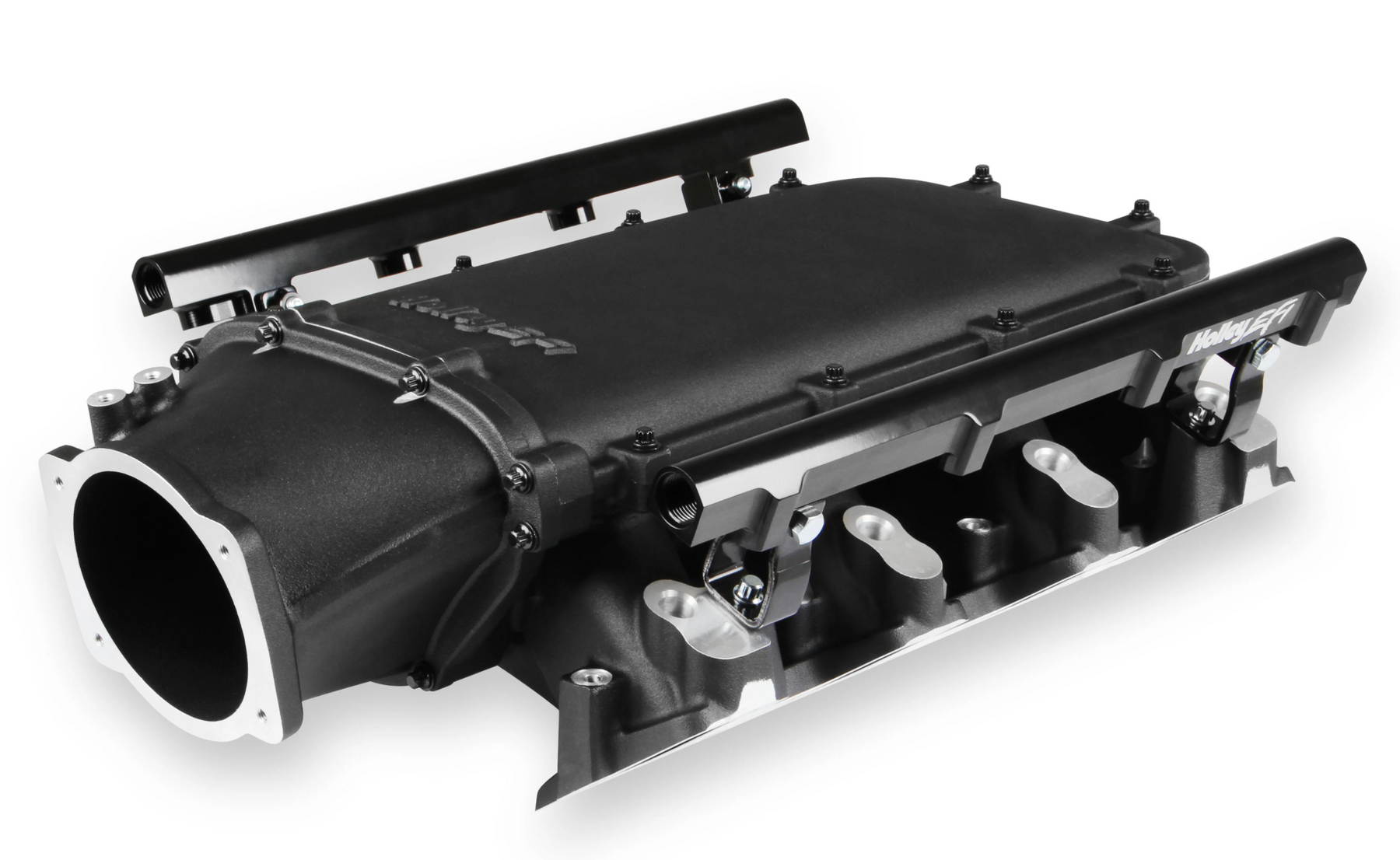

Available with single or dual injector provisions and a burst panel flange, the LS3 Ultra Lo-Ram intake manifold is designed for boosted combinations with hood clearance in mind. The Holley LS3 Ultra Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm depending on the application. The front plenum flange has a 105 mm opening to work with throttle body part number 112-581 or similar models. The base intake manifold is designed with a lower overall height to fit under a stock or mildly modified hood in the front configuration. The LS3 Lo-Ram is constructed to provide a very low profile modular intake manifold suitable for fabrication of special throttle body adapters or inlet ducts for custom installations. Available with single or dual injector provisions and a burst panel flange options. The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors.
-
Designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads•
-
Engineered for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm depending on the application.
-
Low height to fit under a stock or mildly modified hood in the front configuration
-

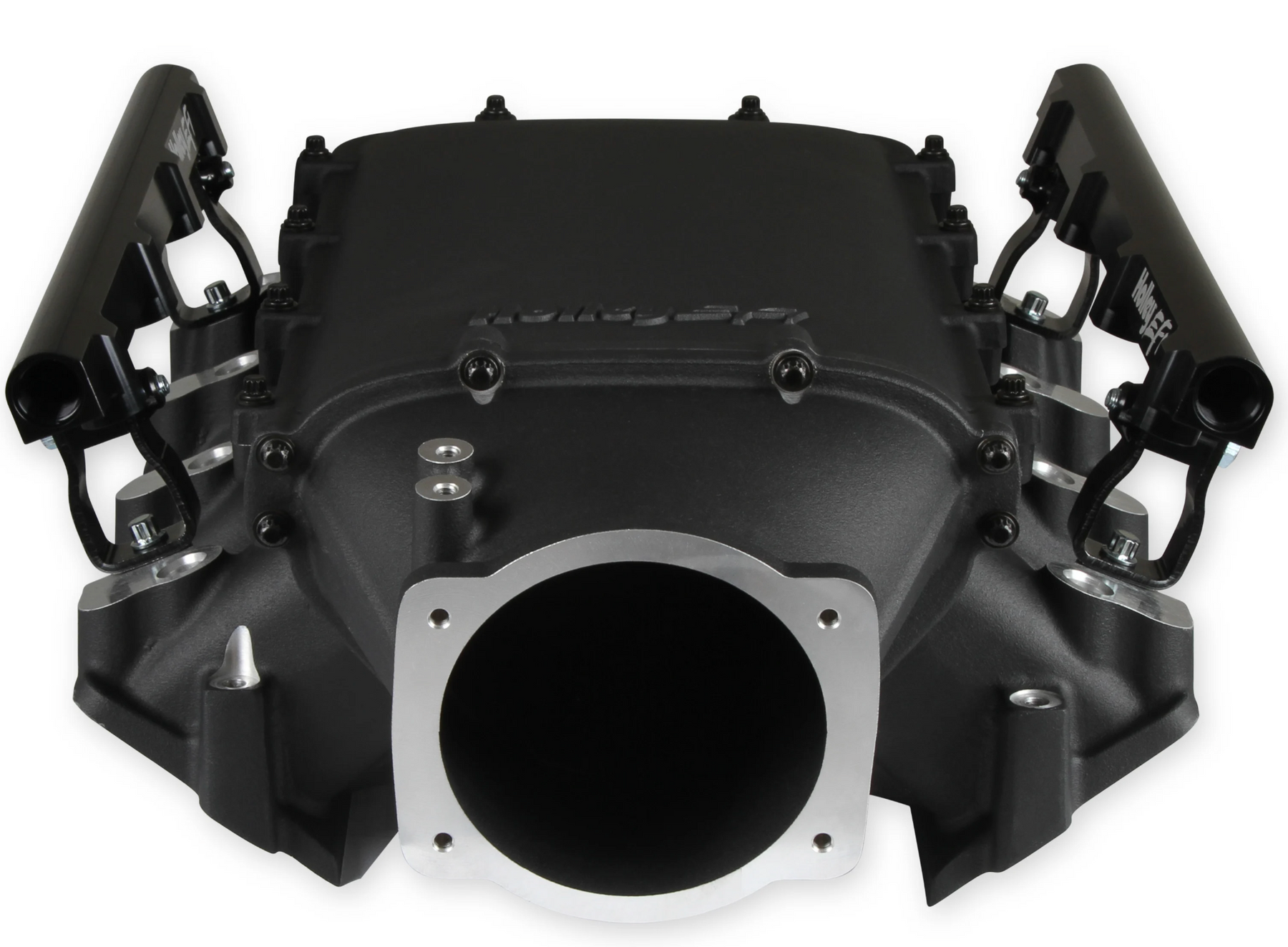

Front entry plenum flange allows design & fabrication of special throttle body adapters or inlet ducts for custom installations
-
Clears C6 Corvette cowls and hoods without modification
-
Available with single or dual injector provisions and a burst panel flange.
-

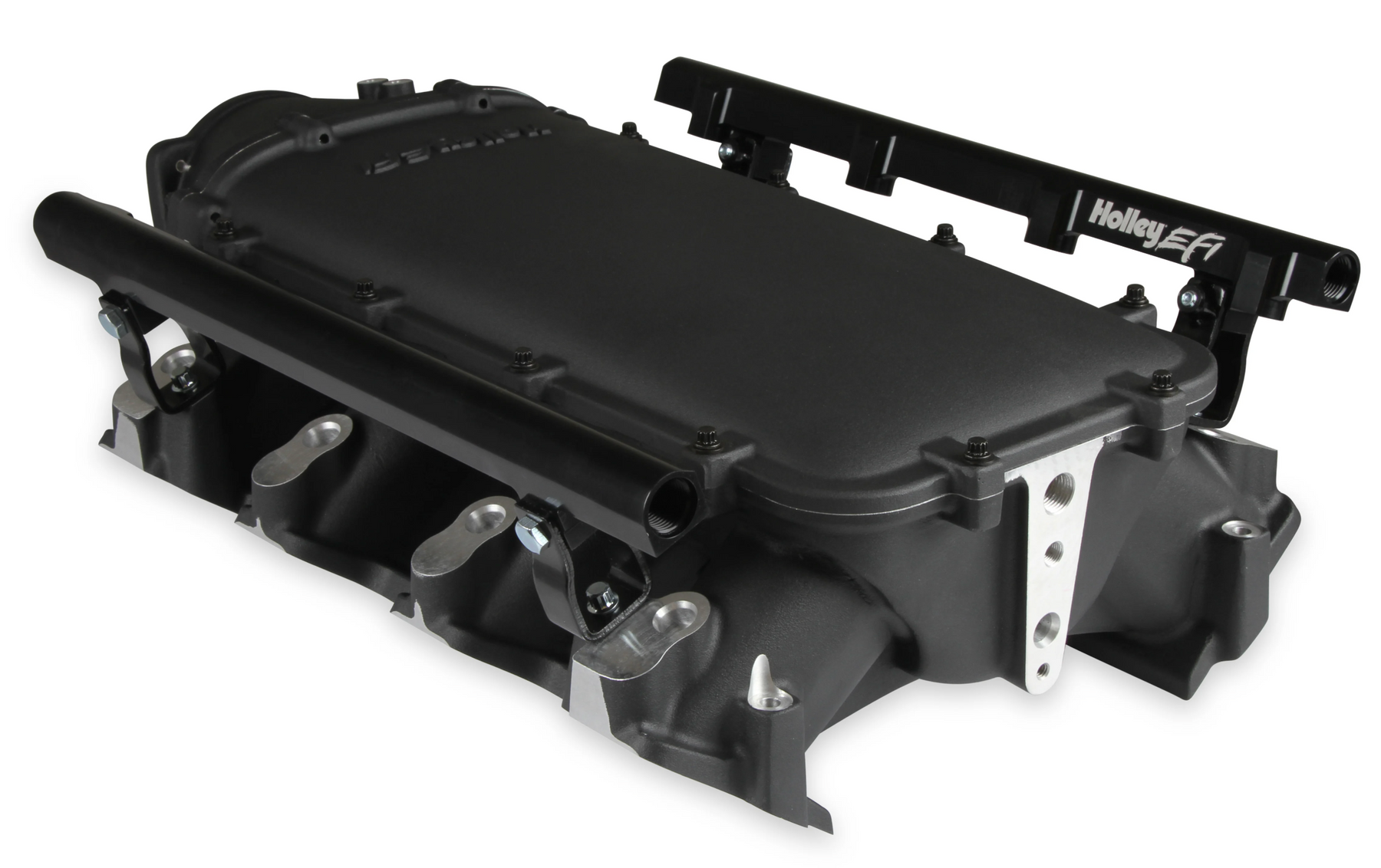

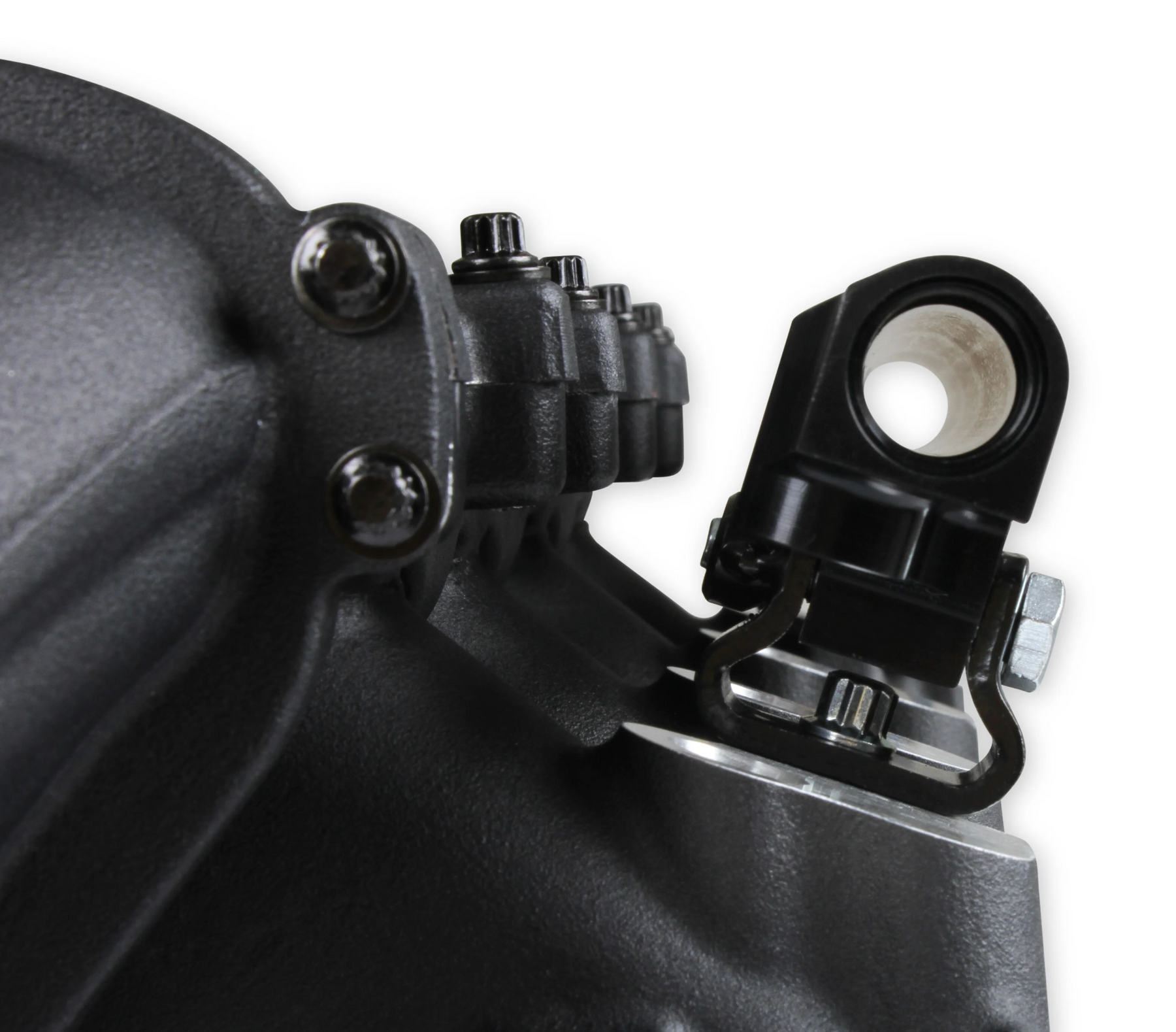

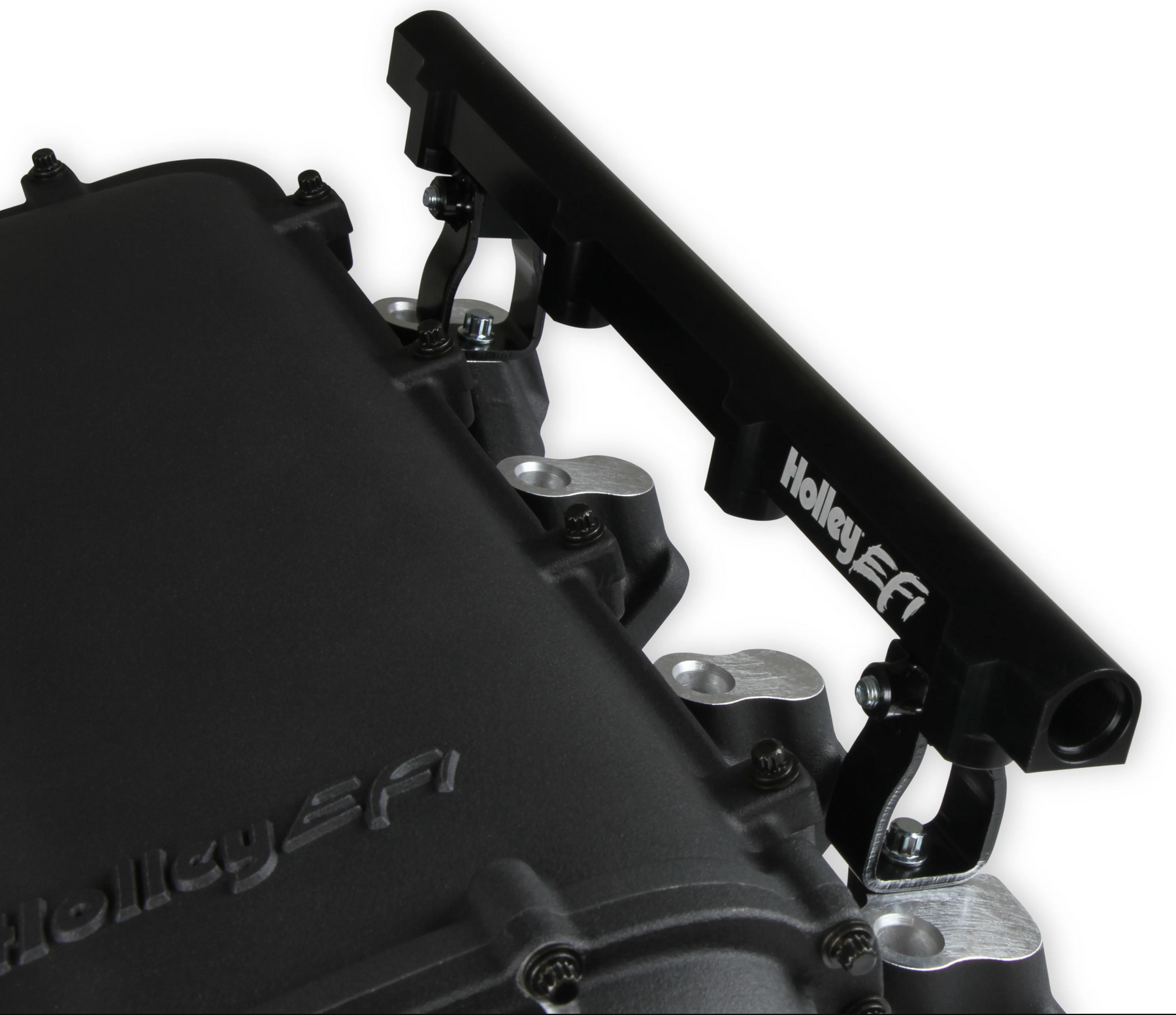

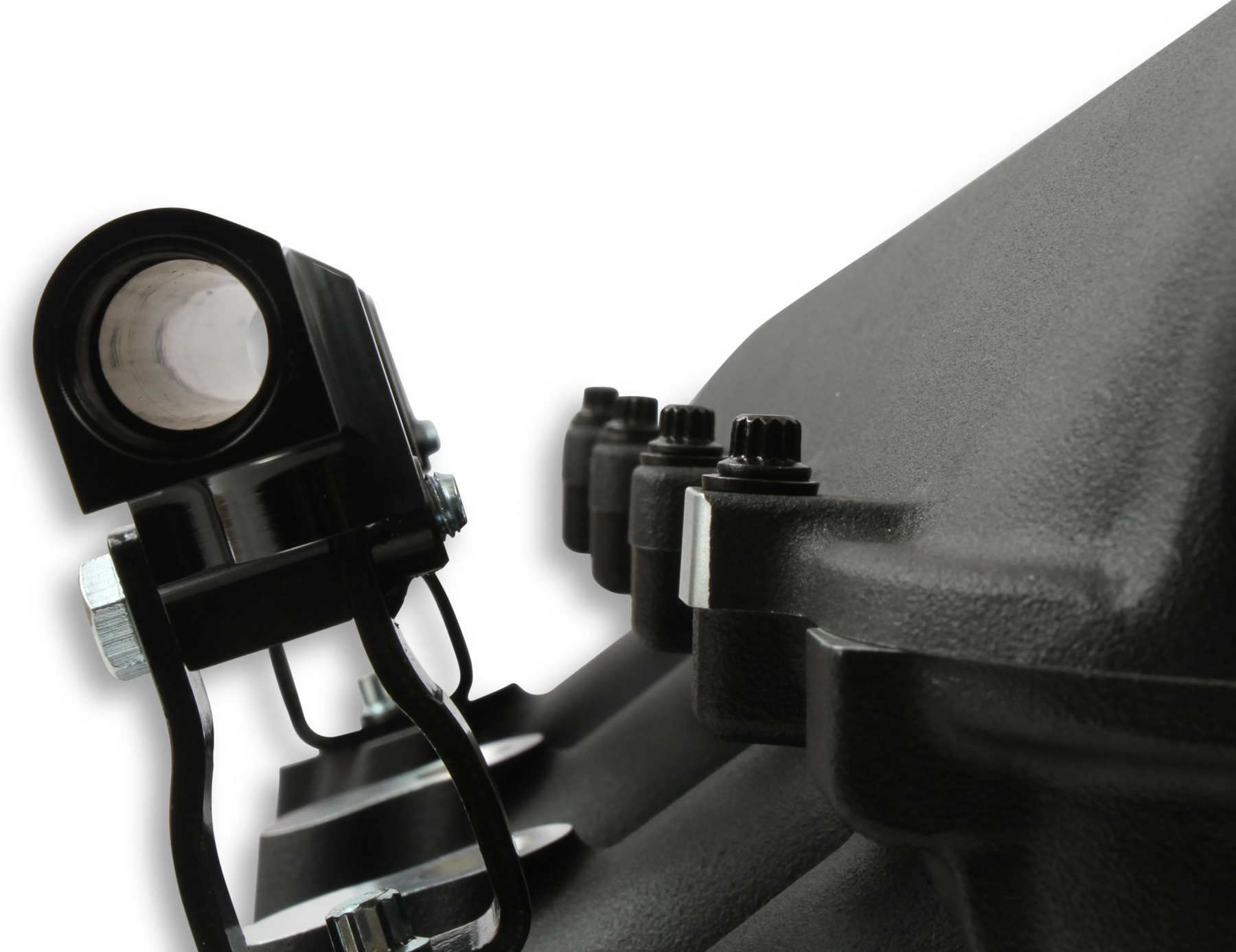

High volume fuel rails for eight and sixteen injector configurations. Mounting hardware included with 3/4-16 O-ring ports (8 AN)
-
Billet options for the top and throttle body adapters are available seperately.
Basic Operating RPM Range |
3500-8000 RPM |
|---|---|
Brand |
Holley EFI |
Burst Panel Compatible |
Yes |
Category Filter |
Intake Manifolds |
Clearance Category |
Intake Manifolds |
Color |
Black |
Construction |
Cast |
EGR Port |
No |
Emission Code |
3 |
Engine |
GM LS3/L92 |
Finish |
Black |
Flange Style |
EFI |

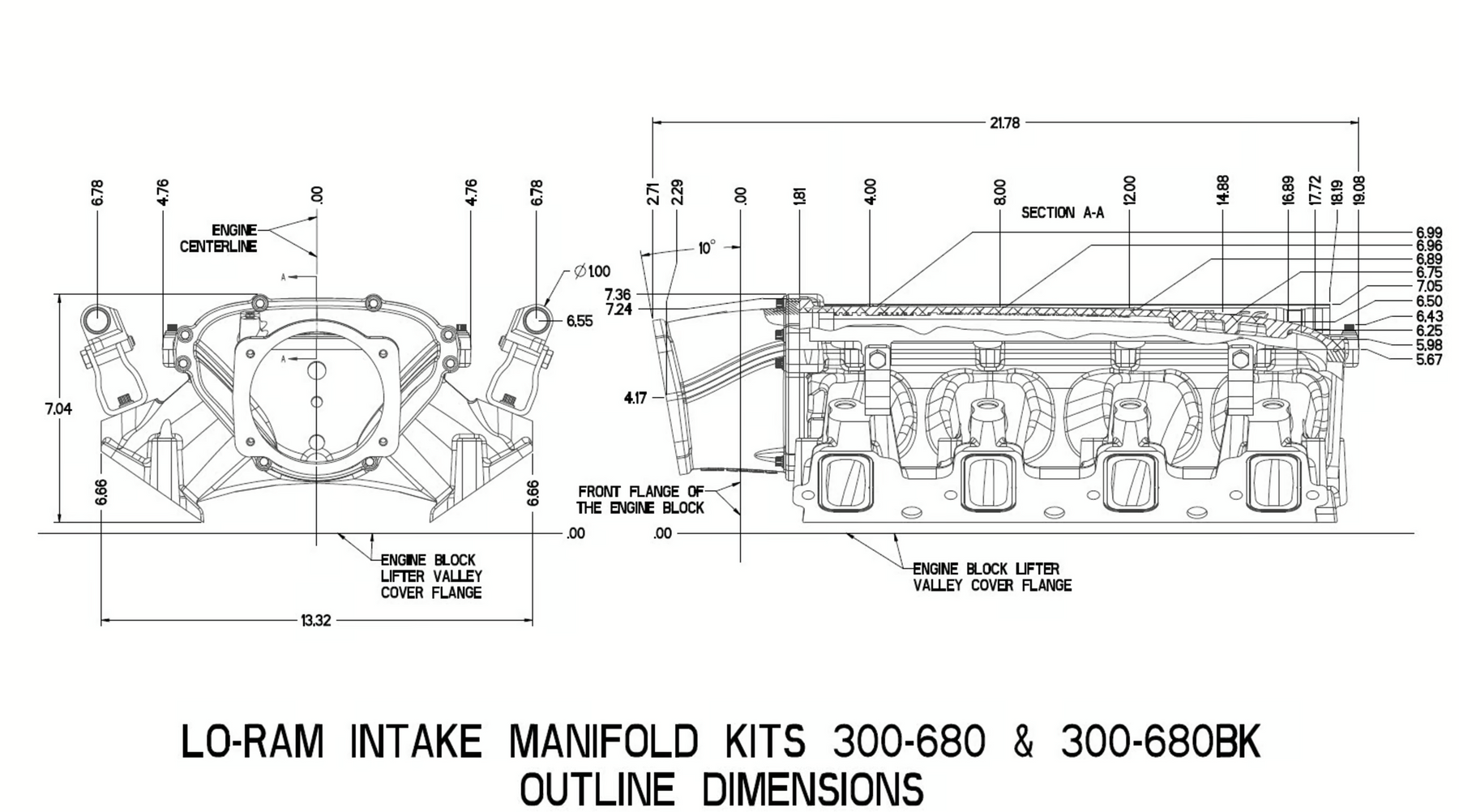

Front Height |
6.86" height with throttle body adapter |
Front Maximum Height |
6.86 IN |
Fuel System Type |
EFI |
Grade Type |
Performance |
Injector Quantity |
Single |
Inlet Location |
Front |
Intake Port Gasket(s) Included |
No |
Manifold Type |
Ultra Lo-Ram |
Material |
Aluminum |
Nitrous Bung(s) Included |
No |
Plenum Finish |
Black |
Product Type |
Intake Manifold |
Recommended Use |
Forced Induction |
Removable Runners |
No |
RPM Power Band |
3500-8000 RPM |
Sale Category |
Air and Fuel Delivery |
Single Or Dual Plane Type |
Single Plane |
Throttle Body Bore Diameter |
105 MM |
Throttle Body Included |
No |
Warranty |
Limited 90 Day |
UPC |
090127100929 |
Part Number |
300-680BK |
