Hays®  |  SKU: 97-1H32Q

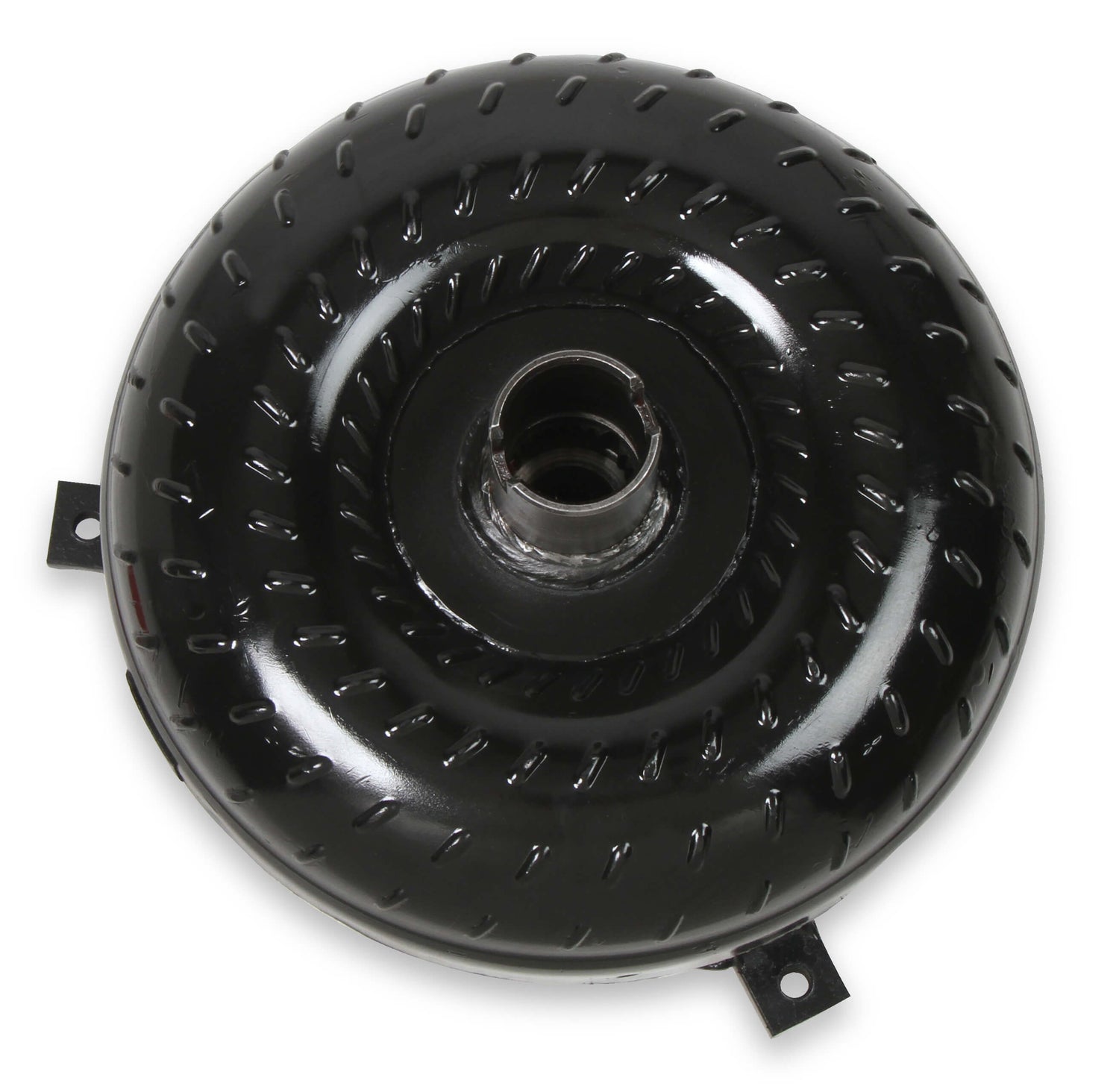

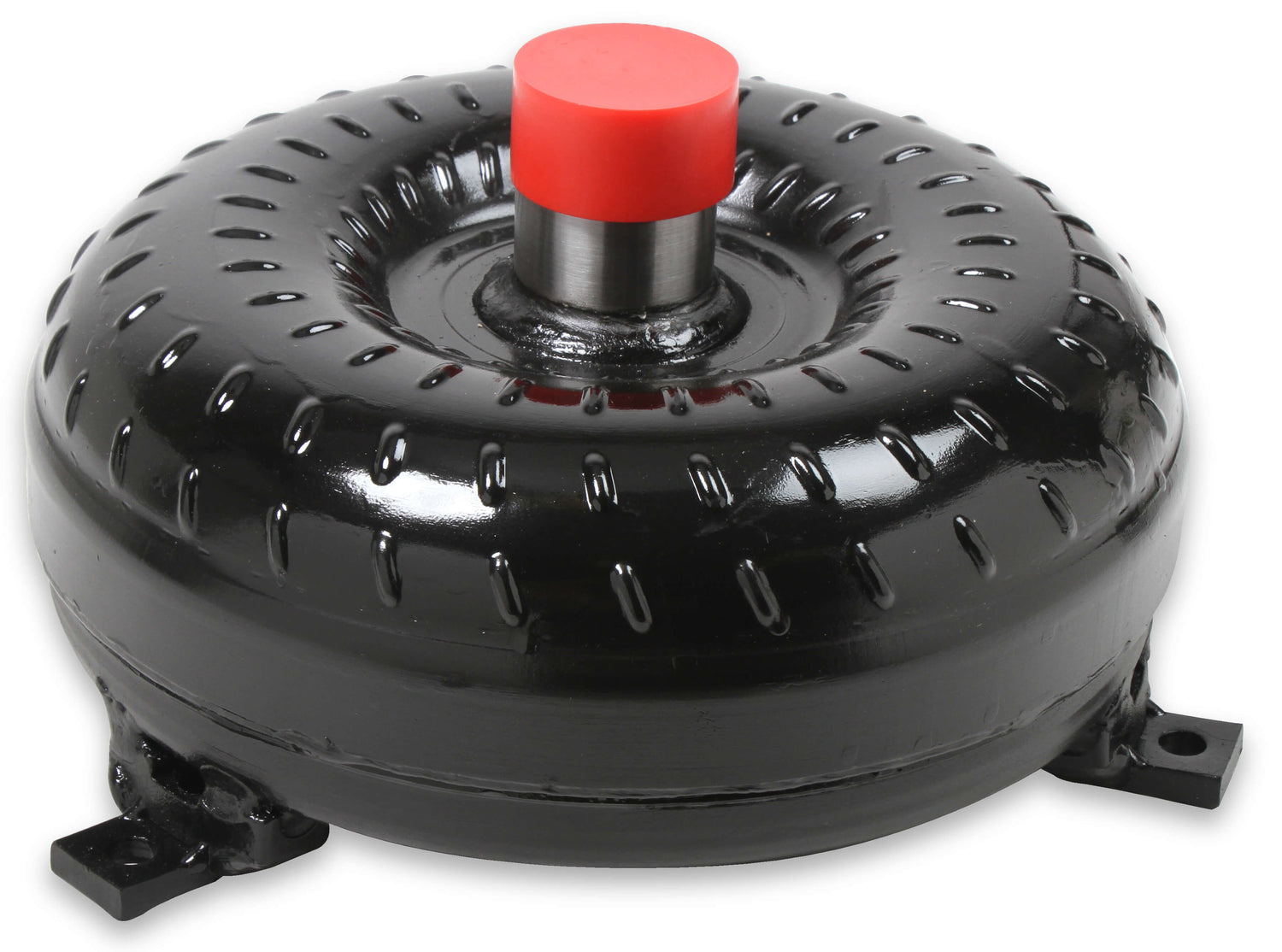

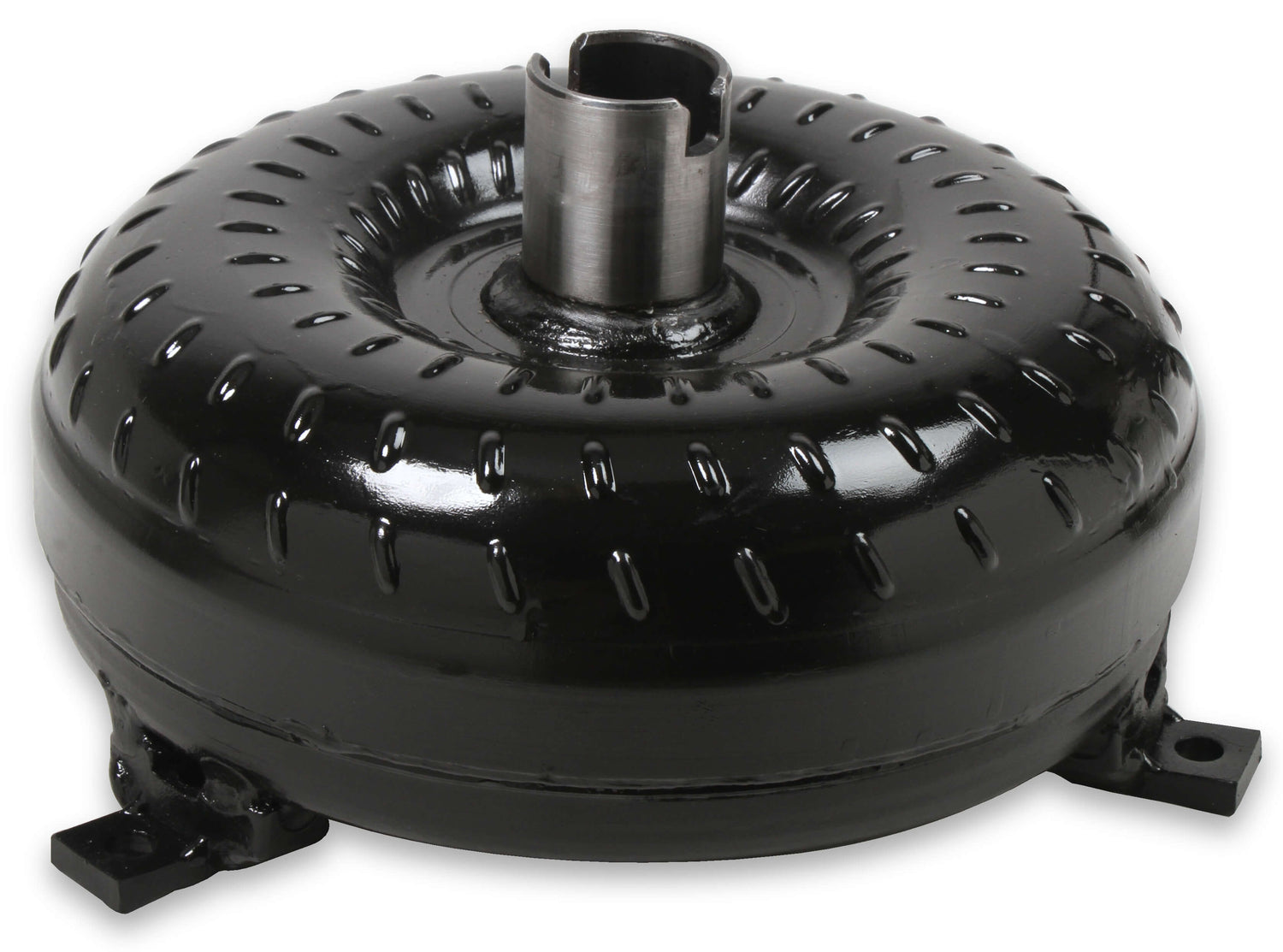

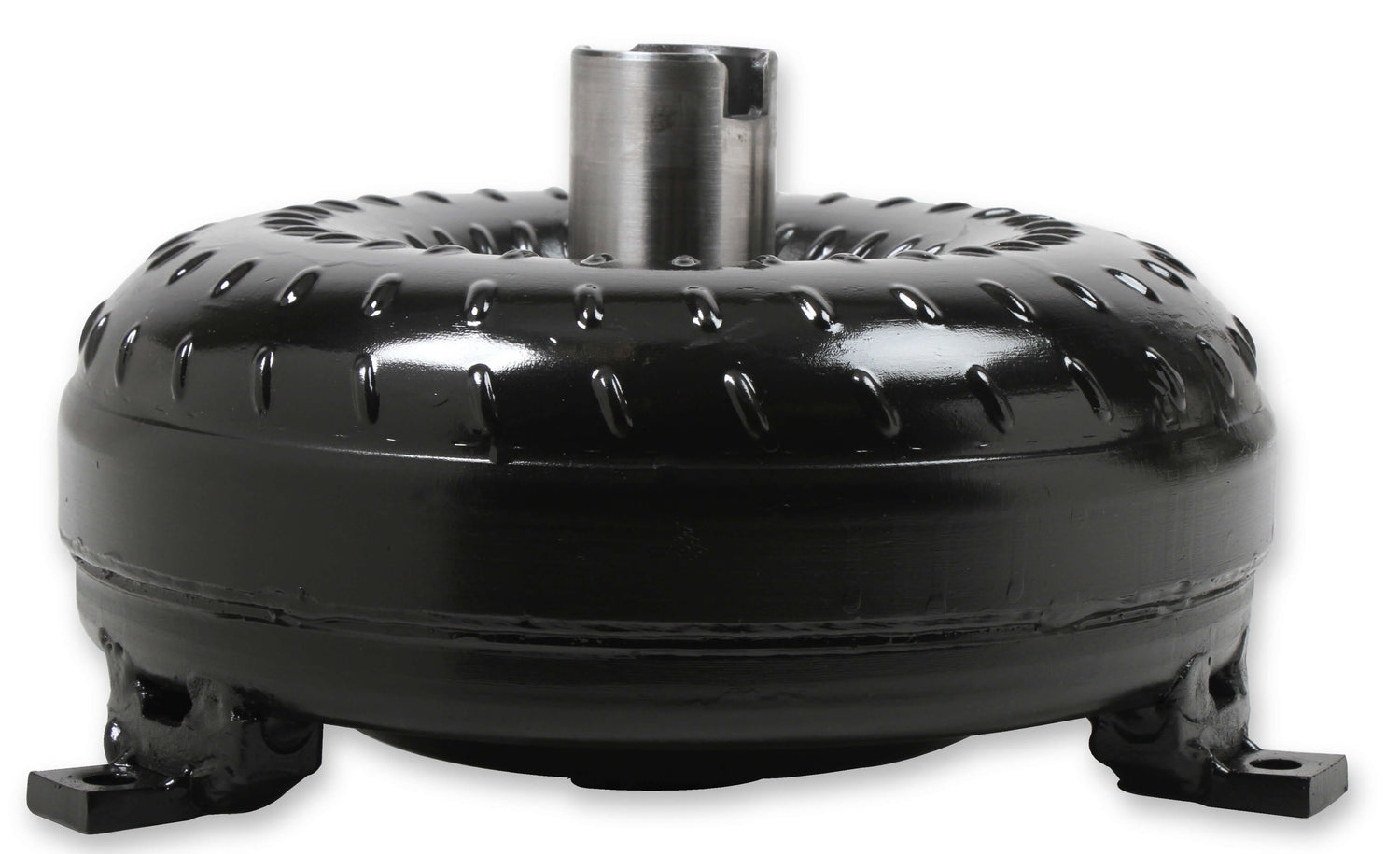

Hays® GM LS1 Twister 3/4 Race Torque Converter (3200-3600 RPM Stall)

PLEASE CONTACT SUPPORT TO CONFIRM INVENTORY

£643.42
Shipping calculated at checkout.

Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)

Email: info@10SecondRacing.com (24/7)

Free Shipping to Lower 48 US States ($100+)

Worldwide Shipping via UPS (Check Rates at Checkout)

This is a Sample Product Title
Was $200.00 Now $100.00

Description

Compatible: (5.7L)

1998 - 2002 Chevy Camaro

1997 - 2004 Chevy Corvette

1998 - 2002 Pontiac Firebird





9.6" diameter torque converter with lock-up 30 spline input, 300mm (LS engine only), 11-1/8" bolt pattern, 3200-3600 RPM stall



Warning: The 3/4 RACE series converters are NOT designed to be used with Nitrous Oxide or Trans-Brakes

Note: HAYS recommends an external transmission cooler for all Twister 3/4 Race Converters (A minimum size of 18,000 GVW or 15,000 BTU Rating.)

Note: Stall ranges will vary depending on engine set-up, weight of vehicle, and gear ratio (Please see converter selector in tech resources for more info)



This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.









Hays Twister 3/4 Race performance torque converters are a perfect addition to our line of performance flexplates, clutches, and flywheels. Our 3/4 Race series of torque converters is intended for street/strip combinations, with various stall speed offerings to accommodate any mixture of modifications including higher compression ratios, aftermarket camshafts, aftermarket cylinder heads, lower gear ratios, and vehicle weight loss. The Twister 3/4 Race torque converter perfectly describes a converter suited for an application just shy of Full Race converter. Hays Twister 3/4 Race Torque Converters--Good names never go away, and neither should good terms!


Features:

  • 3/4 Race series converters are built, tested, and proven to support up to 650 HP.
  • State of the art Spray Welding process is used in select areas. Spray Welding provides clean, strong and consistent fusion while also increasing strength through hardening from higher process temperature
  • Each converter is hand-built and inspected in every step of assembly to ensure top of the line quality

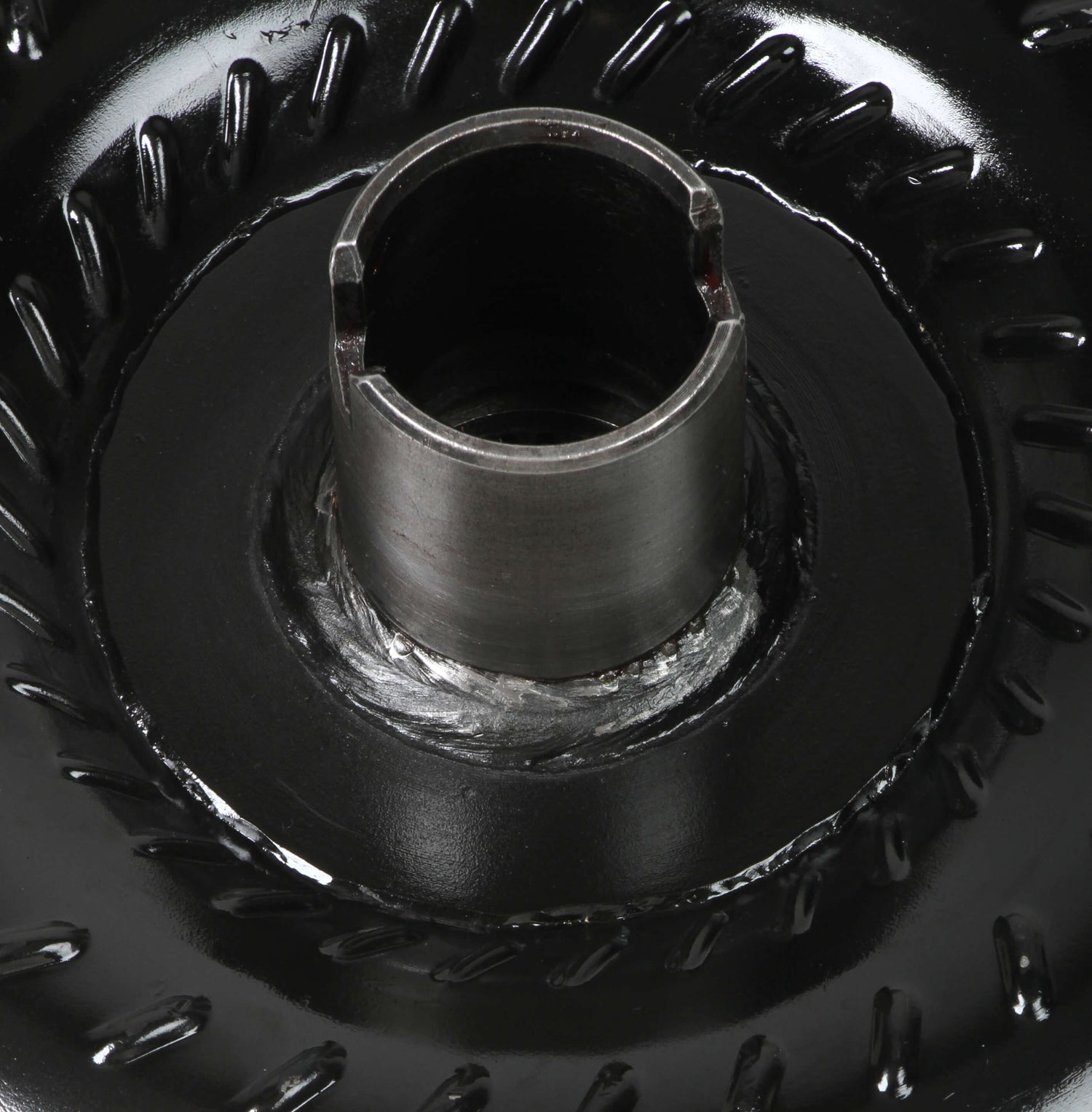

  • All HAYS converters are internally welded compared to brazing. Testing has shown welding provides longer converter life while also enhancing consistency
  • Heavy duty Torrington bearings are used for greater strength and durability

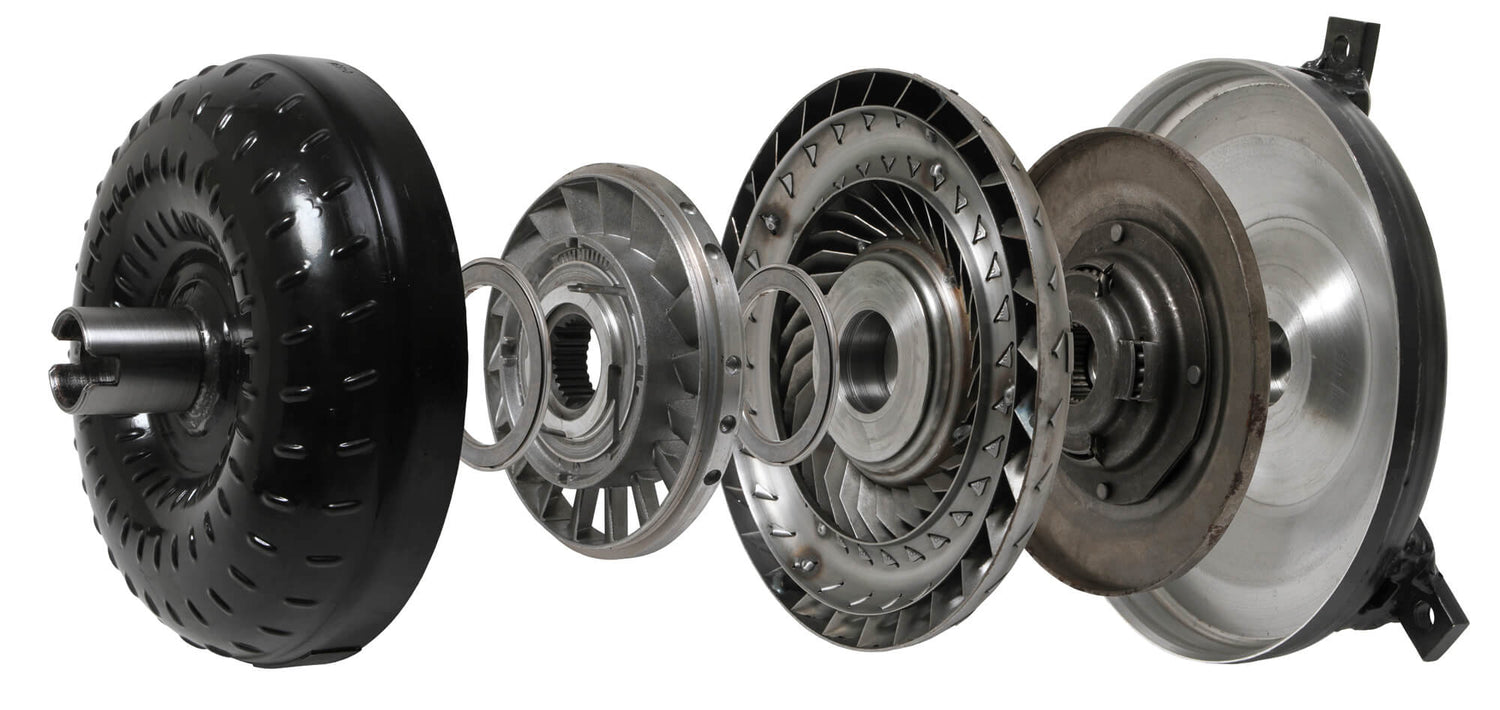

  • Stators are chosen with high flow vents and channels to promote cooling in heat producing higher horsepower applications
  • Increased horsepower and acceleration due to a weight saving, one application design. Almost all HAYS converters are built for one application to reduce weight compared to a multi-bolt pattern converter.
  • 3/4 Race series converters are offered in several different stall speeds for GM, Ford, and Chrysler transmissions
  • Industry leading Tech Support Team is available to provide assistance with stall speed selection



    Anti-Balloon Plate No
    Balanced Yes
    Bolt Circle 11 1/8"
    Brand Hays
    Crank Pilot Diameter 1.703"
    Diameter 9.6"
    Emission Code 5
    Input Spline 30
    Lock Up/Overdrive Yes
    Product Type Torque Converters
    Series 3/4 Race
    Stall 3200-3600
    Transmission 4L60E/4L65E
    Use with Power Adder No
    Use with Trans-Brake No
    Part Number 97-1H32Q
