11" diameter, 11.4-inch bolt circle, 3500-3800 RPM stall

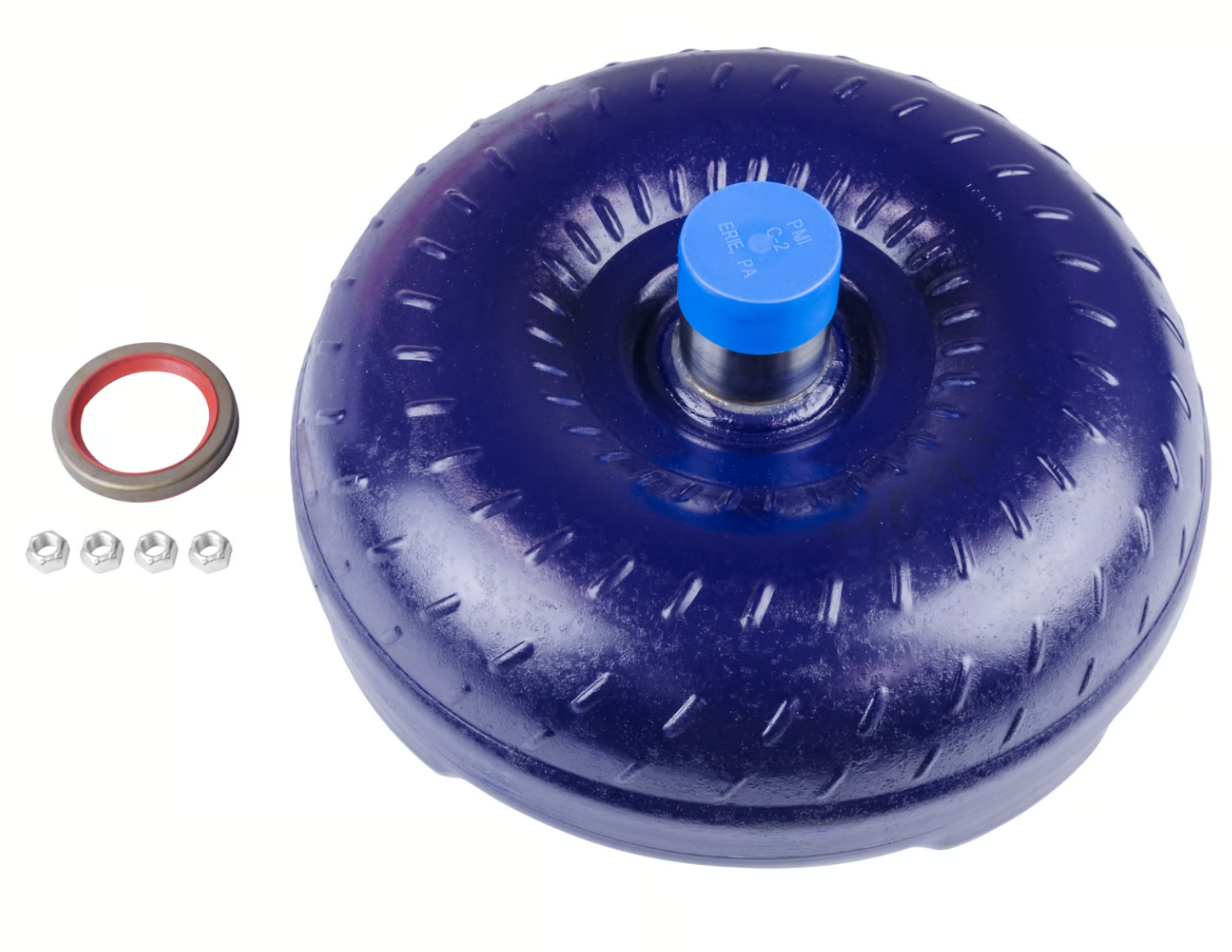

B&M Nitrous Holeshot 3800 stall for 1966-91 Ford C6 transmissions with a 1.375-inch crank pilot, is an excellent choice for vehicles with engine modifications, particularly big cams that tend to reduce low end power and torque. The higher stall speed of this converter will launch the car in a higher rpm range where more torque is readily available, resulting in quicker acceleration. Nitrous Holeshot converters feature furnace brazed impeller and turbine, new precision steel alloy pump drive tube, new heavy duty needle bearings between the stator and impeller (not a thrust washer) and needle bearings between the stator and turbine. Other features include 11.4-inch bolt circle, a new turbine hub, new springs and rollers in the stator and anti-balloon plates. The anti-balloon plates will allow these converters to stand up to the instant horsepower that a nitrous plate system delivers. Stall speed listings are based on engines producing 230lb. ft. of torque at 2,500 rpm. More torque at 2,500 rpm will give you more stall speed, less torque at 2,500 rpm will give you less stall speed than the stall speed ratings indicated. These are serious converters for serious performance street cars. To prevent contamination left from worn parts being circulated in your new components causing premature wear, we strongly recommend protecting your investment by adding a B&M transmission cooler with all new transmission installations. Listed converters are NOT to be used in trans-brake applications. Not for use in trans-brake applications.

• Needle Bearing Between Stator & Turbine

• Higher Stall Speed, Quicker Acceleration

• Anti-balloon Plate for Added Strength

• Furnace Brazed Impeller & Turbine

• Fully Balanced and Pressure Tested

• Steel Alloy Pump Drive Tube

• B&M Quality & Durability

ABOUT B&M

B&M® specializes in performance automatic transmissions, torque converters, SFI approved flexplates, legendary automatic shifters, precision manual shifters, and many other transmission products including cast deep aluminum transmission pans, transmission coolers, and automatic transmission fluid. B&M Performance & Off-Road has been at the vanguard of the growing automotive aftermarket since the early 1950s. Racers themselves, B&M’s founders identified the needs of local performance enthusiasts and developed products to fill those needs. B&M specializes in performance automatic transmissions, torque converters, SFI approved flexplates, legendary automatic shifters, precision manual shifters, automatic shift handles, extended transfer case handles, cast deep aluminum transmission pans, differential covers, transmission coolers, power steering coolers, automatic transmission fluid, and transmission accessories for performance street, truck, Jeep, and off-road applications.
