BM®  |  SKU: 20340

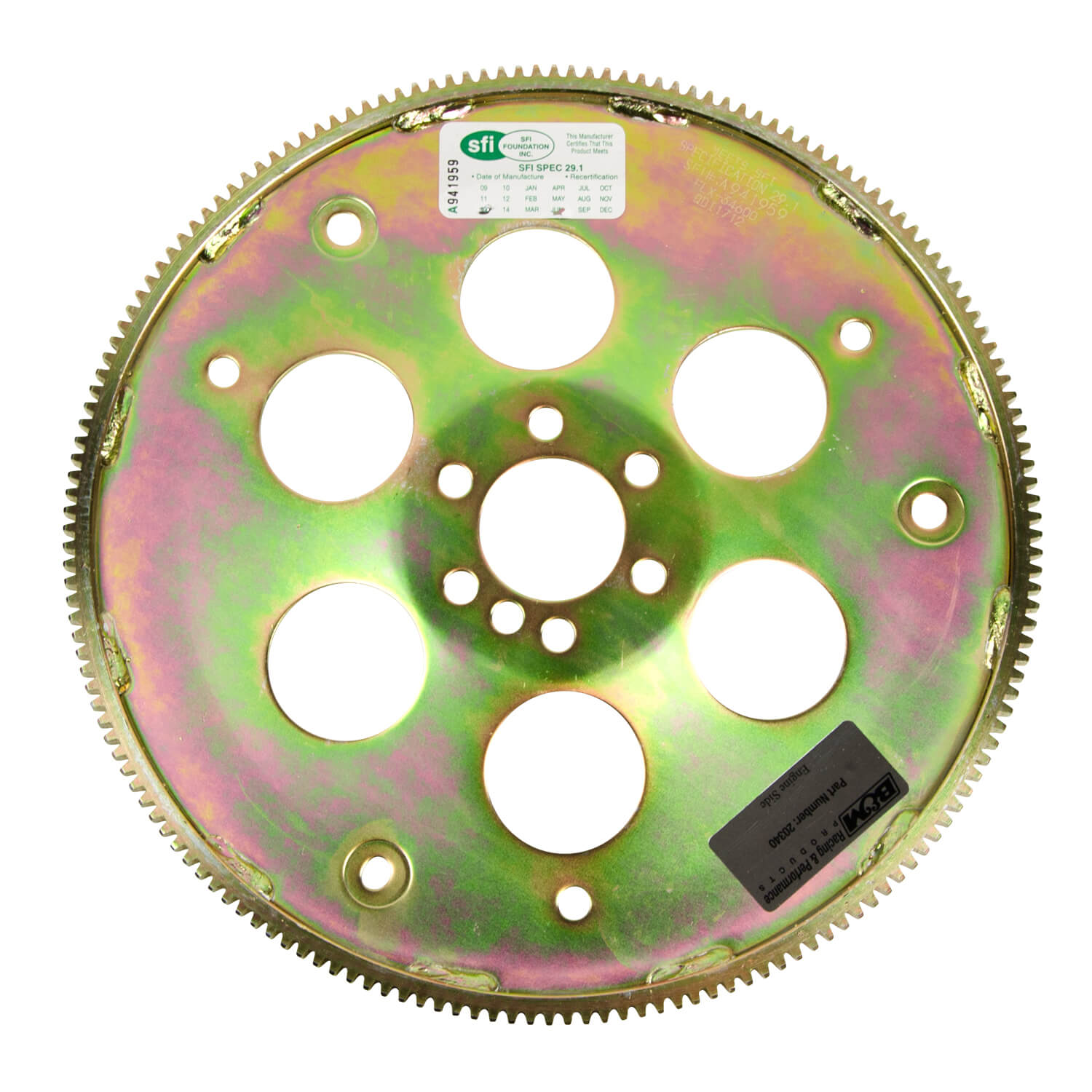

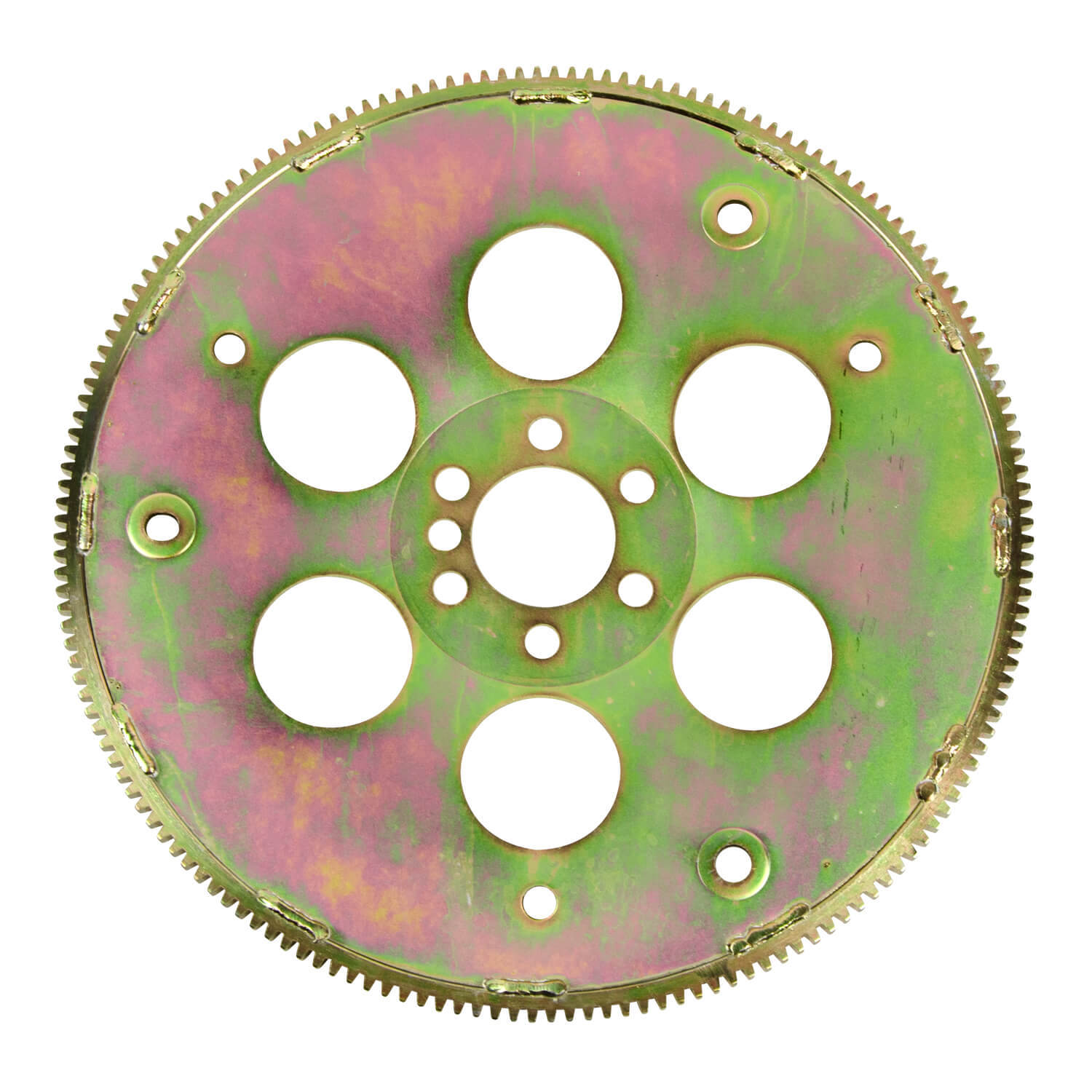

B&M® #20340 GM LS1/LS2/LS3/LS6/LS7 168-Tooth Steel SFI FlexPlate

PLEASE CONTACT SUPPORT TO CONFIRM INVENTORY

Regular price £140.03
Shipping calculated at checkout.


Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)

Email: info@10SecondRacing.com (24/7)

Free Shipping to Lower 48 US States ($100+)

Worldwide Shipping via UPS (Check Rates at Checkout)

This is a Sample Product Title
Was $200.00 Now $100.00

Description

Compatible:

2004 - 2007 Cadillac CTS-V

1998 - 2002 Chevy Camaro

2010 - 2015 Chevy Camaro

1997 - 2013 Chevy Corvette

1998 - 2002 Pontiac Firebird

2004 - 2006 Pontiac GTO

As performance levels increase, an O.E. style flexplate just won't cut it and a stronger option is a necessity to prevent transmission and/or converter failure. B&M has you covered with our high-performance flexplate designed for GM 1997-up 4.8L, 5.3L, 5.7L & 6.0L LS engines with 6-bolt crankshaft flange, including 2010-15 Camaro with the L99 engine. Features include high tensile strength steel construction to resist elongation and cracking, 10.75 and 11.06-inch converter mounting locations, 168 tooth ring gear with double-sided welds for added strength and comes with SFI 29.1 safety certification ensuring the ultimate in safety and performance. The assembly is finished with Zinc plating and Chromate Conversion Coating for added corrosion resistance and durability. B&M SFI-approved flexplates are ideal for extreme duty race applications as well as street cars, tow vehicles, or other vehicles needing the added protection and toughness that B&M has been delivering since 1953. Note: Will not fit 1999-00 6.0L applications with 0.400 inch extended crank flange/flat flexplate or 1999-00 4.8L engines that originally came with a manual transmission. A flexplate spacer is required for retrofitting Non-LS era transmissions to LS engines.

  • 10.75, 11.06 Inch Bolt Pattern Convertor Mount

  • Includes SFI 29.1 Certification Sticker

  • Zinc Plated Chromate Finish

  • 168 Tooth Ring Gear

  • B&M Quality

# of Teeth

168

Application

Chevrolet

Balance

Internal

Brand

B&M

Converter Bolt Pattern

10.75 in., 11.06 in.

Crankshaft Bolt Hole Count

6

Dual Pattern

Yes

Emission Code

5

Engine

GM Gen III/IV (LS)

IHRA Legal

Yes

NHRA Legal

Yes

Outside Diameter (in)

14.13

Product Type

Flexplates

SFI Approved

Yes

SFI Certification

29.1

SFI Certification Sticker

Included

Weight (lb)

6

UPC

019695203405

California Proposition 65 Chemical Name

Cadmium and cadmium compounds

California Proposition 65 Required

Yes

Part Number

20340



ABOUT B&M

B&M® specializes in performance automatic transmissions, torque converters, SFI approved flexplates, legendary automatic shifters, precision manual shifters, and many other transmission products including cast deep aluminum transmission pans, transmission coolers, and automatic transmission fluid. B&M Performance & Off-Road has been at the vanguard of the growing automotive aftermarket since the early 1950s. Racers themselves, B&M’s founders identified the needs of local performance enthusiasts and developed products to fill those needs. B&M specializes in performance automatic transmissions, torque converters, SFI approved flexplates, legendary automatic shifters, precision manual shifters, automatic shift handles, extended transfer case handles, cast deep aluminum transmission pans, differential covers, transmission coolers, power steering coolers, automatic transmission fluid, and transmission accessories for performance street, truck, Jeep, and off-road applications.
