APR®  |  SKU: IC100012

APR® (05-18) Audi/Volkswagen Performance Intercooler System

PLEASE CONTACT SUPPORT TO CONFIRM INVENTORY

£1,199.88
Shipping calculated at checkout.

Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)

Email: info@10SecondRacing.com (24/7)

Free Shipping to Lower 48 US States ($100+)

Worldwide Shipping via UPS (Check Rates at Checkout)

Description

Compatible: (2.0L)

2006 - 2013 Audi A3

2009 - 2013 Audi A3 Quattro

2012 - 2013 Volkswagen Beetle

2009 - 2017 Volkswagen CC

2007 - 2016 Volkswagen EOS

2012 - 2013 Volkswagen Golf R

2006 - 2014 Volkswagen Golf GTI

2005 - 2018 Volkswagen Jetta

2006 - 2010 Volkswagen Passat

2015 - 2018 Audi Q3

2015 - 2018 Audi Q3 Quattro

2009 - 2018 Volkswagen Tiguan

2008 - 2009 Audi TT

2009 - 2015 Audi TT Quattro

2009 - 2015 Audi TTS Quattro



THIS PRODUCT CANNOT BE SHIPPED TO CALIFORNIA

Please note, this part number is only designed to fit the EA113 and EA888 Gen 1 engines. The TT with EA888 Gen 2 engine requires factory discharge pipe part numbers 1K0 145 840 R and 1K0 145 769 J. EA888 Gen 3 engines use part number IC100018. The AWD Tiguan and Yeti models use part number IC100020.

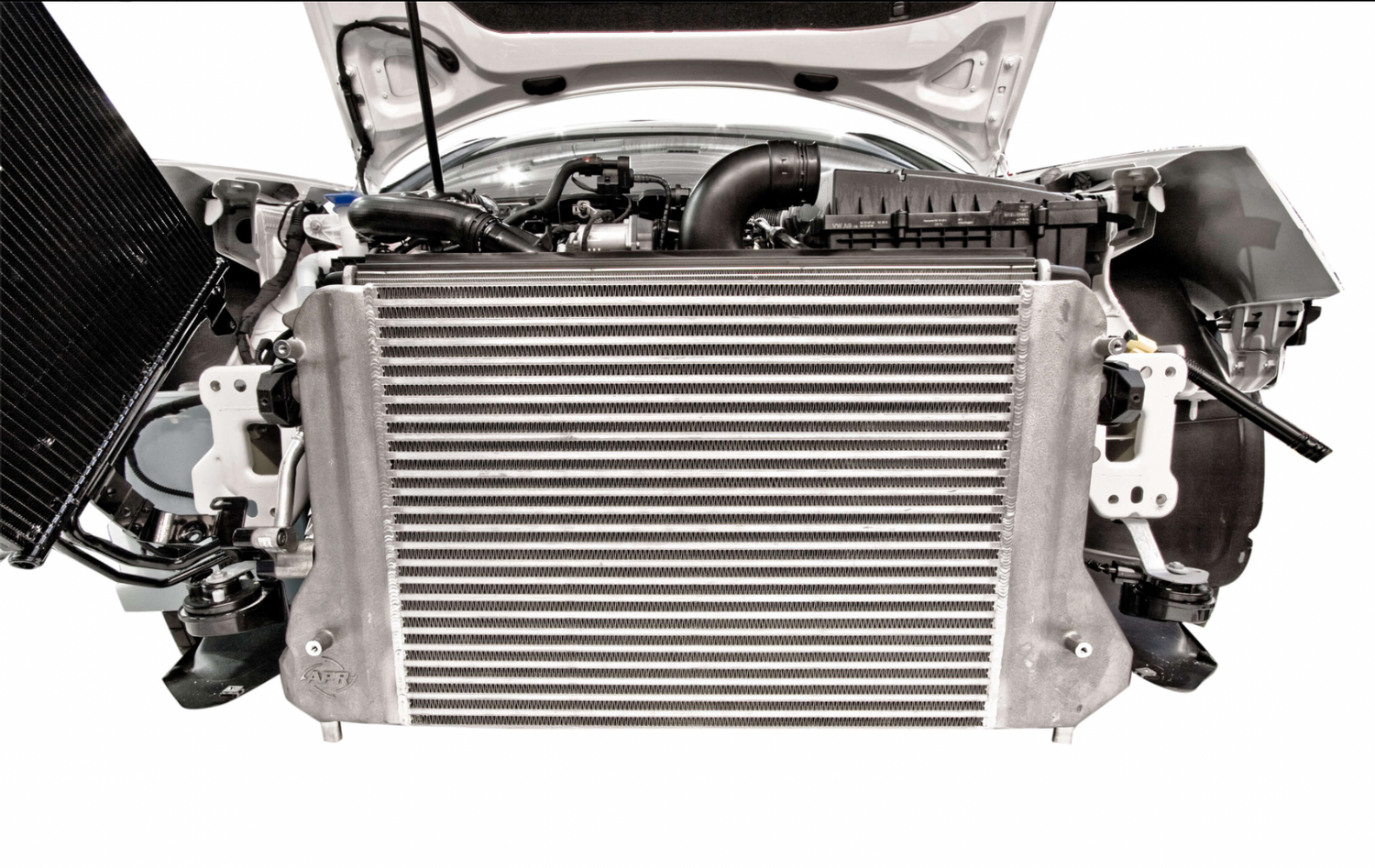

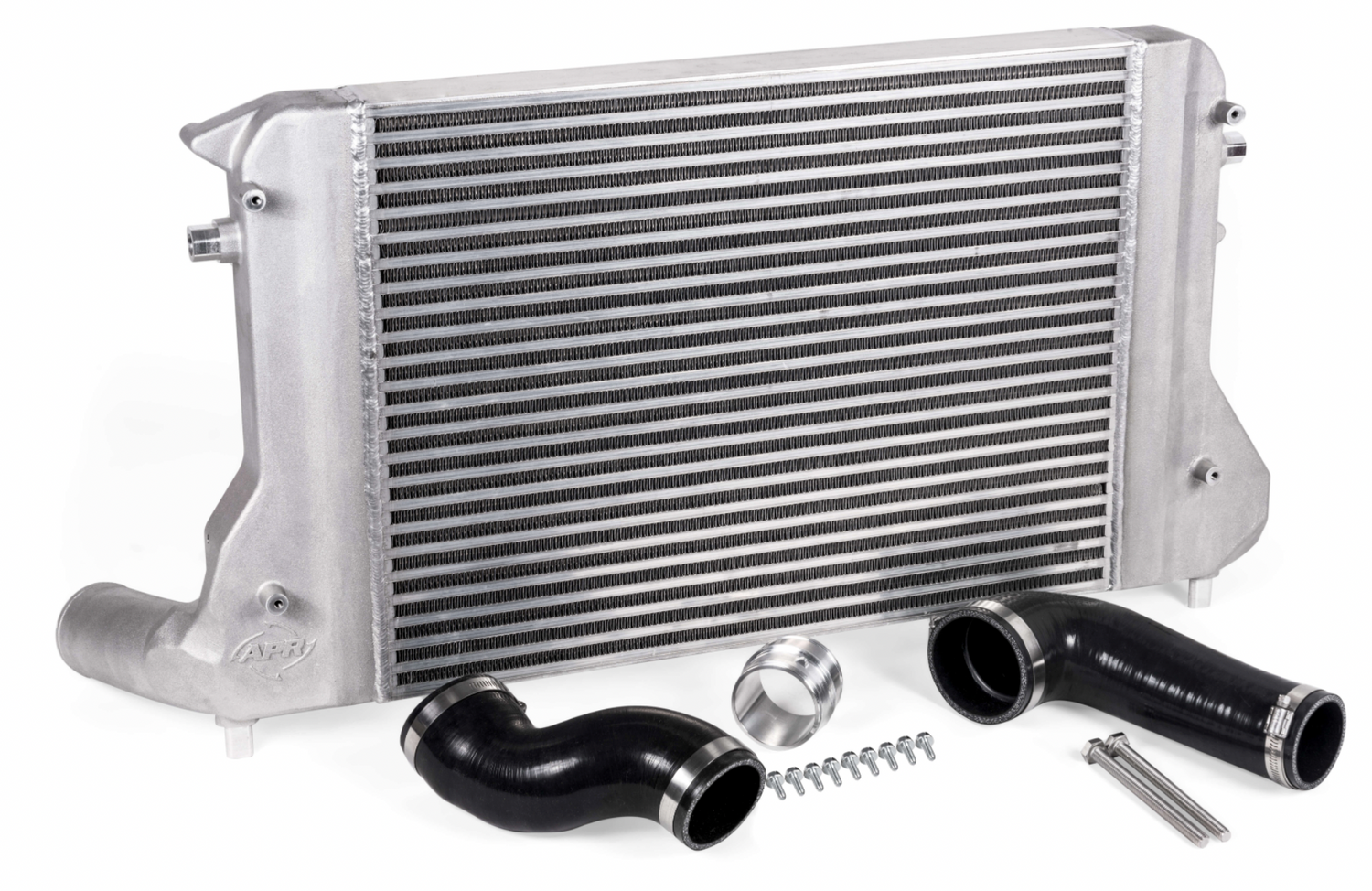

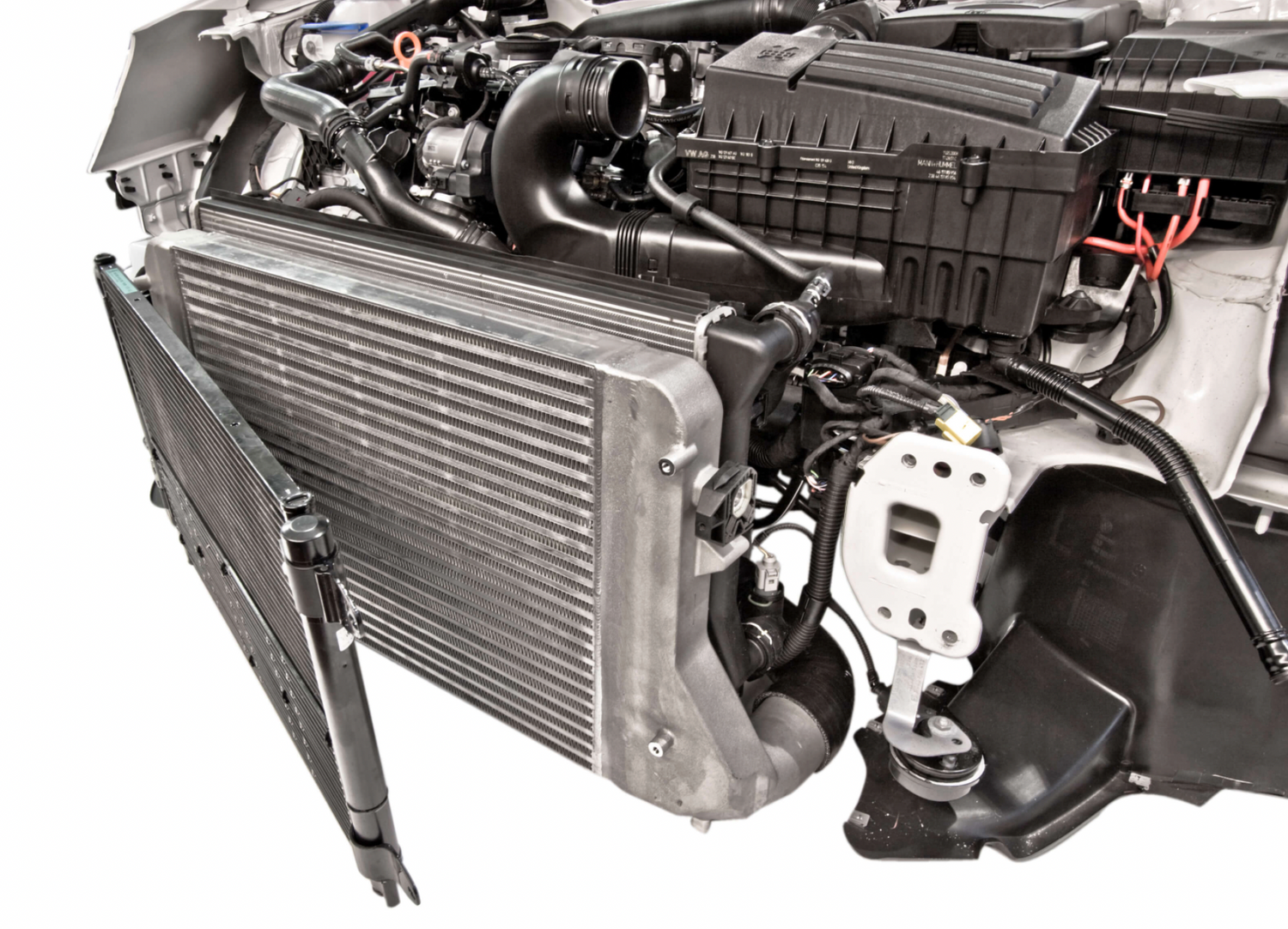

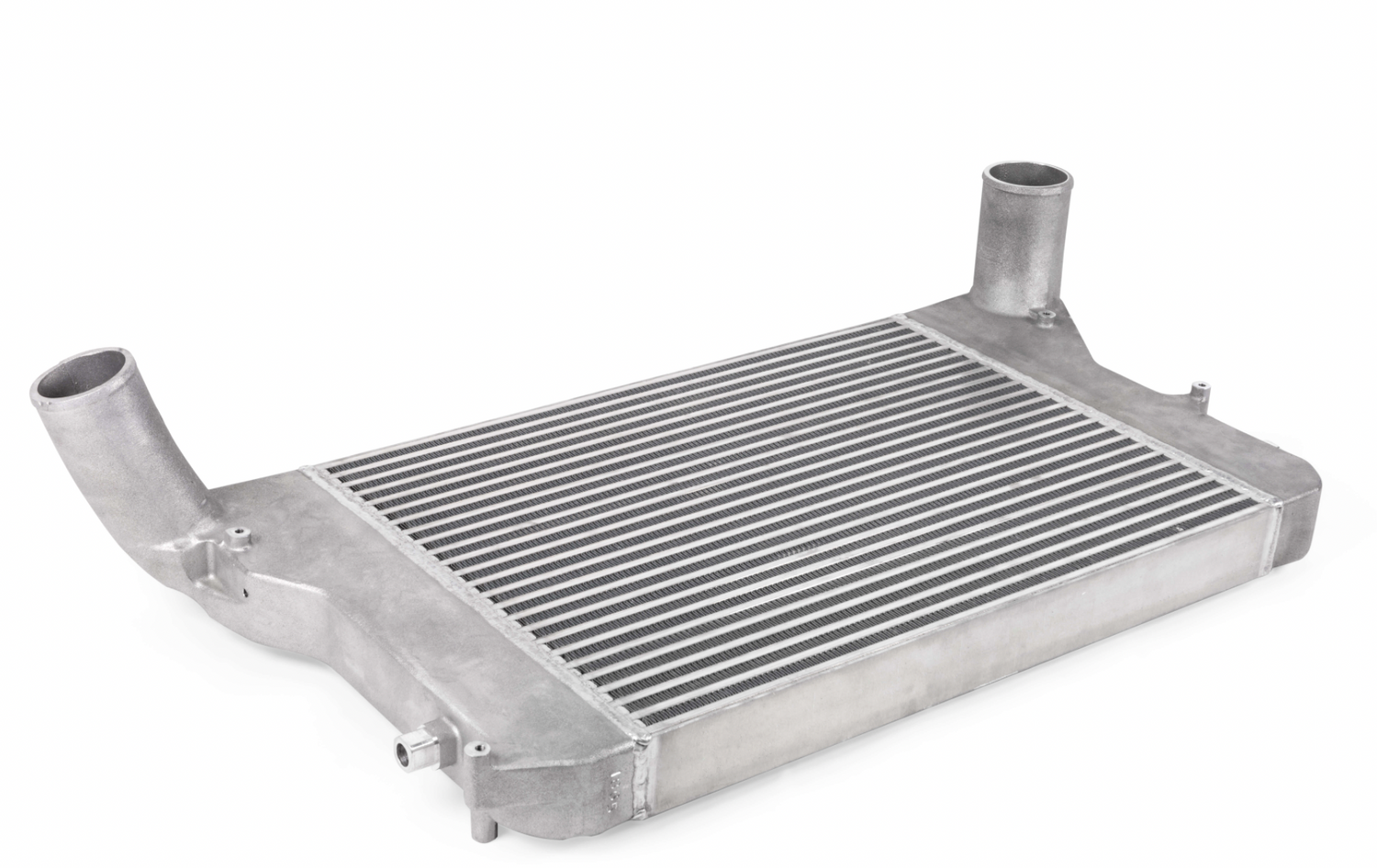

The APR Intercooler System dramatically lowers charge air temperature and resists heat soak far better the factory intercooler system. Through a massively increased core volume, superior intercooler core design and smooth, cast end tanks, APR's engineers were able to create an intercooler capable of supporting power levels well beyond that of the factory unit. Expect increased horsepower and torque and dramatically prolonged performance.
  • Dramatically lowers intake air temperature
  • Increases horsepower and torque while prolonging performance
  • APR intercooler core dimensions: 2.25" x 16.25" x 22"
  • 40% larger than stock
  • Larger inlets and outlets
  • Pressure tested for leak proof operation

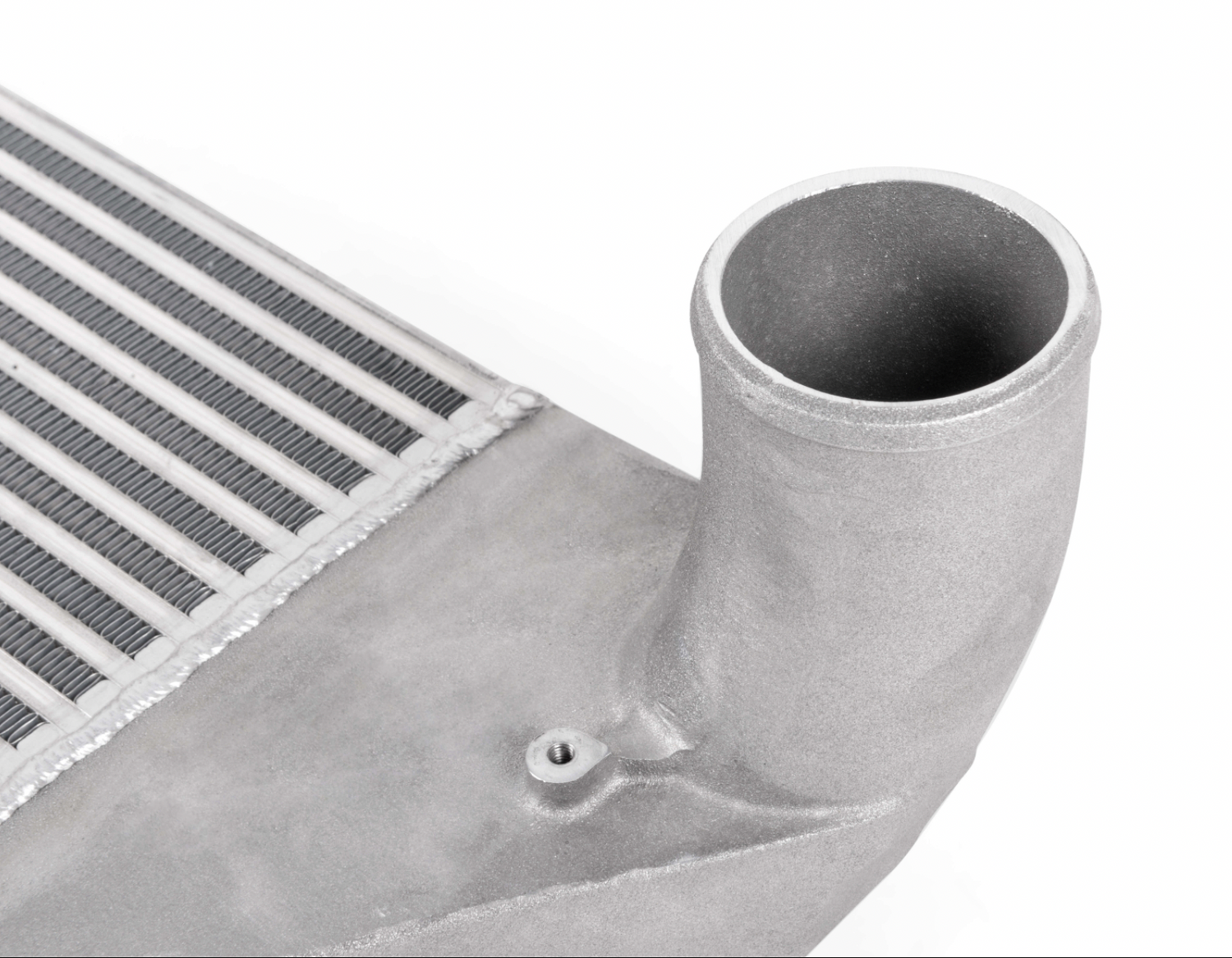

  • Smooth cast aluminum end tanks
  • Barbed hose connection points for a slip proof fit

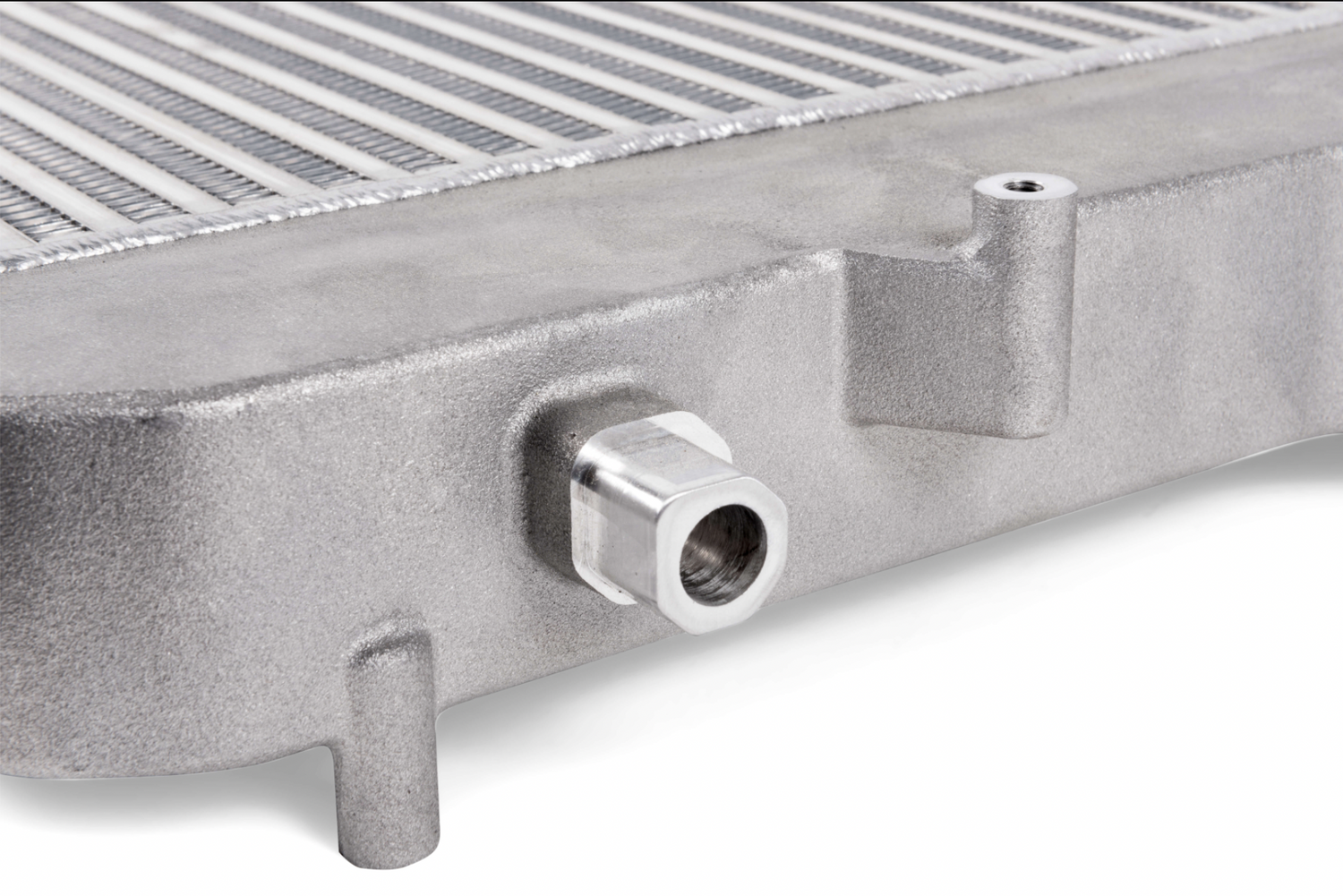

  • Machined mounting points for extra weight savings
  • CNC machined billet adapter
  • Multi Ply Silicone Hoses with APR's EZ-Flow stepped design
  • Direct OEM fitment with no trimming necessary
  • Full install directions and APR's world-renowned customer support



Brand APR
Color Silver / Natural
Cooler Type Air to Air
Core Frontal Area (in^2) 357.50
Core Height (in) 16.25
Core Type Bar and Plate
Core Volume (in^3) 804.38
Core Width (in) 2.25
22
Direct Fit Yes
Emission Code 4
End tank Construction Cast
End tank Material 356-F Aluminum
Hose Clamp Type T-Bolt
Hose Type Silicon
Product Type Charge Air Cooler
Welding Type TIG
UPC 810904030627
Part Number IC100012
