KW® (10-15) Camaro V6/SS 1.0" x 2.0" - 0.8" x 2.0" ClubSport 2-Way Adjustable Coilover Kit
KW® (10-15) Camaro V6/SS 1.0" x 2.0" - 0.8" x 2.0" ClubSport 2-Way Adjustable Coilover Kit
KW® (10-15) Camaro V6/SS 1.0" x 2.0" - 0.8" x 2.0" ClubSport 2-Way Adjustable Coilover Kit
KW® (10-15) Camaro V6/SS 1.0" x 2.0" - 0.8" x 2.0" ClubSport 2-Way Adjustable Coilover Kit
KW® (10-15) Camaro V6/SS 1.0" x 2.0" - 0.8" x 2.0" ClubSport 2-Way Adjustable Coilover Kit
KW® (10-15) Camaro V6/SS 1.0" x 2.0" - 0.8" x 2.0" ClubSport 2-Way Adjustable Coilover Kit
KW® (10-15) Camaro V6/SS 1.0" x 2.0" - 0.8" x 2.0" ClubSport 2-Way Adjustable Coilover Kit
KW® (10-15) Camaro V6/SS 1.0" x 2.0" - 0.8" x 2.0" ClubSport 2-Way Adjustable Coilover Kit

35261817

KW® (10-15) Camaro V6/SS 1.0" x 2.0" - 0.8" x 2.0" ClubSport 2-Way Adjustable Coilover Kit

Regular price$3,569.00
/
Shipping calculated at checkout.
MANUFACTURED ITEM! 6-8 WEEK BUILD TIME
  • Question? Call us at (888) 257-1077 🏁
  • This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Compatible: (3.6L/6.2L)

    2010 - 2015 Chevy Camaro V6

    2010 - 2012 Chevy Camaro SS L99

    2010 - 2012 Chevy Camaro SS LS3



    WILL NOT FIT ZL1 MODELS



    KW Clubsport: 2 Way
    Coilovers for Race track and road.*

    These set ups were specifically designed for the Nordschleife using track day tires. By using the optional adjustable top mounts, suspension geometry can be adjusted to the requirements of the tires and the intended use.

    These adjustable top mounts coupled with the independently adjustable rebound and compression dampening technology individual set up adjustments according to vehicle load, tire characteristics and different track conditions. Clubsports meets all needs for the road and the race track guaranteeing excellent handling, best performance, great agility and fantastic lap times.

    The rebound adjuster knob provides 16 precise clicks to personally dial in your desired vehicle setup. Thus allowing you the possibility to influence wheel/tire loads or take into concern chassis characteristics. Independent from rebound adjustment is the compression dampening, 12 precise adjustment clicks are provided to adjust the low-speed dampening. Most notably used to dial in wheel/tire setup.

    These adjustment features allow the user to dial in vehicle weight, wheel/tire combinations, various road surfaces and environmental conditions.
    - Independently adjustable rebound and compression damping technology
    - Stainless steel technology "inox-line"
    - Continuous lowering
    - TÜV-tested adjustment range
    - High-quality components for a long-term durability
    - Adjustable rebound damping with 16 precise clicks
    - Adjustable compression damping with 12 precise clicks
    - Unique independent damping force adjustment
    - Optional spherical bearing aluminum top mounts







    KW Clubsport 2-way Gewindefahrwerk

    KW Clubsport Coilovers

    The KW Clubsport coilovers utilize an uncompromising transfer of technology from the world of motorsports to the road and track!





    The KW Clubsport coilovers combine KW's high-end racing technology with maintenance-free KW OEM quality components. Designed to provide you the ideal product to utilize the full potential of your sports car during autocross, track days, high performance drivers education (HPDE) courses, club racing, and is tested rigorously on race tracks such as the Nürburgring Nordschleife. As a supporting suspension manufacturer to numerous international racing series, KW has claimed 7 ADAC Zurich 24-hour victories over the years at the famous Nürburgring circuit, and the ADAC GT Masters 2011 Championship. At the start of the 2018 24 Hour race 75 race teams were equipped with KW coilover systems resulting in 16 class victories. These race teams rely on KW's racing expertise and experience for their vehicle setup. This same championship winning pedigree is mirrored in the development of each one of the KW Clubsport coilover systems.



    KW 2-Way Clubsport 2-Way coilovers

    Road legal motorsports technology featuring independent rebound and compression adjustability



    Clubsport 2-way Satzbild



    Street-legal race track performance! KW Clubsport provides cutting-edge motorsports technology for those who enjoy unparalleled handling and performance on the road or track. Designed to maximize the performance on vehicles with DOT-R and other ultra high-performance tire setups. KW 2-Way Clubsports are the ideal choice for double-duty street cars, use at HPDE's(high performance drivers education), time attack or time trials, and club level racing.The Clubsport setup was specially designed on the Nordschleife and the continuous adjustable ride height allows for fine corner weight or making setup changes. The TVR-A and TVC-A valve technology provide an unmatched level of separately adjustable damping for the rebound and compression enabling a customized set up appropriate for the vehicle's modifications such as weight, tire characteristics, and other various conditions.



    Specifically Engineered Setup – Vehicle specific with separately adjustable rebound and compression damping

    The KW 2-Way Clubsport "inox-line" coilover kit is the ideal tool for performance-oriented drivers and experienced tuning enthusiasts who place a strong emphasis on the overall performance of their suspension. The KW 2-Way Clubsport features patented TVR-A and TVC-A technology that provides separately adjustable rebound and compression damping. The extensive adjustment range of the independently configurable rebound and compression make it easy to directly influence the steering behavior, directional stability, grip and handling characteristics for confident and repeatable results at the limit of driving dynamics.





    TVR-A Technology:

    The two-stage, patented TVR-A (Twin Valve Rebound - Adjustable) technology enables a small volume of oil to flow through an adjustable, conically shaped, low-speed bypass during low damper speeds, while in the case of higher damper speeds, the main rebound stage valve opens allowing a larger volumn of oil to flow. This provides a big improvement in terms of ride comfort without influencing the safety-relevant high-speed range. There are 16 precise clicks available for individual settings, so you can choose between more comfort or more body control.



    TVC-A Technology

    With 12 precise clicks, the KW 2-Way Clubsport coilovers utilize TVC-A (Twin Valve Compression - Adjustable) technology and can increase or decrease the flow of valve to achieve either more or less low speed compression damping. During sudden high speed impulses the spring loaded needle valve and the spring loaded main valve open to their maximum valve cross section, acting as a digressive blow-off characteristic to avoid transmitting undesired forces through the suspension into the chassis. This provides a better platform for the vehicle body and at the same time offers more comfort than with conventional valve technology during high wheel acceleration. The dampers come preset to our baseline shock settings right out of the box providing an optimal starting place for your car while providing a wide adjustment window for true performance optimization.







    RIDE HEIGHT ADJUSTABLE

    Individuelle Tieferlegung

    Configure the Ride Height to your needs

    KW coilover suspensions, KW height adjustable springs, and KW DLC Air Suspensions allow the suspension to be lowered within the vehicle's technical limitations. For example, our Street Comfort products allow for a customized ride height setting with mild suspension lowering from 10 - 50 mm, while the Street Performance products allow the maximum technically possible suspension lowering range from 45 - 85 mm, depending on the vehicle. This means that the suspension can be lowered to suit the personal needs of the user and, depending on the product category, a setting ranging from Comfort to Performance can be chosen.

    REBOUND ADJUSTABLE TECHNOLOGY

    Rebound 16 Clicks

    Adjustable Rebound Valve with KW TVR-A (Twin-Valve Rebound Adjustable) Technology.

    The rebound stage damping is precisely tuned to the respective vehicle at our in-house drive dynamics test facility, delivered in the middle of the range out of the box. Individual customization can be achieved in 16 precise clicks, allowing you to choose between more comfort or more body control. The two-stage patented TVR-A technology allows the oil to flow through an adjustable, conical low-speed valve during slow piston speeds, while during higher piston speeds the main rebound stage valve opens to handle the flow of large volumes of oil. This provides major improvements in ride comfort without influencing the high-speed.

    COMPRESSION ADJUSTABLE TECHNOLOGY (LOW-SPEED)

    Bump-Compression Low

    Adjustable Compression Valve with KW TVC-A (Twin-Valve Compression Adjustable) Technology.

    The patented compression valve with TVC-A technology features two separate spring pre-tensioned valves for small and large volume flow. The compression is tuned to the respective vehicle type on our 7-post rig and is delivered in the middle of the range out of the box. With 12 precise clicks the adjustable compression valve can increase or decrease the cross-section in the low speed valve, providing more or less compression damping. In the event of sudden high piston speeds, the low speed spring pre-tensioned needle valve opens to its maximum volume along with the spring pre-tensioned main valve to maximize the volume of oil flow preventing unwanted progressive surges in the high-speed range with its blow-off feature. This makes it possible to support the vehicle body better while still offering more comfort than the conventional valve technology during high wheel travel acceleration. The compression stage damper setting is always supplied in combination with a separate rebound setting, only a truly independent 2-way damper setting allows for true performance optimization.

    COMPRESSION ADJUSTABLE TECHNOLOGY (LOW-SPEED & HIGH-SPEED)

    Bump-Compression Low/High

    Adjustable Compression Valve with KW TVCLH-A (Twin-Valve Compression Low High - Adjustable) Technology.

    The compression valve with KW TVCLH-A technology is high-end motor sports technology for the most demanding street and track performance customers. Two separate valves and a two-way adjustable compression valve allow separate compression damping changes in the low and high-speed range. The adjustments are made via two adjustment dials with click increments that feature 16 settings (with 15 clicks) for high-speed and 7 settings (with 6 clicks) of low-speed adjustability. During tuning at the KW driving dynamics test facility, the groundbreaking Variant 4 coilover suspension is tuned to the mid-range setting for the best road performance and provided with an additional recommended setting for occasional track day use. The 3-Way Clubsport coilover suspension is tuned to a mid-level factory setting especially for track day use, with additional range provided for adjusting to a varying degree of vehicle modifications and track conditions. Starting from the factory setting, the damping can be set firmer or softer for low and high-speed. The TVCLH-A technology has a blow-off feature with large cross-section. The resulting amount of low-speed forces create the best support for the vehicle body to keep the tires on the road in the case of wheel-induced high damper speeds (driving over curbs). The separate low and high-speed setting is always supplied with an additional rebound setting, to ensure an independent three-way damper setup.

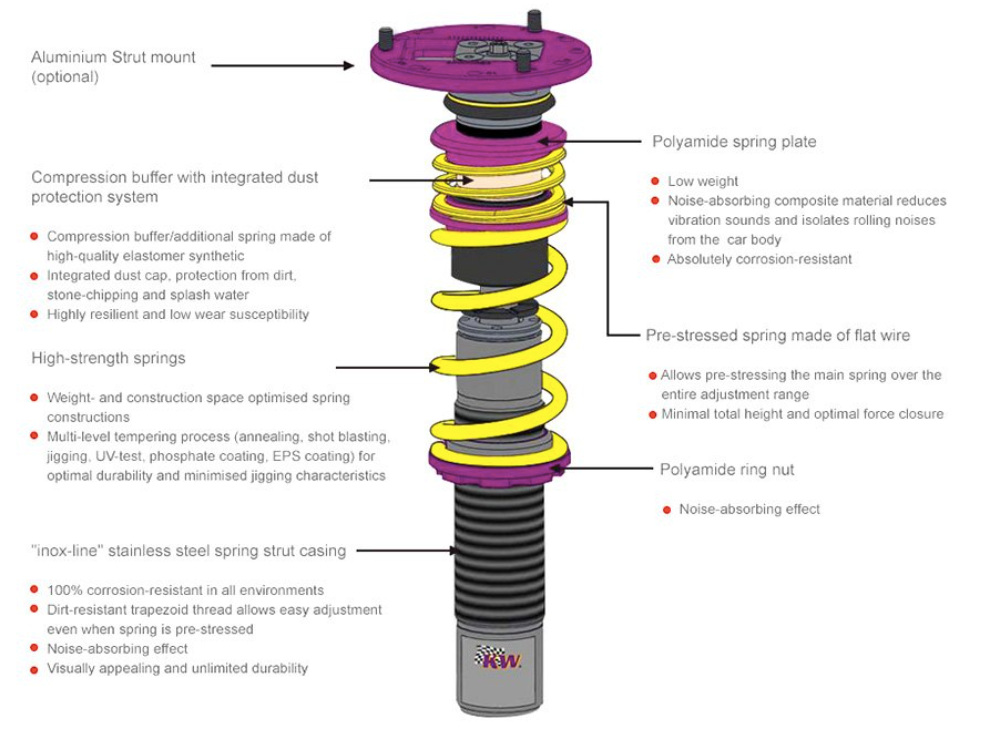

    COMPOSITE SPRING SEAT

    Composite Federteller

    Reinventing the way things are done

    The KW coilover spring seat, also known as a spring perch, is constructed with a wear-resistant, friction-optimized polyamide composite material encompassing a stainless steel insert. In contrast to the anodized aluminum adjustable spring seats, the polyamide composite material prevents any possible oxidation while the stainless steel insert maximizes strength. In combination with the Inox-Line stainless steel coilover struts, this guarantees the long-term functionality of ride height adjustability.

    TRAPEZOIDAL THREAD

    Trapezgewinde

    The Perfect Height-Adjustable Coilover

    In comparison to common coilovers, KW uses a friction-optimized trapezoidal thread which is less sensitive to dirt and requires less force to adjust. Its large cross-section also provides a higher load-bearing capacity.

    INOX-LINE

    Inox-Line

    The Truly Permanent Corrosion Resistance

    KW’s coilover suspension struts are manufactured from high-quality stainless steel that is rust-proof. In contrast to other solutions, Inox-Line coatings will not wear off while adjusting the suspension making KW coilover struts 100 percent corrosion resistant with an unlimited lifespan. Lowering the suspension using the trapezoidal thread in combination with the polyamide composite spring seat guarantees long term usability. Even after years the ride height adjustability is not affected.

    RESERVOIR

    Ausgleichsbehälter

    KW Twin-Tube Technology Knows No Limits

    The KW reservoirs provide additional oil and cooling capacity for particularly high force systems. The reservoir, which is filled with low gas pressure, can be fitted anywhere and accommodate the adjustable compression valve to provide more working space inside the damper.

    7-POST DRIVE DYNAMICS APPROVED

    7Post

    Testing to the Nth Degree

    Used regularly by automobile manufacturers and international race teams, KW’s in-house 7-post drive dynamics test facility is utilized to optimally tune KW coilover suspensions according to the design and target group. The 7-post drive dynamics test facility is essential for fine tuning along with actual on-road evaluation on public roads and race tracks. In objective laboratory conditions, which can be reproduced at any time, we work everyday to give our customers the internationally-esteemed KW driving experience.

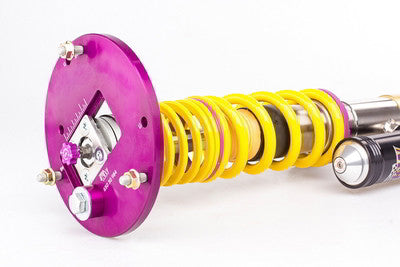

    UNIBAL TOP MOUNT

    Unibal-Stützlager

    More Track Performance & Adjustment Options

    Depending on the vehicle application, the aluminum unibal top mounts feature a scaled camber adjustment and caster can be optionally adjusted. This means that the camber angle can be set, maximizing the tire contact patch when cornering, making handling even more direct. Please note: increased camber values are only recommended for track day use and may reduce tire lifespan when used on the road.

    TECHNICAL COMPONENT REPORT

    Teilegutachten

    Certified Guidelines

    The technical component report is always included in the package and outlines the guidelines for lowering the suspension of the respective vehicle. The technical component report ensures the vehicle remains useable when set within the guidelines provided in the installation instructions, allowing for an inspection and subsequent entry into the vehicle documents to be carried out without any problems. The technical component report also includes precise vehicle classification, requirements, and tips for safe fitting.These reports are required for road legal approval in many countries, check local laws.

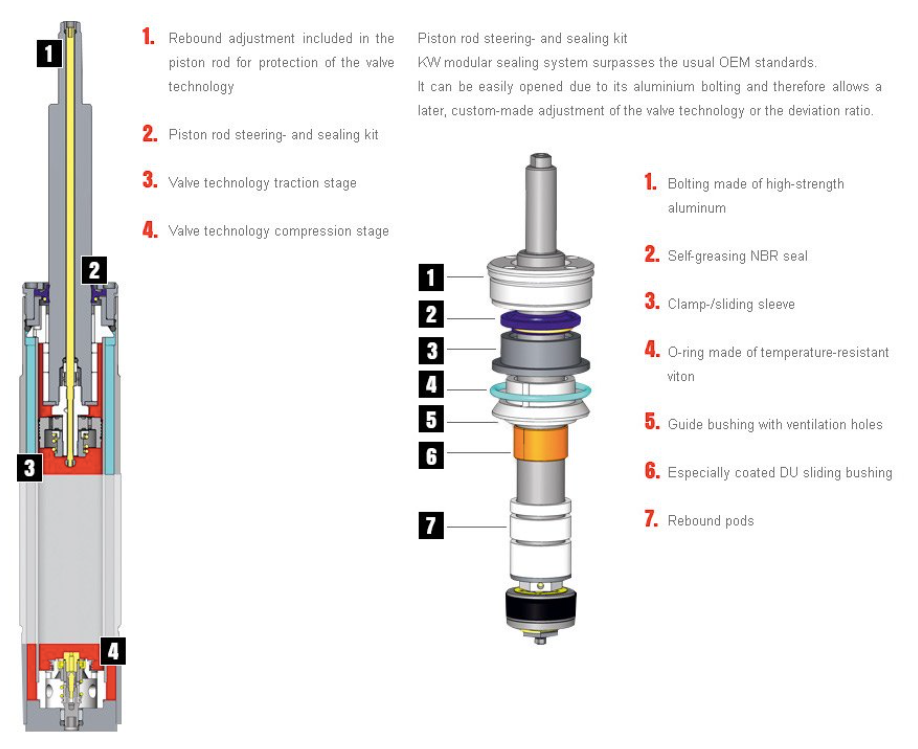

    KW TVR-A Technology

    TVR-A

    Twin Valve Rebound – Adjustable

    The rebound stage damping is tuned to suit the respective vehicle at our in-house drive dynamics test facility and comes preset in the middle of the range out of the box. For custom settings the user has 16 precise click positions at their disposal, allowing them to choose between more comfort or more body control.

    The two-step, patented TVR-A technology enables the small volume to flow through an adjustable, conical low-speed bypass in the case of slow damper speeds, while in the case of higher piston speeds, the main rebound stage valve opens for the large volume flows. This provides a big improvement in terms of ride comfort without influencing the high-speed range.

    KW TVC-A Technology

    TVC-A

    Twin Valve Compression – Adjustable

    The patented compression stage valve with TVC-A technology features two separate spring pre-tensioned valves for low and high volume flows.

    The compression stage which is tuned to the particular vehicle type on our 7-post rig is supplied with a mid-range factory setting. With 12 precise clicks the adjustable compression stage valve can increase or decrease the cross section in the low-speed valve to achieve more or less compression stage damping. At the same time, in the case of sud-den high piston speeds, the spring pre-tensioned needle valve and the spring pre-tensioned main valve open to their maximum cross section, utilizing the blow-off feature to prevent undesired progressive power surges in the high-speed range. This allows for improved bracing of the vehicle body while simultaneously offering more comfort than with con-ventional valve technology in the case of high wheel acccelleration. The compression stage damper setting is always supplied in combination with a separate rebound stage setting, as only one independent 2-way damper setting allows for true performance optimization.

    KW TVCLH-A Technology

    TVCLH-A

    Twin Valve Compression Low High speed – Adjustable

    High-end motor sports technology for the most demanding street performance and track performance customers. The 3-way adjustable dampers utilize an independent and separately adjustable 2-way compression valve that enables compression damping changes for both the low and high-speed range. The compression adjustments are made via two adjustment controls on the housing using precise clicks. There are 16 settings for the high-speed range (with 15 clicks) and 7 settings for the low-speed range (with 6 clicks).

    During tuning at the KW 7-post Driving Dynamic Test Center, the V4 coilover suspension is tuned so the preset recommended setting for best road performance is in the middle of the adjustment range with an additional recommended settings for the occasional track use. The 3-Way Clubsport coilover suspension is tuned with a preset recommended setting designed for track day use, with an additional recommended setting for the normal highway use. Starting from the factory setting, the damping can be set harder or softer in both the low and high speed ranges. The TVCLH-A technology has a blow-off feature with large cross-sections which allows for a substantial low-speed forces to provide optimum support of the vehicle body without unsettling the body in the case of sudden high damper stimulation induced by the wheels, like driving over apex curbing. The separate low and high-speed settings are always supplied with an additional rebound setting utilizing TVR-A technology for a truly independent 3-way damper setup.

    HYDRAULIC ELEVATION

    Hydraulische Anhebung

    Lift It Up

    With KW’s hydraulic lift system (HLS) the body can be raised for more ground clearance with the touch of a button, even while driving. With KW’s HLS, obstacles like speed bumps or steep parking garage ramps can be negotiated easily. The system can be used as a vehicle-specific retrofit solution for OEM dampers or as a complete suspension solution including the hydraulic equipment. The KW hydraulic lift system is available for the front axle or for both axles, depending on the application.

    APP CONTROL

    App Control

    The KW iSuspension Innovation

    With the KW iSuspension apps, customer-specific adjustments can be made simply and intuitively with your smartphone or tablet.

    1.) The DDC ECU coilover suspension app allows a choice of three defined damper setups, Comfort, Sport, or Sport+ and also allows a complete individual customization of the adaptive dampers settings during operation.

    2.) With the DLC app you can choose between a self-defined lowered suspension setting and the standard vehicle height. Precise adjustments can be made to the vehicle height when combined with our DLC air suspension modules.

    Both apps are free to download in the Apple and Google Play stores and required the respective product and WLan module to operate.




    KW Stainless Steel Technology "Inox-Line"

    Our KW stainless steel alloy "inox-line" coilovers are built to stand for many years of driving pleasure

    We consistently set our KW coilover kits to the highest quality standards for perfectly matched components and materials. This not only benefits our renowned racing applications for international motorsport, but also your KW coilovers for the road.









    All of our KW coilovers such as Variant 1, Variant 2, Variant 3, Variant 4, Street-Comfort, KW Clubsport 2-way and 3-way and the adaptive KW DDC coilovers are made of stainless steel. Whether it is the strut housing, the trapezoidal thread or the vehicle-specific brackets - we use only stainless steel. Our "inox-line" stainless steel alloy stands the test of time and elements for many years of driving pleasure, not just the life of the car.

    • Highly corrosion resistant
    • Unsurpassed quality
    • No signs of wear at the adjustment mechanism after long term use
    • Trapezoid thread in stainless steel ensures ease of ride height adjustment
    • High load tolerance







    The Real Truth - The KW Salt Spray Test

    How resistant are the KW "inox-line" coilovers to rust? We hear from our satisfied customers daily, but we still wanted to know more precisely so we worked together with the University of Applied Sciences in Esslingen DE. The chemists and engineers at the university tested the KW "inox-line" coilover struts made of stainless steel along with nine other coilover struts from six different manufacturers.



    Competitors - Coilover suspensions, zinc-plated
    after 26 hours
    • First pitting corrosion and corrosion patches
    after 145 hours
    • Heavy rust formation begins, corrosion in gaps and weld seams
    after 229 hours
    • Parts are no longer able to move
    KW coilover "inox-line" stainless steel
    after 26 hours
    • inox-line, KW Variant 3 piston rods in perfect condition
    after 145 hours
    • inox-line, KW Variant 1 no corrosion detectable on struts
    after 229 hours
    • inox-line, KW Variant 1 easy to move, no corrosion
    Participants/Products:

    • KW coilover struts "inox-line" Variant 1, 2 and 3
    • KW coilover struts galvanized in Variant 2
    • 5 competitors with new, galvanized coilover struts
    Evaluation:

    • 2x very good KW "inox-line“ Variant 1 & Variant 3
    • 1x good KW "inox-line“ Variant 2
    • 2x moderately good competitors
    • 1x moderate competitor
    • 2x poor competitors




    Final Test Result of the FH (University) Esslingen:

    KW coilover struts in stainless steel technology "inox line" are clearly superior to galvanized versions in terms of corrosion resistance,
    and ensure also after 480 hours a smooth operation.
