PRL Motorsports®  |  SKU: PRL-HC9-OIL-PLATE

PRL Motorsports® Honda K24Z Oil Filter Housing Block-Off Plate Kit

Regular price $64.99
Shipping calculated at checkout.

Question? Call us at (888) 257-1077 🏁 (M-F 9-5 ET)

Email: info@10SecondRacing.com (24/7)

Free Shipping to Lower 48 US States ($100+)

Worldwide Shipping via UPS (Check Rates at Checkout)

Description

When building the K24Z motors like the 9th Gen Civic Si and TSX to turn out big power and 8000+ rpms the factory oiling system becomes inefficient and problematic due to the balance shafts the OEM oil pump uses. The most common and cost-effective solution to this is swapping in the Acura RSX Type-S PRB oil pump to eliminate the balance shafts and better supply oil.

This kit is required to block-off the factory oil filter housing location at the bottom of the K24Z block when doing the a PRB/Type-S oil pump swap and relocates the filter location to the top of the block like the rest of the K-Series motors.


NOTE: THE FACTORY K24Z-STYLE OIL PUMP MUST BE SWAPPED TO A PRB-STYLE OIL PUMP WHEN USING THIS BLOCK-OFF PLATE. NOT DOING SO WILL RESULT IN THE LOSS OF ALL OIL PRESSURE

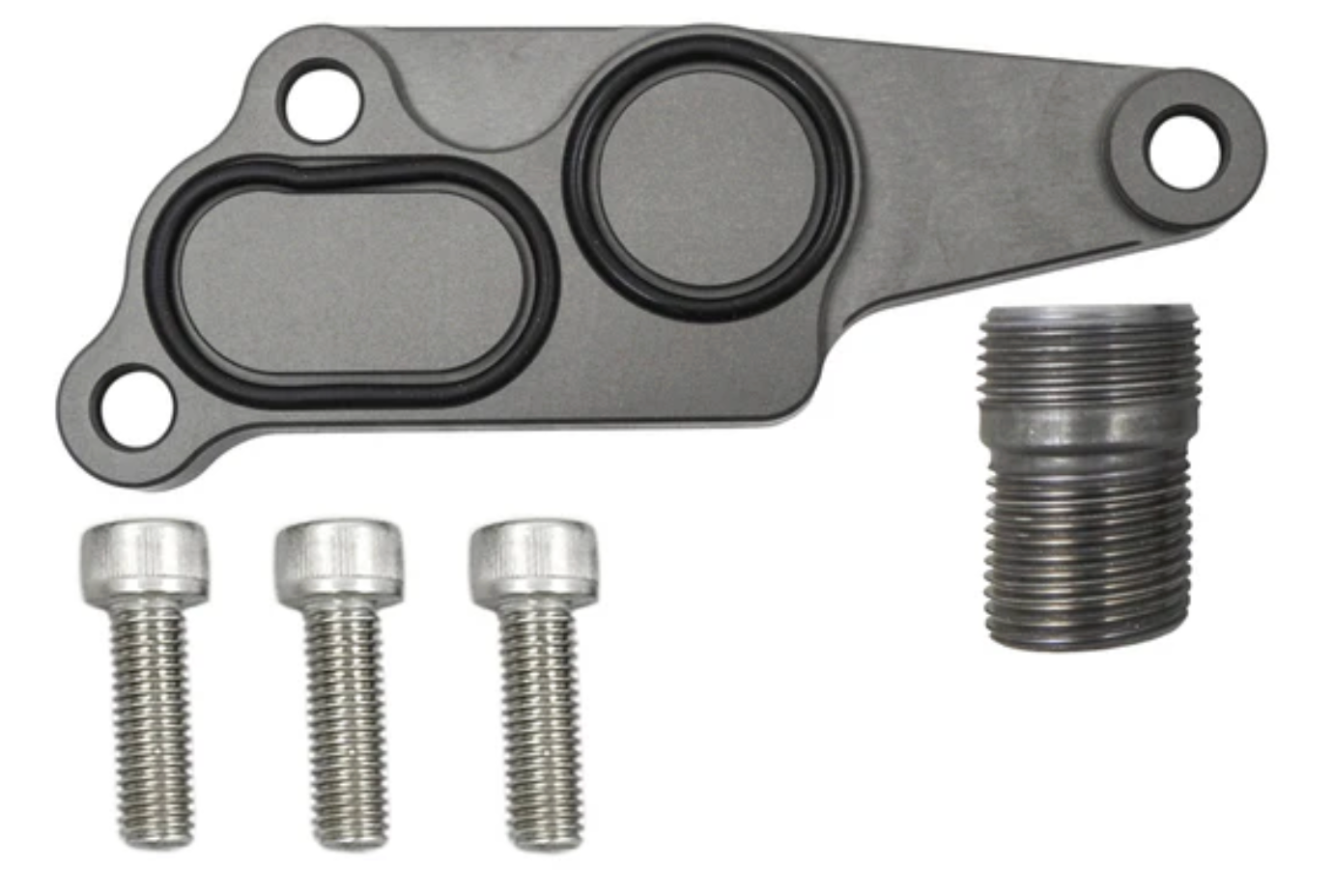

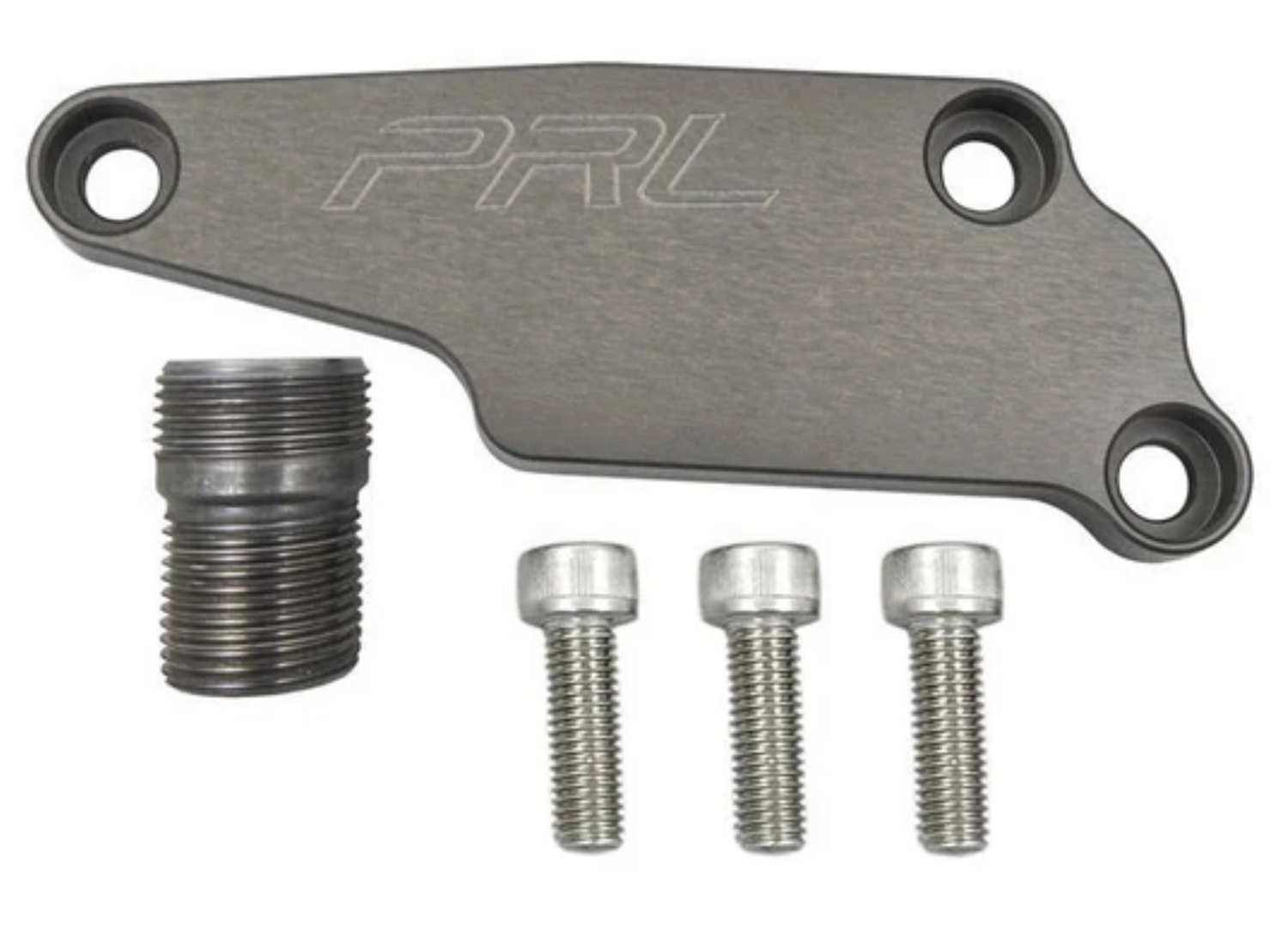

Kit Includes:

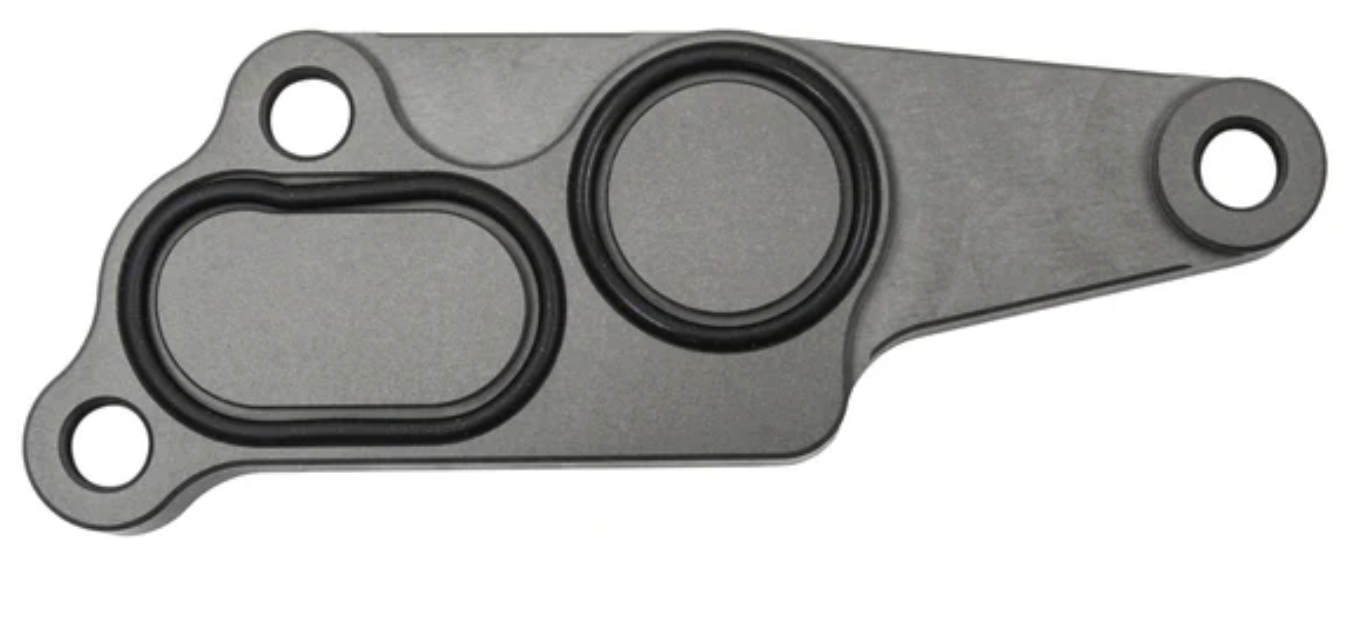

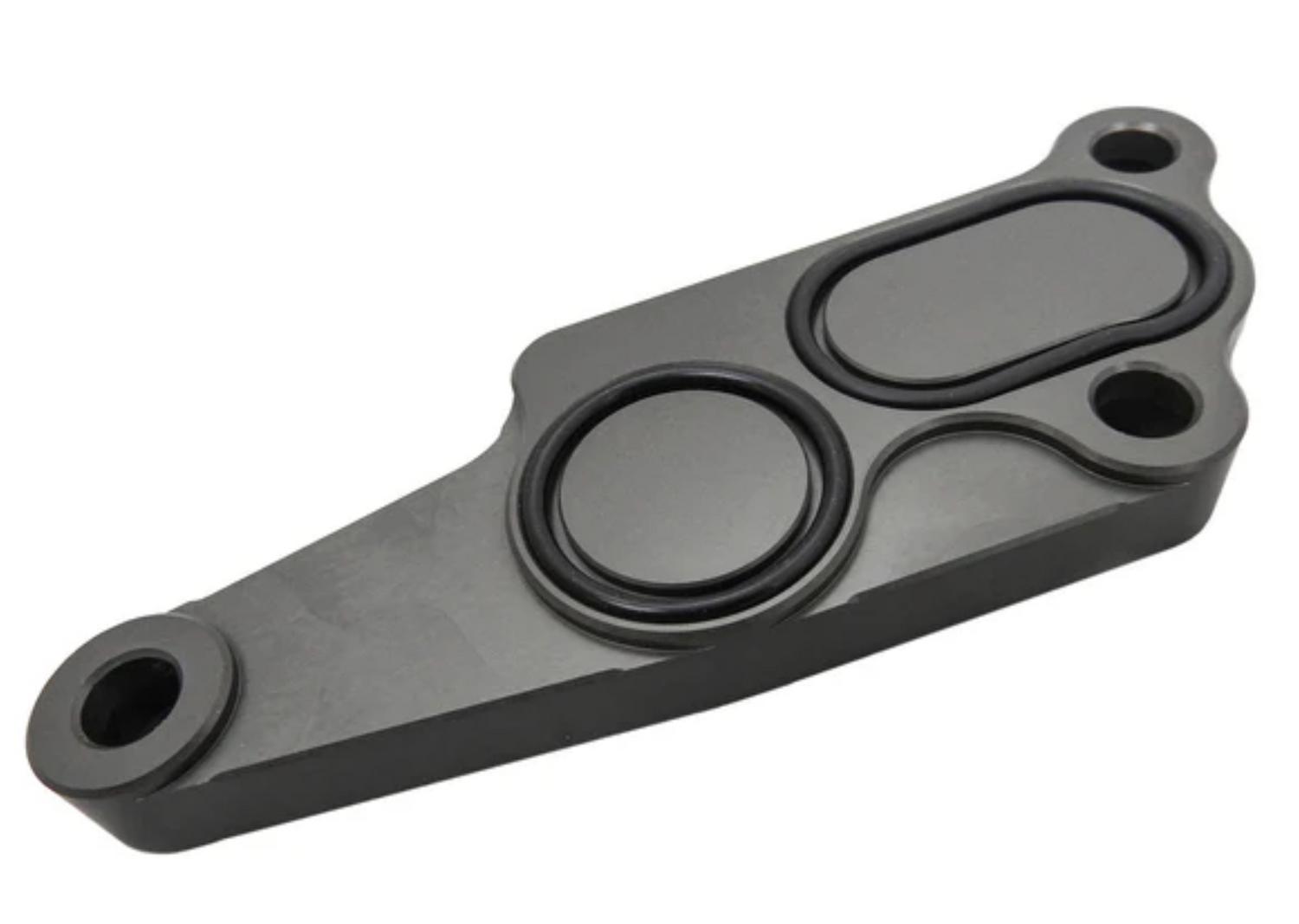

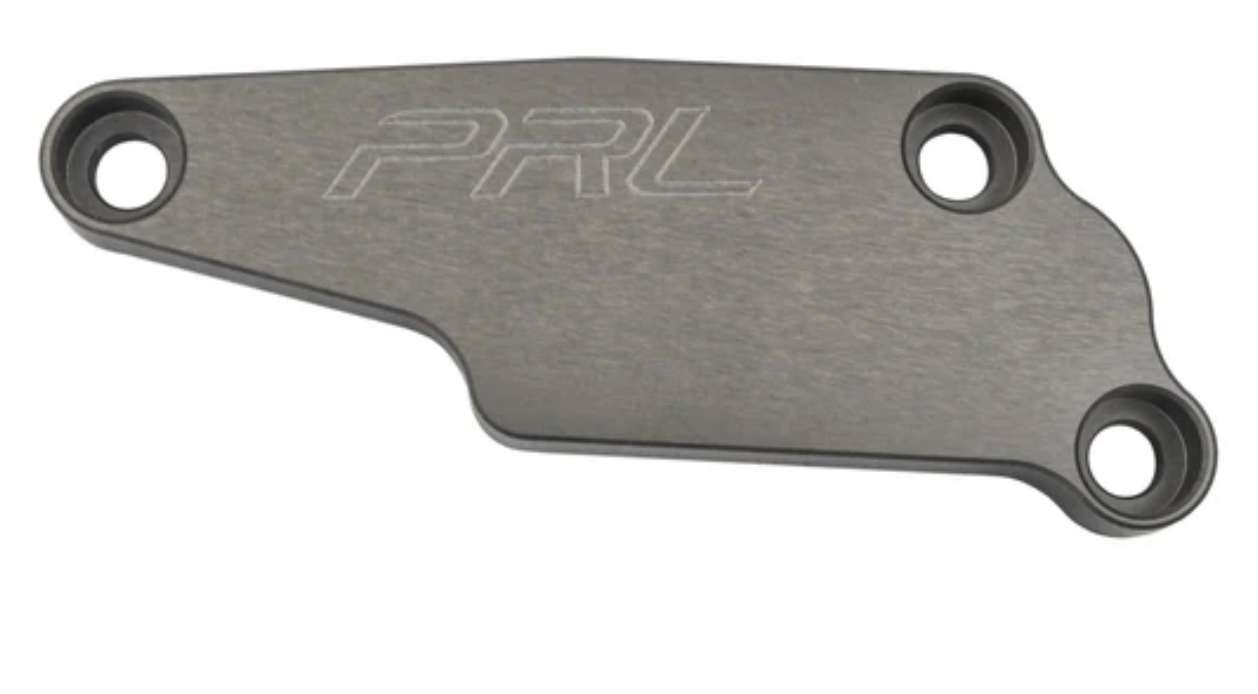

  • Oil Pump Block-Off Plate

  • (2) OEM Honda O-Rings

  • (3) Stainless Steel Socket Head Cap Screw Bolts

  • OEM Honda Oil Filter Holder



WARRANTY:





VEHICLE FITMENT
