COMPATIBLE: (2.0L - K20C1)
2023 - 2026 ACURA INTEGRA TYPE-S DE5
2022 - 2026 HONDA CIVIC TYPE-R FL5
Fits all 2024+ Acura Integra Type-S DE5
Fits all variant models including RHD, International Models, Etc.
Fits all Factory Fitment Turbochargers
Only Compatible with PRL High Volume Intake
Overview
INSTALLATION:
PDF - 2023+ Honda Civic Type-R FL5 Titanium Turbocharger Inlet Pipe Kit Install Instructions
Important Notes:
-
NO ECU CALIBRATION REQUIRED
-
COMPATIBLE WITH PRL HIGH VOLUME INTAKE
Technical Notes:
Maximize your DE5's engine intake system and turbocharger potential with the PRL Motorsports Turbocharger Inlet Pipe Kit. This kit is a direct bolt-on upgrade that eliminates intake airflow restriction before the turbocharger, allowing the turbocharger to operate more efficiently. Our design utilizes a cast aluminum inlet piece to allow smooth transition from the gasket-matched 64mm ID compressor inlet to a 80mm OD / 78mm ID outlet throughout the Titanium crossover pipe. This kit is the largest inlet pipe available and offers over a 50% increase in airflow volume in comparison to the factory inlet pipe! Increased bottom-end power and spool.

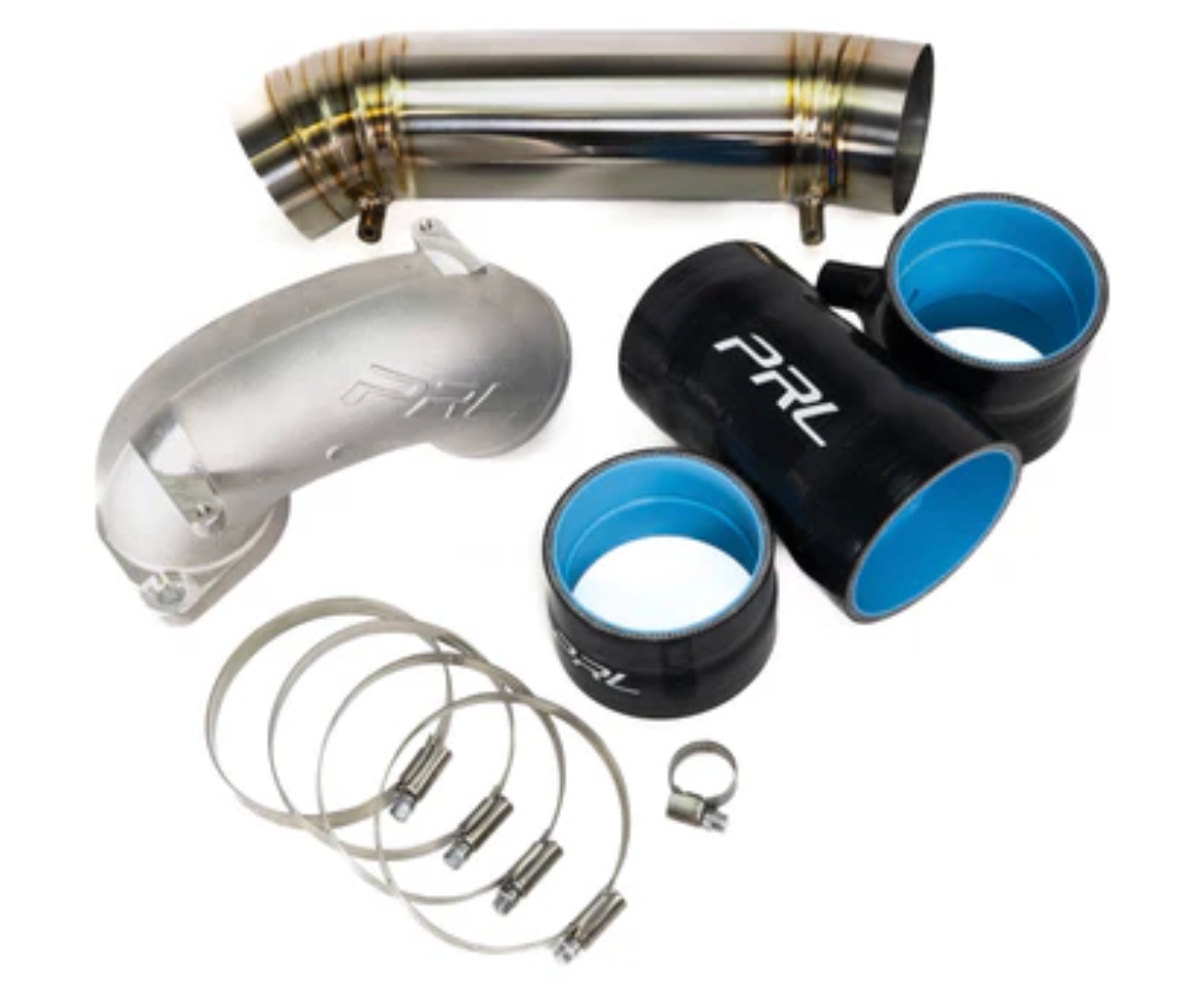

Kit Includes:
-

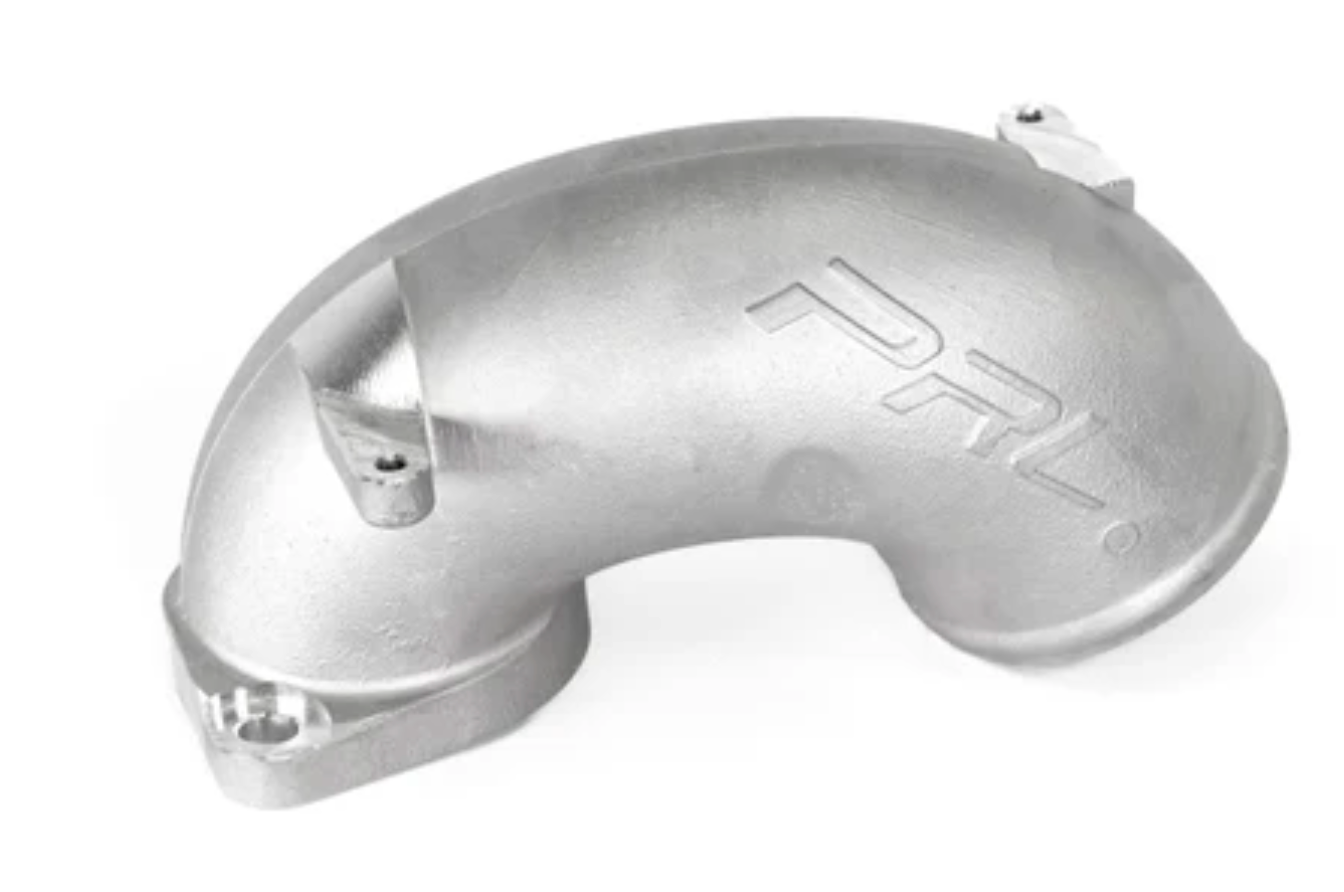

(1) Cast Aluminum Inlet Piece
-

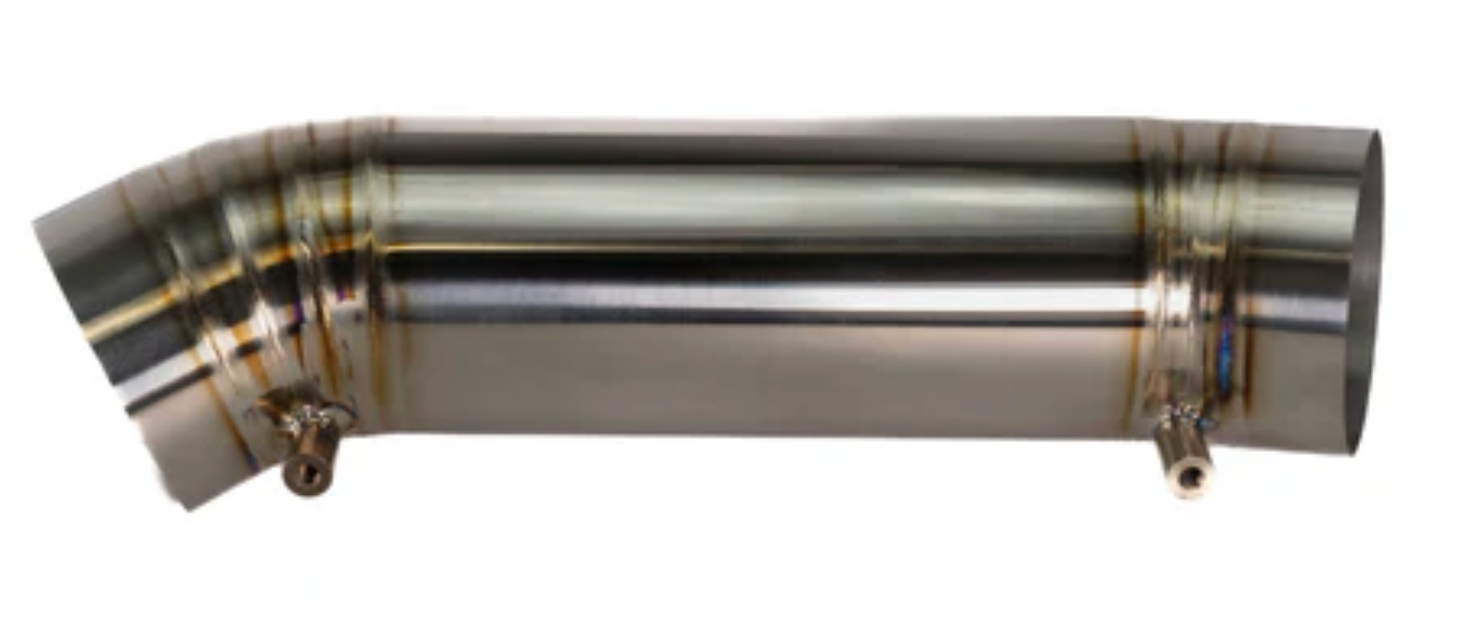

(1) 80mm OD Titanium Inlet Pipe
-

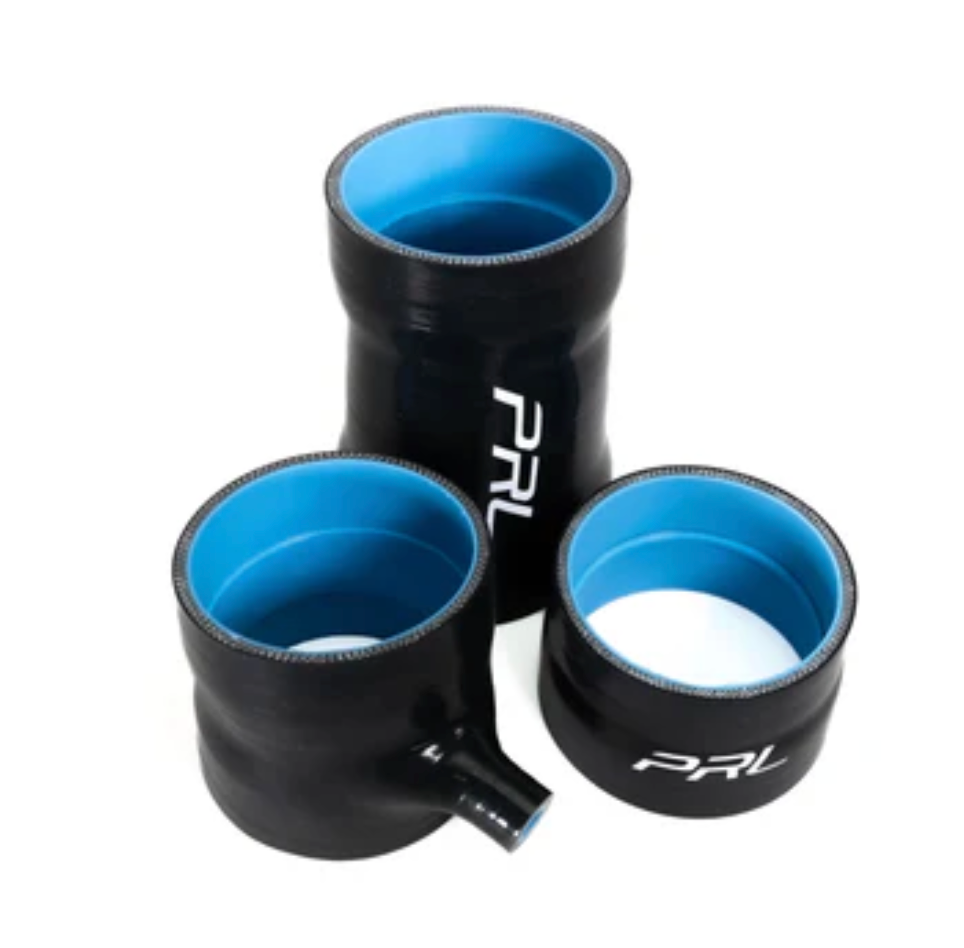

(3) High-Temp 4-Ply Silicone Coupler(s)
-
(7) 304 Stainless Steel Interlocking Worm Clamps
