COMPATIBLE: (3.0L - J30AC)
2021 - 2026 ACURA TLX TYPE-S
Fits all 2021 Acura TLX Type-S 3.0T
Fits all variant models including RHD, International Models, Etc.
Important Notes:
-
NO ECU CALIBRATION REQUIRED
-

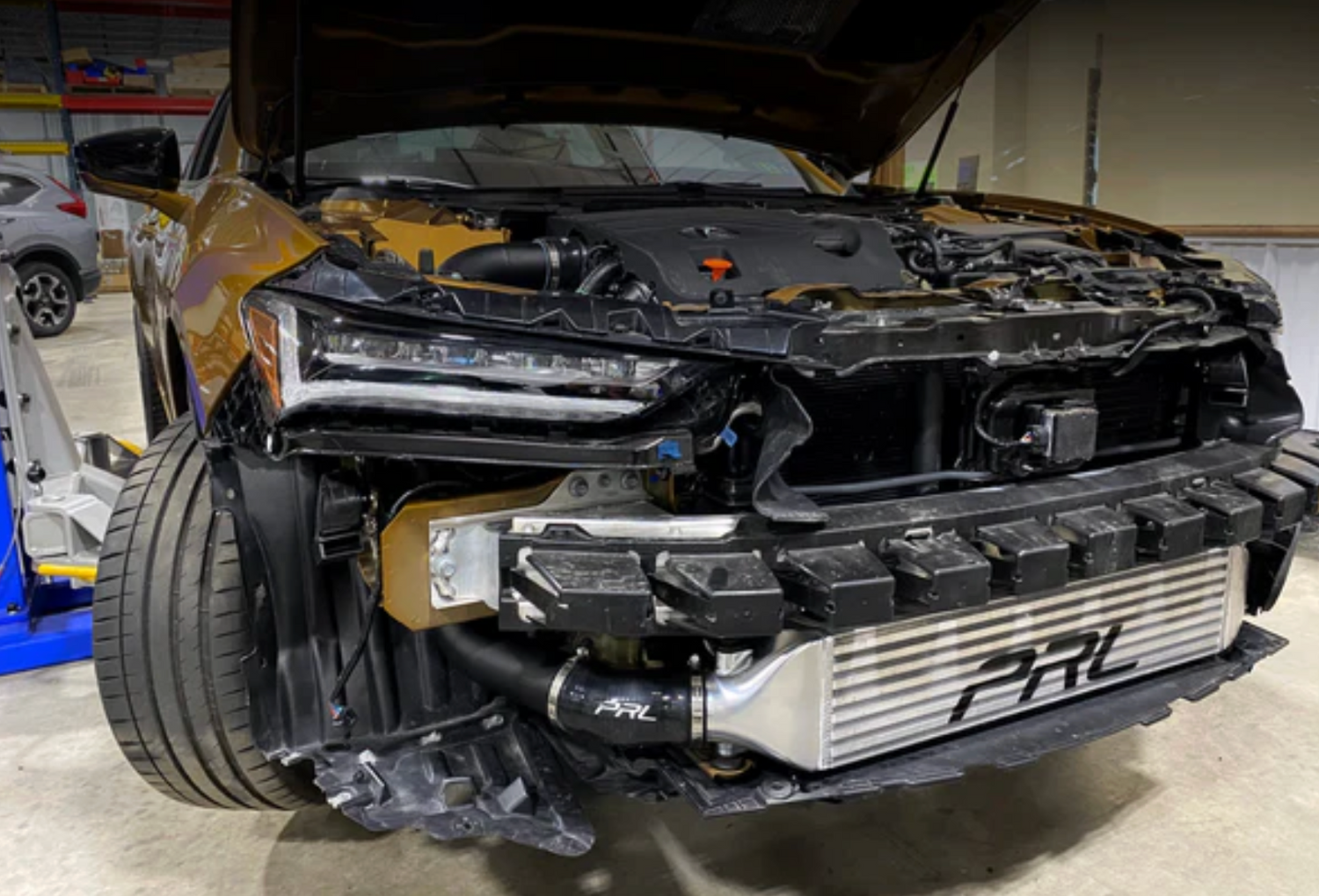

Compatible with Factory Fitment Intercoolers and PRL Motorsports Intercooler upgrade with 3" outlet.
Technical Notes:

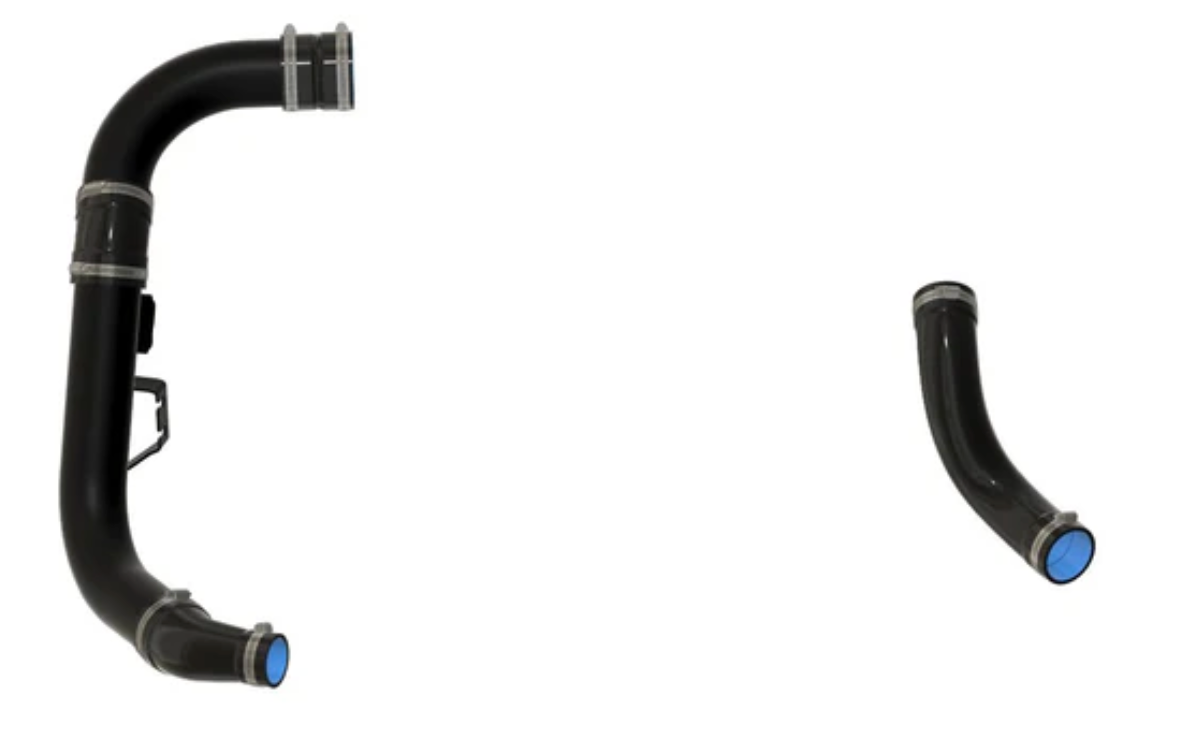

Our charge pipe upgrade kit utilizes a smooth flowing, larger diameter (3.00" OD in comparison to the factory ~2.40" ID hose) cold-side for increased airflow and factory diameter hot-side outlet to aid in turbocharger spool. 4-ply silicone couplers are used throughout our design for a couple of reasons:
-
Heat-soak reduction: Silicone hose offers extremely low thermal heat transfer properties, especially in comparison to steel or aluminum.
-
Strength and rigidity: The rubber hoses used from the factory are known to experience expansion, which worsens as boost is increased. In time, the rubber construct weakens, causing increased likeliness of a boost leak. Our high-temp, 4-ply silicone with handle the high temperatures of the turbocharger much better than the factory rubber hose(s).
-
Smooth airflow: Custom molded silicone allows us to offer much higher flowing bends than we could with metal tubing.

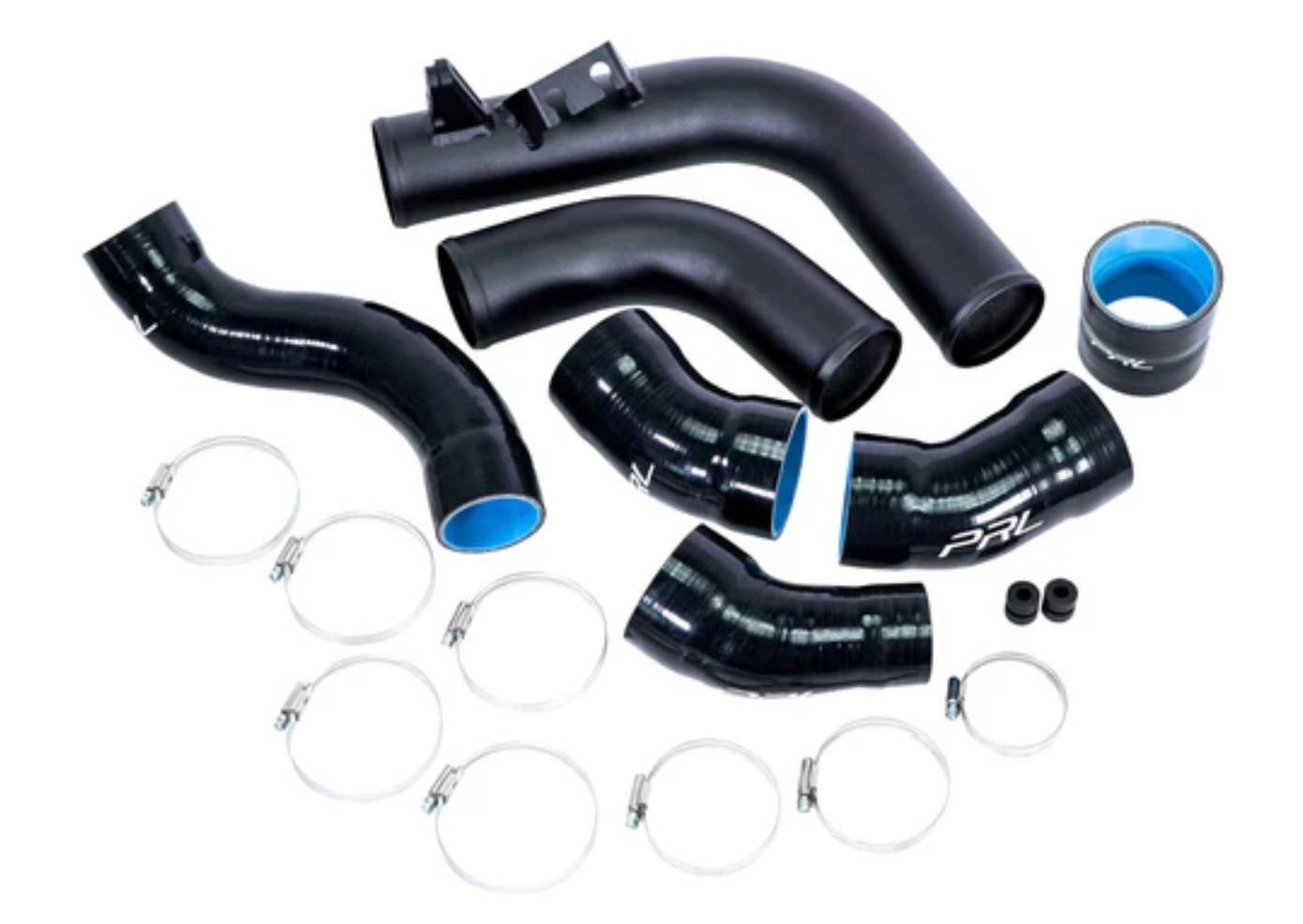

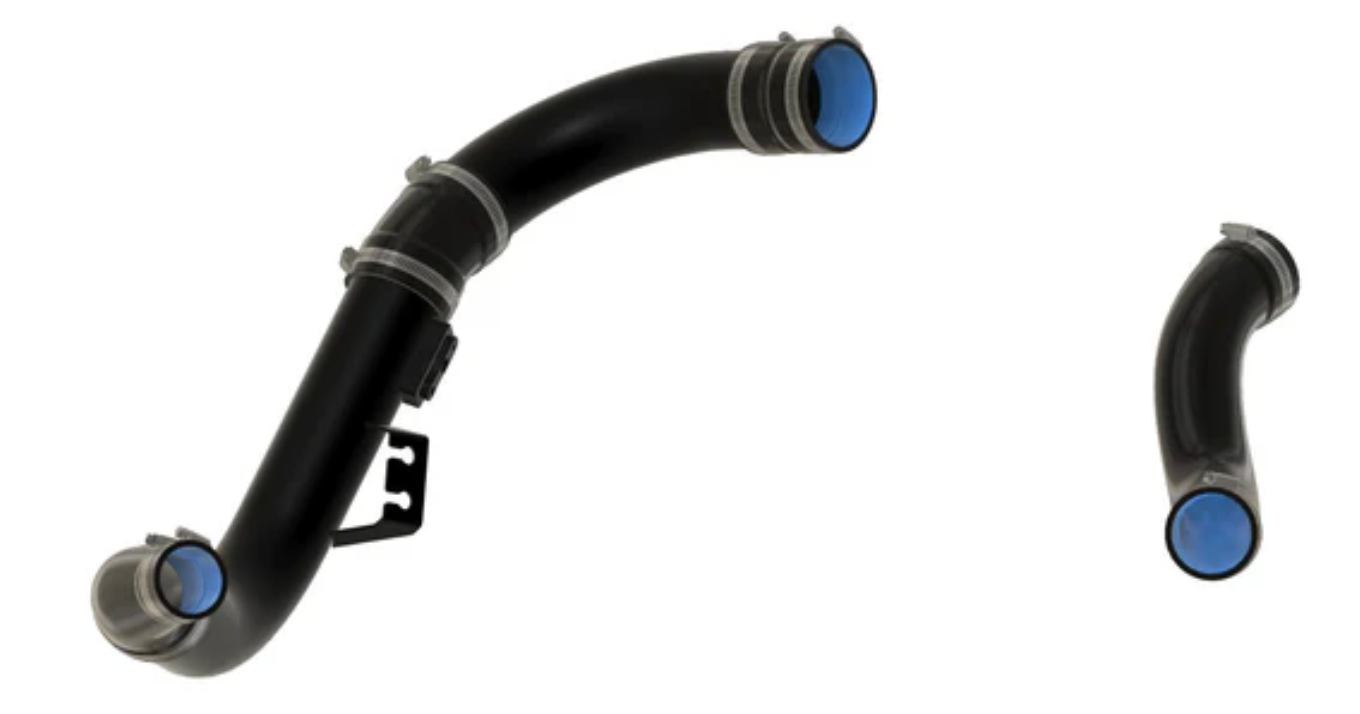

Kit Includes:
-

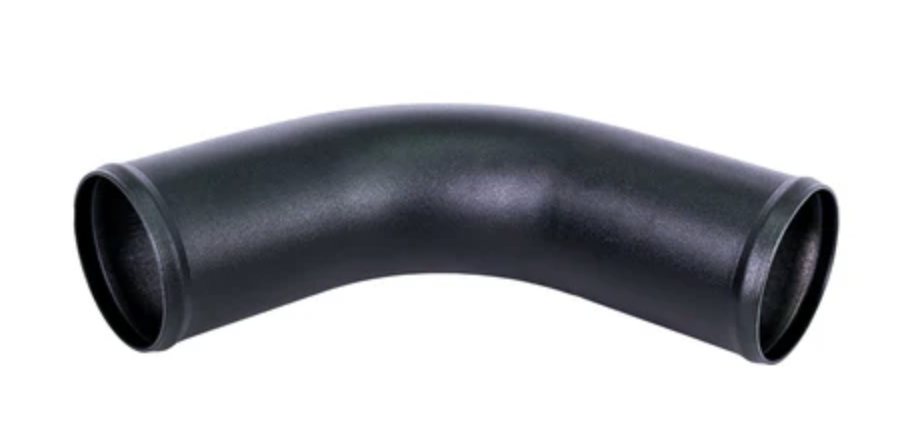

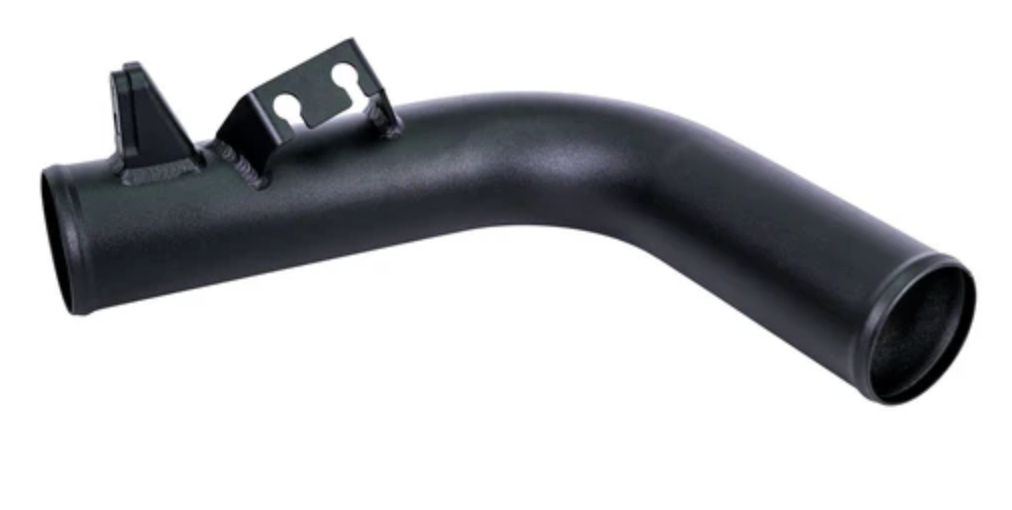

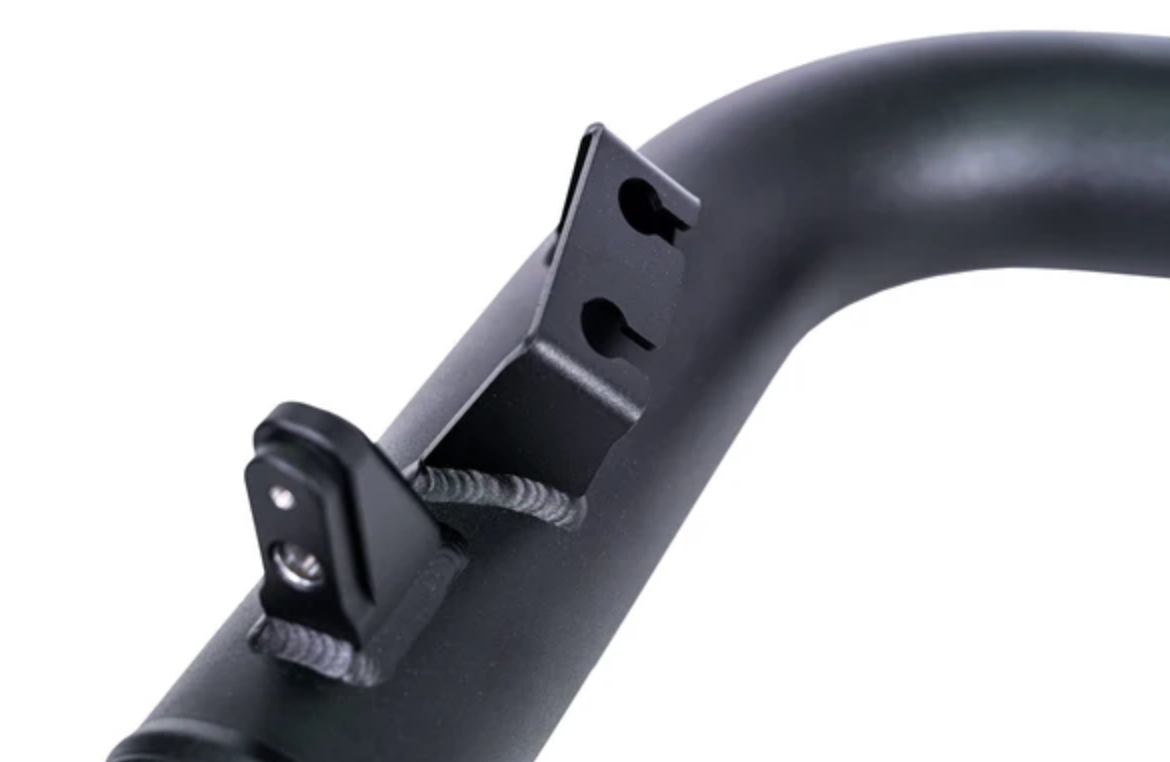

(2) aluminum charge pipe, powdercoated wrinkle-black
-

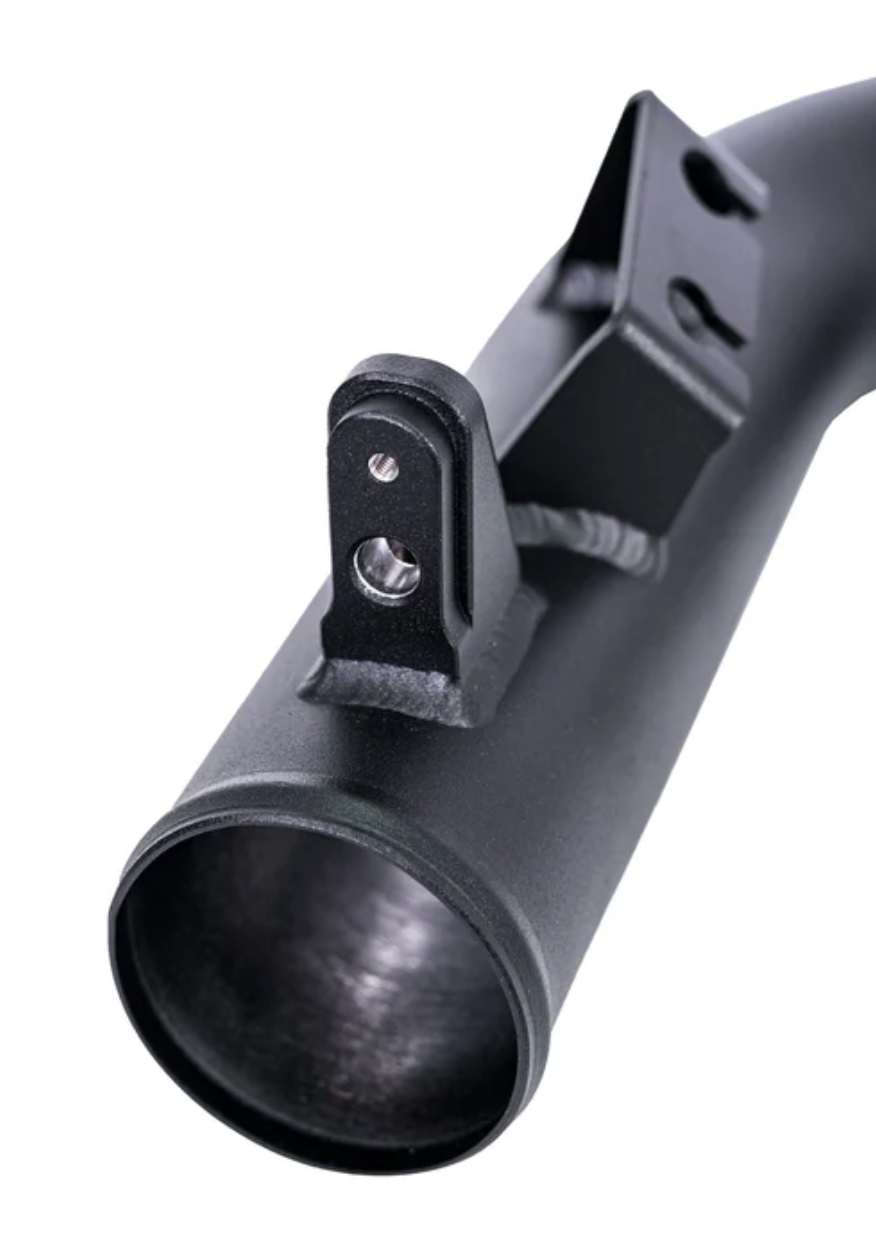

(1) 1/8" NPT auxiliary service port
-

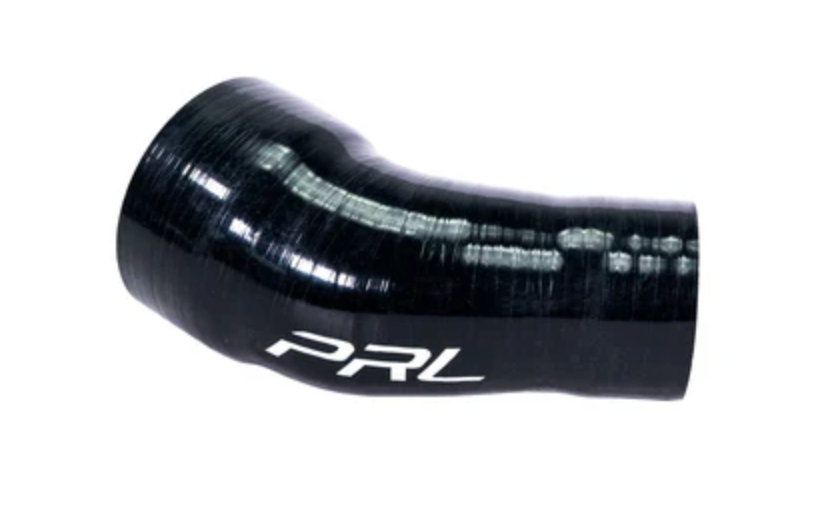

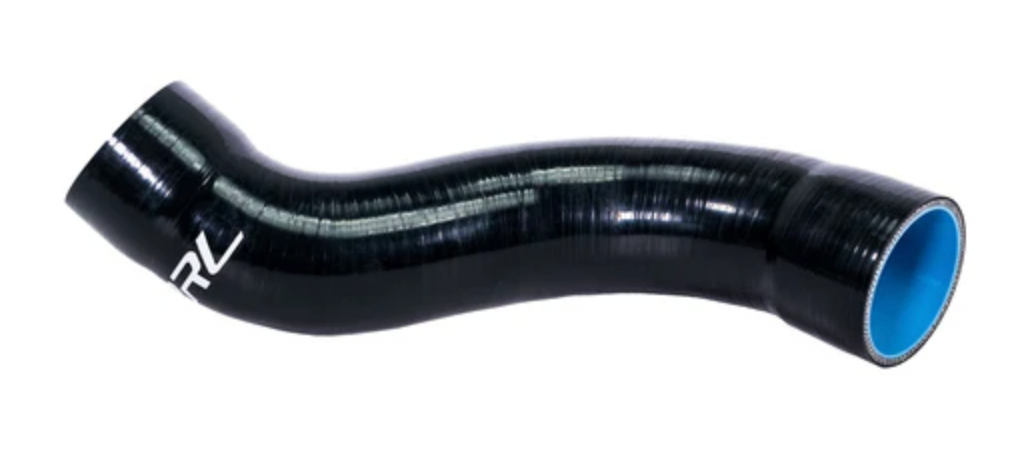

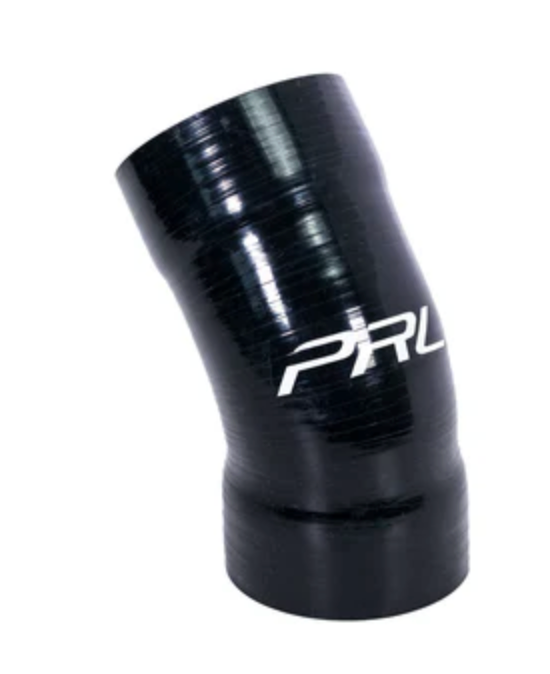

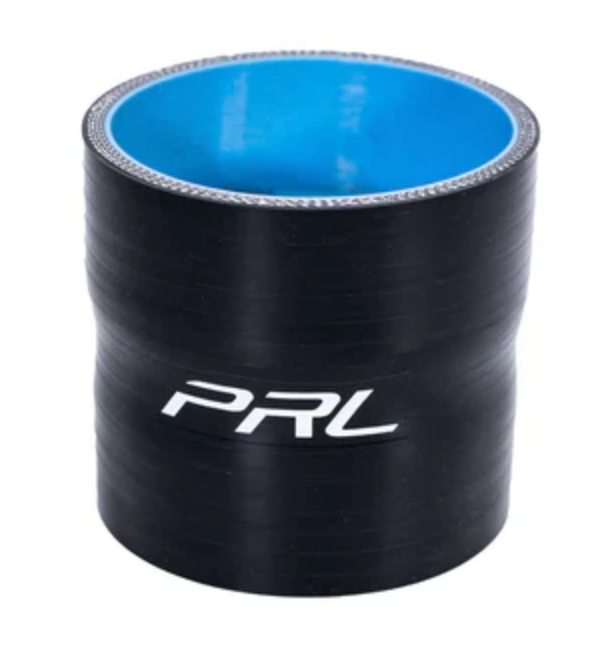

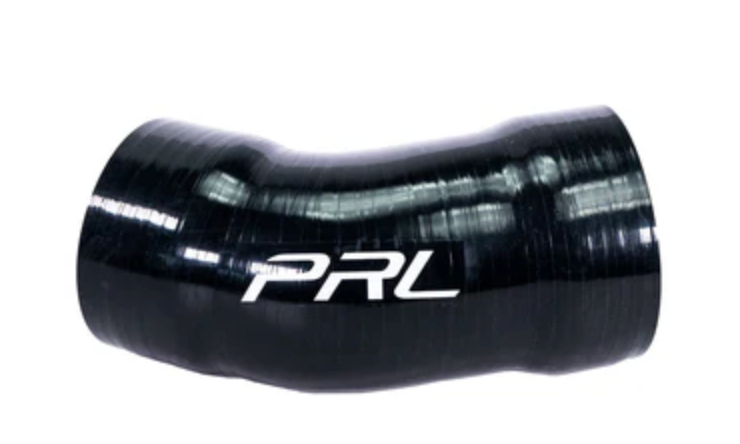

(5) 4-ply silicone couplers
-

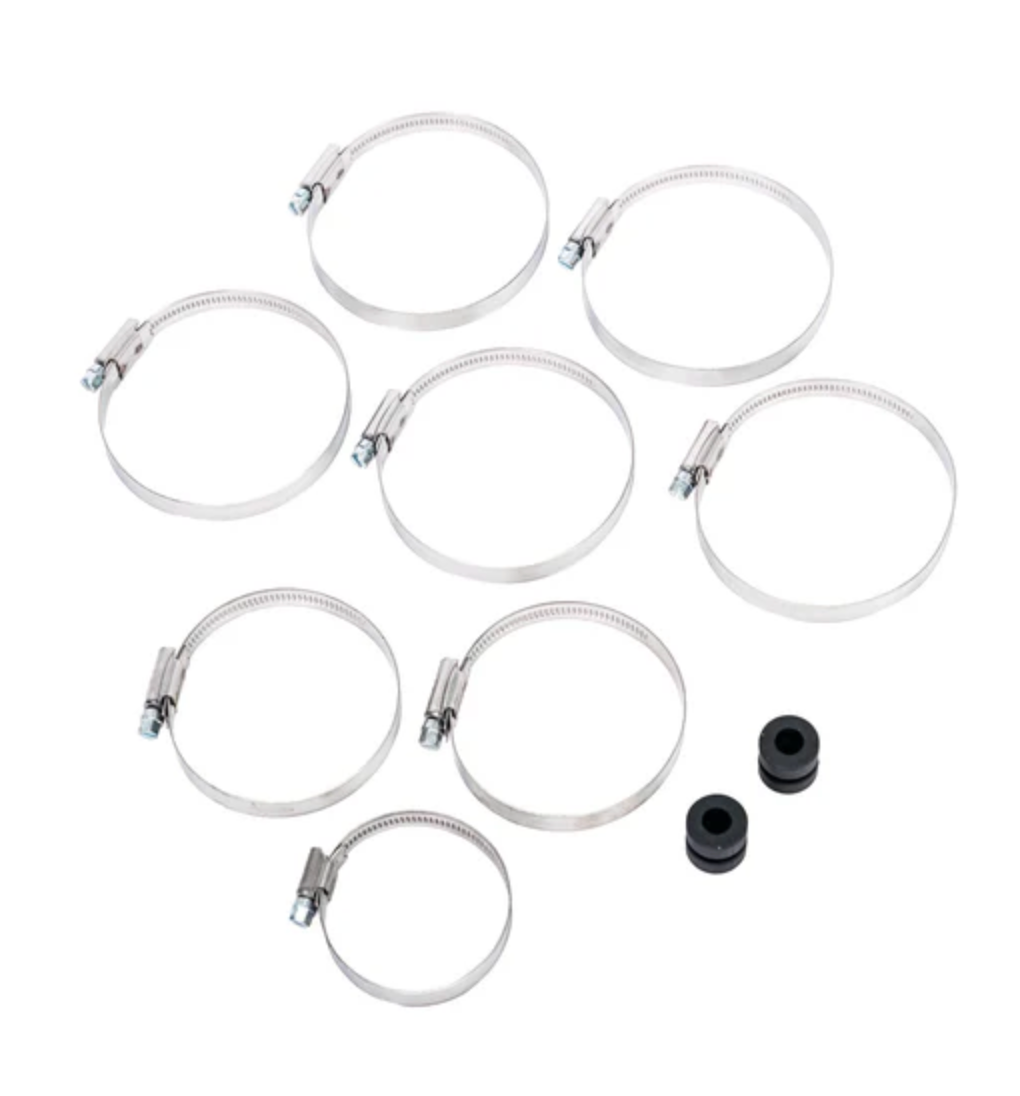

(8) 304 stainless steel lined clamps
-
All hardware needed for install
