COMPATIBLE: (1.5L)
2023 - 2026 ACURA INTEGRA
2018 - 2022 HONDA ACCORD
Fits all 2023+ Acura Integra 1.5T
Fits all variant models including Si, CVT 6MT, RHD, International Models, Etc.
NOT compatible with PRL PTFE Fuel Lines
Overview
Important Notes:
-
WiFi module wirelessly analyzes ethanol content via smart device
-
Optional 0.5V - 4.5V configurable output for use with tuning device/datalogger
Technical Notes:
The PRL Motorsports Plug ‘n Play WiFi Flex-Fuel / Ethanol Content Analyzer Kit allows customers to wirelessly monitor ethanol content via any smart device or enable flex fuel via an optional 0.5-4.5V configurable output with a tuning device. Our innovative Patent Pending design utilizes the factory fuel line, which eliminates the chance for alternative fuel line deterioration and improves aesthetics. This kit utilizes factory plugs/outputs under the hood for power and communication to the ECU, meaning no need for additional wiring, cutting, splicing or running wires to the fuse box or through the firewall into the cabin! All hardware and bracketry is include for quick and easy installation. Kits can be installed and uninstalled within minutes. Please note that our kit does NOT utilize an ethanol content gauge, as we feel that this is unnecessary. Hondata and KTuner V1.2 both offer Bluetooth capabilities, while the KTuner V2 LCD screen can be used to display ethanol content if desired. All components are ethanol compliant!
Did you know that the factory fuel line assembly is actually Teflon and extremely resistant to ethanol-base fuels?
The factory fuel line is actually constructed with an EPDM (fuel and oil resistant synthetic rubber) outer hose and inner ETFE (another Teflon coating that is similar to PTFE) liner, which offers great resistance to a variety of fuels, including ethanol-based fuels. Because of this, there is no reason to "upgrade" or replace the factory fuel line assembly when used with this Ethanol Content Analyzer / Flex Fuel Kit unless kinked or damaged (please note the "Do Not Kink" Warning located on the line).
Why Run Ethanol?
Due to rising gas prices and the push for alternative fuel sources, ethanol, derived primarily from corn, has become a common, cost-effective fuel choice. Ethanol has now found its way into most modern gas stations and the community now understands its list of benefits in comparison to gasoline, such as the fact ethanol burns cleaner, cooler and is more resistant to detonation. Because of these characteristics, ethanol is a cheap alternative to expensive race fuels like race gas and/or methanol, especially with high(er) compression factory turbocharged vehicles.
E85 = 85% Ethanol and 15% Gasoline whereas E30 = 30% Ethanol and 70% Gasoline and so-on.
What is Flex Fuel?
In a nutshell, “flex-fuel” allows an internal combustion engine to flexibly utilize one or more different fuels (usually gasoline blended with either ethanol or methanol fuel), and both fuels are stored in the same common fuel tank. Flex-Fuel systems utilize an ethanol content analyzer to determine the amount of ethanol in a fuel system and a converter to send this reading to the vehicle’s ECU to instantaneously adjust for varying fuel mixtures.

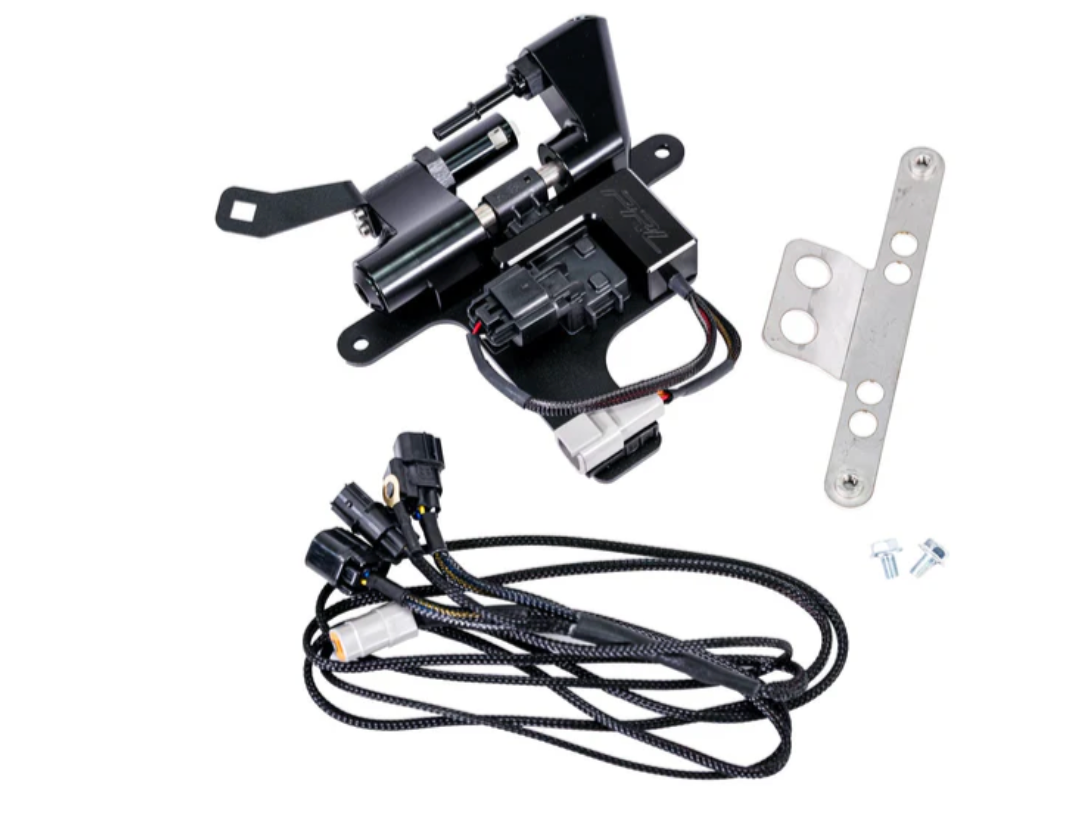

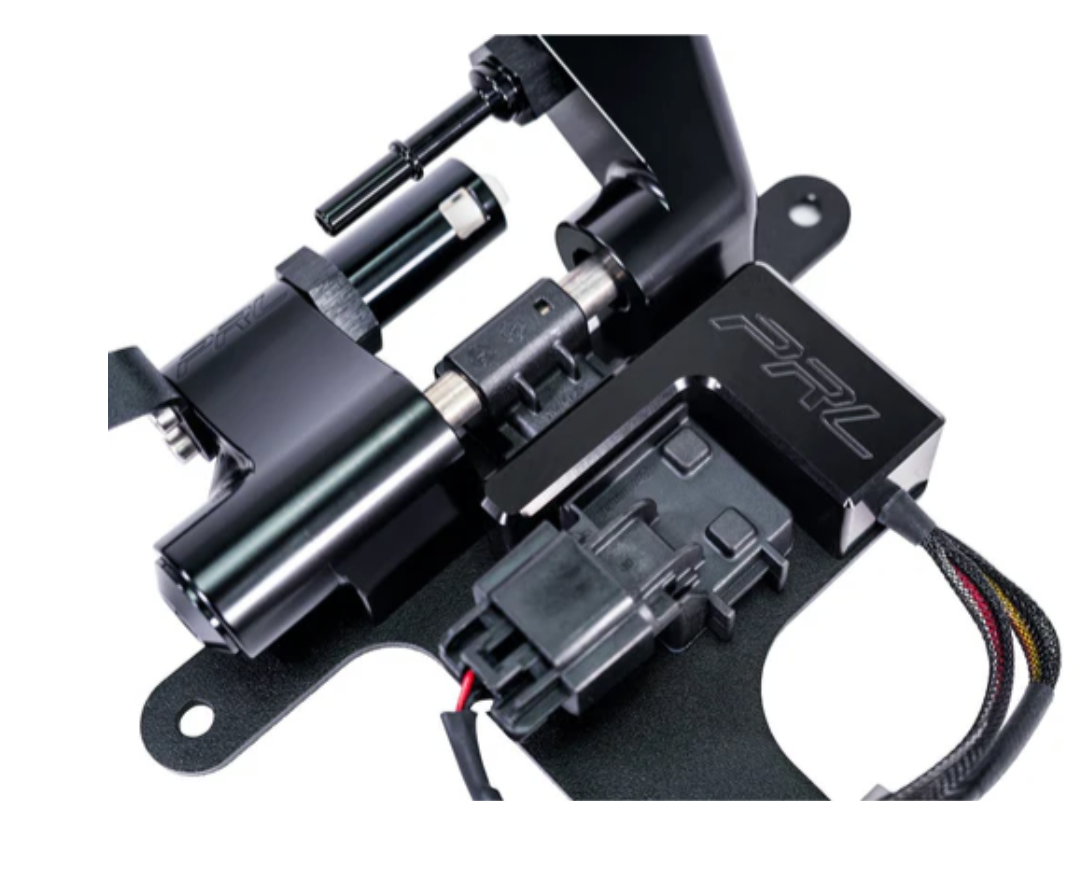

Kit Includes:
-

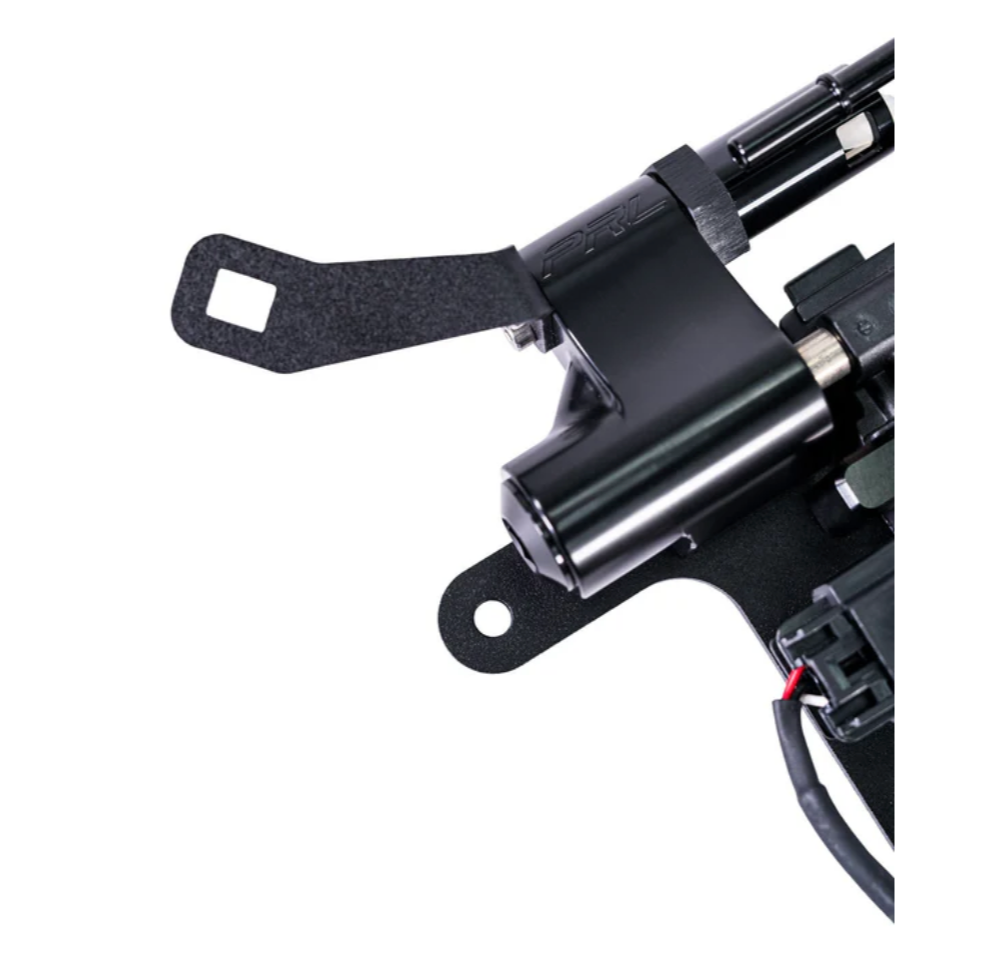

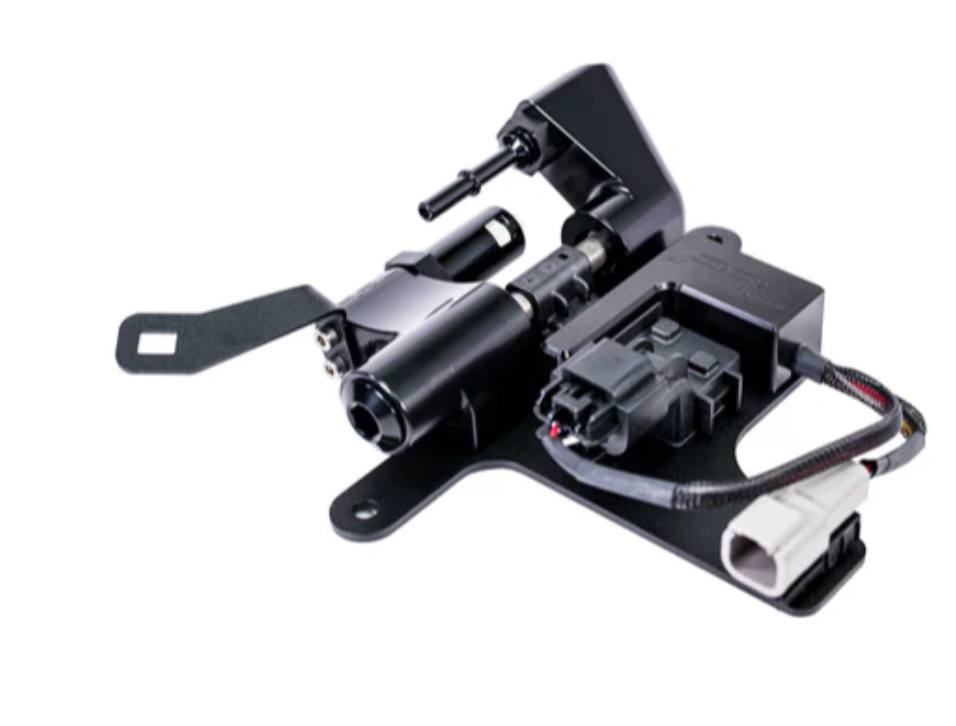

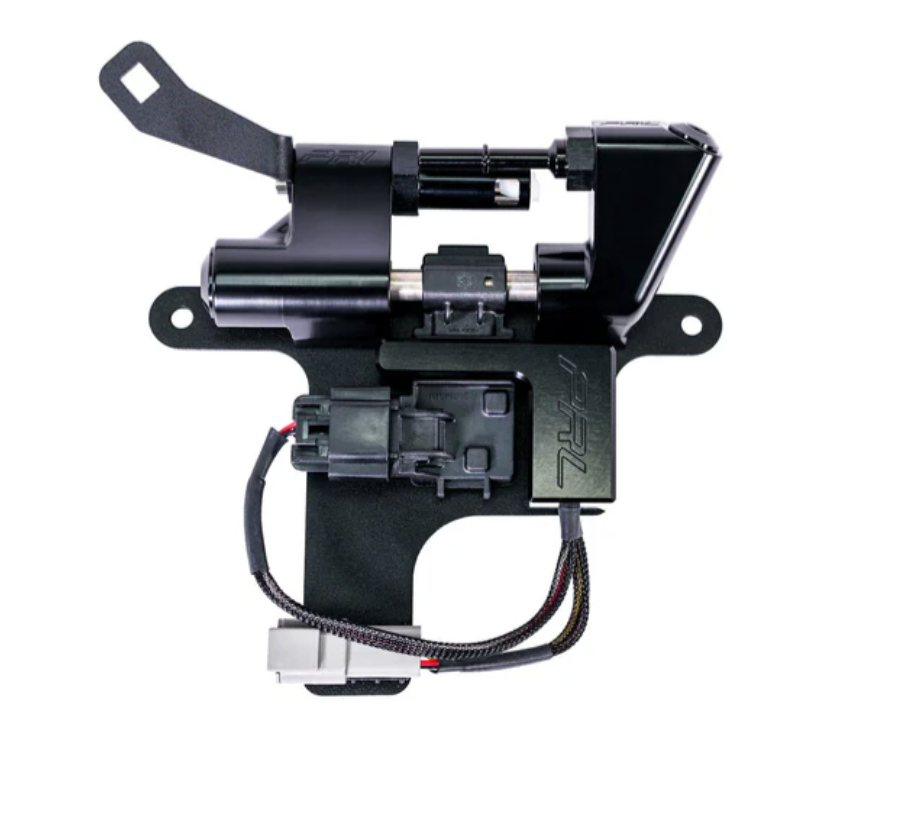

Billet Aluminum Flex-Fuel Converter Case w/ Sealed & Potted Board (WiFi)
-
Genuine GM Continental Ethanol Content Sensor
-
Billet Stock Location EFI Diverter Fittings
-

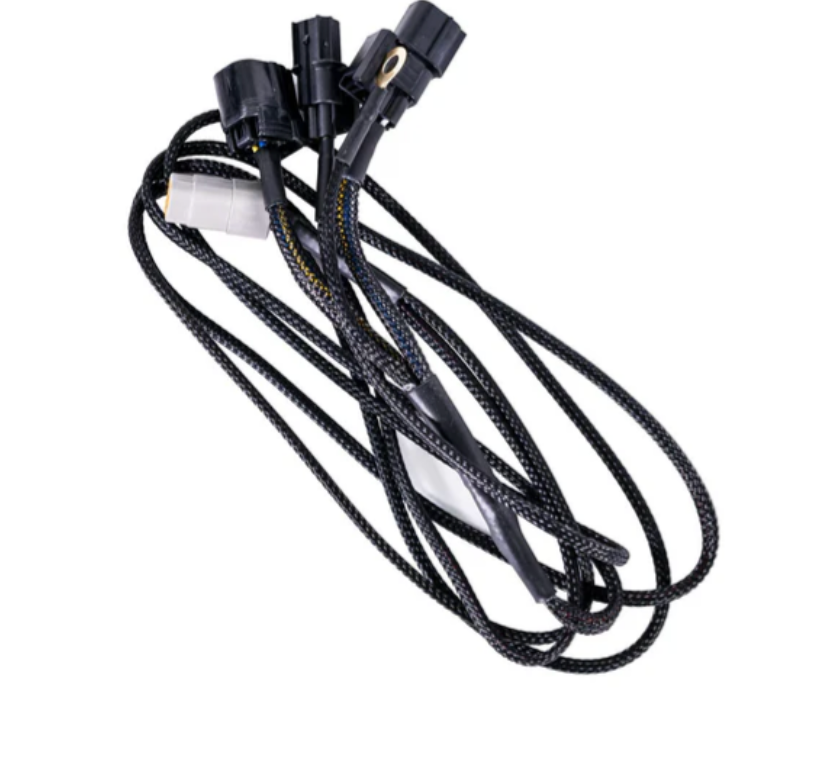

Plug 'N Play Braided Wiring Harness
-
Stainless Mounting Bracket
-
Stainless Hardware
Engineering the Future
With years of dedication and countless hours of development, PRL Motorsports has grown from a small team of three enthusiasts to a thriving company with over 25 highly skilled professionals. In 2021, we moved into our current 25,000 sq/ft facility in Export, Pennsylvania, designed to house state-of-the-art manufacturing and engineering capabilities.
Our facility includes:
-
Full fabrication and welding shop
-
CNC machining department equipped with:
-
Automated cutting stations
-
Dual-spindle CNC lathe
-
3-axis and 5-axis milling centers
-
High-production horizontal milling with pallet changers
-
Automated robotic loading systems
-
Pallet-changing machines and robotic arms for increased efficiency
-
24-hour production capacity to meet growing market demand
This advanced manufacturing setup allows us to create high-quality performance parts with precision and efficiency, maintaining the highest standards for fitment, reliability, and ease of installation.
