COMPATIBLE: (2.0L - K20C1)

2017 - 2021 HONDA CIVIC TYPE-R FK8

Overview

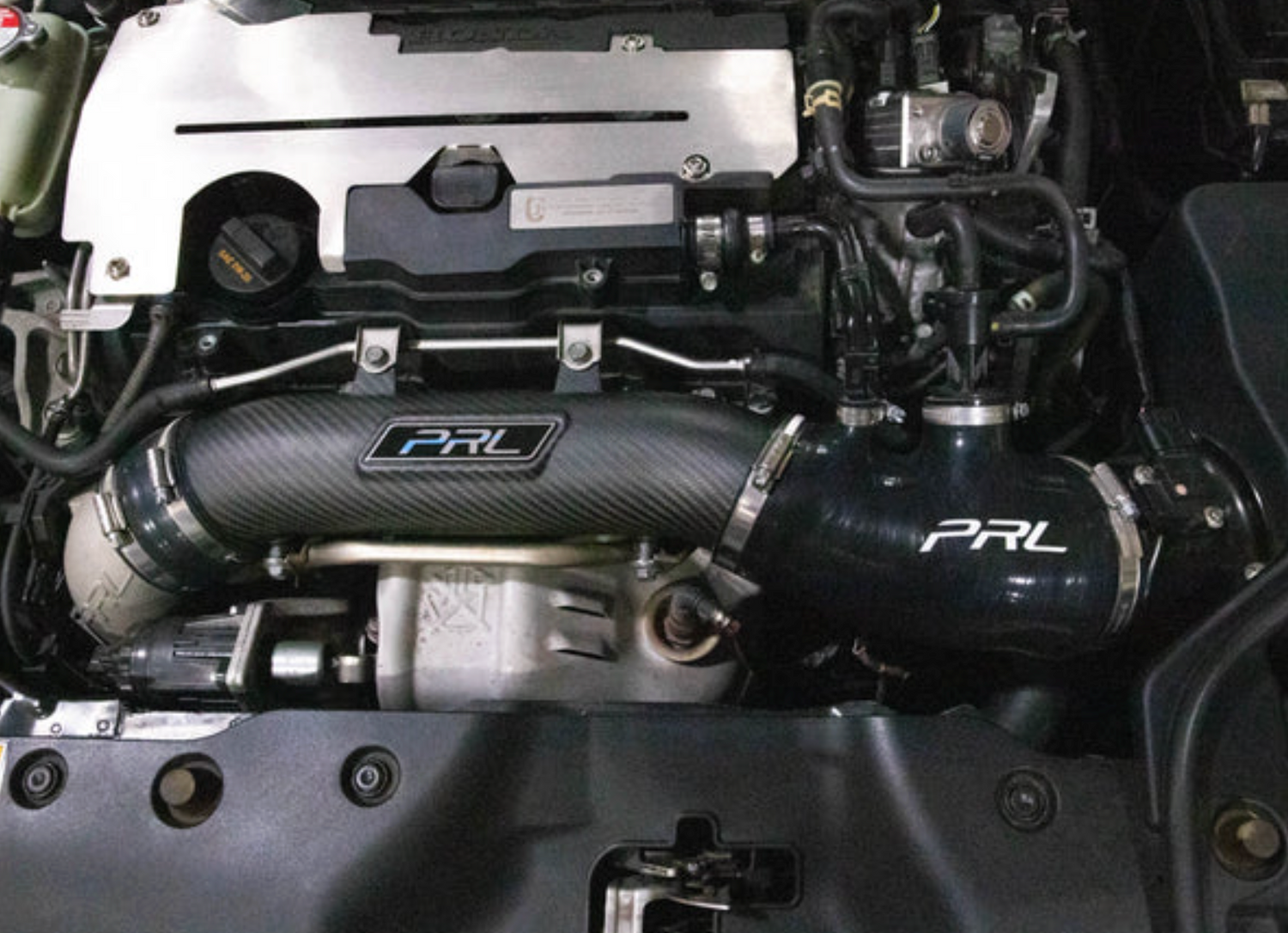

Engineered to push the performance of your FK8 to its peak, the PRL Motorsports Carbon Fiber Turbocharger Inlet Pipe Kit is a bolt-on mod that removes airflow restrictions at the turbocharger inlet, dramatically improving efficiency, throttle response, and turbo spool. With an 80mm OD carbon fiber crossover pipe and a cast aluminum transition inlet, this system is the largest available on the market, offering over 50% more airflow volume compared to stock.

This inlet kit is designed to reduce restriction right before the compressor inlet, the most critical point in the intake path. The result is a dramatic improvement in turbocharger performance, with increased bottom-end power and improved responsiveness across the RPM range.

This system is designed to pair exclusively with PRL’s High Volume Intake System and is compatible with all factory-fitment FK8 turbochargers. No tuning required, just precision fitment, reliable gains, and lightweight performance.

Key Features:

• Largest inlet pipe available for the FK8 platform

• Over 50% increase in airflow volume vs. factory inlet pipe

• Cast aluminum turbo flange transitions smoothly from 64mm ID to 80mm OD carbon tubing

• Maximizes intake system efficiency and improves turbocharger response

• Increases low-end power and boosts turbo spool

• NO ECU calibration required

• ONLY compatible with PRL High Volume Intake System

Construction and Materials:

• Cast 6061 Aluminum Inlet Flange

• Thin-Wall Carbon Fiber Tubing (80mm OD / 78mm ID)

• High-Temp 4-Ply Silicone Couplers

• 304 Stainless Steel Interlocking Worm Clamps

Fitment:

• 2017–2021 Honda Civic Type-R (FK8)

• Fits all variants including RHD and International models

• Compatible with all factory-fitment turbochargers

• ONLY pairs with PRL High Volume Intake System

• DOES NOT fit stock airbox

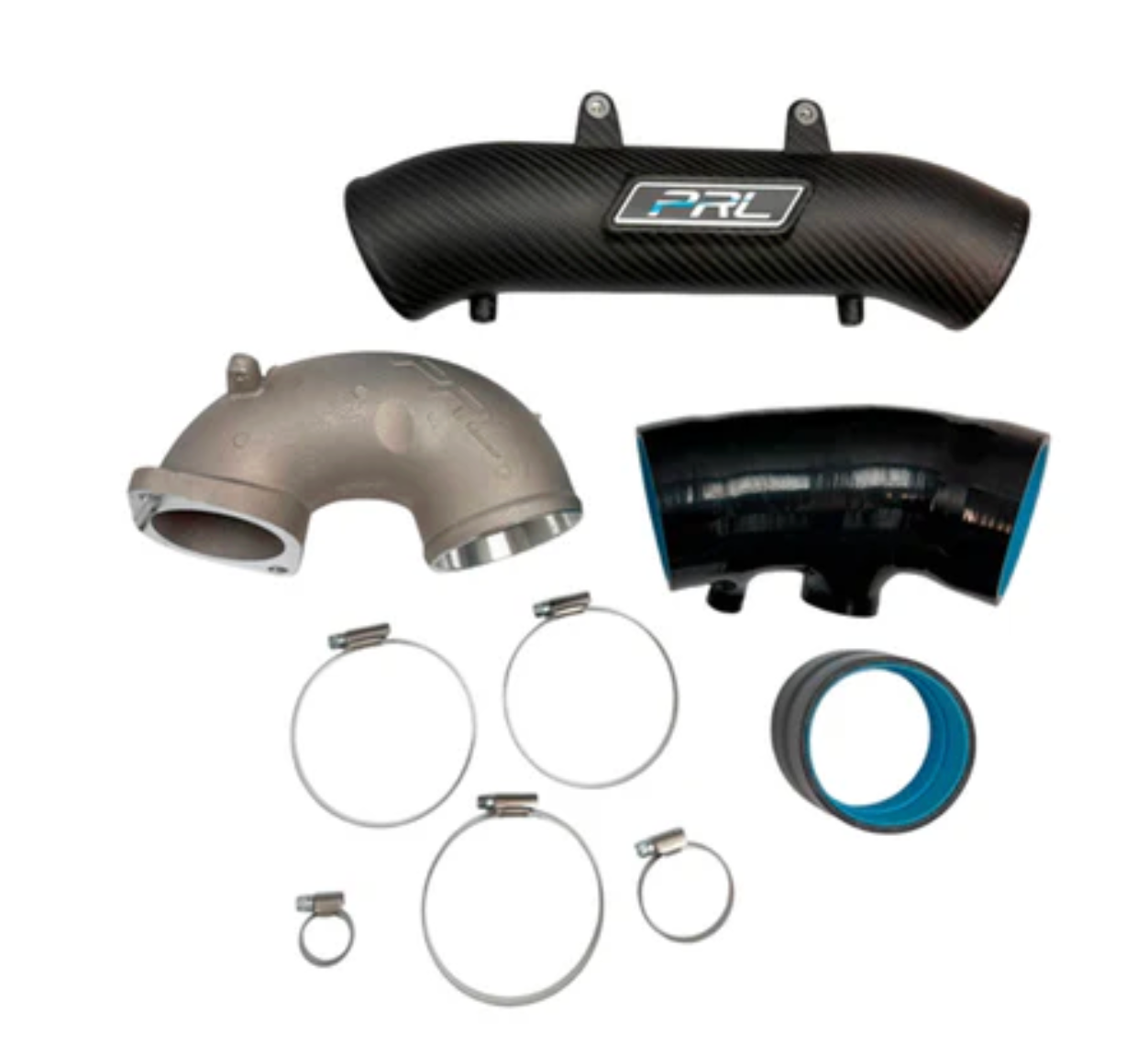

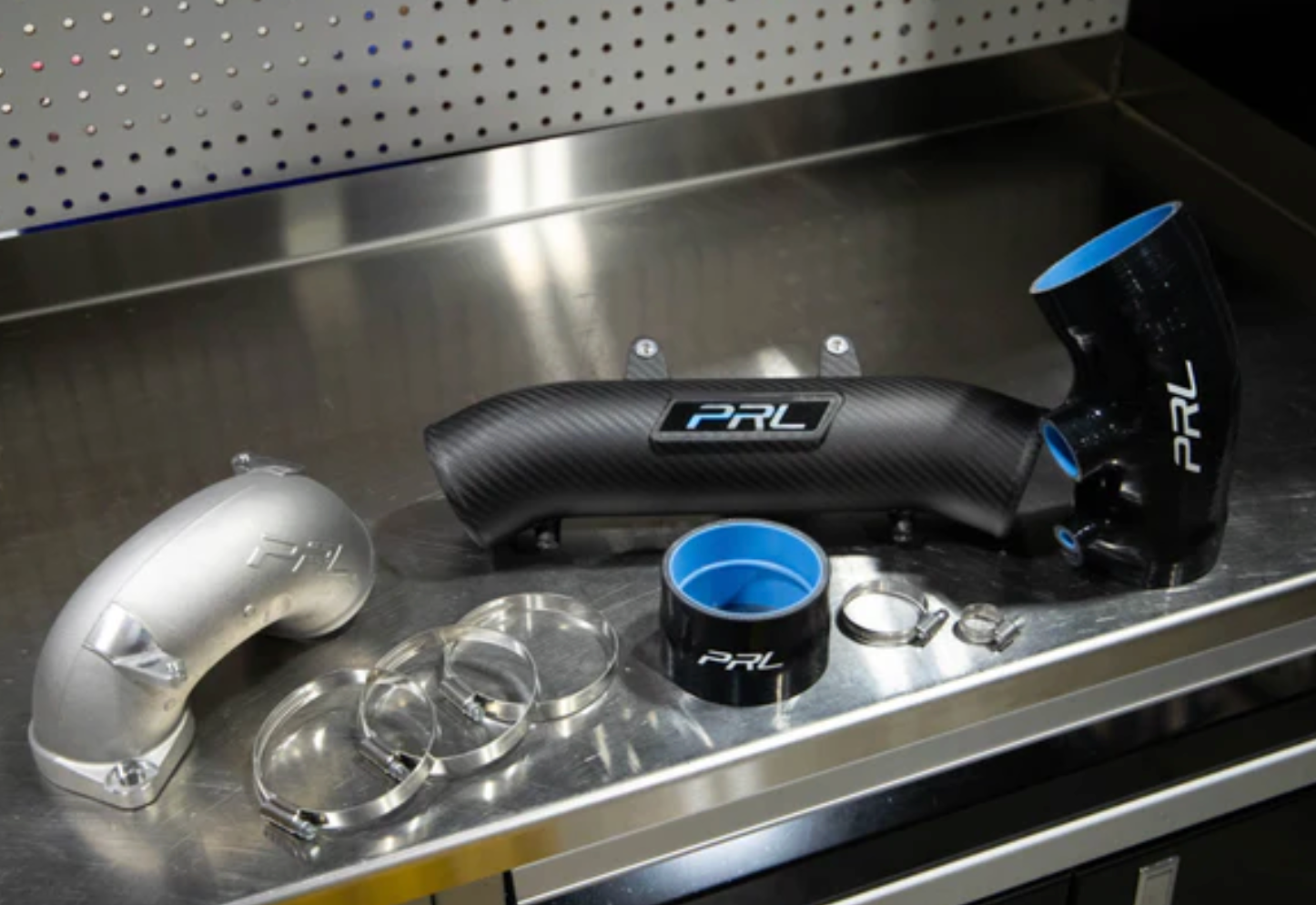

What’s Included:

• (1) Cast Aluminum Inlet Piece

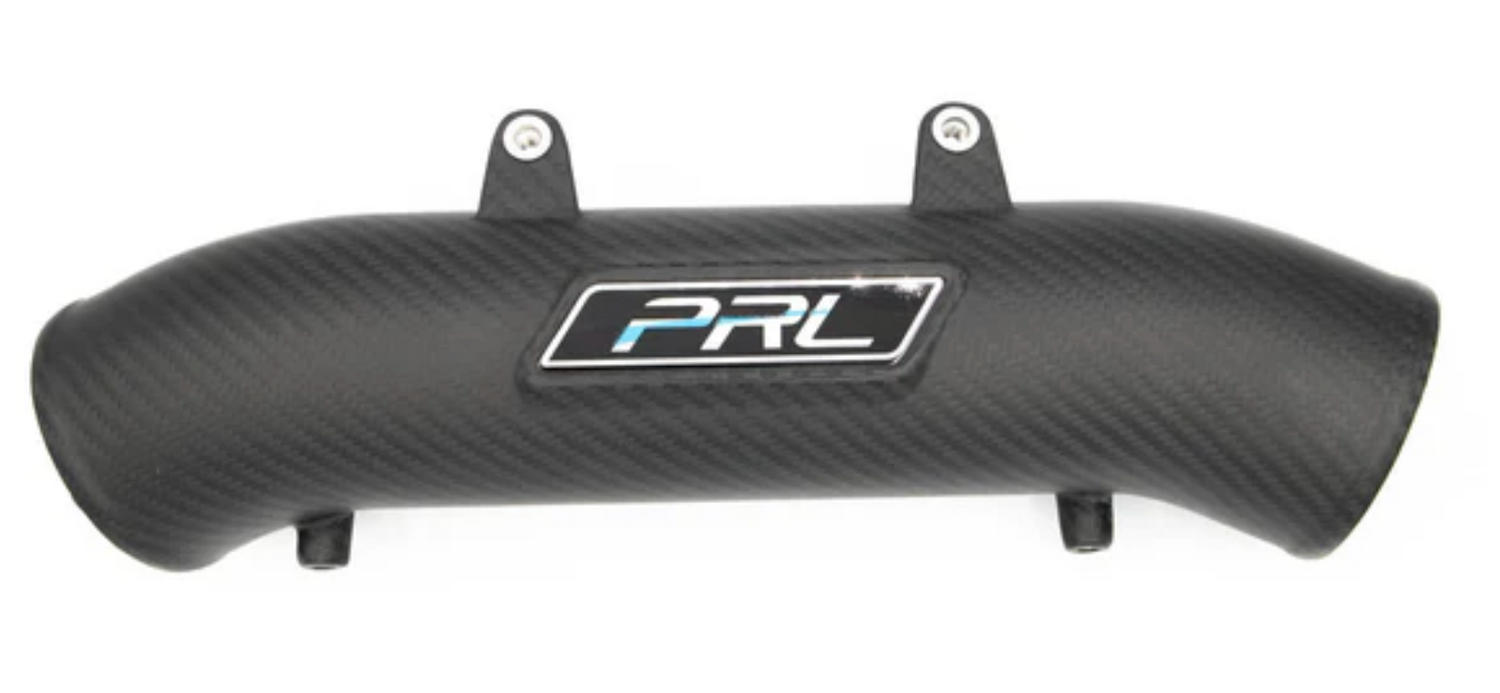

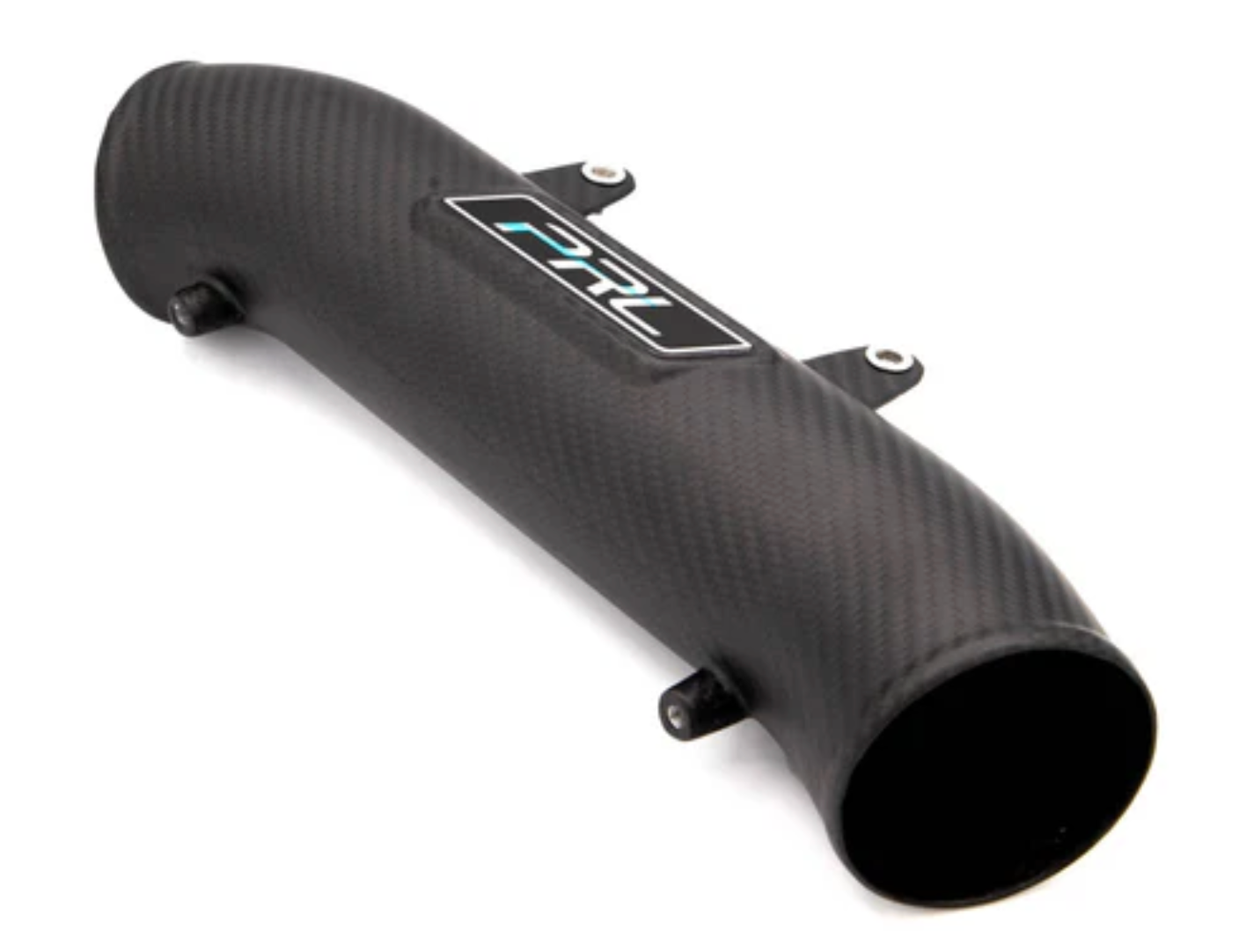

• (1) 80mm OD Carbon Fiber Inlet Pipe

• (2) High-Temp 4-Ply Silicone Couplers

• (6) 304 Stainless Steel Worm Clamps

• Note: HVI customers should reuse the injection-molded EVAP purge fitting included with their intake.
