Compatible:
2016 - 2021 Cadillac ATS-V (3.6L)
2004 - 2021 Cadillac CTS-V (5.7L/6.0L/6.2L)
2006 - 2009 Cadillac STS-V (6.2L)
2012 - 2021 Chevy Camaro ZL1 (6.2L)
2010 - 2021 Chevy Camaro SS (6.2L)
2006 - 2021 Dodge Charger (6.1L/6.2L/6.4L)
2008 - 2021 Dodge Challenger (6.1L/6.2L/6.4L)
2018 - 2021 Dodge Durango SRT (6.4L)
2005 - 2008 Dodge Magnum (6.1L)
2010 - 2015 Hyundai Genesis Coupe (3.8L)
2005 - 2021 Jeep Grand Cherokee (6.1L/6.4L)
2018 - 2021 Jeep Trackhawk (6.2L)
MUST HAVE 4 OR 6-PISTON FRONT CALIPERS
Z23 EVOLUTION SPORT BRAKE UPGRADE KIT
Forget standard, off-the-shelf parts. The Z23 Evolution Sport Brake Upgrade Kit comes with everything you need, from pads, rotors, and premium stainless steel hardware for an easy, bolt-on stopping power upgrade for your daily-driver. Along with increased braking power, our Carbon-Fiber Ceramic brake pads feature a dust and noise-free formula to keep those wheels looking great while you enjoy a quiet ride. The pads combine with Drilled, Slotted, & Zinc-Plated rotors that ensure a cool, smooth ride that protects against rust and corrosion. Give your daily-driver the easy performance upgrade it deserves with the Z23 Evolution Sport Brake Upgrade Kit.
Specs:
| Item | Front | Rear |
|---|---|---|
| Bolt Circle (in) | 4.5 | 4.5 |
| Bolt Circle (mm) | 115 | 115 |
| Diameter (in) | 15.4 | 13.8 |
| Diameter (mm) | 389.9 | 350 |
| Height (in) | 2 | 2.7 |
| Height (mm) | 50 | 68 |
| Hub Hole Diameter (in) | 2.9 | 2.8 |
| Hub Hole Diameter (mm) | 73 | 72 |
| Minimum Thickness (in) | 1.2 | 1 |
| Minimum Thickness (mm) | 31 | 26 |
| Nominal Thickness (in) | 1.3 | 1.1 |
| Nominal Thickness (mm) | 34 | 28 |
| # of Holes OR Studs | 5 | 5 |
| Rotor Construction | HAT | HAT |
| Solid / Vented | VENTED | VENTED |
| Stud / Stud Hole Size | 16.6 | 16.7 |

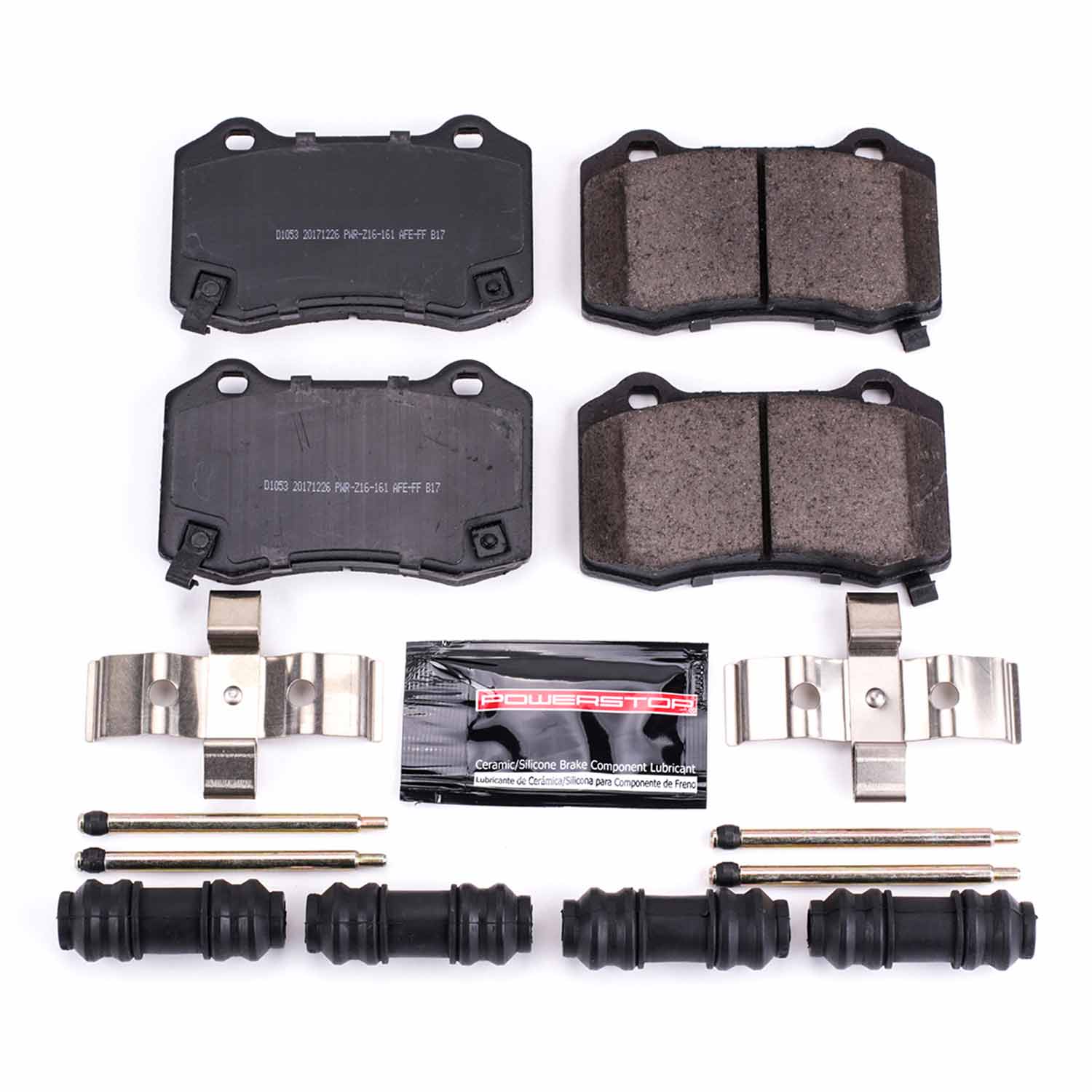

Includes:
Evolution Drilled and Slotted Performance Rotors

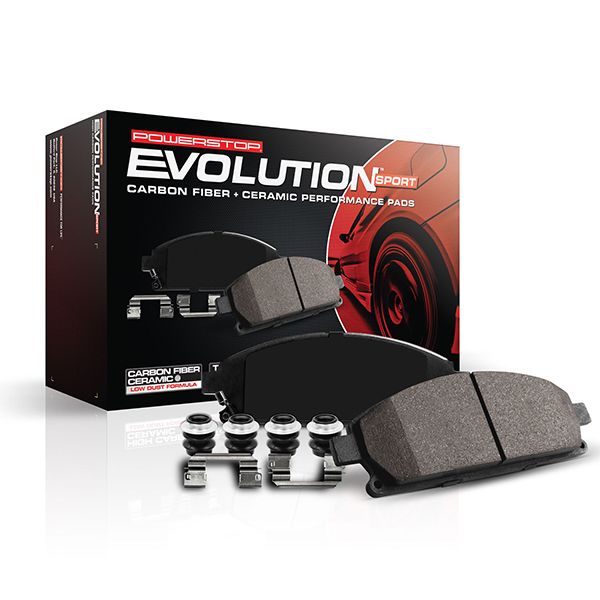

Z26 Extreme Street Performance Carbon-Ceramic Brake Pads

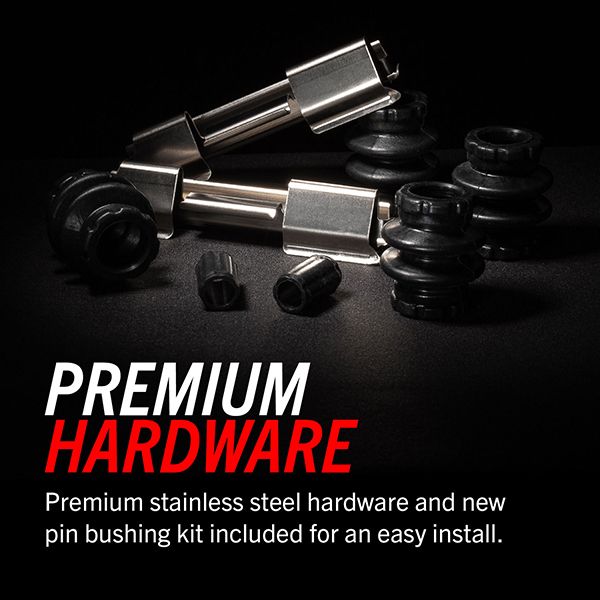

Premium Hardware
Pin Bushing Kit and Hi-Temp Lubricant

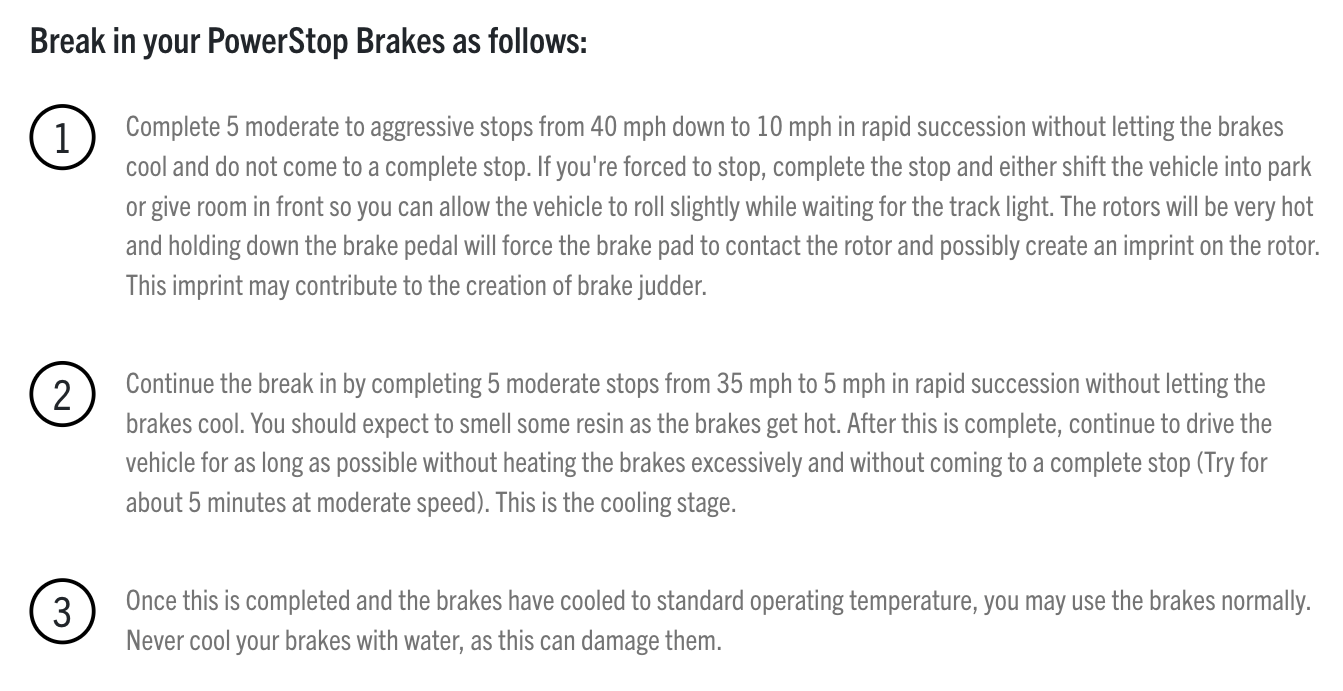

Power Stop® Brake Pad Procedure:
Warranty:
